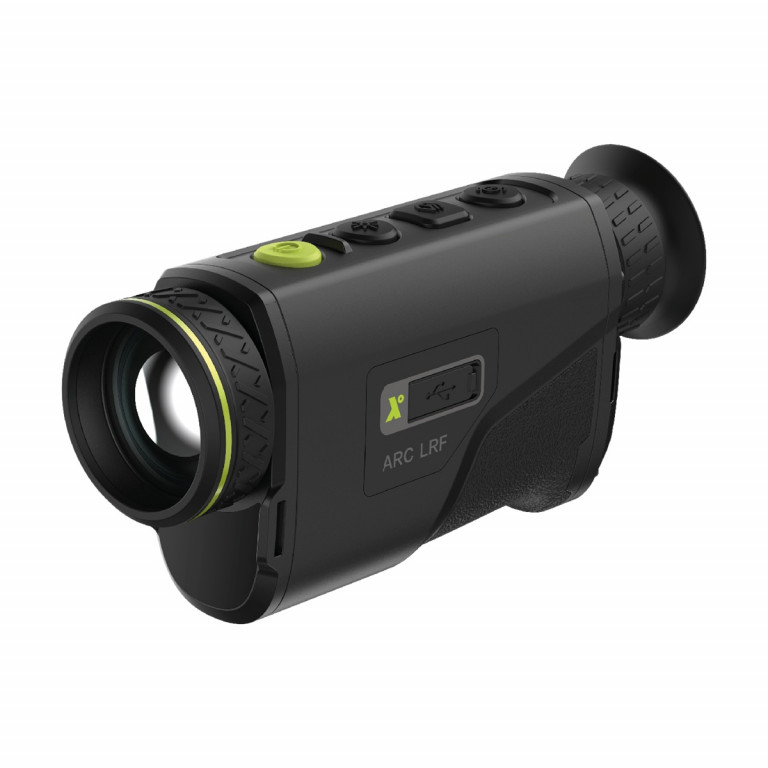

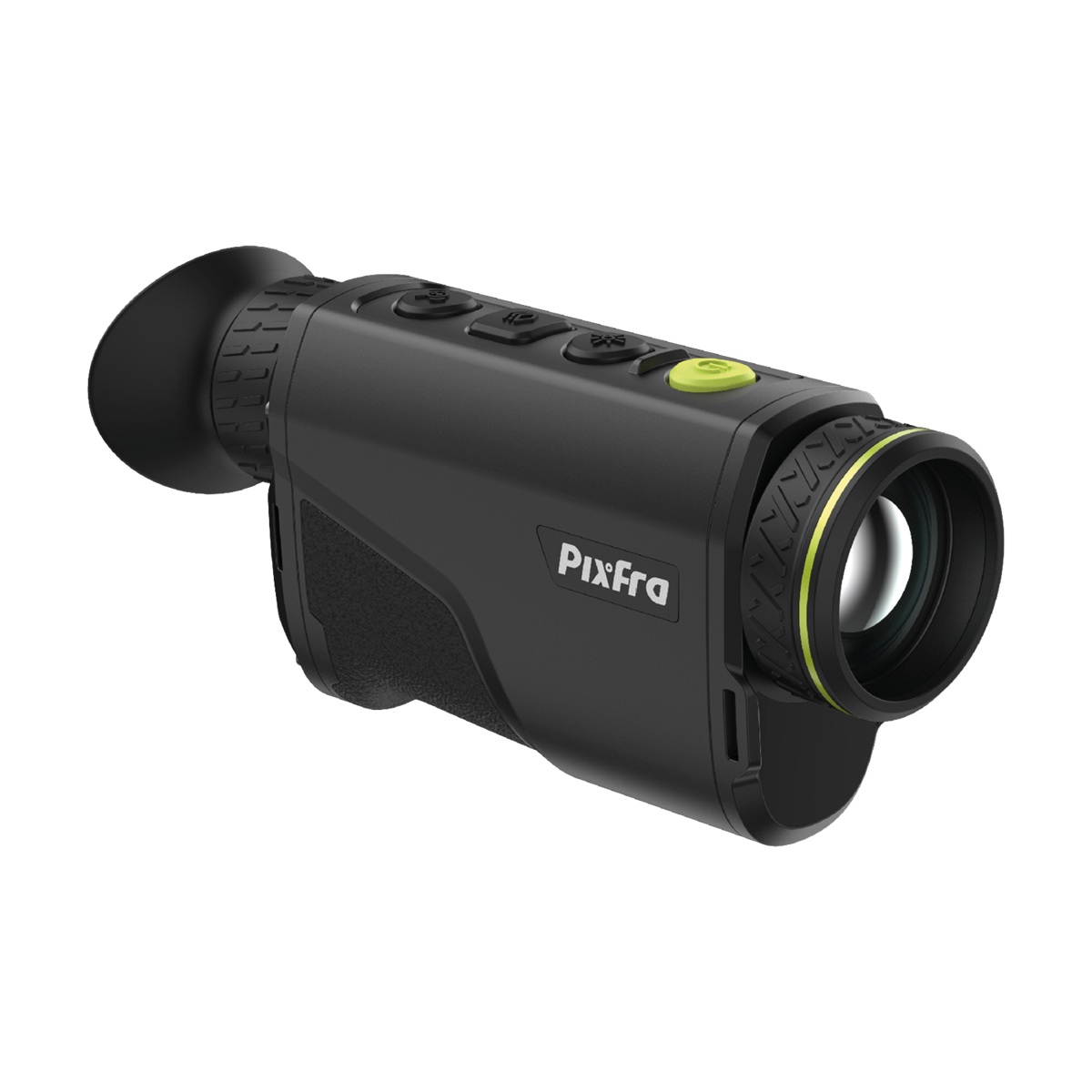

Pixfra™ Arc LRF A435 Pro Thermal Monocular w/Laser Rangefinder (384x288 12µm Detector/35mm Lens)
- High-sensitivity 384×288, 12µm thermal sensor with <20mK NETD for detailed imaging.
- 35mm f1.0 objective lens with 13.2 × 9.9m field of view @ 100m and up to 1800m detection range.
- Integrated laser rangefinder with 1000m measuring distance and ±1m accuracy.
- Lightweight magnesium alloy body with IP67 protection for all-weather reliability.
- Extended runtime with replaceable 18650 batteries, delivering up to 7.5 hours operation.
- Pixfra Outdoor app connectivity for wireless viewing and sharing with up to four users.

The Pixfra™ Arc LRF A435 Pro Thermal Monocular combines long-range detection power with the precision of an integrated laser rangefinder, delivering exceptional performance for demanding observation tasks. Featuring a 384×288, 12µm thermal sensor with <20mK NETD sensitivity and a bright 35mm f1.0 objective lens, the A435 Pro offers remarkable image clarity and a detection range of up to 1800m. Its built-in laser rangefinder provides accurate measurements up to 1000m with ±1m precision, ensuring reliable distance data in the field. Ergonomic enhancements, such as a contoured eyecup and textured grip, make extended use comfortable, while the lightweight magnesium alloy body with IP67 protection guarantees durability in all conditions. With extended battery life, Wi-Fi app connectivity, and a range of viewing features, the Arc LRF A435 Pro is a dependable choice for hunters, wildlife enthusiasts, and professionals who demand powerful thermal imaging with advanced rangefinding capability.
- Detector Type Vanadium oxide uncooled focal plane detector
- Thermal Sensor 384×288, 12µm, <20mK NETD
- Frame Rate 50 Hz
- Lens 35mm f1.0
- FOV (m @ 100 m) 13.2 × 9.9
- Thermal Focus Control Manual
- Close Focus Distance 2 m (6.56 ft)
- Rangefinder Built-in precision laser rangefinder
- Distance Measurement Range 1000 m
- Digital Zoom 1x, 2x, 4x, 8x
- Magnification 3.86x
- Colour Palettes 6 (white hot, black hot, iron red, alarm, amber, emerald)
- Display 0.41″ 1440×1080 OLED
- Storage 32 GB
- Uniformity Correction Auto, manual
- Picture in Picture (PiP) Yes
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5 VDC/1 A, USB Type-C
- Battery Type 1 replaceable 18650 battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 7.5 hours (depending on temperature)
- Environmental Protection IP67
- Product Dimensions 172 × 53 × 78 mm / 6.77″ × 2.09″ × 3.07″ (L × W × H)
- Packaging Dimensions 228 × 120 × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H)
- Weight 375 g
- Powerful Thermal Optics: The 35mm f1.0 lens combined with a <20mK NETD sensor ensures clear and detailed thermal images, even of small heat sources, at impressive distances.
- Enhanced Image Processing: Pixfra’s PIPS 2.0 boosts contrast, minimises noise, and refines image clarity across varying conditions.
- Precision Rangefinding: Seamlessly integrated laser rangefinder provides up to 1000m distance measurements with ±1m accuracy.
- Comfort-Focused Design: Includes a contoured eyecup and textured grip for stable, comfortable handling in all conditions.
- Rugged Yet Lightweight: Magnesium alloy body is impact-resistant yet easy to carry, ensuring reliability during extended observation sessions.
- All-weather Performance: IP67 waterproof and dustproof construction withstands heavy rain, fog, snow, and humidity.
- Reliable Power: Supplied with two replaceable 18650 batteries and USB-C charging, enabling up to 7.5 hours of continuous use.
- App Connectivity: Wirelessly share the monocular’s view with up to four nearby users via the Pixfra Outdoor app.
- Advanced Viewing Features: Includes Picture-in-Picture, Hot Spot Tracking, six colour palettes, and audio recording for flexible observation.
- Pixfra™ Arc LRF A435 Pro Thermal Monocular w/Laser Rangefinder (384x288 12µm Detector/35mm Lens)
- Pixfra 3 Year Warranty
