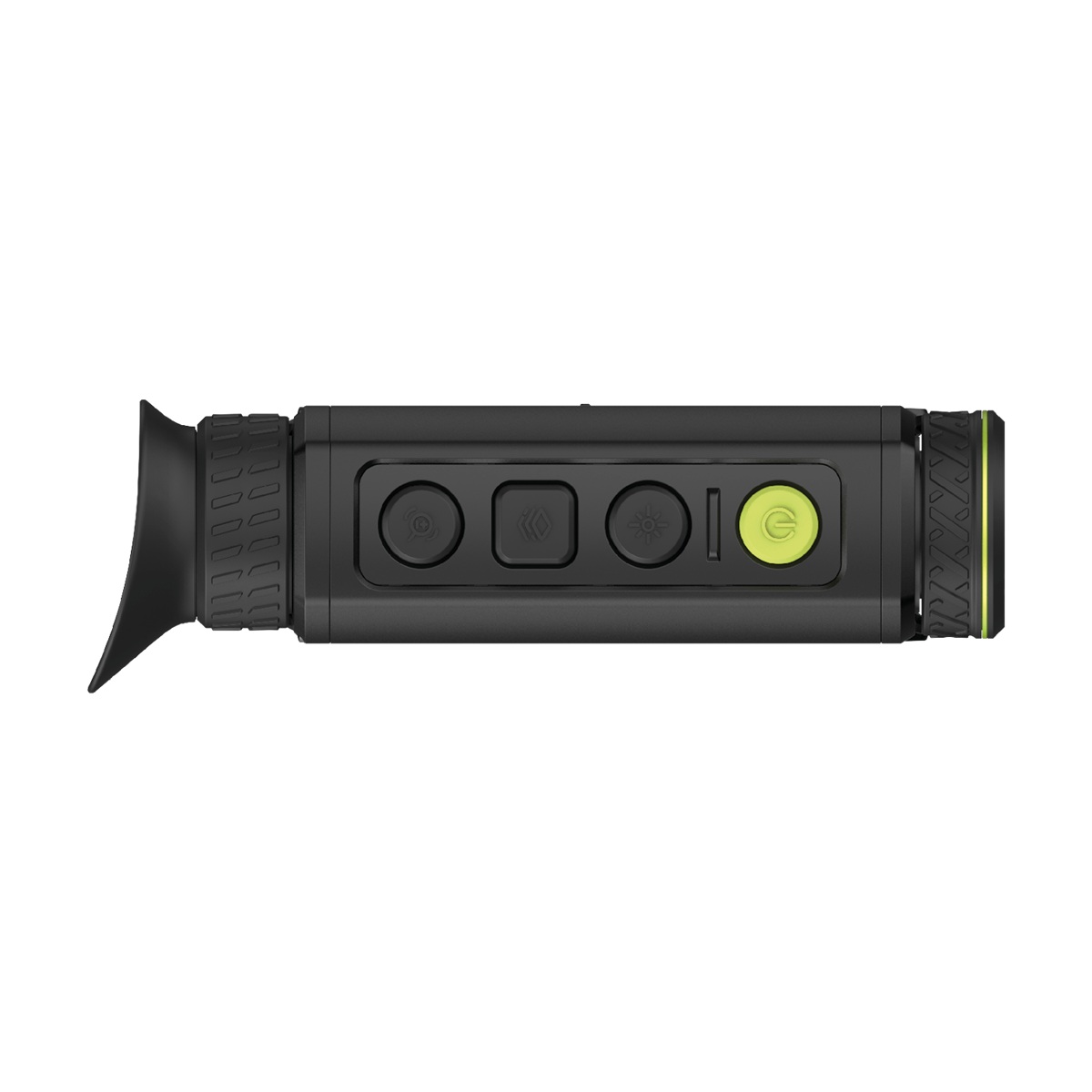

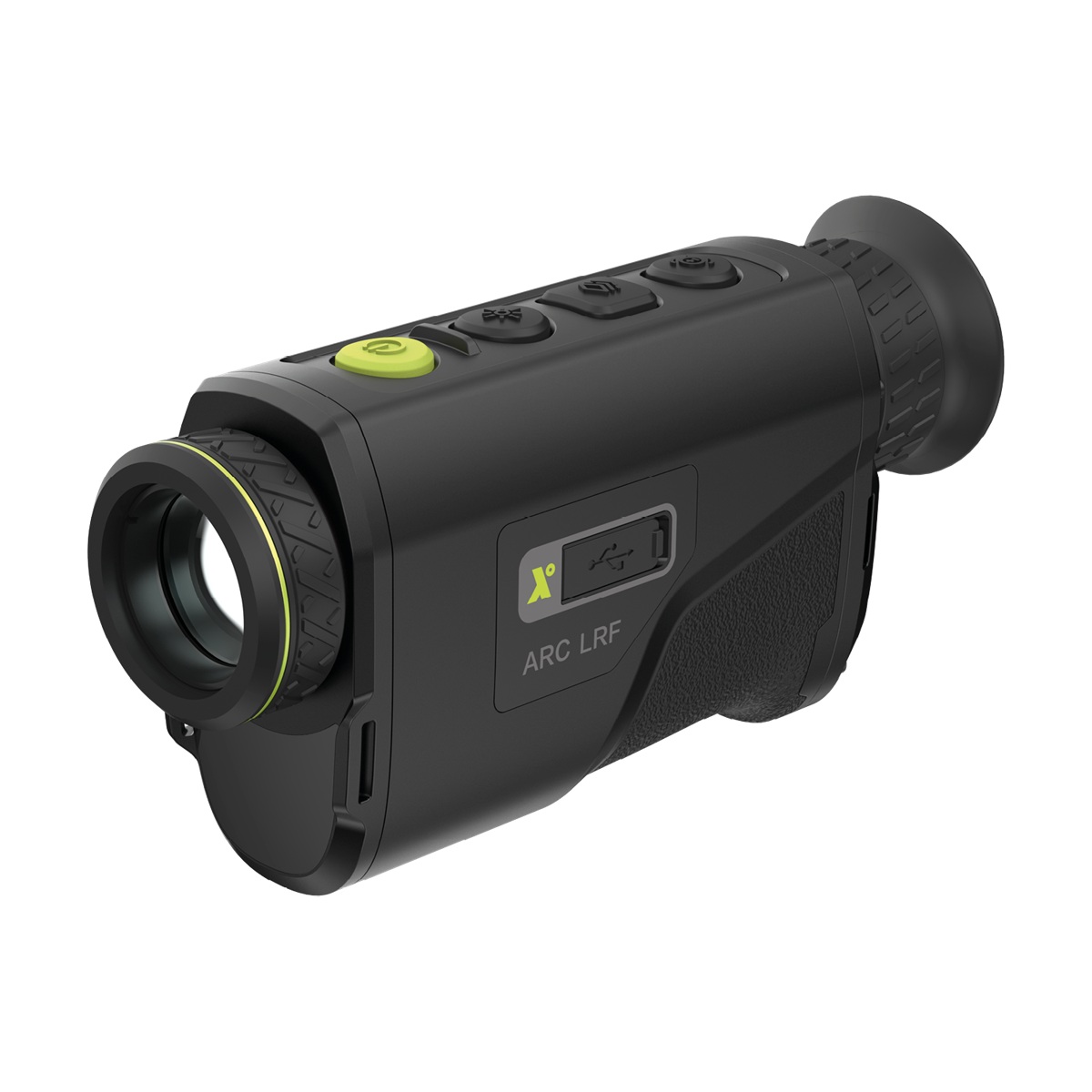

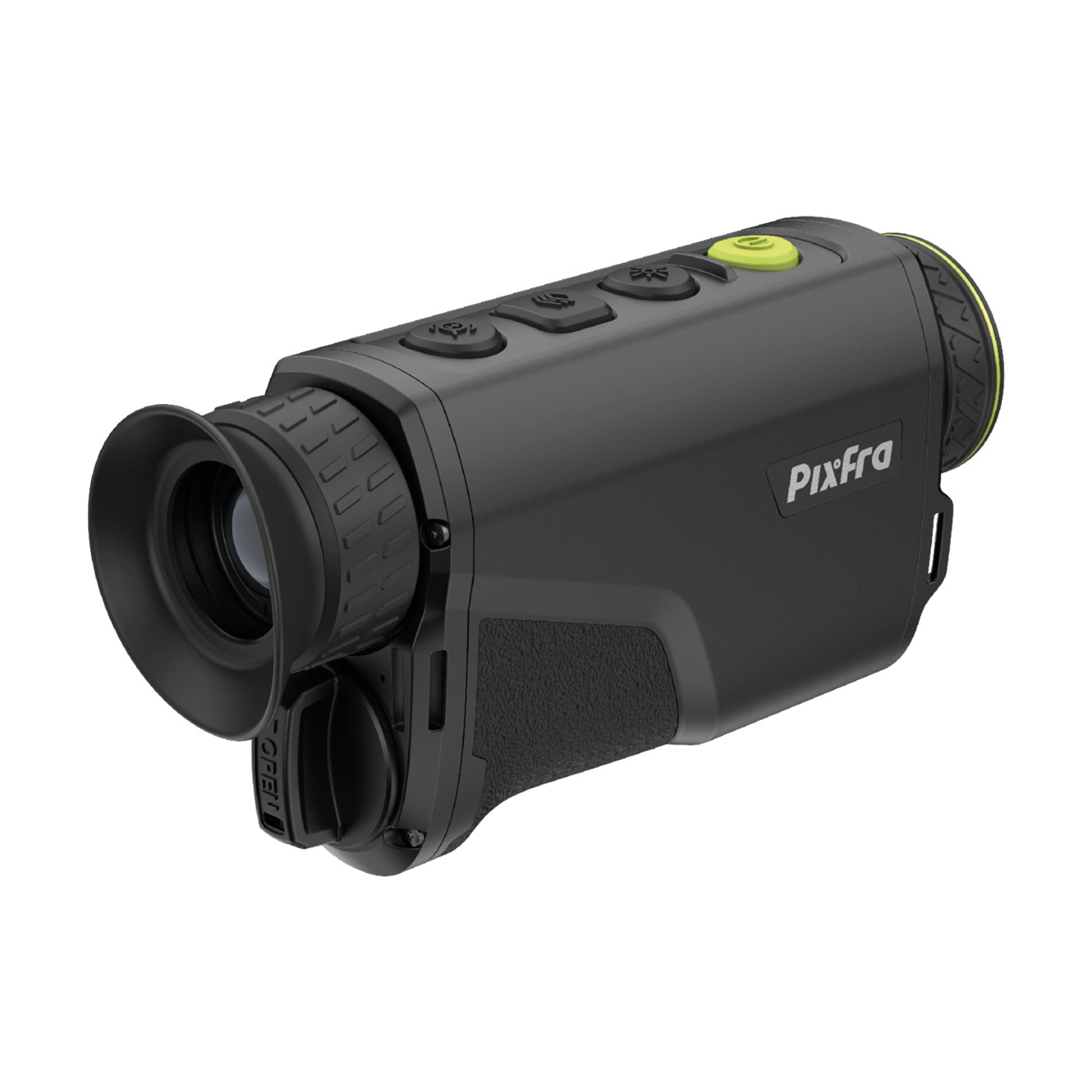

Pixfra™ Arc LRF A425 Pro Thermal Monocular w/Laser Rangefinder (384x288 12µm Detector/25mm Lens)
- 384×288, 12µm thermal sensor with <20mK NETD for outstanding thermal clarity.
- 25mm f1.0 objective lens delivering a wide 18.4 × 13.8m field of view at 100m and up to 1300m detection.
- Integrated laser rangefinder with 1000m measuring range and ±1m accuracy.
- Durable magnesium alloy housing with IP67 weather protection for all-condition use.
- Up to 7.5 hours runtime with replaceable 18650 batteries and USB-C charging.
- App connectivity via Pixfra Outdoor app for wireless sharing with up to four users.
#1451
#1450
#1433
#1441
#1439
The Pixfra™ Arc LRF A425 Pro Thermal Monocular delivers powerful thermal imaging performance combined with the precision of an integrated laser rangefinder. Equipped with a sensitive 384×288, 12µm sensor and <20mK NETD rating, alongside a bright 25mm f1.0 objective lens, this monocular achieves crisp, high-contrast imaging with a detection range of up to 1300m. Its seamlessly integrated laser rangefinder offers accurate distance measurements up to 1000m with ±1m precision, ensuring reliable data collection in the field. Designed for comfort, the A425 Pro features ergonomic upgrades including a contoured eyecup and textured grip, while its rugged magnesium alloy housing with IP67 protection ensures dependable operation in all weather conditions. With long-lasting battery life, wireless app connectivity for group viewing, and practical observation tools, the A425 Pro is the ideal thermal monocular for hunters, wildlife enthusiasts, and professional users who demand clarity, accuracy, and durability.
- Detector Type Vanadium oxide uncooled focal plane detector
- Thermal Sensor 384×288, 12µm, <20mK NETD
- Frame Rate 50 Hz
- Lens 25mm f1.0
- FOV (m @ 100 m) 18.4 × 13.8
- Thermal Focus Control Manual
- Close Focus Distance 2 m (6.56 ft)
- Rangefinder Built-in precision laser rangefinder
- Distance Measurement Range 1000 m
- Digital Zoom 1x, 2x, 4x, 8x
- Magnification 2.76x
- Colour Palettes 6 (white hot, black hot, iron red, alarm, amber, emerald)
- Display 0.41″ 1440×1080 OLED
- Storage 32 GB
- Uniformity Correction Auto, manual
- Picture in Picture (PiP) Yes
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5 VDC/1 A, USB Type-C
- Battery Type 1 replaceable 18650 battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 7.5 hours (depending on temperature)
- Environmental Protection IP67
- Product Dimensions 168 × 50 × 78 mm / 6.61″ × 1.97″ × 3.07″ (L × W × H)
- Weight 370 g
- Powerful Thermal Performance: Combines a high-sensitivity <20mK NETD sensor with a 25mm f1.0 lens for enhanced long-range detection and clarity.
- Enhanced Image Processing: Pixfra’s PIPS 2.0 reduces noise, sharpens contrast, and ensures crisp imaging in all environments.
- Integrated Rangefinder: Seamlessly built-in laser rangefinder provides precise 1000m distance readings for informed decision-making.
- Ergonomic Design: Includes a contoured eyecup and textured rubber grip for comfortable and secure handling during long sessions.
- Lightweight & Robust: Magnesium alloy body balances portability with rugged durability, resistant to everyday knocks and bumps.
- Weather Resistant: IP67 protection ensures reliable operation in heavy rain, fog, snow, and high humidity.
- Long-lasting Observation: Two replaceable 18650 batteries supply extended operation with secure, quick-swap battery access.
- Connectivity & Sharing: Wi-Fi connection with the Pixfra Outdoor app allows real-time sharing with up to four users within 20m.
- Practical Viewing Modes: Features Picture-in-Picture, Hot Spot Tracking, six colour palettes, and audio recording for versatile use.
- Pixfra™ Arc LRF A425 Pro Thermal Monocular w/Laser Rangefinder (384x288 12µm Detector/25mm Lens)
What is the maximum detection and laser rangefinder (LRF) distance for the Arc A425 Pro?
The A425 Pro offers two distinct measurement ranges depending on whether you are spotting heat signatures or measuring distances:
- Thermal Detection Range: It can detect large heat sources (such as a human or large game animal) up to 1,300 meters away, powered by its 25mm f1.0 lens and highly sensitive 384x288 thermal sensor.
- Laser Rangefinder (LRF) Range: The seamlessly integrated LRF can accurately measure the physical distance of a target up to 1,000 meters away with an impressive precision of ±1 meter.
How long does the battery last, and can I swap it in the field?
The monocular provides excellent battery longevity and field practicality. It has an operating life of up to 7.5 hours per charge (depending on environmental temperatures and whether high-drain features like WiFi or heavy LRF usage are active). Crucially, it uses a replaceable, non-proprietary 18650 Li-ion battery system. The device ships with two 18650 batteries and a dual charger, allowing you to use a quiet twist cap to quickly swap out a dead battery for a fresh one while out in the field.
Can I stream or share the thermal view with other people?
Yes. The Arc LRF A425 Pro features built in WiFi functionality that pairs with the Pixfra Outdoor mobile app. Through the app, you can wirelessly stream live footage from your monocular to up to four different smartphones or tablets simultaneously (within a 20-meter range). This is perfect for group hunting or wildlife observation trips, as everyone can view the environment without needing to pass the physical device around.
What color palettes and image enhancement modes does the device feature?
To suit different weather conditions, terrains, and environments, the A425 Pro comes equipped with 6 distinct color palettes: White Hot, Black Hot, Iron Red, Alarm, Amber, and Emerald. Additionally, it utilizes the PIPS 2.0 (Pixfra Image Processing System) software, which automatically minimizes environmental noise, sharpens contrast, and clarifies fine anatomical details. It also features a Picture in Picture (PiP) mode to see a zoomed in target while maintaining a wide field of view, and a Hot Spot Trace mode to automatically track the highest temperature in the frame.
Is the monocular durable enough to handle heavy rain or accidental drops?
Yes, it is built for rugged outdoor environments. The core body shell is constructed from a lightweight but highly durable magnesium alloy designed to withstand everyday bumps and rough handling. It boasts an IP67 weather-resistance rating, meaning it is fully sealed against dust ingress and can be exposed to heavy rain, dense fog, snow, high humidity, or even temporary immersion in water without sustaining damage.
