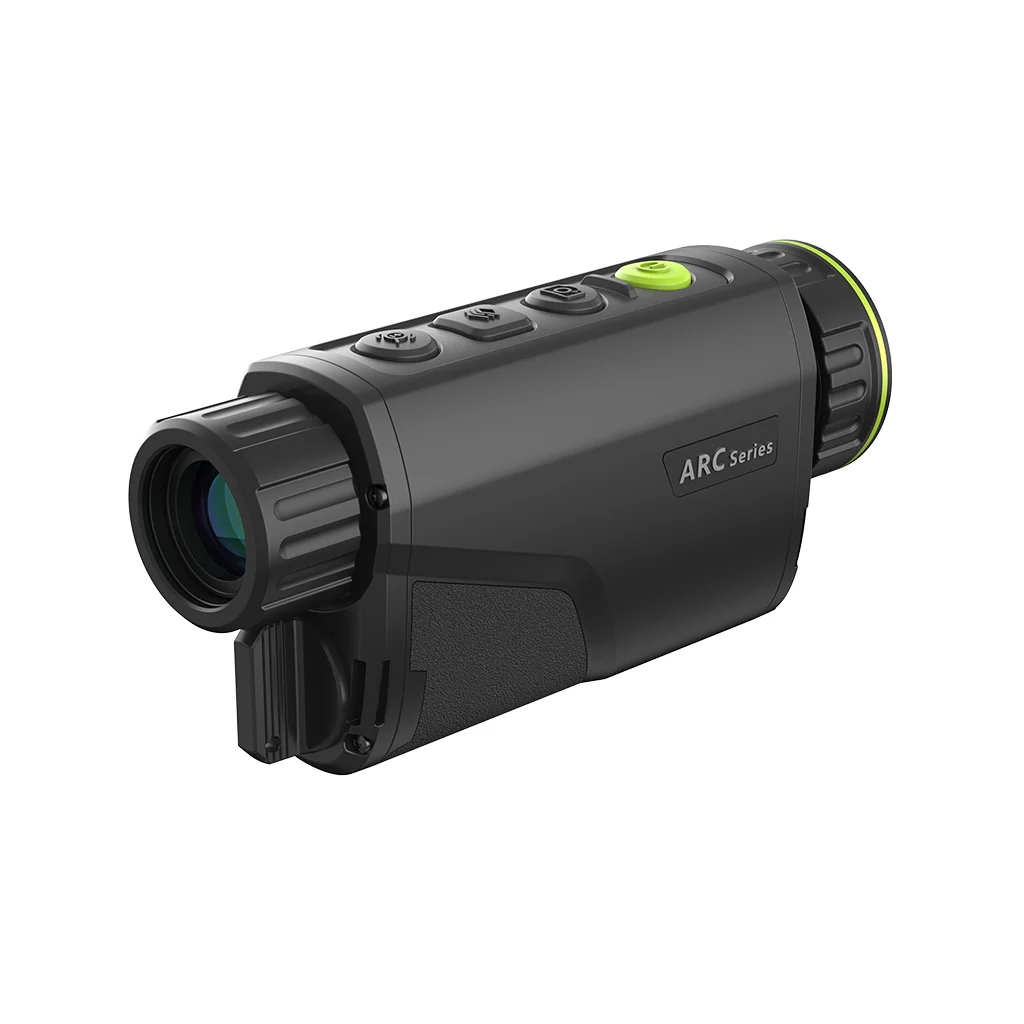

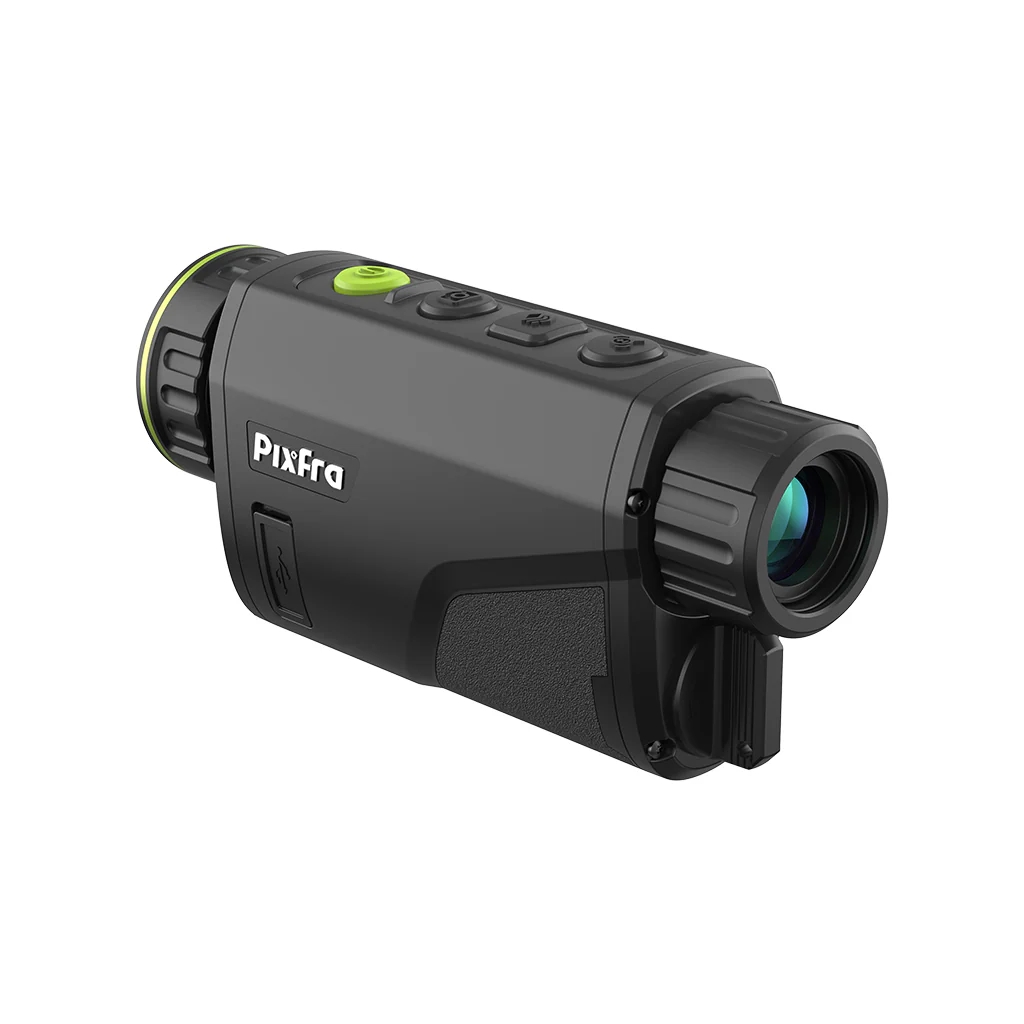

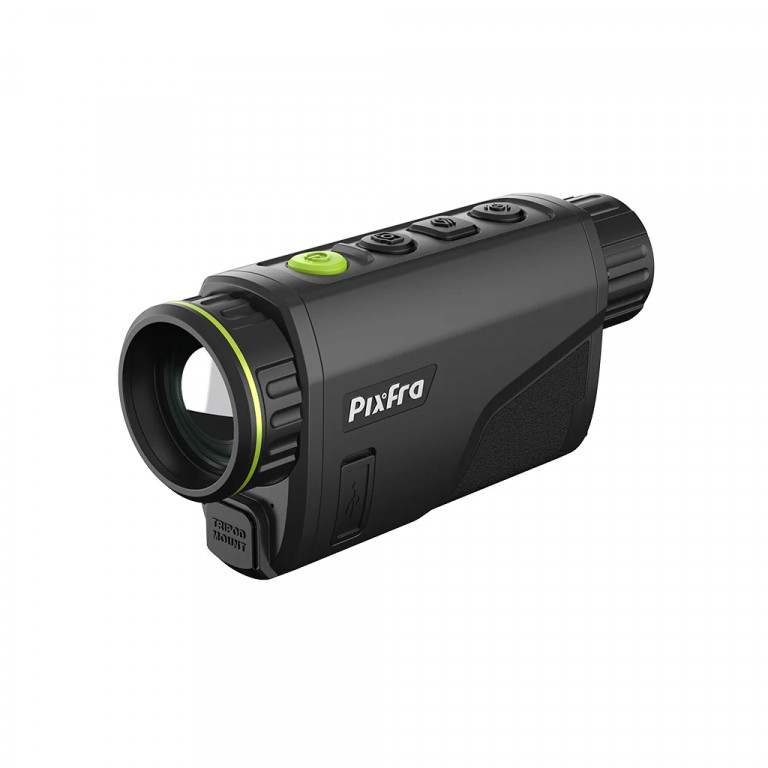

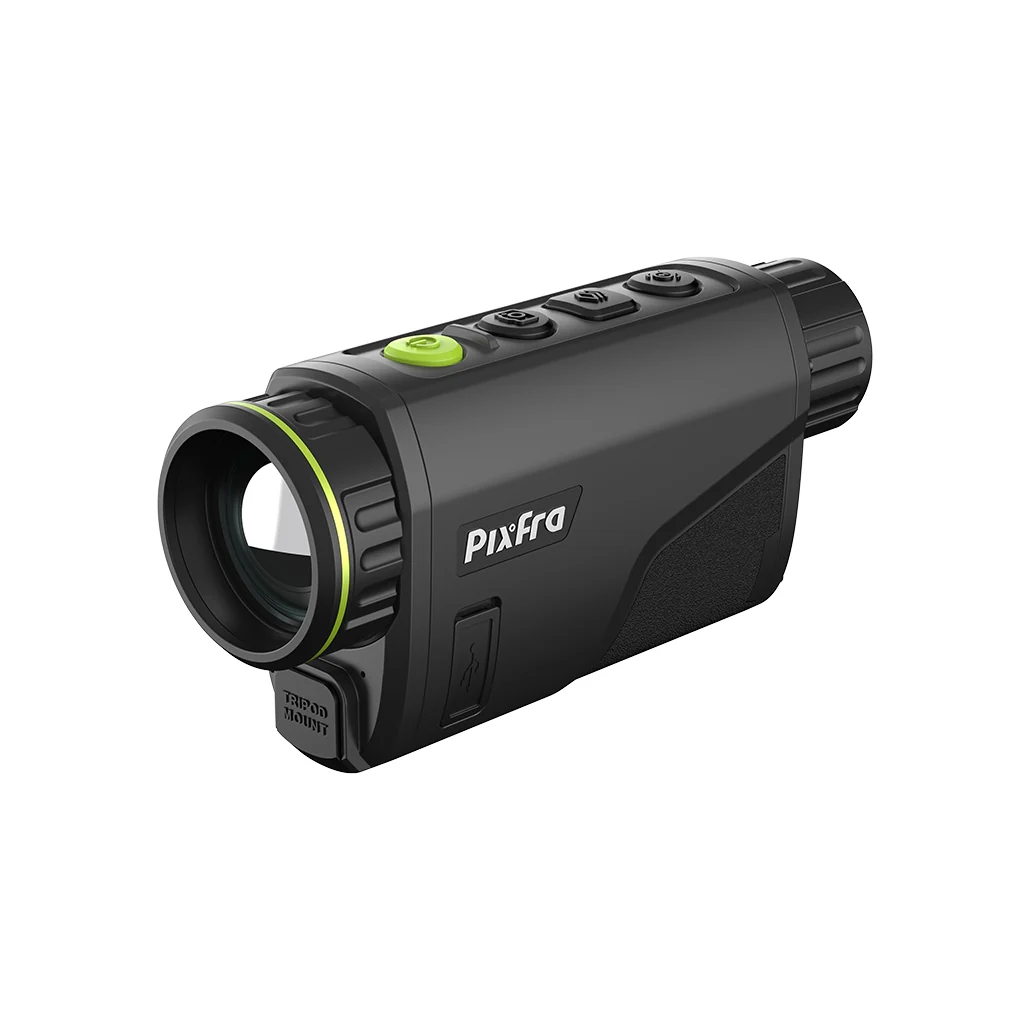

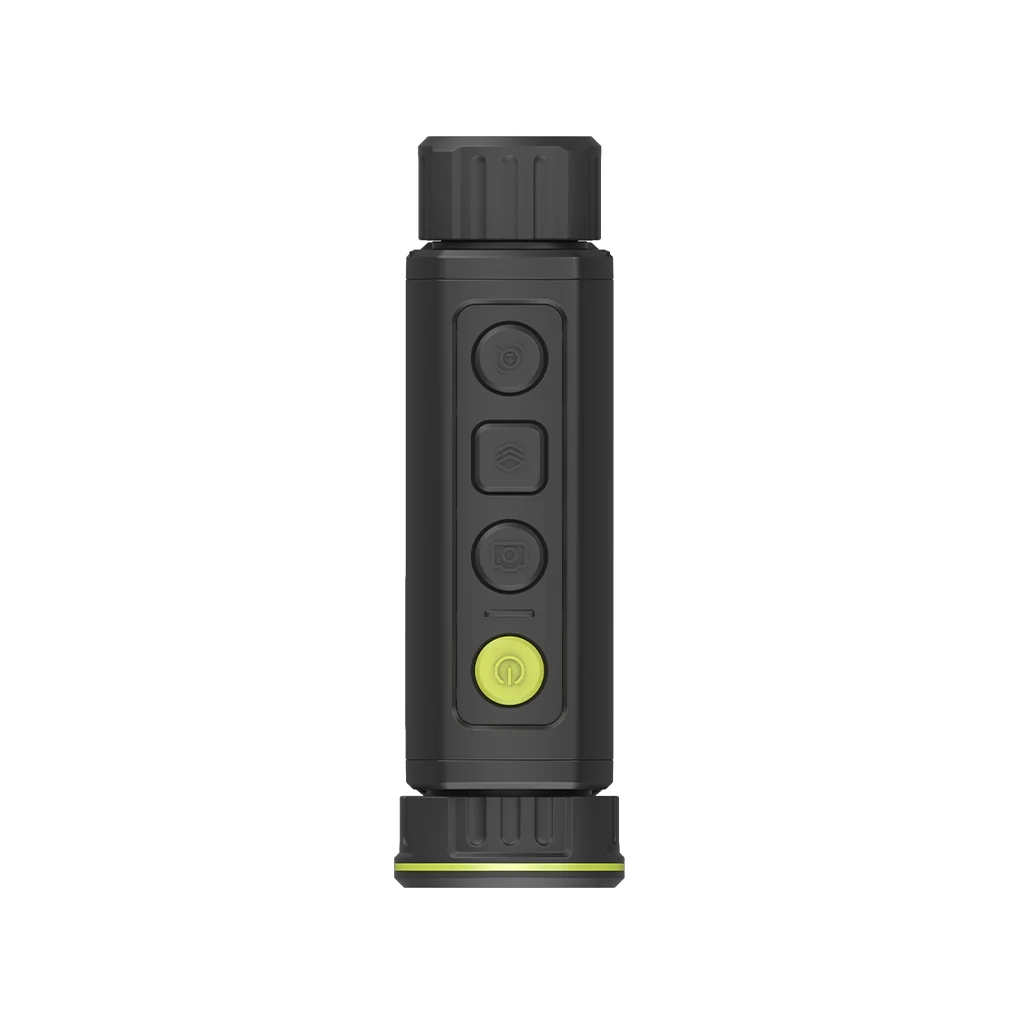

Pixfra ARC A635 Handheld Thermal Monocular - 640x512/12µm/35mm 30mk

SKU#PIX-PFI-A635 Pixfra

Pixfra ARC A635 Handheld Thermal Monocular - 640x512/12µm/35mm 30mk

Name: Pixfra ARC A635 Handheld Thermal Monocular - 640x512/12µm/35mm 30mk
Brand: Pixfra
Price: 899.99 GBP
Availability: InStock

8 in stock

The Pixfra ARC A635 Handheld Thermal Monocular combines powerful thermal imaging with a compact design. Featuring a 640×512 resolution, 12µm thermal sensor, and 1800m detection range, it provides exceptional clarity on a 1440×1080 OLED display. With multiple color palettes, video and audio recording, and a 12-hour battery life, it's ideal for extended use. The device also supports Wi-Fi screen sharing with up to four devices. Its durable, IP67 waterproof casing ensures reliable performance in extreme temperatures and conditions.

VIEW PRODUCT INFO / SPECS

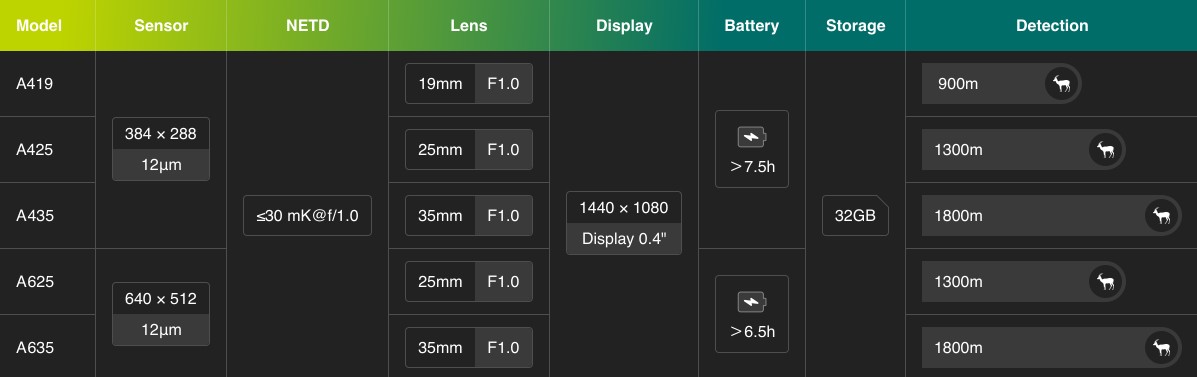

Select Model: A635 - 640x512/12µm/35mm 30mk

A419 - 384x288/12µm/19mm 30mk

A425 - 384x288/12µm/25mm 30mk

A435 - 384x288/12µm/35mm 30mk

A625 - 640x512/12µm/25mm 30mk

A635 - 640x512/12µm/35mm 30mk

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The Pixfra ARC A635 Handheld Thermal Monocular is a powerful and compact device designed for those who need high-quality thermal imaging in the field. Equipped with a 640×512 resolution, 12µm thermal sensor and a <30mK NETD, the A635 provides unparalleled sensitivity, making it capable of detecting heat signatures up to 1800 meters away. Whether you're tracking wildlife, surveying a vast landscape, or conducting fieldwork, the A635 ensures you don’t miss a thing, offering crisp, clear thermal images displayed on a vibrant 1440×1080 OLED screen.

This monocular is designed for ease of use and extended observation. With its 35mm f1.0 objective lens, the A635 delivers stunning thermal optics, even in challenging environments. The device boasts a wide array of useful features such as multiple colour palettes—ranging from white hot to emerald—helping you interpret thermal data in various conditions. A built-in video recorder allows you to capture up to two hours of thermal footage, while the ability to record audio ensures you can document your observations in full. The Arc A635’s digital zoom (1x, 2x, 4x, 8x) allows you to get closer to your target without losing clarity, making it an ideal tool for precise fieldwork.

One of the standout features of the Pixfra Arc A635 is its ability to connect with up to four smart devices via the Pixfra app, allowing multiple users to view the same image simultaneously. This makes the Arc A635 perfect for group observations, ensuring that everyone can stay informed without the hassle of crowding around the monocular. The app is free to download on both Android and iOS, adding to the device's user-friendly appeal.

Built with comfort and portability in mind, the Pixfra A635 is lightweight at just 340g, reducing hand fatigue during extended use. Its ergonomically designed body ensures that the monocular is easy to handle and operate for long periods. Thanks to a robust magnesium alloy casing, the A635 can withstand rough handling and impacts, while its IP67 rating ensures it is waterproof and dustproof, ready for any weather condition. The device operates in extreme temperatures from –30 °C to +50 °C, making it suitable for use in a wide range of environments.

Powering the A635 is a pair of rechargeable 18650 lithium batteries that offer up to 12 hours of operation (6 hours per battery), ensuring you can use the monocular for extended periods without interruption. It also features a convenient USB-C charging port, making recharging quick and easy. The monocular’s internal 32 GB EMMC storage allows for the recording of both video and still images, ensuring you won’t miss any important details during your observations.

SPECS

Thermal Sensor 640×512 resolution, 12µm, <30mK NETD
Detector Type Vanadium oxide uncooled focal plane detector
Spectral Range 8μm – 14μm
Frame Rate 50 Hz
Objective Lens 35mm f1.0
Field of View Horizontal
Detection Range Up to 1800 meters
Magnification 2.36x
Colour Palettes 6 (White Hot, Black Hot, Iron Red, Alarm, Amber, Emerald)
Close Focus Distance 2 meters
Digital Zoom 1x, 2x, 4x, 8x
Display Screen 0.41-inch OLED, 1440 x 1080 resolution
Diopter Adjustment -4D ~ +5D
Eye Relief 15mm
Uniformity Correction Auto; Manual
Storage Built-in 32 GB EMMC
Video Recording Yes, up to 2 hours per clip
Audio Recording Yes
Hot Spot Trace Yes
Wi-Fi Yes, for app connectivity
Power Supply 5V Type-C
Battery Type 1 rechargeable 1850 lithium battery
Battery Capacity 3,200 mAh
Battery Operating Life Up to 6 hours per battery
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Protection IP67 waterproof and dustproof rating
Product Dimensions 151.8 mm × 42.3 mm × 74.3 mm (5.98″ × 1.67″ × 2.93″)
Net Weight ≤340 g (excluding battery weight)

FEATURES

Thermal Sensor: 640×512 resolution, 12µm pixel pitch, and <30mK NETD for exceptional sensitivity and accurate heat detection.
Objective Lens: 35mm f1.0 objective lens for superior image clarity and light-gathering capabilities.
Detection Range: Capable of detecting heat signatures up to 1800 meters, allowing long-range observation.
Display: 1440×1080 OLED full-color display for clear, crisp thermal images.
Multiple Color Palettes: Includes six color palettes (white hot, black hot, iron red, alarm, amber, emerald) for better visualization in various conditions.
Digital Zoom: 1x, 2x, 4x, and 8x digital zoom for enhanced image details at different magnifications.
Close Focus Distance: Can focus on objects as close as 2 meters, ensuring versatile viewing in different environments.
Video and Audio Recording: Built-in video recording (up to 2 hours per clip) with audio capture for comprehensive documentation of observations.
Wi-Fi Sharing: Share your thermal view with up to four devices via the Pixfra app, available for both Android and iOS.
Battery Life: Includes two 18650 rechargeable lithium batteries, providing up to 6 hours of operation per battery, with a combined total of up to 12 hours of use.
Ergonomic Design: Lightweight and ergonomically designed body for comfortable, prolonged use without fatigue.
Durability: Magnesium alloy casing for impact resistance and IP67 waterproof rating for protection against dust and water ingress.
Temperature Range: Operates in extreme temperatures, from –30°C to +50°C (–22°F to +122°F), ensuring reliable performance in diverse weather conditions.
Storage: Internal 32GB EMMC storage for video, images, and data recording.
Power Supply: Powered by a 5V Type-C charging port for quick recharging and convenience.
Operating System: Supports a frame rate of 50Hz for smooth video capture and analysis.
Diopter Adjustment: Adjustable diopter (-4D to +5D) for a customized viewing experience.
Protection: IP67 rated for water and dust resistance, ensuring the device can withstand harsh environments.
Convenient Accessories: Comes with an L-shaped tripod adapter, rubber eyecup, carry case, carry pouch, user manual, and lens cleaning cloth for added convenience and protection.

WHAT'S IN THE BOX

Pixfra ARC A635 Handheld Thermal Monocular - 640x512/12µm/35mm 30mk
2 x 18650 Li-ion Batteries
USB-C Dual Bay Charger
L-Shaped Tripod Adapter
Rubber Eyecup
Carry Case
Carry Pouch
User Manual
Lens Cleaning Cloth

FREQUENTLY ASKED QUESTION(S)

Can I use the Pixfra Arc A635 thermal monocular during the daytime, or is it night only?

Unlike night vision devices that rely on ambient light amplification and can be damaged by daylight, the Pixfra Arc series uses thermal imaging. Because it detects heat signatures rather than light, you can safely and effectively use it in broad daylight, complete darkness, or challenging visibility conditions like fog and light foliage.

How does the "Share the View" screen-sharing feature work, and do my friends need their own devices?

The Arc series features built in Wi-Fi that connects directly to the free Pixfra app (available for iOS and Android). It allows you to stream your live thermal view to up to four smart devices simultaneously as long as they are within 20 meters of the monocular. This means a group can observe a specific target together in real time without having to pass the physical monocular around.

Can I record videos and take photos directly on the device?

Yes. The Arc A635 has an integrated video and photo recorder. It also features built in audio recording, meaning you can capture the environmental sounds or narrate your observations as they happen. All files are saved to the device's generous internal storage and can be transferred later via USB-C or the mobile app.

What kind of batteries does the Arc series use, and can they be replaced in the field?

The monocular is designed with a user replaceable, rechargeable battery system. It comes supplied with two rechargeable batteries and a charger. This allows you to quickly swap out a depleted battery for a fresh one while out in the field, ensuring you don't run out of power during extended night time observation sessions.

Is the Pixfra Arc rugged enough to withstand bad weather and accidental drops?

Yes, the device is engineered for tough outdoor environments. It features a robust magnesium alloy casing that protects the internal optics from everyday bumps, scrapes, and drops. Additionally, it has an IP67 waterproof rating, meaning it can withstand heavy rain, snow, and even temporary submersion in water.

What are the different "Colour Palettes," and how do they help in the field?

The device offers multiple distinct color modes (such as White Hot, Black Hot, Iron Red, and Alarm) to suit different environments. For example, "White Hot" is ideal for general scanning and spotting targets, while "Alarm" highlights the hottest object in the frame to help you pick out camouflaged wildlife or people instantly.

Can I take the Pixfra Arc A635 with me on trips abroad outside the UK?

Thermal imaging devices are subject to strict export control laws (such as ITAR and UK Government Export Licensing Regulations). Even if you are just taking the device on holiday temporarily, you may be required to obtain an official export license prior to leaving the UK. It is highly recommended to check current government guidelines before traveling.
