Pixfra ARC A419 Handheld Thermal Monocular - 384x288/12µm/19mm 30mk

SKU#PIX-PFI-A419 Pixfra

Pixfra ARC A419 Handheld Thermal Monocular - 384x288/12µm/19mm 30mk

Name: Pixfra ARC A419 Handheld Thermal Monocular - 384x288/12µm/19mm 30mk
Brand: Pixfra
Price: 599.99 GBP
Availability: InStock

24 in stock

The Pixfra ARC A419 Handheld Thermal Monocular combines high sensitivity with impressive range, detecting heat signatures up to 900 meters with its 384x288, 12µm thermal sensor and 19mm f1.0 lens. A vivid 1440x1080 OLED display ensures clear visuals, while multiple color palettes, built-in recording, and screen-sharing via the Pixfra app enhance usability. Compact, rugged, and IP67 waterproof, the A419 is lightweight and reliable, featuring dual batteries for up to 14 hours of continuous operation—perfect for fieldwork and wildlife observation.

VIEW PRODUCT INFO / SPECS

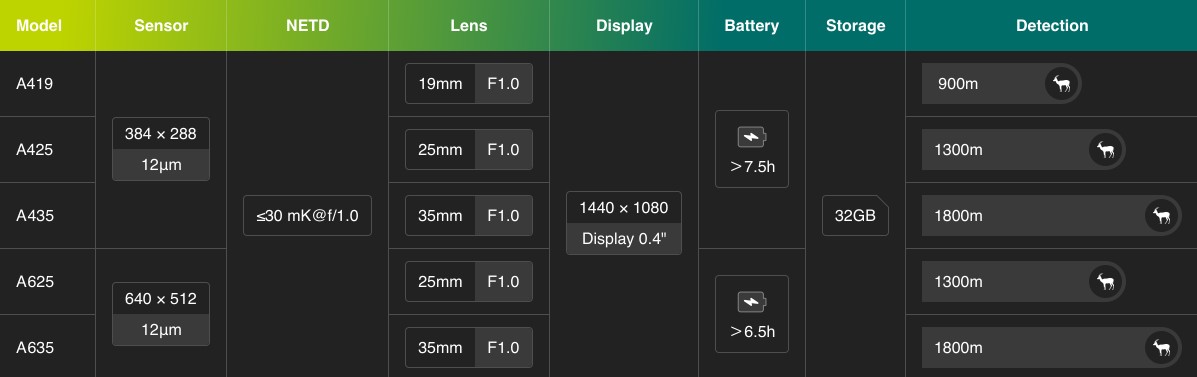

Select Model: A419 - 384x288/12µm/19mm 30mk

A419 - 384x288/12µm/19mm 30mk

A425 - 384x288/12µm/25mm 30mk

A435 - 384x288/12µm/35mm 30mk

A625 - 640x512/12µm/25mm 30mk

A635 - 640x512/12µm/35mm 30mk

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The Pixfra ARC A419 Handheld Thermal Monocular is a top-tier thermal imaging device designed to deliver precision and clarity, making it an essential tool for those requiring reliable long-range observation. Featuring a high-sensitivity 384x288, 12µm thermal sensor with a NETD of less than 30mK, and an advanced 19mm f1.0 objective lens, the A419 achieves a remarkable detection range of up to 900 meters. This sensitive sensor captures even the smallest heat signatures in challenging environments, delivering crisp thermal images on a vibrant, full-color 1440x1080 OLED display. Whether for wildlife surveys, ecological studies, or outdoor adventures, the Pixfra ARC A419 ensures an unmatched viewing experience by offering superior image quality and long-range visibility.

Designed to enhance every observation session, the Arc A419 is packed with advanced features. It includes a built-in video recorder and various color palettes, allowing users to capture high-quality recordings directly on the device’s built-in 32 GB storage. For group observations, the device supports live screen sharing via the Pixfra app, compatible with both iOS and Android. This app feature allows up to four people within 20 meters to view the live thermal feed, enabling collaborative observation without crowding over a single screen. With customizable zoom levels (up to 8x digital zoom) and a diopter range of -4D to +5D, the Arc A419 adapts seamlessly to each user's viewing needs.

The Arc A419 is built for resilience and ease of use in all conditions. Weighing just under 350 grams, its lightweight and ergonomic design minimizes fatigue during extended use and fits comfortably in a pack or pocket when not in hand. Its magnesium alloy casing provides durability and protection against knocks and drops, while its IP67 waterproof rating allows reliable performance in rain and adverse weather. In extreme conditions, the A419 operates consistently, even in temperatures ranging from -30°C to 50°C, ensuring that it is always ready to capture the moment.

With dual rechargeable batteries that offer up to 7.5 hours of runtime each, the A419 allows for continuous operation up to 14 hours, making it ideal for long nights in the field. Powered by a convenient Type-C USB charger, the device is easy to recharge, and its battery life is long enough to meet the needs of extended observations or surveys. Each Arc A419 kit comes with essential accessories, including two 18650 Li-ion batteries, a dual-bay USB-C charger, an L-shaped tripod adapter, a carry case, and a lens cleaning cloth—everything needed for a professional observation setup.

For those seeking a powerful, durable, and user-friendly thermal monocular, the Pixfra ARC A419 offers a feature-rich experience, designed to perform reliably in any environment.

SPECS

Thermal Sensor 384×288, 12μm, <30mK NETD
Detector Type Vanadium oxide uncooled focal plane detector
Spectral Range 8μm to 14μm
Frame Rate 50 Hz
Objective Lens 19mm f1.0
Field of View Horizontal 14.4°, Vertical 10.8°
Detection Range Up to 900m
Magnification 2.1x optical
Digital Zoom 1x, 2x, 4x, 8x
Close Focus Distance 2m
Colour Palettes 6 (White hot, Black hot, Iron red, Alarm, Amber, Emerald)
Display Screen 0.41-inch OLED
Screen Resolution 1440 x 1080
Diopter Adjustment -4D to +5D
Eye Relief 15mm
Uniformity Correction Auto and Manual options
Storage 32 GB built-in EMMC
Video Recording Yes, up to 2 hours per clip
Audio Recording Yes
Hot Spot Trace Yes
Wi-Fi Connectivity Yes
Power Supply 5V Type-C
Battery Type Rechargeable Lithium, 3200 mAh capacity
Battery Life Up to 7.5 hours per battery
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Waterproof Rating IP67
Product Dimensions 148.5 mm × 42.3 mm × 74.3 mm (5.85″ × 1.67″ × 2.93″)
Net Weight ≤330 g (excluding battery)

FEATURES

High-Resolution Thermal Imaging: Equipped with a sensitive thermal sensor, the device captures crisp images of even the smallest heat signatures at long distances.
Extended Detection Range: Can detect heat signatures up to 900 meters away, ensuring broad field visibility in challenging environments.
Vivid OLED Display: Presents thermal imagery on a full-color 1440x1080 OLED screen, providing sharp and lifelike visuals.
Multiple Color Palettes: Six color palette options allow users to customize the view for varied scenarios, enhancing visibility and detail.
Screen Sharing via App: Connects to the Pixfra app on up to four smart devices within 20 meters, allowing group observations without needing to share the device.
Built-In Video and Audio Recording: Capture up to 2-hour video clips and audio directly onto the device, simplifying documentation and review.
Dual Batteries for Extended Use: Equipped with two rechargeable, replaceable batteries, providing up to 14 hours of combined operating time.
Compact and Lightweight Design: Weighing under 350g, the device is comfortable for prolonged use and portable for easy carrying.
Ergonomic Build: Features a user-friendly button layout and comfortable body shell, minimizing fatigue during extended observations.
Rugged and Weather-Resistant: Built with a robust magnesium alloy casing and rated IP67 waterproof, it can withstand tough environmental conditions and extreme temperatures from -30°C to 50°C.
Accessories Included: Comes with useful accessories like a dual-bay USB-C charger, L-shaped tripod adapter, carry case, and lens cleaning cloth for a complete field-ready kit.

WHAT'S IN THE BOX

Pixfra ARC A419 Handheld Thermal Monocular - 384x288/12µm/19mm 30mk
2 x 18650 Li-ion Batteries
USB-C Dual Bay Charger
L-Shaped Tripod Adapter
Rubber Eyecup
Carry Case
Carry Pouch
User Manual
Lens Cleaning Cloth

FREQUENTLY ASKED QUESTION(S)

How does the Pixfra Arc A419 differ from standard night vision devices?

Unlike traditional night vision, which amplifies existing ambient light (like moonlight or starlight) and can be blinded by bright light, the Arc A419 relies entirely on thermal imaging. It detects the infrared heat signatures emitted by animals, people, and objects. This means it works in total, absolute darkness, through dense fog, light foliage, and smoke, and it can even be used during broad daylight.

What kind of battery life can I expect during a long night out?

The device is built for extended field use and comes equipped with a dual battery setup. It includes two rechargeable, replaceable lithium batteries that provide up to 7.5 hours of runtime each, giving you up to 14–15 hours of total continuous operation. A dual-bay USB-C charger is included in the box, allowing you to easily swap a fresh battery in while in the field.

Can I share what I am seeing with other people in my group?

Yes. One of the best features of the Arc series for group observation, ecology surveys, or training is its Wi-Fi screen sharing capability. By downloading the free Pixfra Outdoor app (available for both iOS and Android), up to four people can connect their smartphones or tablets to a single monocular within a 20 meter range. This allows the whole group to view the live thermal feed simultaneously without having to pass the device around.

How rugged is the Arc A419, and can it handle bad weather?

The monocular is built specifically for tough outdoor environments. It features a robust magnesium alloy casing designed to absorb everyday bumps and scrapes in the field. It also carries an IP67 waterproof rating, meaning it is completely dust tight and can survive being splashed or briefly submerged in water. Furthermore, it operates reliably in extreme temperatures ranging from -30°C to +50°C.

Can I record video or take photos with this device?

Yes, the Arc A419 features a built in video and audio recorder. It comes with a generous 32 GB of internal storage, allowing you to save hours of footage and capture your wildlife encounters or tactical observations directly onto the device. You can transfer these files later using a Type C cable or directly through the mobile app.

Is the device comfortable to use for long periods?

The Arc A419 was designed with ergonomics and portability in mind. It weighs under 350 grams (less than a pound), making it incredibly lightweight and preventing hand fatigue during prolonged scanning sessions. The button layout is intuitive and easy to navigate by touch, even when wearing gloves, and its compact frame fits comfortably inside a standard jacket pocket or pack when not in use.
