Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk

SKU#PIX-PFI-A425 Pixfra

Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk

Name: Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk
Brand: Pixfra
Price: 629.99 GBP
Availability: InStock

18 in stock

The Pixfra ARC A425 Thermal Monocular offers pro-grade imaging with a 384x288, 12µm sensor and 1300m detection range. Its 1440x1080 OLED display, video recording, six color palettes, and app screen sharing enhance the experience. Lightweight, IP67-rated, and with up to 15 hours of battery life, it's a powerful tool for long-range observation.

VIEW PRODUCT INFO / SPECS

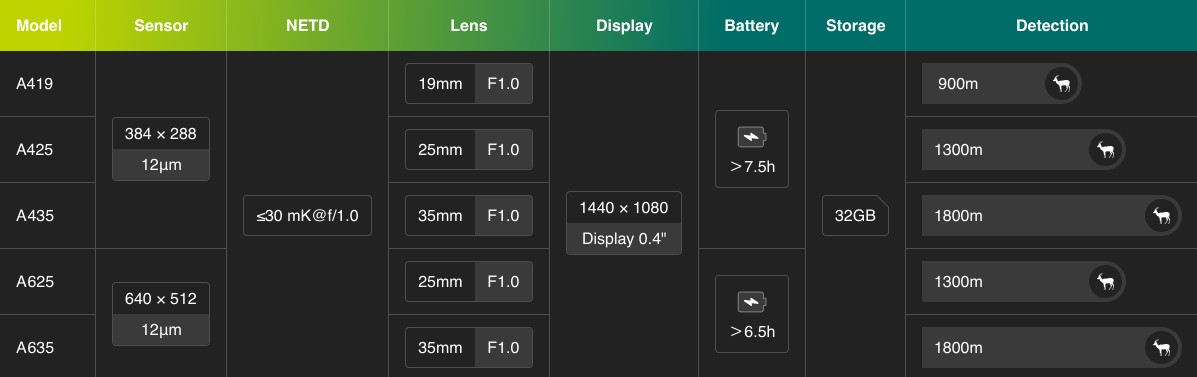

Select Model: A425 - 384x288/12µm/25mm 30mk

A419 - 384x288/12µm/19mm 30mk

A425 - 384x288/12µm/25mm 30mk

A435 - 384x288/12µm/35mm 30mk

A625 - 640x512/12µm/25mm 30mk

A635 - 640x512/12µm/35mm 30mk

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The Pixfra ARC A425 Handheld Thermal Monocular combines advanced thermal imaging technology with exceptional portability, creating an ideal solution for long-range observation and environmental monitoring. This compact, yet powerful device features a high-resolution 384x288, 12µm, <30mK NETD thermal sensor, paired with a 25mm f1.0 objective lens, allowing it to detect heat signatures up to 1300 meters away. This enables users to spot even subtle thermal activity at a distance, providing detailed and clear thermal imaging on a stunning full-color 1440x1080 OLED display. Designed for professional-grade thermal performance, the ARC A425 makes wildlife and environmental observation efficient, accurate, and enjoyable.

Packed with user-friendly features, the ARC A425 enhances every aspect of thermal observation. With its built-in video recorder, you can capture up to two hours of video footage per clip, while six color palettes (including white hot, black hot, and iron red) offer visual customization to suit various observation needs and preferences. Through the Pixfra app, users can stream live footage from the monocular to up to four smart devices simultaneously, allowing group observations with ease. With a range of digital zoom options from 1x to 8x, the ARC A425 ensures you can hone in on specific details, all from a comfortable viewing distance.

Equipped with two rechargeable batteries, each providing 7.5 hours of power, the ARC A425 can deliver up to 15 hours of uninterrupted operation. The batteries are easily replaceable and can be charged with the included USB-C dual bay charger, ensuring that the monocular is ready whenever you are. Its lightweight build, weighing less than 350 grams, paired with its ergonomic design, makes it comfortable to hold and easy to carry in a bag or pocket. Built with durability in mind, the ARC A425 is crafted from robust magnesium alloy and is IP67-rated, offering dependable waterproof protection and resilience against impacts. Additionally, it operates flawlessly in extreme temperatures, from -30°C to +50°C, ensuring reliable performance in challenging environments.

This thermal monocular is perfect for professionals, including ecologists and field researchers, who demand a combination of reliability, accuracy, and ease of use. Every purchase includes the Pixfra ARC A425, two 18650 Li-ion batteries, a USB-C dual bay charger, an L-shaped tripod adapter, a rubber eyecup, a carry case and pouch, a lens cleaning cloth, and a user manual for quick setup and ongoing care. With its powerful optics, intuitive functionality, and robust construction, the Pixfra ARC A425 is designed to meet the demands of serious observers looking for an efficient and high-quality thermal imaging solution.

SPECS

Thermal Sensor 384×288, 12μm, <30mK NETD
Detector Type Vanadium oxide uncooled focal plane detector
Spectral Range 8μm～14μm
Frame Rate 50 Hz
Objective Lens 25mm f1.0
Field of View Horizontal
Detection Range 1300m
Magnification 2.76x
Colour Palettes 6 (White Hot, Black Hot, Iron Red, Alarm, Amber, Emerald)
Close Focus Distance 2m
Digital Zoom 1x, 2x, 4x, 8x
Display Screen Dimensions 0.41 inch, OLED
Screen Resolution 1440 x 1080
Diopter Adjustment -4D ~ +5D
Eye Relief 15mm
Uniformity Correction Auto; Manual
Storage Built-in EMMC (32 GB)
Video Recording Yes (up to 2 hours per clip)
Audio Recording Yes
Hot Spot Trace Yes
Wi-Fi Yes
Power Supply 5V Type-C
Battery Type 1 rechargeable Lithium battery
Battery Capacity 3,200 mAh
Battery Operating Life Up to 7.5 hours
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Protection IP67 (Waterproof and Dustproof)
Product Dimensions 148.5 mm × 42.3 mm × 74.3 mm (5.85” × 1.67” × 2.93”)
Packaging Dimensions 245 mm × 150 mm × 144 mm (9.65” × 5.91” × 5.67”)
Net Weight ≤330 g (excluding battery weight)

FEATURES

High-Resolution Thermal Imaging: Equipped with a 384x288, 12µm thermal sensor for clear, accurate detection of heat signatures up to 1300m.
OLED Display: A vibrant 1440x1080 OLED screen provides a high-quality, full-color view of the thermal image for better clarity and detail.
Built-in Video Recorder: Capture up to two hours of thermal video per clip for later review or analysis.
Multiple Color Palettes: Choose from six color options (white hot, black hot, iron red, alarm, amber, and emerald) to customize your viewing experience based on your observation needs.
Digital Zoom: Offers 1x, 2x, 4x, and 8x zoom options, enabling users to focus on distant or small heat sources for detailed analysis.
App-Based Screen Sharing: Share your view with up to four smart devices via the free Pixfra app, allowing group observations without sharing the device itself.
Long Battery Life: Two replaceable, rechargeable batteries provide up to 15 hours of continuous use, ensuring prolonged observations without frequent recharging.
Ergonomic Design: The lightweight, compact design (under 350g) and ergonomic body make the monocular comfortable to hold and easy to carry.
Rugged Build: Constructed with a magnesium alloy casing, the ARC A425 is durable and designed to withstand field conditions. It is also IP67-rated for waterproof protection, ensuring it is resistant to splashes and water ingress.
Extreme Temperature Tolerance: Operates in a wide temperature range from -30°C to +50°C, allowing for reliable use in harsh environments.
Convenient Accessories: Includes a carry case, pouch, lens cleaning cloth, L-shaped tripod adapter, and a rubber eyecup for added comfort and protection.
User-Friendly Interface: Intuitive button layout and easy operation, making it suitable for both professionals and casual users.

WHAT'S IN THE BOX

Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk
2 x 18650 Li-ion Batteries
USB-C Dual Bay Charger
L-Shaped Tripod Adapter
Rubber Eyecup
Carry Case
Carry Pouch
User Manual
Lens Cleaning Cloth

FREQUENTLY ASKED QUESTION(S)

What real world applications is the Pixfra ARC A425 best suited for?

Because it balances a mid range field of view with an impressive detection distance, the ARC A425 is an excellent all rounder. It is highly favored by ecologists, wildlife researchers, and conservationists conducting population surveys, as well as outdoor enthusiasts and security personnel who need to efficiently spot and track heat signatures across open fields or wooded areas in complete darkness.

Can I share what I am seeing through the monocular with other people?

Yes. The monocular has built in Wi-Fi and is compatible with the Pixfra companion app (available for iOS and Android). This allows you to live stream the thermal view directly to a smartphone or tablet, making it easy to share the screen with team members or a companion standing nearby.

How does the battery system work, and can I swap batteries in the field?

The device is powered by a removable, rechargeable lithium battery that provides up to 7.5 hours of continuous operation. Because the package includes two batteries and a external dual bay USB-C charger, you can easily swap out a depleted battery for a fully charged spare while out in the field, effectively giving you up to 15 hours of total runtime.

Does the ARC A425 record video and audio?

Yes, the device features on-board video and audio recording capability. Footage is saved directly to its generous 32GB built in internal storage, allowing you to capture high quality clips of wildlife behavior or surveillance footage during your observations without needing an external memory card.

How does the device hold up in bad weather or rough outdoor environments?

The ARC A425 is designed specifically for harsh outdoor use. Its body is constructed from a rugged magnesium alloy casing that provides excellent drop and impact resistance. Furthermore, it boasts an IP67 waterproof and dustproof rating, meaning it can confidently handle heavy downpours, muddy conditions, and accidental submersions in water.

Can I use this thermal monocular with a tripod?

Yes. Included in the box is an L shaped tripod adapter. This allows you to securely mount the handheld monocular onto any standard tripod, which is incredibly useful for long duration static observations, ecological surveys, or keeping the image completely steady while streaming to an external screen.
