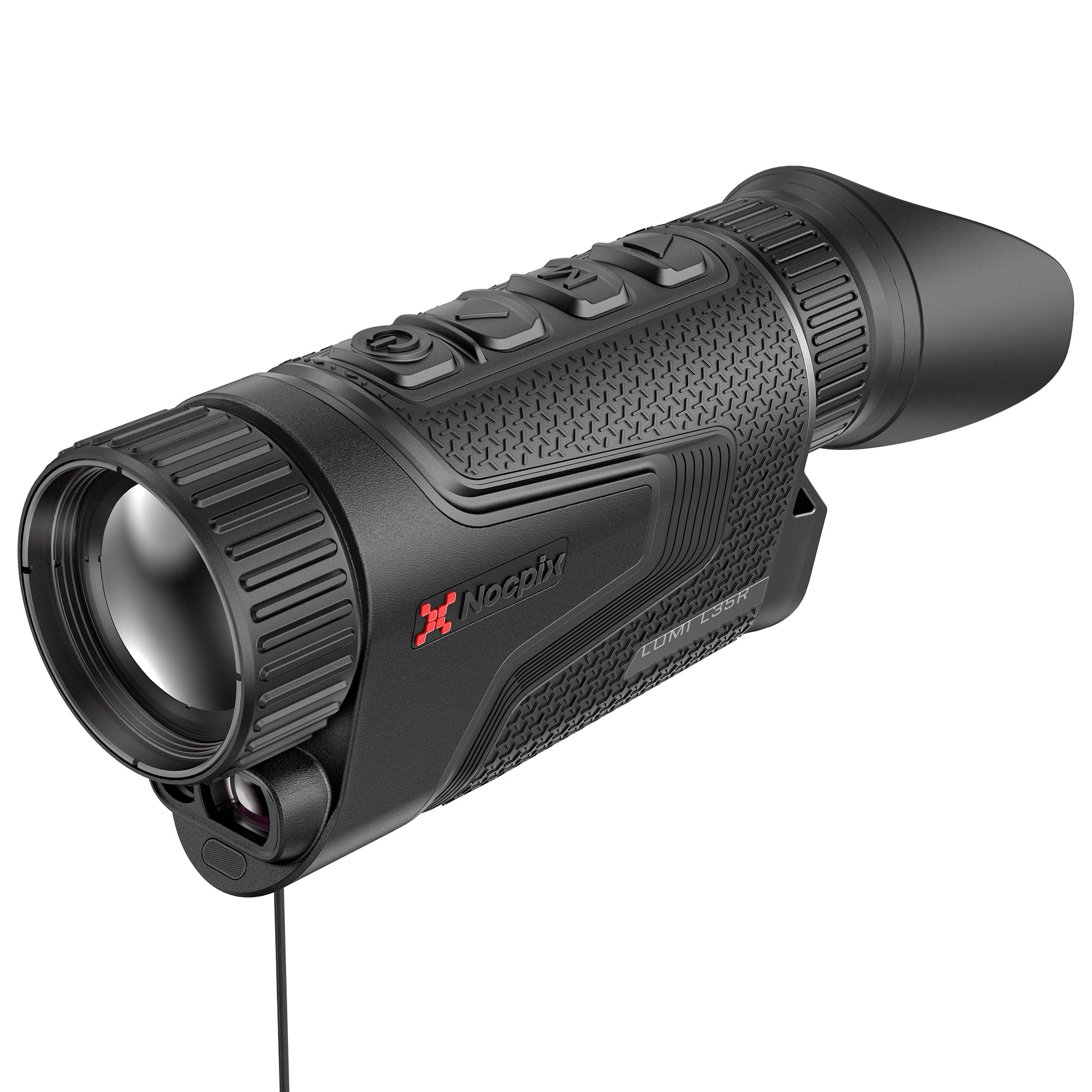

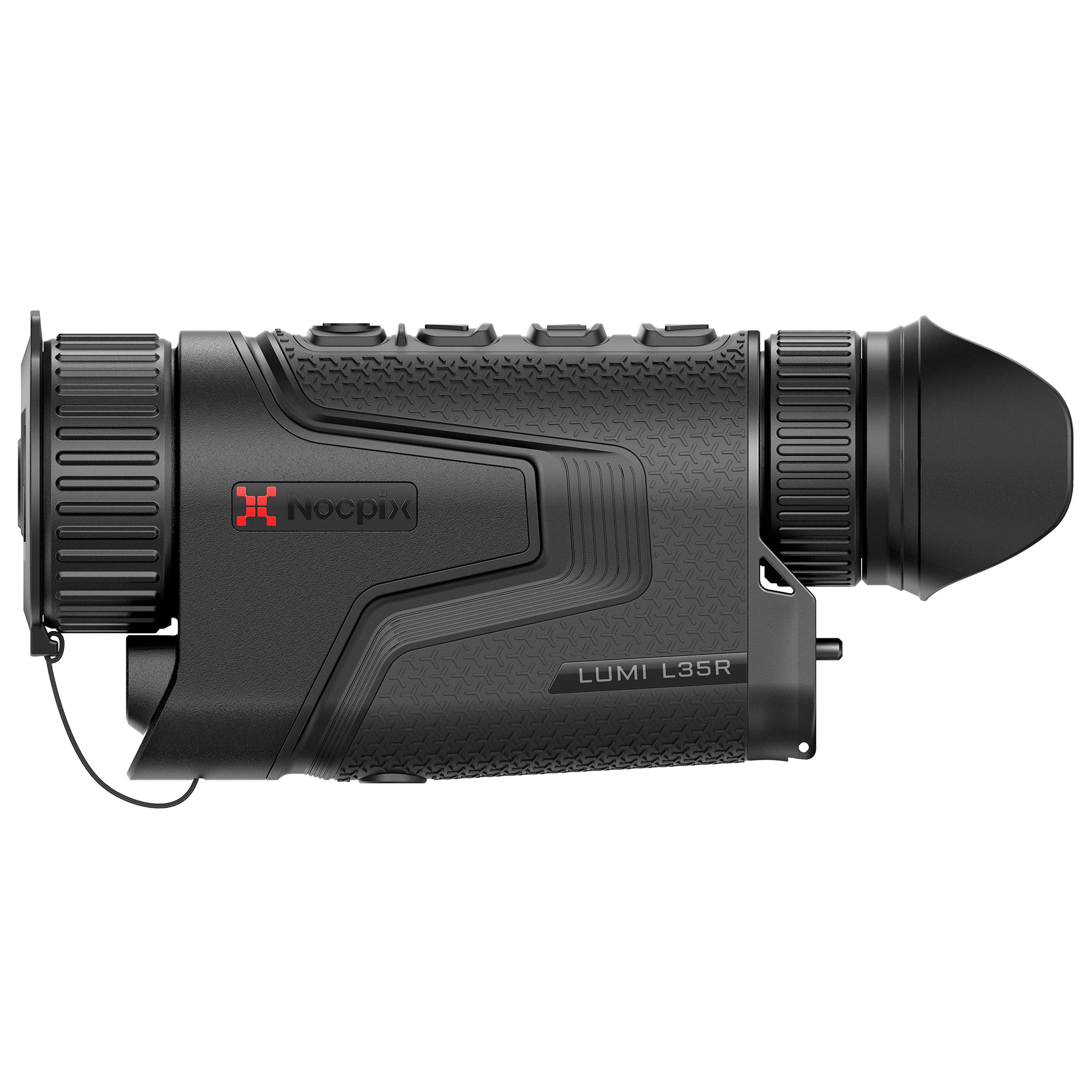

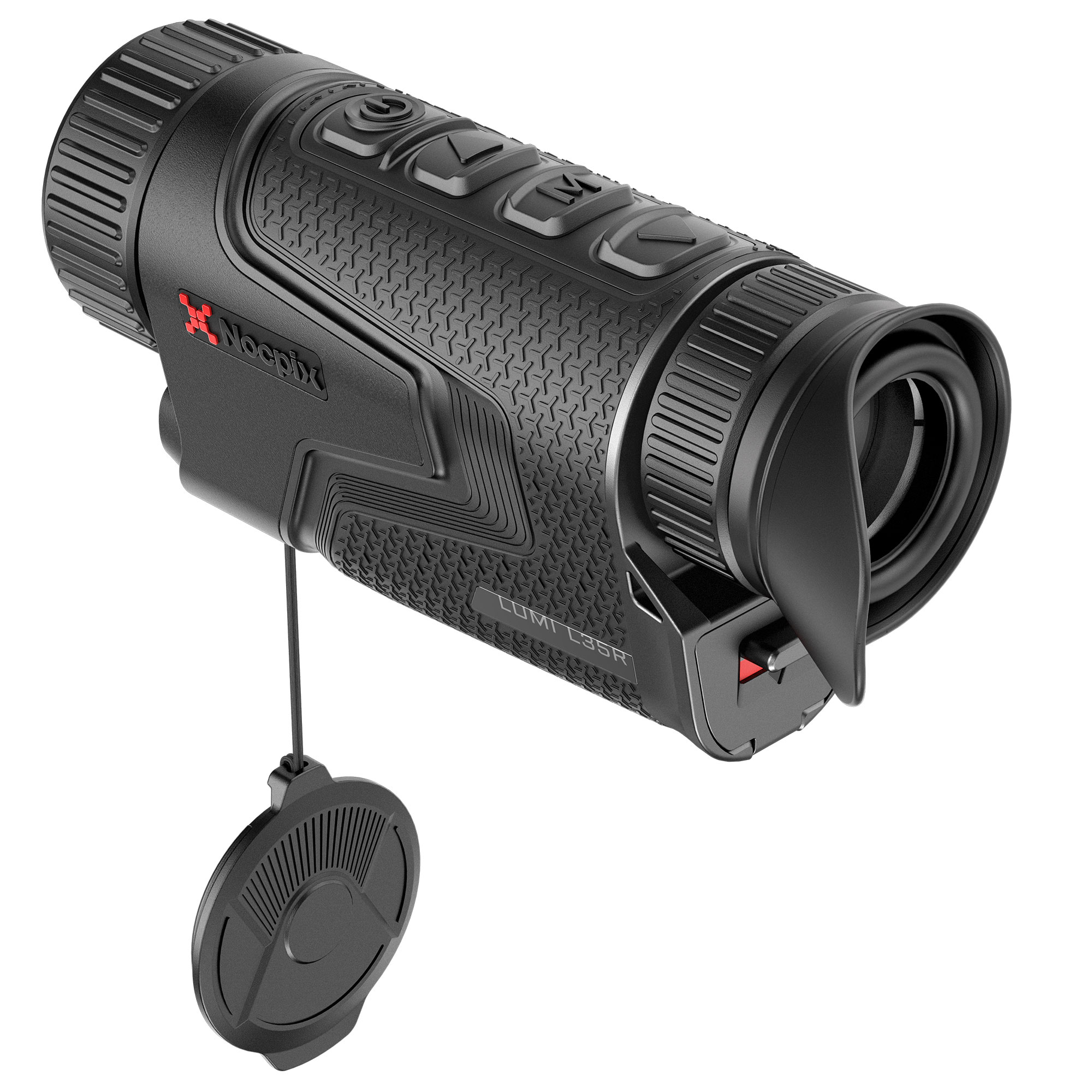

NocPix Lumi L35R Handheld Thermal Monocular with LRF - 35mm 12um 384x288

SKU#NPMON-LUMI-L35R NocPix

NocPix Lumi L35R Handheld Thermal Monocular with LRF - 35mm 12um 384x288

Name: NocPix Lumi L35R Handheld Thermal Monocular with LRF - 35mm 12um 384x288
Brand: NocPix
Price: 1299 GBP
Availability: InStock

1 in stock

I like the Lumi L35 for its increased detection range and improved image detail. The 35mm lens paired with the 384×288 sensor allows for confident spotting at longer distances, and the excellent 18mK NETD sensitivity means heat signatures stand out clearly, even in poor weather or cluttered environments - gj

VIEW PRODUCT INFO / SPECS

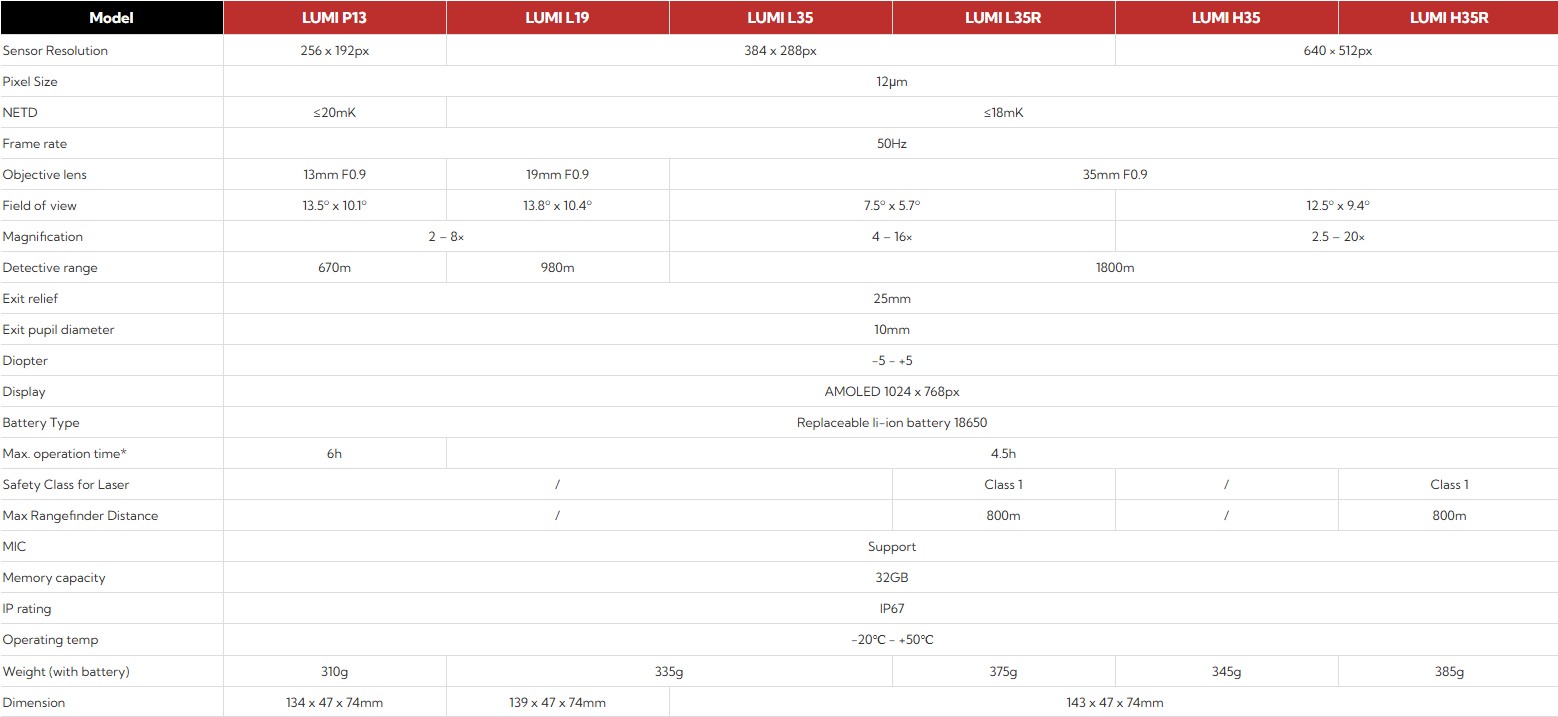

Select Model: L35R, 384x288, 12um, ≤18mK, 35mm

P13, 256x192, 12um, <20mK, 13mm

L19, 384x288, 12um, <18mK, 19mm

L35, 384x288, 12um, <18mK, 35mm

H35, 640x512, 12um, <18mK, 35mm

H35R, 640x512, 12um, ≤18mK, 35mm

L35R, 384x288, 12um, ≤18mK, 35mm

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The NocPix Lumi L35R is a cutting-edge handheld thermal monocular designed for those who demand superior image quality in a compact and highly portable form. Built with in-house developed sensor technology and powered by Reality+ AI image enhancement algorithms, this device delivers exceptional thermal clarity that sets it apart in its class. Whether you're navigating the wilderness, tracking game, or conducting surveillance, the Lumi L35R offers an unparalleled viewing experience with its high-resolution 384×288px thermal sensor and ≤18mK NETD sensitivity, ensuring crisp and detailed thermal imaging even in the most challenging conditions.

Designed for precision, the Lumi L35R features an integrated Class 1 Laser Range Finder (LRF) with an impressive 800m measuring range, providing accurate distance readings at the touch of a button. The 35mm F0.9 large aperture objective lens enhances light capture, resulting in improved target identification over long distances. With a detection range of up to 1800m, a 4x to 16x magnification range, and a 7.5° x 5.7° field of view, this monocular ensures you never miss a crucial detail.

The Lumi L35R is engineered for stability and reliability, featuring electronic image stabilisation that keeps your view steady, making it easier to track moving targets. The AMOLED 1024×768px high-resolution display delivers sharp visuals, while seven selectable colour palettes allow for a tailored viewing experience, reducing eye fatigue during prolonged use. A silent button operation ensures discreet functionality in sensitive environments.

Portability and durability are at the core of the Lumi L35R’s design. Weighing just 375g with battery, its lightweight and pocket-sized form factor makes it an ideal companion for field use. It is powered by a replaceable 18650 Li-ion battery, offering up to 4.5 hours of continuous operation, with an innovative reverse polarity function that allows for quick and hassle-free battery swaps, even in low-light conditions. The IP67-rated waterproof and dustproof construction ensures reliable performance in harsh weather conditions, with an operating temperature range of -20°C to +50°C.

With 32GB of internal memory, the Lumi L35R supports onboard recording, allowing you to capture and store important thermal imagery.

SPECS

Thermal Sensor Resolution 384 × 288px
Thermal Sensor Pixel Pitch 12μm
NETD (Thermal Sensitivity) ≤ 18mK
Frame Rate 50Hz
Objective Lens 35mm F0.9
Field of View (H × V) 7.5° × 5.7°
Magnification 4x - 16x
Detection Range 1800m
Exit Relief 25mm
Exit Pupil Diameter 10mm
Diopter Adjustment -5 to +5
Laser Range Finder (LRF) Distance 800m
Microphone Supported
Memory Capacity 32GB Internal Storage
Operating Temperature Range -20°C to +50°C
Display 1024 × 768px AMOLED 0.39”
Laser Safety Class Class 1
Battery Replaceable Li-ion 18650 battery (supplied x2)
Maximum Operating Time 4.5 hours
Weight (with Battery) 375g
Dimensions 143 × 47 x 47mm
IP Rating IP67

FEATURES

High-Performance Thermal Imaging – Equipped with advanced sensor technology and Reality+ AI image enhancement algorithms for outstanding clarity and target recognition.
Integrated Laser Range Finder (LRF) – Class 1 laser with an 800m measuring range for precise distance calculation.
Electronic Image Stabilisation – Ensures a steady and stable view, reducing motion blur when tracking moving objects.
Large Aperture Lens (F0.9, 35mm) – Maximises light intake for superior image quality in low-contrast conditions.
Extended Detection Range – Detects heat signatures at distances of up to 1800m, making it ideal for long-range observation.
Adjustable Magnification (4x-16x) – Provides variable zoom for detailed close-ups and wide-area scanning.
Seven Colour Palettes – Offers customisable viewing options to reduce eye fatigue and enhance image differentiation.
Silent Button Operation – Ensures discreet use in sensitive environments, preventing unnecessary noise.
Lightweight and Compact Design – Pocket-sized and ultra-light at just 375g (with battery) for effortless portability.
Replaceable 18650 Battery – Easy to swap with a reverse polarity function for quick battery changes in low-light conditions.
Long Battery Life – Delivers up to 4.5 hours of continuous operation on a single charge.
High-Resolution AMOLED Display (1024×768px) – Provides crisp, detailed imagery with excellent contrast and brightness.
Internal 32GB Memory – Allows for onboard image and video storage, eliminating the need for external recording devices.
Durable and Weather-Resistant – IP67-rated for waterproof and dustproof protection, ensuring reliable performance in extreme conditions.
Wide Operating Temperature Range (-20°C to +50°C) – Designed to withstand harsh weather environments for all-season use.

VIDEOS

WHAT'S IN THE BOX

LUMI series Thermal Imaging Monocular
Portable bag
18650 Battery × 2
18650 battery charger
Data cable
Neck Strap
Lens cleaning cloth
Quick start guide

FREQUENTLY ASKED QUESTION(S)

What is the primary functional feature of the Lumi L35R?
The Lumi L35R includes an integrated laser rangefinder that provides distance measurements within the thermal display.

What thermal sensor resolution does the Lumi L35R use?
It uses a 384 × 288 resolution thermal sensor.

What is the purpose of the 35 mm objective lens?
The 35 mm lens provides a balanced compromise between field of view and detection range.

What does a 12 µm pixel pitch indicate?
A 12 µm pixel pitch allows for a compact sensor design while maintaining effective thermal resolution.

Is the Lumi L35R designed for handheld operation?
Yes, it is intended for handheld use with ergonomics suitable for single-handed operation.

How does the laser rangefinder function within the system?
The LRF measures distance to an object and displays the result directly in the viewing interface.

How does the device perform in low-visibility conditions?
Thermal imaging performance is maintained in darkness, fog, and light precipitation.

Is the unit suitable for prolonged use?
Its compact form factor and weight support extended handheld operation.

What type of user is this device intended for?
Users requiring portable thermal observation with integrated distance measurement.

WARRANTY

NocPix 3 year warranty for main body, 2 year warranty for battery and 10 years for detector.
