NocPix Lumi H35R Handheld Thermal Monocular with LRF - 35mm 12um 640x512

SKU#NPMON-LUMI-H35R NocPix

NocPix Lumi H35R Handheld Thermal Monocular with LRF - 35mm 12um 640x512

Name: NocPix Lumi H35R Handheld Thermal Monocular with LRF - 35mm 12um 640x512
Brand: NocPix
Price: 1599 GBP
Availability: OutOfStock
Rating: 5 (1 reviews)

Available soon Notify me when back in stock

The NocPix Lumi H35R is a compact, high-performance handheld thermal monocular designed for precision and portability. Featuring a 640 x 512px 12μm sensor with ≤18mK NETD, it delivers outstanding thermal imaging enhanced by Reality+ AI algorithms. An integrated 800m laser rangefinder provides accurate distance measurement, while electronic image stabilisation ensures a steady view. With a replaceable 18650 battery, IP67 waterproof rating, and silent button operation, the Lumi H35R is built for reliability in any environment, making it the ideal companion for serious outdoor users.

VIEW PRODUCT INFO / SPECS

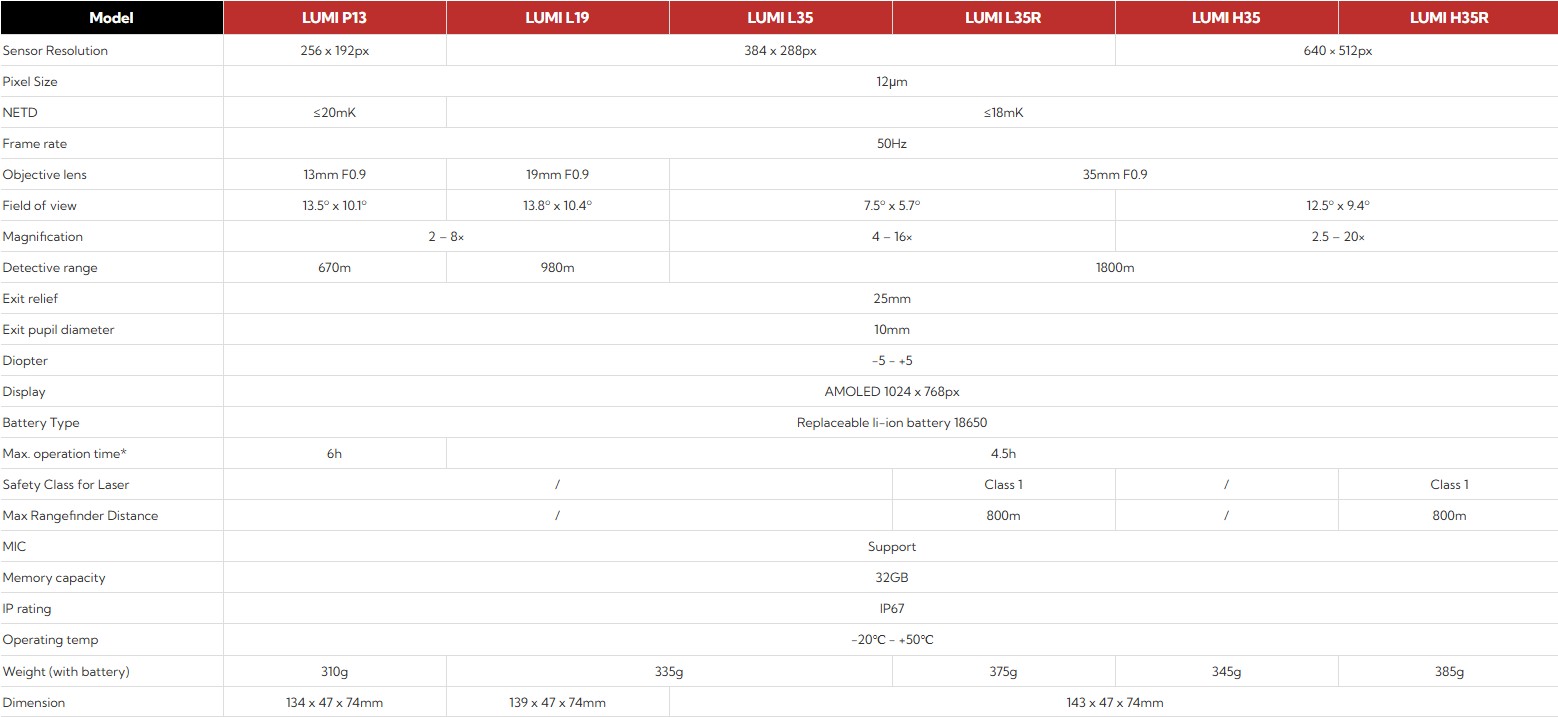

Select Model: H35R, 640x512, 12um, ≤18mK, 35mm

P13, 256x192, 12um, <20mK, 13mm

L19, 384x288, 12um, <18mK, 19mm

L35, 384x288, 12um, <18mK, 35mm

H35, 640x512, 12um, <18mK, 35mm

H35R, 640x512, 12um, ≤18mK, 35mm

L35R, 384x288, 12um, ≤18mK, 35mm

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The NocPix Lumi H35R Handheld Thermal Monocular with LRF is a compact yet powerful device designed to deliver exceptional thermal imaging performance in a highly portable form. Built for both professional and recreational users, this advanced monocular integrates cutting-edge technology, ensuring crystal-clear thermal imagery and precise ranging capabilities in all conditions.

Equipped with a high-resolution 640 x 512px thermal sensor with a 12μm pixel pitch and an impressive NETD of ≤18mK, the Lumi H35R excels at detecting the finest thermal details, even in low-contrast environments. The Reality+ AI image processing algorithms further enhance image clarity, ensuring superior target identification. The large F0.9 aperture lens maximises light intake, delivering sharp and detailed thermal images with a wide field of view of 12.5° x 9.4°.

Designed for accuracy, the integrated Class 1 Laser Range Finder (LRF) offers a reliable 800m measuring range, providing essential distance data for hunting, wildlife observation, and tactical applications. This model also supports ballistic calculations, offering invaluable data for precision shooting. With a detection range of up to 1800m, the Lumi H35R ensures no target goes unnoticed.

User convenience is at the core of the Lumi H35R’s design. Featuring a lightweight and ergonomic build, it weighs just 385g, making it easy to carry on long treks. The silent button operation ensures discreet use, while the electronic image stabilisation keeps the picture steady, even in challenging conditions. The seven colour palettes allow users to customise their viewing experience, reducing eye fatigue during prolonged observation.

Powering the Lumi H35R is a replaceable 18650 lithium-ion battery, with a maximum operating time of 4.5 hours per charge. A reverse polarity function allows the battery to be inserted in either direction, making nighttime swaps effortless. The high-resolution 1024 x 768px AMOLED display delivers crisp, vibrant imagery, ensuring an immersive and intuitive viewing experience.

Built for the harshest environments, the Lumi H35R boasts an IP67 rating, providing full protection against dust and water immersion. Its rugged yet compact dimensions (147 x 47 x 74mm) make it easy to store and transport without adding unnecessary bulk to your gear.

SPECS

Thermal Sensor Resolution 640 x 512px
Thermal Sensor Pixel Pitch 12 μm
NETD (Thermal Sensitivity) ≤ 18mK
Frame Rate 50 Hz
Objective Lens 35mm F0.9
Field of View (HxV) 12.5° x 9.4°
Magnification 2.5x - 20x
Detection Range 1800 m
Exit Relief 25mm
Exit Pupil Diameter 10mm
Diopter -5 - +5
Laser Rangefinder (LRF) Ranging Distance 800 m
Safety Class for Laser Class 1
MIC Support
Memory Capacity 32gb
Display 1024 x 768px, 0.39” AMOLED
Battery Replaceable Li-ion 18650 (supplied x2)
Maximum Operating Time 4.5 hours
Weight (With Battery) 385g
Dimensions 143 x 47 x 74 mm
Operating Temperature -20C - +50C
IP Rating IP67 (Waterproof & Dustproof)

FEATURES

Compact & Lightweight Design – Weighs only 385g, making it highly portable and easy to carry for extended use.
High-Performance Thermal Imaging – Equipped with Reality+ AI image processing algorithms for enhanced clarity and target identification.
Integrated 800m Laser Rangefinder (LRF) – Provides precise distance measurements for hunting, tactical applications, and outdoor exploration.
Electronic Image Stabilisation – Ensures a steady view, reducing blurring caused by movement.
Silent Button Operation – Allows discreet use without alerting wildlife or other observers.
Seven Colour Palettes – Customisable viewing modes to reduce eye fatigue and optimise image contrast for different environments.
Replaceable 18650 Battery System – Allows for quick battery swaps, ensuring uninterrupted operation.
Reverse Polarity Function – Enables battery insertion in any direction, making nighttime battery changes hassle-free.
Large F0.9 Aperture Lens – Maximises light intake for superior image clarity and detection range.
IP67 Waterproof & Dustproof Rating – Fully sealed against dust and capable of withstanding water immersion, making it ideal for all-weather use.
User-Friendly Interface – Simple controls and intuitive design for quick operation in the field.
Ergonomic & Durable Build – Designed for comfort during prolonged use, with a rugged exterior built for tough conditions.
Long Detection Range – Capable of detecting heat sources up to 1800m, making it ideal for tracking and surveillance.
High-Resolution AMOLED Display – 1024 x 768px AMOLED screen delivers crisp, detailed thermal imagery.

VIDEOS

WHAT'S IN THE BOX

• LUMI series Thermal Imaging Monocular
• Portable bag
• 18650 Battery × 2
• 18650 battery charger
• Data cable
• Neck Strap
• Lens cleaning cloth
• Quick start guide

FREQUENTLY ASKED QUESTION(S)

What differentiates the Lumi H35R from the H35?
The inclusion of an integrated laser rangefinder.

What sensor resolution does the Lumi H35R use?
A 640 × 512 thermal sensor.

What benefit does the LRF provide in handheld use?
It enables direct distance measurement during observation.

Is the unit suitable for extended use?
Yes, image clarity and ergonomics support longer sessions.

How does the 35 mm lens affect usability?
It offers flexible performance across varying observation distances.

How does it perform in low-contrast conditions?
The sensor maintains image contrast in challenging environments.

Are the controls designed for ease of use?
Yes, controls are positioned for intuitive, one-handed operation.

Is the device portable?
Yes, it remains compact despite additional features.

What type of user is it intended for?
Users requiring high-resolution thermal imaging with ranging capability.

WARRANTY

NocPix 3 year warranty for main body, 2 year warranty for battery and 10 years for detector.
