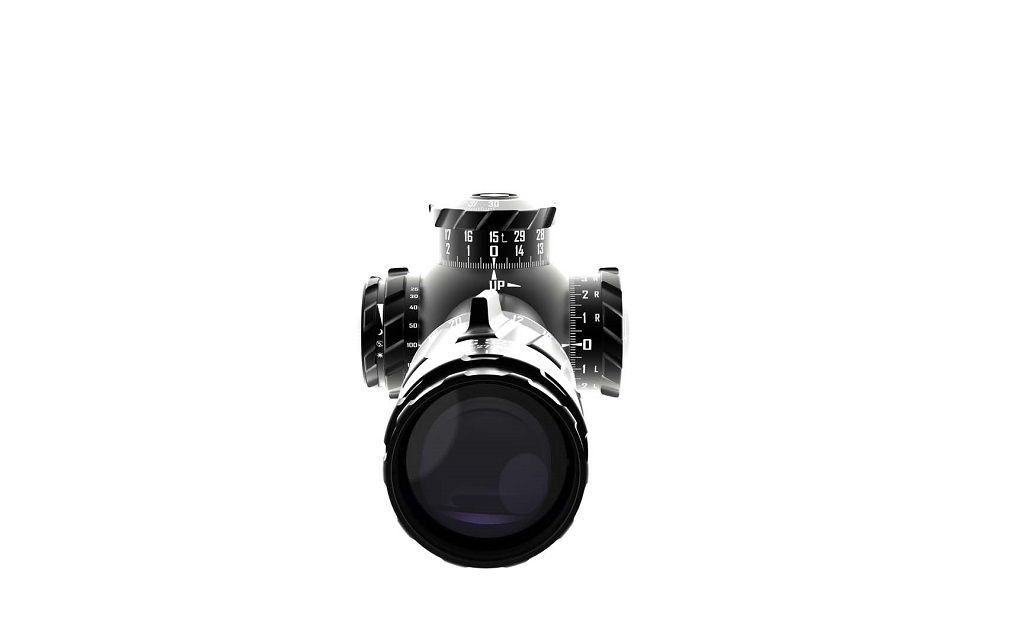

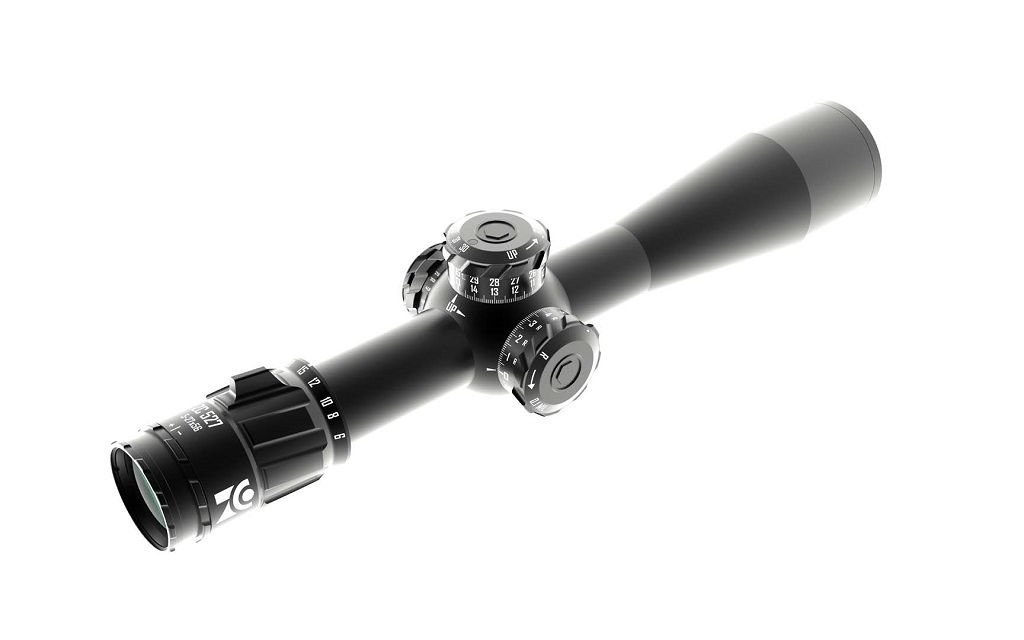

Zero Compromise Optic (ZCO) ZC527 5-27X56 Illuminated FFP MPCT3 0.1 MIL Rifle Scope w/ Spuhr One Piece Mount
Includes FREE Spuhr Mount -
(Please Note - Does NOT include Spuhr QDP).
The Zero Compromise Optic ZC527 is 387mm (15.24 inches) long, weighs only 1075g (37.9oz) and reaches 35 mil in elevation adjustment and 21 mil in windage adjustment.
It is in a class of its own!
Of all other optics in this magnification range, a very generous field of view of 7m / 100 meters (21ft/100Yds) results in one of the widest in the industry.
Outstanding light transmission and exceptional resolution are just two attributes of the best optical design ever developed, perfectly complementing the very best mechanical properties in the industry.
Our goal is not to build Rifle Scopes.
We strive to build the absolute best riflescopes in the world!
We don't compromise on quality, we simply use the best materials and techniques to create the scope you have always dreamed of.
|Brand||ZCO (Zero Compromise Optic)|
|Product Name A-Z||Zero Compromise Optic (ZCO) ZC527 5-27X56 Illuminated FFP MPCT3 0.1 MIL Rifle Scope w/ Spuhr One Piece Mount|
|Objective Lens Diameter||56mm|
|Tube Diameter||36 mm|
|Turret Click Value||0.1 MRAD (cm)|
- Magnification (Objective): 5-27
- Objective ∅ (mm): 56
- Main Tube Diameter (mm): 36
- Click Value (MIL): 0.1

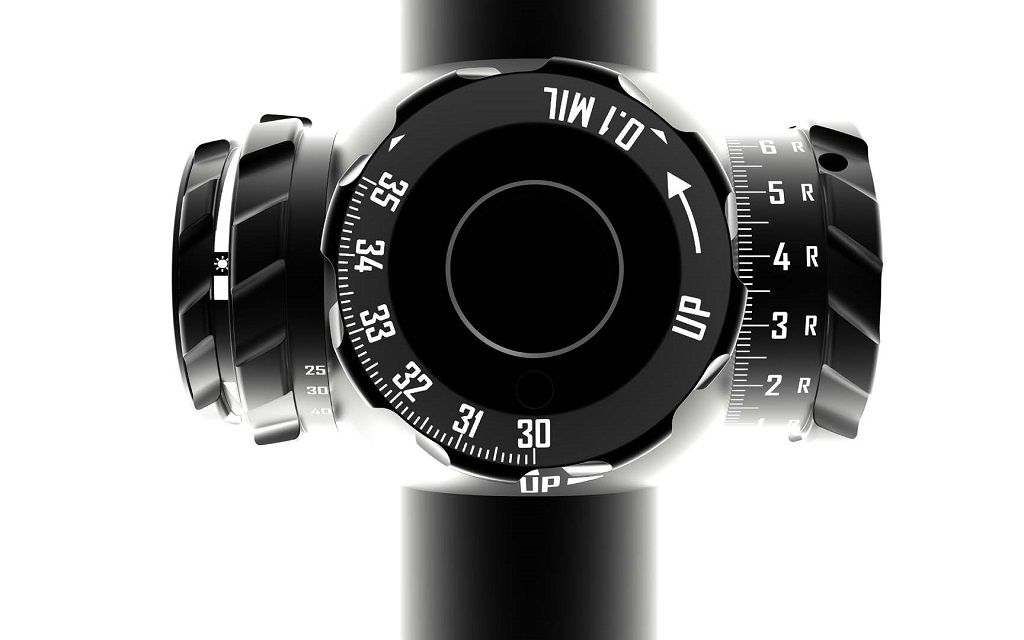

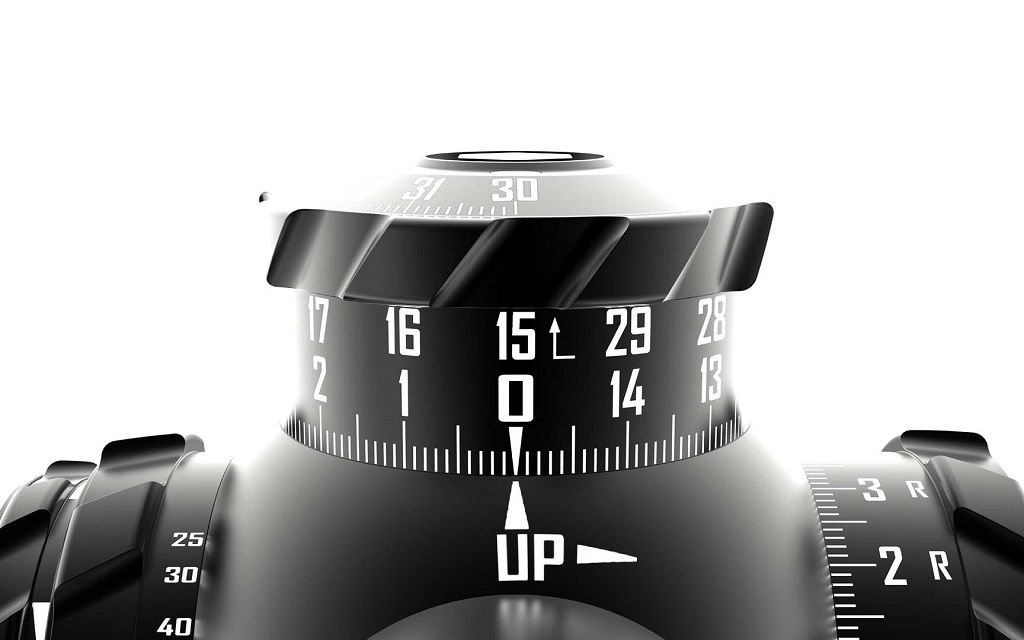

- Elevation (MIL): 35
- Elevation (m/100m): 350cm / 100m
- Elevation lock: YES
- Windage (MIL): 20
- Side Adjustment (cm/100m): 200cm / 100m
- Windage lock: YES
- Field of View (ft/100yd): 21.0`- 4.50`
- Field of View (m/100m): 7m - 1,5m / 100m
- Eye Relief (inches): 3.54
- Pupil Distance (mm): 90

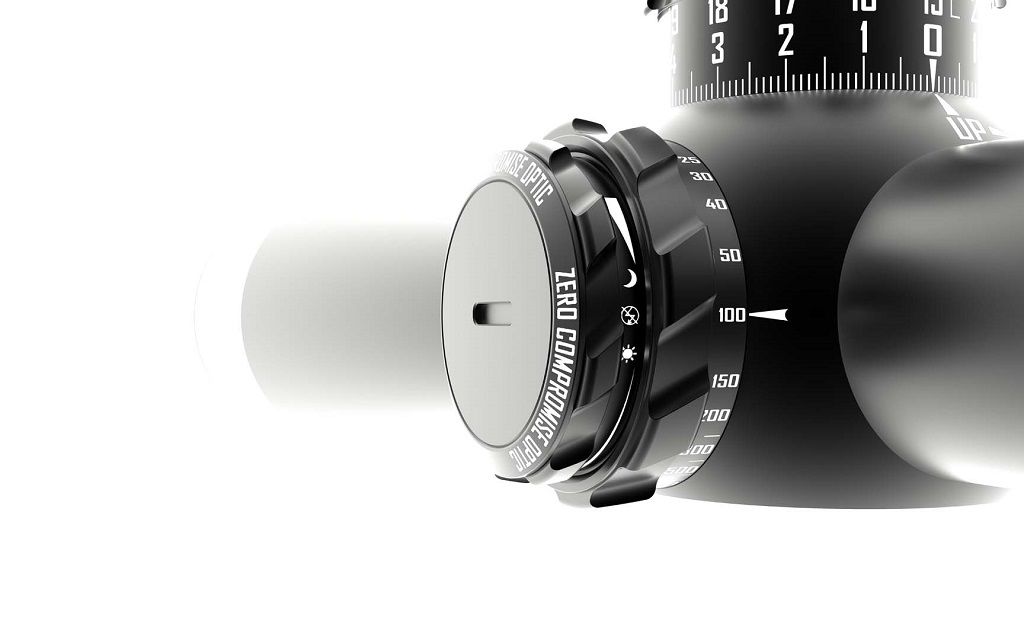

- Parallax Compensation (m): 25 - ∞
- Length (inches): 15.24
- Length (mm): 387
- Weight (oz): 37.9
- Weight (g): 1075
- Illumination: red | green
- Focal Plane: FIRST
- Light transmission (%): 92

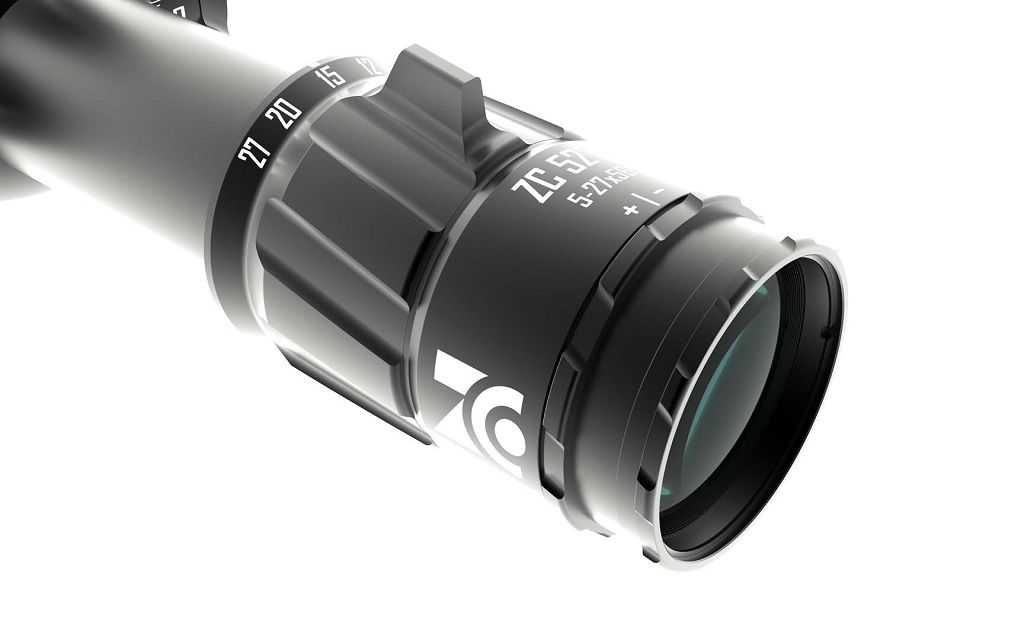

- Diopter: -3 | +2
- Exit Pupil (mm): 10,5 - 3,2
The new MPCT3 reticle from ZERO COMPROMISE OPTIC is a next generation reticle for the modern rifle shooter.
Building on our highly sought after MPCT line of reticles, the MPCT3 has multiple enhancements and some extremely unique and advanced design elements. Precision rifle shooters will appreciate the uncluttered center area that still allows precise shot placement and clear target observation while retaining excellent reference points for fast follow-up shots when required.
A dot-matrix design provides the shooter with both elevation and windage correction points in 0.20 Mil increments while still “feeling” uncluttered due to the minimal dot sizes. The open circle whole-mil values speed reticle visibility and discrimination while keeping target observation exceptionally high.
Above the center aiming point are two mils worth of hold-under capability allowing an intermediate range target to be dialed on the elevation turret, but closer range targets to still be engaged with the utmost of precision. The newly crea- ted “Fatal Funnel” concept from ZERO COMPROMISE OPTIC is positioned in the upper half of the field of view where it is out of the way, yet easily utilized. This advanced feature is designed to provide much higher capability than any other rapid reticle range finding designs on the market. An industry leading four different target sizes are quickly bracketed inside the funnel and a direct range readout given.
The Fatal Funnel is optimized for target widths of 6, 9, 12, and 18 inches and provides distances in yards. Acquiring rapid target ranges has never been faster or easier for these very common target sizes which encompass 100% IPSC, 66% IPSC, 50% IPSC, as well as any other square, rectangular, diamond, or circle shaped target with these widths. The user simply brackets a known target size either between the center line and the corresponding funnel edge, or inside the whole funnel. Once appropriately bracketed, simply read and interpolate the yardage to that target size.
Example: To determine the range to a 100% sized IPSC target that measures 18 inches wide, place the Fatal Funnel over the target with the center line bisecting the target vertically. Look to the right side of the fatal funnel and read the range where the funnel line passes over the right-side edge of the target. If the target edge is between two given ranges, interpolate an approximate yardage based on distance between the provided yardages. Adjust your scope turrets for that target distance or utilize the reticle for an appropriate hold. Targets of six or nine-inch sizes utilize the center dashed line of the Fatal Funnel for one of the target edges, and the yardage is read from the appropriate side of the funnel.
Standard Mil-ranging functions are still present in the reticle for target sizes other than those utilized in the Fatal Funnel.
In the box?
- Zero Compromise Optic (ZCO) ZC527 5-27X56 IR FFP MIL/MIL MPCT3 Rifle Scope
