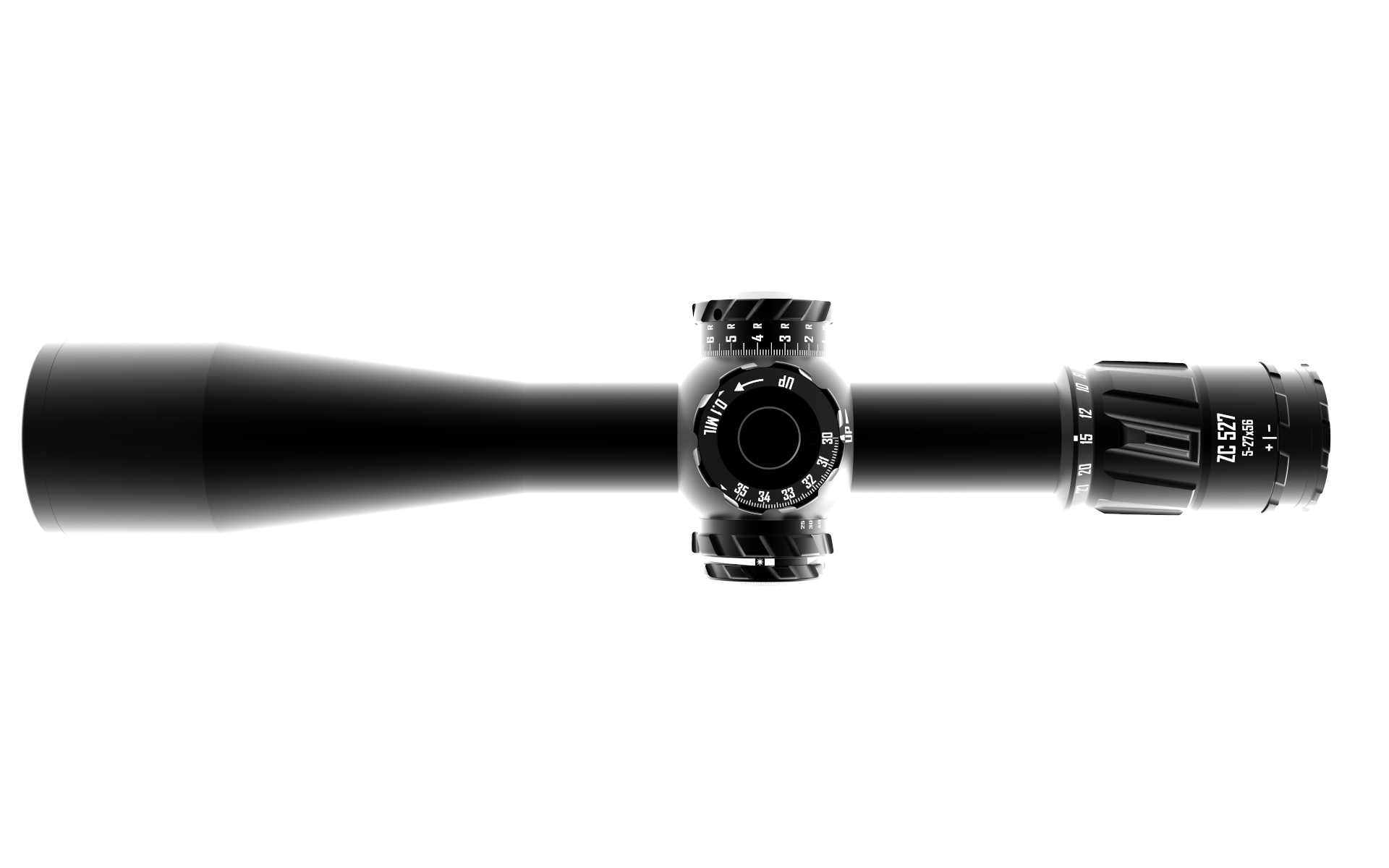

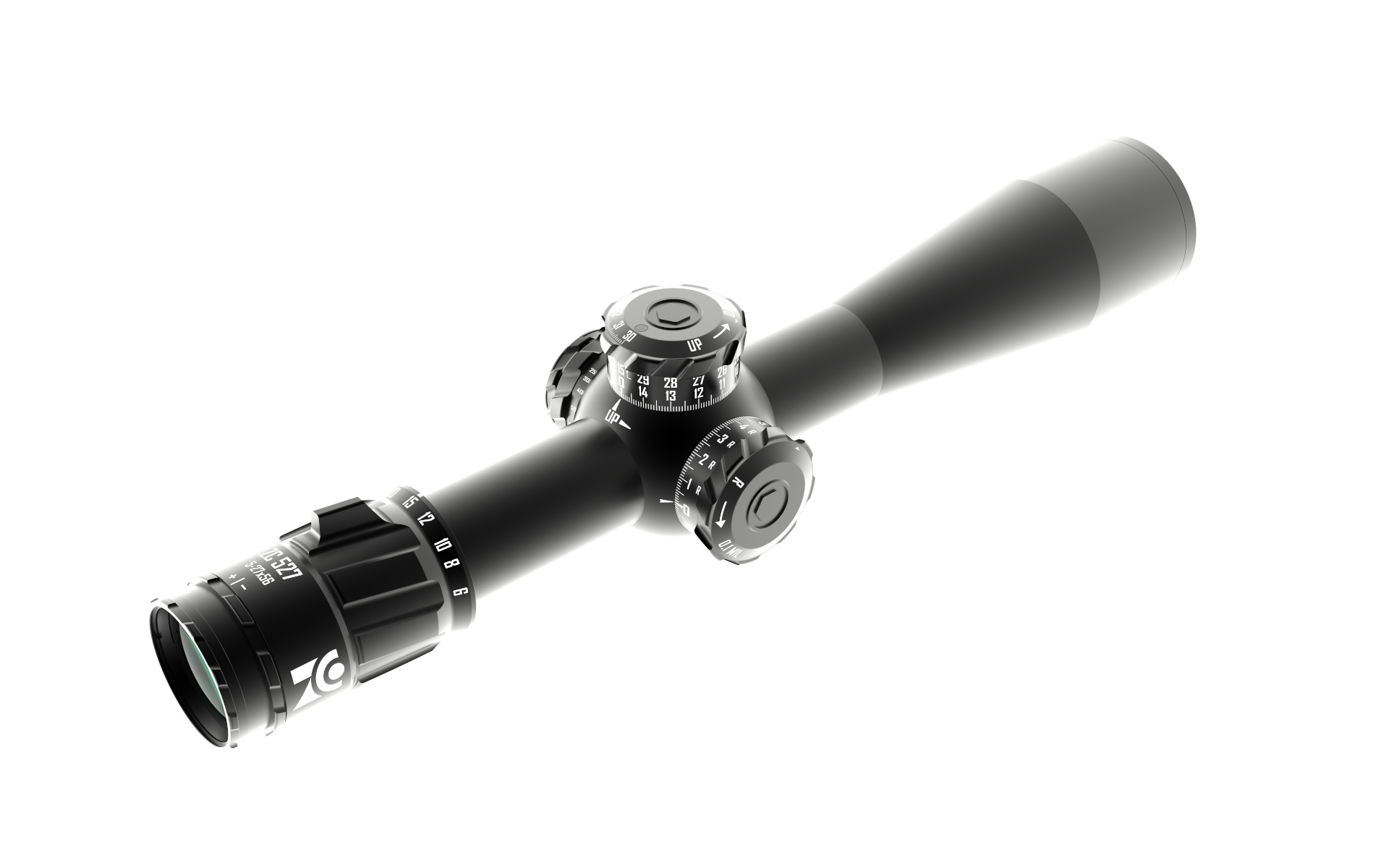

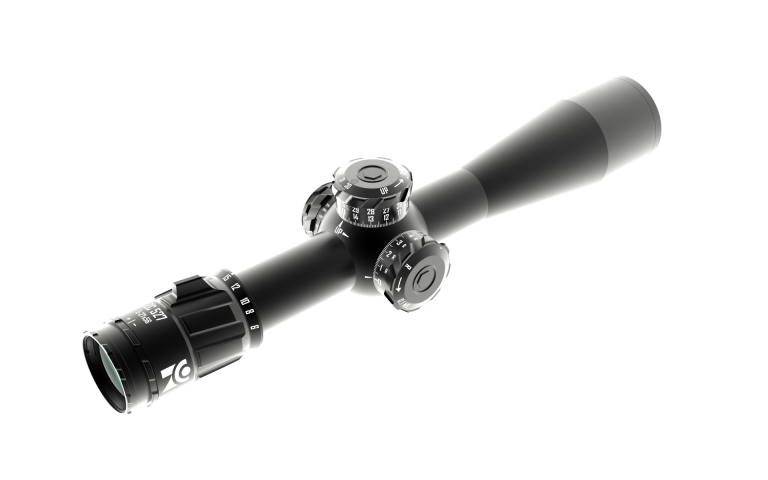

Zero Compromise Optic (ZCO) ZC527 5-27X56 FFP Illuminated MOA Reticle 1/4 MOA Rifle Scope w/ Spuhr One Piece Mount
#428
#425
#426
#427
#424
Includes FREE Spuhr Mount -
(Please Note - Does NOT include Spuhr QDP).
The Zero Compromise Optic ZC527 is 387mm (15.24 inches) long, weighs only 1075g (37.9oz) and reaches 35 mil in elevation adjustment and 21 mil in windage adjustment.
It is in a class of its own!
Of all other optics in this magnification range, a very generous field of view of 7m / 100 meters (21ft/100Yds) results in one of the widest in the industry.
Outstanding light transmission and exceptional resolution are just two attributes of the best optical design ever developed, perfectly complementing the very best mechanical properties in the industry.
Our goal is not to build Rifle Scopes.
We strive to build the absolute best riflescopes in the world!
We don't compromise on quality, we simply use the best materials and techniques to create the scope you have always dreamed of.
- Magnification (Objective): 5-27
- Objective ∅ (mm): 56
- Main Tube Diameter (mm): 36
- Click Value (MIL): 0.1
- Elevation (MIL): 35
- Elevation (m/100m): 350cm / 100m
- Elevation lock: YES
- Windage (MIL): 20
- Side Adjustment (cm/100m): 200cm / 100m
- Windage lock: YES
- Field of View (ft/100yd): 21.0`- 4.50`
- Field of View (m/100m): 7m - 1,5m / 100m
- Eye Relief (inches): 3.54
- Pupil Distance (mm): 90
- Parallax Compensation (m): 25 - ∞
- Length (inches): 15.24
- Length (mm): 387
- Weight (oz): 37.9
- Weight (g): 1075
- Illumination: red | green
- Focal Plane: FIRST
- Light transmission (%): 92
- Diopter: -3 | +2
- Exit Pupil (mm): 10,5 - 3,2
Our Minute of Angle (MOA) reticle design is a normal crosshair style graduated with one MOA increments for a straightforward and clean appearance. This design was specifically developed for shooters competing in all different shooting aspects from F-Class and Extreme Long Range to open country big-game hunting.
Along the horizontal, every even number MOA hash mark is longer than the rest extending above and below the horizontal crosshair while the odd number MOA increments only extend a short distance below. This simple arrangement allows you to keep track of your wind very easily. Holding between hash marks for every half MOA is extremely simple and keeps the reticle design as uncluttered as possible yet highly effective.
The vertical crosshair extends down to 42 MOA for those ELR type shots that need that much elevation hold in combination with the turret adjustment. Again, the even number hash marks are longer than the rest and extend left and right of the vertical by one MOA to each side. The odd MOA increments are shorter and only extend one-half MOA to each side. This keeps the increments easy to distinguish allowing you to easily find the correct hold point while providing a visually ”balanced“ reticle design.
Our floating dot is sized at 0.124 MOA diameter for an ultra precise hold on the target. Wind and elevation hold numbers are given every 6 MOA to reduce clutter while still providing rapid counting when needed.
This new design from ZCO will appeal to an extremely wide audience of shooters around the world for its simplicity, clean look, yet versatile capability.
- Zero Compromise Optic (ZCO) ZC527 5-27X56 IR FFP MIL/MIL 1/4 MOA Rifle Scope
All ZCO products are handcrafted with the utmost care and undergo numerous tests as well as inspections prior to shipment.
In the highly unlikely event that a problem occurs with your ZCO riflescope, we offer a transferable lifetime warranty that covers mechanical and optical defects due to materials or workmanship under normal use for the life of the riflescope.
At our discretion, we will either repair or replace (with a product of the same or similar model) a defective product after prior thorough inspection.
Exceptions to this warranty include intentional misuse or abuse, unauthorized alterations or repairs, modification or destruction of the serial number, improper assembly, negligence in handling the product, and damage by fire, flood, or other natural disaster.
The electronic components built into this product are covered by a limited warranty of 2 years from the date of purchase. This includes defects due to materials or workmanship under normal use.
For ZCO assemblies and ZCO assembly accessories, we offer a warranty period of 90 days from the date of purchase covering mechanical defects due to materials or workmanship under normal use.
At our discretion, we will either repair or replace (with a product of the same or similar model) a defective product after prior thorough inspection.
Sending in the product for repairs
Follow the steps below to ensure timely service:
- remove any accessories (sunshades or similar).
- write down the serial number of your riflescope and keep it handy for possible inquiries.
- Describe the defect and include this document with the scope in the package.
- Place the ZCO product in a well-padded box and packed in a shipping carton. Secure your package adequately with tape. The original product box alone is not sufficient for shipping.
- return your product insured and with tracking number to the following address:
Zero Compromise Optic GmbH
Rep. Department
Bäckerstraße 1
2433 Margarethen am Moos
Austria
Please Note: Shipping charges may be subject to additional surcharges if out of area or over weight restrictions.
