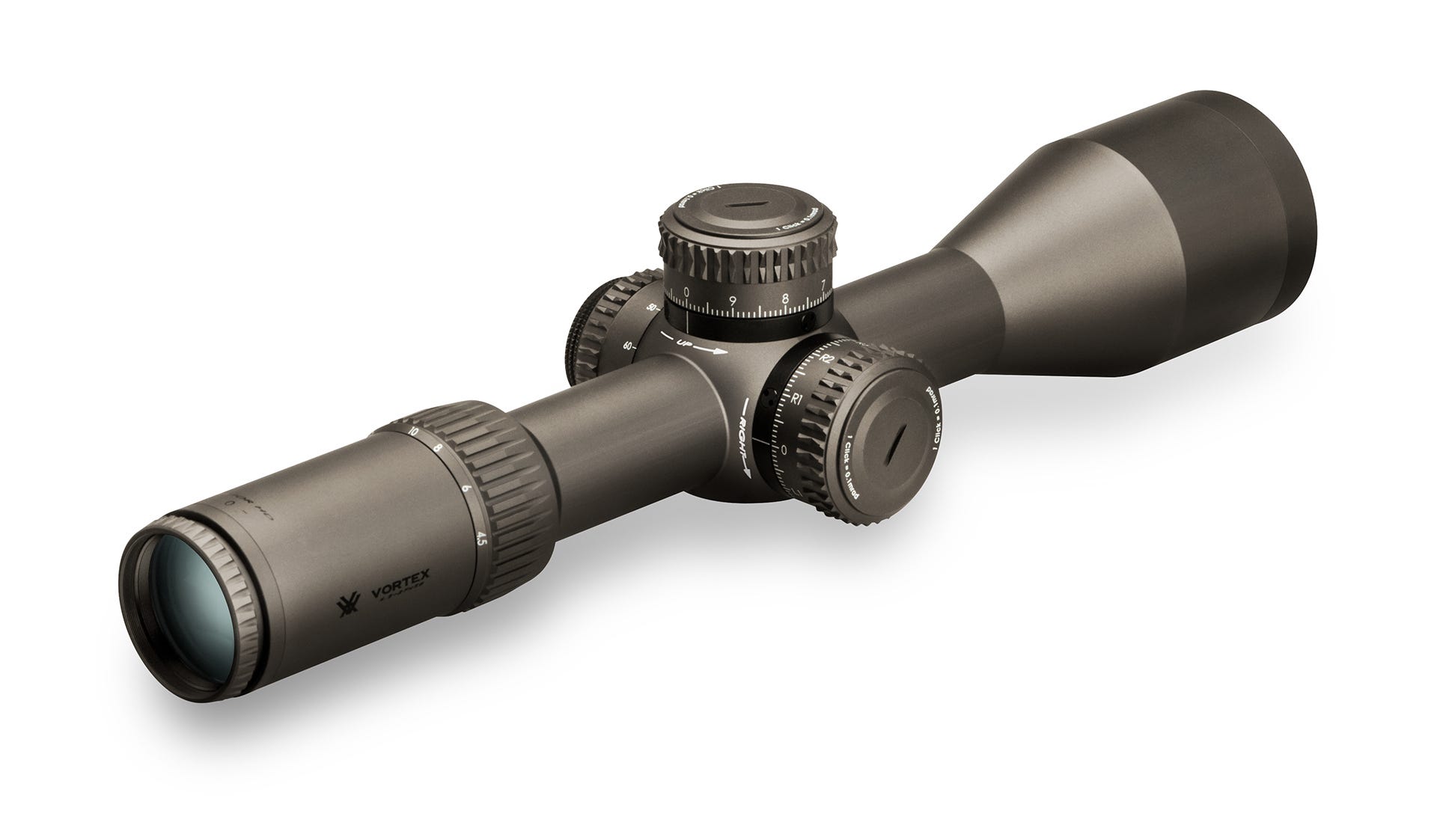

Vortex Razor HD Gen II 4.5-27x56 Illuminated FFP EBR-7C MRAD Rifle Scope

• Model 4.5-27x56 FFP
• Reticle Options EBR-1C MRAD (10 mrad turrets) EBR-2C MOA (.25 MOA turrets) EBR-2C MRAD (10 mrad turrets)
• FOV @ 100yds 25.3 - 4.4'
• Eye Relief 3.7"
• Turret Style L-Tec
• Tube Diameter 34 mm
• Length 14.4"
• Weight 48.5 oz
• Magnification  4.5-27 x
• Objective Lens Diameter 56 mm
• Adjustment Graduation .1 MRAD
• Travel Per Rotation 10 MRAD
• Max Elevation Adjustment 28.5 MRAD
• Max Windage Adjustement 14 MRAD
• Parallax Setting 32 yards to infinity
• Length 14.4 inches
• Weight 48.5 ounces

Optical Features:

• APO System: Apochromatic objective lens system uses index-matched lenses to correct colour across the entire visual spectrum.
• Optically Indexed Lenses: Optimize image sharpness and brightness from edge to edge.
• HD Lens Elements: Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in High Definition images.
• XRPlus Fully Multi-Coated: Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
• Plasma Tech: The cutting edge application process provides unparalleled coating durability and performance.
• First Focal Plane Reticle: The scale of the reticle remains in proportion to the zoomed image. Constant sub-tensions allow accurate holdover and range at all magnifications.
• Glass-etched Reticle: Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
• Illuminated Reticle: Provides precise aiming under low-light conditions.

Internal Mechanism Design Features:

• L-Tec Zero Stop: Prevents elevation turret from dialling below sight-in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials even when setting the zero-stop position. Patent pending.
• Micro Adjust Zero Setting: Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
• Friction Reduction System: Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.US Patent 7,958,665
• Turret Screws: Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
• Erector Tube System: Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

Construction Features:

• Tube Size: 34 mm diameter provides maximized internal adjustment and strength.
• Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum: Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
• Waterproof: O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
• Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof: Rugged construction withstands recoil and impact.
• Hard-Anodized Stealth Shadow Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
• ArmorTek: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• L-Tec Turrets: An integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
• External Rotation Indicator: Provides a quick visual and tactile reference of the elevation turret's rotational position.
• Locking Illumination: Locks illumination at preferred setting.
• Side Focus: Adjustment located on the left side of turret housing is easily accessible from the shooting position. Provides optimal image focus and parallax removal.

Convenience Features:

• Fast Focus Eyepiece: Allows quick and easy reticle focusing.
• Locking Side Illumination: Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

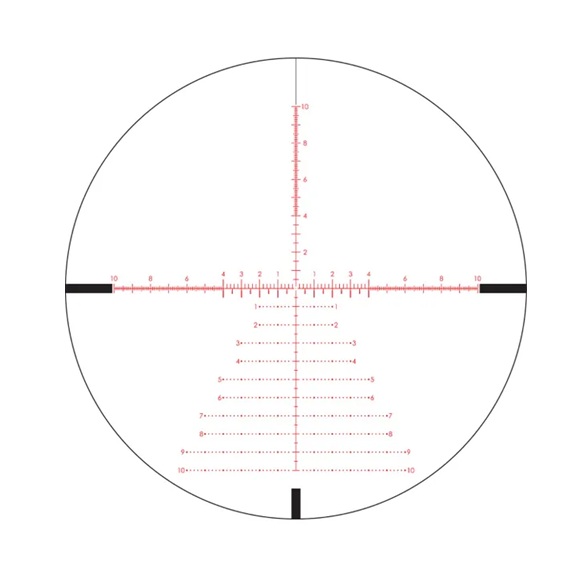

EBR-7C (MRAD)

• 4-inch sunshade
• 2mm hex wrench
• CR2032 battery
• Lens cloth
