Model	RETICLE OPTIONS	FIELD OF VIEW AT 100 YARDS	EYE RELIEF ADJUSTMENT	TURRET STYLE	TUBE DIAMETER	LENGTH	WEIGHT

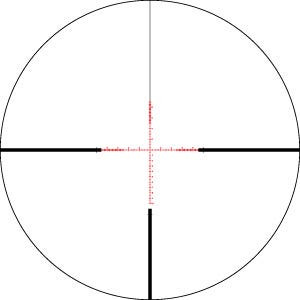

4.5-27x56 FFP	EBR-1C MRAD (10 mrad turrets) EBR-2C MOA (.25 MOA turrets) EBR-2C MRAD (10 mrad turrets)	25.3 - 4.4'	3.7"	L-Tec	34 mm	14.4"	48.5 oz

Magnification	4.5-27 x
Objective Lens Diameter	56 mm
Eye Relief	3.7 inches
Field of View	25.3-4.4 feet/100 yards
Tube Size	34 mm
Turret Style	L-Tec
Adjustment Graduation	.1 MRAD
Travel per Rotation	10 MRAD
Max Elevation Adjustment	28.5 MRAD
Max Windage Adjustment	14 MRAD
Parallax Setting	32 yards to infinity
Length	14.4 inches
Weight	48.5 ounces
Product Manual (PDF)	Download
Product Manual 2 (PDF)	Download

LENGTHS
L1	L2	L3	L4	L5	L6
14.4	2.0	2.2	6.1	4.1	4.1

HEIGHTS
H1	H2
2.55	1.81

Dimensions measured in inches.

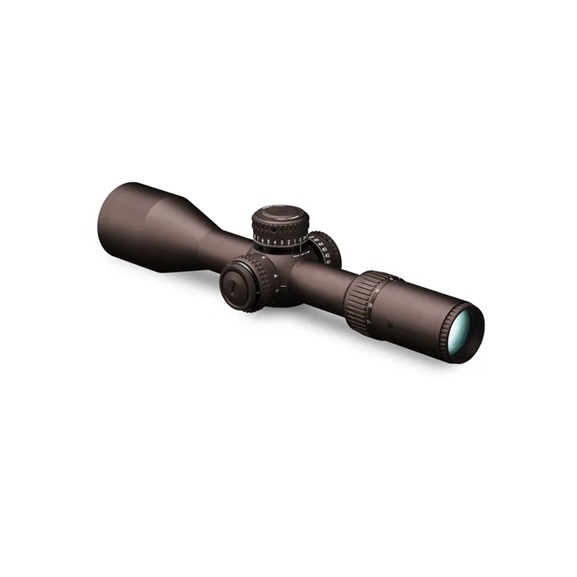

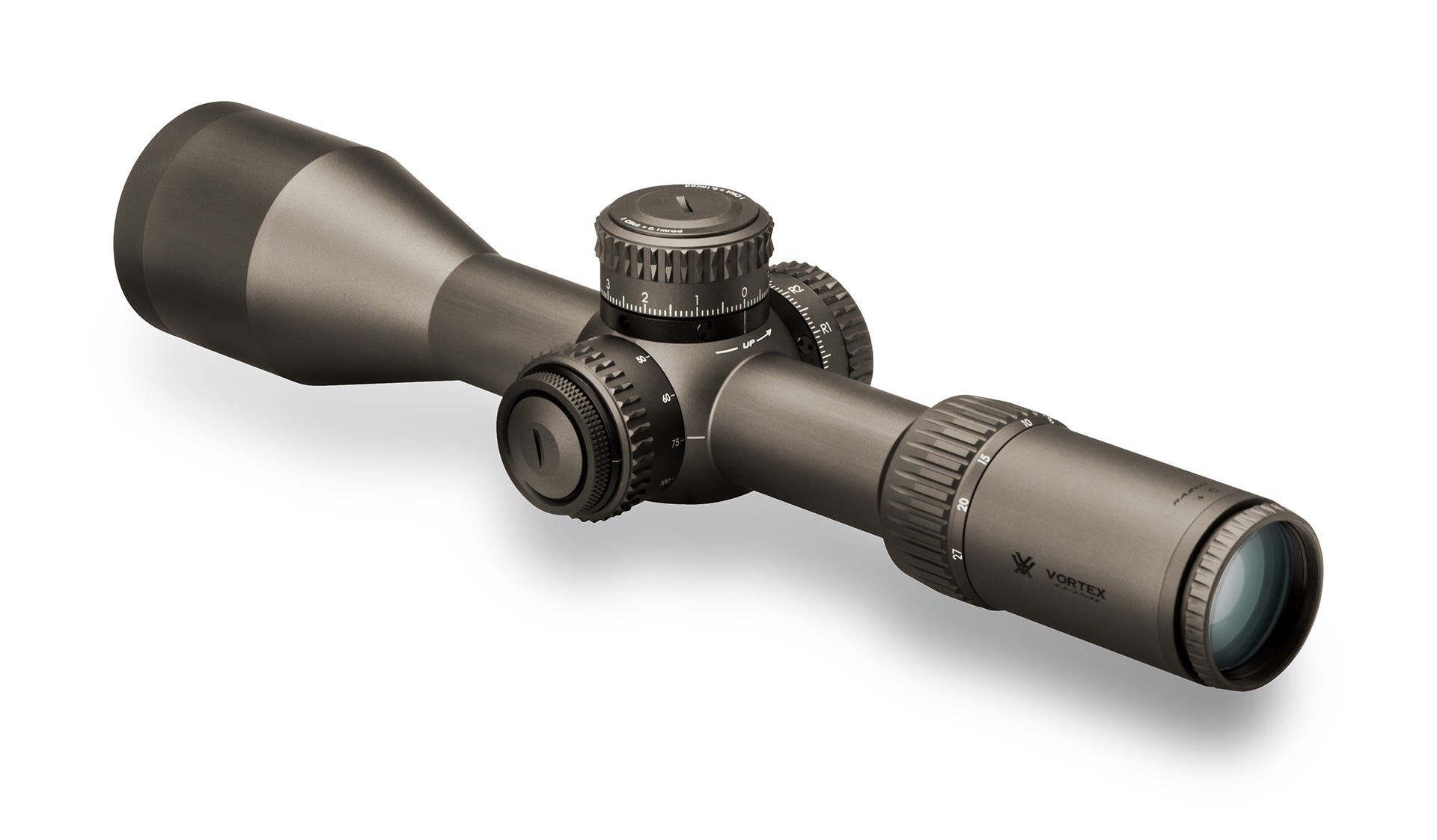

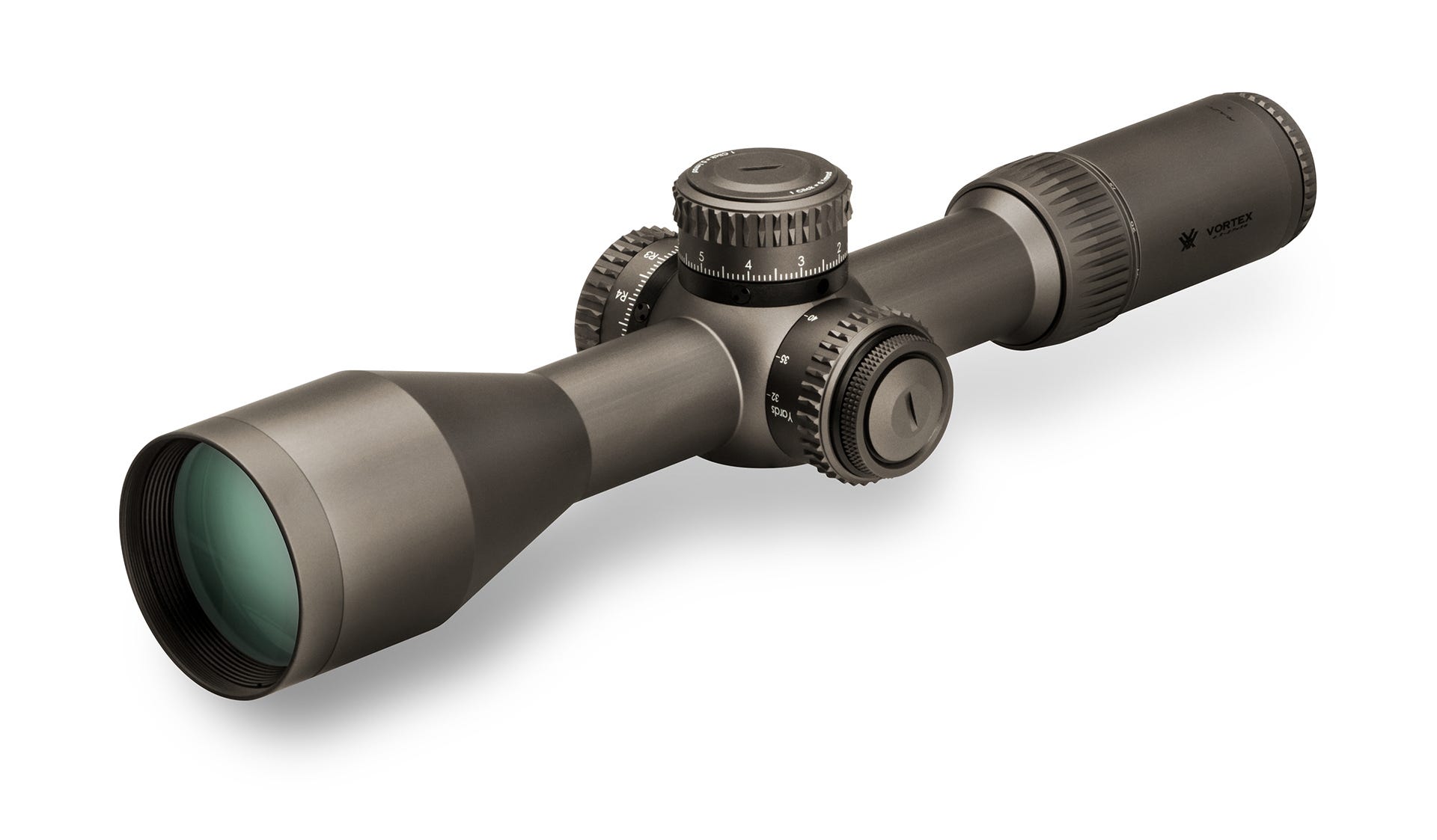

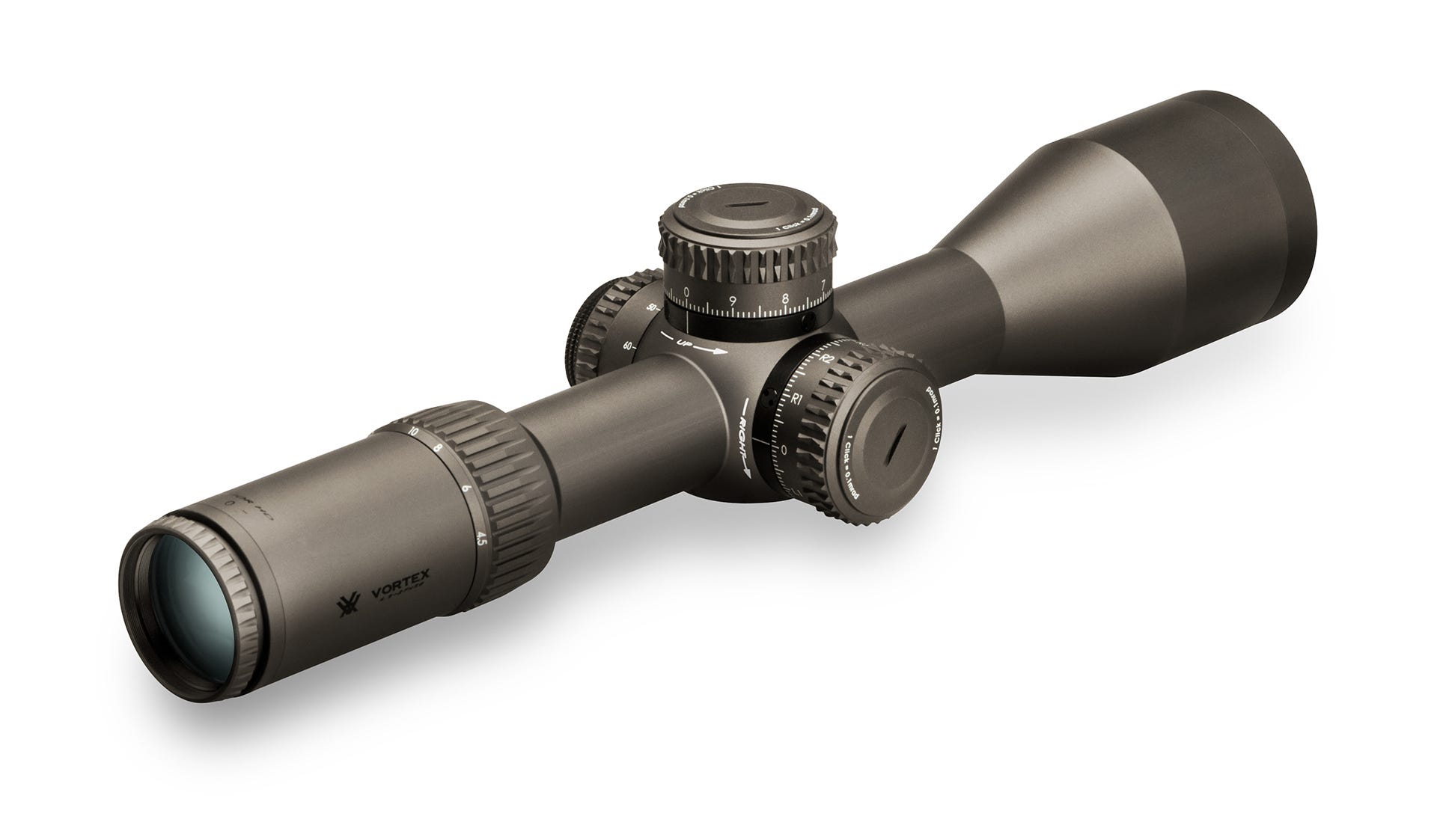

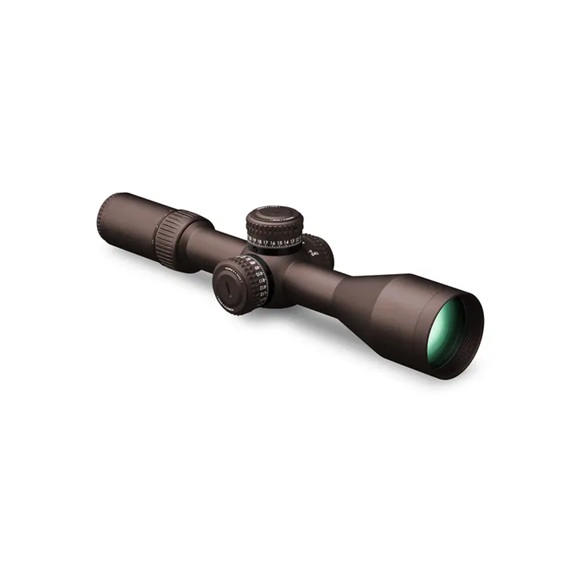

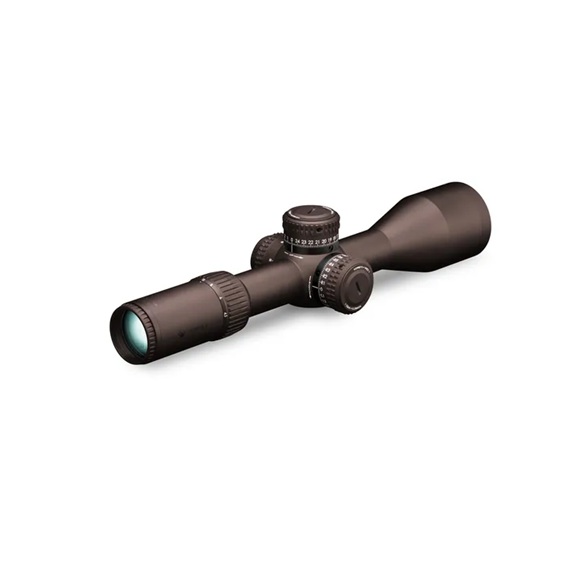

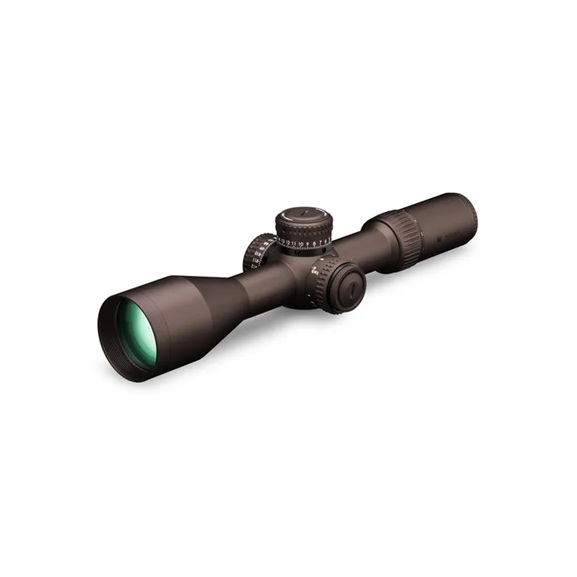

Vortex Razor HD Gen II 4.5-27x56 Illuminated FFP EBR-7C MOA Rifle Scope

OPTICAL FEATURES
APO System	Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.
Optically Indexed Lenses	Optimize image sharpness and brightness from edge to edge.
HD Lens Elements	Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
XRPlus Fully Multi-Coated	Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma Tech	Cutting edge application process provides unparalleled coating durability and performance.
First Focal Plane Reticle	Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-etched Reticle	Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle	Provides precise aiming under low-light conditions.

INTERNAL MECHANISM DESIGN FEATURES
L-Tec Zero Stop	Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials even when setting the zero-stop position. Patent pending.
Micro Adjust Zero Setting	Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
Friction Reduction System	Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.US Patent 7,958,665
Turret Screws	Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
Erector Tube System	Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

CONSTRUCTION FEATURES
Tube Size	34 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube	Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof	Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Stealth Shadow Finish	Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
L-Tec Turrets	Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
External Rotation Indicator	Provides quick visual and tactile reference of elevation turret's rotational position.
Locking Illumination	Locks illumination at preferred setting.
Side Focus	Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

CONVENIENCE FEATURES
Fast Focus Eyepiece	Allows quick and easy reticle focusing.
Locking Side Illumination	Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

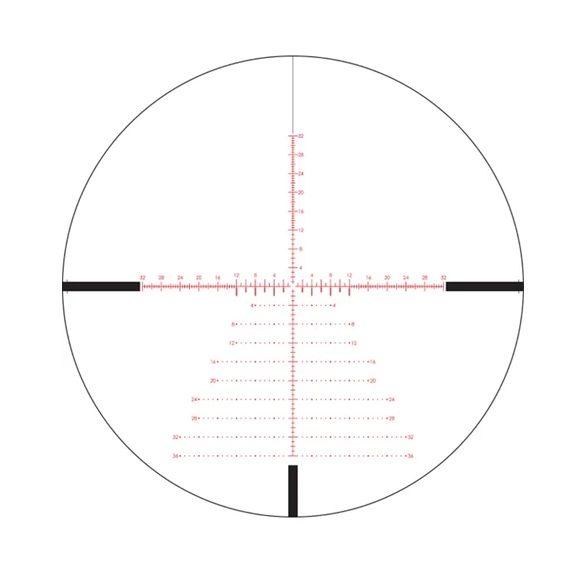

EBR-7C (MOA)

Vortex VIP Lifetime Warranty
