Vector 34mm X-Accu One Piece High Picatinny Mount

SKU#SCTM-57 Vector Optics

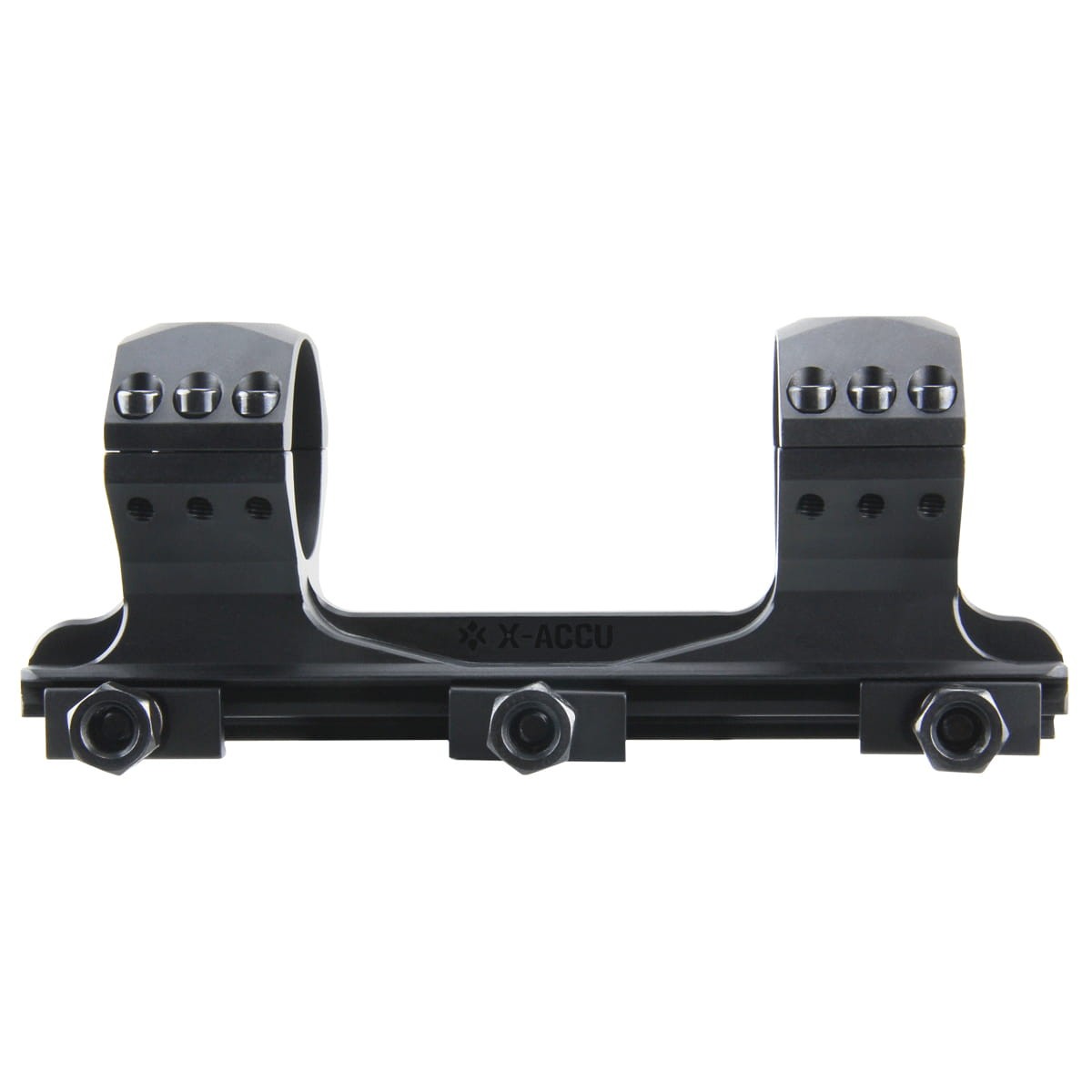

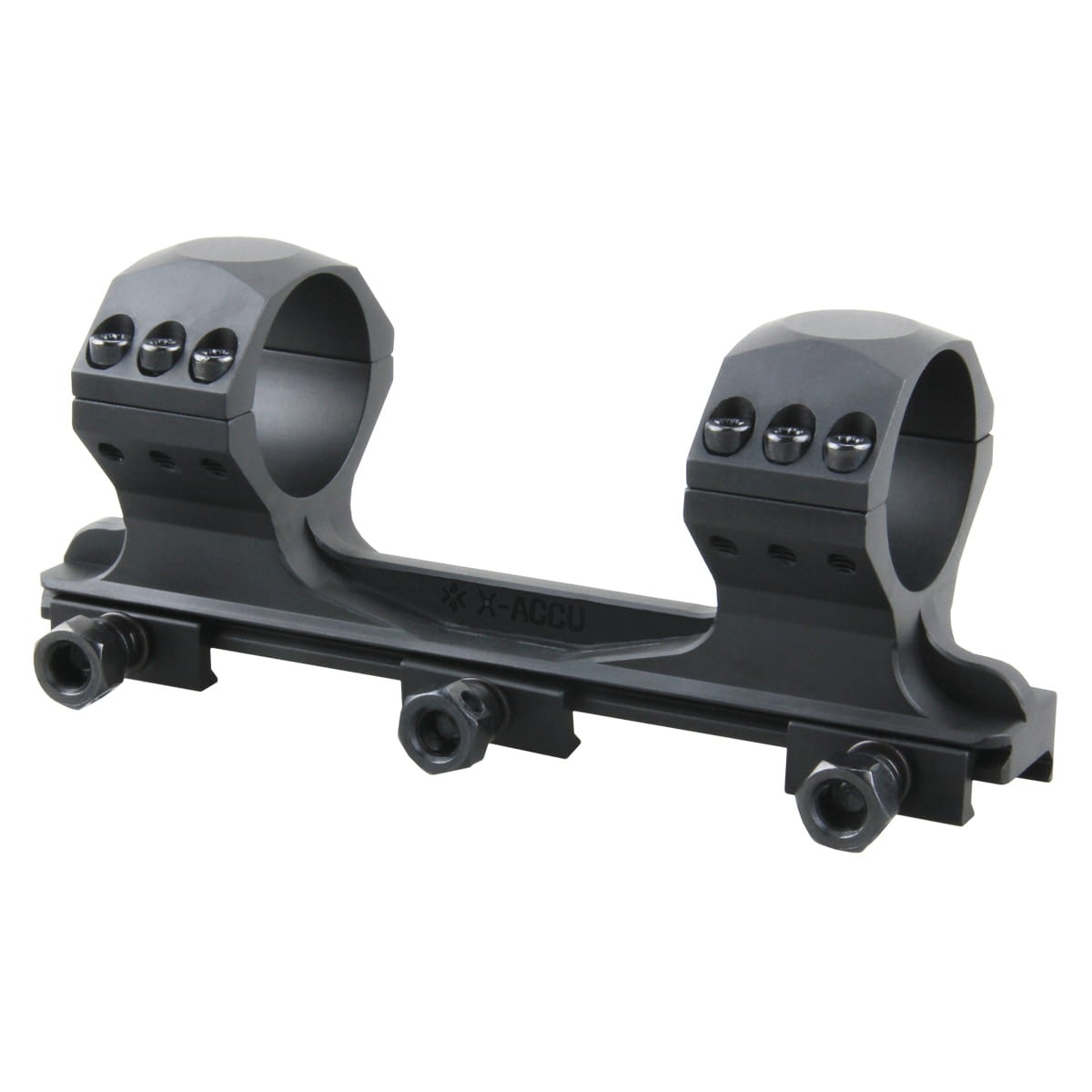

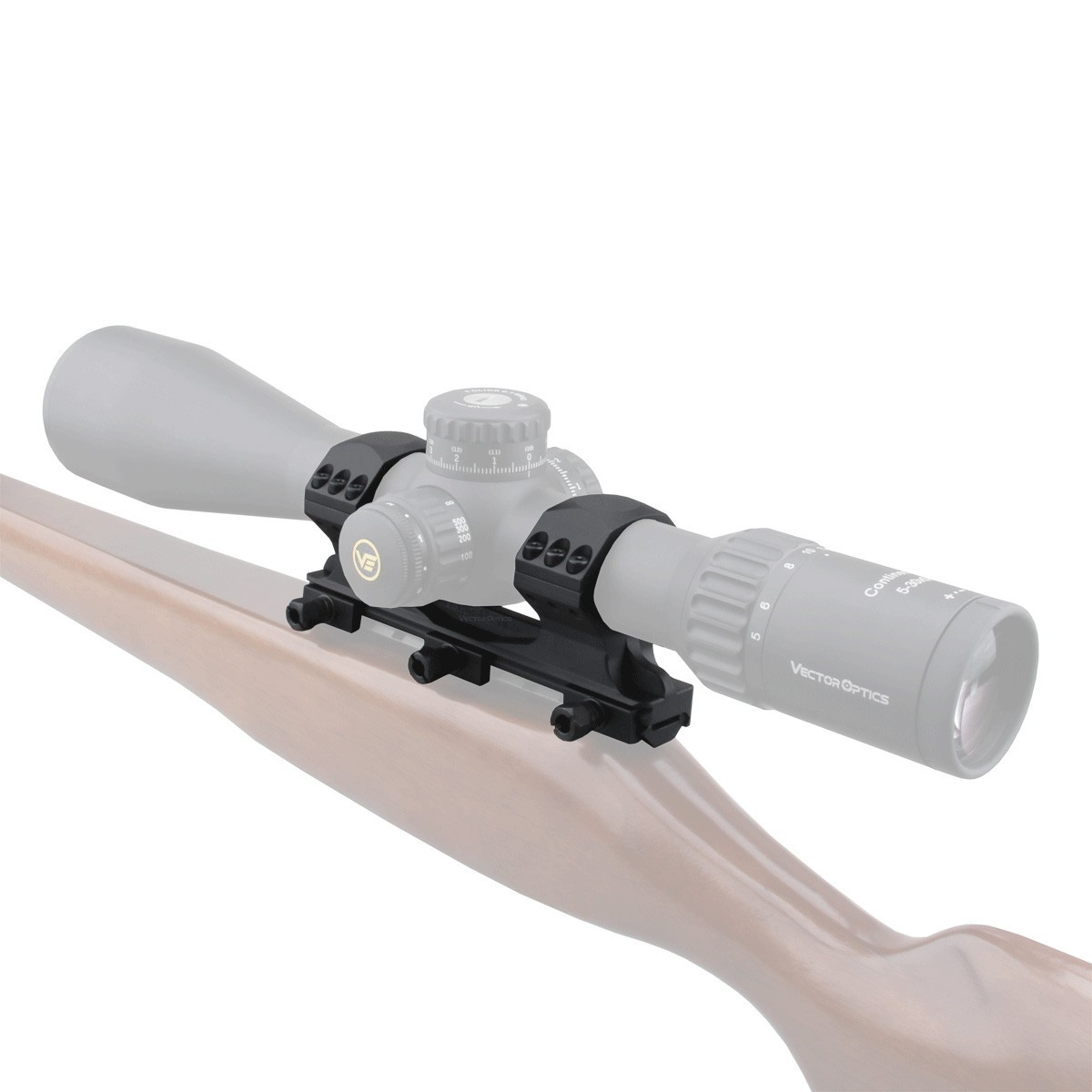

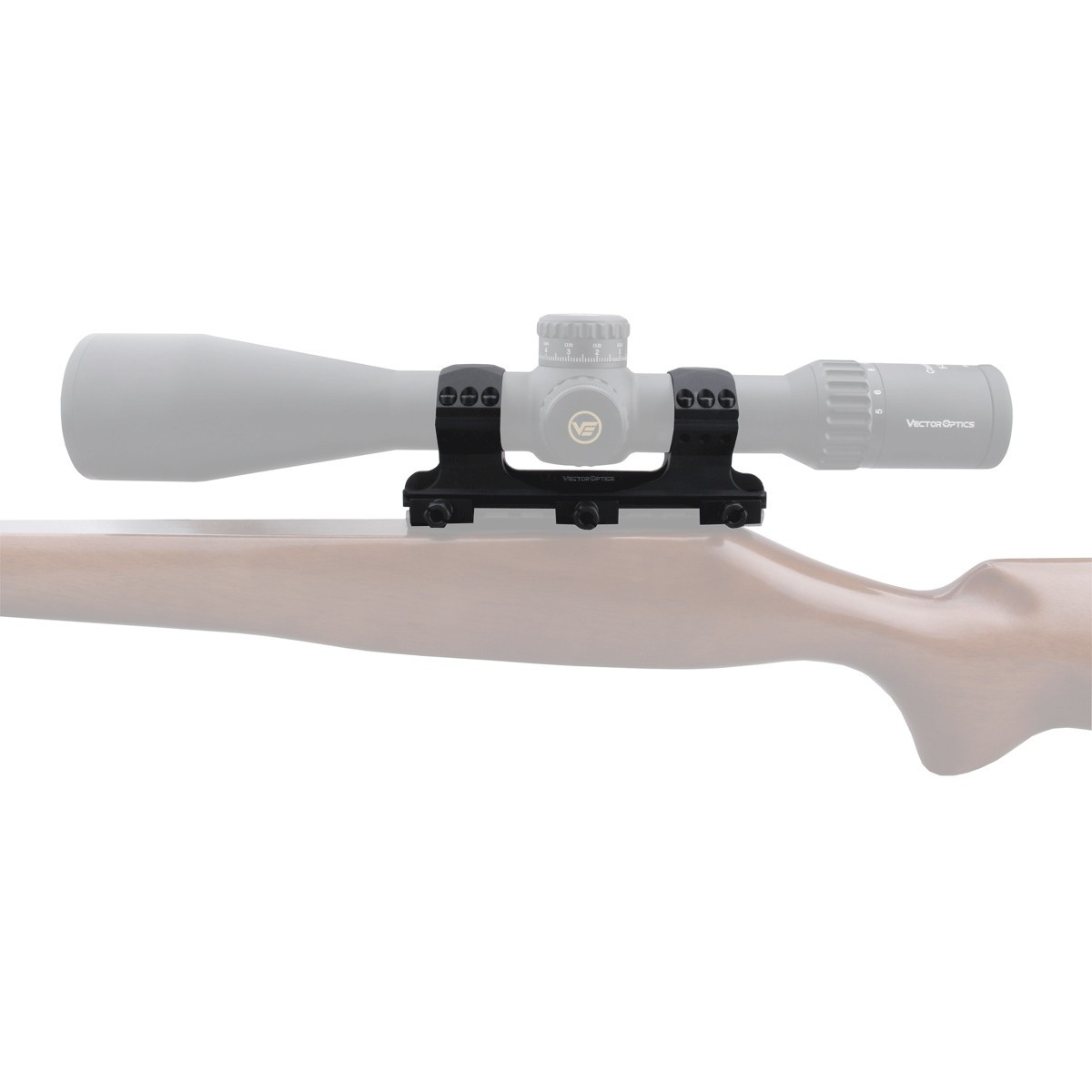

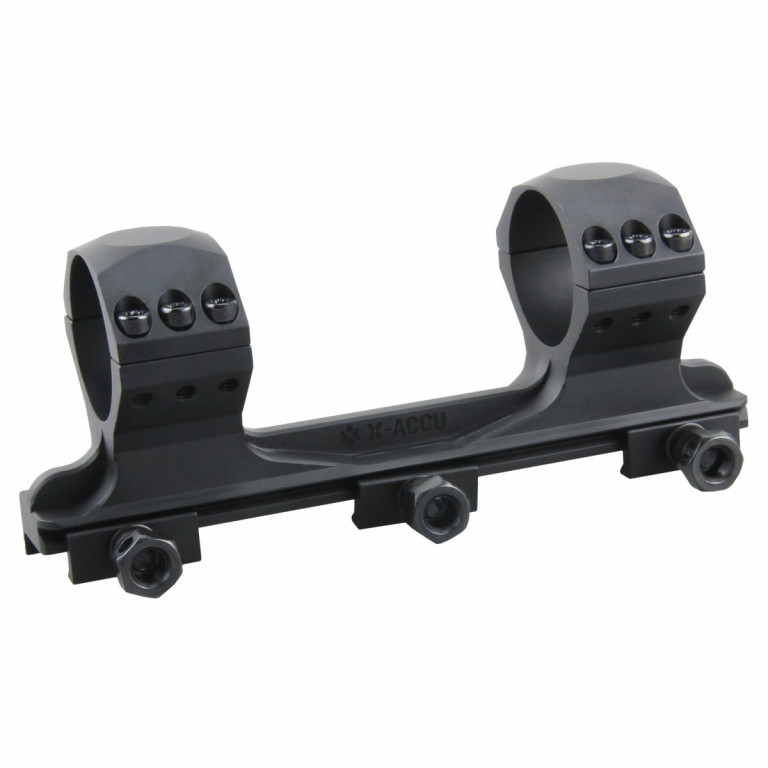

Vector 34mm X-Accu One Piece High Picatinny Mount

Name: Vector 34mm X-Accu One Piece High Picatinny Mount
Brand: Vector Optics
Price: 48.99 GBP
Availability: InStock

5 in stock

If you want a no-nonsense one-piece mount that won’t wreck your budget, the Vector X-Accu 34mm High Mount is seriously good value. It’s solid, holds zero properly, and gives you loads of clearance for bigger scopes without overcomplicating things. Basically, strong, simple, and does exactly what you need without paying premium-brand prices.

-Nathan (Technical Advisor)

VIEW PRODUCT INFO / SPECS

Select Model: 0 MOA

20 MOA

0 MOA

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Must-Have Additions for Your Order!

THIS ITEM:

Vector 34mm X-Accu One Piece High Picatinny Mount

£48.99 Was £59.95

Vector Optics 34mm Offset Bubble Level Gen II

£9.99 Was £12.90

Total (2): £58.98

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The Vector 34mm X-Accu One Piece High Picatinny Mount is engineered for exceptional strength and precision, making it ideal for high-performance rifle setups. Featuring a full CNC-machined construction from 6061-T6 aluminium alloy, it delivers outstanding rigidity and long-term durability, while the hard anodised matte black finish provides enhanced resistance to wear and corrosion.

Designed with a one-piece high-profile structure, the mount ensures perfect alignment and stability, with a 40mm central height for optimal scope positioning. Each ring is secured with six screws for maximum clamping force, while the three-cross-bolt Picatinny interface with anti-retreat rings guarantees a rock-solid fit under heavy recoil.

Capable of handling up to 45 inch-pounds of torque, this mount is built for secure installation on demanding setups. It is compatible with scopes featuring up to a 34mm tube diameter and supports objective lenses up to 65mm, making it a versatile and dependable choice for precision shooting applications.

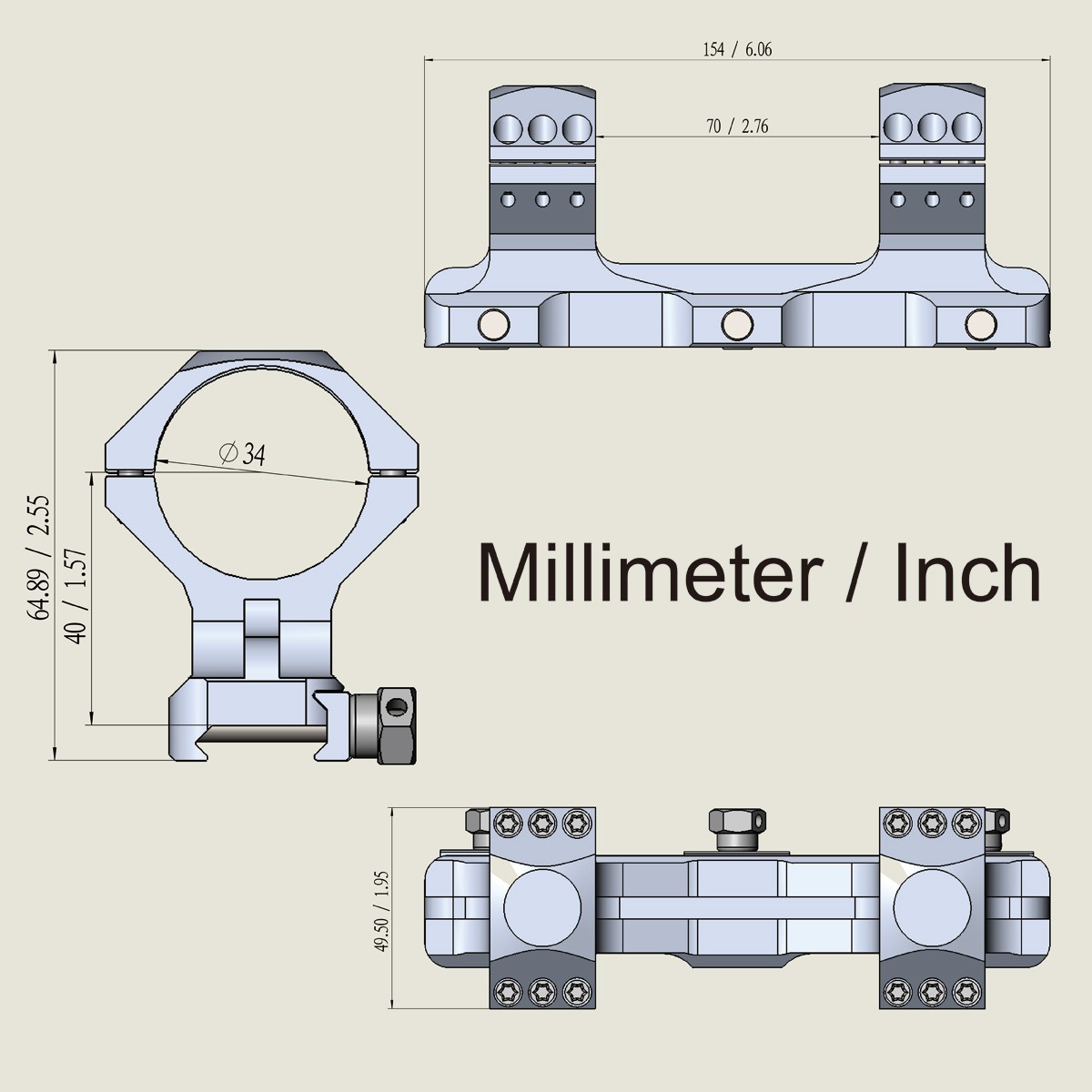

SPECS

Ring Diameter 34mm
Central Height 40mm (bottom to ring centre)
Mount Type Picatinny
Mount Length 154mm
Material 6061-T6 Aluminium Alloy
Manufacturing Full CNC Machined Construction
Finish Hard Anodised Matte Black
Ring Securing System Six screws per ring
Rail Attachment System Three cross-bolts with anti-retreat rings
Maximum Scope Objective Compatibility Up to 65mm
Maximum Torque Rating 45 inch-pounds
Weight 265g (9.3oz)
Construction Type One-piece high-profile mount

FEATURES

Designed as a one-piece high-strength scope mount for maximum stability and reliability under recoil.
Built using precision full CNC machining for superior accuracy and consistent fit.
Finished with a hard anodised coating for enhanced durability and long-lasting surface protection.
Engineered with a rock-solid Picatinny mounting system for secure attachment to compatible rails.
Features a multi-bolt clamping system per ring for exceptional grip and zero retention under heavy use.
Incorporates an anti-retreat locking design to prevent movement during firing.
Provides a high-profile mounting solution for improved optic alignment and clearance.
Designed for heavy-duty shooting applications, including high-recoil platforms.
Optimised for precision scope alignment and repeatable mounting accuracy.
Delivers a secure, non-slip hold on optics, reducing the risk of shift or misalignment.
Suitable for tactical, hunting and long-range shooting setups requiring dependable performance.

WHAT'S IN THE BOX

Vector 34mm X-Accu One Piece High Picatinny Mount.

FREQUENTLY ASKED QUESTION(S)

1. What scope tube size does this mount fit?
It’s built for 34mm scope tubes.

2. Will it fit my rifle?
Yes, as long as you have a standard 21mm Picatinny rail (also works with most Weaver rails).

3. How high is this mount?
It has a high profile with about 40mm (1.6") from the rail to the scope center.

4. Is it suitable for large objective scopes?
Yes, it can clear scopes with objective lenses up to around 65mm.

5. What material is it made from?
It’s CNC machined from 6061-T6 aluminium with a hard-anodised finish.

6. How secure is it?
Very secure—each ring uses six screws, plus three cross-bolts to lock onto the rail.

7. Can it handle heavy recoil?
Yes, it’s designed for high-recoil calibres and maintains zero well under stress.

8. What’s the benefit of a one-piece mount?
Better alignment, improved rigidity, and easier installation compared to separate rings.

9. Is it heavy?
Not really—around 265g, so it’s sturdy without being overly bulky.

10. Does this version have MOA cant?
No, this is the standard (0 MOA) version—ideal for general shooting rather than dedicated long-range setups.
