Spuhr ISMS QDP-6002 Ø36mm Tube 0 MIL (38 mm High) Quick Detach Picatinny Scope Mount

SKU#QDP-6002 Spuhr

Spuhr ISMS QDP-6002 Ø36mm Tube 0 MIL (38 mm High) Quick Detach Picatinny Scope Mount

Name: Spuhr ISMS QDP-6002 Ø36mm Tube 0 MIL (38 mm High) Quick Detach Picatinny Scope Mount
Brand: Spuhr
Price: 419.95 GBP
Availability: InStock

3 in stock

The Spuhr External Bubble Level Assembly provides a clear, adjustable levelling solution for shooters who require an alternative to the integrated level found on standard ISMS mounts. Designed to attach to the front of the scope mount body or ring, it is ideal for users who cannot easily view the built-in level or whose mount does not include one. Adjustable via two set screws for optimal positioning, this lightweight assembly includes all required mounting screws for straightforward installation.

VIEW PRODUCT INFO / SPECS

Select Type: 38mm High (38mm) 0 MIL

40mm High (38mm) 0 MOA

35mm High (38mm) 0 MOA

36mm High (38mm) 0 MOA

38mm High (38mm) 0 MIL

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Must-Have Additions for Your Order!

THIS ITEM:

Spuhr ISMS QDP-6002 Ø36mm Tube 0 MIL (38 mm High) Quick Detach Picatinny Scope Mount

£419.95 Was £438.99

Spuhr A-0119 Bubble Level Assembly

£89.99

Spuhr Fix It Sticks

£119.95 Was £156.95

Spuhr A-0001 4mm Spacer

£33.40

Spuhr The Wedge 10 Degree Key

£19.95

Total (5): £683.24

The QDP-6002 36mm mount combines zero-MOA precision with easy quick-detach functionality, offering shooters a dependable, repeatable platform for high-end optics. Rugged construction ensures your setup stays true under recoil, while the sleek design keeps your rifle balanced and ready for action.

Thomas, Sales and Product Specialist Accomplished HFT shooter offering optics and trade-in advice. Practical guidance based on years of competitive shooting.

Product Information FIND OUT MORE

DESCRIPTION

The Spuhr ISMS (Ideal Scope Mount System) is a high-performance mounting solution engineered for shooters who demand unmatched stability, precision, and modular versatility. Its single-piece, billet-machined aluminium construction provides exceptional rigidity, virtually eliminating flex under recoil and ensuring repeatable zero for long-range, tactical, and competition applications.

The system’s diagonally split rings give unobstructed access to elevation and windage turrets, allowing fast and precise adjustments without interference. An integrated levelling system and alignment wedge ensure the optic is perfectly level during setup, critical for extreme-range accuracy and consistent shot placement.

Multiple interface points along the mount allow secure attachment of a wide range of accessories, from lasers and rangefinders to backup optics and night-vision devices, without affecting rifle balance or ergonomics. Machined from aerospace-grade aluminium and finished with hard-anodised coating, the ISMS offers exceptional durability, corrosion resistance, and mechanical integrity under heavy recoil and field conditions.

With its combination of precision machining, modular functionality, and rock-solid strength, the Spuhr ISMS is designed to elevate any rifle platform, providing a foundation for accurate, repeatable, and adaptable long-range performance.

Ring Height - 38mm

SPECS

0 MIL/0 MOA
Height: 38 mm/1.5”
Length: 126 mm/4.96” (mount body only)
Weight: 279 g/9.8 oz

Note: Will not fit the SAKO S20 or rifles with 2-piece rails

FEATURES

Monolithic one‑piece construction - CNC‑machined from a single billet of aerospace‑grade aluminium to eliminate tolerance stacking, flex, and ring misalignment common in multi‑piece mounts.
High‑rigidity structural geometry - Optimised cross‑section and material distribution provide exceptional torsional and vertical stiffness, maintaining optic alignment under heavy recoil and dynamic loading.
Hard‑anodised surface treatment - Type III hard anodising delivers excellent abrasion resistance, corrosion protection, and a non‑reflective tactical finish.
Diagonal ring split design - Improves load distribution around the scope tube while keeping elevation and windage turrets fully accessible, preventing obstruction during adjustment.
Integrated scope levelling system - Built‑in bubble level allows the shooter to reference rifle cant and optic alignment directly on the mount for precise long‑range shooting.
Multi‑axis accessory interface - Machined mounting points on multiple faces of the mount support direct attachment of optical and electronic accessories without adding separate rails.
Low‑profile accessory mounting - Keeps mounted devices close to the bore axis and centre of mass, preserving rifle balance and minimising parallax and offset errors.
Precision‑cut recoil lugs and rail interface - Provides repeatable, slip‑free engagement with Picatinny rails for consistent return‑to‑zero performance.
High‑strength fastener system - Torque‑optimised fasteners maintain clamping force under vibration and recoil, preventing optic movement or zero shift.
Designed for extreme‑range precision - Engineered to support the mechanical and optical demands of ELR, PRS, and professional long‑range shooting platforms.

WHAT'S IN THE BOX

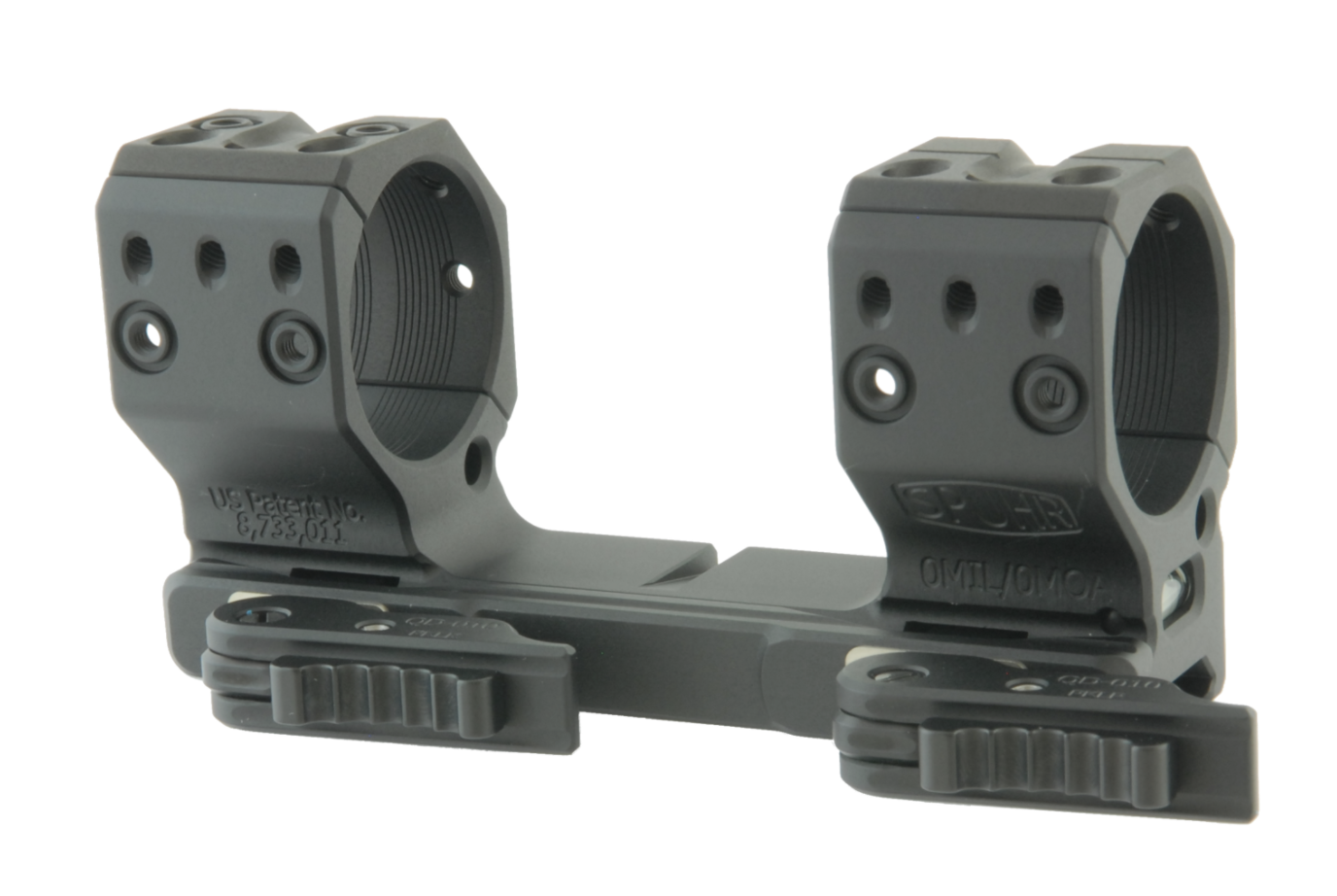

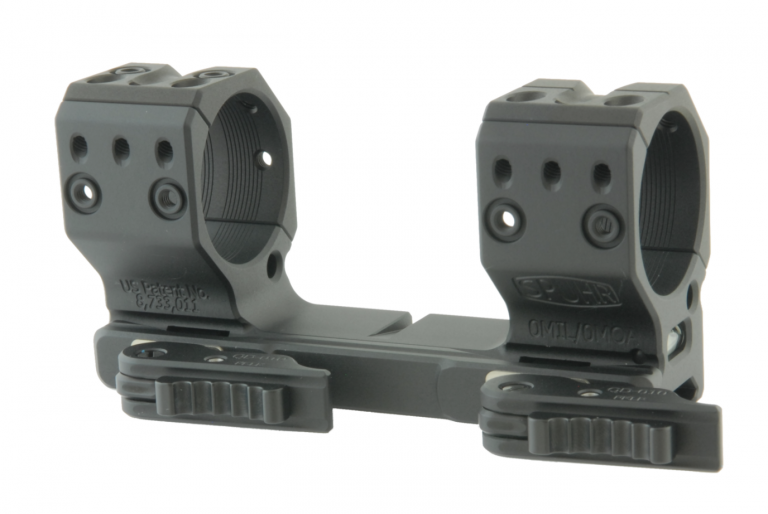

QDP-6002 Ø36 H38MM 0MIL

FREQUENTLY ASKED QUESTION(S)

Why is a 36 mm tube beneficial for heavy tactical optics?
A larger tube allows more internal elevation and windage travel while providing increased stiffness to prevent tube flex, improving tracking accuracy over long ranges.

How does the QDP cam-lock system differ from standard QD mounts?
It uses dual-lever cams that maintain constant, repeatable clamping pressure against the rail, reducing variations in mount seating and ensuring return-to-zero consistency.

Does the mount compensate for small rail manufacturing tolerances?
Yes. The spring-loaded cam system allows minor rail deviations without introducing mechanical stress or zero shift.

How does the mount handle heat expansion during long shooting strings?
The aluminium alloy body distributes heat evenly and resists warping, maintaining tube roundness and alignment even under extended firing.

Can the mount be used with heavy night vision or thermal devices?
Yes. The Ø36 tube size provides enough diameter for secure clamping, while the height ensures clearance for front-mounted devices.

How critical is torque when mounting a 36 mm optic on this QDP?
Precision torque is essential to prevent tube deformation while maintaining full repeatability of the quick-detach interface.

Does the QDP system allow for rapid removal without losing zero?
Yes. The mount consistently returns to the same rail interface thanks to the dual-cam clamping surfaces.

What role does the integrated bubble level play?
It helps verify perfect cant during installation, critical for maintaining consistent horizontal alignment over long distances.

How does this mount distribute recoil forces?
The mount engages the top and side faces of the rail, spreading forces evenly to prevent movement under sharp recoil impulses.

Is the 38 mm height ideal for modern chassis rifles?
Yes. It balances head clearance, cheek weld comfort, and sufficient clearance for accessories and objective lenses.

How does the mount impact parallax performance?
By maintaining a rigid, centered optical axis, it prevents tube deformation that could create parallax errors at distance.

Can this mount be used on semi-automatic rifles?
Yes. Its rigidity and wide clamping surfaces handle the cyclic recoil of semi-automatic platforms without shifting.

What makes this mount suitable for tactical and precision shooting?
It combines a large tube diameter, consistent QDP repeatability, and rigid one-piece construction for stability and precise optics alignment.

How does the mount perform under repeated removal and reattachment?
The dual-cam system ensures that repeated removal does not change optical alignment or zero, provided the rail is standard.
