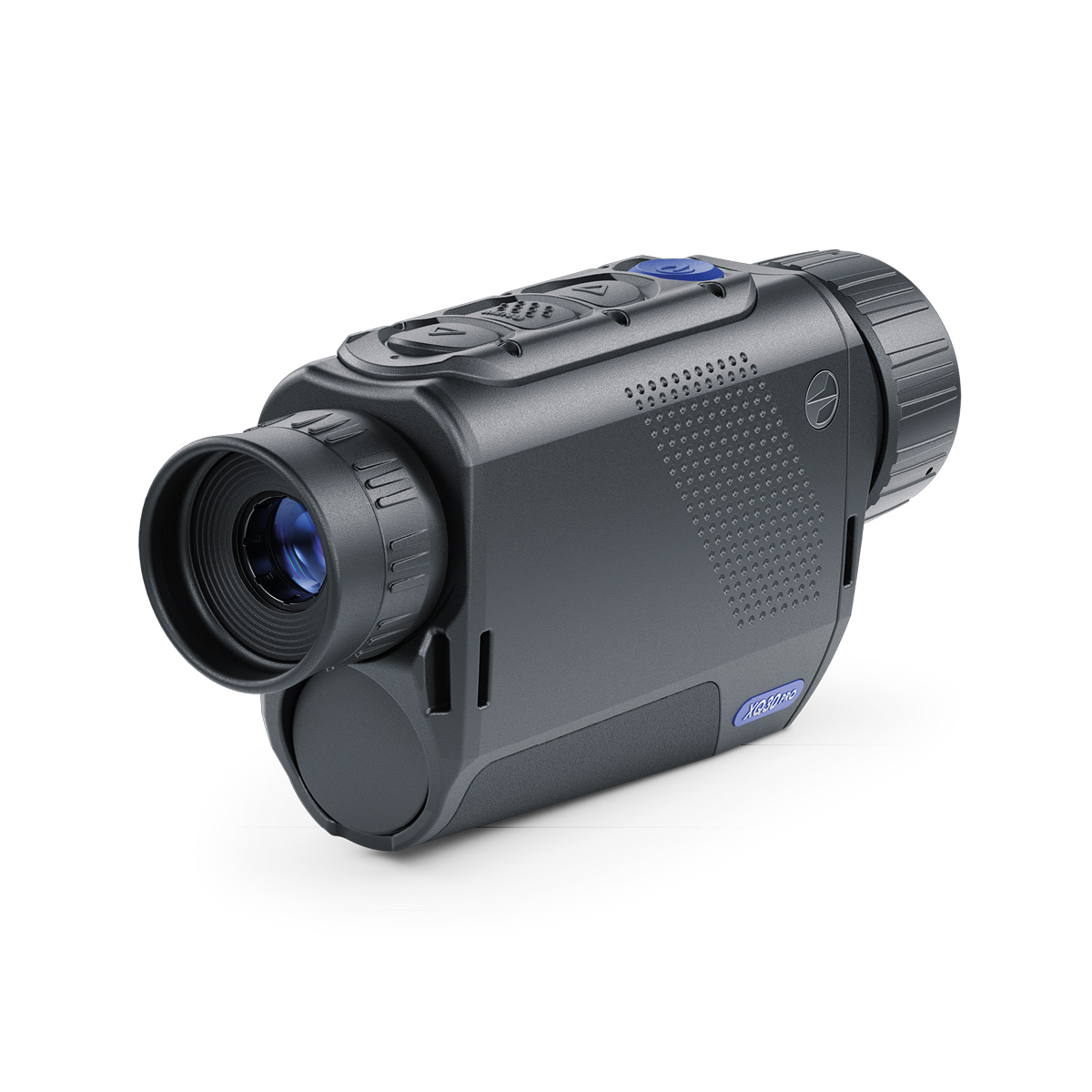

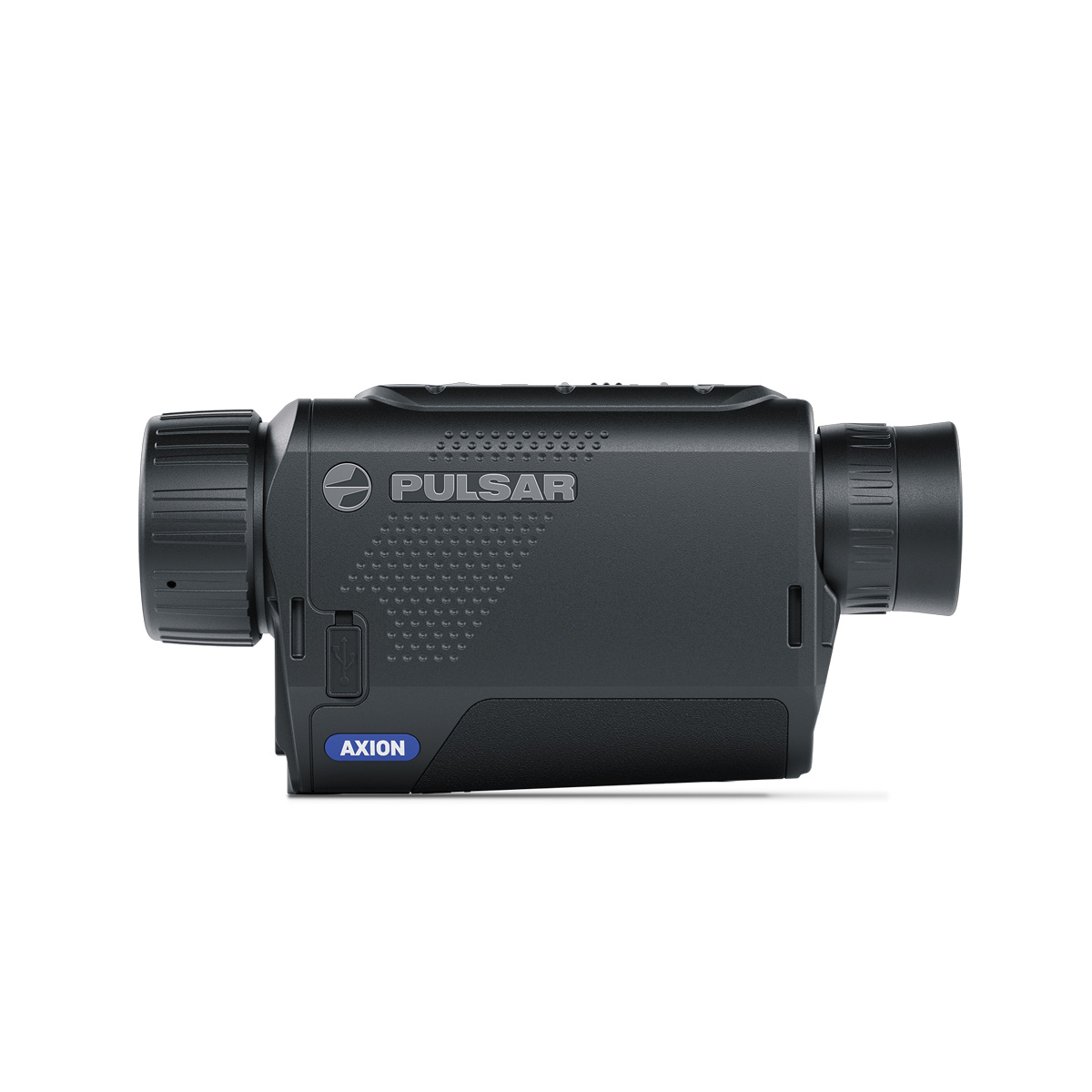

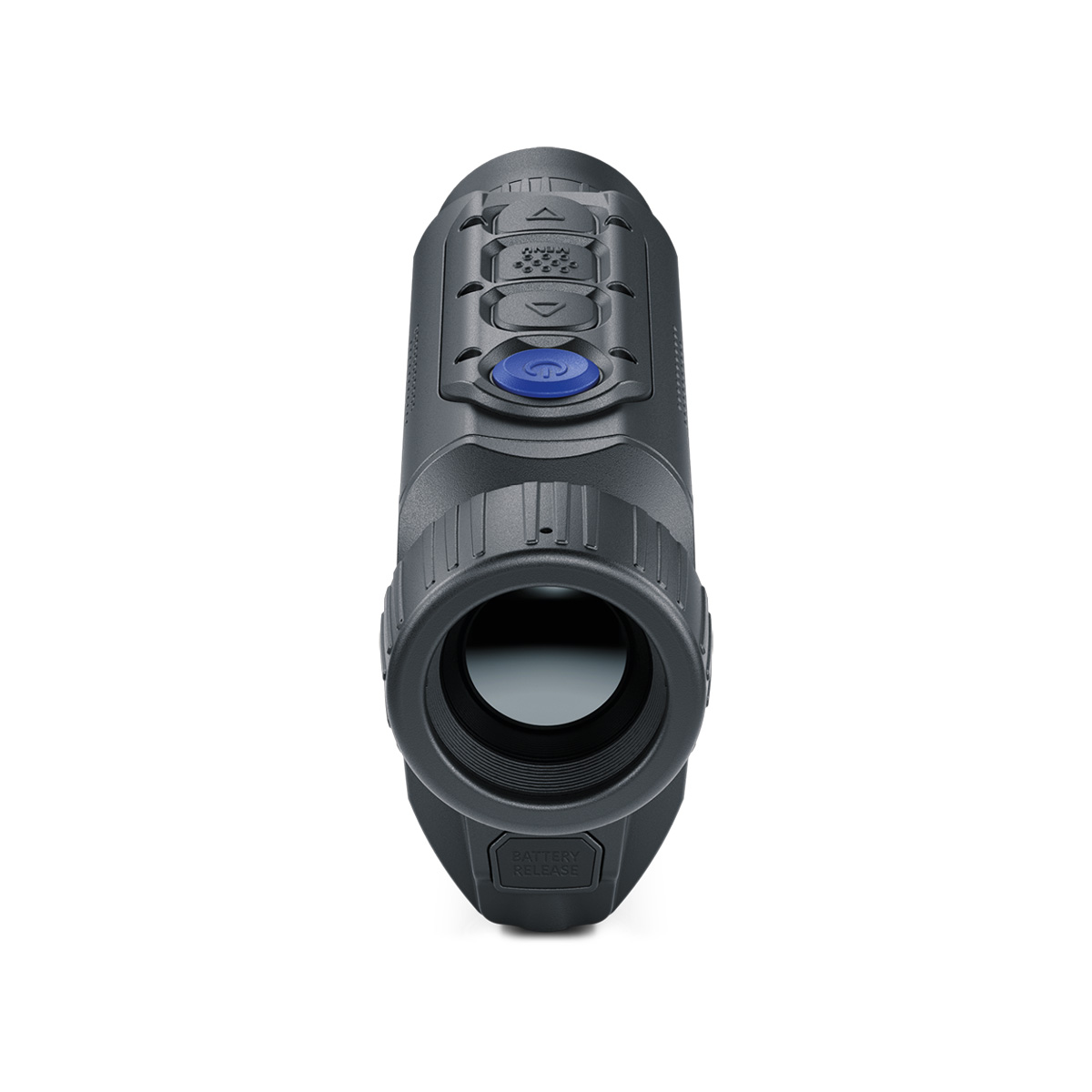

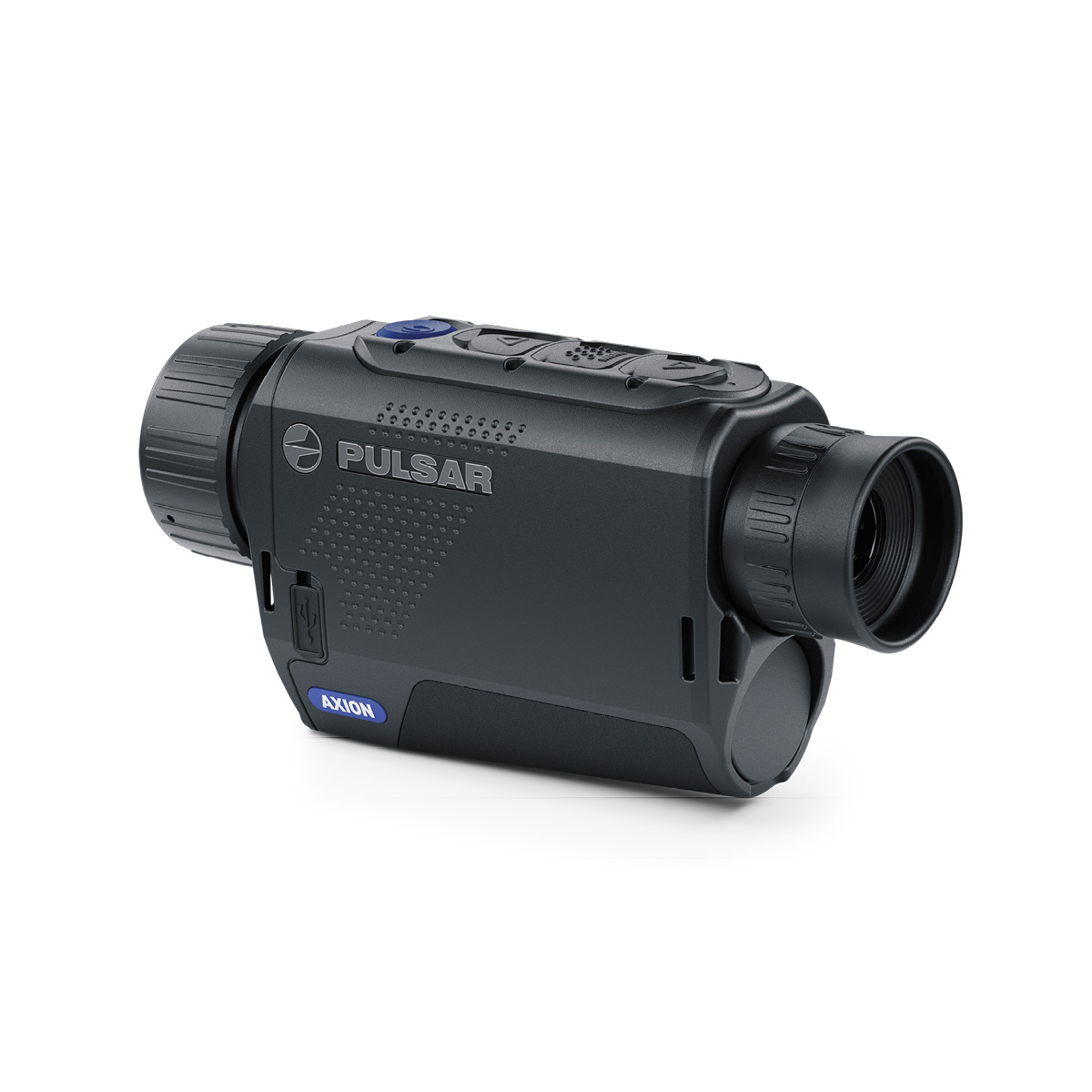

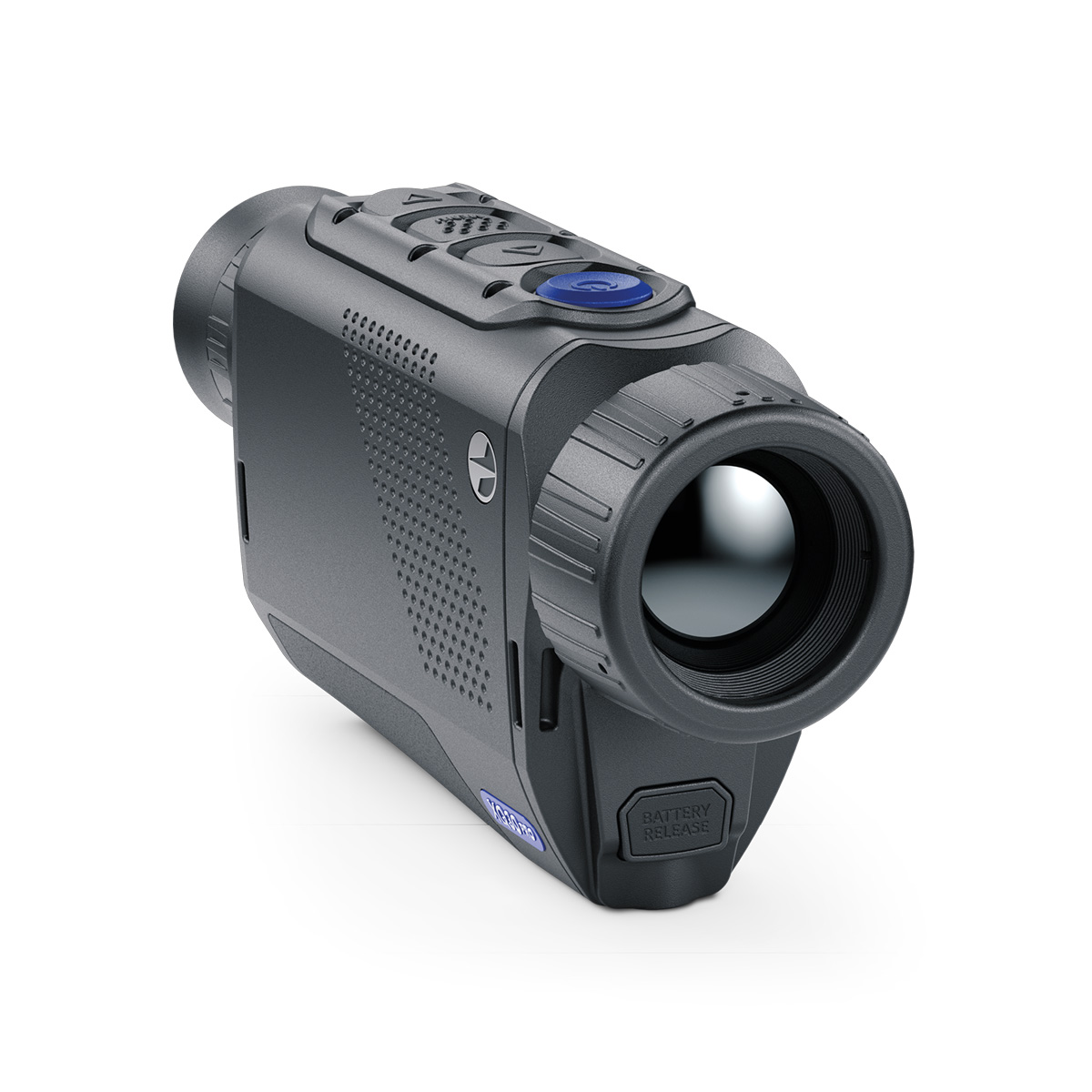

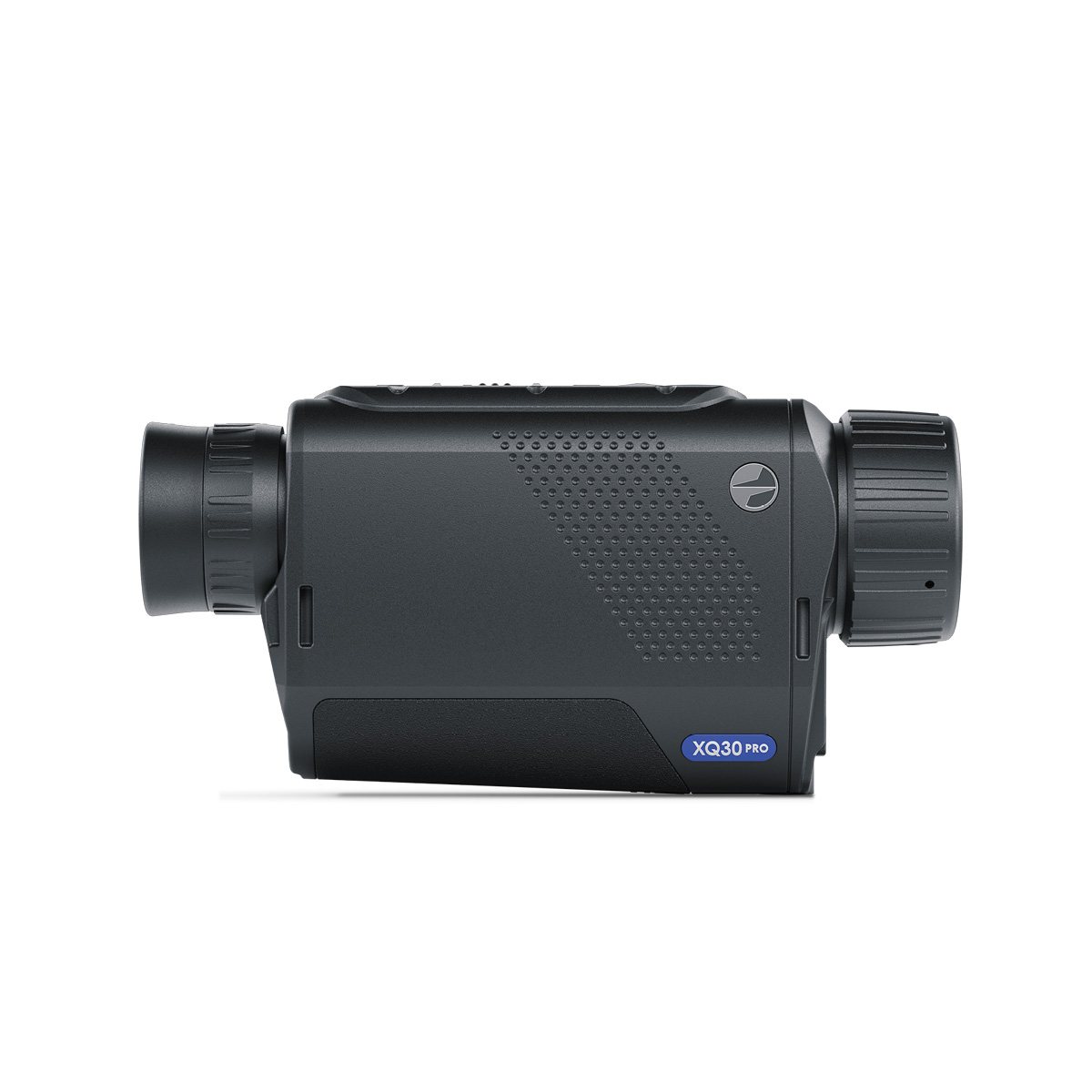

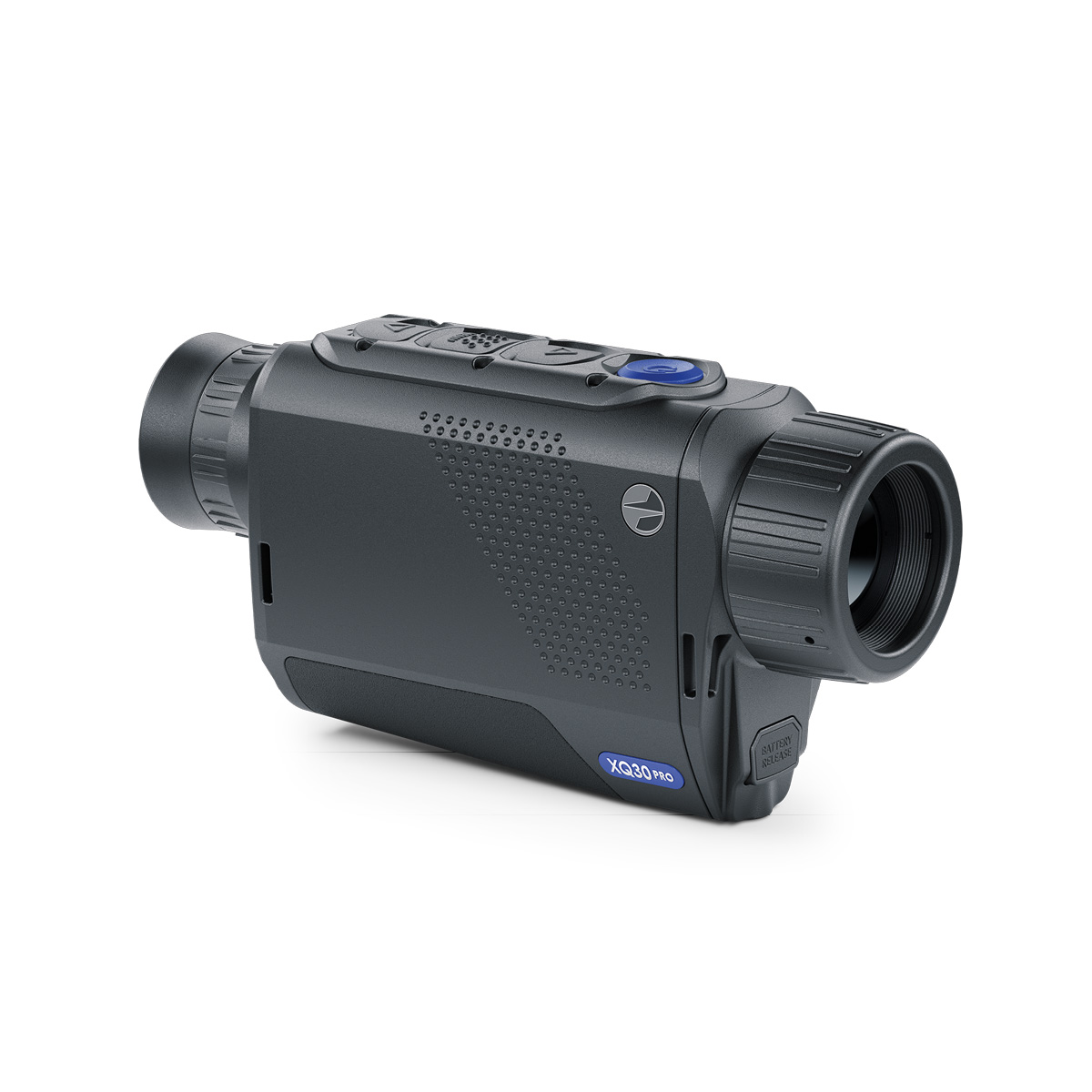

Pulsar AXION XQ30 PRO Hand Held Thermal Monocular - 30mm <25mK 384x288px 17um

• Thermal Sensor 384×288, 17µm
• NETD <25 mK
• sNETD <20 mK
• Frame Rate 50 Hz
• Objective Lens 30mm f1.2
• Magnification 2.0–8.0x
• Field of View (FOV) 13.3°
• Display 640×400 AMOLED
• Detection Range 1050m
• Video Recorder Yes, with audio
• Video Resolution 528×400
• Video Format .mp4/.jpg
• Built-In Memory 16GB
• Wireless Protocol Wi-Fi
• Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
• Frequency 2.4 / 5 GHz
• Degree of Protection IPX7 (waterproof)
• Operating Temperature Range -25 – +40°C
• Compatible Mounts 1/4″
• Supported Application Stream Vision 2
• Output Voltage 4.2–3.0 V
• Battery Type APS3 replaceable battery (3.2 Ah)
• Battery Capacity 3200 mAh
• Operating Time Up to 8 hours (at 22°C)
• External Power Supply 5V (USB)
• Body Material Magnesium alloy
• Dimensions 144 × 41 × 69 mm
• Weight 300 g

• Enhanced Thermal Performance – pro-grade 384×288, 17µm, <25mK NETD sensor and 30mm f1.2 lens deliver excellent image clarity and contrast in all conditions.
• Sensitivity Amplification Levels – three levels with advanced filtration algorithms and fine brightness/contrast control improve detection in challenging weather.
• Wide Field of View – 13.3° FOV makes searching and tracking easier, enabling close observation without losing situational awareness.
• Picture-in-Picture Mode – provides a magnified view in a small window while maintaining full control over the wider scene.
• AMOLED Display – high-contrast 640×400 AMOLED screen ensures sharp, smooth imaging with improved colour rendering, even in frosty conditions.
• Compact Ergonomic Design – lightweight 300 g build with intuitive four-button control for simple operation during extended use.
• Rugged Build – magnesium alloy housing offers durability, acts as a heatsink, and features IPX7 waterproof protection for reliable performance in harsh weather.
• Efficient Power – APS3 rechargeable battery provides up to 8 hours of use, with quick-change capability and USB-C fast charging for convenience.
• Eight Colour Palettes – White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, and Violet for optimised observation in varying conditions.
• Recording & Connectivity – capture stills and video with audio, store them on 16GB internal memory, and connect via Stream Vision 2 for remote control, gallery sharing, and firmware updates.

• Pulsar AXION XQ30 PRO Hand Held Thermal Monocular - 30mm <25mK 384x288px 17um

1. What resolution does it use?
It has a 384×288 thermal sensor with a 17µm pixel pitch for balanced clarity and detection performance.

2. How sensitive is it in poor conditions?
It features a NETD of under 25mK, meaning it can detect very small temperature differences for clearer imaging in fog, rain, and low contrast.

3. What is the detection range?
It can detect heat signatures up to about 1050 metres depending on conditions and target size.

4. What magnification does it offer?
It provides 2.0–8.0x magnification with smooth digital zoom for closer inspection.

5. How long does the battery last?
Up to around 8 hours depending on temperature and usage, using a replaceable APS3 battery.

6. Is it lightweight?
Yes, it’s very compact and weighs around 300g, making it easy to carry all night without fatigue.

7. Does it record video and photos?
Yes, it has built-in recording with internal memory and Stream Vision connectivity for managing footage.

8. Is it weatherproof?
Yes, it’s IPX7 rated, so it can handle heavy rain and harsh outdoor conditions.

9. What’s the field of view like?
It has a wide 13.3° field of view, making scanning and locating heat sources faster and easier.

10. What’s the main advantage of this model?
It’s the balance—compact size, solid detection range, and strong thermal sensitivity without the bulk or cost of higher-end units.
