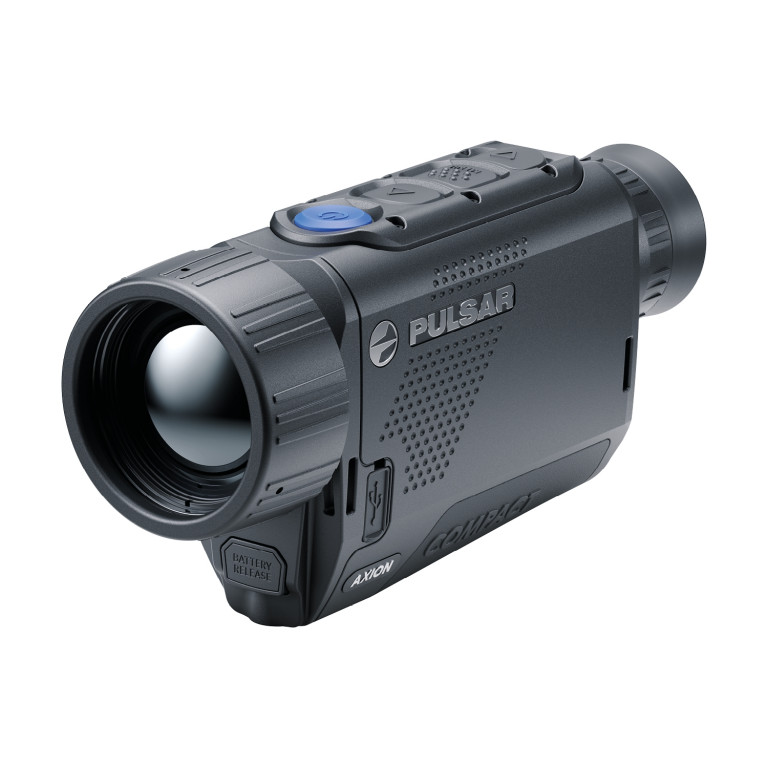

Pulsar AXION XG35 COMPACT Hand Held Thermal Monocular - 35mm <40mK 640x480px 12um
The Pulsar Axion XG35 Compact is a proper pocket powerhouse—640×480 resolution on a 12µm sensor with <40mK NETD performance, giving you crisp, detailed thermal imaging in a unit small enough to literally fit in your hand. The 35mm F1.0 lens pushes detection out to around 1750m, and the 50Hz refresh keeps everything smooth and easy to scan when you’re moving through the field. It’s lightweight, rugged, and built for quick, no-fuss spotting when you don’t want to carry heavier gear.
-Nathan (Technical Advisor)
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#1402
#1403
#1398
#1401
#1399
Introducing the Pulsar Axion XG35 Compact Hand Held Thermal Monocular – a true thermal powerhouse that fits in the palm of your hand. Despite its compact and lightweight design, the Axion XG35 is equipped with a highly sensitive 640×480, 12µm, <40 NETD European-made Lynred thermal sensor and a 35mm f1.0 germanium objective lens, delivering outstanding image clarity and detecting heat signatures at distances of up to 1750 metres.
Perfect for extended observation in all weather conditions, this rugged IPX7-rated monocular is built with a durable magnesium alloy body and enhanced grip for reliable handling. With a wide 12.5° field of view, up to 7 hours of battery life, eight thermal colour palettes, built-in video and audio recording, and seamless connectivity via Stream Vision 2, the Axion XG35 ensures you never miss a moment , day or night.
- Thermal Sensor 640×480, 12µm
- NETD <40 mK
- sNETD <20 mK
- Objective Lens 35mm f1.0
- Frame Rate 50 Hz
- Magnification 2.5–20.0x
- Field of View (FOV) 12.5°
- Eye Relief 14 mm
- Detection Range 1750 m
- Rangefinder Stadiametric
- Battery Pulsar APS3 rechargeable & replaceable battery
- Battery Life Up to 7 hours
- Audio/Video Built-in video recorder (with audio) & still image capture
- Internal Memory 64GB
- Video Format .MP4
- Video Resolution 960×900
- Image Format .JPG
- Image Resolution 960×600
- Wi-Fi Yes
- Stream Vision 2 Yes
- Body Material Magnesium alloy
- Level of Protection IPX7
- Operating Temperature -25 to +40°C
- Dimensions 146 × 49 × 71 mm
- Weight 350g
- Compact Thermal Powerhouse – pocket-sized yet capable of long-distance detection, combining portability with exceptional performance.
- Wide Field of View – 12.5° FOV enables comfortable scanning of large areas, ensuring fast detection and tracking of heat sources.
- Extended Observation – up to 7 hours runtime with a removable APS3 rechargeable battery, with the option to carry spares for uninterrupted use.
- Rugged Build – durable magnesium alloy housing, IPX7 waterproof rating, and rubberised grip for secure handling in harsh weather.
- Customisable Viewing – eight colour palettes (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet) tailored for detection, recognition, and prolonged observation.
- Video & Connectivity – built-in video and audio recording with 64GB internal memory, plus Stream Vision 2 Wi-Fi app for sharing, remote control, and firmware updates.
- Axion XG35 Thermal Imaging Monocular
- APS3 rechargeable battery
- Power adapter
- USB Type-C cable with USB Type-A adapter
- Carrying case
- Hand strap
- Quick user manual
- Lens cloth
- Warranty sheet
1. What resolution does it use?
It uses a 640×480 thermal sensor with a 12µm pixel pitch for high-detail imaging in a compact body.
2. How sensitive is it in bad conditions?
It has a NETD of under 40mK (with system sensitivity effectively better), helping it detect small heat differences in fog, rain, and cluttered environments.
3. What is the detection range?
It can detect heat signatures up to around 1750m depending on conditions and target size.
4. What magnification does it offer?
It provides 2.5–20x magnification with digital zoom for closer inspection.
5. How small and portable is it?
It weighs roughly 350g and is genuinely pocket-sized, designed for easy carry during long sessions.
6. How long does the battery last?
Up to around 7 hours using a removable APS3 battery.
7. Does it record video and photos?
Yes, it has built-in recording with internal memory and supports Stream Vision 2 connectivity.
8. Is it weatherproof?
Yes, it’s IPX7 rated, so it can handle heavy rain and harsh outdoor use.
9. What’s the advantage of the 12µm sensor?
It packs more pixels into the same sensor size, giving better perceived detail and smoother target definition than older 17µm systems.
10. Who is this model best for?
It’s ideal for users who want high-resolution thermal performance in a compact, lightweight monocular for fast scanning and general field use.
- Pulsar 3 year warranty
