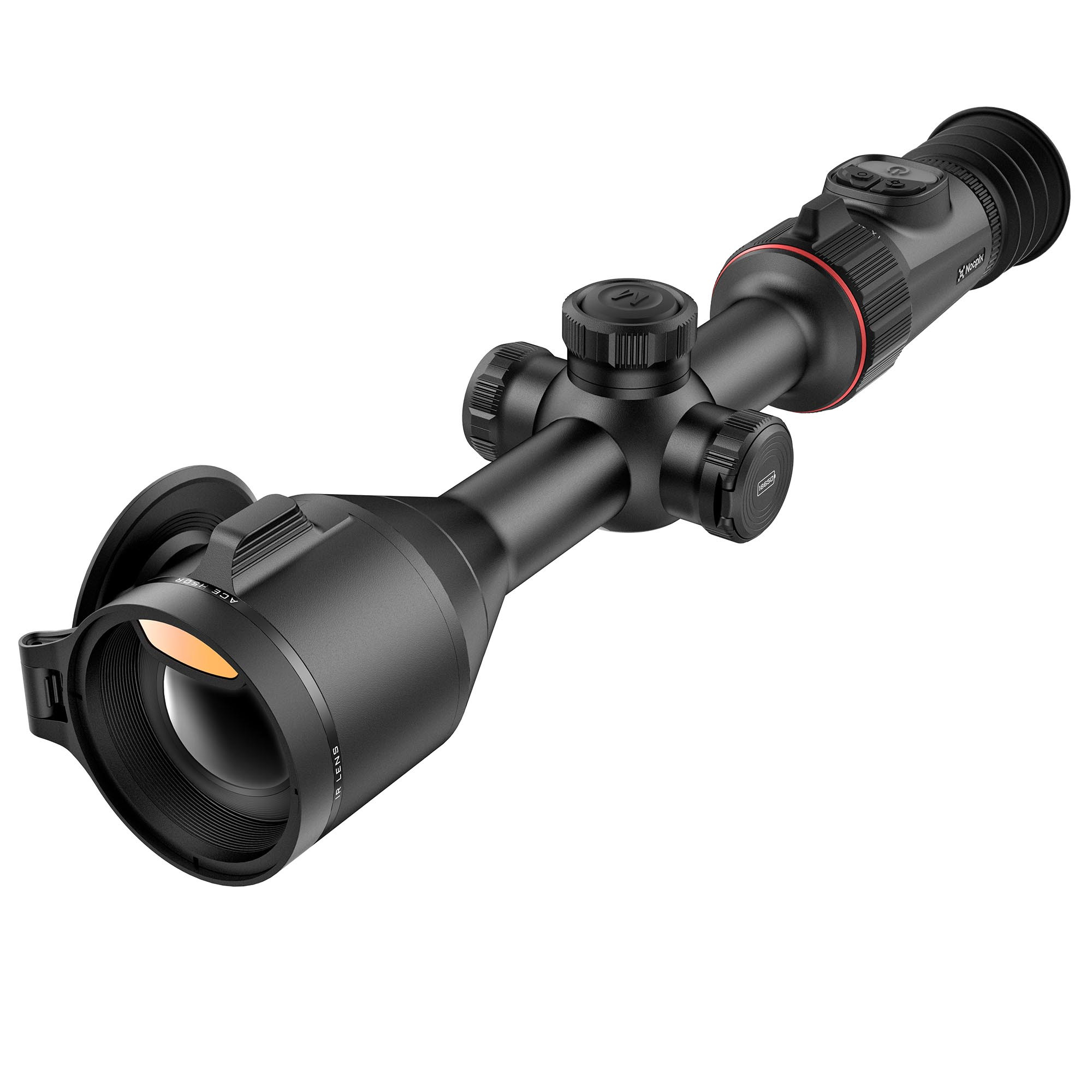

NocPix ACE H50R Thermal Rifle Scope - 12um 640x512 <15mK NETD w/ LRF & Ballistic Calculation

SKU#NPRIF-ACE-H50R NocPix

Foxing

NocPix ACE H50R Thermal Rifle Scope - 12um 640x512 <15mK NETD w/ LRF & Ballistic Calculation

Name: NocPix ACE H50R Thermal Rifle Scope - 12um 640x512 <15mK NETD w/ LRF & Ballistic Calculation
Brand: NocPix
Price: 2999 GBP
Availability: InStock

5 in stock

The NocPix ACE H50R Thermal Rifle Scope combines advanced technology with rugged durability for an unparalleled hunting experience. It features a 640x512 resolution thermal sensor with ≤12mK NETD for exceptional image clarity, a 3100-meter detection range, and an integrated LRF for precise distance measurements up to 1200 meters. The innovative Vision+ system offers ocular zoom for clear close-ups, while a dual-battery system ensures prolonged use. Built from high-strength aluminum alloy and IP67 rated, this scope is designed to excel in any outdoor environment.

VIEW PRODUCT INFO / SPECS

Select Model: H50R, 640x512, 12um, <15mK, 50mm

S60R, 1280x1024, 12μm, <15mK, 60mm

H50R, 640x512, 12um, <15mK, 50mm

L35, 640x512, 12um, <15mK, 35mm

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Must-Have Additions for Your Order!

THIS ITEM:

NocPix ACE H50R Thermal Rifle Scope - 12um 640x512 <15mK NETD w/ LRF & Ballistic Calculation

£2,999.00 Was £3,579.00

YETI Coolers Mid Pro Foam Trucker Hat - Black

£35.00

Total (2): £3,034.00

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The NocPix ACE H50R Thermal Rifle Scope is a cutting-edge tool designed to redefine the hunting experience, whether you're navigating the dark of night or pursuing prey across challenging terrains. As part of NocPix’s flagship ACE series, this thermal riflescope stands out with its superior imaging quality, long-range detection, and precision, thanks to its self-developed high-resolution thermal sensor, integrated laser range finder (LRF), and advanced Reality+ and Vision+ systems.

At the heart of the ACE H50R is its Gen-2 HD thermal sensor, which boasts a resolution of 640x512 and a 60Hz frame rate, offering an incredibly stable performance. With an NETD of ≤12mK, this scope detects even the smallest temperature differences, ensuring detailed and smooth thermal imagery, ideal for tracking fast-moving targets in real-time. The advanced Reality+ imaging algorithm further enhances this by eliminating environmental temperature noise, providing superior contrast and clarity even in complex hunting conditions.

The ACE H50R is equipped with a 50mm/F0.9 lens, which allows 20% more light to reach the sensor, producing brighter and clearer images. This is crucial for hunters aiming for precision, as the improved light transmittance ensures enhanced visibility in low-light environments. Furthermore, the 3100-meter detection range sets the ACE apart, making long-range identification and tracking of distant targets easier and more efficient than ever before.

The integrated Vision+ system elevates the visual experience with a 1.03-inch, round AMOLED display featuring a 2560x2560 resolution. Its ocular zoom system, designed to avoid the blurring and distortion commonly associated with traditional e-zoom, ensures that hunters enjoy high-resolution, crisp close-up views without losing detail. This provides an immersive, comfortable viewing experience, whether observing prey from a distance or zooming in for precise targeting.

The ACE H50R’s laser rangefinder (LRF) is built for precision, offering accurate distance measurements up to 1200 meters. This system, aligned perfectly with the optical axis, ensures that hunters can measure distances effortlessly while maintaining the scope's sleek and elegant design.

Built for extended use in the field, the ACE features a dual-battery system with a built-in 4000mAh battery and an additional replaceable 18650 battery, allowing for uninterrupted operation during long hunting sessions. The durable design, crafted from high-strength aluminum alloy, ensures the ACE can withstand rugged outdoor environments and intense use, having passed rigorous impact resistance tests. With an IP67 water resistance rating, the scope remains reliable in adverse weather conditions, offering hunters peace of mind no matter the environment.

Designed with hunters in mind, the NocPix ACE H50R includes essential features such as ballistic calculations for improved accuracy, recoil-activated video recording, and a shutterless design, ensuring seamless operation in the field. With user-friendly additions like a focus adjuster, charging cover, and the ability to playback videos directly via the Gallery feature, this scope combines high performance with convenience for an optimal hunting experience.

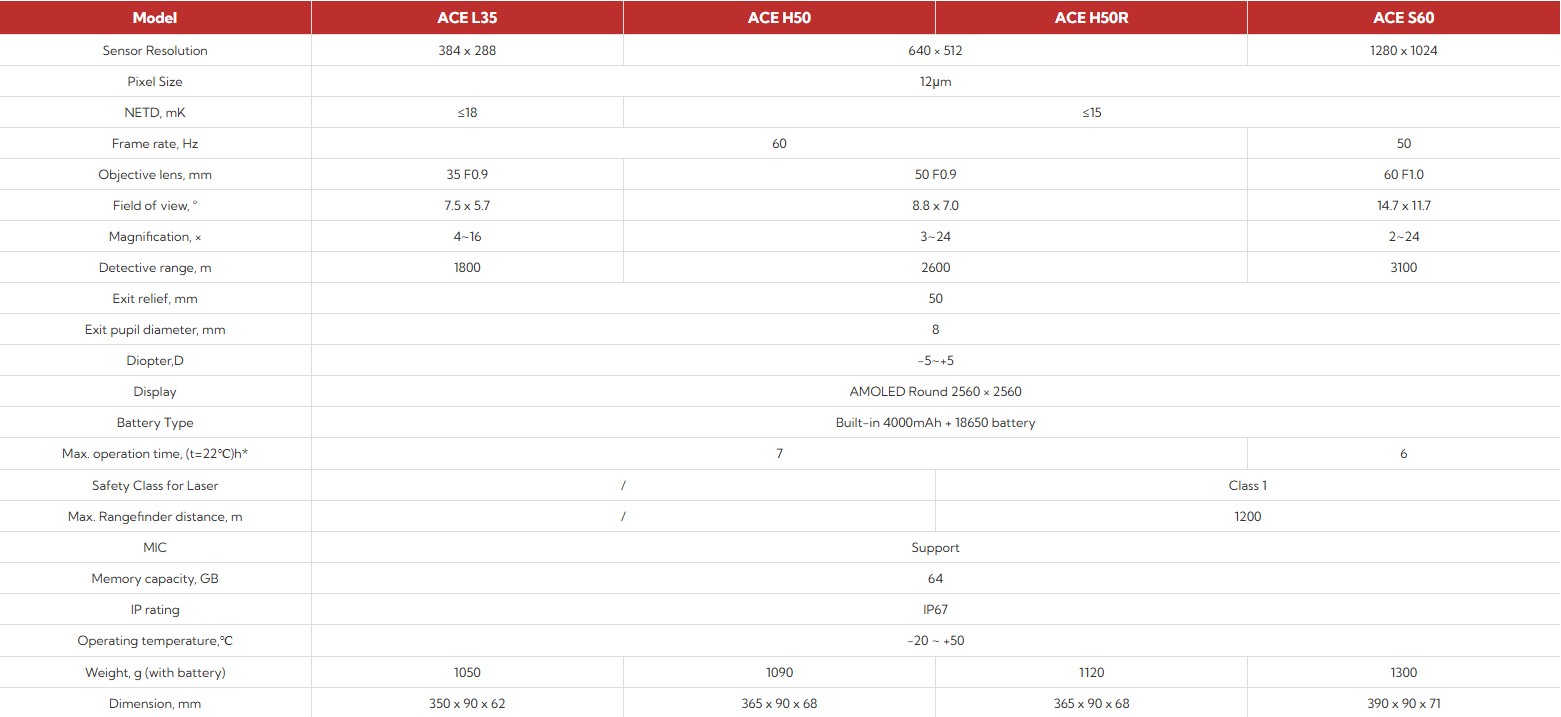

SPECS

Detector Specifications:

Type: Vox
Resolution, Pixels: 640×512
Pixel Size, um: 12μm
NETD, mK: ≤ 15
Frame Rate, Hz: 60

Optical Specifications:

Objective Lens, mm: 50/F0.9
Field of View (H×V), º: 8.8×7.0
Linear Field of View (H×V), m @ 100m: 15.4x12.3
Magnification, x: 3~24
Ocular zoom, x: 1~3
Eye Relief, mm: 50
Exit Pupil Diameter, mm: 8
Diopter, D: -5~+5
Detection Range, m: 2600

Display Specifications:

Type: AMOLED
Resolution: 2560×2560

Battery Power Supply:

Battery: Built-in battery/4000mAh + Replaceable 18650 battery
Max. Operating Time (22ºC), h: 7
External Power Supply: 5V (Type C)

Physical Specifications:

Wi-Fi / APP Support: Yes
Photo / Video Recorder: Yes
Recoil Activated Video: Yes
Gallery: Yes
Memory Capacity: 64GB
IP Rating: IP67
Operating Temperature, ℃: -20 ~ +50
Weight, g: 1120
Dimension, mm: 365x90x68

Connections and Compatibilities:

Max. Recoil Power on Rifled Weapon (Eo), Joules: 6000
Compatible Mount: 30mm Tube
Safety Class for Laser Rangefinder: Class 1
Measuring Range, m: 1200, ±1
Ballistic Calculation: Support

FEATURES

Advanced thermal imaging for superior night vision
Integrated laser range finder (LRF) for accurate distance measurement
Proprietary Reality+ imaging enhancement for improved contrast and clarity
Vision+ system with ocular zoom for high-resolution images without distortion
Dual-battery system for extended operational time
Ballistic calculations for enhanced targeting accuracy
Recoil-activated video recording for capturing hunting moments
Shutterless design for seamless operation
User-friendly features such as a focus adjuster and direct video playback
Rugged construction for durability in challenging environments
IP67 water resistance for reliable performance in adverse weather conditions

VIDEOS

WHAT'S IN THE BOX

• ACE Series Thermal Imaging Scope
• Heated target for zeroing
• Lens cloth
• 2 x 18650 battery
• Type-C cable
• Quick start guide
• Battery charger
• Portable bag

FREQUENTLY ASKED QUESTION(S)

Does the ballistic calculator on the Ace H50R work automatically with the Laser Rangefinder (LRF)?

Yes. When you activate the built in 1200m LRF to measure the distance to your target, the internal ballistic software instantly calculates the bullet drop based on your pre loaded ammunition profile. It then displays an adjusted aiming point (holdover mark) directly on the screen, allowing you to make precise holdover adjustments quickly without manual calculations in the dark.

What is the benefit of the F0.9 lens over standard thermal scopes?

Most high-end thermal scopes use an F1.0 lens. The Ace H50R features a larger F0.9 objective lens, which allows roughly 20% more thermal radiation (infrared light) to reach the sensor. In real world UK hunting conditions like a damp, foggy winter night with minimal temperature variance this translates to a much cleaner image, sharper target boundaries, and better background detail.

How does the "Ocular Zoom" differ from standard digital zoom?

Traditional thermal scopes rely strictly on digital extraction zoom, which stretches the pixels and makes the image blocky or blurry the closer you zoom in. The Ace H50R’s new Vision+ system utilizes a physical ocular zoom mechanism combined with a massive 2560x2560 round AMOLED display. This allows you to scale up the image optically to prevent pixelation, maintaining a highly detailed view even at higher magnification.

What is the battery setup, and will it survive a full night of foxing?

The scope uses a dual battery system designed specifically to eliminate power anxiety on long winter nights. It features a built in 4000mAh battery supplemented by a standard, replaceable 18650 battery. It provides up to 6 hours of continuous use on a single charge. If you run out of power, you can swap out the 18650 cell in the field without turning off or resetting the scope.

Can I review my shots directly on the scope while in the field?

Yes. Unlike many older thermal units that require you to transfer files to a phone or PC to view them, the Ace H50R has a built in Gallery feature. You can replay recorded videos (including recoil activated clips) directly on the scope's high resolution round screen while standing in the field, making it easy to confirm a clean hit or see where a shot went.

Does it require a specialized mounting system for UK rifles?

No, it mounts similarly to standard traditional day scopes. The Ace H50R uses a familiar day scope style tube design, meaning it can be mounted to your rifle using standard 30mm or specialized scope rings onto a Picatinny rail or traditional rifle bases. This makes it highly adaptable to common UK stalking and foxing setups without needing proprietary, expensive rail adaptors.

WARRANTY

NocPix 3 year warranty for main body, 2 year warranty for battery and 10 years for detector.
