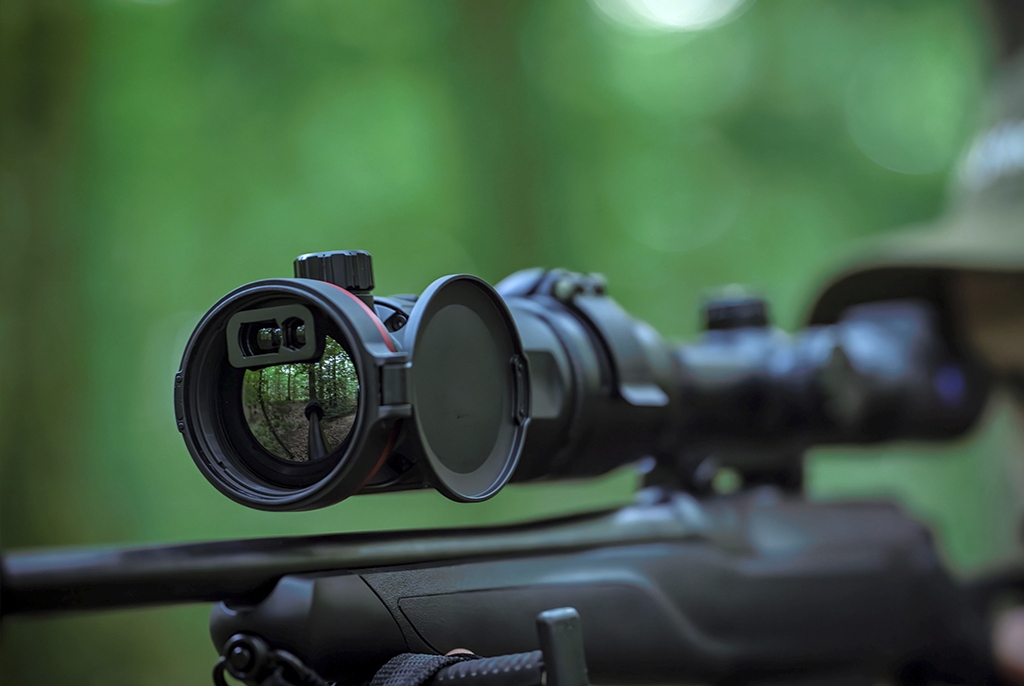

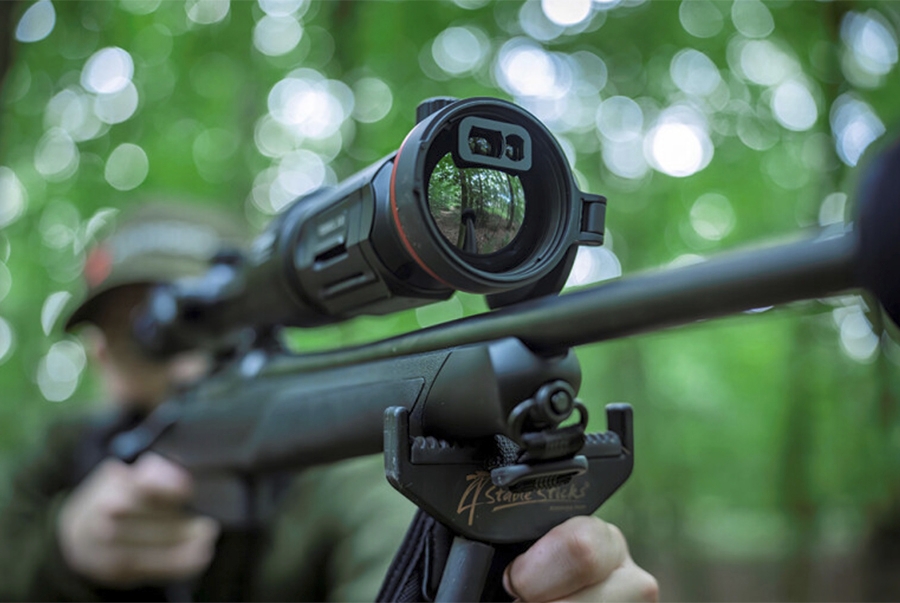

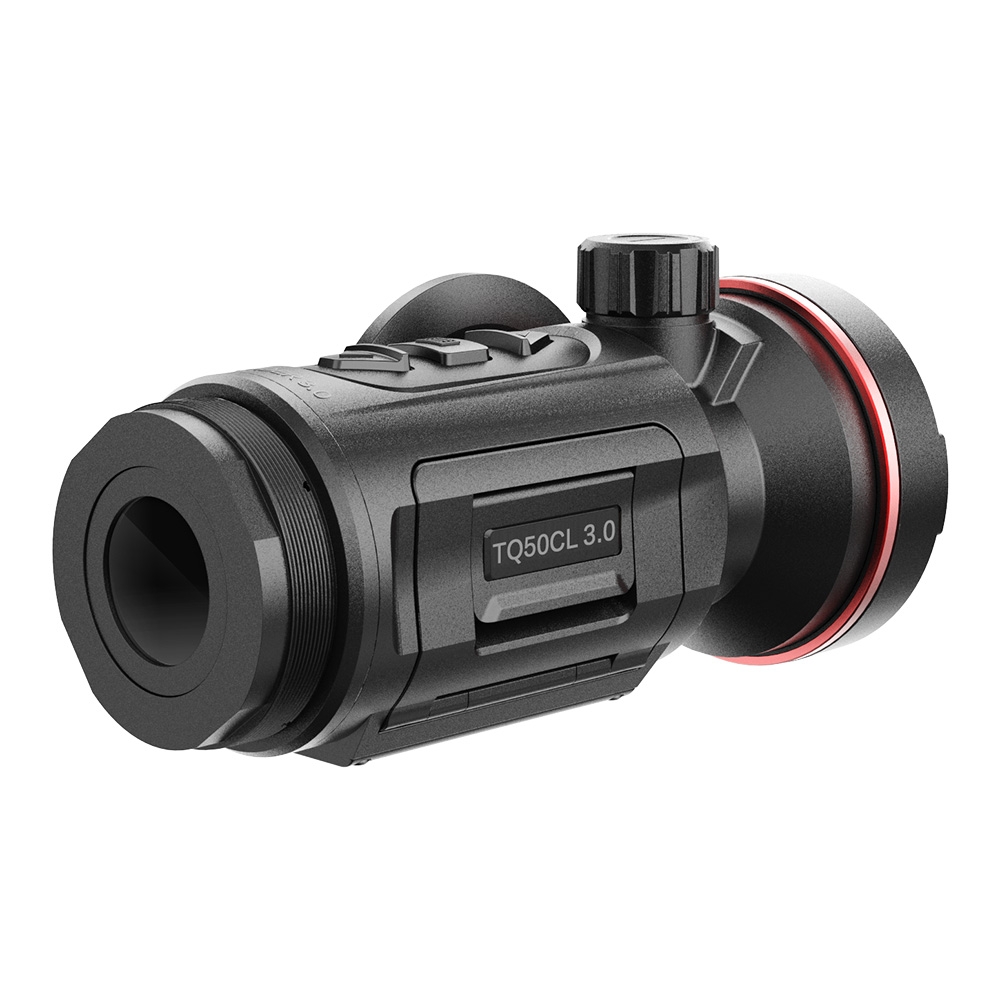

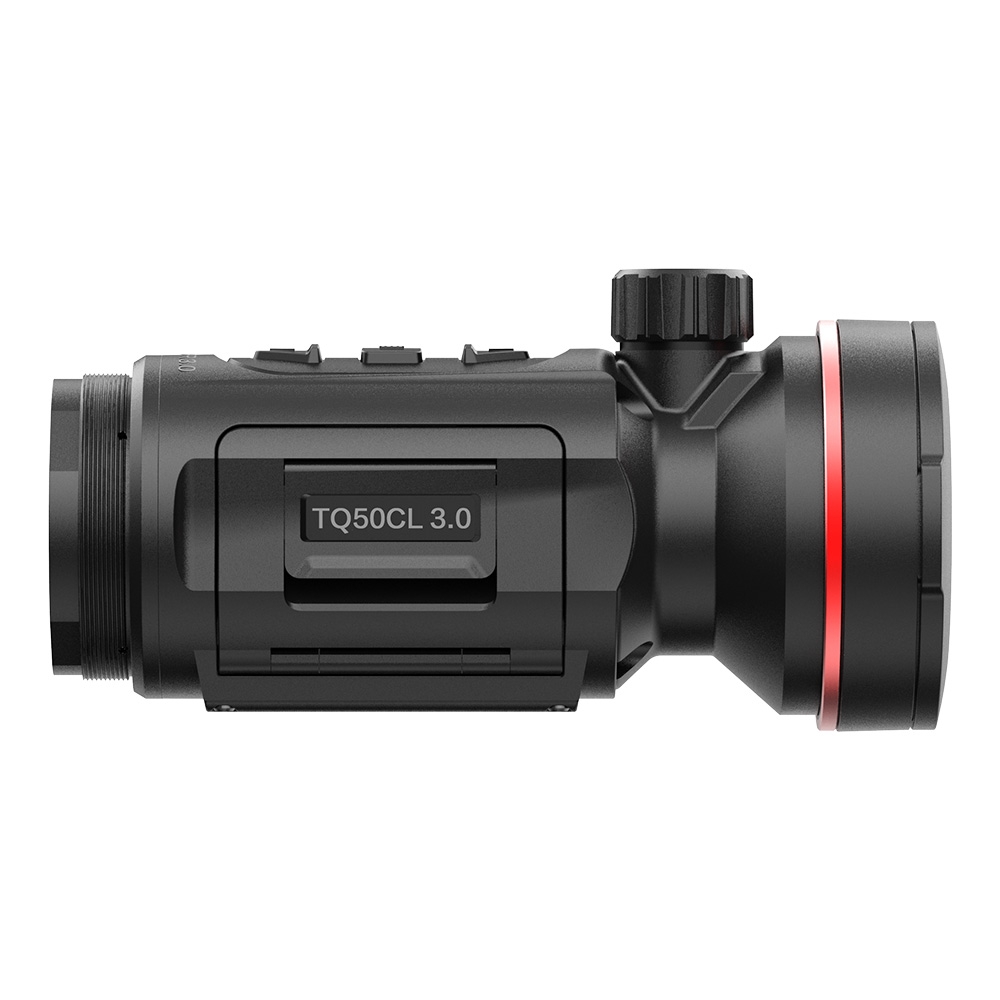

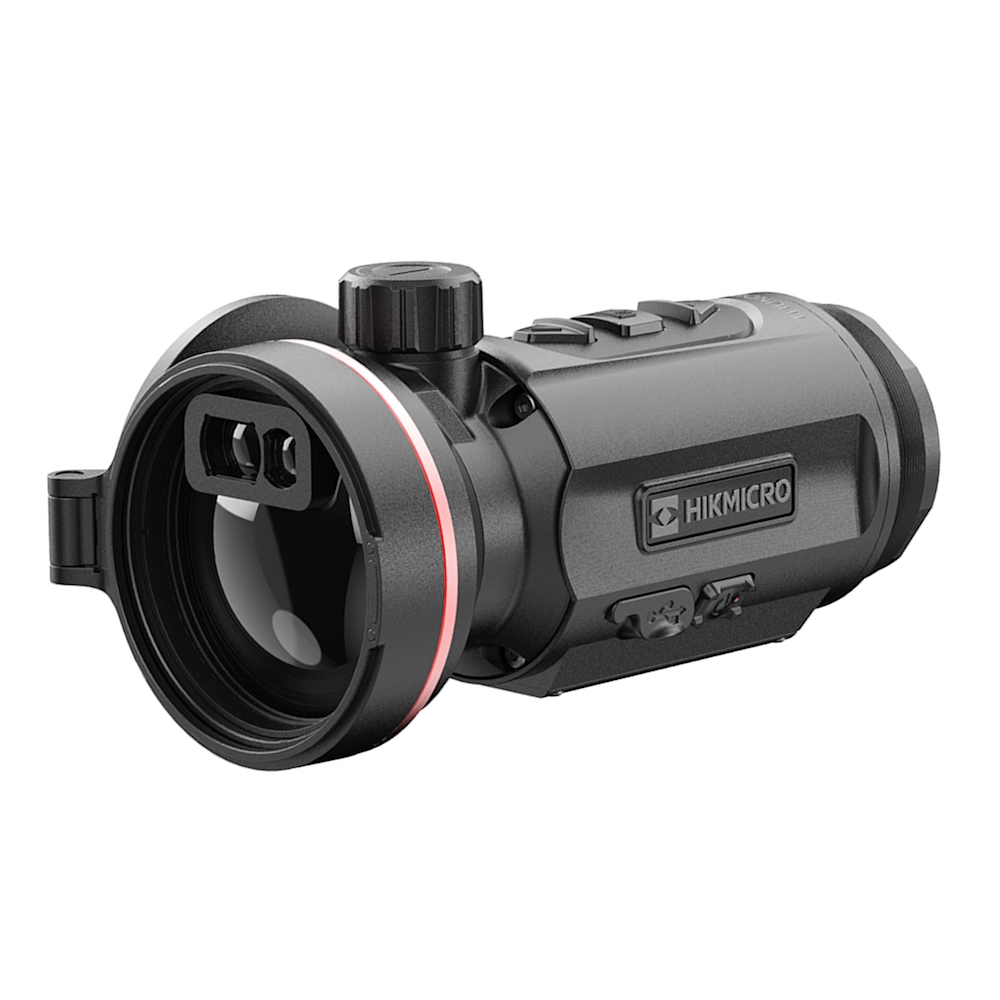

HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with LRF - 50mm <15mK 640x512px 12μm
- High-sensitivity NETD <15mK sensor for outstanding image detail in all weather
- 640×512 resolution, 50mm F1.0 lens for long-range clarity up to 2,600m
- Integrated 1,000m laser rangefinder for accurate target distance measurement
- HSIS & Image Pro 3.0 for smooth imaging and enhanced target visibility
- Day scope compatibility up to 15x magnification for versatile shooting setups
- Rugged IP67 magnesium alloy housing with high shock resistance to 1000g/0.4ms
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
When placing your order, please clearly state the exact external diameter of the objective lens on the scope you're planning to clip this unit onto, and we will supply the correct adaptor clamp to fit.
The HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with Laser Rangefinder is engineered for hunters who demand precision and clarity in every shot. Equipped with a 640×512 thermal detector with a 12μm pixel pitch, a 50mm F1.0 lens, and an ultra-sensitive NETD <15mK sensor, it delivers exceptional imaging performance even in poor weather or low-light environments.
With a detection range of up to 2,600 metres and an integrated 1,000m laser rangefinder built directly into the lens assembly, it combines target identification with accurate distance measurement in a sleek, compact design. Supporting day scope magnifications up to 15x, and enhanced by HIKMICRO Shutterless Image System (HSIS) and Image Pro 3.0 technology, the TQ50CL ensures fluid imaging and enhanced target definition for confident decision-making in the field.
Built to withstand recoil forces up to 1000g/0.4ms and offering up to 5 hours of continuous operation with replaceable, rechargeable batteries, this thermal clip-on is the ideal companion for extended, high-performance hunting sessions in challenging conditions.
- Image Sensor Uncooled Focal Plane Arrays
- Max. Resolution 640×512
- Frame Rate 50Hz
- Pixel Pitch 12μm
- Response Waveband 8μm – 14μm
- NETD <15mK (25°C, F#=1.0)
- Lens 50mm, F1.0
- Detection Range 2,600m
- Focus Mode Focus Knob
- Field of View (H×V) 8.8° × 7.0° / 15.4m × 12.3m @ 100m
- Minimum Focusing Distance 10m
- Magnification 1x
- Recommended Day Scope Magnification 1x – 15x
- Magnification (Monocular Mode) 2.8x – 22.4x (8x)
- Display 1920×1080, 0.49" OLED
- Brightness Adjustment Yes
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 25mm
- Eye Relief 20mm
- Tone Adjustment Cold/Warm
- HSIS Yes
- Image Pro 3.0 Yes
- Protection Level IP67
- Weight 540g (with battery)
- Dimensions 150.3mm × 83mm × 78.1mm
- Operating Temperature -30°C to +55°C
- Body Material Magnesium Alloy (body & lens cover)
- Video Recording On-board (with audio & recoil-activated recording)
- Snapshot Capture Yes
- Hotspot Yes
- Storage Built-in 64GB EMMC
- Virtual Reticle Yes
- Zeroing Profiles 5
- Max. Recoil 1000g/0.4ms
- Battery Type Replaceable & Rechargeable Li-ion Pack
- Battery Life ≥5h (25°C, with hotspot off and LRF on)
- Power Supply 5V DC, 2A Type-C (supports external power & direct charging)
- Laser Safety Class Class 1
- Laser Wavelength 905nm
- Laser Max. Measuring Range 1,000m
- Laser Measurement Accuracy ±1m
- Laser Min. Measuring Range 10m
- Higher Thermal Sensitivity (NETD<15mK) – Detects minute temperature differences for exceptional clarity in challenging environments.
- Integrated 1,000m Laser Rangefinder – Built directly behind the objective lens for precise range readings without compromising device balance or appearance.
- HIKMICRO Shutterless Image System (HSIS) – Eliminates manual calibration for uninterrupted, smooth imaging.
- Image Pro 3.0 – Enhances target definition while retaining background detail for improved situational awareness.
- Long Detection Range – Detect heat sources up to 2,600m, ideal for spotting quarry in open terrain.
- High Day Scope Compatibility – Maintains crisp detail with up to 15x day scope magnification.
- Local Album – Built-in 64GB storage for on-device image and video review.
- Virtual Reticle in Video Recording – Records authentic shooting footage while complying with reticle visibility regulations.
- Replaceable, Rechargeable Batteries – Up to 5 hours runtime (with hotspot off and LRF on), plus external power support.
- Ultra-Precise Zeroing – 1.3cm @ 100m click value for fine adjustment and pinpoint accuracy.
- Minimal Ballistic Deviation – Engineered to reduce parallax for consistent, reliable shot placement.
- High Shock Resistance – Endures recoil up to 1000g/0.4ms for sustained performance.
- Quick Zeroing – Adjust directly on the device or via the HIKMICRO Sight app.
- IP67 Rated – Fully dustproof and waterproof for dependable use in the field.
- HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with LRF
- Battery charger
- Type C USB cable
- Lint-free cloth
- Quick start guide
- 2x batteries
- Wrench
- Carrying case
What are the key features of the HIKMICRO Thunder 3.0 Thermal Clip-Ons?
The HIKMICRO Thunder 3.0 Thermal Clip-Ons are equipped with high-resolution thermal sensors, ranging from 384x288px to 640x512px, depending on the model. They feature advanced shutterless technology, Image Pro 2.0 processing, and a high-resolution 1920 × 1080 OLED display. The TQ50CL model also includes a built-in Laser Range Finder (LRF).
How does the shutterless technology in the Thunder 3.0 improve performance?
The Thunder 3.0 series utilises shutterless technology to eliminate the need for a physical shutter, which prevents image freezes and ensures continuous, clear viewing. This allows users to maintain a steady visual feed without interruptions, crucial for accurate targeting.
What is the detection range of the different Thunder 3.0 models?
The TH35C has a detection range of up to 1800 metres, the TQ50C offers a range of up to 2600 metres, and the TQ50CL, which also includes an LRF, provides a detection range of up to 2600 metres with precise distance measurement capabilities.
What kind of battery life can be expected from the Thunder 3.0 Thermal Clip-Ons?
All Thunder 3.0 models are powered by a rechargeable Li-ion battery. The TH35C and TQ50C models offer up to 6 hours of continuous operation, while the TQ50CL provides up to 5 hours due to the additional power requirements of the LRF.
How does the Image Pro 2.0 processing improve the thermal imagery?
Image Pro 2.0 is an advanced image processing algorithm that enhances image detail and overall visibility. This technology sharpens thermal images and improves target identification, even in challenging conditions like rain and fog.
What are the differences between the Thunder 3.0 models?
The main differences lie in their thermal sensor resolutions, detection ranges, and features. The TH35C has a 384x288px sensor with a 35mm focal length, the TQ50C has a 640x512px sensor with a 50mm focal length, and the TQ50CL, which also includes a built-in LRF, features a 640x512px sensor and a 50mm focal length.
How durable are the Thunder 3.0 Thermal Clip-Ons?
The Thunder 3.0 series is designed with high shock resistance, capable of withstanding up to 1000 g/0.4 ms. This ensures that the clip-ons can endure tough conditions and rough handling during field use.
Can the Thunder 3.0 models be easily attached and detached from a riflescope?
Yes, the Thunder 3.0 models feature the Rusan Quick-Release clamp system, which allows for quick and repeatable attachment and detachment from your optical scope with the twist of a locking ring.
