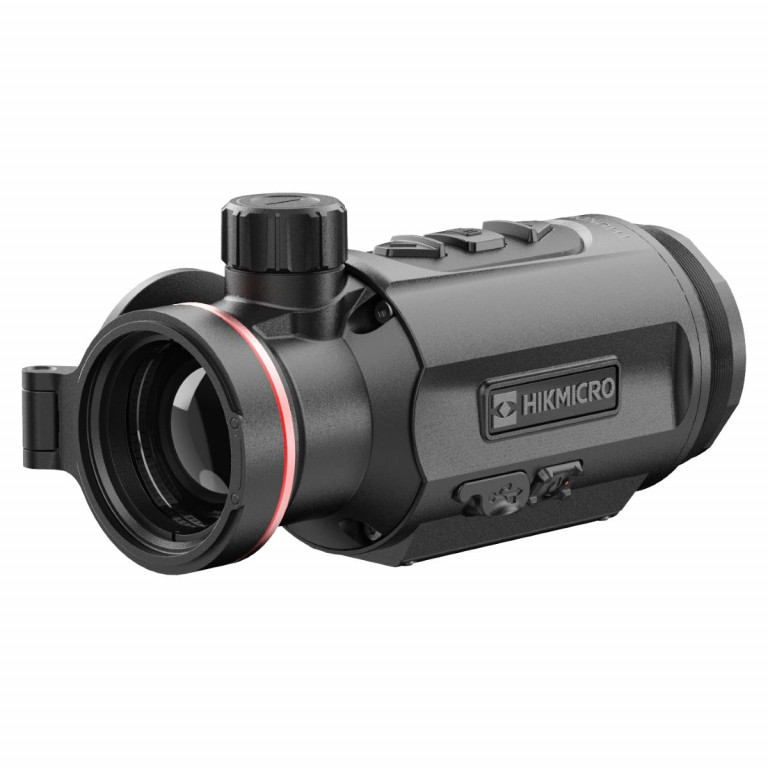

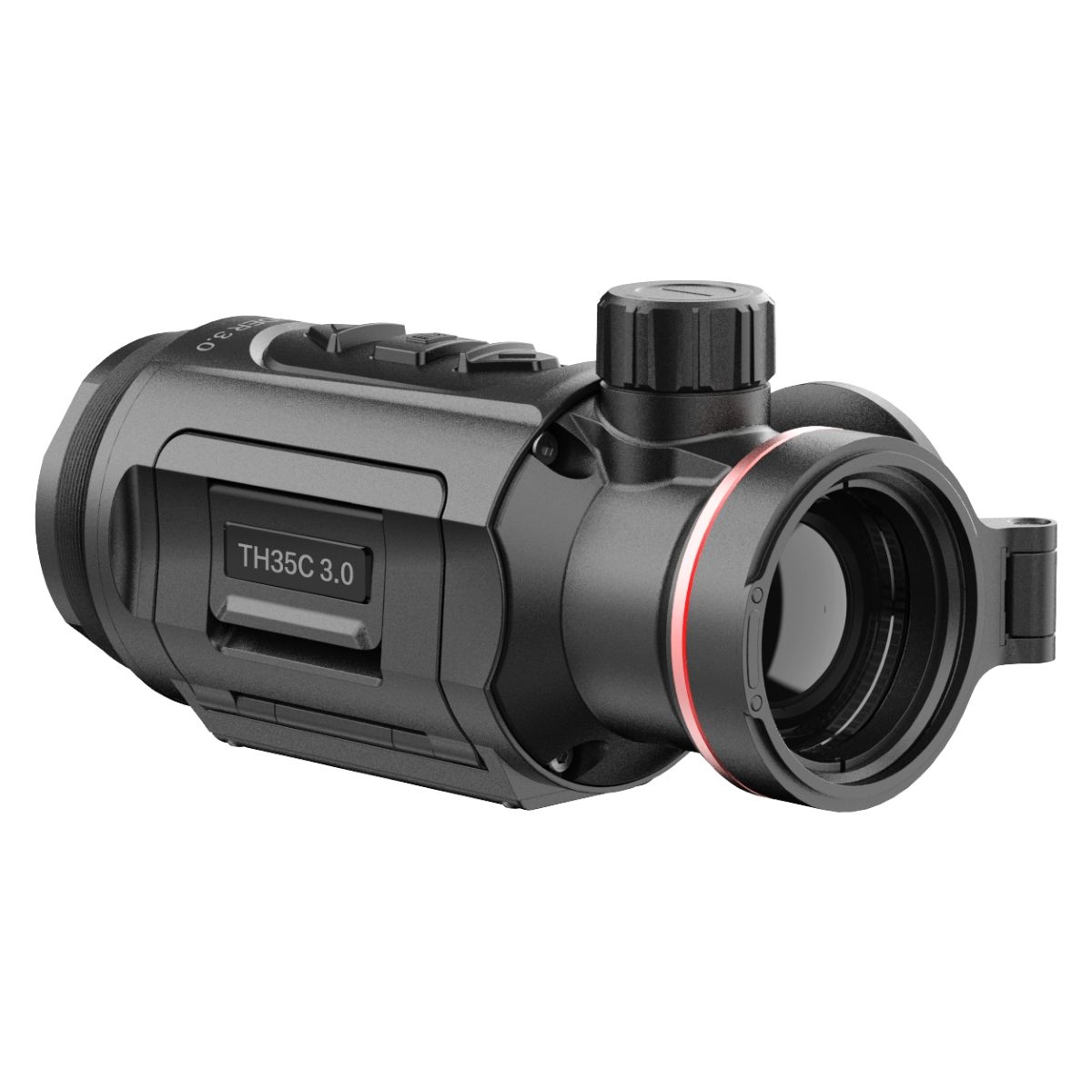

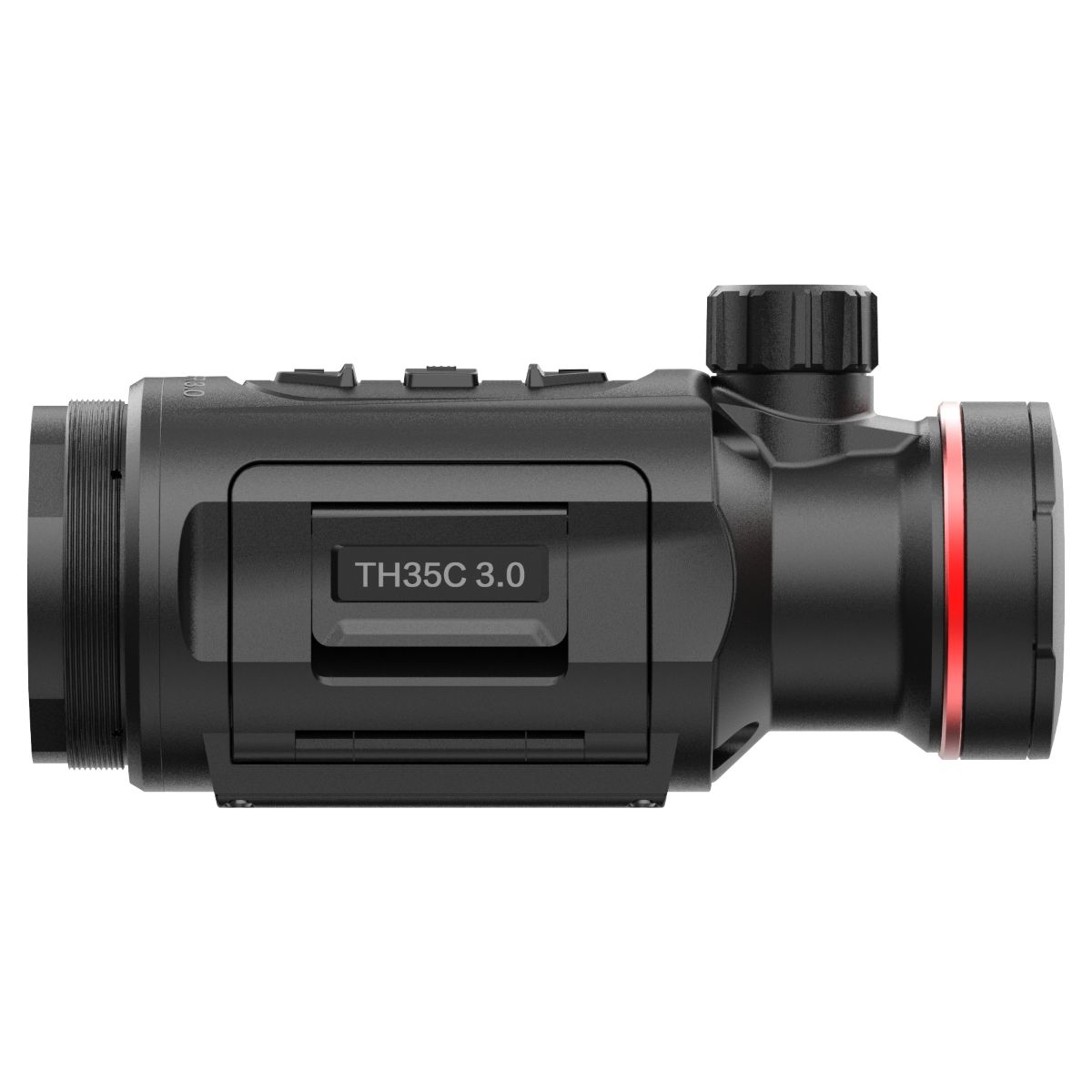

HIKMICRO Thunder 3.0 TH35C Thermal Front Clip-On - 35mm <15mK 384x288px 12μm
- High-Sensitivity Thermal Imaging: NETD <15mK ensures precise detection of minute temperature differences for superior image clarity.
- Vivid OLED Display: 0.49-inch OLED screen with 1920x1080 resolution delivers stunning visual detail.
- HSIS Technology: Shutterless Image System provides uninterrupted, smooth visuals without manual calibration.
- Image Pro 3.0 Enhancement: Algorithmic target enhancement highlights game while maintaining environmental detail.
- Day Scope Compatible: Clear imaging up to 12x day scope magnification for precise observation at long distances.
- Long Operation & Durability: Up to 6 hours of use with replaceable/rechargeable batteries and high shock resistance (1000g/0.4ms).
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#861
#858
#862
#859
#863
Please note: Due to distribution rights and agreements, we can only sell HIK-MICRO products to residents of the UK.
When placing your order, please clearly state the exact external diameter of the objective lens on the scope you're planning to clip this unit onto, and we will supply the correct adaptor clamp to fit.
The HIKMICRO Thunder 3.0 TH35C Thermal Front Clip-On is a high-performance thermal imaging solution designed for discerning hunters and outdoor enthusiasts. Featuring a 12μm, 384 detector and a 35mm focal length, it delivers exceptional image clarity and precision, even in challenging field or forest conditions. Equipped with HIKMICRO’s Shutterless Image System (HSIS) and Image Pro 3.0, the TH35C ensures a smooth, uninterrupted visual experience and enhanced target recognition, allowing you to spot game and environmental details with ease. With compatibility up to 12x day scopes, a 0.49-inch OLED display for vivid visuals, long detection range, and robust IP67-rated durability, this thermal clip-on is compact, reliable, and versatile, perfect for hunters seeking both performance and precision.
- Thermal Module Uncooled Focal Plane Arrays
- Image Sensor 384×288
- Max. Resolution 50Hz
- Frame Rate 12μm
- Pixel Interval 8μm to 14μm
- Response Waveband <15mK (25°C, F#=1.0)
- NETD 35mm, F1.0
- Lens (Focal Length) 1800m
- Detection Range Focus Knob
- Focus Mode 7.5° × 5.7° / 13.2m × 9.9m
- Field of View (H × V), Degrees / m @100m 10m
- Min. Focusing Distance 1x
- Magnification 1-12x
- Recommended Magnification of Day Scope 3.3x-26.4x (8x)
- Magnification of Monocular Mode 1920x1080, 0.49 inch, OLED
- Image Display Yes
- Display Black Hot, White Hot, Red Hot, Fusion Red monochrome, Green monochrome
- Brightness Adjustment 25mm
- Palettes 20mm
- Exit Pupil Cold, Warm
- Eye Relief Yes
- Tone Adjustment Yes
- HSIS (HIKMICRO Shutterless Image System) IP67
- Image Pro 3.0 460g with Battery

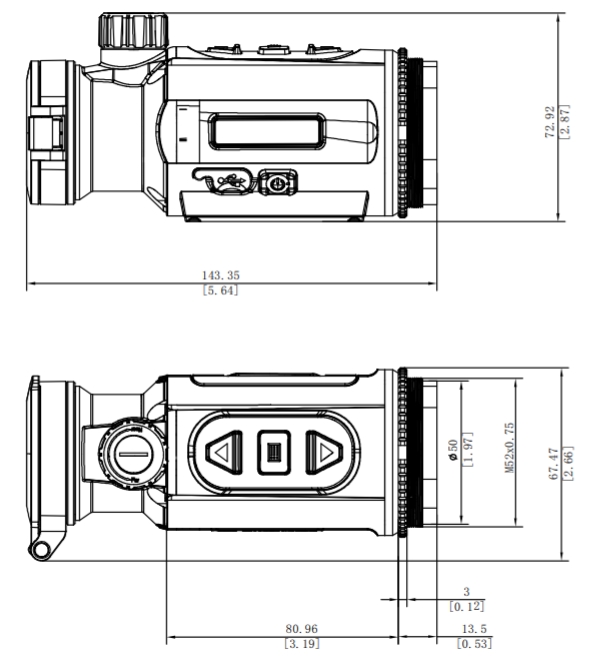

- Protection Level 143.4mm × 67.5mm × 72.9mm
- Weight -30°C to +55°C (-22°F to 131°F)
- Dimension Body & Lens Cover
- Working Temperature On-board Video Recording
- Body Material Yes
- System Yes
- Record Video Built-in EMMC (64GB)
- Capture Snapshot No
- Hotspot Yes
- Standby Mode Yes
- Storage 1000g/0.4ms
- Reticle Yes
- Audio Recording Yes
- Recoil-activation Recording 5
- Max. Recoil Replaceable and Rechargeable Li-ion Battery Pack
- Local Album ≥6h (25°C, hotspot off)
- Virtual Reticle 5 VDC, 2 A
- Image Calibration Supports External Power Supply
- Zeroing Profiles Supports Direct Charging
- Power Supply 5 VDC, 2 A Supports External Power Supply, Supports Direct Charging
- Stunning image clarity with high-sensitivity thermal detector (NETD <15mK) for detecting the smallest temperature differences.
- Crystal-clear 0.49-inch OLED display with 1920x1080 resolution for vibrant, detailed visuals.
- Smooth, uninterrupted viewing via HIKMICRO Shutterless Image System (HSIS) – no manual calibration required.
- Image Pro 3.0 algorithm for enhanced target recognition and superior environmental detail retention.
- Compatible with up to 12x day scope magnification without loss of image quality.
- Virtual reticle in video recording for an authentic shooting memory.
- Convenient local album to view and manage images/videos directly on the device.
- Ultra-precise 1.3cm@100m click value for enhanced zeroing accuracy.
- Minimal ballistic deviation thanks to precision engineering.
- Quick zeroing on-device or via the SIGHT app for flexible adjustments.
- 2-in-1 flexible transformation for versatile use in the field.
- Long detection range of up to 2600m for maximum situational awareness.
- Smart auto screen-off function to conserve battery life.
- Replaceable and rechargeable Li-ion battery pack with ≥6 hours continuous operation.
- Robust IP67-rated magnesium alloy body, operating reliably from -30°C to +55°C.
- HIKMICRO Thunder 3.0 TH35C Thermal Front Clip-On
- Battery charger
- Type C USB cable
- Lint-free cloth
- Quick start guide
- 2x Batteries
- Wrench
- Carrying case
What are the key features of the HIKMICRO Thunder 3.0 Thermal Clip-Ons?
The HIKMICRO Thunder 3.0 Thermal Clip-Ons are equipped with high-resolution thermal sensors, ranging from 384x288px to 640x512px, depending on the model. They feature advanced shutterless technology, Image Pro 2.0 processing, and a high-resolution 1920 × 1080 OLED display. The TQ50CL model also includes a built-in Laser Range Finder (LRF).
How does the shutterless technology in the Thunder 3.0 improve performance?
The Thunder 3.0 series utilises shutterless technology to eliminate the need for a physical shutter, which prevents image freezes and ensures continuous, clear viewing. This allows users to maintain a steady visual feed without interruptions, crucial for accurate targeting.
What is the detection range of the different Thunder 3.0 models?
The TH35C has a detection range of up to 1800 metres, the TQ50C offers a range of up to 2600 metres, and the TQ50CL, which also includes an LRF, provides a detection range of up to 2600 metres with precise distance measurement capabilities.
What kind of battery life can be expected from the Thunder 3.0 Thermal Clip-Ons?
All Thunder 3.0 models are powered by a rechargeable Li-ion battery. The TH35C and TQ50C models offer up to 6 hours of continuous operation, while the TQ50CL provides up to 5 hours due to the additional power requirements of the LRF.
How does the Image Pro 2.0 processing improve the thermal imagery?
Image Pro 2.0 is an advanced image processing algorithm that enhances image detail and overall visibility. This technology sharpens thermal images and improves target identification, even in challenging conditions like rain and fog.
What are the differences between the Thunder 3.0 models?
The main differences lie in their thermal sensor resolutions, detection ranges, and features. The TH35C has a 384x288px sensor with a 35mm focal length, the TQ50C has a 640x512px sensor with a 50mm focal length, and the TQ50CL, which also includes a built-in LRF, features a 640x512px sensor and a 50mm focal length.
How durable are the Thunder 3.0 Thermal Clip-Ons?
The Thunder 3.0 series is designed with high shock resistance, capable of withstanding up to 1000 g/0.4 ms. This ensures that the clip-ons can endure tough conditions and rough handling during field use.
Can the Thunder 3.0 models be easily attached and detached from a riflescope?
Yes, the Thunder 3.0 models feature the Rusan Quick-Release clamp system, which allows for quick and repeatable attachment and detachment from your optical scope with the twist of a locking ring.
- HIKMICRO Warranty 3 years
