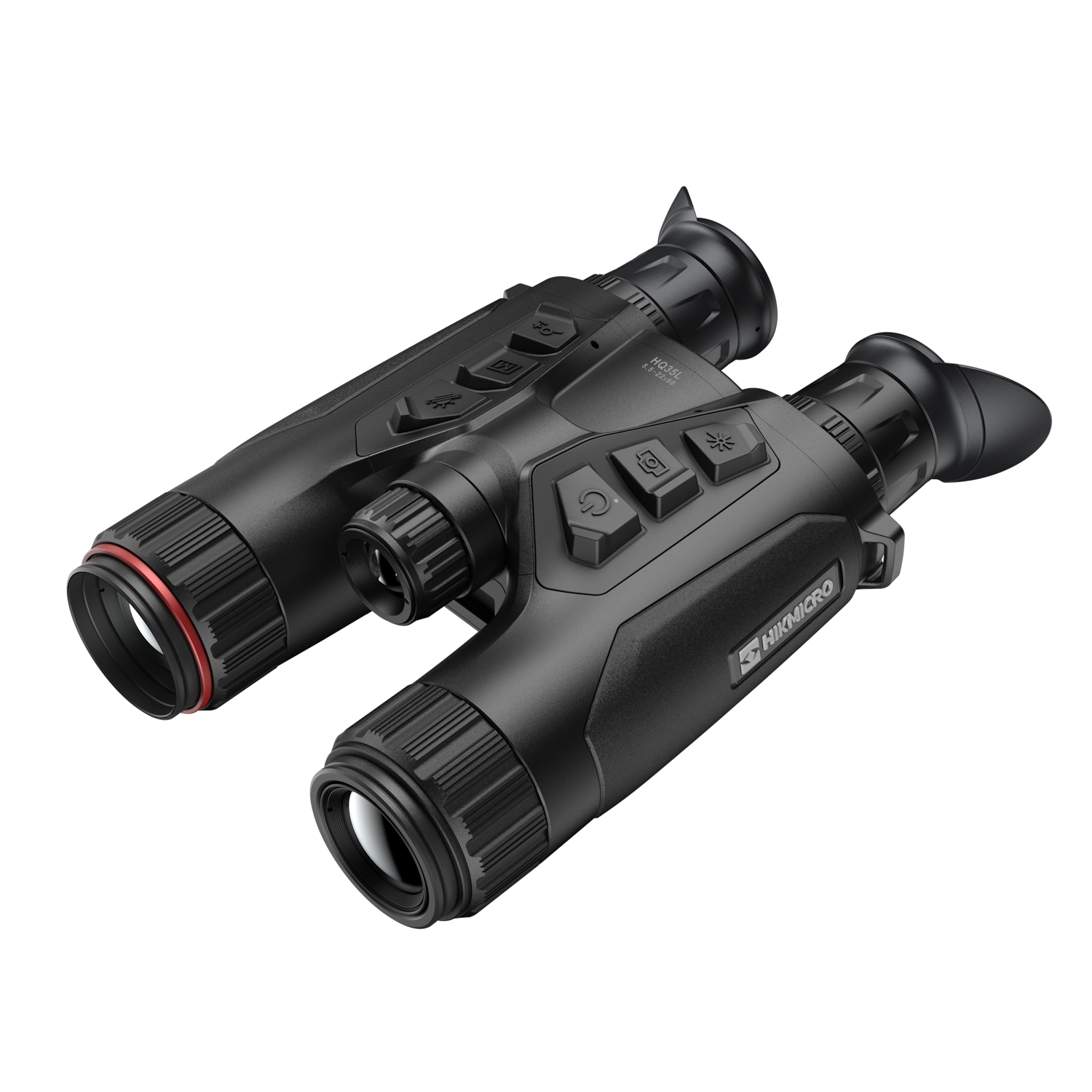

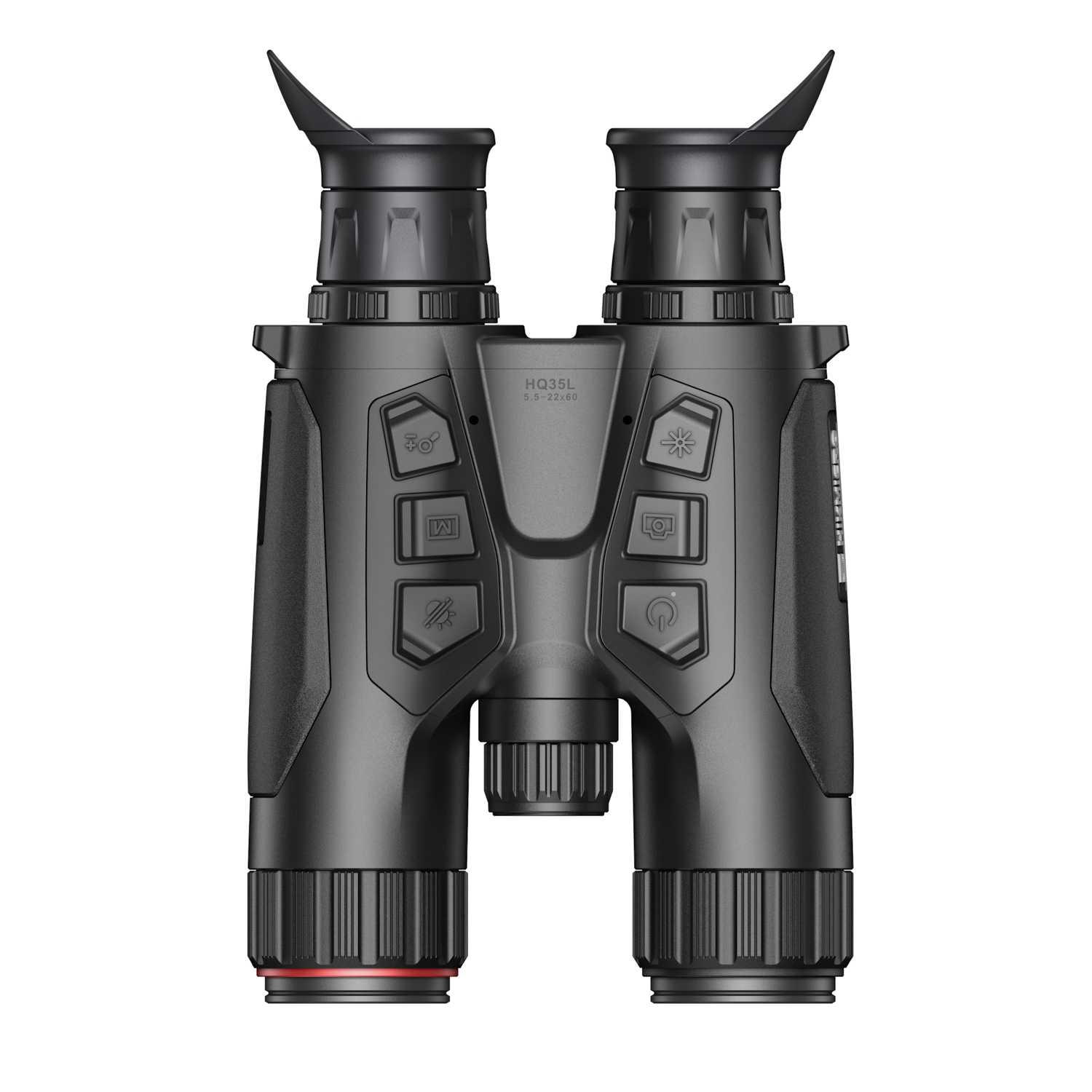

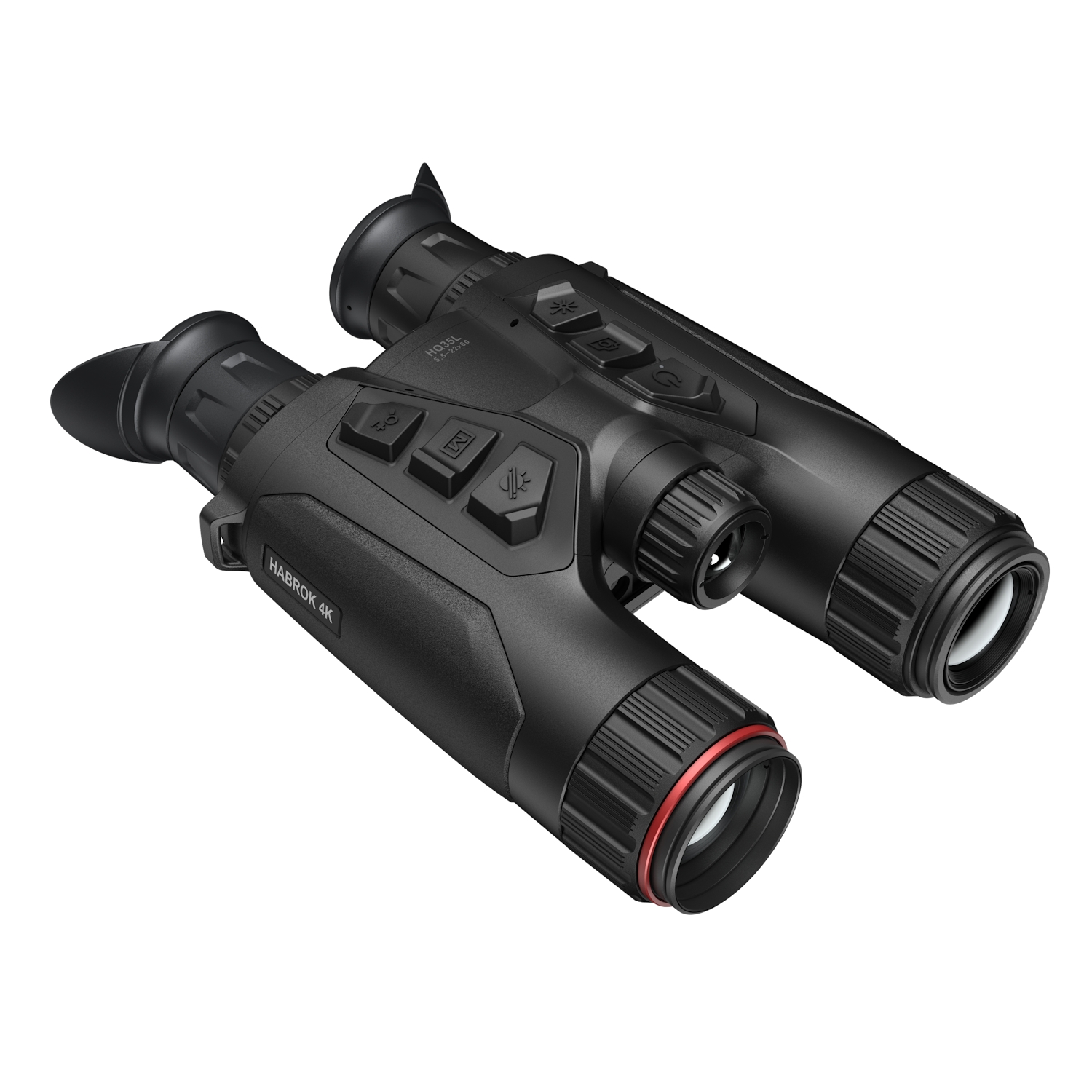

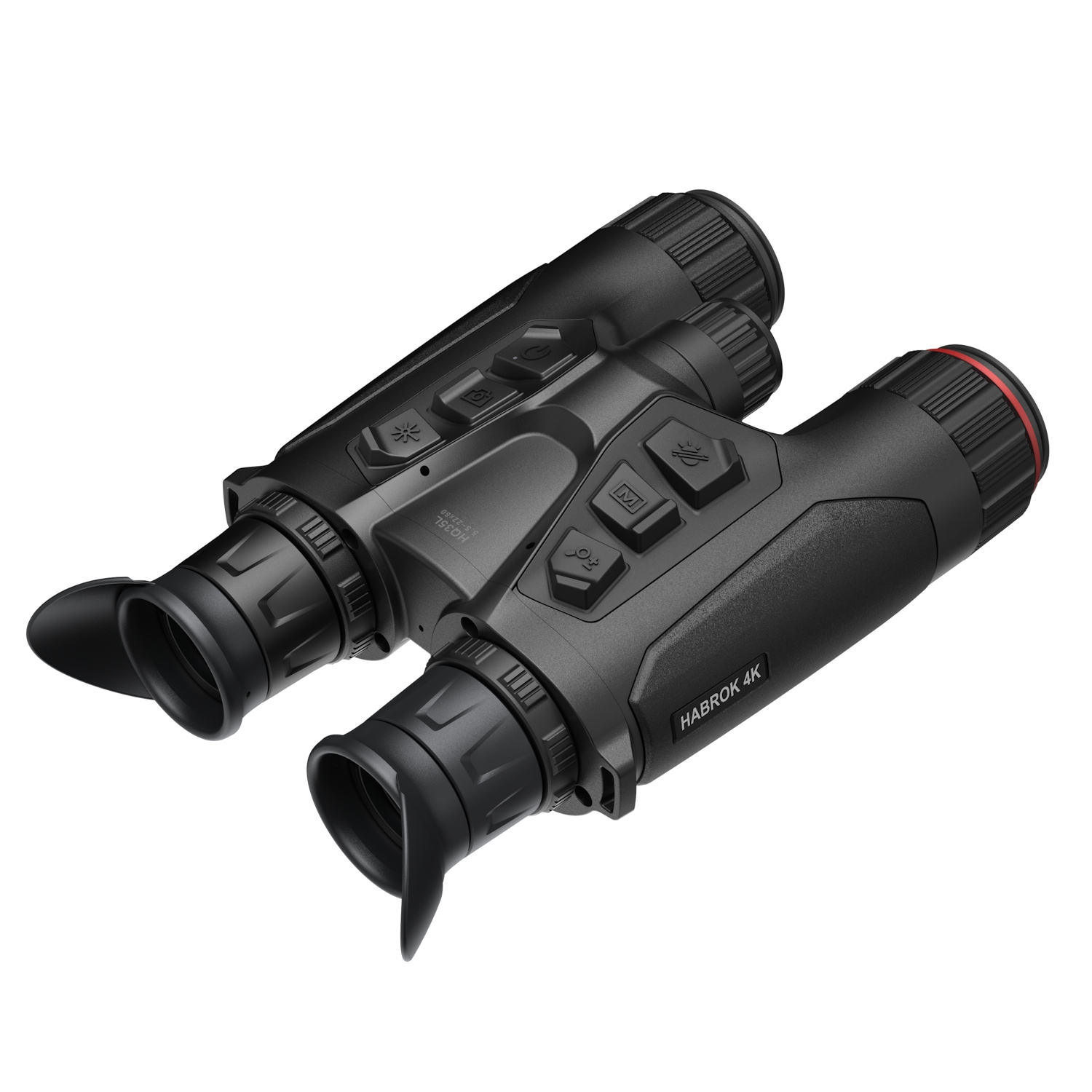

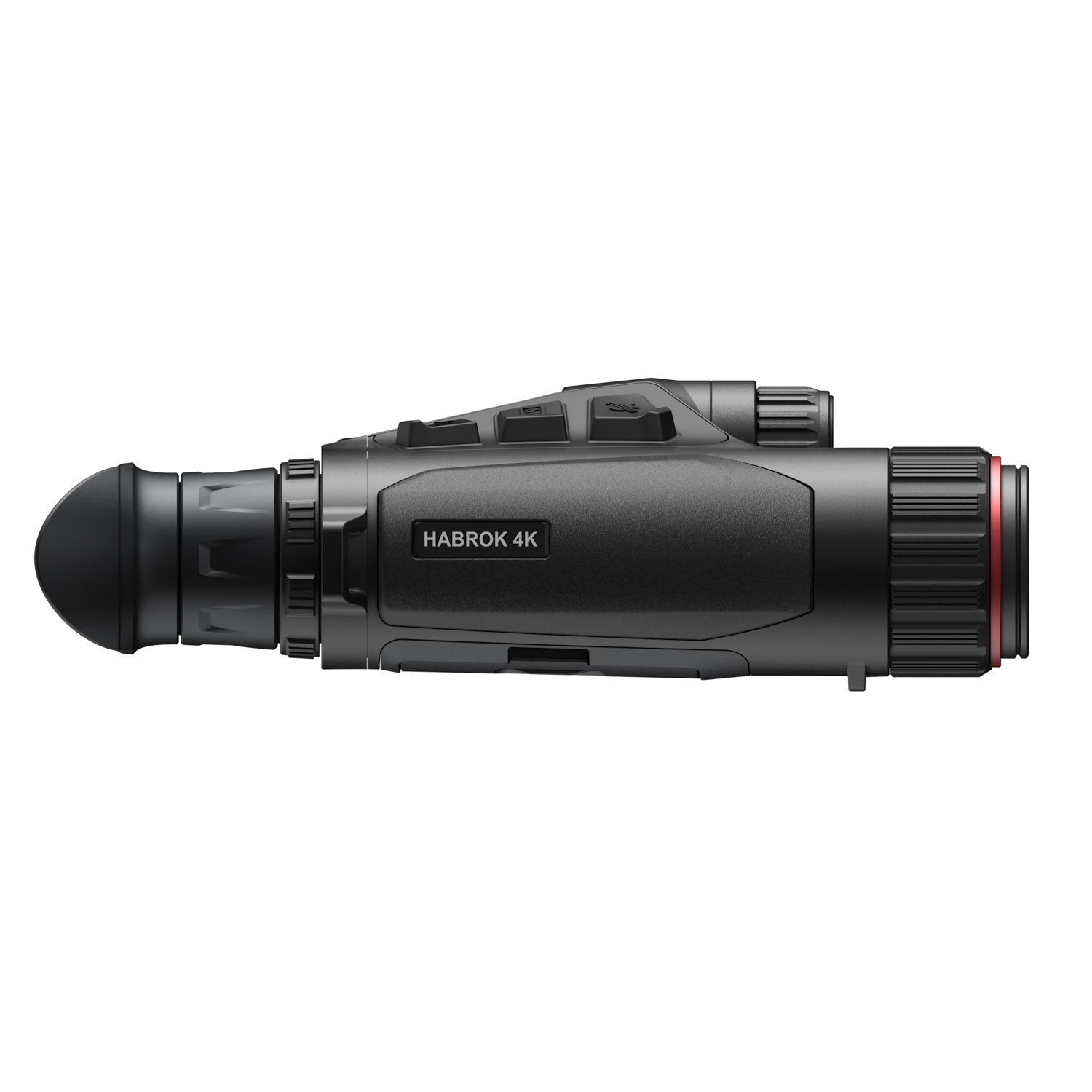

HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF

SKU#HM-HQ35L4K HIKMICRO

HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF

640px 35mm with 4K Optical Camera and Harness

7 in stock

640x512 Thermal Sensor with 20mK NETD: Detects heat signatures with extreme sensitivity and clarity in all environments.
4K Ultra HD Optical Camera with 60mm Lens: Captures detailed visuals in daylight, twilight, and total darkness.
Dual Replaceable IR Illuminators (850nm & 940nm): Adapt your visibility to different environments and light conditions effortlessly.
Built-in 1000m Laser Rangefinder: Precisely measure target distances in real time with ±1m accuracy.
Advanced Image Stabilization Algorithm: Delivers smooth, blur-free viewing even when zoomed or in unstable field conditions

VIEW PRODUCT INFO / SPECS

Select Model: HQ35L 4K

HE25L 4K

HQ50L

HQ35L 4K

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Must-Have Additions for Your Order!

THIS ITEM:

HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF

£2,799.99

HIKMICRO USB LCD 18650 Lithium-Ion / Ni-Mh Intelligent Battery Charger

£19.95

WULF Guardian Binocular Harness With Quick Detach Thermal System

£109.99

YETI 10oz (295ml) Tumbler with MagSlider™ Lid - Rescue Red

£20.00

Total (4): £2,949.93

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

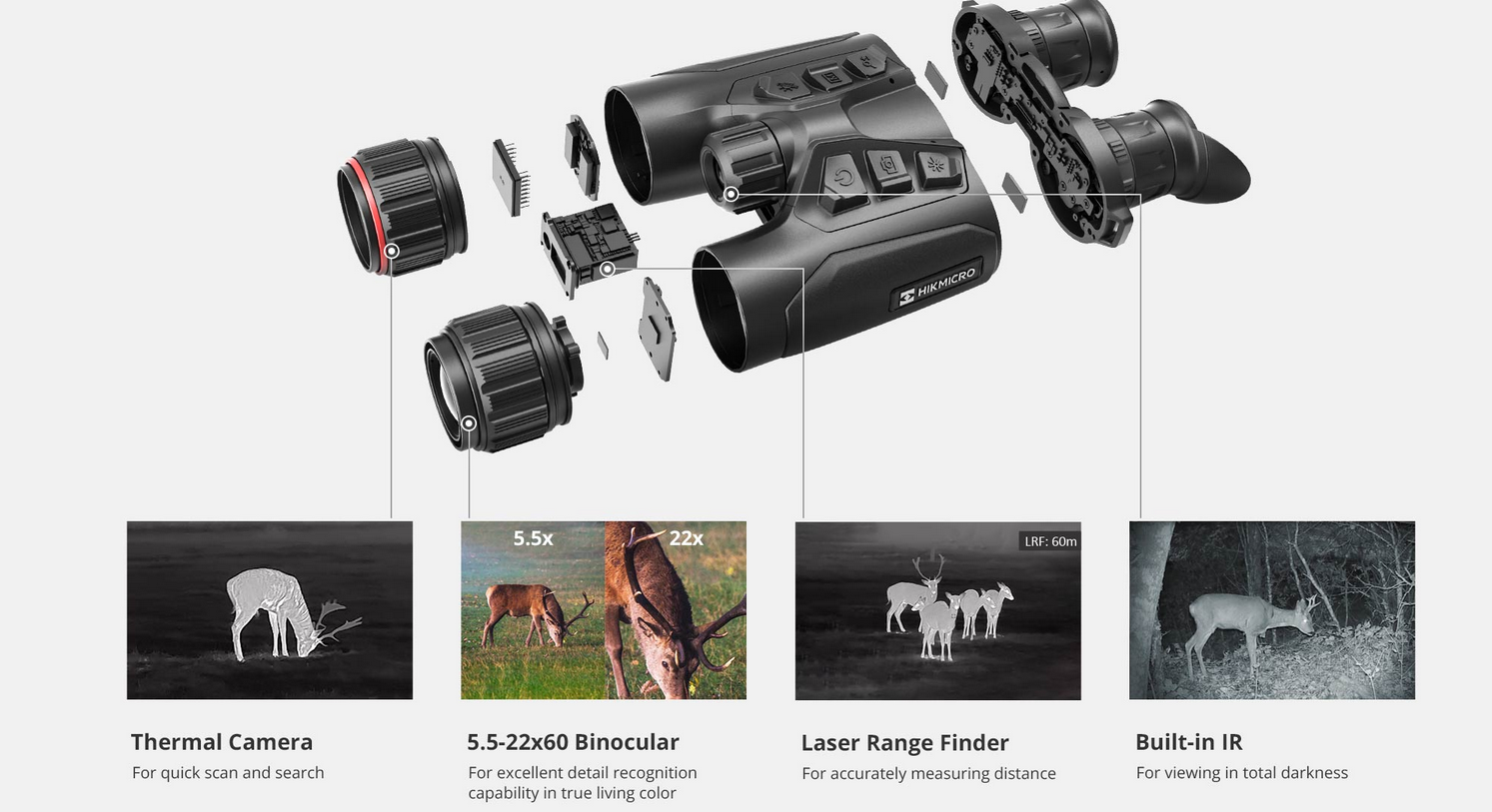

The HIKMICRO HABROK 4K HQ35L delivers cutting-edge multi-spectrum performance in a compact, high-precision format. Featuring a highly sensitive 640x512 thermal detector with <20mK NETD and an advanced 4K CMOS optical channel, the HQ35L ensures exceptional clarity and detection in all lighting and weather conditions—from open daylight to total darkness.

Equipped with a 60mm F2.2 lens and dual replaceable IR illuminators (850nm & 940nm), this unit adapts to a wide range of use cases—hunting, birding, search and rescue, and marine observation. The 1000m integrated laser rangefinder ensures pinpoint distance calculation, while the ergonomic chassis and intuitive controls offer seamless, on-the-fly operation even in field conditions.

The integrated image stabilization algorithm minimizes blur and vibration, delivering steady visuals across the 5.5x to 22x zoom range—ideal for scanning, tracking, and recording with precision. Its dual-spectrum system allows thermal and optical fusion, detecting hidden heat sources while preserving visual detail through the 0.49” OLED display at 1920x1080 resolution.

With an IP67 waterproof rating, 8+ hours of runtime from replaceable 18650 batteries, onboard 64GB storage, and built-in GPS, compass, and hotspot functionality, the HQ35L is engineered for endurance, clarity, and mission-critical performance. Whether spotting through dense foliage or capturing low-light wildlife footage, the HQ35L delivers reliability where traditional optics fall short. Experience the future of binocular technology with the HABROK 4K HQ35L.

Please note: Due to distribution rights and agreements we can only sell HIKMICRO products to residents of the UK

SPECS

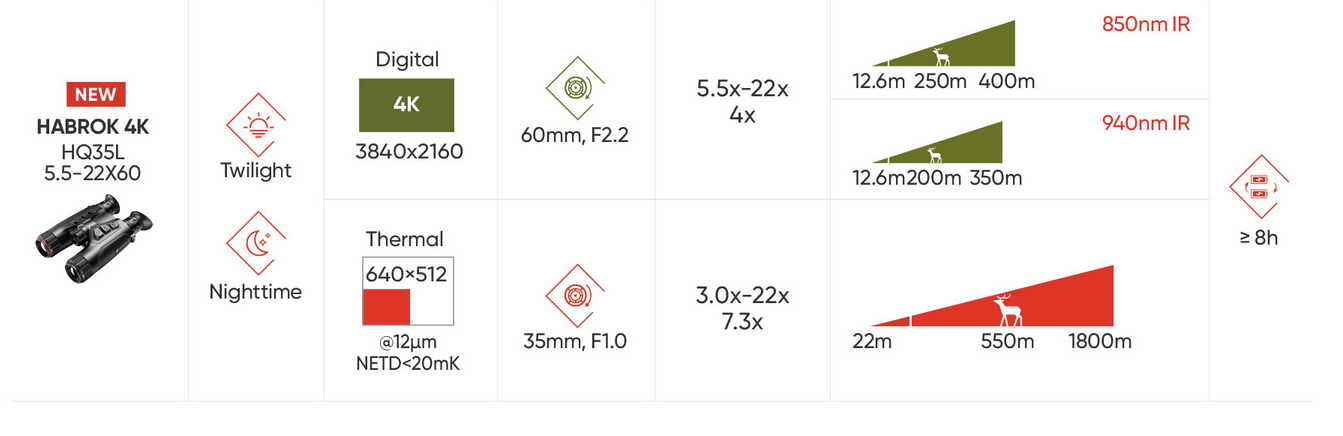

Thermal Module

Sensor Type: VOx Uncooled Focal Plane Array
Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Pitch: 12 μm
Spectral Range: 8 μm – 14 μm
Thermal Sensitivity (NETD): < 20 mK (@25°C, F#=1.0)
Lens: 35 mm, F1.0
Focus Mode: Manual (Focus Ring)
Detection Range: 1800 m
Minimum Focusing Distance: 3.5 m
Magnification: 3.0× to 22.0× (7.3× base)
Field of View (H × V):
- 12.5° × 10.1°
- 22.0 m × 17.6 m @ 100 m

Optical Module

Sensor Type: 1/1.8" Progressive Scan CMOS
Resolution: 3840 × 2160
Lens: 60 mm, F2.2
Minimum Working Distance: 3 m
Focus Mode: Manual (Focus Ring)
Magnification: 5.5× to 22.0× (4× base)
Field of View (H × V):
- 7.3° × 4.1°
- 12.6 m × 7.2 m @ 100 m

Infrared Illumination

Smart IR: Yes
IR Illuminator: Replaceable
- Default: 940 nm
- Optional: 850 nm
Night Viewing Range: 400 m

Image Display

Display: 0.49 inch OLED, 1920 × 1080
Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion
Optical Modes: Day, Night, Auto
Flat Field Correction (FFC): Auto / Manual / External
Exit Pupil: 8 mm
Eye Relief: 15 mm
Diopter Adjustment: -5 D to +3 D
Adjustments:
- Brightness: Yes
- Contrast: Yes
- Tone: Cold / Warm
Zoom Pro: Yes

System Features

Video Recording: Yes
Snapshot Capture: Yes
Audio Recording: Yes
Standby Mode: Yes
Onboard Storage: 64 GB Built-in EMMC
Picture-in-Picture (PIP): Yes
Wi-Fi Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS Module: Yes
Local Album Access: Yes

Power Supply

Battery Type: Replaceable & Rechargeable 18650 Li-ion
Operating Time: ≥8 hours (@25°C, Hotspot off)
Charging & Power:
- USB Type-C: 5 V DC, 2 A
- Supports external power and direct charging

General

Protection Level: IP67

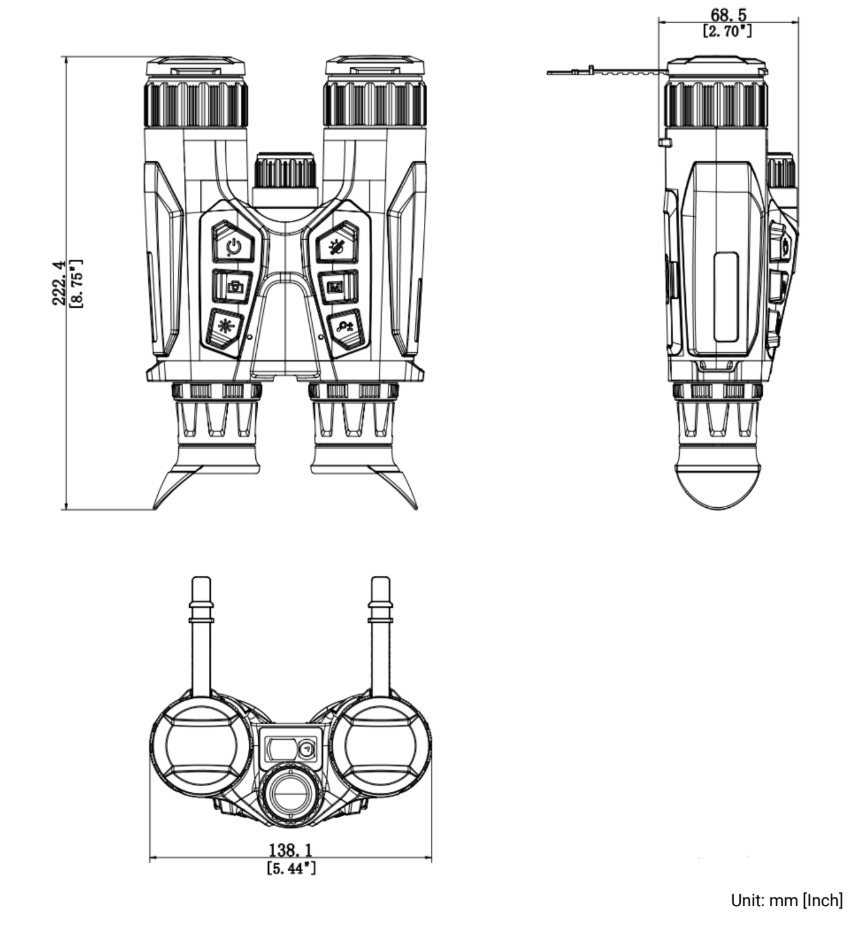

Dimensions: 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75")
Weight: 798 g (without battery)
Interpupillary Adjustment Range: 60 mm – 74 mm
Mounting: 1/4"-20 UNC Adapter
Operating Temperature: -30°C to +55°C

Laser Rangefinder

Laser Class: Class 1
Wavelength: 905 nm
Measuring Range:
- Minimum: 10 m
- Maximum: 1000 m
Accuracy: ±1 m

FEATURES

640x512 Thermal Sensor with 20mK NETD: Detects heat signatures with extreme sensitivity and clarity in all environments.
4K Ultra HD Optical Camera with 60mm Lens: Captures detailed visuals in daylight, twilight, and total darkness.
Dual Replaceable IR Illuminators (850nm & 940nm): Adapt your visibility to different environments and light conditions effortlessly.
Built-in 1000m Laser Rangefinder: Precisely measure target distances in real time with ±1m accuracy.
Advanced Image Stabilization Algorithm: Delivers smooth, blur-free viewing even when zoomed or in unstable field conditions.
640x512 thermal sensor with ultra-sensitive 20mK NETD
4K CMOS camera with 60mm high-resolution lens
Dual replaceable IR illuminators (850nm/940nm)
1000m integrated laser rangefinder
Up to 8 hours battery life
Onboard 64GB image and video storage
5.5x to 22x variable magnification
Real-time image stabilization system
IP67 waterproof and rugged magnesium chassis
Built-in GPS, compass, and hotspot sharing

VIDEOS

WHAT'S IN THE BOX

HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF
Neck strap
Type C USB cable
Tripod adaptor
4x Batteries
Replaceable IR illuminator (940nm)
Quick start guide
Lint free cloth
Battery charger
Binocular harness

WARRANTY

3-Year HIKMICRO Warranty

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
