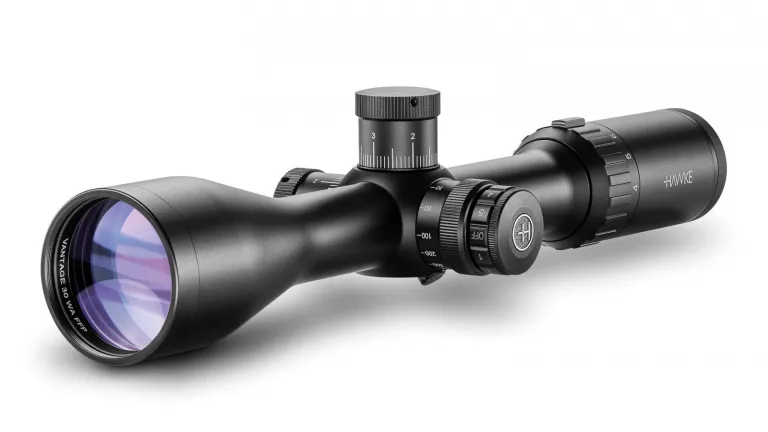

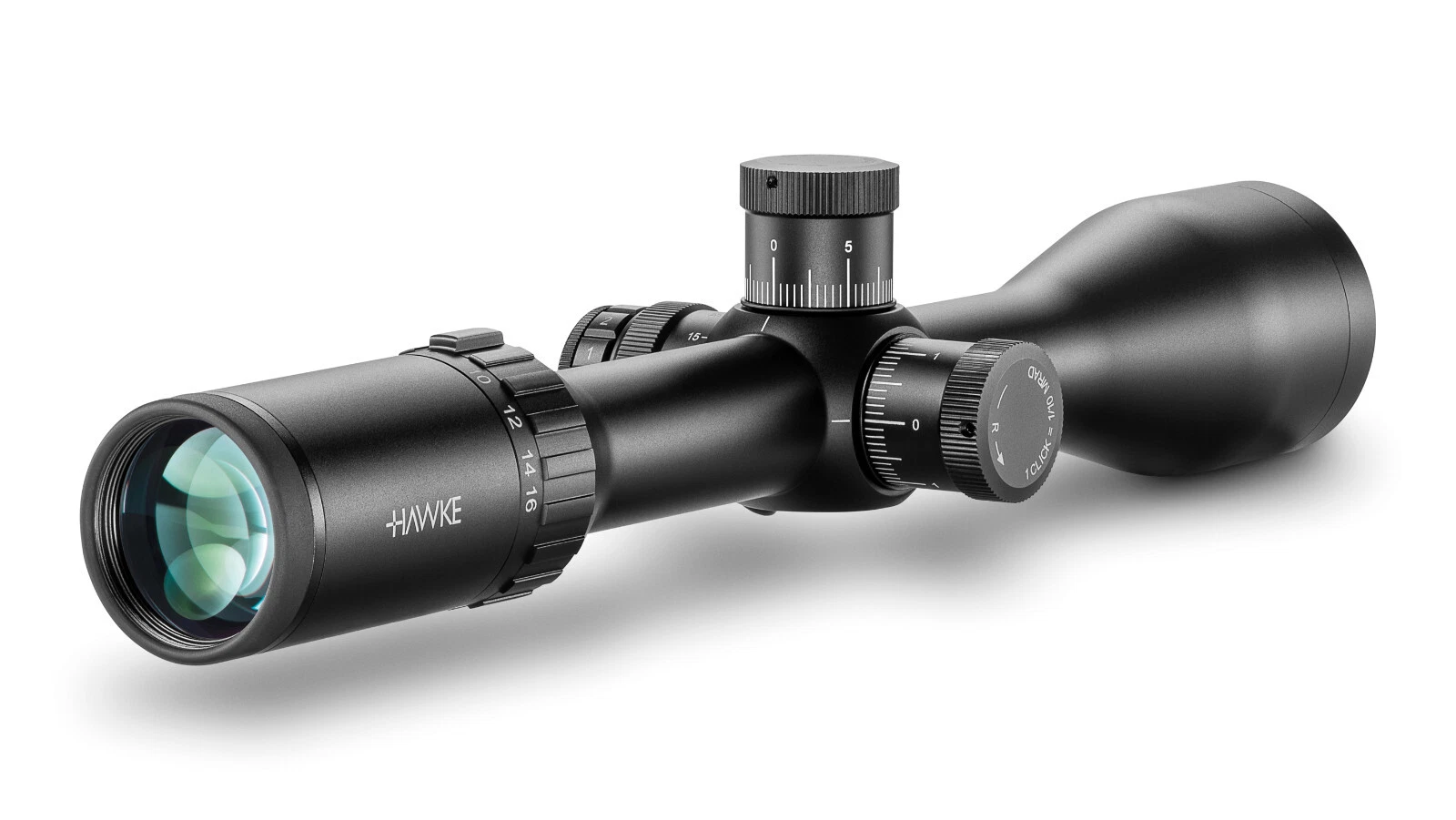

Hawke Vantage 30 WA FFP 4-16x50 Half Mil Dot IR Reticle Rifle Scope

• Optical System System H2
• Scope Tube 30mm
• Magnification 4 - 16x
• Objective Lens 50mm
• Reticle FFP Half Mil Dot (16x)
• Illumination 5 Levels (Red & Green)
• Illumination Control Stepped Rheostat
• Parallax Side Focus
• Field of View 32.5 - 8.1ft @100yds / 10.8 - 2.7m @100m
• Field of View (°) 6.2 - 1.5
• Eye Relief 3.5in / 90mm
• PX/Focus (Error free from) 10yds - ∞ / 9m - ∞
• Click Value 1⁄10 MRAD
• Turret Type (Elevation) Exposed

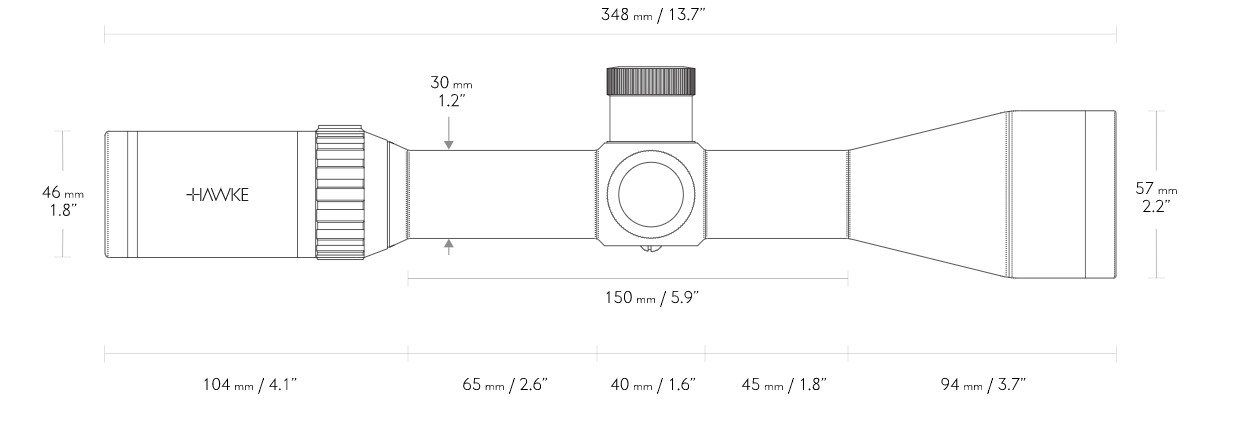

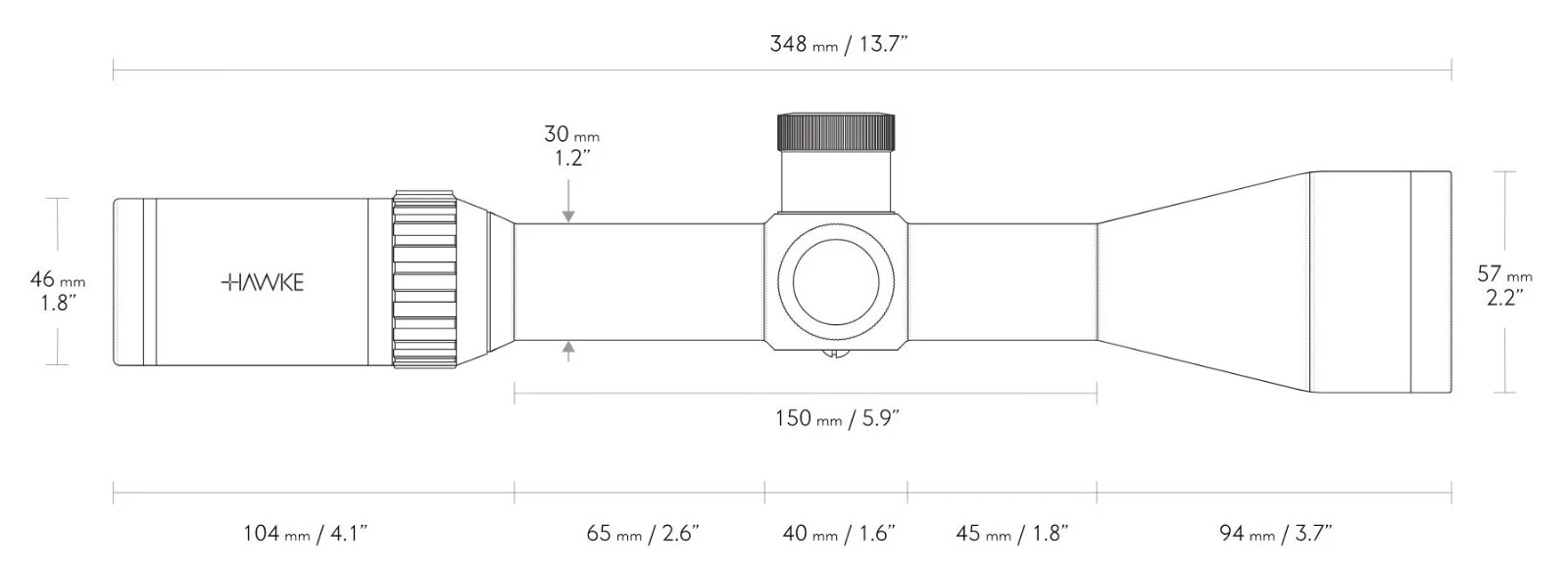

• Length 13.7in / 348mm
• Weight 26.3oz / 745g

• First Focal Plane (FFP) Reticle: Reticle scale remains constant relative to the target across the zoom range, allowing consistent holdover and ranging at any magnification.

• FFP Half Mil Dot Design: Offers half mil spaced markings and hollow segmented posts for accurate bracketing, rangefinding, and aiming.

• Multi-Stage Illumination: Red and green illumination with multiple brightness levels, enhancing reticle visibility in varying lighting conditions.

• Wide Angle Optical System: Provides a broad field of view, ideal for target tracking and scanning large areas quickly.

• Side Focus Parallax Adjustment: Allows precise focusing and parallax correction from close range to infinity.

• Exposed Locking Turrets: Designed for fast, accurate, and secure adjustments in the field, with tactile and audible clicks.

• 11-Layer Fully Multi-Coated Lenses: Ensures high light transmission, clarity, and colour fidelity for optimal viewing.

• High Torque Zoom Ring: Offers smooth and precise magnification adjustment, even in cold or wet conditions.

• Fast-Focus Eyebell: Enables rapid reticle focus for improved speed and accuracy.

• Durable Construction: Built on a 30mm mono-tube chassis, nitrogen-purged and rated for all calibres, shockproof, waterproof, and fog proof.

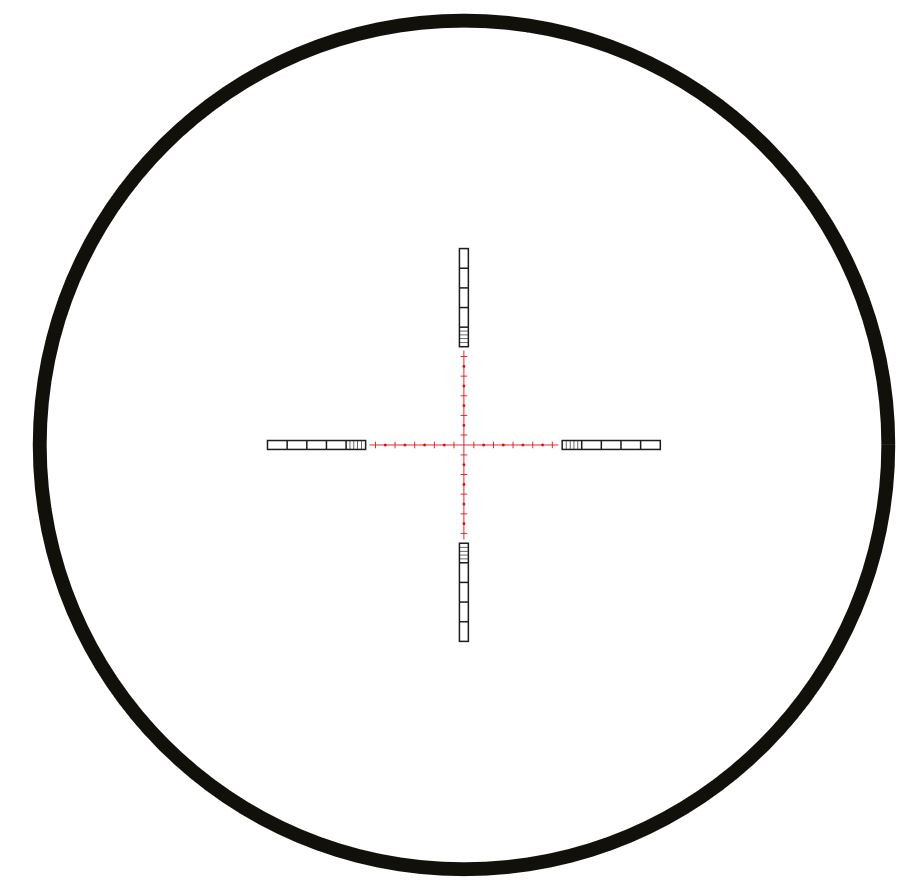

FFP HALF MIL DOT RETICLE

The FFP Half Mil Dot reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil Dot is a versatile reticle that provides aim points no matter how extreme the conditions.

Hollow posts are segmented into mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.

The mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.

FFP HALF MILDOT RETICLE

•
  Box
•
  Instruction Manual
•
  Riflescope Alignment Booklet
•
  Lens Covers
•
  Lens Cloth

Hawke Worldwide Warranty
