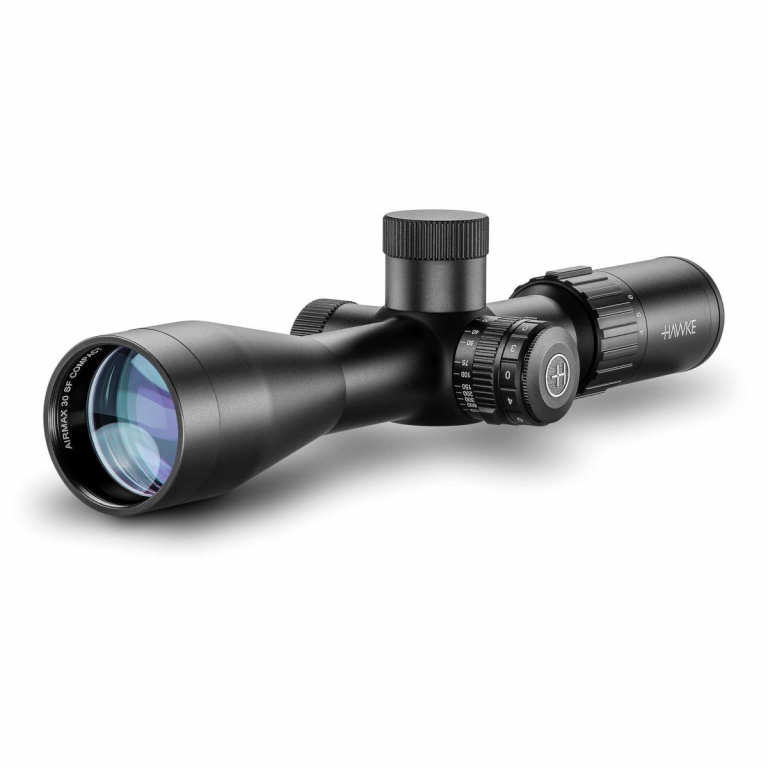

Hawke AIRMAX 30 SF COMPACT 4-16x44 AMX IR Rifle Scope
Details
The Hawke AIRMAX 30 SF COMPACT 4-16x44 comes with a wide-angle optical system ideal for varmint and airgun use. It is lightweight and compact and has a short eye relief. The Hawke AIRMAX 30 SF COMPACT 4-16x44 has 16 layer fully multi-coated optical system that offers exceptional clarity for the price. It has a 30mm tube and offers side focus down to 10 yards.
Brand | Hawke |
---|---|
Product Name A-Z | Hawke AIRMAX 30 SF COMPACT 4-16x44 AMX IR Rifle Scope |
SKU | 13210 |
Highest Magnification | 11x-20x |
Illuminated Reticle | Yes |
Minimum Parallax | 10yd-∞ |
Objective Lens Diameter | 44mm |
Reticle Plane | Second |
Tube Diameter | 30 mm |
Turret Click Value | 0.1 MRAD (cm) |
Reticle | AMX |
Manuals | Download Manual HERE |
Specs

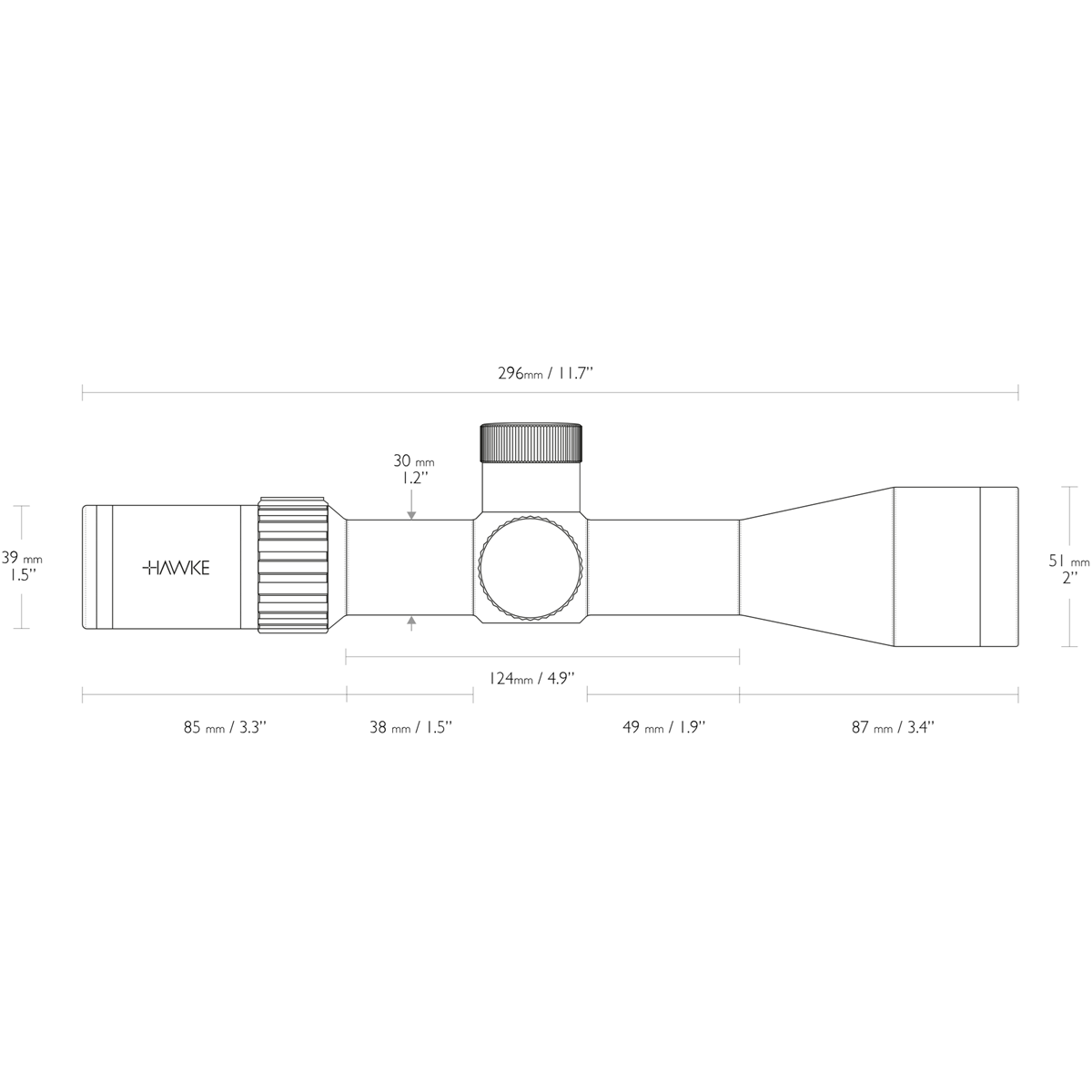

- Length: 296mm 11.7"
- Weight: 621g 21.9oz
- Eye relief: 76mm 3"
- Focus/Parallax: Side Focus 9m - ∞ 10yds - ∞
- Field of View: 10.9 - 2.7m @100m 32.8 - 8.2ft @100yds
- Exit Pupil: 11-2.8mm 0.43-0.11"
- Chassis: 30mm Mono-tube
- Optical System: 4-16×
- Objective Diameter: 44mm
- Illumination: Red
- Reticle: AMX IR
- Elevation Increment: 1⁄10 MRAD
- Elevation Adjustment Range: 20 MRAD
- Windage Increment: 1⁄10 MRAD
- Windage Adjustment Range: 20 MRAD
- Material: Aluminium
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 16 Layers
- Power Selector Style: Rubber Coated Posi-Grip
- Focal Plane: Second Focal Plane (SFP)
- Turret Caps: Yes
- Turret Type: Capped Target Turrets
- Hawke Worldwide Warranty
- Made in China
Features
- Capped Low-Profile Turrets
- 30mm
- Wide Angle
- Side Focus
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All calibre rated
Reticle

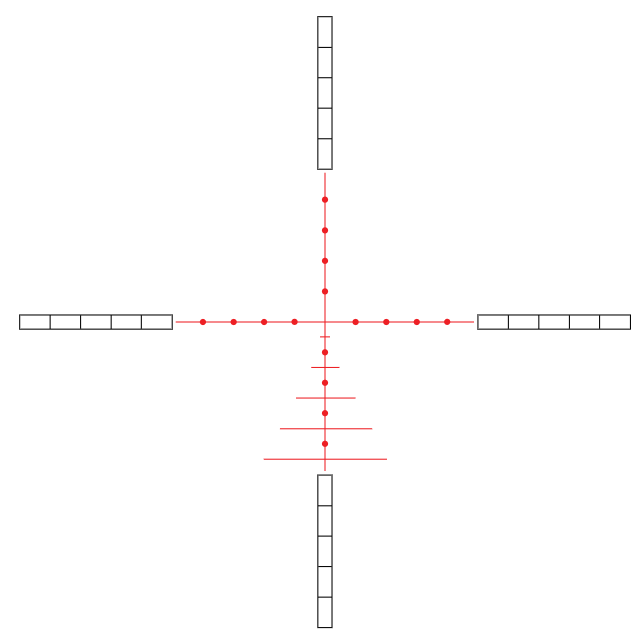

AMX RETICLE
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
In the box?
- Hawke AIRMAX 30 SF COMPACT 4-16x44 AMX IR Rifle Scope
- Box
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Lens Covers
- 3" Sidewheel
- CR2032 Battery
Warranty
- Hawke Worldwide Warranty.
