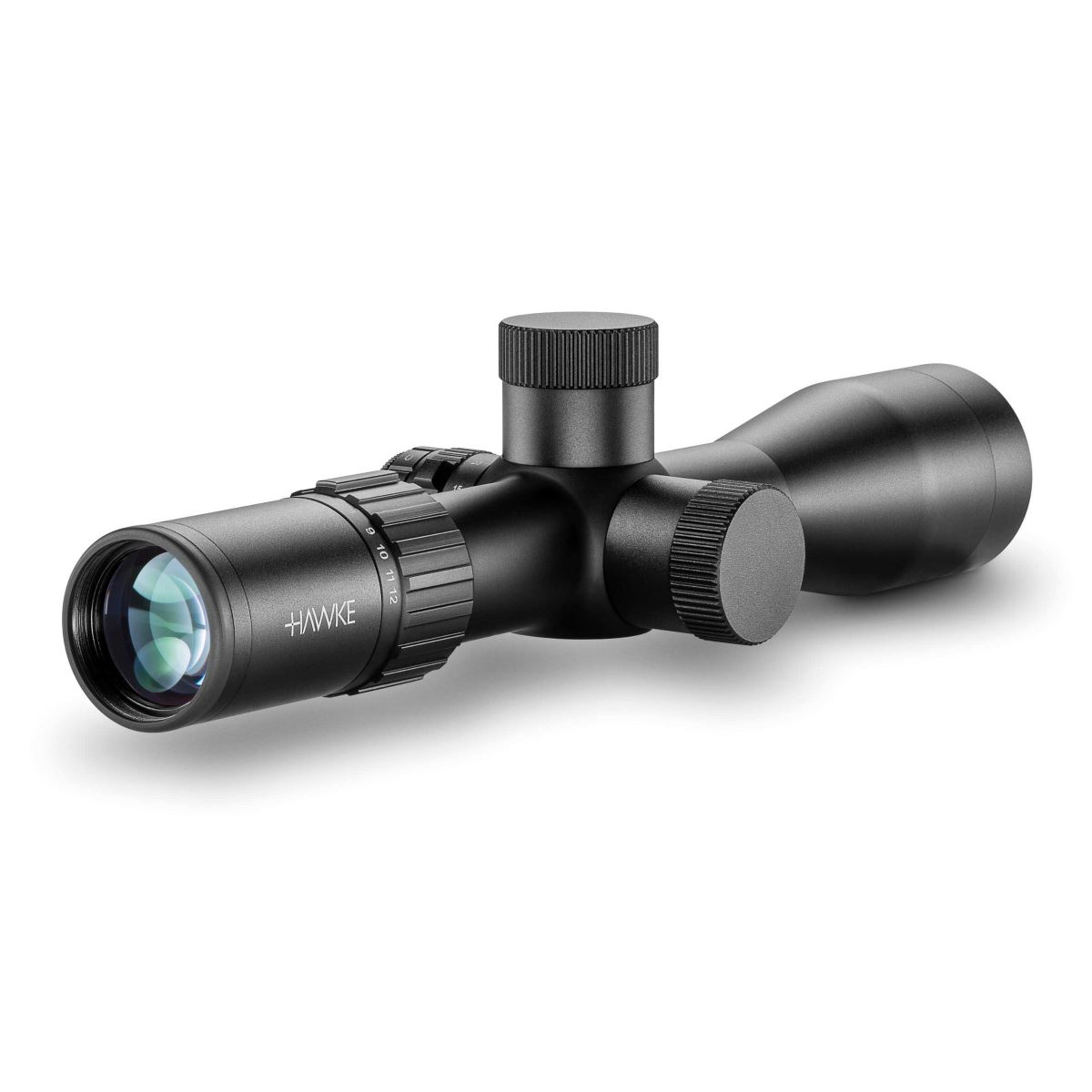

Hawke Airmax 30 SF Compact 3-12x40: AMX IR Rifle Scope

SKU

13200

Rating:

83 % of 100

2 Reviews Add Your Review

Now £251.70 Was £264.95 Was £329.00

1 In Stock

Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

More Information

Specs

Features

Reticle

Video

Whats in the box?

Warranty

Manuals

Details

Specialist scopes designed by air gunners for air gunners! The Hawke Airmax 30 SF Compact 3-12x40: AMX IR Rifle Scope features Hawke's H2 optics in a variety of configurations designed to suit airgun characteristics.

More Information

More Information
Brand	Hawke
Product Name A-Z	Hawke Airmax 30 SF Compact 3-12x40: AMX IR Rifle Scope
SKU	13200
Highest Magnification	11x-20x
Illuminated Reticle	Yes
Minimum Parallax	10yd-∞
Objective Lens Diameter	40mm
Reticle Plane	Second
Tube Diameter	30 mm
Turret Click Value	0.1 MRAD (cm)
Manuals	Download Manual HERE

Specs

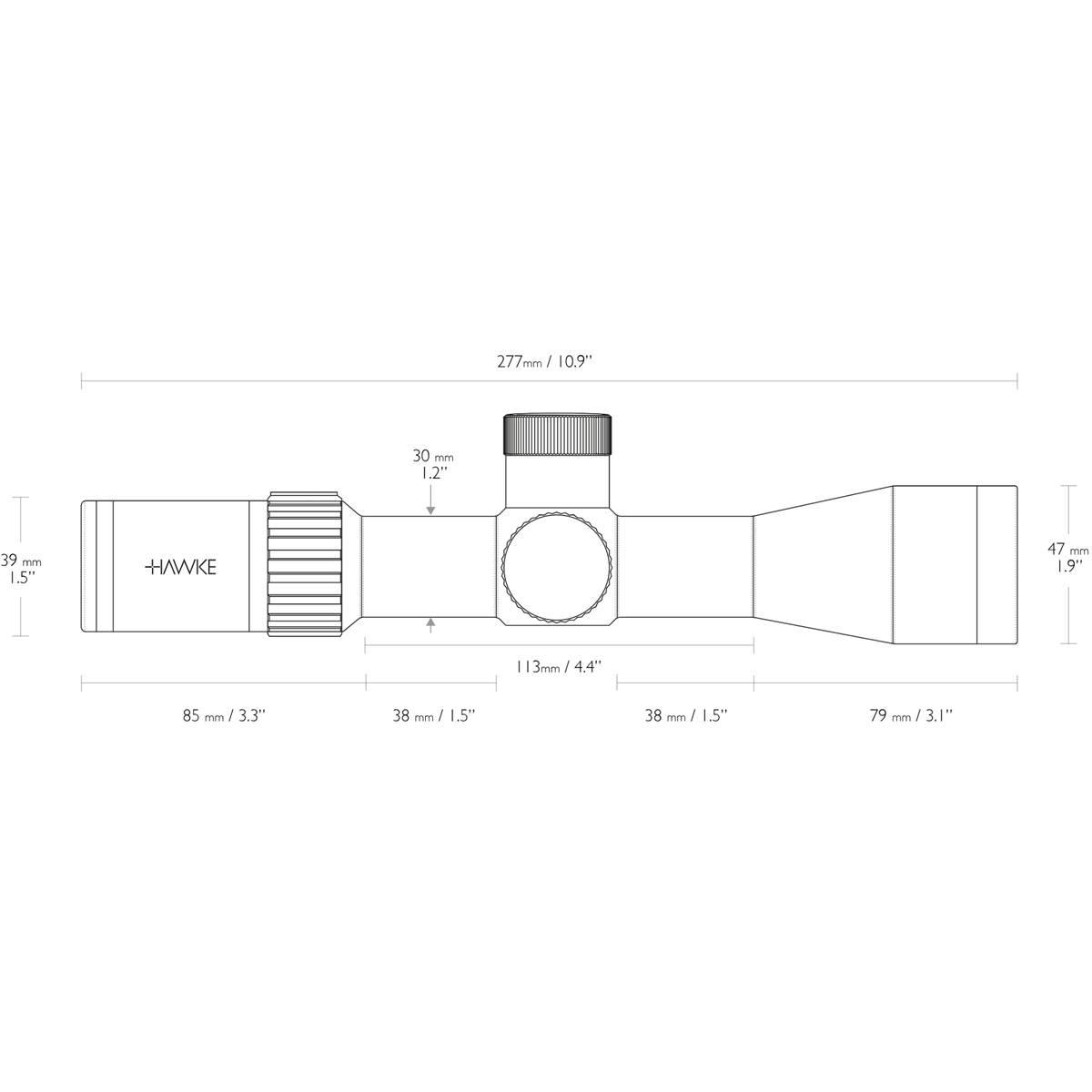

Length: 277mm 10.9"
Weight: 589g 20.8oz
Eye relief: 76mm 3"
Focus/Parallax: - Side Focus 9m - ∞ 10yds - ∞
Field of View: 14.6 - 3.6m @100m 43.7 - 10.9ft @100yds
Exit Pupil: 13.3-3.3mm 0.52-0.13"
Chassis: 30mm Mono-tube
Optical System: 3-12×
Objective Diameter: 40mm
Illumination: Red
Reticle: AMX IR
Elevation Increment: 1⁄10 MRAD
Elevation Adjustment Range: 30 MRAD
Windage Increment: 1⁄10 MRAD
Windage Adjustment Range: 30 MRAD
Material: Aluminium
Ocular Type: Fast Focus
Lens Coating: Fully Multi-Coated - 16 Layers
Power Selector Style: Rubber Coated Posi-Grip
Focal Plane: Second Focal Plane (SFP)
Turret Caps: Yes
Turret Type: Capped Target Turrets
Hawke Worldwide Warranty
Made in China

Features

Capped Low-Profile Turrets
30mm
Wide Angle
Side Focus
Illumination
11 Layer Fully Multi-Coated Lenses
High Torque Zoom Ring
Fast Focus Eyebell
AMX Reticle Designed For Airguns
Nitrogen purged
Shockproof
Waterproof
Fog proof
All calibre rated

Reticle

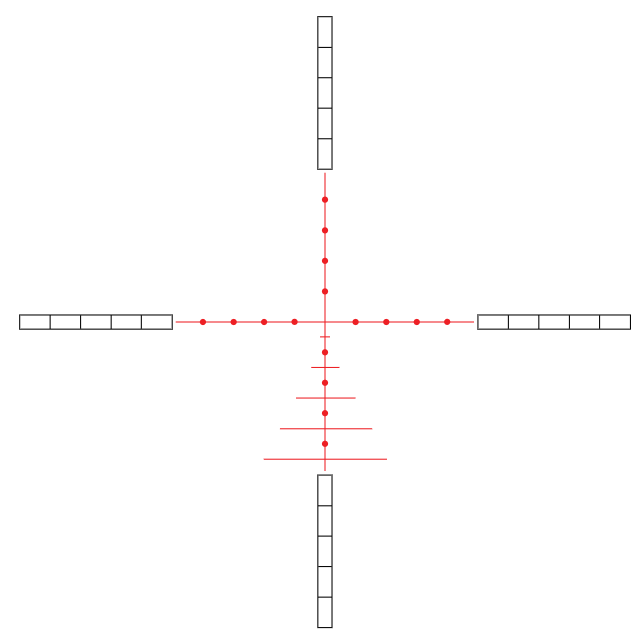

AMX RETICLE:

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
