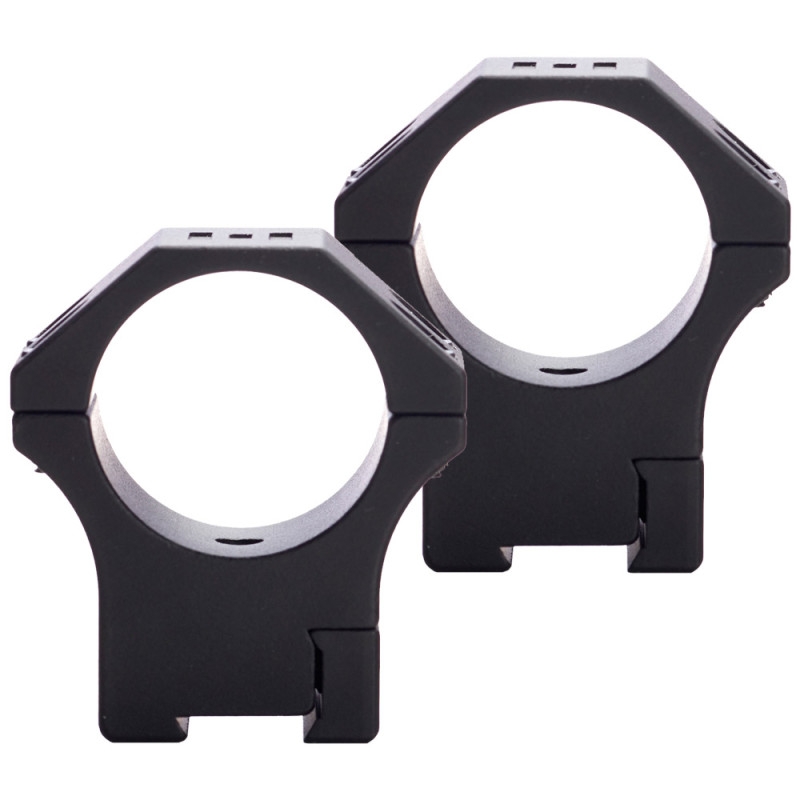

Element XT 1 Inch Medium Rifle Scope Ring Dovetail Mount

SKU#54014 Element Optics

Element XT 1 Inch Medium Rifle Scope Ring Dovetail Mount

Name: Element XT 1 Inch Medium Rifle Scope Ring Dovetail Mount
Brand: Element Optics
Price: 23.99 GBP
Availability: OutOfStock

Available soon Notify me when back in stock

If you want a solid, no-fuss mounting option for a 1-inch scope on a dovetail rail, the Element Optics XT 1 Inch Medium Rifle Scope Ring Dovetail Mount is the safe “middle ground” choice that fits most setups. It’s designed to give you a strong, stable hold without adding unnecessary weight or bulk, using a simple but effective CNC-machined aluminium construction. The medium height is the most versatile in the range, giving enough clearance for most 1-inch scope bodies while still keeping the optic low enough for a comfortable cheek weld and consistent shooting position. It’s not over-engineered or complicated, just a clean, reliable mount that does its job properly and keeps your zero where it should be once it’s torqued down correctly.

-Nathan (Technical Advisor)

VIEW PRODUCT INFO / SPECS

Ring Height: Medium

Low

Medium

High

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

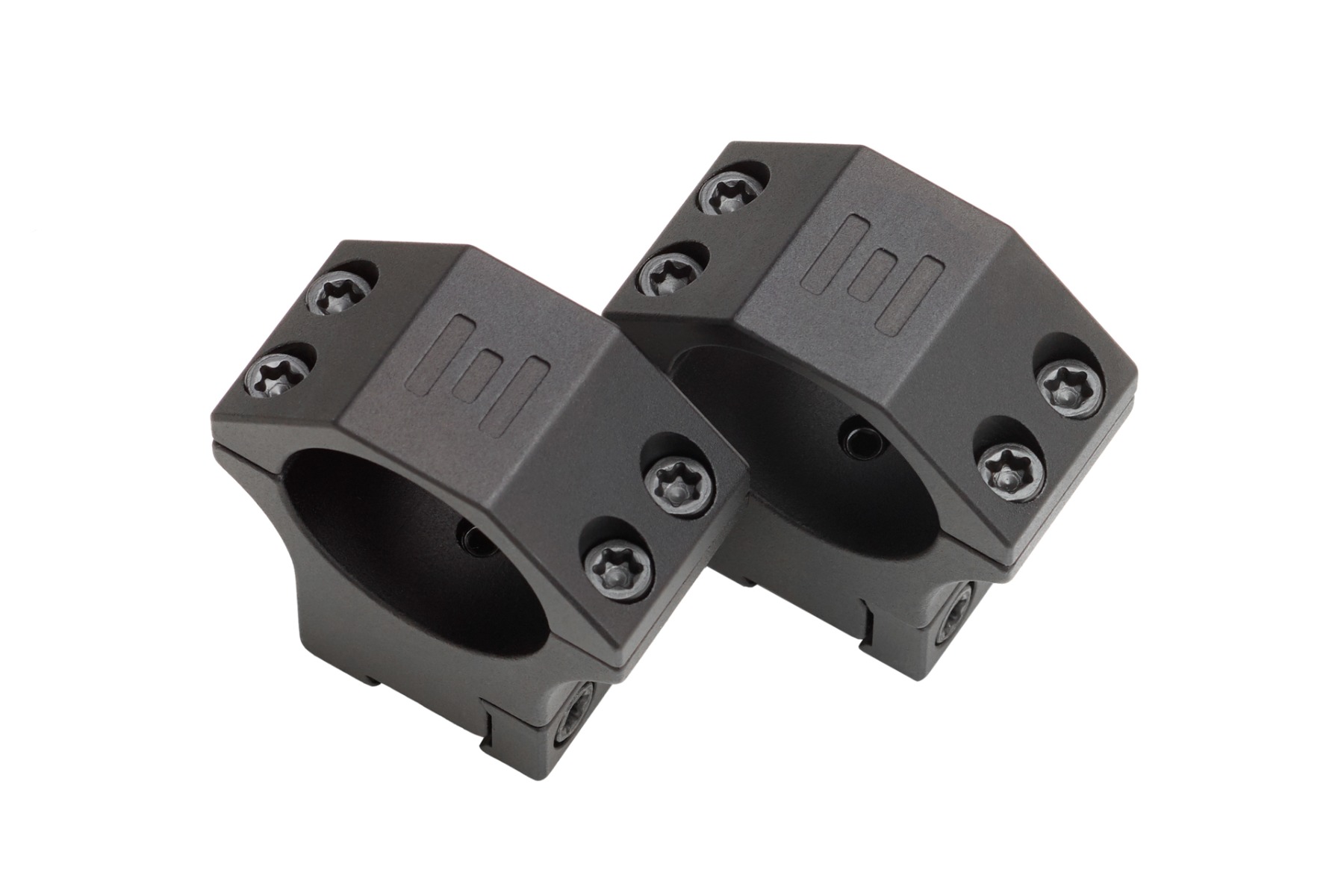

Available in both Dovetail and Picatinny, the XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics have designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups. There is something for everyone. These are available for 30mm and 1” body tubes, and in a variety of height options.

Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals. These specs can be found below in the “specification” tab.

Height = 26.7mm

SPECS

Height: 26.7mm
Weight (pair): 83.6g
Material: 6061 aluminium
Mounts to: Dovetail
Tools Required: T15 TORX
Max Torque (rings): 18 in-lbs (2.0NM)
Max Torque (base): 35 in-lbs (4.0NM)

WHAT'S IN THE BOX

Element XT 1 Inch Medium Rifle Scope Ring Dovetail Mount

FREQUENTLY ASKED QUESTION(S)

1. What scope tube size does this mount fit?
It is designed specifically for 1-inch scope tubes.

2. What rail type does it use?
This version is made for dovetail rails, not Picatinny.

3. What does “medium height” mean?
It refers to a balanced height that fits most scopes without being too low or too high, offering good clearance and comfort.

4. What is the exact height of the medium version?
The medium dovetail mount is approximately 26.7mm base-to-centre height.

5. What is it made from?
It is made from 6061 aluminium for a balance of strength and lightweight handling.

6. Is it strong enough for recoil?
Yes, it is designed to hold zero reliably under normal recoil when properly installed and torqued.

7. What tools are needed to install it?
A T15 Torx driver is typically required for fitting and adjustment.

8. Is medium height suitable for most scopes?
Yes, medium is the most versatile option and fits a wide range of 1-inch scope setups.

9. Can it lose zero over time?
Not if installed correctly with proper torque settings—it is designed for consistent repeatability.

10. Is it better than budget mounts?
Yes, it offers better machining consistency, material quality, and reliability than most entry-level rings.
