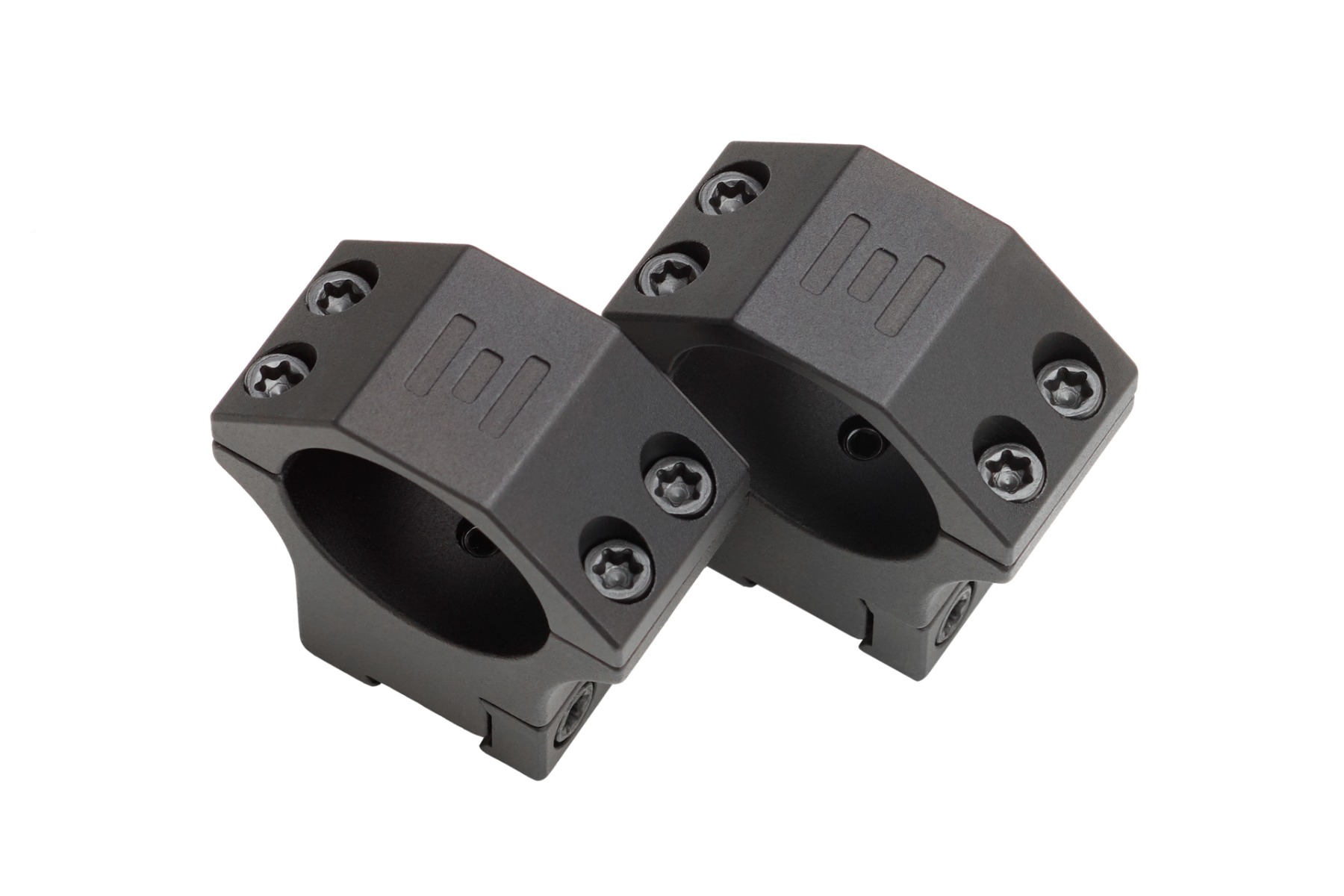

Element XT 1 Inch Low Dovetail Rifle Scope Ring Mount
If you want a simple, reliable low-profile mounting solution for a 1-inch scope, the Element Optics XT 1 Inch Low Dovetail Rifle Scope Ring Mount is a solid no-nonsense choice. It’s designed to give you a lightweight but secure way to mount your optic without adding unnecessary bulk or complexity. The low height keeps your scope sitting nice and close to the rifle, which helps with a more natural cheek weld and a consistent shooting position. Despite being budget-friendly in the XT range, it still feels properly solid, with CNC-machined aluminium construction and tight tolerances that keep everything aligned once it’s torqued down correctly. It’s basically a fit-it-once, trust-it mount for simple and dependable setups.
-Nathan (Technical Advisor)
#1332
#1385
#1388
#1386
#1389
Available in both Dovetail and Picatinny, the XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics have designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups. There is something for everyone. These are available for 30mm and 1” body tubes, and in a variety of height options.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals. These specs can be found below in the “specification” tab.
Ring Height: 22.7mm
- Height: 22.7mm
- Weight (pair): 72.2g
- Material: 6061 aluminium
- Mounts to: Dovetail
- Tools Required: T15 TORX
- Max Torque (rings): 18 in-lbs (2.0NM)
- Max Torque (base): 35 in-lbs (4.0NM)
- Element XT 1 Inch Low Dovetail Rifle Scope Ring Mount
1. What size scope does this mount fit?
It is designed specifically for 1-inch scope tubes.
2. What rail system does it use?
This version is made for dovetail rails, not Picatinny.
3. What does “low” height mean?
Low height keeps the scope closer to the barrel for better cheek weld and a lower overall shooting profile.
4. What is the height of the low version?
The low dovetail version is approximately 22.7mm base-to-centre height.
5. What material is it made from?
It is made from 6061 aluminium for a balance of strength and light weight.
6. Is it strong enough for recoil?
Yes, it is designed to hold zero reliably under normal recoil when properly torqued.
7. What tools are needed for installation?
A T15 Torx bit is typically required for fitting and adjustment.
8. Can it be over-tightened?
Yes, over-torquing can damage both the rings and scope tube, so proper torque settings are important.
9. Is it good for hunting or target shooting?
It works well for both, especially lightweight hunting rifles and simple target setups.
10. Is it a premium mount?
It’s more of a budget-friendly, functional mount rather than a high-end precision system, but still well made for its category.
- Manufacturer's lifetime warranty
Our aim is to ensure that your order arrives with you as soon as possible and in the safest, most cost-effective means.
Please Note: Shipping charges may be subject to additional surcharges if out of area or over weight restrictions.
Please Note: DPD SHIPMENTS REQUIRE THE CUSTOMER TO SHOW A PIN CODE ON DELIVERY - READ MORE: HERE
COURIERS
 |
 |
 |
 |
We use DPD , RoyalMail, TNT and UPS courier services for all our orders whether dispatching to the UK or International. As soon as your order has been dispatched you will receive an email with your unique tracking number. We are unable to add delivery notes to your order regarding safe spaces or neighbour deliveries. If you require this service it can be arranged directly with the courier once the parcel is in their network.
IN-STORE ITEMS
These are items that we have in-stock and will be sent out for delivery as soon as possible. We aim to dispatch all orders within 1-2 working days, but during busy periods dispatch may be delayed by a day or so. If you would like to purchase the item in person then please call ahead to arrange an appointment: 01803 611 895.
PRE-ORDER ITEMS
These are usually items that are going to be out-of-stock for a number of weeks or are in short supply. By purchasing a Pre-Order Item you are in effect paying a deposit for your goods. As soon as the item is back in stock yours will be dispatched within 24 hours where possible. Please see individual product pages for current back-in-stock dates. In rare occasions, these dates can be changed by the manufacturers so we recommend staying in contact with Optics Warehouse depending on the product lead time.
INTERNATIONAL DELIVERY & TAXES
In addition to the above information If your delivery address is outside of the UK you may be subject to import duties and taxes, which are levied once a shipment reaches your country. Any such additional charges for customs clearance must be borne by you. You should note that customs policies vary widely from country to country. Optics Warehouse advises each customer to contact their local customs office for further information if they are in any way unsure of local duties or liabilities. Cross border shipments are subject to opening and inspection by customs authorities which means some packages may be opened and re-sealed.
NEED HELP?
If you require any further assistance, please call us on 01803 611 895 or email sales@opticswarehouse.co.uk
-
A NOTE ABOUT DPD SHIPMENTS:
- Please be advised that we have now introduced DPD Pins to all DPD orders from Optics Warehouse.
- If your shipment is being sent from Optics Warehouse via DPD you will be sent a Pin Code that must be shown to the courier upon delivery.
- The pincode is sent VIA email & TEXT message. A valid email address and mobile number must be provided at checkout. Emails will be sent from "Riviera House 3PL" - if you do not receive this email please check your junk or spam folders.
- Please note that if you do not display your pin code to the courier driver upon delivery, you will not be able to have your item and you may need to schedule another delivery date to show a valid pin.
- Please view the attached slides HERE for further information!
Please note: All clearance calculations are based on mounts with 0 MOA. While MOA can be factored in, actual clearance may vary due to variables that can't always be accurately calculated. If you're considering an MOA mount and are unsure about the required height, we recommend contacting our sales team directly.
Measure the outermost diameter of your scope’s objective bell (including any flare).
Measure the thickness of any scope cover if used. If none, leave as 0.
Measure from the top of the rail to the highest point of the barrel.
We add a little extra clearance to account for real-world variation. Default is +1 mm.
Enter your measurements above to calculate the lowest ring height (base-to-centre) you can realistically use.
(A + 2×B) / 2 − C + TWhere A = objective outer diameter, B = cover thickness, C = rail-to-barrel clearance, T = tolerance.
