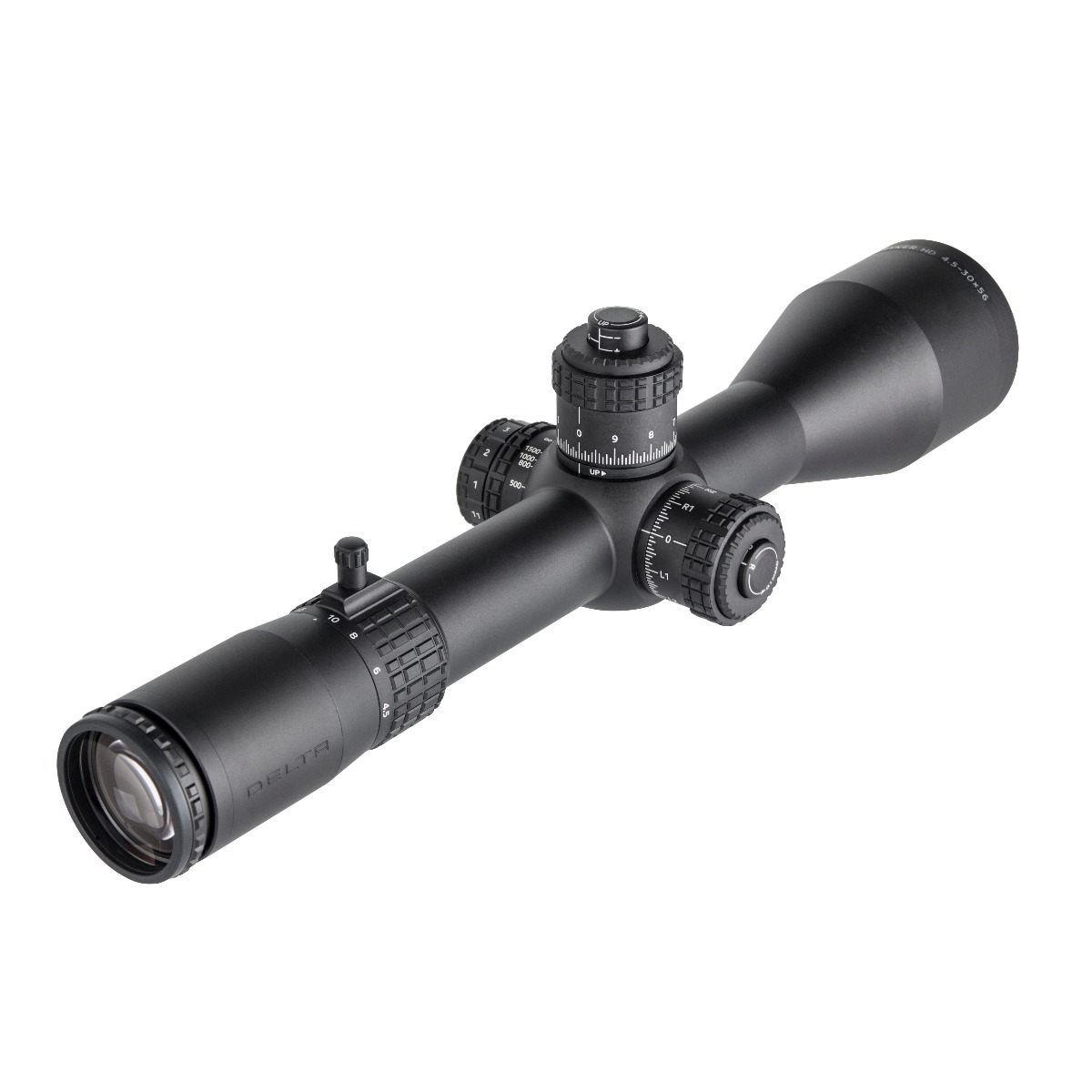

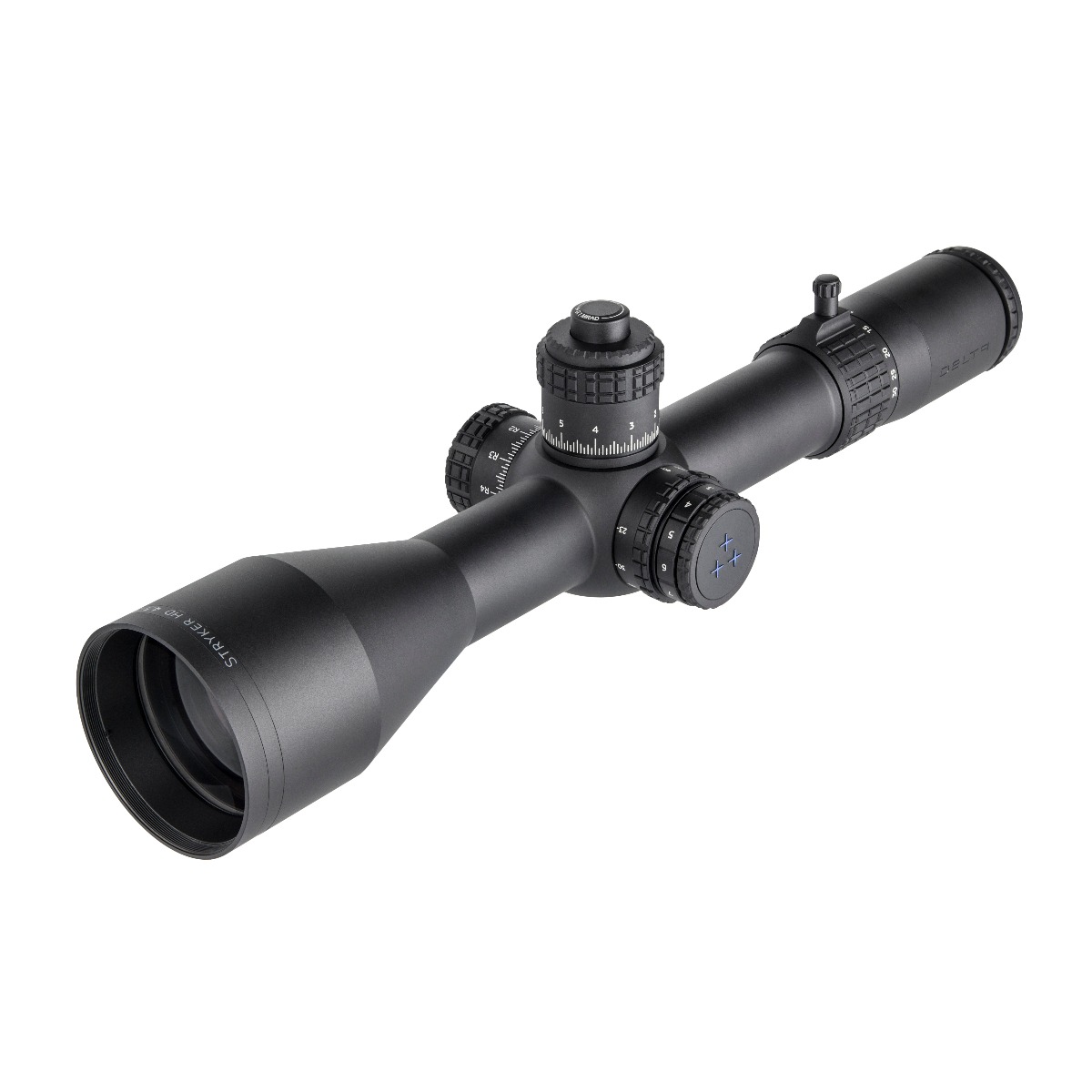

Delta STRYKER ED 4.5-30x56 HD FFP IR Mil Mil Zero Stop Locking Turret Rifle Scope - DLR-1

1 In Stock
Price Match
- +


The 2020 version is here.

Your feedback to Delta has made it even better:
• Click markings at different lengths.
• Turret full rotation indicator.
• Parallax wheel scaled up to 1500m.
It is also Matt Black matt and proudly bares the new Delta logo.

This is the new version of the Delta Stryker Target Ultra ED 4.5-30×56 HD FFP Illuminated Locking Turret Rifle Scope, featuring a new & improved locking turret design (as seen in the pictures).

The Delta STRYKER ED 4.5-30×56 HD LT is undoubtedly a rifle scope that is long overdue in the market and has now been upgraded to have locking turrets. The Delta STRYKER ED features a reticle in the FFP will mil graduations and 0.1 Mil Clicks. The top quality ED glass of the Delta STRYKER ED 4.5-30×56 HD LT will give a bright and rich in contrast image. The HD / ED glass system is the same as you will find in the highly regarding and thought after Delta Titanium 2.5-15×56 HD. This HD glass system significantly reduces chromatic aberrations and improves overall sharpness and colour reproduction significantly.

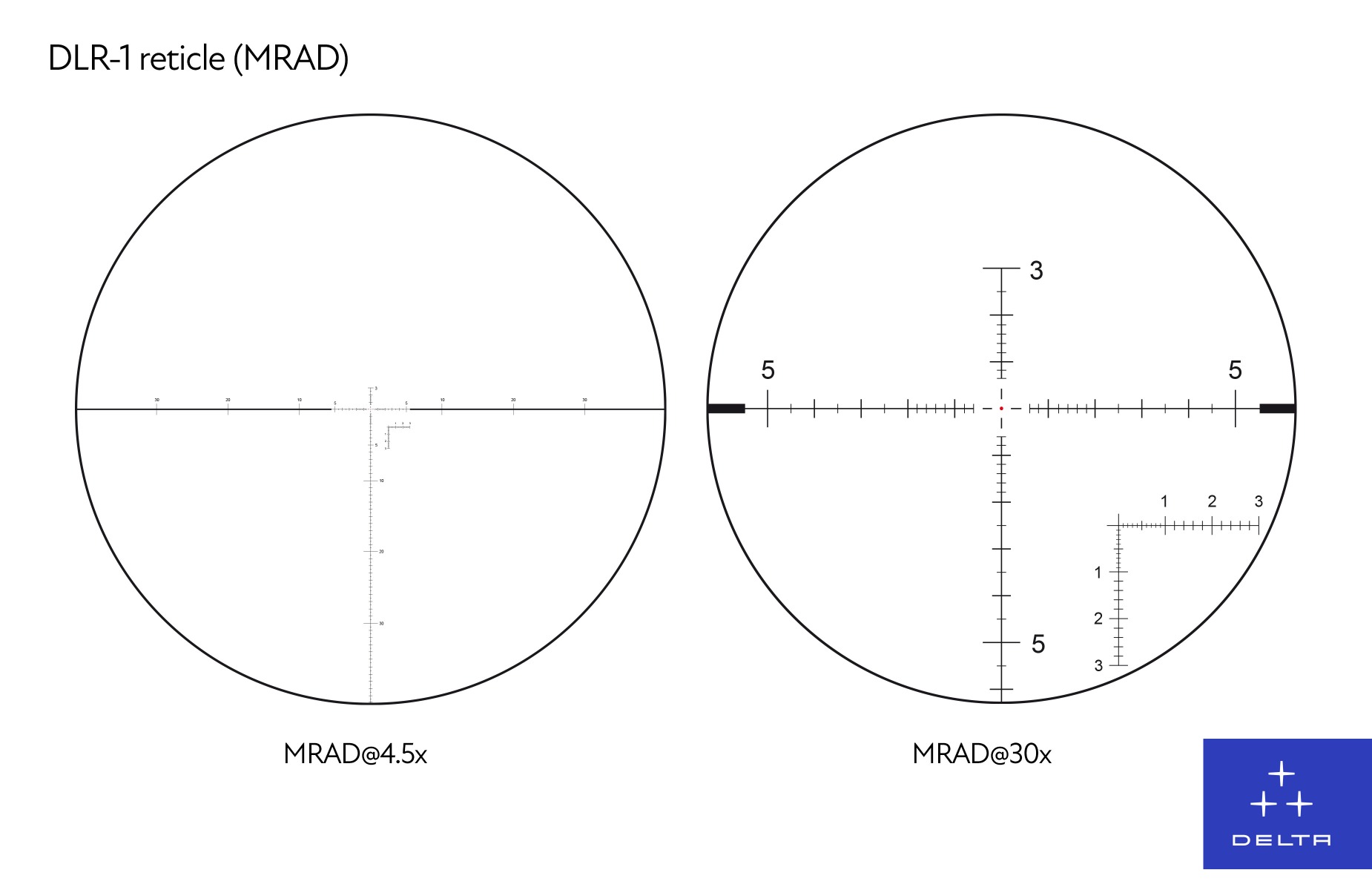

The 56mm objective combined with the FMC lenses gives great light transmission and brilliant optical performance even in low light conditions. The well-designed LRD reticles of the Delta STRYKER ED 4.5-30×56 HD have been tried, tested & thought out by Long Range Design of Sweden who are experts in extreme long-range shooting. The DLR reticle of the Delta Stryker ED was designed by Astro Swedens Jannes Nissinen who had taken the guidelines, thoughts, work & feedback from top Scandinavian shooters and designed the DLR reticle which has an MSR style about it but with a very finely marked mil hash center for quick measurement and windage holdovers.

All the reticles in the Delta STRYKER ED are an FFP Milradian based (1 MIL = 10cm at 100m) and are truly unique and have been designed to accommodate every shooter's needs. Each of the reticles of the Delta Stryker 4.5-30×56 FFP corresponds with the click of the scope which is 1 click equals 0.1 MIL (10mm). The FFP Reticles are designed so the shooter on any magnification can make elevation and windage adjustments using the reticle on any magnification.

The Delta Titanium 4.5-30×56 HD has been built on a sleek and robust 34mm tube which allows the STRYKER ED to gain a large range of reticle adjustment which reaches 300cm. This large amount of elevation adjustment will ensure you can get out to 1000 yards +.

The STRYKER is built for recoil of up to 18,000 Joule (super Magnum caliber .50BMG).

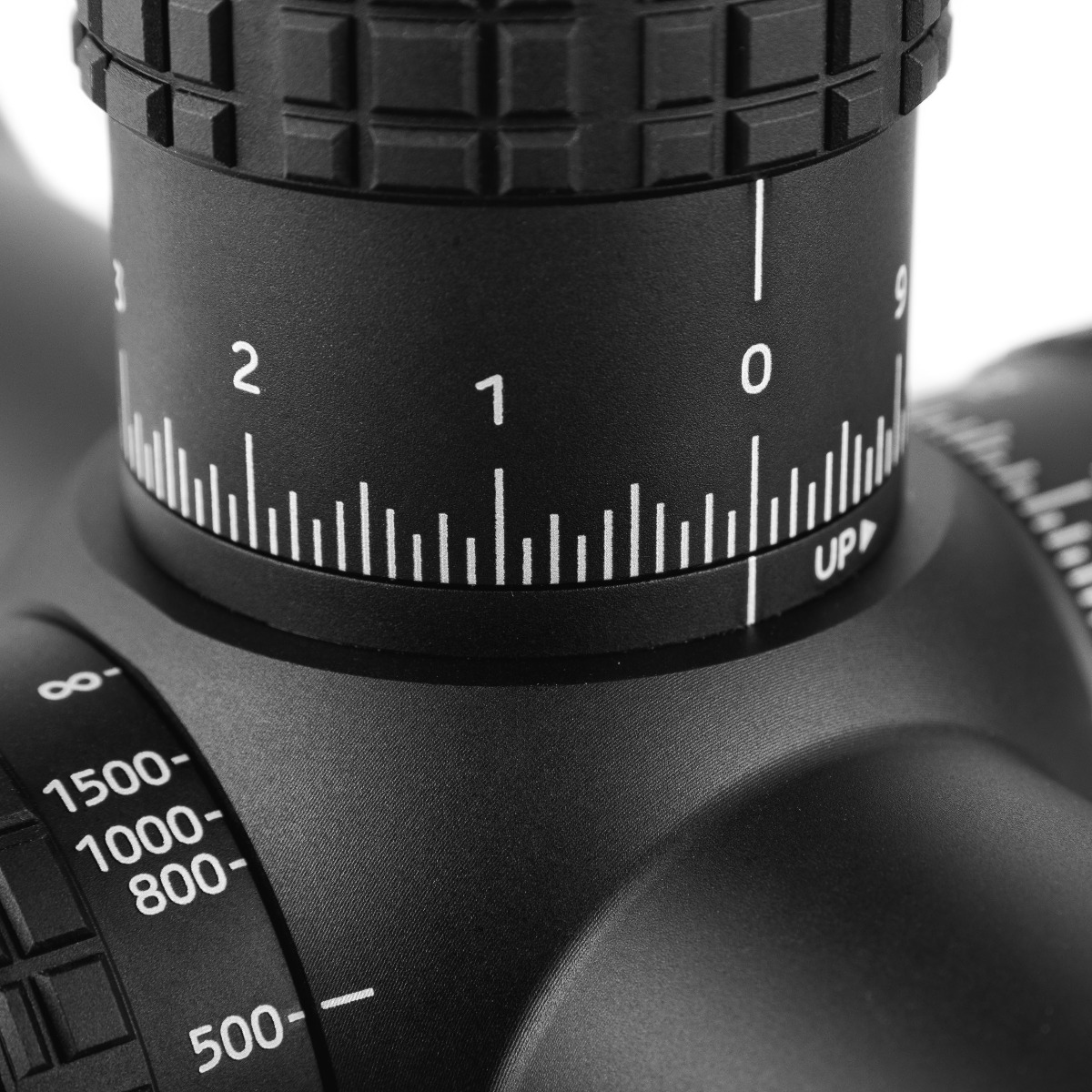

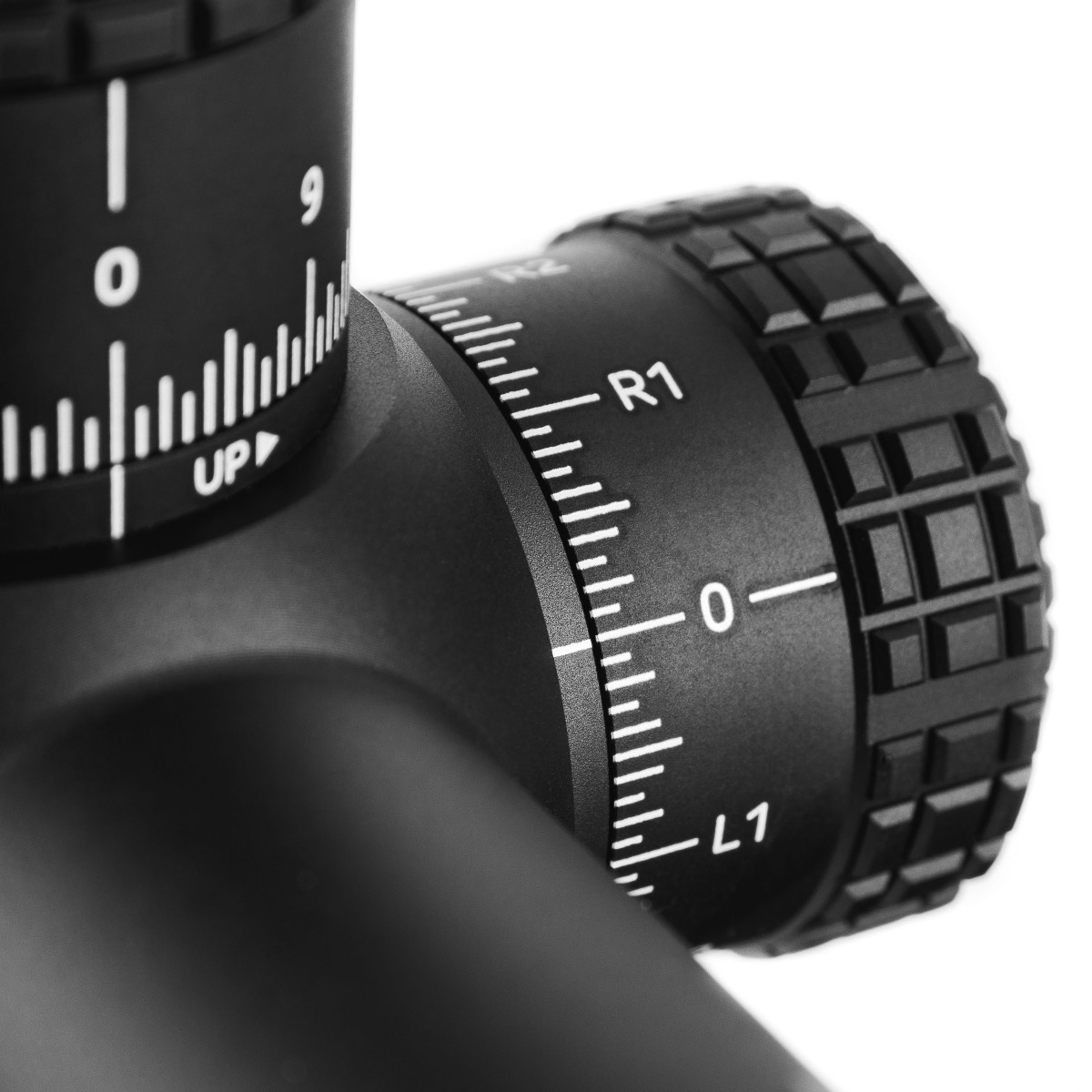

The Milradian based turrets of the Delta Styker ED 4.5-30×56 are an open BDC design and are equipped with a Zero Lock mechanism that allows the shooter to set a limit for elevation. The shooter will zero the riflescope at their desired shooting distance, then the zero lock is used to make corrections only in elevation and prevents the user from lowering the point of impact below the user-defined limit.

The Delta Stryker 4.5-30×56 HD weighs only 1042 grams and is a compact size of only 365mm ensuring the scope can fit into any weight constrictions competitions throw at it.

As standard the Delta STRYKER ED 4.5-30×56 comes with a 10-year warranty.

More Information

More Information
Brand Delta Optical
Product Name A-Z Delta STRYKER ED 4.5-30x56 HD FFP IR Mil Mil Zero Stop Locking Turret Rifle Scope - DLR-1
SKU DO-2502-LT
Highest Magnification 21x-30x
Illuminated Reticle Yes
Minimum Parallax 25m-∞
Objective Lens Diameter 56mm
Reticle Plane First
Tube Diameter 34 mm
Turret Click Value 0.1 MRAD (cm)

User Manual [DOWNLOAD]


  • Magnification: 4.5-30x
  • Lens Diameter: 56mm
  • Tube size: 34mm
  • Field of view: 8.3-1.2m / 100m
  • Exit pupil: 8.8-1.9mm
  • Eye relief: 80-98mm
  • Reticle: illuminated LRD-1T, LRD-1P, DLR-1
  • Spot size at 100m: 4.5mm
  • Number of Mil / clicks: 0.1 mil
  • Maximum height adjustment: 29 MIL
  • Maximum wind shift: 15 MIL. Number MIL / revolution: 10 MIL
  • Parallax: from 25m
  • Length: 365mm
  • Weight: 1042g
  • Warranty: 10 years


  • HD glass significantly reduces chromatic aberrations and improves sharpness and color reproduction.
  • Fully Multi-Coated (FMC) lenses give a great light transmission and a brilliant optical experience.
  • Illuminated reticle – Center only illuminates
  • Zero Stop means that you can always return to zero if you accidentally click off it.
  • Cats Tale lever makes adjusting the magnification an easy job. Switch View Throw lever included.
  • Side parallax adjusting from 25m to infinity.
  • Clear and distinct click. 11 stage day / night lighting.
  • FFP causes a great spirit reticle. MIL / MIL-adjusting both the knobs and the reticle is cm-based.
  • Waterproof, moisture-proof, nitrogen filled.


In the box?

Delta STRYKER ED 4.5-30x56 HD FFP IR Mil Mil Zero Stop Locking Turret Rifle Scope - DLR-1.


  • Battery: 1 x CR2032.
  • Allen wrench.
  • User Manual.
  • Lens protection.
  • Switch View Throw Lever.


10 Year UK Warranty.

5 Year Rest of the World.


User Manual [DOWNLOAD]
