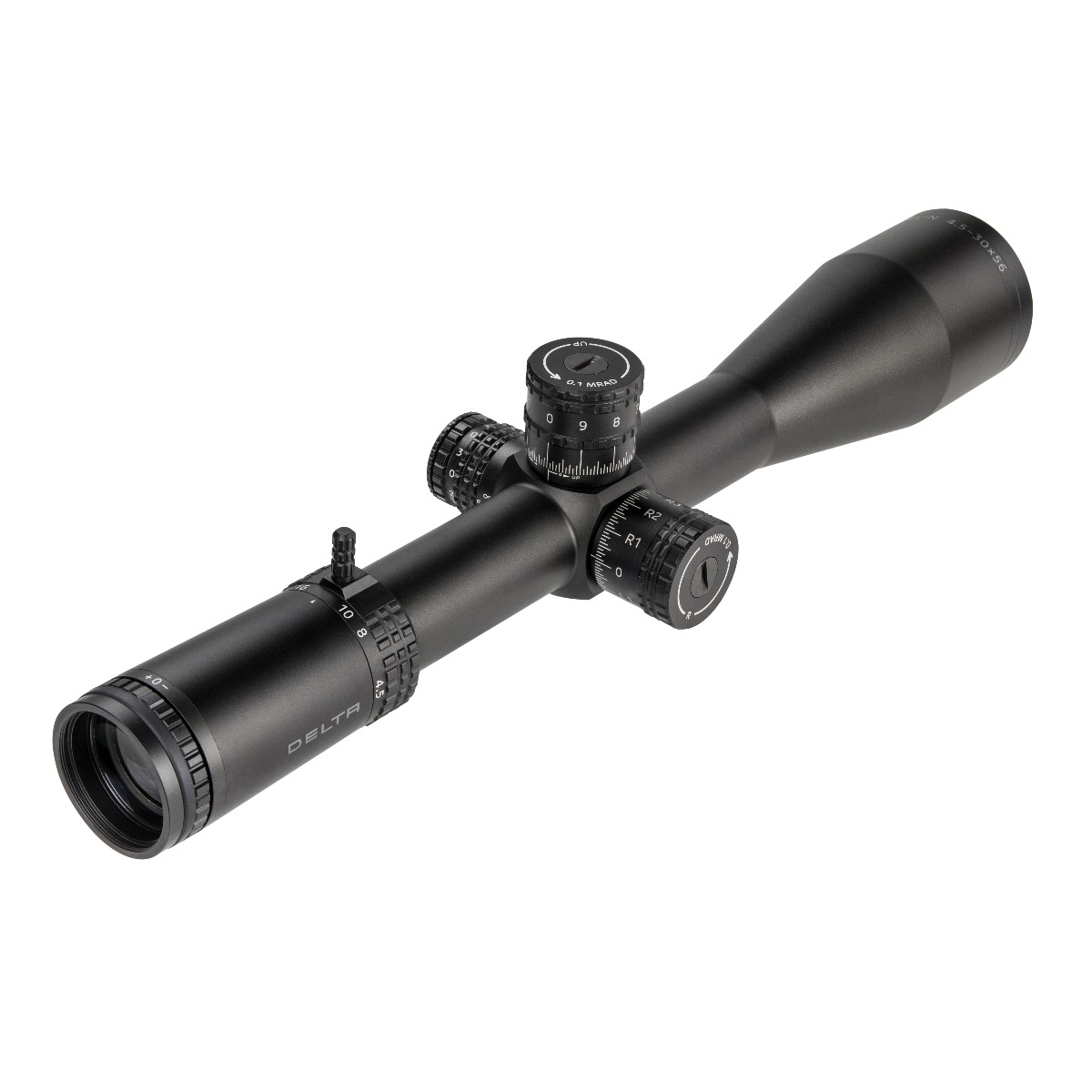

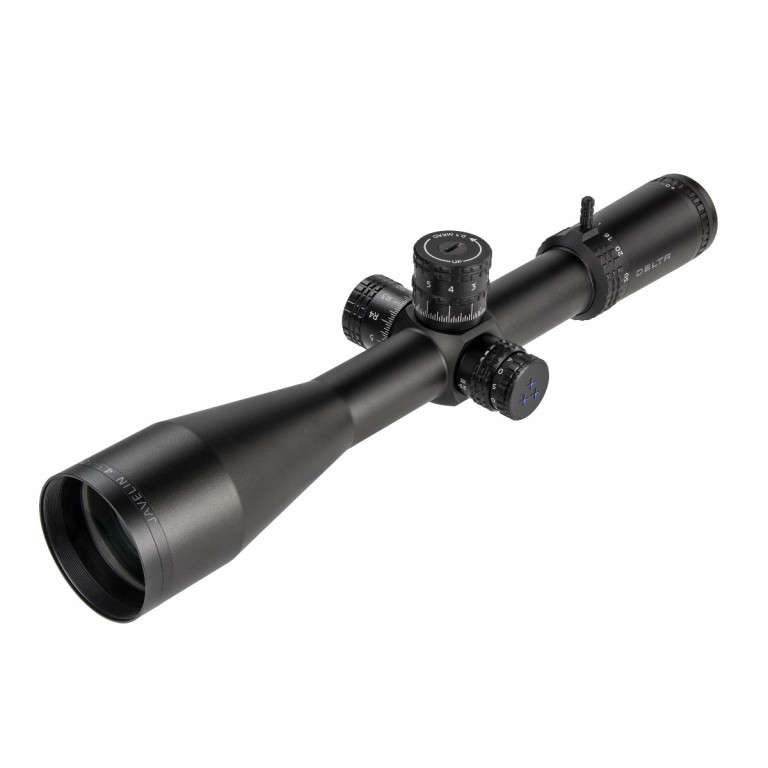

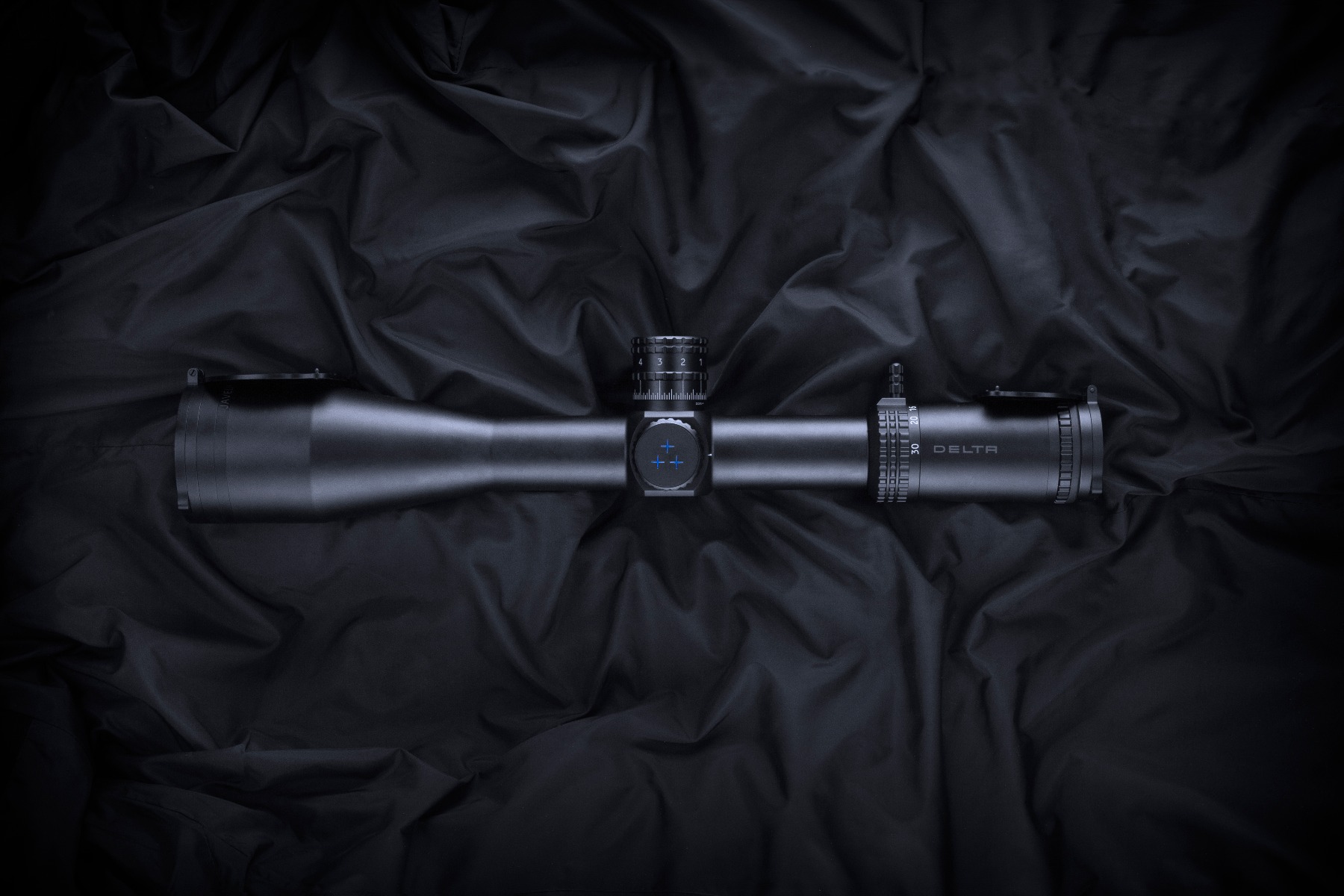

Delta Javelin 4.5-30x56 FFP SMR-2 Illuminated Zero Stop Rifle Scope
Details
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
Featuring high-quality ED optics, large, lockable adjustment turrets, 34mm tube, 0.1MRAD click, illuminated aiming point, unique SMR-2 FFP reticle, zero-stop, throw lever, metal flip-up covers, and a sunshade.
The SMR (Scandinavian Match Reticles) reticles are made for Shooters by Shooters.
All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
The Delta Javelin is comfortable with up to 8000 Joule, which means it can be used on a caliber Magnum (.338 Lapua).
| Brand | Delta Optical |
|---|---|
| Popularity | Delta Javelin 4.5-30x56 FFP SMR-2 Illuminated Zero Stop Rifle Scope |
| SKU | DO-2471 |
| Highest Magnification | 21x-30x |
| Illuminated Reticle | Yes |
| Minimum Parallax | 25yd-∞ |
| Objective Lens Diameter | 56mm |
| Reticle Plane | First |
| Tube Diameter | 34 mm |
| Turret Click Value | 0.1 MRAD (cm) |
| Manuals | Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope*COMING SOON!* Product Manuals and User Guides are currently in the making for the product. Once complete, download yours here. |
Specs
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
- Magnification Range: 4.5x – 30x
- Objective Diameter: 56mm
- Field of View @100m 4.5x: 8.2m
- Field of View @100m 30x: 1.3m
- Eye Relief: 100mm
- Diopter Range: -2D/+2D
- Water Proof (N2): 0.3kg/cm2
- Reticle Position: 1st focal plane
- Illumination: Dot
- Per Click: 0.1MRAD
- Elev Adj Range: 32MRAD
- Wind Adj Range: 32MRAD
- Parallax Adjustment: 25m – ∞
- Zero-Stop: YES
Features
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope

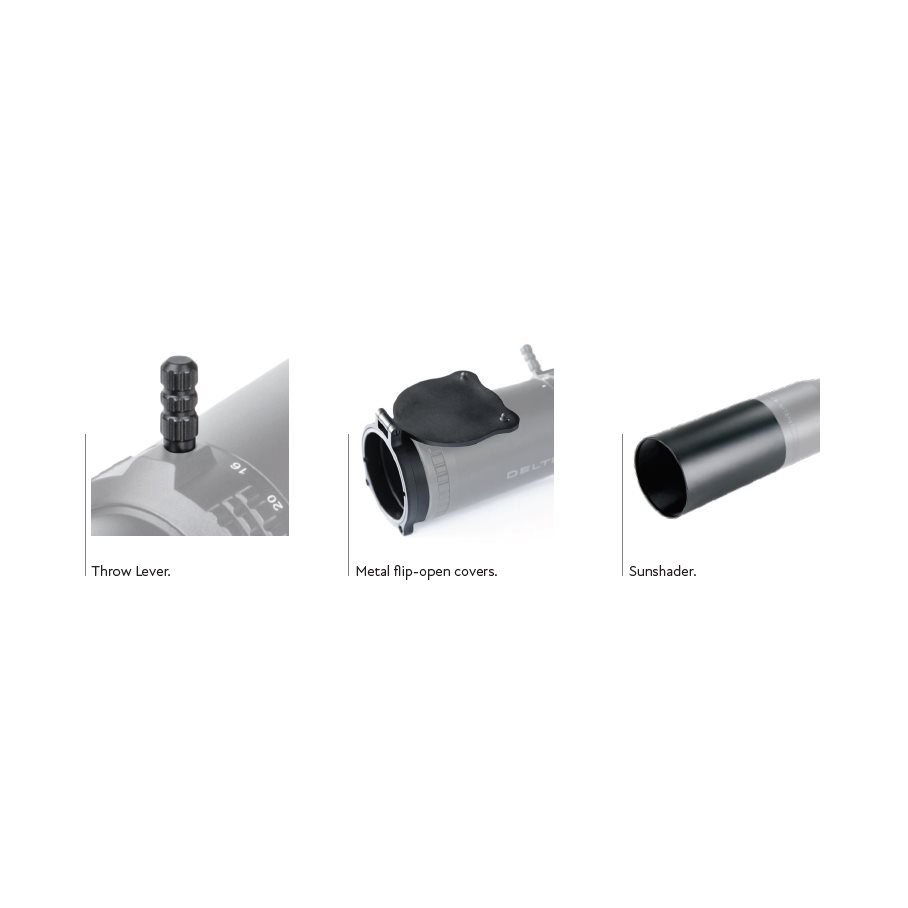

- Sunshade
- Both Locking Turrets
- Throw lever
- Metal flip-open covers
- Lens Coating FMC
- Tube Diameter: 34mm
- Length: 388.6mm
- Weight: 1036g

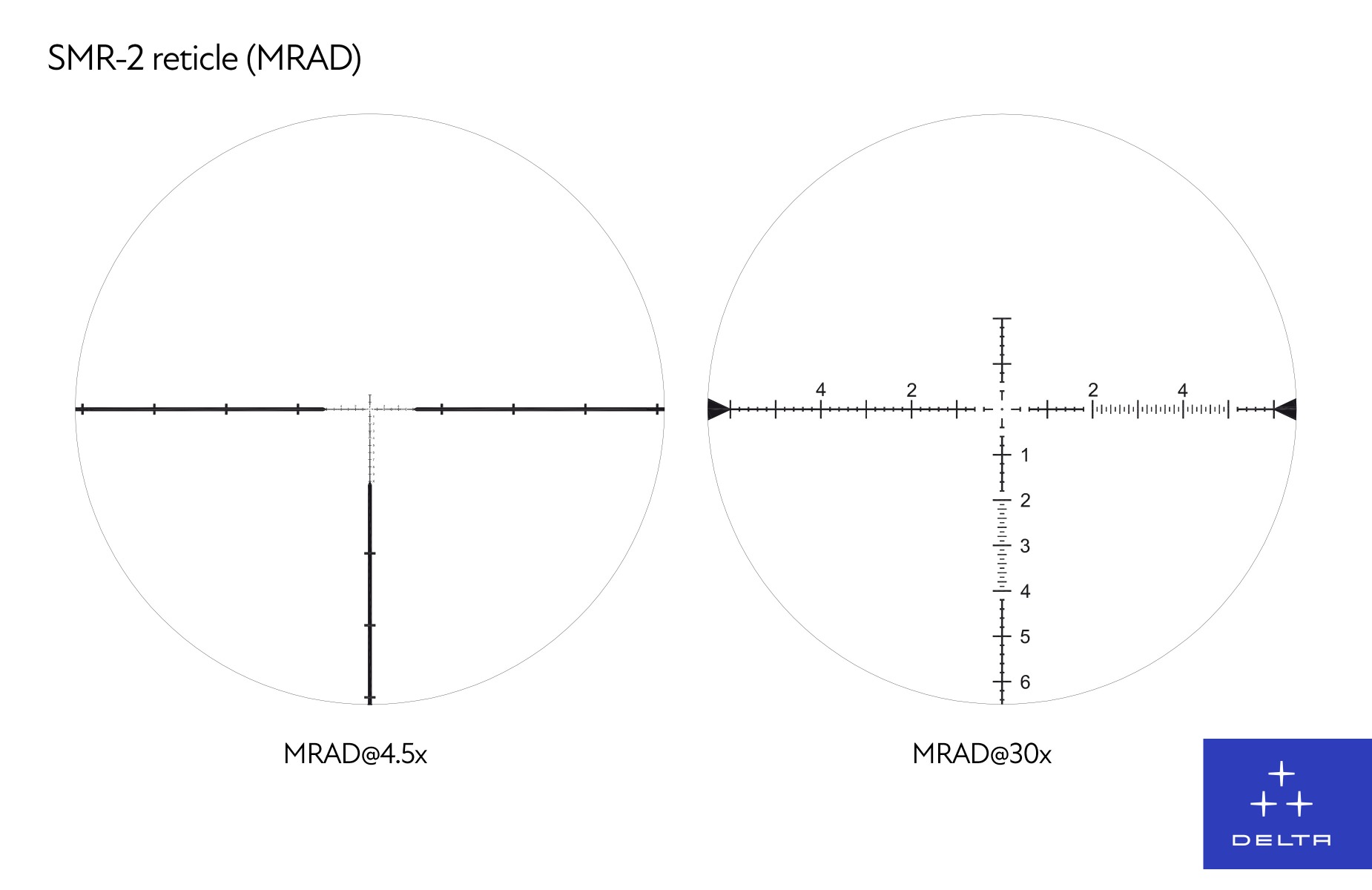

Reticle
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters. All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
SMR-2 is more of a crossover reticle between hunting and shooting and it has all the same features as the SMR-1, aside from the “Christmas tree” - Making it more suitable for the shooter that rarely utilizes the tree for holding over.
In the box?
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
- 1 x Rifle scope
- 1 x Sunshade
- 1 x Throw Lever
- 1 x Metal flip covers
Warranty
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
- Warranty: 10 years
Manuals
Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
*COMING SOON!*
Product Manuals and User Guides are currently in the making for the product.
Once complete, download yours here.
