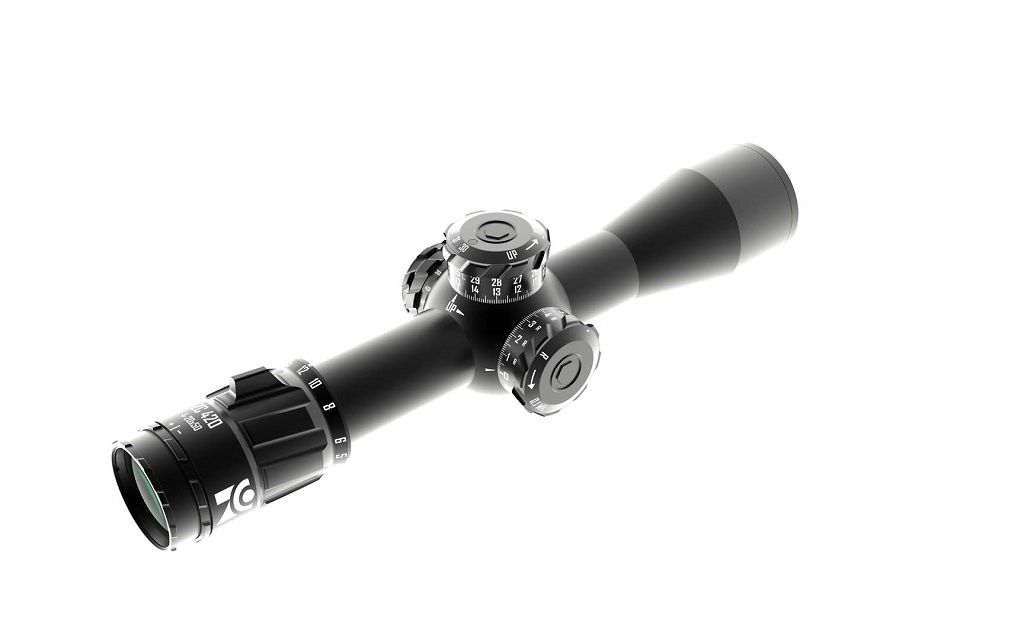

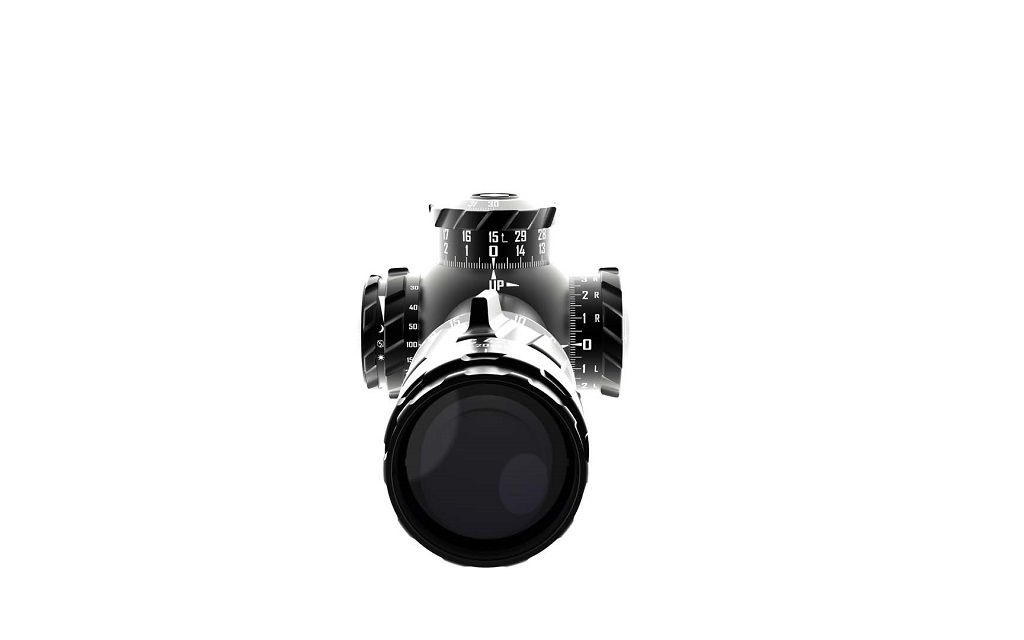

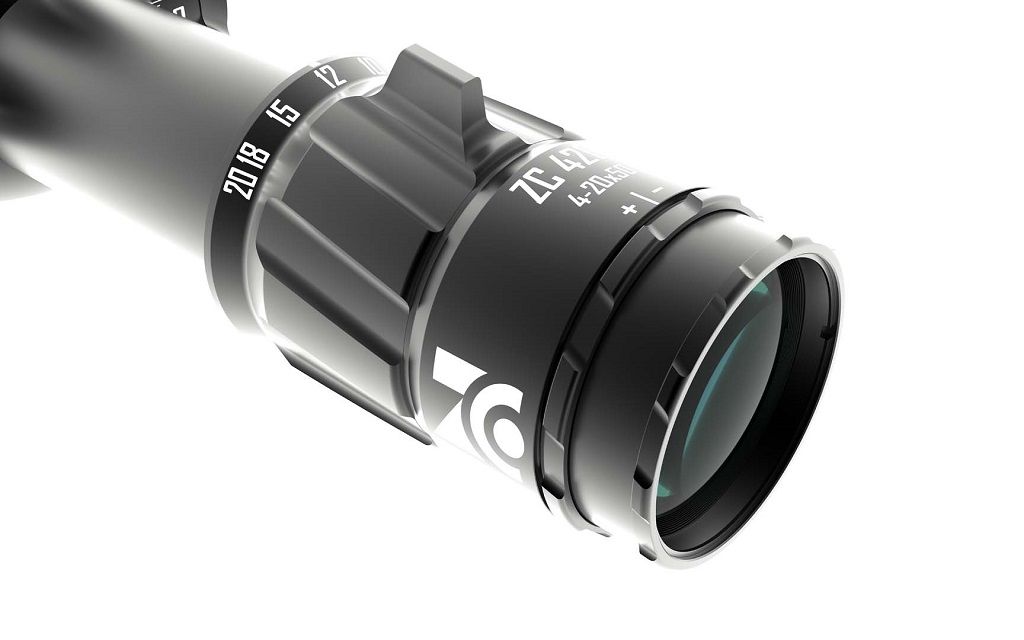

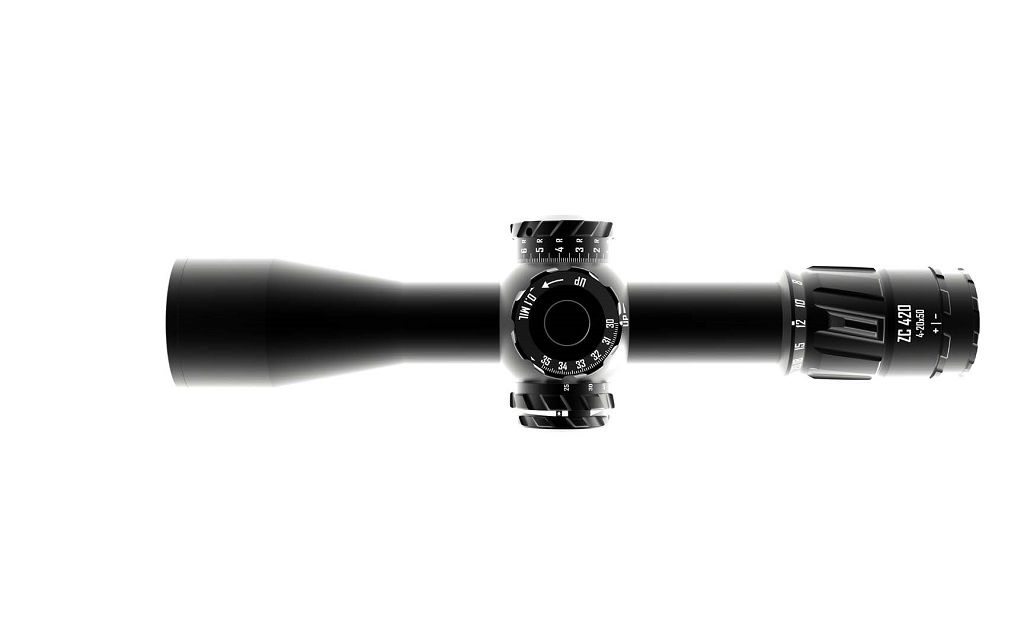

Zero Compromise Optic (ZCO) ZC420 4-20X50 FFP Illuminated MPCT1 0.1 MIL Rifle Scope w/ Spuhr One Piece Mount
#427
#424
#428
#425
#426
Includes FREE Spuhr Mount -
(Please Note - Does NOT include Spuhr QDP).
The Zero Compromise Optic ZC420 combines excellent optical performance with unmatched mechanical precision in the best ultra-short design ever developed.
It combines the highest levels of mechanical precision, unmatched optical performance, and extreme durability in a compact package that can compete with much larger riflescopes. This small riflescope with a length of 325mm (12.8 inches) and a weight of only 986g (34.8oz) is ideal for any application where size and maximum performance are paramount.
The low magnification provides a wide field of view for rapid target acquisition while the mechanical system allows for 35 mils of elevation adjustment for the extreme long-range engagements when required.
Never before has so much performance been combined in such an elegant and compact riflescope.
UNSURPASSED OPTICAL PERFORMANCE
Our optical engineers have set the next standard for clarity, light transmission and resolution in a compact package.
Total light transmission is 92% while maintaining excellent color fidelity matched with best in class resolution for the ultimate viewing experience.
The very best in optical performance results in heightened viewing comfort for all-day use so you can enjoy being behind your scope for extended shooting sessions.
- Magnification (Objective): 4-20
- Objective ∅ (mm): 50
- Main Tube Diameter (mm): 36
- Click Value (MIL): 0.1
- Elevation (MIL): 35
- Elevation (m/100m): 350cm / 100m
- Elevation lock: YES
- Windage (MIL): 20
- Side Adjustment (cm/100m): 200cm / 100m
- Windage lock: YES
- Field of View (ft/100yd): 28.0`- 6.0`
- Field of View (m/100m): 9,3m - 2m / 100m
- Eye Relief (inches): 3.54
- Pupil Distance (mm): 90
- Parallax Compensation (m): 25 - ∞
- Length (inches): 12.8
- Length (mm): 325
- Weight (oz): 34.8
- Weight (g): 986
- Illumination: red | green
- Focal Plane: FIRST
- Light transmission (%): 92
- Diopter: -3 | +2
- Exit Pupil (mm): 10.9 - 2.5
Zero Compromise Optics (ZCO) ZC420 4-20X50 IR FFP Mil/MIL MPCT1 Rifle Scope W/ Free Spuhr ISMS Scope Mount
Every ZCO product places the reticle in the First Focal Plane of the optical system. This means that the reticle stays the
same size in relation to the target no matter the magnification setting.
Whether you are using a mil radian (MIL) or Minute of Angle (MOA) reticle, it is important to remember this is simply an
angular unit of measure. This angle is the same no matter the distance; 1 MIL at 100 yards is also 1 MIL at 500 yards and
1 MOA at 100 yards is also 1 MOA at 500 yards.
This is important for making corrections to the elevation or windage turrets through observed impact of the bullet down
range, no matter the distance, as well as for range estimation with the reticle.
Follow the desired formula below to determine your target distance.
MIL
1. Target size in inches x 27.77 / Target size in MIL = Target distance in Yards.
2. Target size in inches x 25.4 / Target size in MIL = Target distance in Meters.
3. Target size in cm x 10.93 / Target size in MIL = Target distance in Yards.
4. Target size in cm x 10 / Target size in MIL = Target distance in Meters.
MOA
1. Target size in inches x 95.5 / Target size in MOA = Target distance in Yards
2. Target size in inches x 87.3 / Target size in MOA = Target distance in Meters.
3. Target size in cm x 37.60 / Target size in MOA = Target distance in Yards.
4. Target size in cm X 34.38 / Target size in MOA = Target distance in Meters.
Follow this example:
You know a steel target down range measures 18” x 24” and a mil reading with the reticle in your scope gives 1.00 MIL
and 1.33 MIL respectively, and you want the distance to be in “Yards.”
18 x 27.77 = 499.86 Yards 24 x 27.77 = 501.11 Yards
1.00 MIL 1.33 MIL
In this example, we could figure for a 500 yard target distance. Obtaining accurate mil readings through the scope takes
practice, and the more accurate the reading, the more accurate the calculated distance.
Since the reticle is in the First Focal Plane (FFP) and we know that mils or MOA is an angular unit of measure, we can
make fast and accurate corrections to the elevation or windage turrets on the scope when we observe bullet impact down
range that is not where we want it to be. The reticle now essentially becomes a magnified ruler and is accurate no matter
the distance.
Place the crosshairs where you want the bullet to impact, then observe where the bullet actually went. Read the reticle for
both vertical and horizontal displacement (MIL or MOA depending on the reticle) based on actual bullet impact. If the group
needs to come up and left for example, dial the exact amount on the elevation turret in the UP direction and LEFT on the
windage turret as measured with the reticle.
- Zero Compromise Optic (ZCO) ZC420 4-20X50 IR FFP Mil/MIL MPCT1 Rifle Scope
Manufacturer's Life Time Transferable Warranty
All ZCO products are handcrafted with the greatest care and subjected to numerous tests and inspections before they are shipped.
In the highly unlikely event that a problem occurs with your ZCO riflescope, we offer you a transferable lifetime guarantee which, under normal use, includes mechanical and optical defects caused by the material or workmanship over the entire service life of the riflescope.
At our discretion, we will either repair a defective product or replace it (with a product of the same or a similar model) after a thorough inspection.
Exceptions to this guarantee are intentional improper or improper use, unauthorized changes or repairs, modifications or destruction of the serial number, improper assembly, negligence in handling the product and damage from fire, flooding or other natural disasters.
The electronic components built into this product are provided with a limited guarantee of 2 years from the date of purchase. With normal use, this includes material or processing-related defects.
For ZCO assemblies and ZCO assembly accessories, we offer you a guarantee period of 90 days from the date of purchase in the event that material or processing-related mechanical defects occur during normal use.
At our discretion, we will either repair a defective product or replace it (with a product of the same or a similar model) after a thorough inspection.
