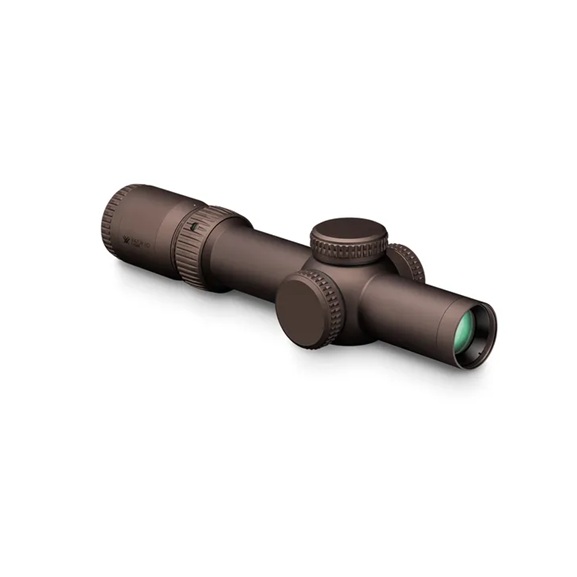

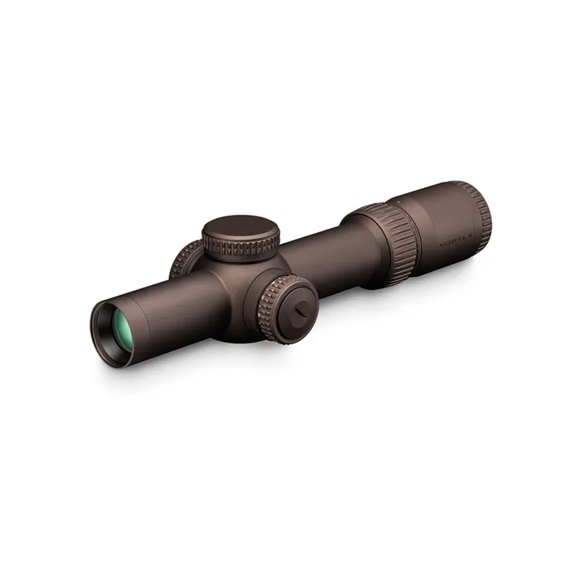

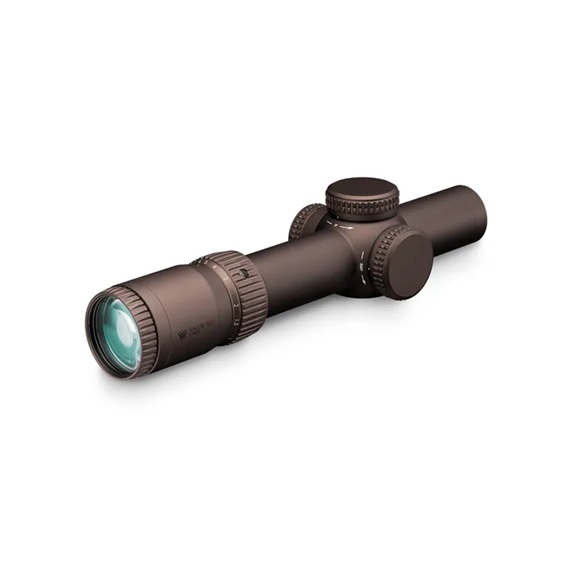

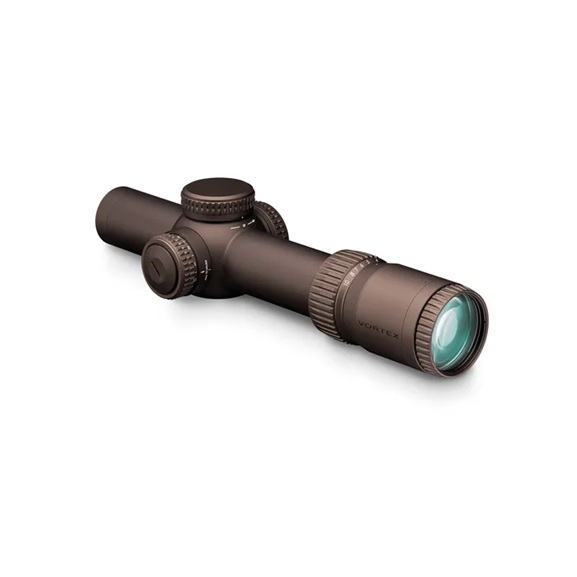

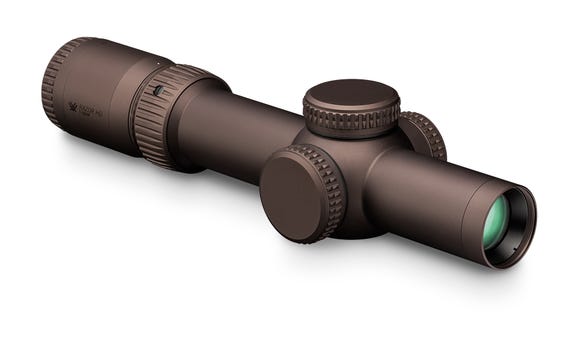

Vortex Razor HD Gen III 1-10x24 FFP IR EBR-9 (MOA) Rifle Scope
The next evolution of our wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our 1-6x, but doesn’t sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.
|Product Name A-Z||Vortex Razor HD Gen III 1-10x24 FFP IR EBR-9 (MOA) Rifle Scope|
|Minimum Parallax||Fixed 150yd|
|Objective Lens Diameter||24mm|
|Tube Diameter||34 mm|
|Turret Click Value||1/4 MOA (0.25)|
- Magnification: 1-10x
- Objective Lens Diameter: 24 mm
- Eye Relief: 3.6 inches
- Field of View: 116-11.7 ft @100 yds
- Tube Size: 34 mm
- Turret Style: Low Capped
- Adjustment Graduation: 1/4 MOA
- Travel Per Rotation: 25 MOA
- Max Elevation Adjustment: 120 MOA
- Max Windage Adjustment: 120 MOA
- Parallax Setting: Fixed @150 yds
- Length: 10.1 inches
- Weight: 21.5 oz
HD Optical System Optimized with select glass elements to deliver an exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
XR™ Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
APO System Index-matched lenses correct colour across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
The First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Daylight Bright Illumination Daylight bright, illuminated reticle aids in faster target acquisition in bright daylight conditions.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof Rugged construction withstands recoil and impact.
Waterproof - IPX7 Designed to meet IPX7 waterproofing standards.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Tube Size 34 mm diameter provides maximized internal adjustment and strength.
Hard-Anodized Stealth Shadow Finish Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
Internal Mechanism Design Features
Friction Reduction System: Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665
Erector Tube System: Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished.
L-Tec™ Tool Included with your scope for precise adjustments to the turret.
Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

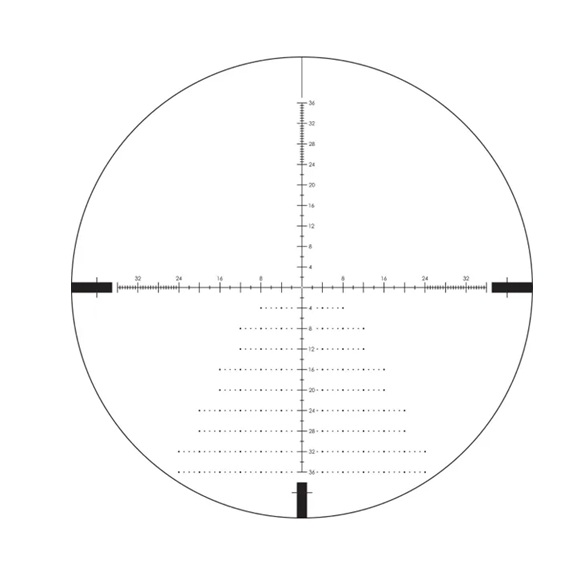

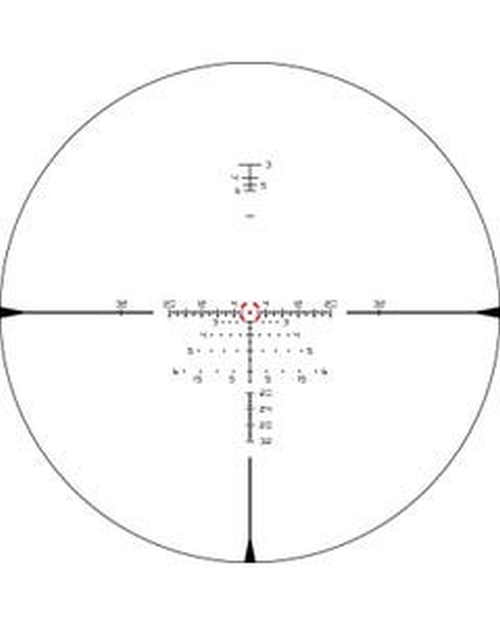

Reticle: EBR-9 (MOA)
The EBR-9 (Enhanced Battle Reticle) is a hash marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections.
In the box?
- Lens cloth
- CR2032 Battery
- Throw lever
- L-TEC Tool
Vortex Lifetime Warranty
