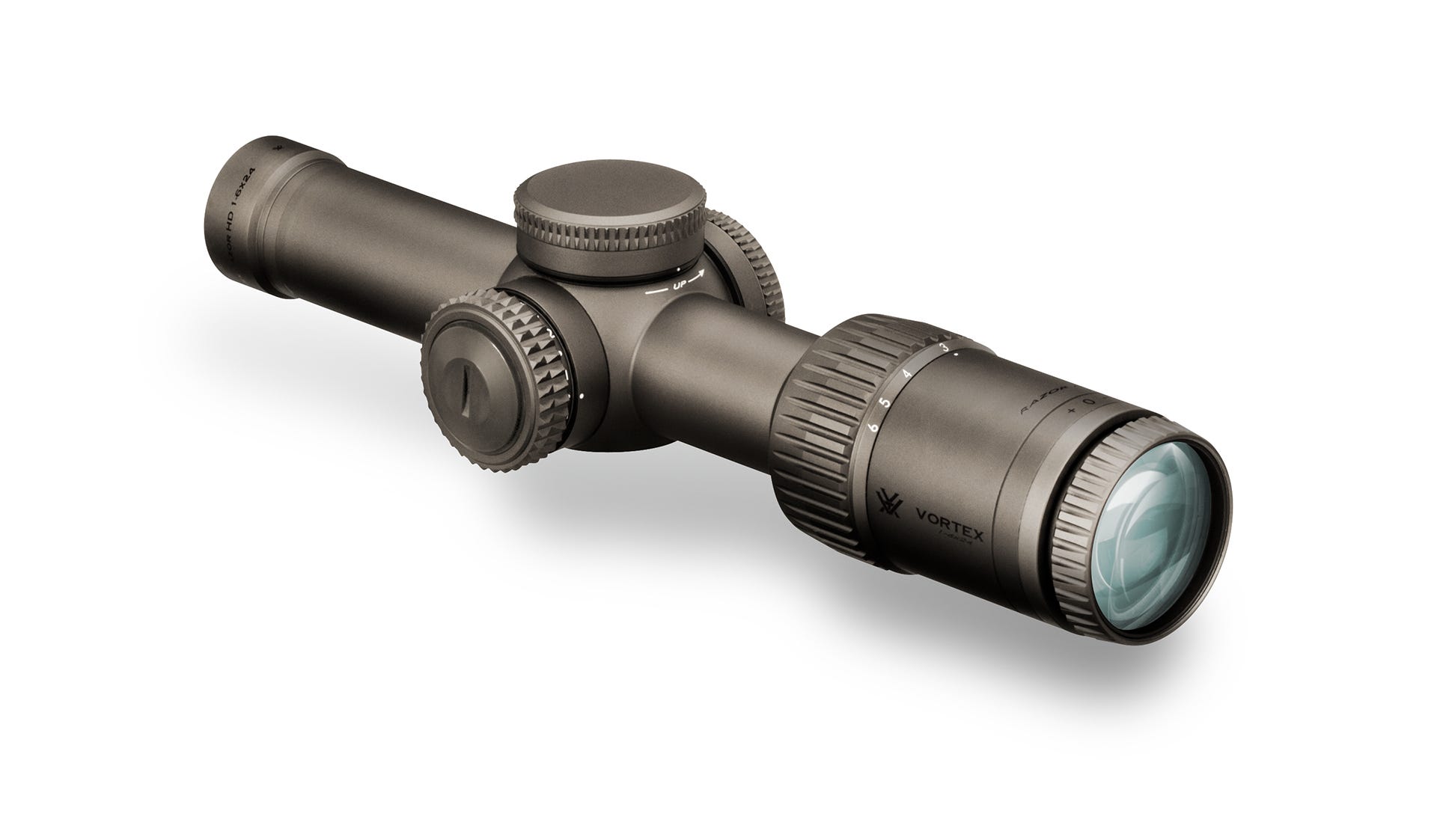

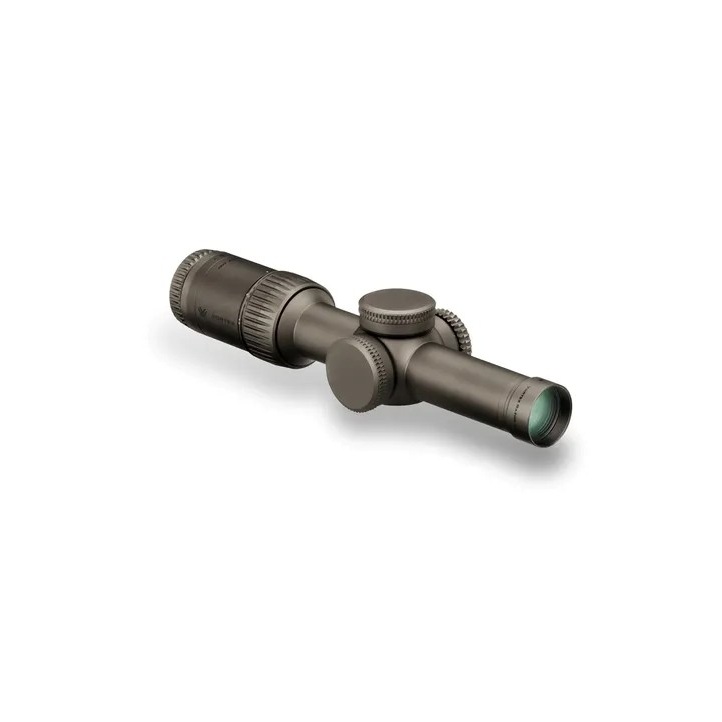

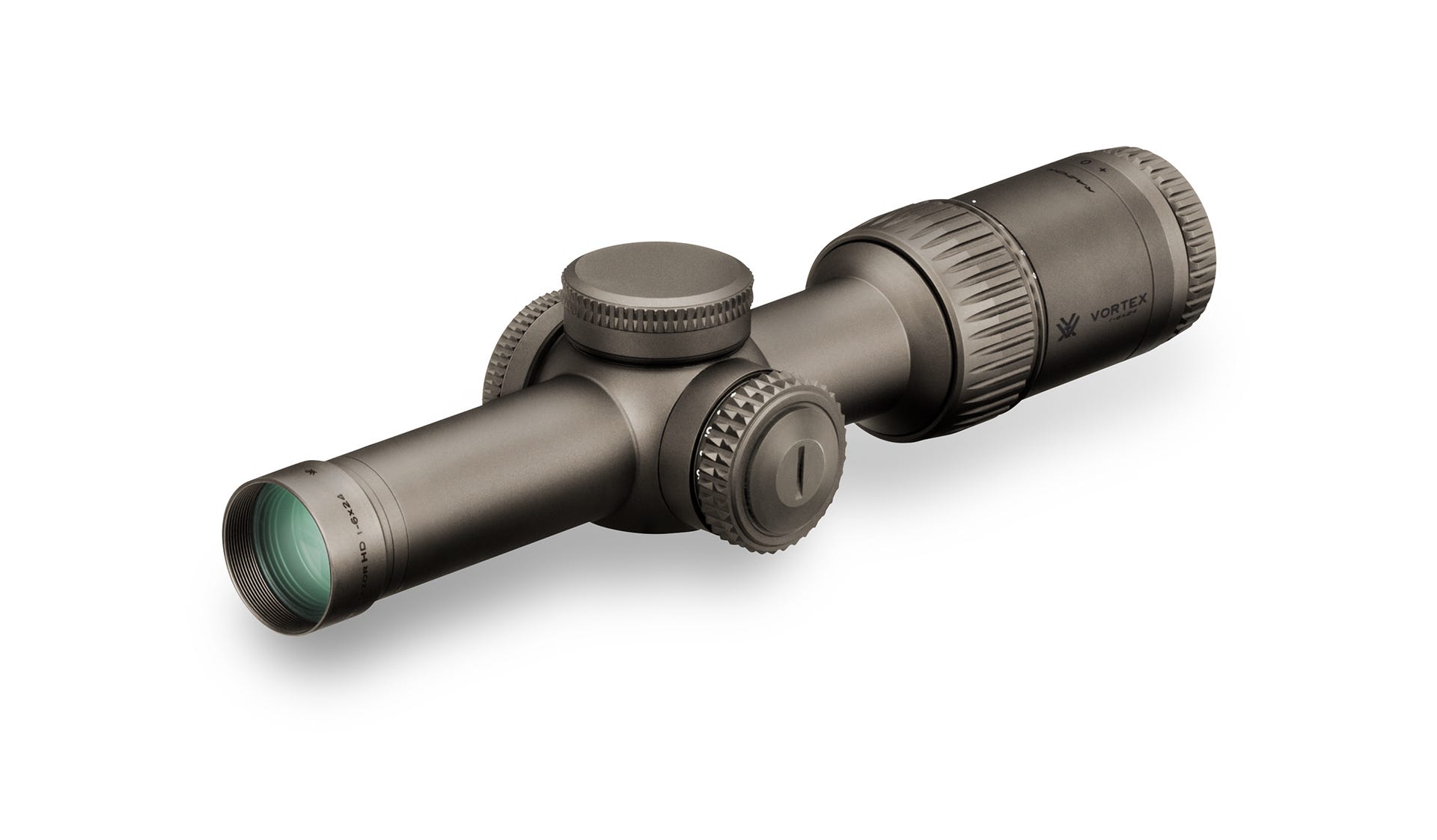

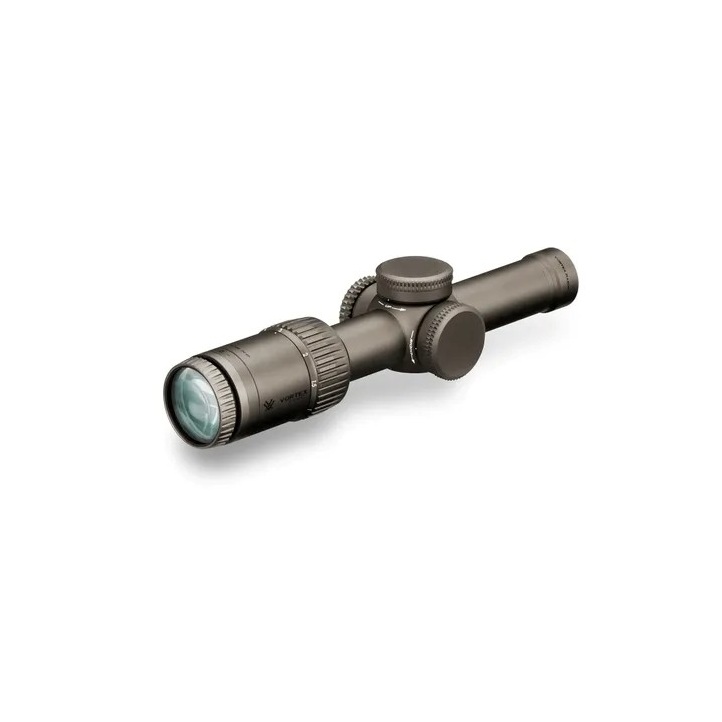

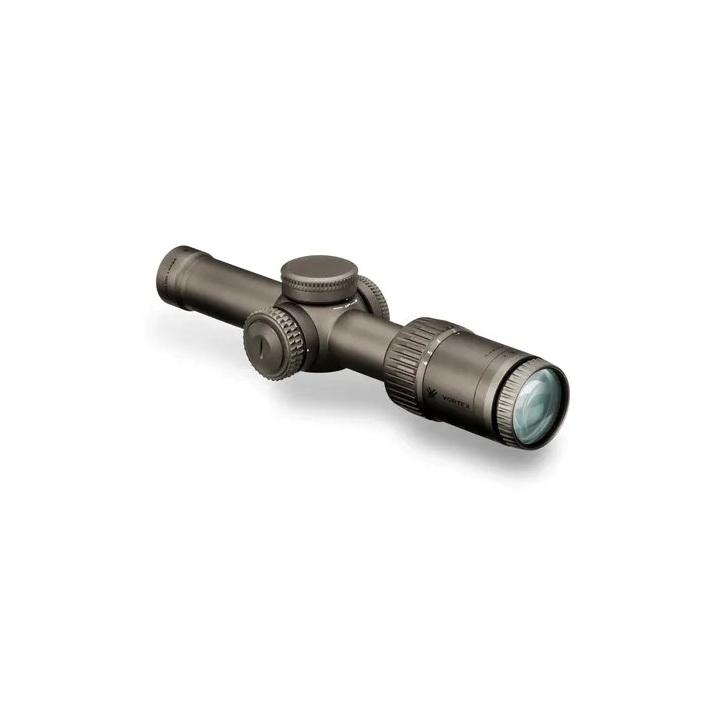

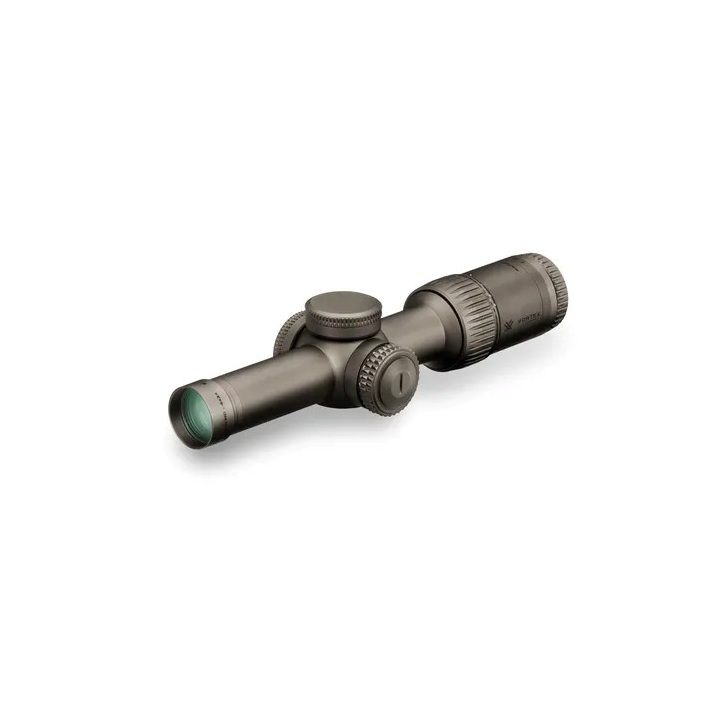

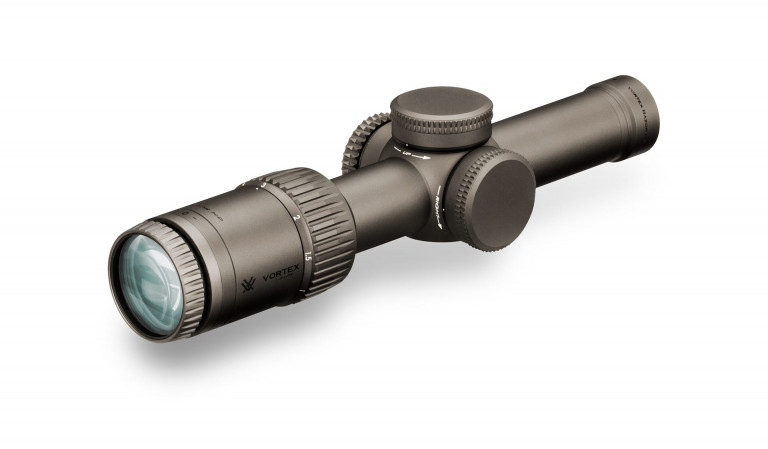

Vortex Razor 1-6x24 HD Gen II-E VMR IR 2 MRAD 30mm Rifle Scope
- APO System Index-matched lenses correct colour across the entire visual spectrum.
- Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
- HD Lens Elements Premium extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in high-definition images.
- XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
- Plasma Tech Cutting edge coating application process provides unparalleled coating durability and performance

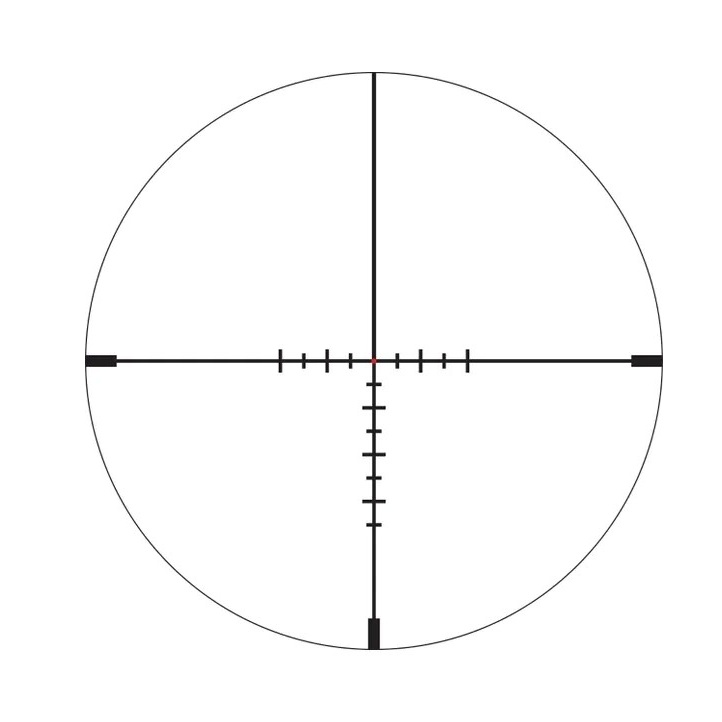

- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Illuminated Center Dot Daylight bright illuminated centre dot provides a precise point-of-aim in all lighting conditions.
- Locking Illumination Locks illumination at preferred setting.
- Tube Size: 30 mm diameter provides maximized internal adjustment and strength.
- Single-Piece Tube maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard-Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Large Diameter Turrets Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.
- Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
- Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
- Erector Tube System Precision-machined from aircraft-grade aluminium with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs.
- Fast Focus Eyepiece Allows quick and easy reticle focusing.
- Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing.
- Features eleven intensity levels of illumination with off positions between each setting.
True 1x on the low end is complemented by an ultra-forgiving eye box with generous eye relief for a heads-up-display-like sight picture and daylight bright illuminated centre dot in the reticle for extremely fast target acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm, aircraft-grade aluminium tube, the Razor HD Gen II-E 1-6x24 features an ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn, ensuring ample travel.
- Magnification 1-6x
- Objective Lens Diameter 24 mm
- Eye Relief 4 inches
- Field of View 115.2-20.5 ft/100 yds
- Tube Size 30 mm
- Turret Style Low Capped
- Adjustment Graduation .2 MRAD
- Travel Per Rotation 20 MRAD
- Max Elevation Adjustment 43 MRAD
- Max Windage Adjustment 43 MRAD
- Parallax Setting 100 yards
- Length 10.1 inches
- Weight 21.5 oz
- Product Manual (PDF) Download
- Reticle Manual (PDF) Download
- Parts Diagram (PDF) Download
- APO System Index-matched lenses correct colour across the entire visual spectrum.
- Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
- HD Lens Elements Premium extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in high-definition images.
- XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
- Plasma Tech Cutting edge coating application process provides unparalleled coating durability and performance
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Illuminated Center Dot Daylight bright illuminated centre dot provides a precise point-of-aim in all lighting conditions.
- Locking Illumination Locks illumination at preferred setting.
CONSTRUCTION FEATURES
- Tube Size: 30 mm diameter provides maximized internal adjustment and strength.
- Single-Piece Tube maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard-Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Large Diameter Turrets Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.
INTERNAL MECHANISM DESIGN FEATURES
- Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
- Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
- Erector Tube System Precision-machined from aircraft-grade aluminium with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs.
CONVENIENCE FEATURES
- Fast Focus Eyepiece Allows quick and easy reticle focusing.
- Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing.
- Features eleven intensity levels of illumination with off positions between each setting.
Vortex Razor 1-6x24 HD Gen II-E VMR IR 2 MRAD 30mm Rifle Scope, Lens Cloth, User Manual etc.
