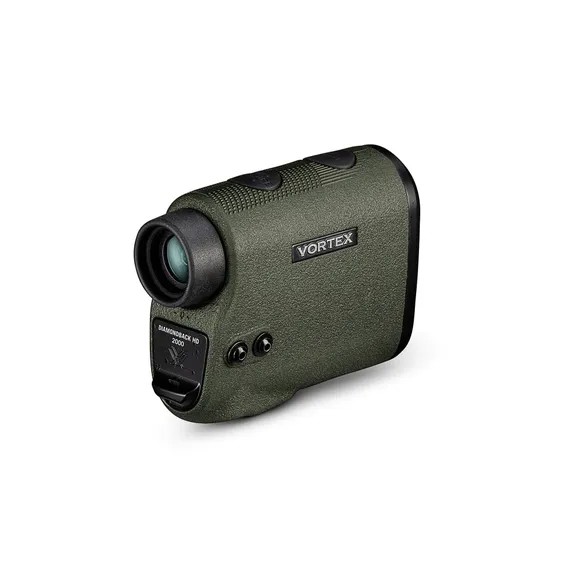

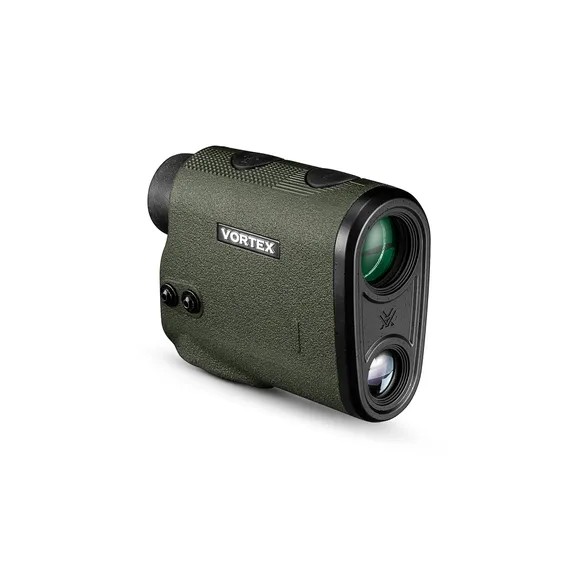

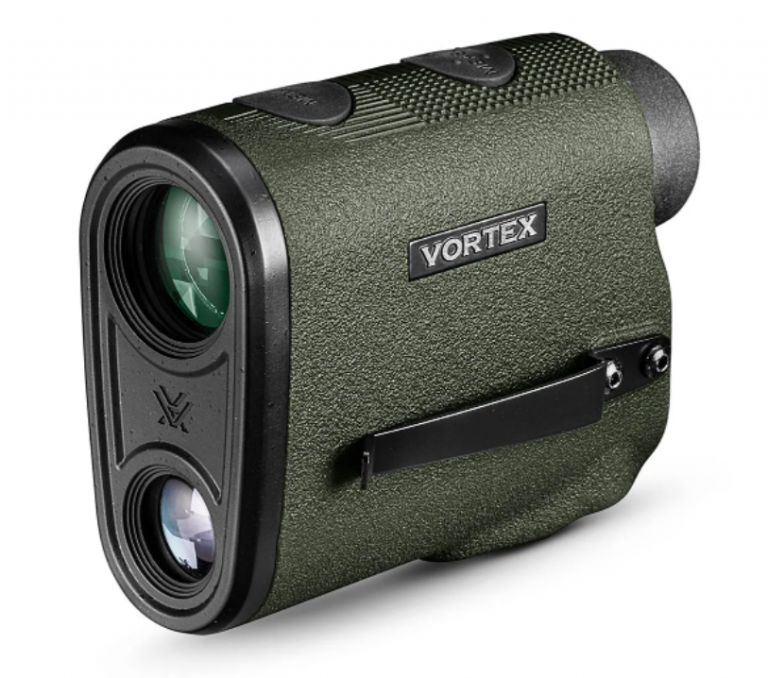

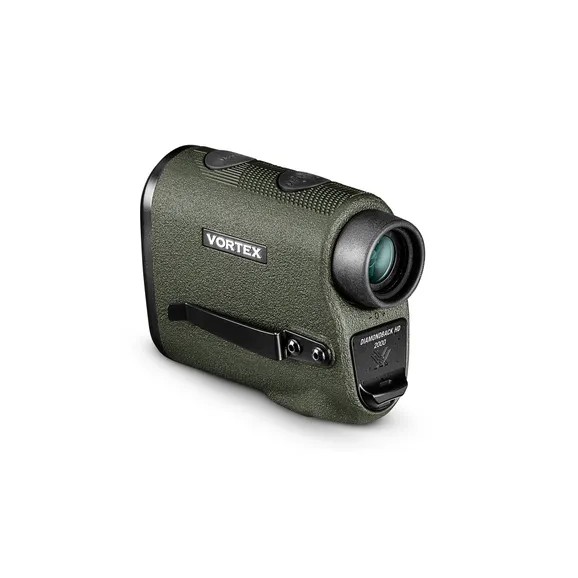

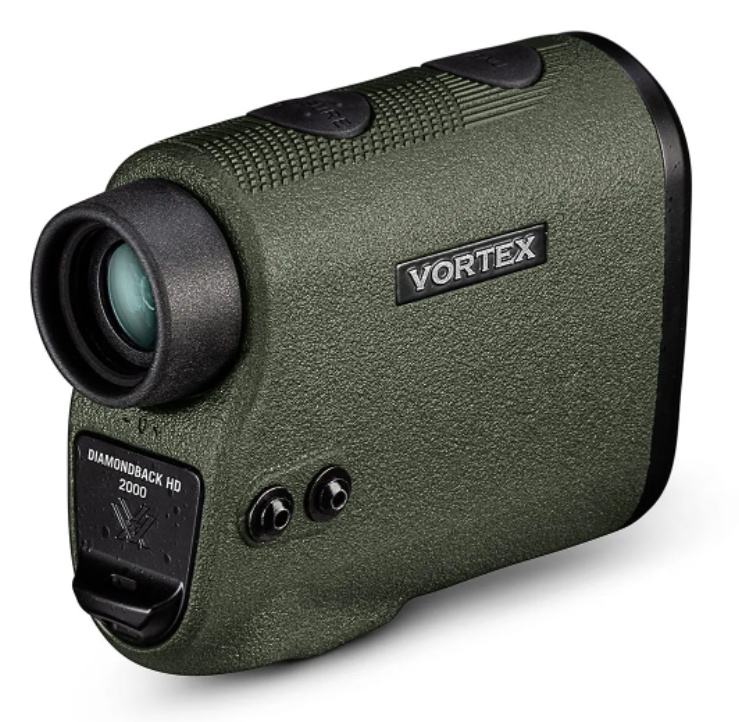

Vortex Diamondback HD 2000 Laser Rangefinder
- Ranging capability out to 2,000 yards (reflective) for versatile long-range performance.
- HD optical system delivers superb clarity, resolution and low-light detail.
- Angle-compensated HCD mode ensures accurate shoot-to distances on steep terrain.
- Red OLED display optimised for early-morning and late-evening visibility.
- Normal and Last target modes to overcome clutter such as brush, trees or rock.
- Waterproof, shockproof and rubber-armoured for maximum durability in harsh field conditions.
#1332
#1339
#1342
#1340
#1343
The Vortex Diamondback HD 2000 Laser Rangefinder is built for the practical hunter who demands reliable, no-excuses performance in the field. Engineered to take on the toughest conditions, it delivers fast, accurate ranging from close woodland encounters to long-distance shots across open country. Its HD optical system ensures exceptional clarity, while XR™ Plus lens coatings maximise light transmission for crisp, bright images in challenging low-light conditions. Featuring intuitive controls, rugged protection, multiple ranging and target modes, and a red OLED display, the Diamondback HD 2000 provides the precise distance data needed for confident, ethical shot placement. Simple, tough and dependable, this is a rangefinder you can trust to back you on every hunt.
- Magnification 7x
- Objective Lens Diameter 24 mm
- Eye Relief 16.0 mm
- Angular Field of View 6.4º
- Linear Field of View 335' @ 1000 yds
- Range Reflective (yards) Up to 2,000 yds
- Range Tree (yards) Up to 1,800 yds
- Range Deer (yards) Up to 1,400 yds
- Minimum Range 5 yds
- Accuracy 1 yd @ 100 yds
- Length 4.1"
- Height 3.1"
- Width 1.8"
- Weight 7.6 oz
- Max Angle Reading ± 60º
- HD Optical System using select glass elements for excellent resolution, reduced chromatic aberration, and outstanding colour fidelity with edge-to-edge sharpness.
- XR™ Plus Lens Coatings provide premium anti-reflective performance, enhancing brightness and clarity in low-light environments.
- ArmorTek® Protective Coating shields exterior lenses from scratches, oil and dirt for long-term field durability.
- Rubber Armour offers a secure, non-slip grip and robust physical protection in all weather conditions.
- HCD Ranging Mode supplies angle-compensated distances ideal for both bowhunters and rifle shooters.
- Line of Sight (LOS) Mode displays the true, uncompensated distance for shooters using ballistic applications or custom data.
- Scan Feature delivers continuous distance readings while sweeping across landscapes or tracking moving game.
- Normal Target Mode provides the strongest, most reliable range return for general use.
- Last Target Mode prioritises the farthest target, enabling accurate ranging beyond brush, trees or obstructions.

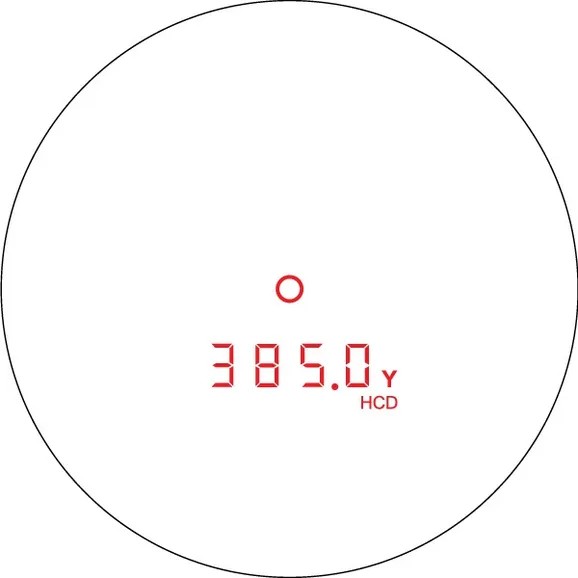

- Red OLED Display optimised for low-light readability, improving visibility at dawn, dusk and in shaded environments.
- User-Adjustable Dioptre for fine-tuning focus to the user’s eyesight.
- Selectable Ranging Format allowing measurement in yards or metres.
- Tripod Adaptable for increased stability on long-range shots (tripod adapter may be required).
- Waterproof and Shockproof Construction built to withstand demanding field abuse and severe weather.
HCD CORRECTED SHOOT-TO RANGE
The Diamondback HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
- Soft Carry Case
- Wrist Lanyard
- Bungee Cord Lanyard
- Lens Cloth
- Utility Clip
- 2mm Hex Wrench
- Hook and Loop Harness Attachment
- CR2 Battery
