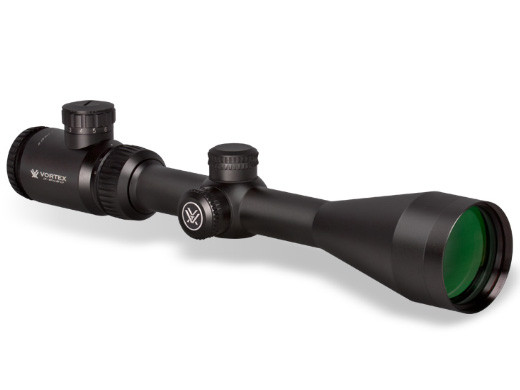

Vortex Crossfire II 3-9x40 SFP IR V-Brite Rifle Scope

• Magnification 3–9x
• Objective Lens Diameter 40 mm
• Focal Plane Second Focal Plane
• Reticle V-Brite (MOA)
• Eye Relief 3.8"
• Field of View 34.1' – 12.6' @ 100 yds
• Turret Style Capped
• Tube Size 1 inch
• Adjustment Graduation 1/4 MOA
• Travel Per Rotation 15 MOA
• Max Elevation Adjustment 60 MOA
• Max Windage Adjustment 60 MOA
• Parallax Setting 100 yds
• Length 12.2"
• Weight 16.0 oz

• Fully Multi-Coated: Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

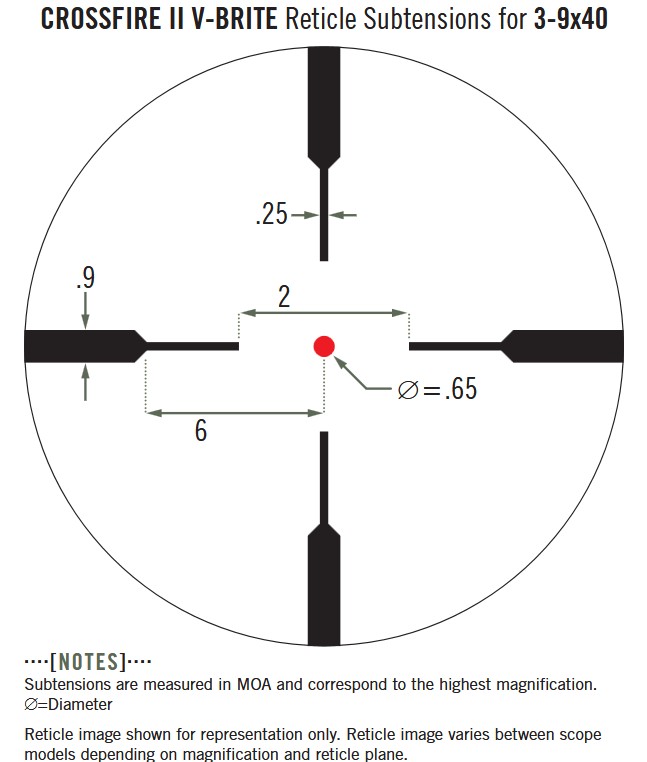

• Second Focal Plane Reticle: The scale of the reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
• Tube Size: 1-inch diameter.
• Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminium: Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
• Waterproof: O-ring seals prevent moisture, dust, and debris from penetrating the riflescope for reliable performance in all environments.
• Fogproof: Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof: Rugged construction withstands recoil and impact.
• Hard-Anodised Finish: The highly durable low-glare matte finish helps camouflage the shooter’s position.
• Capped Reset Turrets: Allow the re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for the turret.
• Fast Focus Eyepiece: Allows quick and easy reticle focusing.

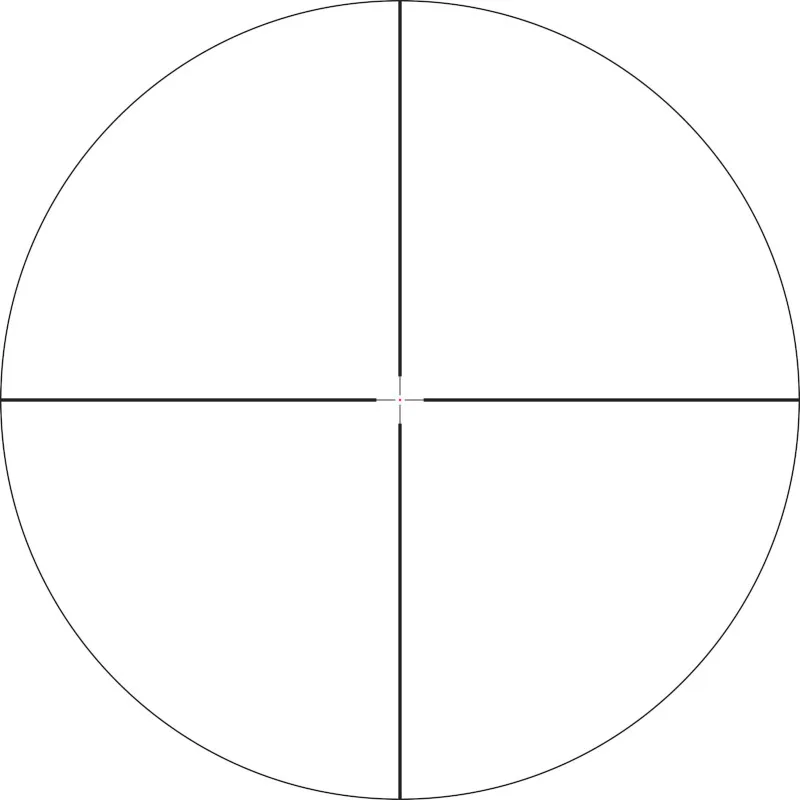

V-BRITE ILLUMINATED RETICLE (MOA):

Uses the V-Plex format along with battery-powered electronics to illuminate the centre dot for better low-light performance. Good for hunters/shooters during extra-low light conditions.

• Vortex Crossfire II 3-9x40 SFP IR V-Brite Rifle Scope
• Removable lens covers
• Lens cloth

What is the magnification range?

The scope offers a variable magnification of 3x to 9x, making it versatile for close to mid-range shooting.

What is the objective lens diameter?

It features a 40 mm objective lens, which provides a good balance between light gathering capability and a compact profile.

What reticle is used in this model?

This model features the V-Brite Illuminated Reticle, which uses the V-Plex format with an illuminated center dot—ideal for low-light conditions and precise aiming.

 Is the reticle in the First or Second Focal Plane (SFP)?

It’s in the Second Focal Plane (SFP), meaning the reticle remains the same size regardless of magnification, offering consistent aiming reference.

What is the eye relief?

This scope provides a comfortable 3.8 inches of eye relief, suitable for use with high-recoil firearms.

Does it have a fast-focus eyepiece?

Yes, the Fast Focus Eyepiece allows for quick and easy reticle focusing, enhancing usability in dynamic shooting situations.

How does the illumination work?

The V-Brite illuminated center dot helps in low-light or dark backgrounds, powered by a battery-operated system with adjustable brightness levels.

What is the field of view (FOV)?

• FOV at 100 yards: 34.1 feet (at 3x) to 12.6 feet (at 9x)


Is this scope fogproof and waterproof?

Yes, it is:

Fogproof: Nitrogen-purged
Waterproof: O-ring sealed

This ensures reliability in harsh environmental conditions.

What is the tube diameter?

The scope features a 1-inch single-piece tube, maximizing durability and image alignment while remaining compatible with a wide range of mounts.

What are the dimensions and weight?

Length: 12 inches
Weight: 15 ounces
Lightweight and compact for ease of handling.

Where is this scope manufactured?

This scope is made in China under Vortex’s strict quality control standards.

 Who is this scope best suited for?

Ideal for:

Hunting in low-light conditions (thanks to the illuminated reticle)

Target shooting

Beginners and experienced shooters seeking dependable performance at a great value

What warranty is included?

It is backed by the Vortex VIP Lifetime Warranty. This covers repairs or replacement, is fully transferable, and does not require a receipt—no matter the reason.

• Vortex VIP Lifetime Warranty
