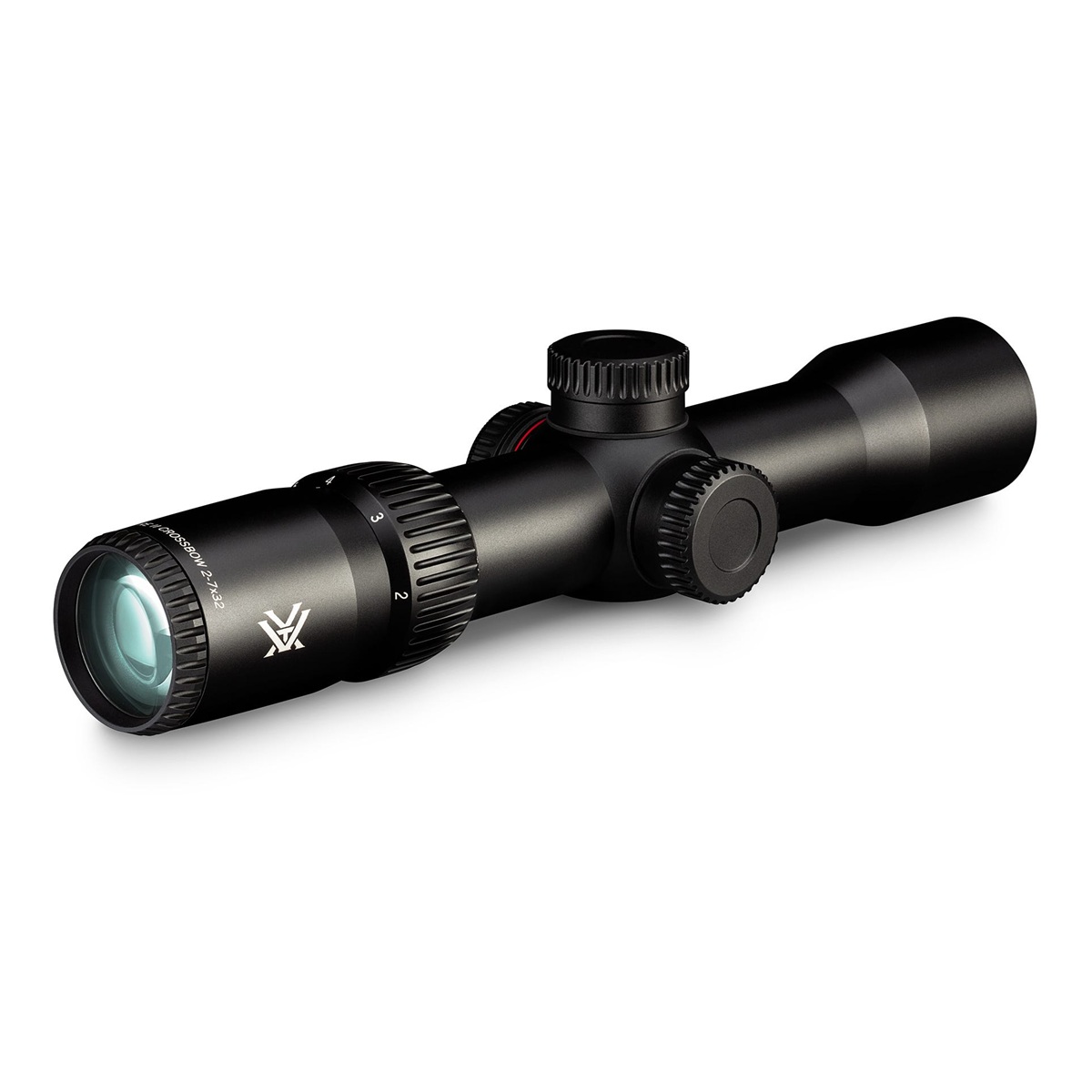

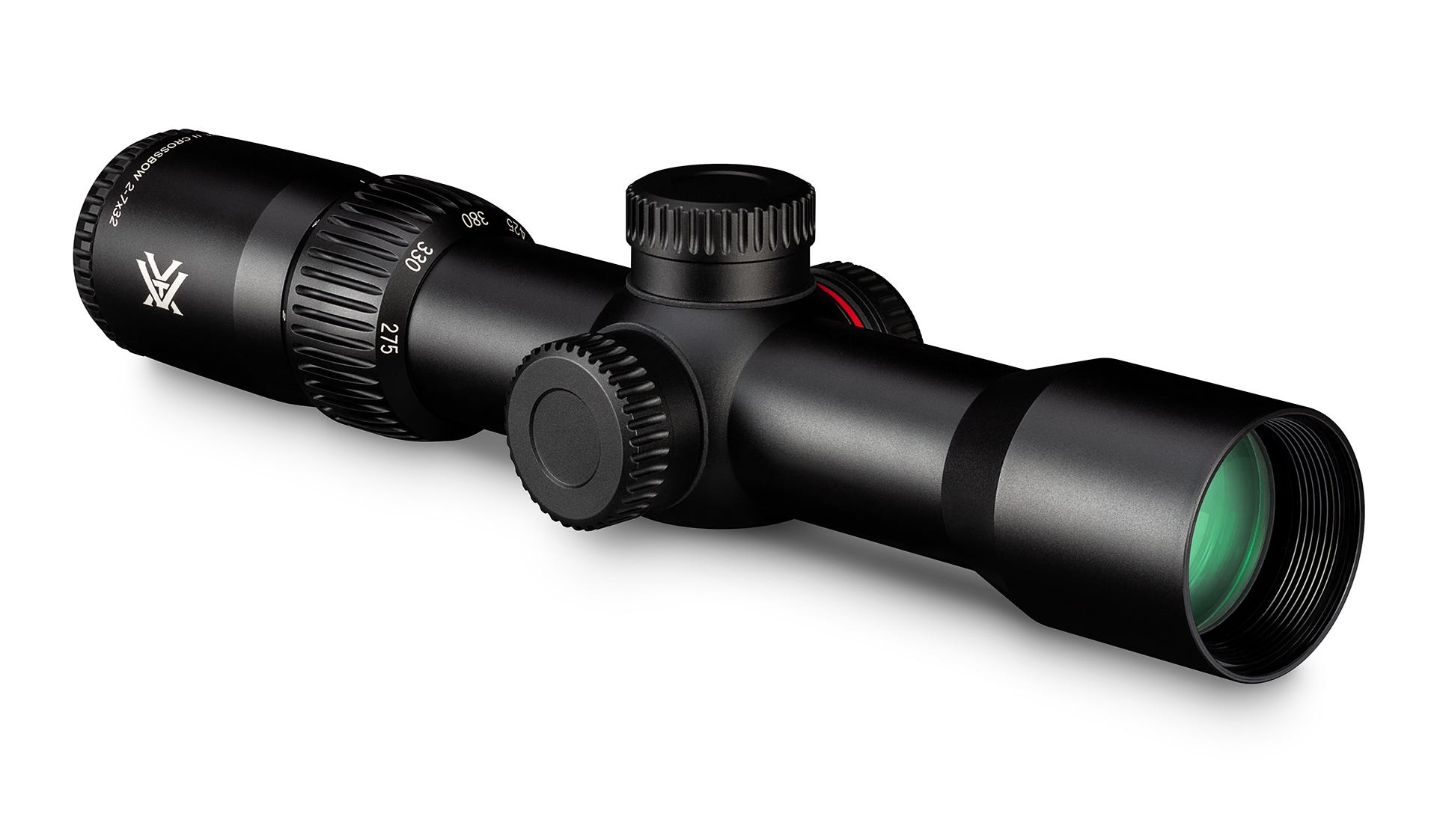

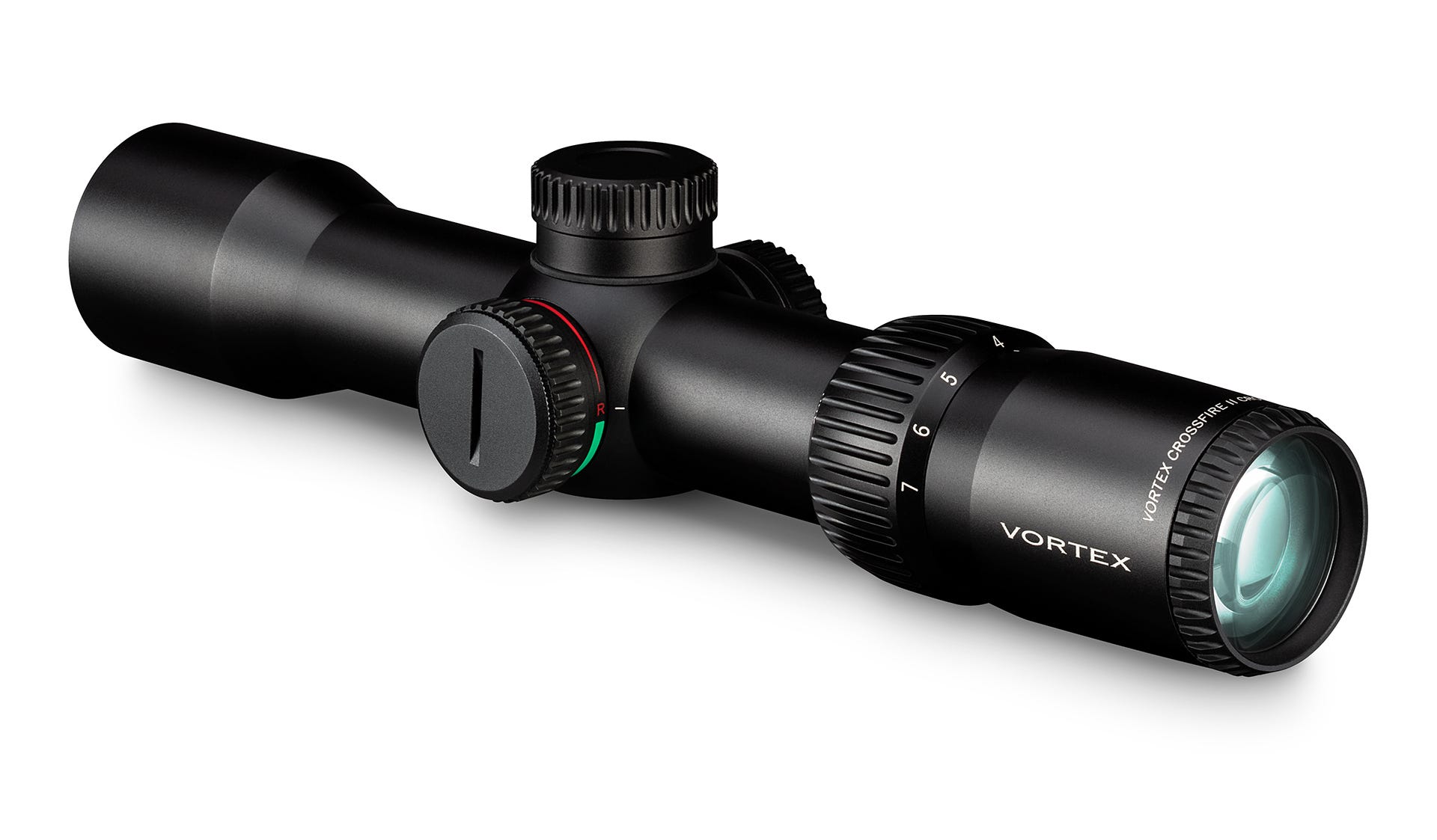

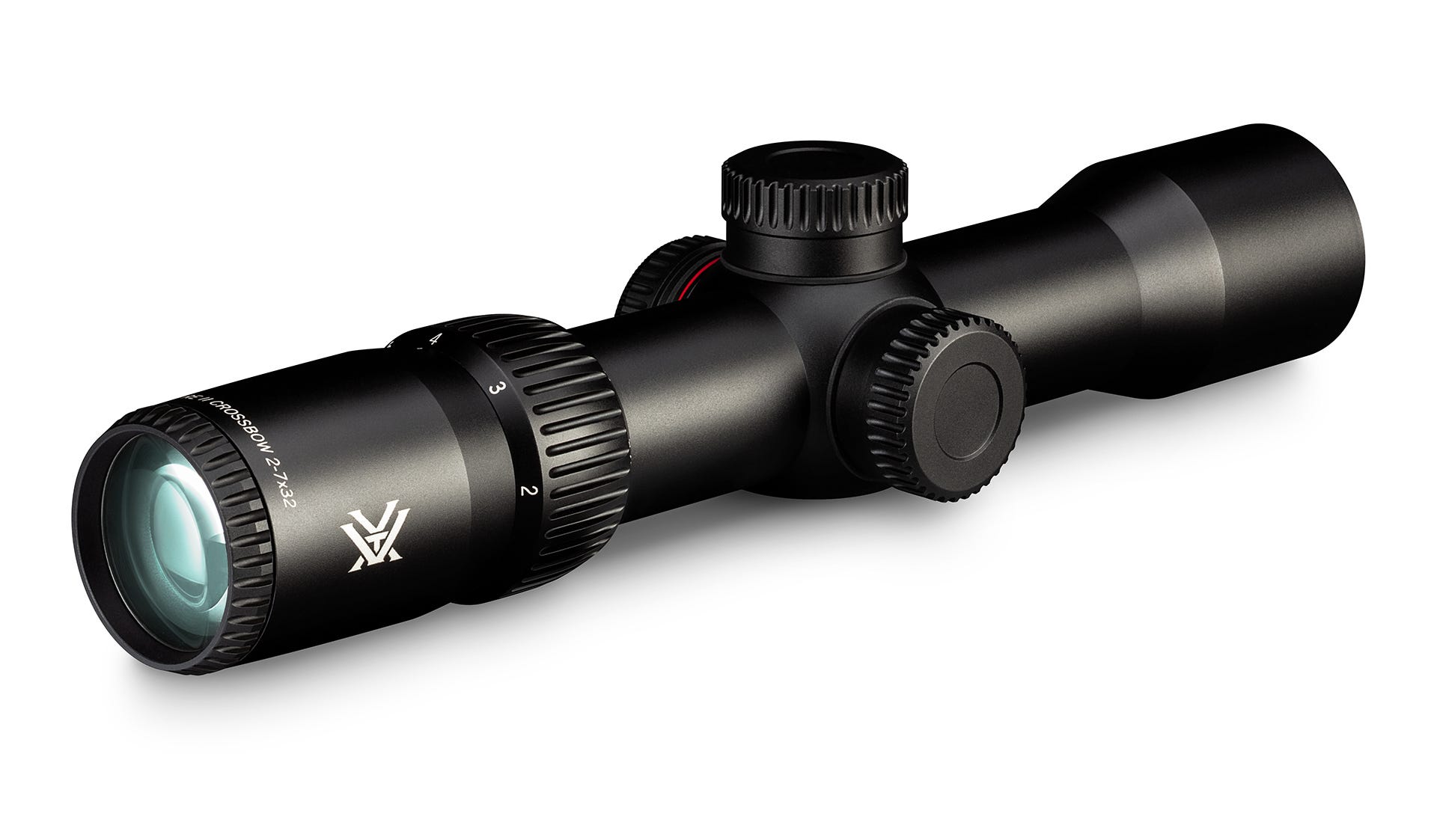

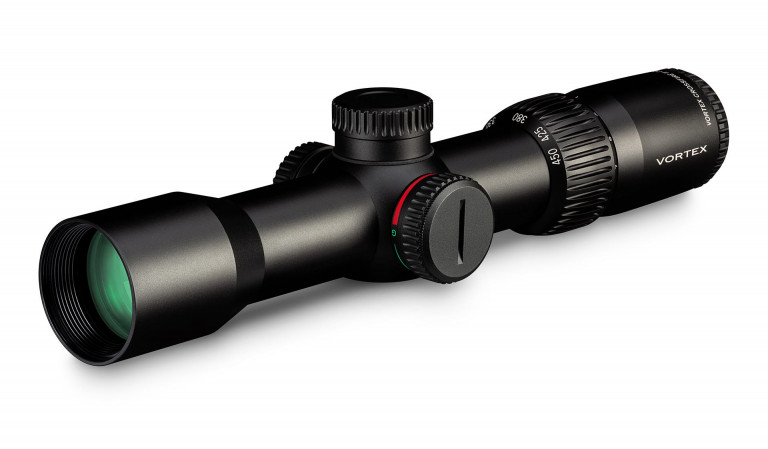

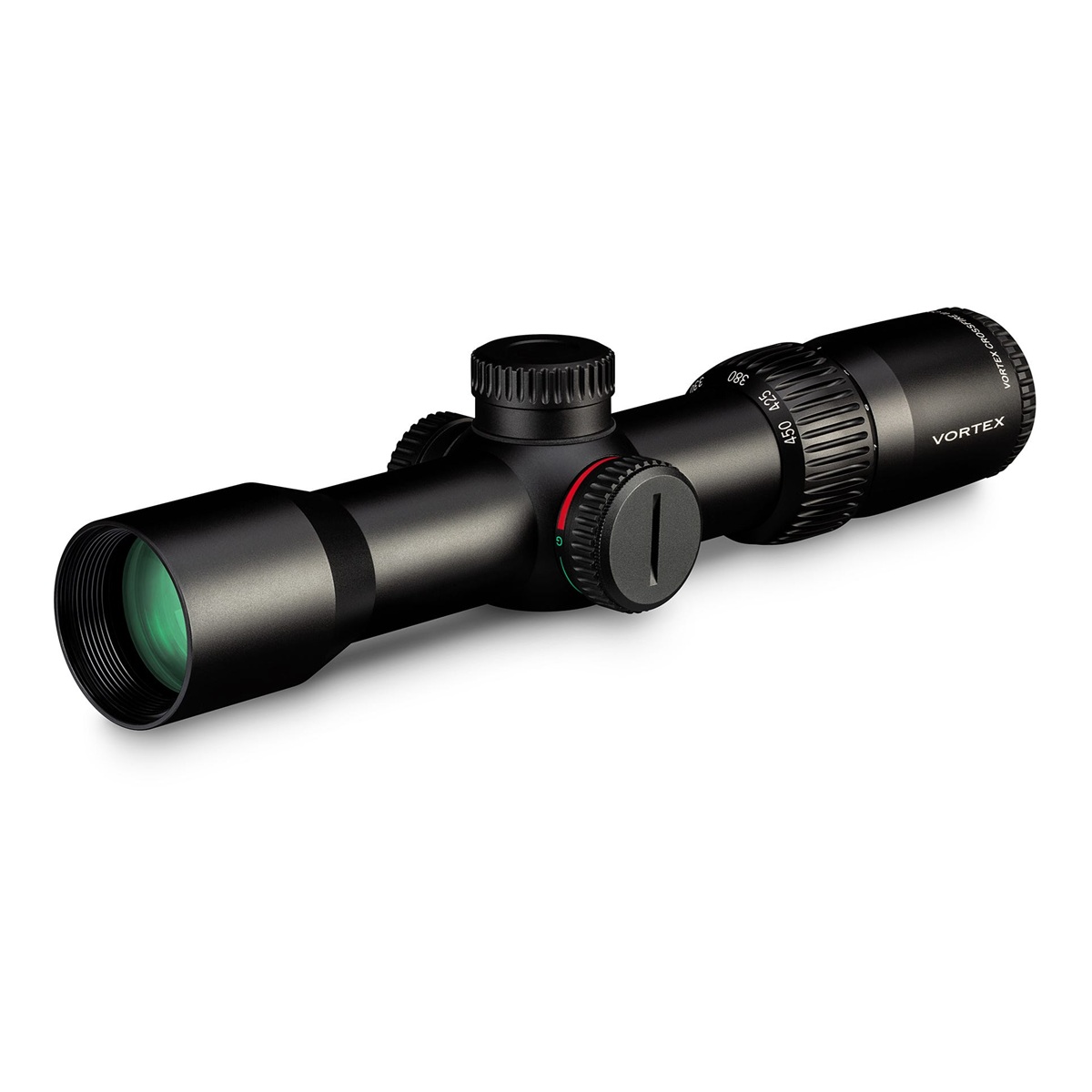

Vortex Crossfire II 2-7X32 IR Crossbow Scope
- First light, last light, and all day long, this crossbow topper will have you stacking bolts and filling tags in no time. Our purpose-built reticle not only gives you holdover points out to 100 yards, but it also features red and green illumination for low-light shooting.
- We also included the magnification and FPS on the magnification ring to keep the scope compatible with a variety of crossbows and setups, and a wide field of view makes it perfect for a variety of shooting situations. Plus, we’re including rings, flip caps, and a neoprene cover, so it’s ready to mount right out of the box.
|Product Name A-Z||Vortex Crossfire II 2-7X32 IR Crossbow Scope|
|Objective Lens Diameter||32mm|
|Tube Diameter||30 mm|
|Turret Click Value||0.05 MRAD (cm)|
Download Manual HERE
- Magnification: 2-7x
- Objective Lens Diameter: 32 mm
- Eye Relief: 2.7 inches
- Field of View: 57.5’ – 16.4’ @ 100 yards
- Tube Size: 30 mm
- Turret Style: Low Capped
- Adjustment Graduation: 1/2 MOA
- Travel Per Rotation: 30 MOA
- Max Elevation Adjustment: 160 MOA
- Max Windage Adjustment: 160 MOA
- Parallax Setting: Fixed @75 yds
- Length: 9.5 inches
- Weight: 14 oz
- Dual Illuminated Reticle Provides both red and green illumination for precise aiming under low-light conditions.
- Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
- Fast Focus Eyepiece Allows quick and easy reticle focusing.
- Magnification/FPS Ring Combines both the magnification power and the FPS setting to easily match to any crossbow for accurate reticle subtensions.
- Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
- Shockproof Rugged construction withstands recoil and impact.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Tube Size 30 mm diameter provides maximized internal adjustment and strength.
- Matte Anodized Finish Corrosion and wear-resistant anodization provides low-glare matte surface and helps camouflage the shooter's position

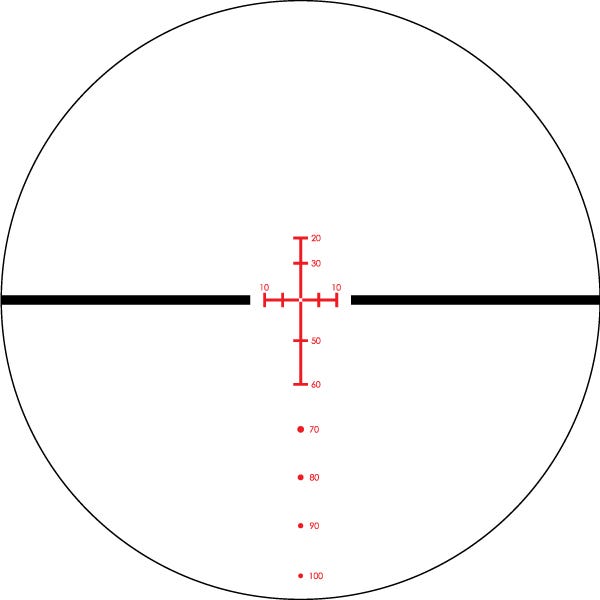

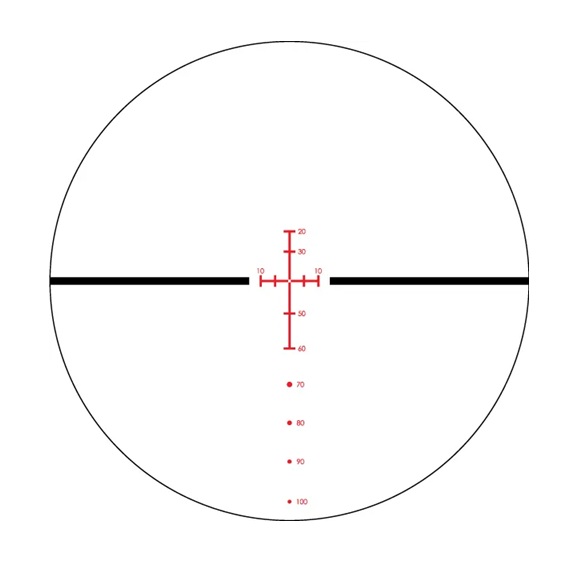

XBR-2 RETICLE (MOA):
The XBR-2 reticle is specifically designed for crossbows for a 40-yard zero and fast, accurate holdovers from 20-100 yards. The reticle is also equipped with dual illumination, red or green, for accuracy in low light.
In the box?
- Vortex Crossfire II 2-7X32 IR Crossbow Scope, User Manual and Accessories.
- Vortex VIP Lifetime Warranty.
