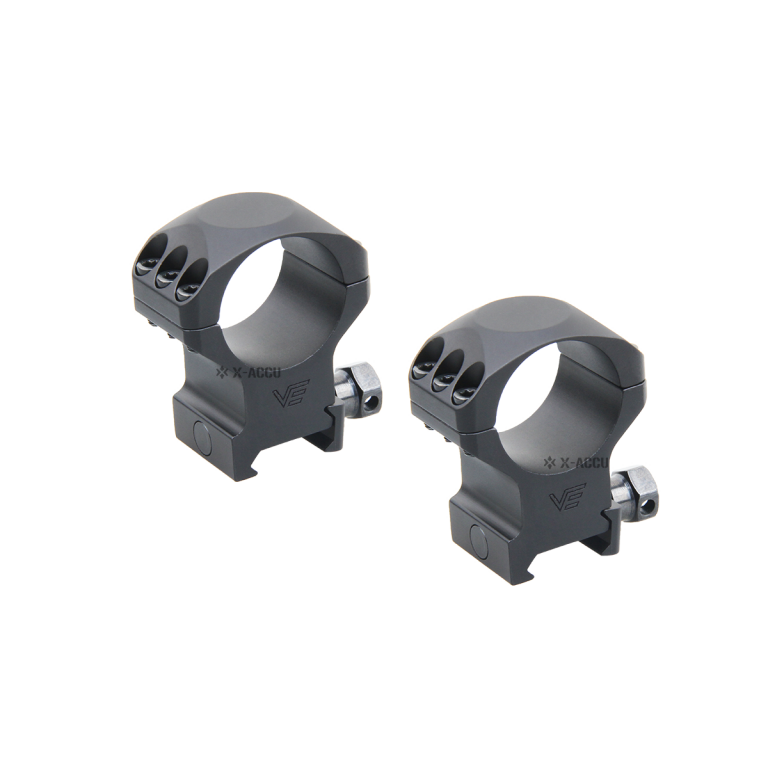

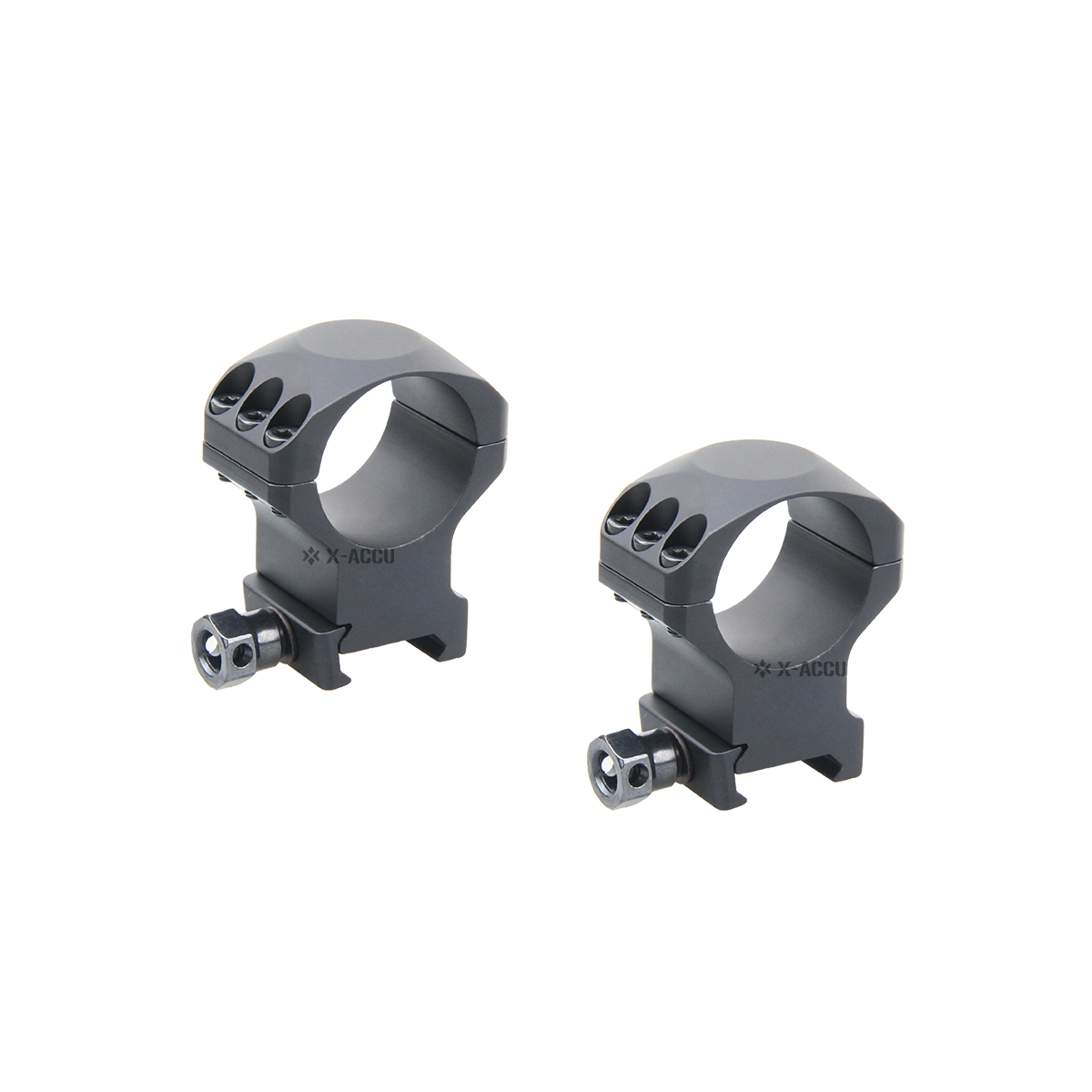

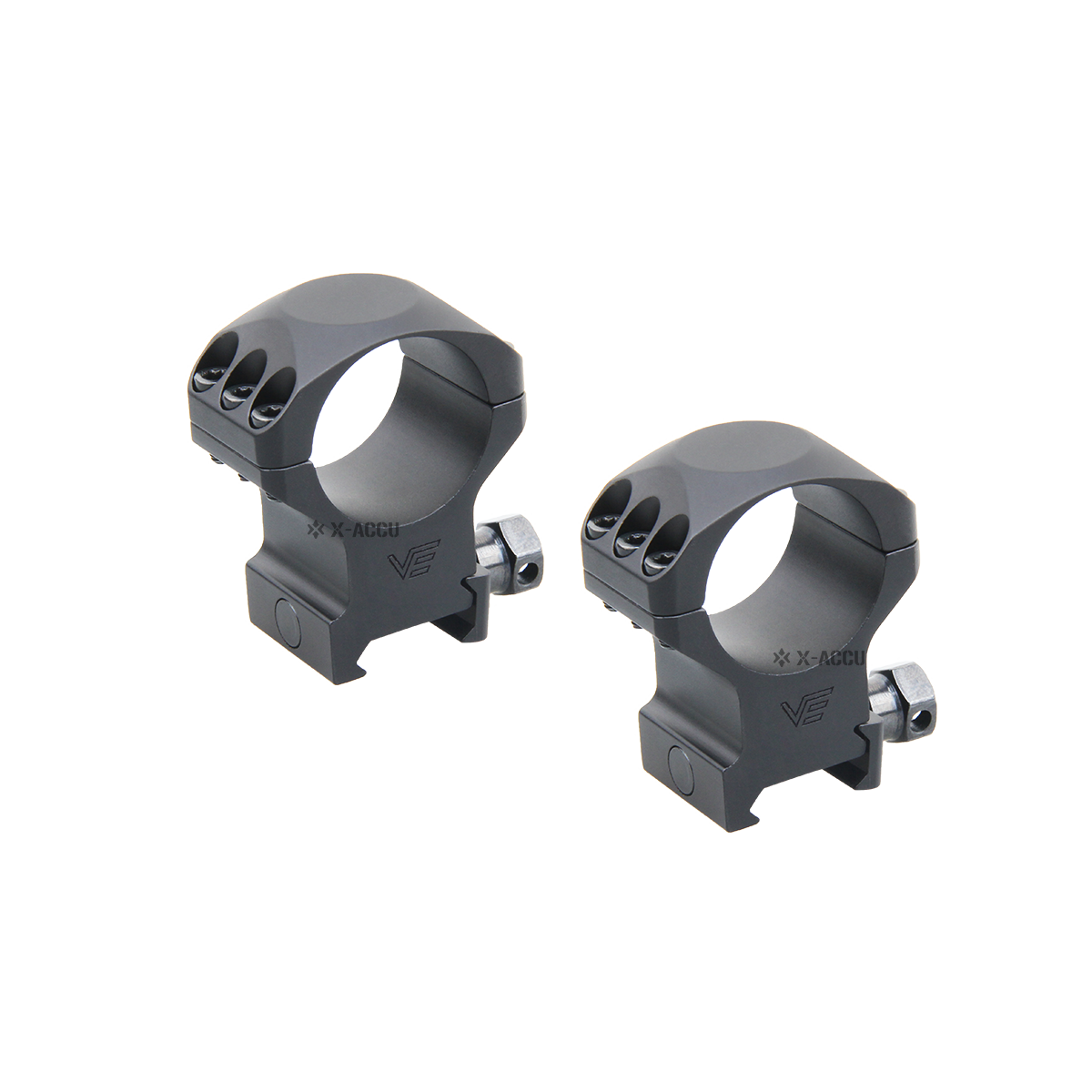

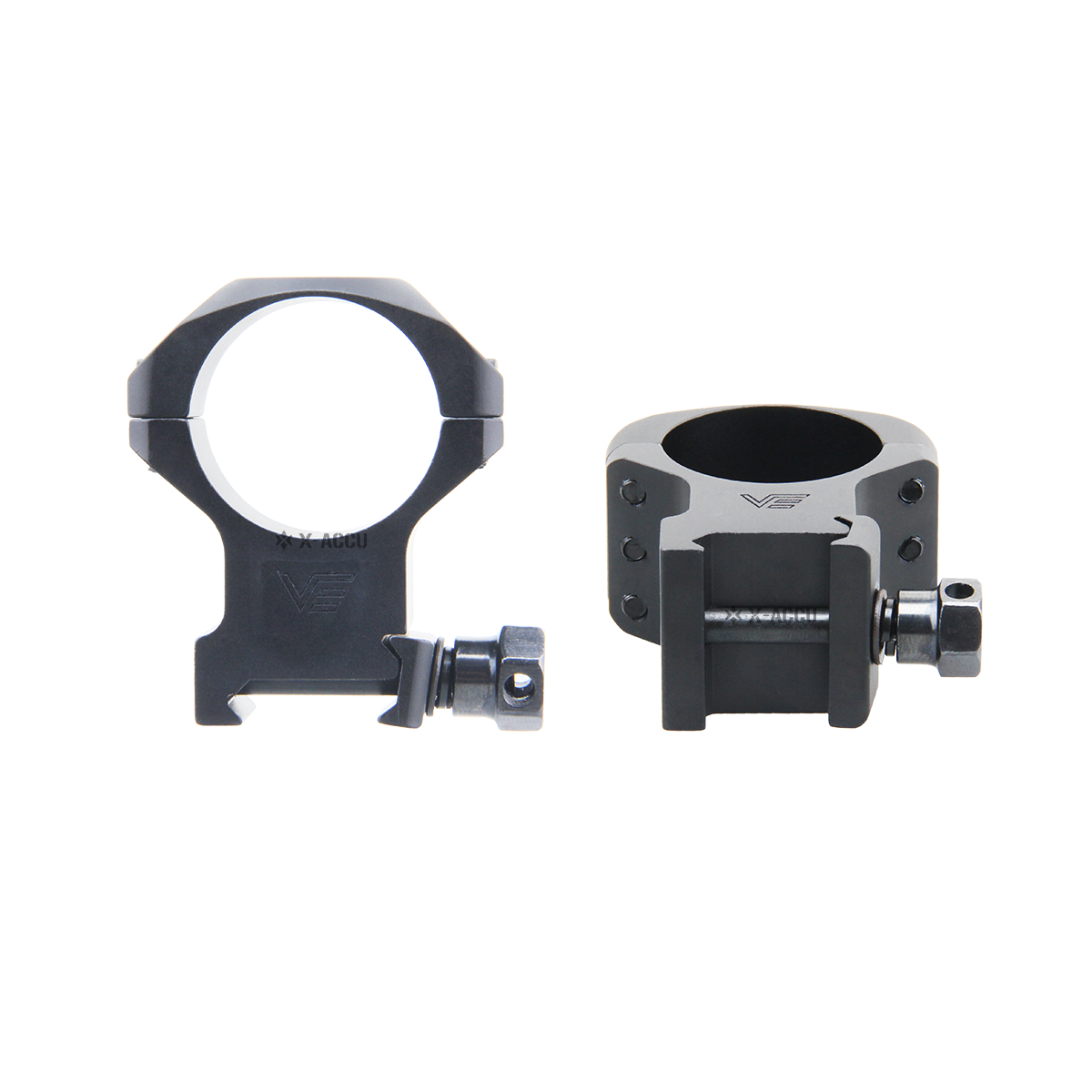

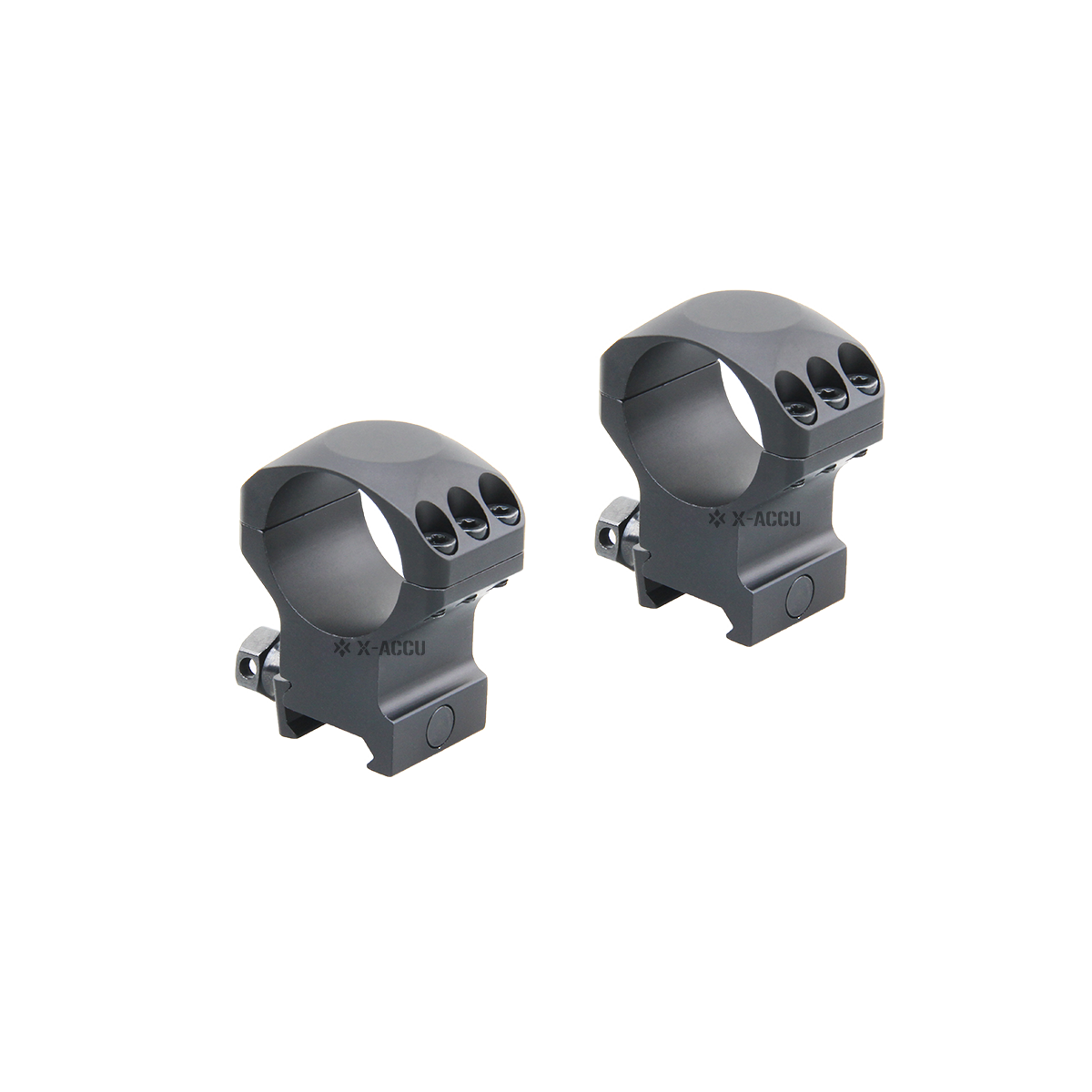

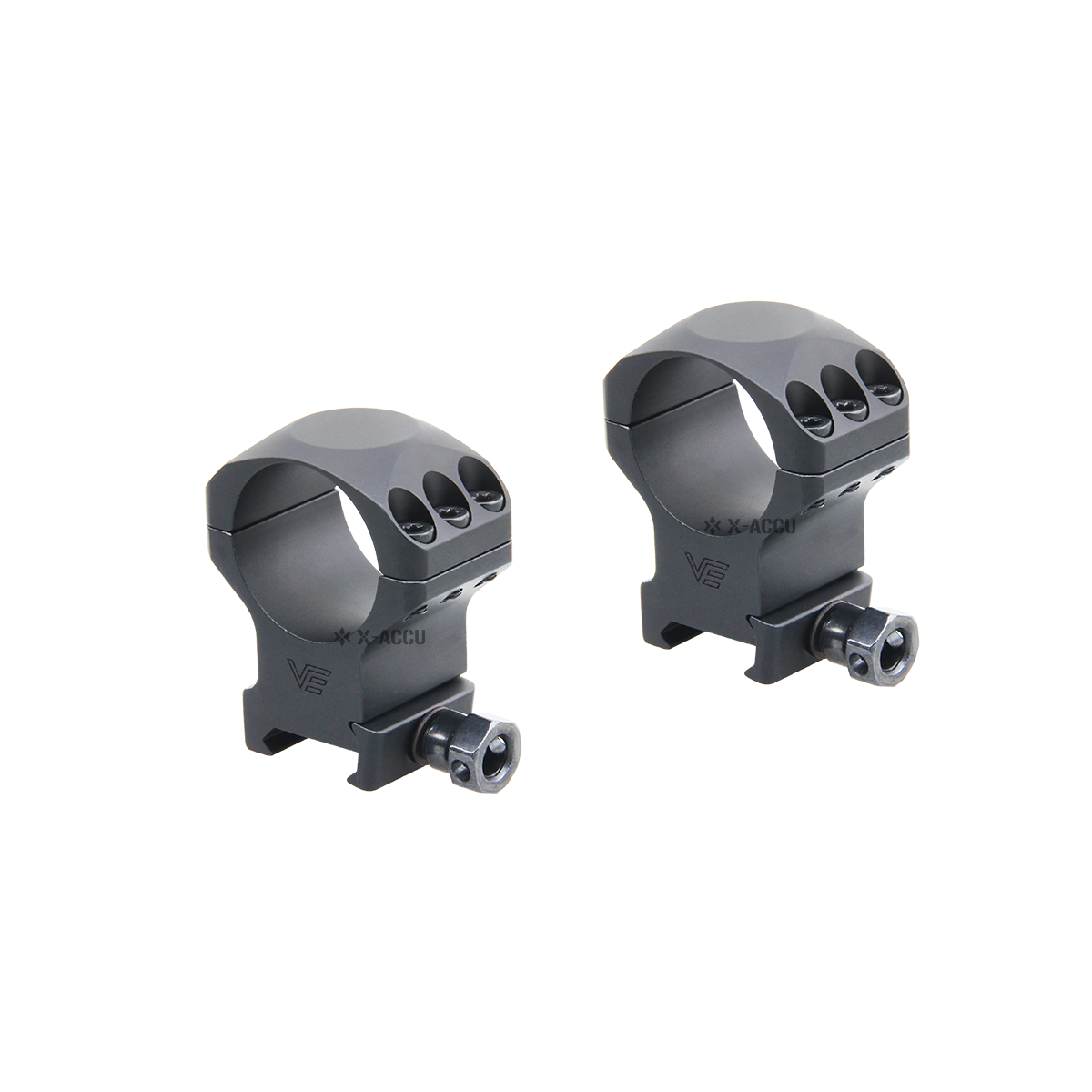

Vector Optics X-Accu 30mm 6 Screw Heavy Duty Medium Picatinny Rings
If you want something that locks your scope down properly without paying premium prices, the Vector Optics X-Accu 30mm Medium Rings are a steal. You get that solid 6-screw grip and a perfect mid-height setup that works for most rifles. Strong, simple, and way better than you’d expect for the money.
-Nathan (Technical Advisor)
#1367
#1332
#1362
#1365
#1363

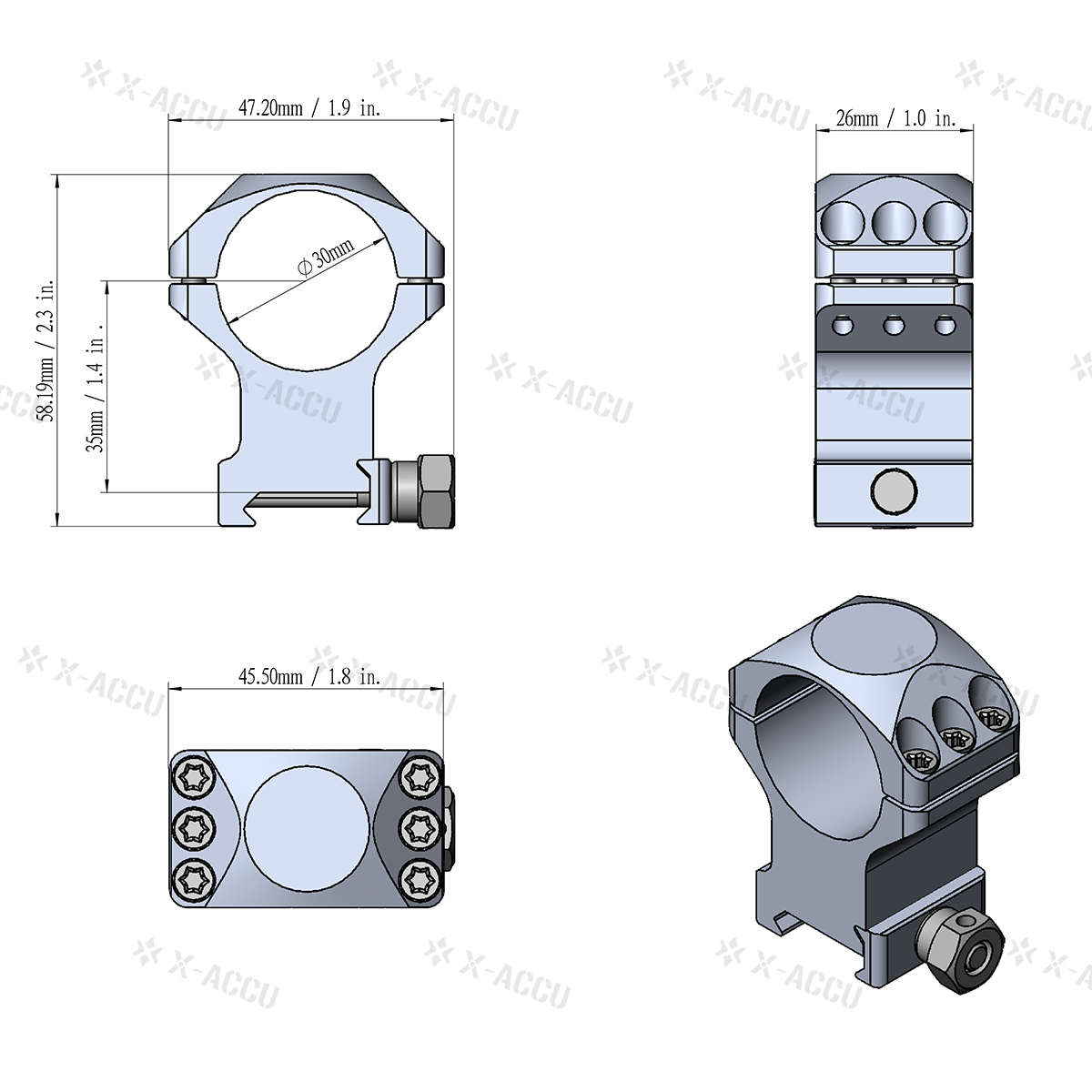

- Heavy-Duty, 30mm Diameter, 32mm 1.25 Center Height Medium Profile
- 6 Torx Screws Per Ring, Extremely Accurate w/ Full CNC Machined, 1913 Picatinny
Height = 32mm
- Diameter: 30mm
- Height: 32mm 1.25" from bottom to ring centre (16.75mm to the underside of scope tube)
- Ring Width: 26mm 1"
- Weight (net): 155g / 5.5oz
- Finish: Black matte
- Material: 6061-T6
- Mount: 1913 Picatinny
- Unique construction provides strength well with steel cross-bolt
- Six Torx screws per ring will hold your scope under any conceivable situations
- Perfect alignment and superior accuracy
- Do not use over 18 inches/pounds of torque on the scope rings' screws

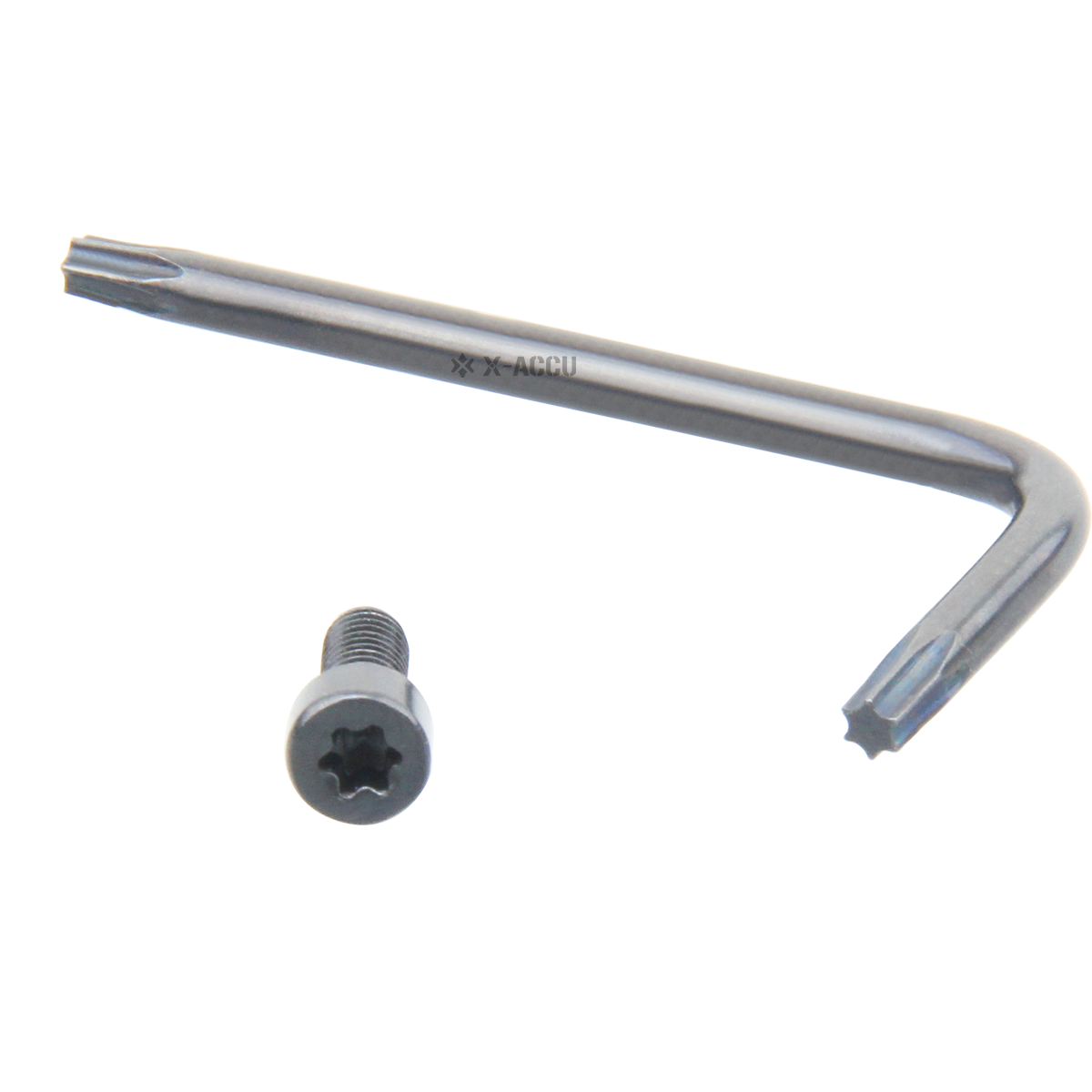

- Fittings include: Hex key
- Suggest 25 inch/pounds (can accept max 45 inch/pounds) torque force for large nut when installing the mount on the Picatinny rail
- Vector Optics X-Accu 30mm 6 Screw Heavy Duty Medium Picatinny Rings.
1. What scope tube size do these rings fit?
They’re built for 30mm scope tubes.
2. How high are these rings?
They’re medium profile, about 32mm (1.25") from rail to scope centre.
3. What rails do they fit?
They’re designed for standard 1913 Picatinny rails (true spec fit).
4. What makes them “heavy duty”?
They use a steel cross-bolt design and six Torx screws per ring for extra clamping strength and stability.
5. Are medium rings a good all-round choice?
Yes—medium height is ideal for most setups, giving good clearance while keeping a solid cheek weld.
6. What are they made from?
CNC-machined 6061-T6 aluminium with a matte black finish.
7. How much do they weigh?
Around 155g for the pair, so sturdy without being overly heavy.
8. Will they hold zero under recoil?
Yes, the 6-screw design helps keep the scope secure even under heavier recoil.
9. What size scopes work best with these?
They’re ideal for mid-size scopes (around 40–50mm objectives, depending on barrel clearance).
10. Do they come with tools?
Yes, they typically include a Torx/hex key for installation.
- 5 Years Vector Optics Warranty
Our aim is to ensure that your order arrives with you as soon as possible and in the safest, most cost-effective means.
Please Note: Shipping charges may be subject to additional surcharges if out of area or over weight restrictions.
Please Note: DPD SHIPMENTS REQUIRE THE CUSTOMER TO SHOW A PIN CODE ON DELIVERY - READ MORE: HERE
COURIERS
 |
 |
 |
 |
We use DPD , RoyalMail, TNT and UPS courier services for all our orders whether dispatching to the UK or International. As soon as your order has been dispatched you will receive an email with your unique tracking number. We are unable to add delivery notes to your order regarding safe spaces or neighbour deliveries. If you require this service it can be arranged directly with the courier once the parcel is in their network.
IN-STORE ITEMS
These are items that we have in-stock and will be sent out for delivery as soon as possible. We aim to dispatch all orders within 1-2 working days, but during busy periods dispatch may be delayed by a day or so. If you would like to purchase the item in person then please call ahead to arrange an appointment: 01803 611 895.
PRE-ORDER ITEMS
These are usually items that are going to be out-of-stock for a number of weeks or are in short supply. By purchasing a Pre-Order Item you are in effect paying a deposit for your goods. As soon as the item is back in stock yours will be dispatched within 24 hours where possible. Please see individual product pages for current back-in-stock dates. In rare occasions, these dates can be changed by the manufacturers so we recommend staying in contact with Optics Warehouse depending on the product lead time.
INTERNATIONAL DELIVERY & TAXES
In addition to the above information If your delivery address is outside of the UK you may be subject to import duties and taxes, which are levied once a shipment reaches your country. Any such additional charges for customs clearance must be borne by you. You should note that customs policies vary widely from country to country. Optics Warehouse advises each customer to contact their local customs office for further information if they are in any way unsure of local duties or liabilities. Cross border shipments are subject to opening and inspection by customs authorities which means some packages may be opened and re-sealed.
NEED HELP?
If you require any further assistance, please call us on 01803 611 895 or email sales@opticswarehouse.co.uk
-
A NOTE ABOUT DPD SHIPMENTS:
- Please be advised that we have now introduced DPD Pins to all DPD orders from Optics Warehouse.
- If your shipment is being sent from Optics Warehouse via DPD you will be sent a Pin Code that must be shown to the courier upon delivery.
- The pincode is sent VIA email & TEXT message. A valid email address and mobile number must be provided at checkout. Emails will be sent from "Riviera House 3PL" - if you do not receive this email please check your junk or spam folders.
- Please note that if you do not display your pin code to the courier driver upon delivery, you will not be able to have your item and you may need to schedule another delivery date to show a valid pin.
- Please view the attached slides HERE for further information!
Please note: All clearance calculations are based on mounts with 0 MOA. While MOA can be factored in, actual clearance may vary due to variables that can't always be accurately calculated. If you're considering an MOA mount and are unsure about the required height, we recommend contacting our sales team directly.
Measure the outermost diameter of your scope’s objective bell (including any flare).
Measure the thickness of any scope cover if used. If none, leave as 0.
Measure from the top of the rail to the highest point of the barrel.
We add a little extra clearance to account for real-world variation. Default is +1 mm.
Enter your measurements above to calculate the lowest ring height (base-to-centre) you can realistically use.
(A + 2×B) / 2 − C + TWhere A = objective outer diameter, B = cover thickness, C = rail-to-barrel clearance, T = tolerance.
