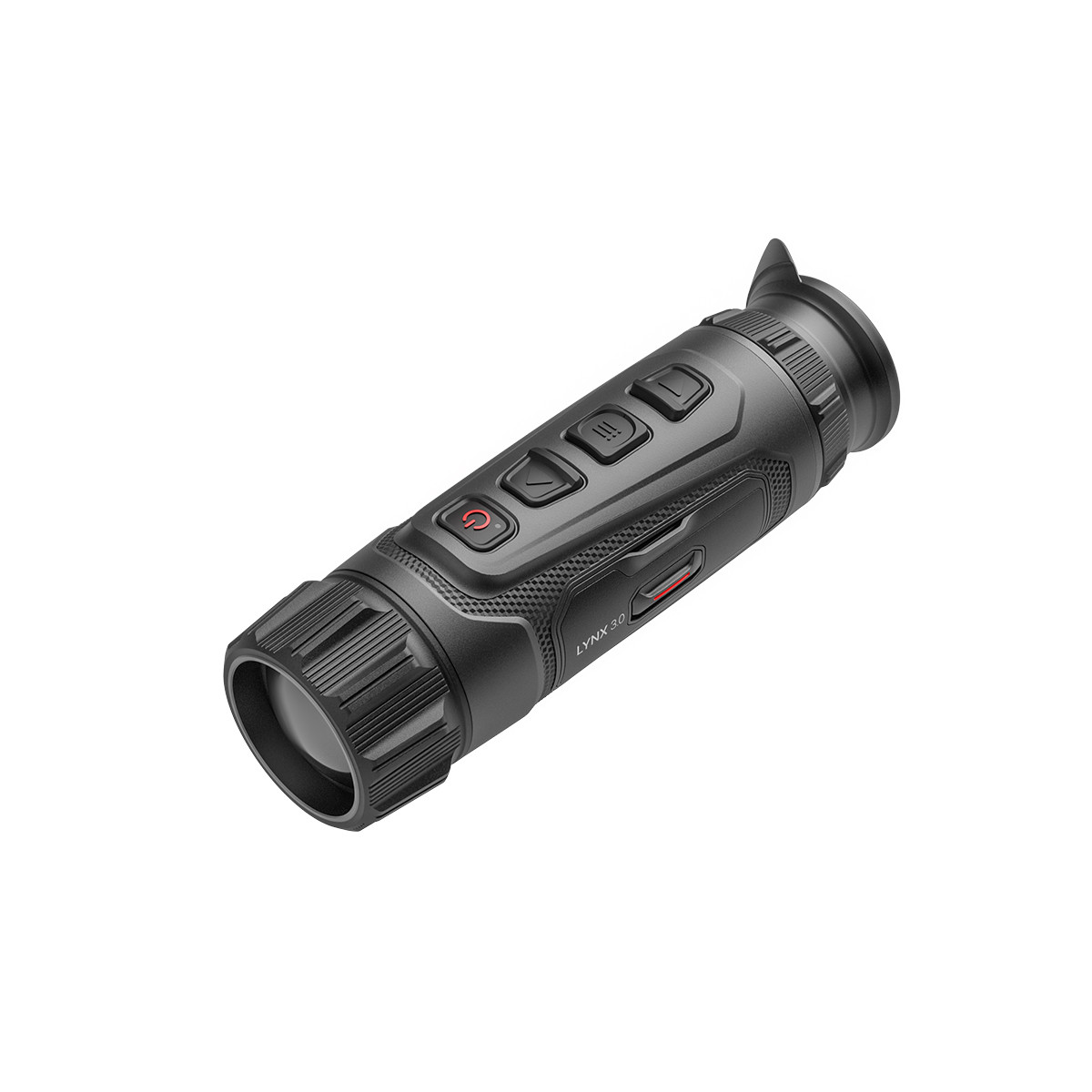

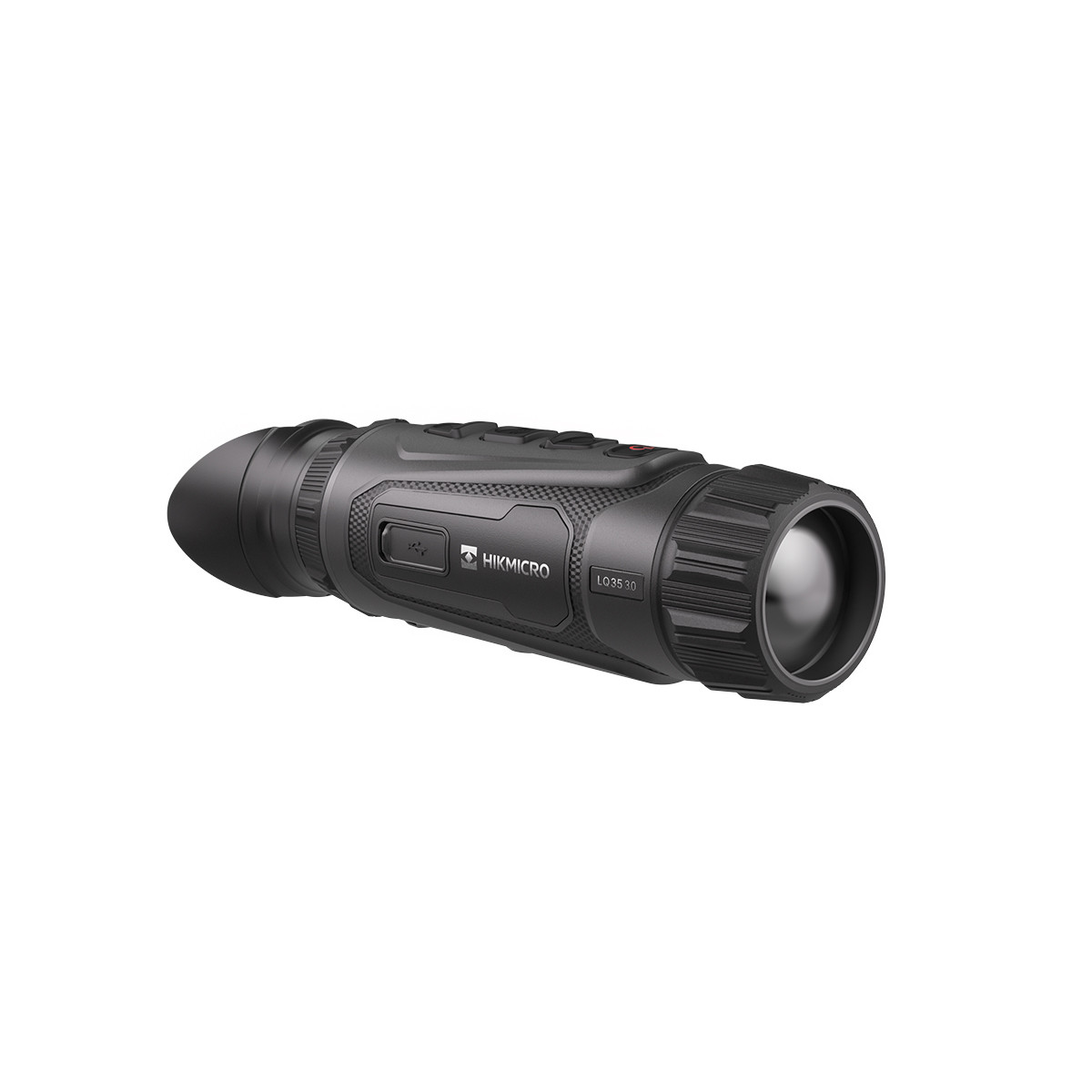

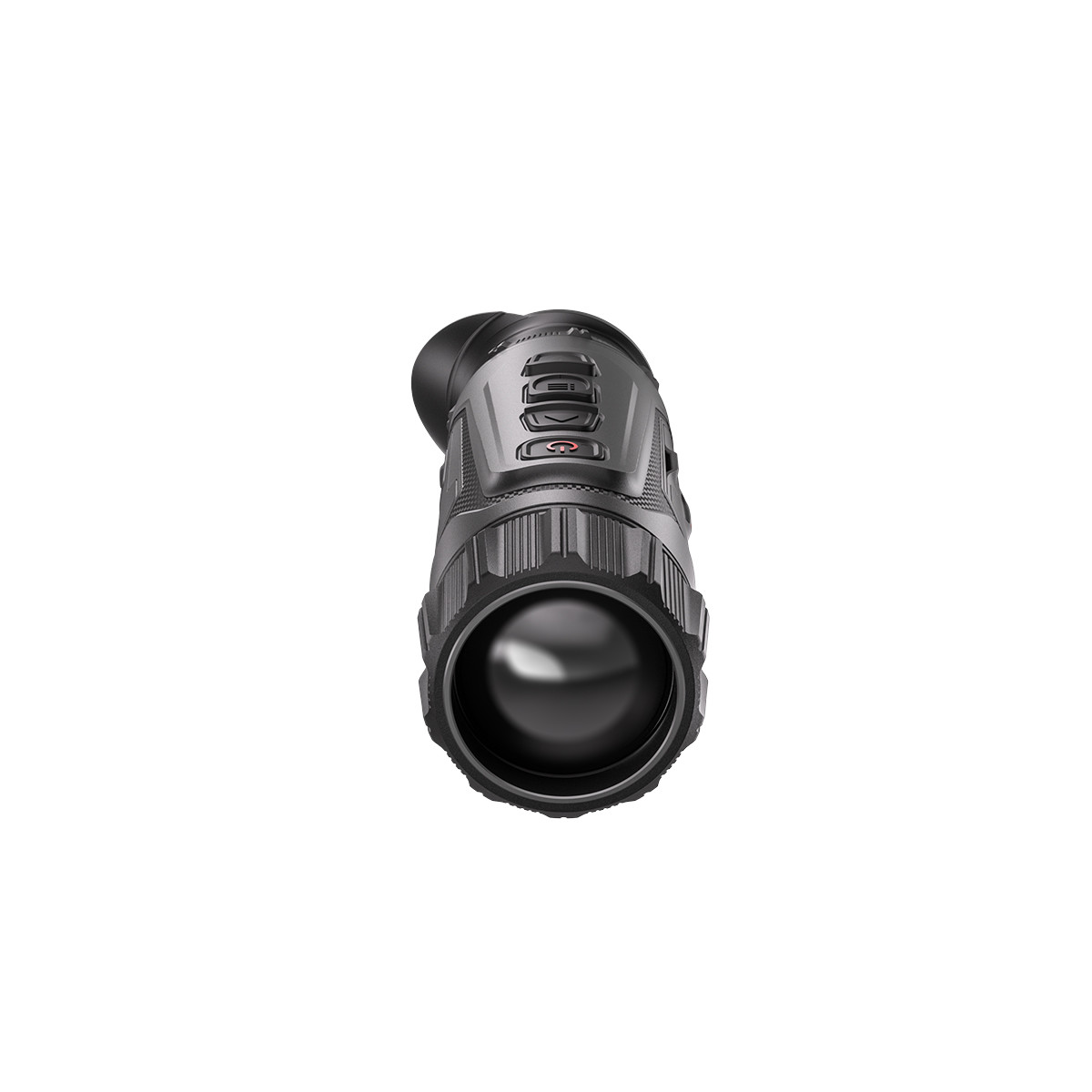

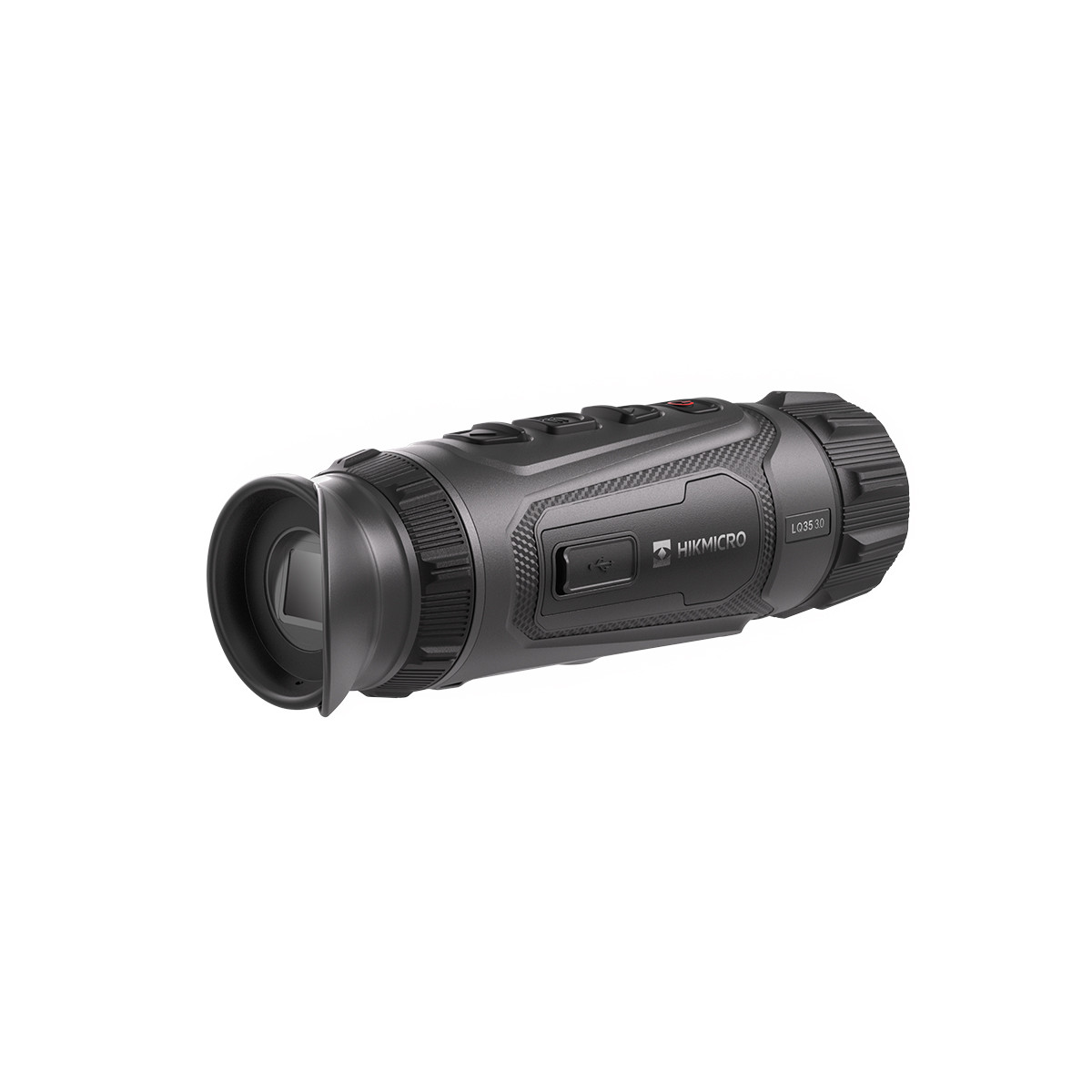

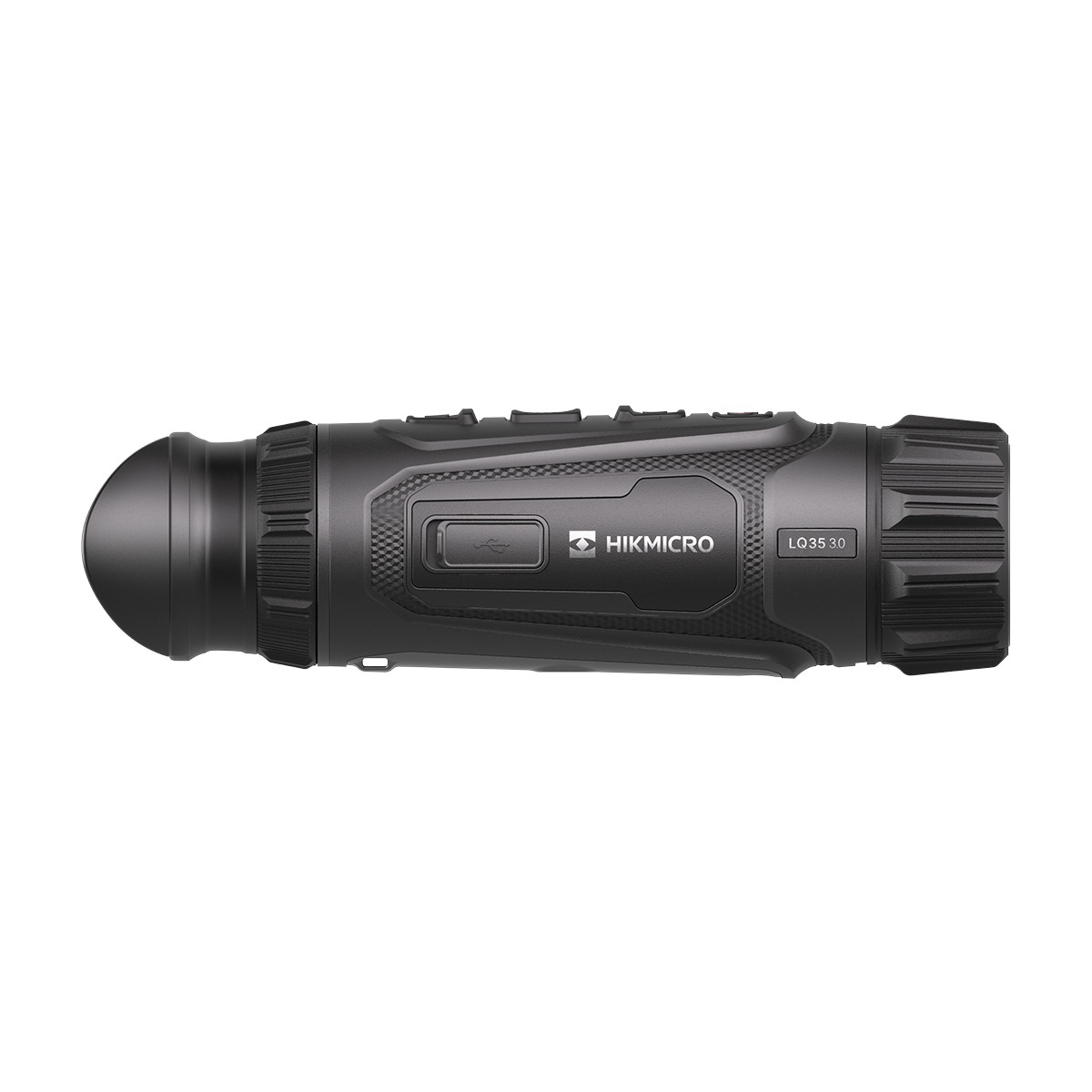

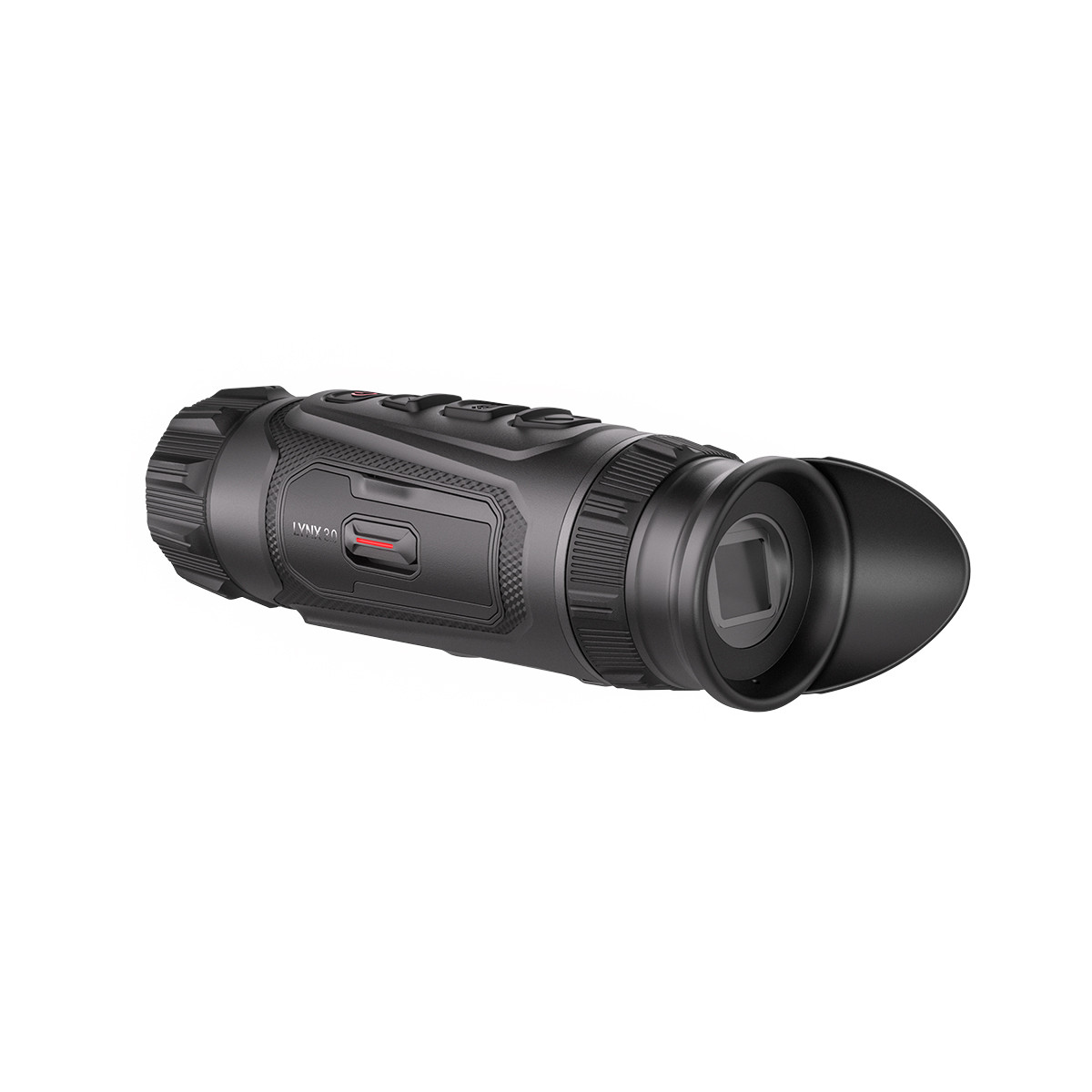

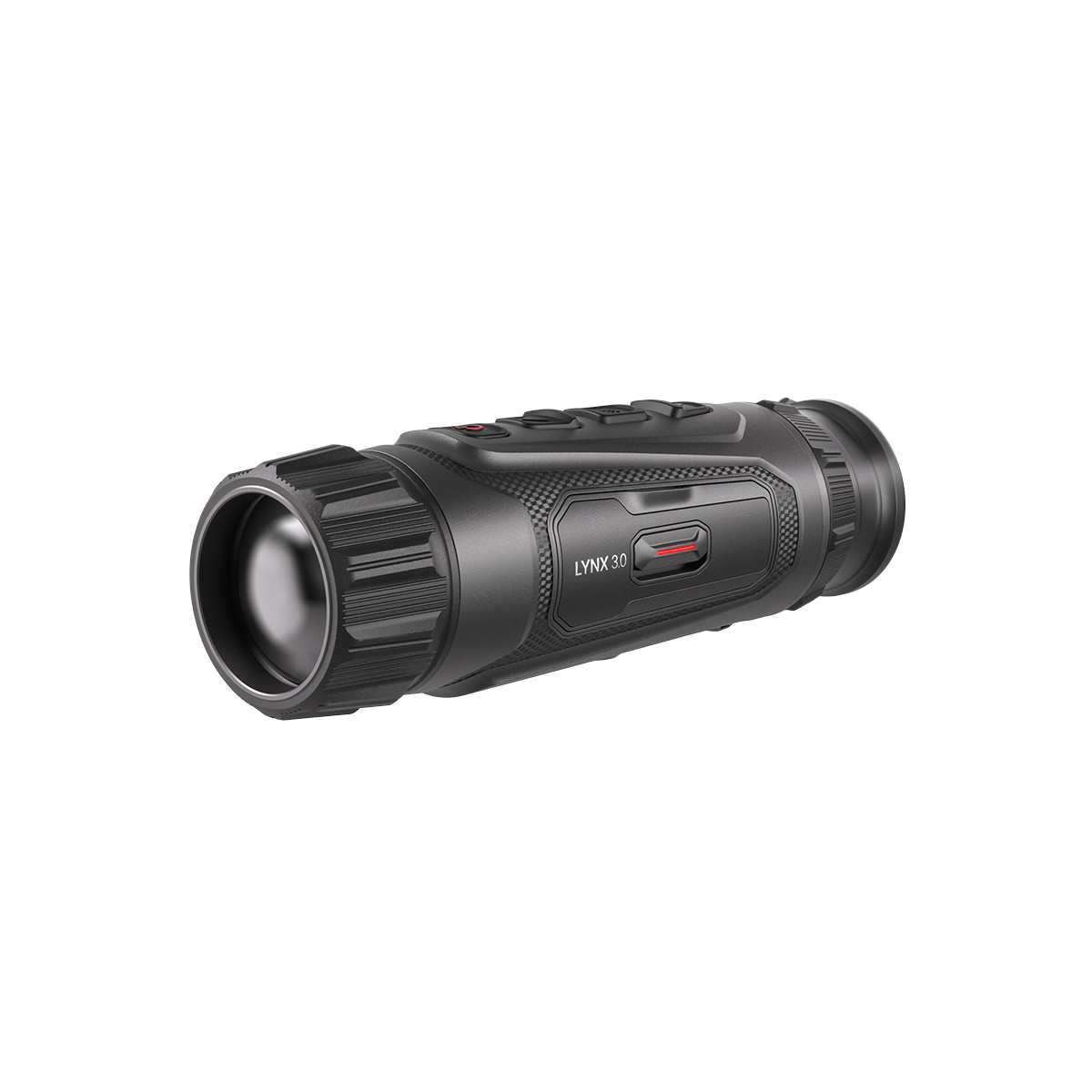

WIN A: HIKMICRO Lynx 3.0 LQ35 35mm Thermal Monocular - 35mm, <15mK, 640x512px, 12µm, 50Hz
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.
Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.
At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.
| Product Name A-Z | WIN A: HIKMICRO Lynx 3.0 LQ35 35mm Thermal Monocular - 35mm, <15mK, 640x512px, 12µm, 50Hz |
|---|---|
| SKU | OPTICSDRAWS#1367 |
Specs
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 640 × 512
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm – 14 μm
- NETD: < 15 mK (@25°C), F#=1.0
- Lens (Focal Length): 35 mm, f1.0
- Focus Mode: Focus Ring
- Detection Range: 1800 m
- Min. Focusing Distance: 3.5 m
- Magnification: 1.9× – 15.2× (8×)
- Field of View (H × V): 12.5° × 7.5° / 21.9 m × 13.2 m @100 m
- Display: 1920 × 1080, 0.49 in, AMOLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 20 mm
- Diopter (Range): -5D to +3D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 3.0: Yes
- Record Video: Yes
- Capture Snapshot: Yes
- Audio Recording: Yes
- Standby Mode: Yes
- Built-in Memory: 64 GB EMMC
- PIP: Yes
- Hotspot: 2.4 GHz / 5 GHz Wi-Fi
- Hot Track: Yes
- Distance Measurement: Yes
- Local Album: Yes
- Battery Type: Replaceable & Rechargeable Li-ion 18650
- Battery Operating Time: 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
- Type-C Power Supply: 5V DC, 2A
- External Power Supply: Supported, Direct Charging Supported
- Protection Level: IP67
- Dimension: 169.6 × 53.6 × 49.5 mm
- Weight: 354.5 g (with battery)
- Working Temperature: -30°C to 45°C (-22°F to 113°F)
- Humidity: ≤ 90%
Features
- Up to 640×512 Thermal resolution
- High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
- 35 mm, F1.0 lens with thermal detection range up to 1800 m
- HIKMICRO Shutterless Imaging System (HSIS)
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- 0.49-inch OLED display with 1920 × 1080 resolution
- Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
- Lightweight design at 354.5 g, with a pocket-sized build
Video
In the box?
- 1 x Lynx 3.0 Thermal Monocular
- 1 x Quick Start Guide
- 2 x 18650 Battery
- 1 x Type-C USB Cable
- 1 x Battery Charger
- 1 x Lint Free Cloth
Warranty
- Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
