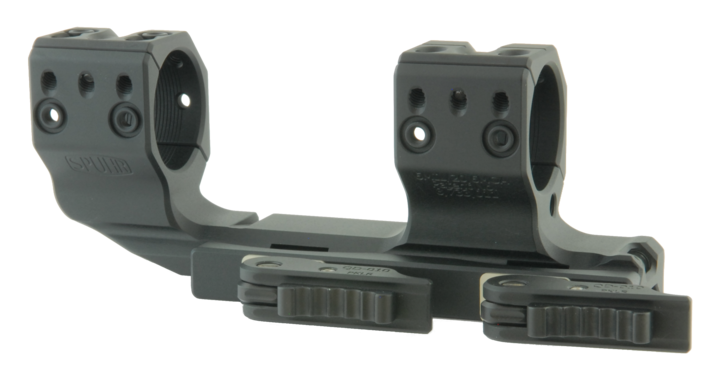

Spuhr ISMS QDP-3616 Ø30mm Tube 6 MIL (34 mm High) Cantilever Quick Detach Picatinny Scope Mount

SKU#QDP-3616 Spuhr

Spuhr ISMS QDP-3616 Ø30mm Tube 6 MIL (34 mm High) Cantilever Quick Detach Picatinny Scope Mount

Name: Spuhr ISMS QDP-3616 Ø30mm Tube 6 MIL (34 mm High) Cantilever Quick Detach Picatinny Scope Mount
Brand: Spuhr
Price: 439.99 GBP
Availability: InStock

3 in stock

The Spuhr ISMS (Ideal Scope Mount System) is a premium one-piece scope mount built for shooters who demand maximum stability, precision and modular versatility. Precision-machined from single-piece billet aerospace-grade aluminium, it delivers exceptional rigidity and reliable zero retention under heavy recoil. Diagonally split rings, an integrated levelling system and multiple accessory interfaces ensure accurate scope alignment and effortless accessory integration. Finished with a durable hard-anodised coating and featuring a 38mm ring height, the ISMS provides a robust, dependable platform for long-range, tactical and competition shooting.

VIEW PRODUCT INFO / SPECS

Select Type: QDP 3616 30mm High (38mm) 20 MOA

QDP 3002 30mm High (38mm) 0 MOA

QDP 3006 30mm High (34mm) 0 MOA

QDP 3602 30mm High (38mm) 20 MOA

QDP 3616 30mm High (38mm) 20 MOA

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Must-Have Additions for Your Order!

Spuhr ISMS QDP Quick Detach Picatinny Mount-30mm-20 MOA-38mm

THIS ITEM:

Spuhr ISMS QDP-3616 Ø30mm Tube 6 MIL (34 mm High) Cantilever Quick Detach Picatinny Scope Mount

£439.99

Spuhr A-0119 Bubble Level Assembly

£86.99

Spuhr Deltapoint Interface

£49.95

Total (3): £576.93

Designed for long-range shooters, the Spuhr ISMS QDP 30mm 6 MIL mount adds the critical elevation needed for precision shooting without compromising quick-detach convenience. Solid and repeatable, this mount excels for PRS-style rifles or tactical applications, giving shooters confidence in every shot. It’s a top-tier option when elevation and performance matter most.

Thomas, Sales and Product Specialist Accomplished HFT shooter offering optics and trade-in advice. Practical guidance based on years of competitive shooting.

Product Information FIND OUT MORE

DESCRIPTION

The Spuhr ISMS (Ideal Scope Mount System) is a high-performance mounting solution engineered for shooters who demand unmatched stability, precision, and modular versatility. Its single-piece, billet-machined aluminium construction provides exceptional rigidity, virtually eliminating flex under recoil and ensuring repeatable zero for long-range, tactical, and competition applications.

The system’s diagonally split rings give unobstructed access to elevation and windage turrets, allowing fast and precise adjustments without interference. An integrated levelling system and alignment wedge ensure the optic is perfectly level during setup, critical for extreme-range accuracy and consistent shot placement.

Multiple interface points along the mount allow secure attachment of a wide range of accessories, from lasers and rangefinders to backup optics and night-vision devices, without affecting rifle balance or ergonomics. Machined from aerospace-grade aluminium and finished with hard-anodised coating, the ISMS offers exceptional durability, corrosion resistance, and mechanical integrity under heavy recoil and field conditions.

With its combination of precision machining, modular functionality, and rock-solid strength, the Spuhr ISMS is designed to elevate any rifle platform, providing a foundation for accurate, repeatable, and adaptable long-range performance.

Ring Height - 38mm

SPECS

Spuhr ISMS QDP-3616 30mm High (38mm) Quick Detach 20 MOA Picatinny Mount Specifications

Picatinny mount for use on AR10 rifles

Rings: 30 mm
Tilt: 6 MIL/20.6 MOA
Height: 38 mm/1.5”
Length: 151 mm/5.94” (mount body only)
Weight: 270 g/9.5 oz
Interfaces: 8 sets
EAN: 7340150705046

FEATURES

Monolithic one‑piece construction - CNC‑machined from a single billet of aerospace‑grade aluminium to eliminate tolerance stacking, flex, and ring misalignment common in multi‑piece mounts.
High‑rigidity structural geometry - Optimised cross‑section and material distribution provide exceptional torsional and vertical stiffness, maintaining optic alignment under heavy recoil and dynamic loading.
Hard‑anodised surface treatment - Type III hard anodising delivers excellent abrasion resistance, corrosion protection, and a non‑reflective tactical finish.
Diagonal ring split design - Improves load distribution around the scope tube while keeping elevation and windage turrets fully accessible, preventing obstruction during adjustment.
Integrated scope levelling system - Built‑in bubble level allows the shooter to reference rifle cant and optic alignment directly on the mount for precise long‑range shooting.
Multi‑axis accessory interface - Machined mounting points on multiple faces of the mount support direct attachment of optical and electronic accessories without adding separate rails.
Low‑profile accessory mounting - Keeps mounted devices close to the bore axis and centre of mass, preserving rifle balance and minimising parallax and offset errors.
Precision‑cut recoil lugs and rail interface - Provides repeatable, slip‑free engagement with Picatinny rails for consistent return‑to‑zero performance.
High‑strength fastener system - Torque‑optimised fasteners maintain clamping force under vibration and recoil, preventing optic movement or zero shift.
Designed for extreme‑range precision - Engineered to support the mechanical and optical demands of ELR, PRS, and professional long‑range shooting platforms.

FREQUENTLY ASKED QUESTION(S)

How does built-in MOA/MIL affect scope adjustment range in practical use?
The integrated cant shifts the optical axis downward relative to the bore, allowing more upward elevation travel to remain available for long-distance shooting. This helps keep turret adjustments closer to the center of the scope’s mechanical range where tracking tends to be most consistent.

Does the cantilever angle influence return-to-zero performance?
The presence of cant does not affect the mechanical interface between the mount and rail. Return-to-zero consistency depends primarily on rail engagement and lever tension rather than the angle of the mount.

Can the cant create limitations when zeroing at shorter distances?
In some configurations, the angled geometry may require additional downward turret adjustment to achieve a close-range zero. Most modern scopes have sufficient adjustment range to accommodate this without difficulty.

Does MOA/MIL introduce additional stress on the scope tube?
The angled base does not introduce additional mechanical stress because the rings remain coaxially aligned. The scope tube experiences the same clamping forces as it would in a flat mount.

Does cant improve long-range dialing consistency?
Using less extreme turret positions helps maintain consistent internal spring pressure on the erector assembly. This can reduce tracking variation during repeated elevation adjustments.

How does cant interact with zero-stop turret systems?
The zero stop will be positioned further from the mechanical bottom of the scope’s adjustment range. This allows more available elevation travel above the zero stop for long-distance shooting.

Can cant influence scope durability over time?
Operating closer to the center of the adjustment range reduces stress on internal springs and mechanical components. This may contribute to more consistent long-term performance.

Does the QD interface behave differently on a canted mount?
The quick-detach mechanism functions identically to a non-canted version. Lever tension and rail engagement remain the primary factors affecting stability.

Can the mount be used effectively for both mid-range and long-range shooting?
A properly zeroed MOA/MIL mount works normally at intermediate distances. The primary advantage becomes apparent when dialing for extended ranges.

Does cant reduce available downward adjustment?
Some downward adjustment is sacrificed in exchange for increased upward travel. This trade-off is typically acceptable for rifles intended for extended-range use.

Can mount MOA/MIL influence tracking tests or tall-target tests?
Tracking tests remain valid because they measure turret movement relative to the reticle. The mount angle does not change the mechanical relationship between adjustments and reticle movement.
