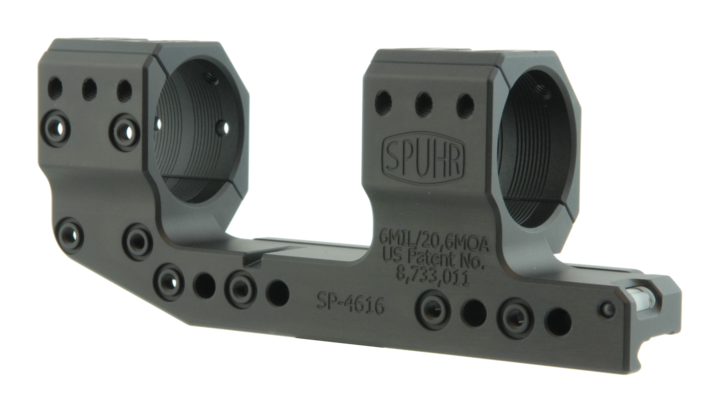

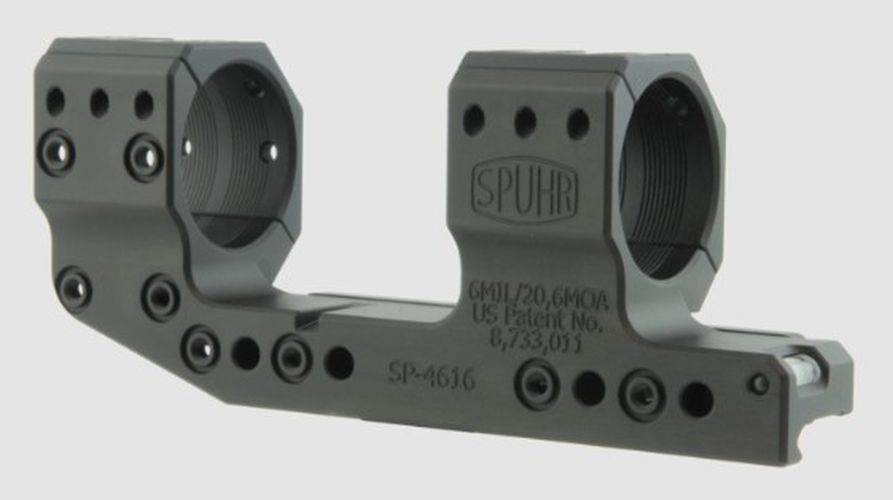

Spuhr ISMS SP-4616 Ø34mm Tube 6 MIL (34 mm High) Cantilever Picatinny Scope Mount

Spuhr ISMS SP-4616 34mm High (38mm) 0 MOA Cantilever Picatinny Mount

Picatinny mount for use on AR10 rifles

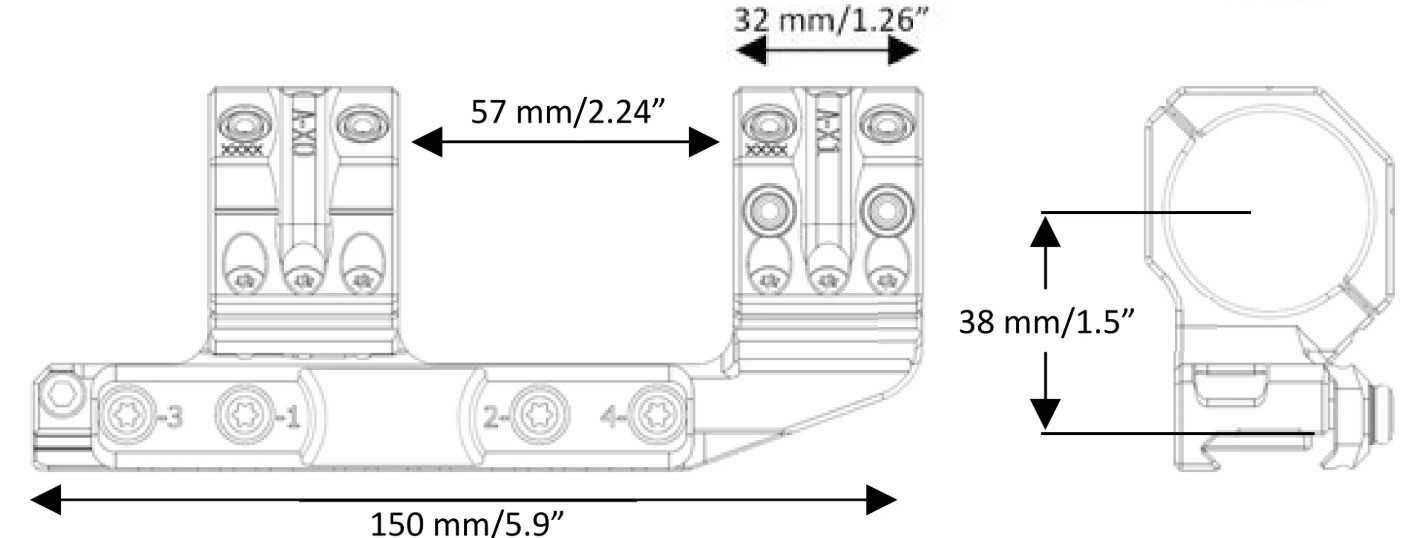

Rings: 34 mm
Tilt: 6 MIL/20.6 MOA
Height: 38 mm/1.5”
Length: 150 mm/5.9”
Weight: 252 g/8.9 oz
Interfaces: 8 sets
EAN: 7340150700331

• Monolithic one‑piece construction - CNC‑machined from a single billet of aerospace‑grade aluminium to eliminate tolerance stacking, flex, and ring misalignment common in multi‑piece mounts.

• High‑rigidity structural geometry - Optimised cross‑section and material distribution provide exceptional torsional and vertical stiffness, maintaining optic alignment under heavy recoil and dynamic loading.

• Hard‑anodised surface treatment - Type III hard anodising delivers excellent abrasion resistance, corrosion protection, and a non‑reflective tactical finish.

• Diagonal ring split design - Improves load distribution around the scope tube while keeping elevation and windage turrets fully accessible, preventing obstruction during adjustment.

• Integrated scope levelling system - Built‑in bubble level allows the shooter to reference rifle cant and optic alignment directly on the mount for precise long‑range shooting.

• Multi‑axis accessory interface -  Machined mounting points on multiple faces of the mount support direct attachment of optical and electronic accessories without adding separate rails.

• Low‑profile accessory mounting - Keeps mounted devices close to the bore axis and centre of mass, preserving rifle balance and minimising parallax and offset errors.

• Precision‑cut recoil lugs and rail interface - Provides repeatable, slip‑free engagement with Picatinny rails for consistent return‑to‑zero performance.

• High‑strength fastener system - Torque‑optimised fasteners maintain clamping force under vibration and recoil, preventing optic movement or zero shift.

• Designed for extreme‑range precision - Engineered to support the mechanical and optical demands of ELR, PRS, and professional long‑range shooting platforms.

How does built-in elevation cant affect mechanical zero optimization?

Integrated cant shifts the optic’s internal adjustment range upward relative to the bore, allowing the erector system to operate closer to its optical center when zeroed at longer distances. This reduces internal spring tension imbalance.

Does MOA/MIL improve tracking consistency during elevation adjustments?

When the erector assembly operates closer to its mechanical center, adjustment tracking tends to remain more consistent because the springs apply more uniform pressure across the adjustment range.

Can MOA/MIL reduce optical distortion at long distances?

Keeping the erector system near its optical center reduces lens edge usage, which can slightly improve image clarity and reduce aberrations during extreme elevation adjustments.

Does forward offset improve shooting ergonomics?

Forward offset allows proper eye relief on rifles with short receiver rails while maintaining a natural head position and consistent cheek weld.

How does the mount handle uneven rail contact surfaces?

The rigid base bridges minor surface irregularities across multiple rail slots, helping maintain alignment even if individual slots are slightly imperfect.

Does ring spacing influence scope durability?

Wider ring spacing distributes recoil forces more evenly along the scope tube and reduces localized stress near the erector housing.

Can mounting position influence elevation travel usage?

Moving the mount forward or backward does not change total elevation travel but can affect shooter comfort and consistency, indirectly influencing long-range precision.

How does torque consistency affect alignment?

Uniform torque across mounting screws ensures even clamping pressure and prevents subtle tilting of the mount body.

Can repeated recoil cycles loosen mounting screws?

Proper torque and screw coatings minimize loosening, but periodic inspection is recommended.

Does the mount maintain alignment after temperature changes?

Uniform expansion across the mount body maintains consistent ring alignment under varying environmental conditions.

How does the mount prevent scope tube slippage?

High friction ring surfaces combined with even torque distribution prevent axial movement of the scope under recoil.

Can over-tightening affect scope tracking?

Excessive ring compression can distort the scope tube and potentially affect erector movement and tracking accuracy.

How does ring alignment influence optical performance?

Precise alignment prevents internal stress that could shift lenses slightly and degrade image quality or tracking precision.

What installation issue most often affects long-range performance?

The most common issue is uneven ring torque which can introduce scope tube stress and reduce tracking consistency.
