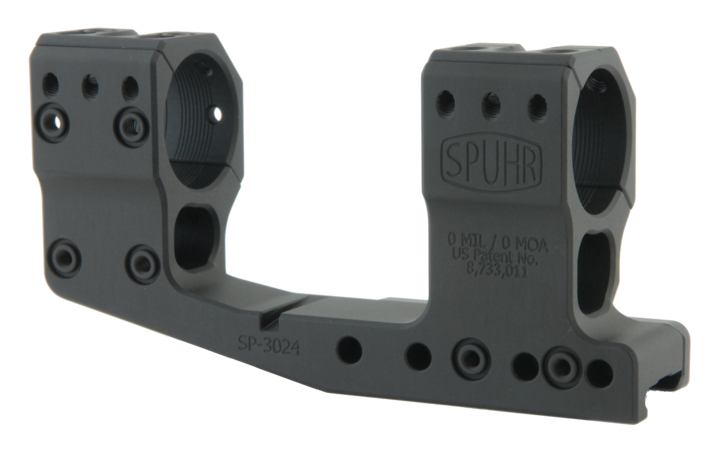

Spuhr ISMS Cantilever One-Piece Picatinny Mount-30mm-0 MOA-48mm
Spuhr ISMS Cantilever One-Piece Picatinny Mount-30mm-0 MOA-48mm
Spuhr
SKU#SP-3024 Spuhr

Spuhr ISMS SP-3024 30mm High (48mm) 0 MOA Cantilever Picatinny Mount

Available soon Notify me when back in stock
    TRY YOUR CHANCE AT WINNING
    WIN A: Caldwell Handy Shooting Rest NXT Rifle/Handgun Bench Rest
    DRAW
    #406
    WIN A: Vortex Venom 5-25x56 EBR-7C MRAD FFP Rifle Scope
    DRAW
    #403
    RRP: £650.00
    376
    £3.46/ticket
    MORE INFO
    WIN A: Bog Havoc Tripod Shooting Stick
    DRAW
    #404
    RRP: £116.99
    422
    £0.73/ticket
    MORE INFO
    PRICE MATCHSeen it Cheaper? We Could Match It!
    EXCHANGE GUARANTEE60 day Scope Out Guarantee
    KLARNA AVAILABLEOn All Our Products
    TRADE IN & PART EXWe'll take your old Optics
    Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.
    Product Information FIND OUT MORE
    DESCRIPTION
    Spuhr ISMS SP-3024 30mm High (48mm) 0 MOA Cantilever Picatinny Mount

    The SP-3024 was designed for applications where an extended cantilever mount is needed, such as when aiming over an illuminator or when aligning with high night vision devices. This mount will also work well for shooter who want to keep their head up for maximum situational awareness.

    The SP-3024 will fit most 30 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK. This mount was designed for use on AR-15 carbines and does not align with back-up iron sights. Due to the extreme cantilever, the SP-3024 does not feature a bubble level as the rest of the ISMS series do.

    Extended high cantilever mount intended for use on AR-platforms with illuminators mounted on top of the handguard. Allows the scope to be mounted 70 mm/2.76” farther forward than with a non-cantilever mount.

    SPECS
    Spuhr ISMS SP-3024 30mm High (48mm) 0 MOA Cantilever Picatinny Mount

    Extended Height Cantilever Mount

    Rings: 30 mm
    Tilt: 0 MIL/MOA
    Height: 48 mm/1.89"
    Length: 140 mm/5.51”
    Weight: 256 g/9.0 oz
    Interfaces: 7 sets
    EAN: 7340150700836

    Extended high cantilever mount intended for use on AR-platforms with illuminators mounted on top of the handguard. Allows the scope to be mounted 70 mm/2.76” farther forward than with a non-cantilever mount.



    FEATURES
    Spuhr ISMS SP-3024 30mm High (48mm) 0 MOA Cantilever Picatinny Mount

    The SP-3024 was designed for applications where an extended cantilever mount is needed, such as when aiming over an illuminator or when aligning with high night vision devices. This mount will also work well for shooter who want to keep their head up for maximum situational awareness. The SP-3024 will fit most 34 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK. This mount was designed for use on AR-15 carbines and does not align with back-up iron sights. Due to the extreme cantilever, the SP-3024 does not feature a bubble level as the rest of the ISMS series do.

    Extended high cantilever mount intended for use on AR-platforms with illuminators mounted on top of the handguard. Allows the scope to be mounted 70 mm/2.76” farther forward than with a non-cantilever mount.

    Features
    Ideal Scope Mount System

    Extremely sturdy scope mount, with possibility to attach multiple optical accessories directly to the mount. Built-in level. 45-degree split of the rings provides unobstructed view of the knobs.

    Durability

    Prevents damage on scope due to flexing during heavy recoil or rough handling. The snipers rifle and the spotter’s carbine can have the same mount, enabling the use of the same or shared equipment and accessories.

    Scope rotation

    Innovative solution for indexing the rotation of the scope, using the included tool/gauge to index the scope correctly to the mount and gun. This is very important since if the scope is not properly indexed there will be an unintended lateral shift of the point of impact whenever the elevation is adjusted.

    Mounting placements

    Traditionally lasers have been mounted on the forend of the rifle, a solution with drawbacks. For the same reasons you don’t want your barrel to touch the forend you don ́t want the sights to be mounted on the forend. Our mounting system have up to seven interfaces for accessories, and the laser can easily be attached to the scope mount, providing the advantage of undisturbed laser and having the weight close to the centre of the gun instead of forward.

    Tilt

    Mounts can be delivered in various tilts. The tilt is clearly engraved on the mount, in both MIL and MOA.
    Accessible and readable dials

    The rings are cut at 45 degrees instead of horizontaly, providing several advantages; the screws holding the parts together are not obscuring the knobs, thus the shooter can quickly determine the settings of the knobs.It also gives the shooter a horizontal reference line helping the shooter subconsciously to avoid canting the rifle to the side.

    The rings have index marks on the top and right side, making low knobs more easily readable.

    Accessories

    Provides use of various accessories such as angle cosine indicator (ACI), back up sights, lasers, illuminators, night vision mounts etc. with a minimized ”footprint”. With traditional mounts this can only be achieved if there is sufficient space on the middle tube for additional rings, which there rarely is. The ”Ideal Scope Mount System”™ have interface surfaces directly on the mount, making it possible to mount accessories either by Picatinny rails or as direct interfaces. A selection of interfaces for popular accessories are available, and others can be made to customer specifications.

    Level

    The sight mount have a level included in the rear of the mount.
