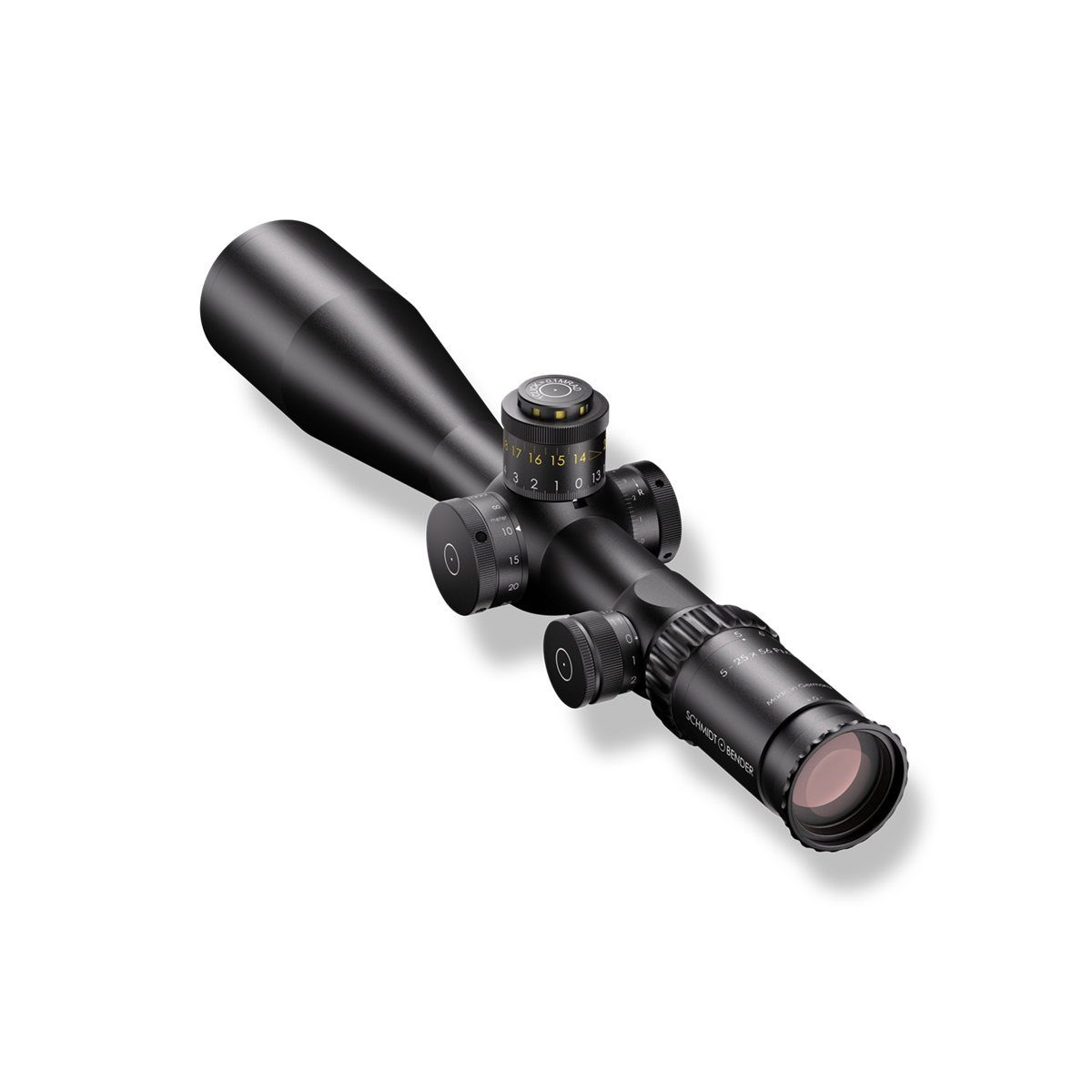

Schmidt & Bender PM II LP 5-25x56 FFP Illuminated P5FL DT/ST 1cm ccw 0.1 MRAD Rifle Scope
- Versatile magnificiation range : 5-25x
- 56mm objective
- Top quality German Optics
- 34mm Main tube
- 27 MRAD of internal adjustment
- Illuminated
- The latest P5FL reticle
- Ultra flat Double Turn (DT27):
- Magnification Ring:
- Diopter Adjustment:
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Schmidt & Bender PM II 5-25x56 has set the benchmark for the industry in terms of optical quality and mechanical reliability and this latest version is set to be no different. A new ocular design makes Schmidt & Benders already best seller even more operable: a redesigned magnification ring is made out of solid aluminum and can accommodate our Throw Lever. The versatile magnification range, superb optics and rugged realiability makes it a true all rounder. It is perfect for the hunter who is looking to hit the range occasionally to the out and out competition shooter who is looking to win the league year on year this scope will have you covered.
In addition, the diopter adjustment can now mount Schmidt's military grade Polarization Filter via a thread as well as Tenebraex caps without needing any bulky adapters.
The addition of the new first focal plane P5FL reticle means this rifle scope has the latest technology in terms of reticle hold off points. It provides a clean but informative reticle that keeps the FOV uncluttered and allows an easy transfer for shooters who are used to the P4FL reticle to transition easily onto the P5FL. The P5FL provides fine reticle increments around the center of the reticle allowing for quick holds off when precision rifle shooting or engaging on moving targets in tactical uses.
The turrets of the PM II 5-25x56 have also been supplied with the classic and trusted Double turn system providing a yellow window indicatating your second rotation of elevation. Which is one of the easiest and clearest systems still available on the market.
Due to its great magnification range and well-engineered performance, the Schmidt & Bender PM II 5-25x56 has always been very popular among military/police units as well as competition shooters which are demanding the best of the best & this new incarnation is set to be no different.
Offering a vast variety of options, the customer can choose exactly the optic they are after.
- Field of View m/100 m: 5.3 - 1.5
- Magnification: 5-25x
- Objective Lens Diameter: 56mm
- Tube Diameter: 34mm
- Exit Pupil (mm): 10.95 - 2.28
- Eye Releif Distance (mm): 90
- Twighlight Factor: 14.1 - 37.4
- Transmission: 90%
- Optical Data Dptr.: -3/+2
- Parallax Adjustment: 10 m - ∞
- Weight (g): 1080
- Colours: Black, RAL 8000
- Reticle: PF5L Reticle
Click Value:
| Click value | Elevation | Windage | Direction | Single Turn | Double Turn |
| 0.1 MRAD | 0 BIS 26 MRAD | ± 6 MRAD | ccw | x | |
| 0.1 MRAD | 0 BIS 26 MRAD | ± 6 MRAD | cw | x | |
| ¼ MOA | 0 BIS 65 MOA | ± 16 MOA | cw | x |
- Versatile magnificiation range : 5-25x
- 56mm objective
- Top quality German Optics
- 34mm Main tube
- 27 MRAD of internal adjustment
- Illuminated
- The latest P5FL reticle
- Ultra flat Double Turn (DT27):
The 5-25x56 PM II features now the well-proven low-profile double turn elevation turret which is capable of 27 MRAD (DT27). It perfectly supports the use of an additional red dot sight for close distances. Although being very compact, it maintains all essential features of a Double Turn turret such as a visual and tactile yellow-colored revolution indicator, locking function, MTC clicks and easy to read digits.
- Magnification Ring:
The new magnification ring is now fully rugged and is made out of solid aluminum. It has been further optimized and now features a magnification ring with deep grooves for a better grip which also allows to accommodate our Throw Lever (see page 49).
- Diopter Adjustment:
In addition, the diopter has been redesigned in order to attach our military grade Polarization Filter Ocular via a thread. The ribbed structure of the diopter adjustment makes it suitable for the tactical Tenebraex Ocular Lens Cover.
P5FL Reticle:
CLEAN RETICLE DESIGN REDUCED TO THE MOST IMPORTANT ESSENTIALS
The new P5FL basically resembles the popular pattern of our well-known P4FL reticle which was initially designed for military snipers and has been well-proven around the globe. Refl ecting the ongoing technical evolution, the new P5FL represents a slight upgrade without forcing the operator to get used to a completely new reticle design.
The familiar illuminated red cross in First Focal Plane (FFP) keeps the known dimensions but now features a free-fl oating illuminated center dot which allows for a more precise shot placement. Therefore, it is perfect for competition shooters and modern hunters alike who prefer a clean reticle design which is reduced to the most important essentials without distracting features. Since being in FFP, the reticle and the image of the target are enlarged or reduced simultaneously as the magnification is changed. The relationship between target and reticle remains unchanged, regardless of the chosen magnification. Consequently, clearly marked and numbered hash marks are perfect for estimating distances and for quick bullet drop or side wind corrections.
The horizontal outer bars are skeletonized, making it possible to use the reticle to the very edge without covering up the target. Those who are already enjoying the P4FL reticle will find confidence in the new P5FL reticle.
5x-Zoom:
25x-Zoom:
- Schmidt & Bender PM II LP 5-25x56 FFP P5FL DT/ST 1cm ccw Rifle Scope.
Schmidt and Bender Lifetime Guarantee:
Schmidt & Bender provides you a lifetime guarantee on the performance of their new riflescopes, which includes a twenty years ready on stock parts availability, ten years warranty on assembled parts and a limited two years warranty on electronics.
With this Schmidt & Bender product, you are purchasing a high quality, handcrafted product for which they provide a warranty in accordance with the following terms and conditions: Guaranteed twenty (20) years spare parts availability. Worldwide manufacturer‘s warranty for the period of ten (10) years from the date of purchase (end customer). For electronic components and accessories, the warranty period is two (2) years. Product registration can extend the manufacturer‘s warranty period by an additional two years to twelve (12) years.
