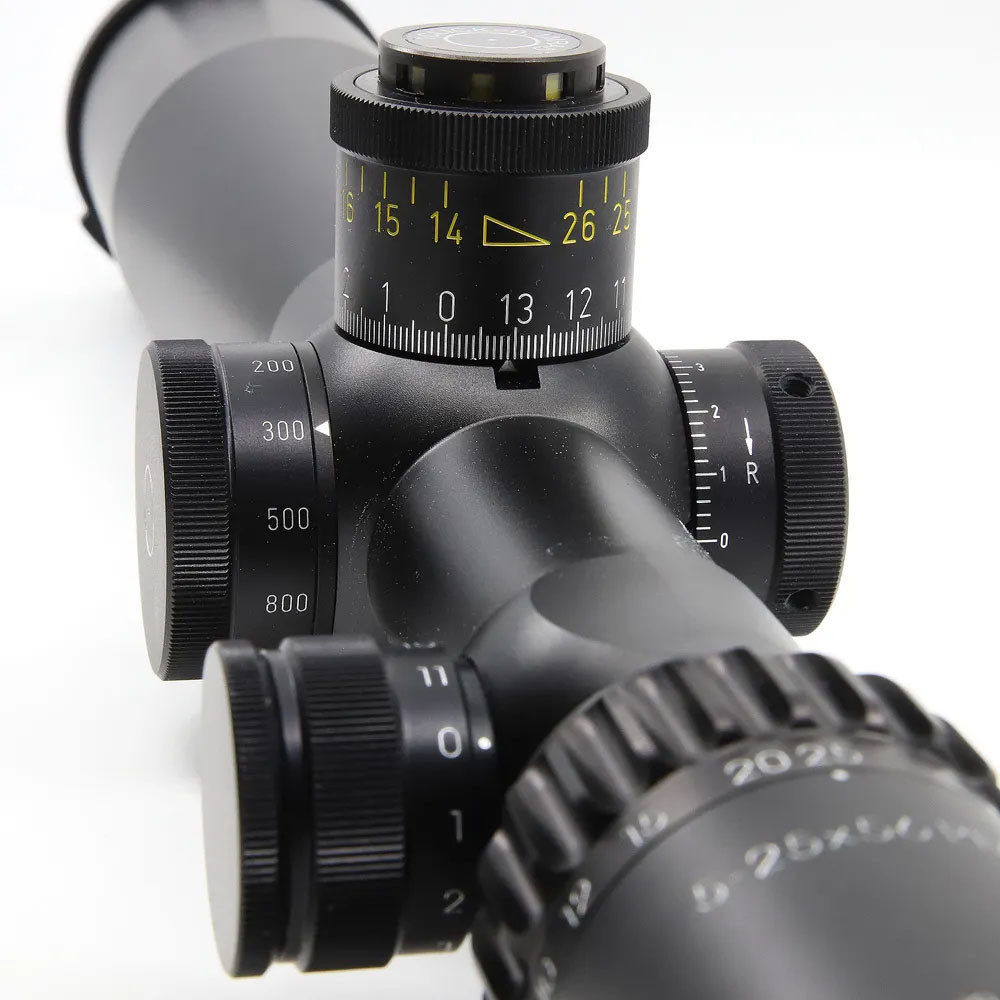

Schmidt & Bender PM II 5-25x56 LP Illuminated FFP MSR2 DT / ST 0.1 mrad ccw Rifle Scope
- Versatile magnificiation range : 5-25x
- 56mm objective
- Top quality German Optics
- 34mm Main tube
- 26 MRAD of internal adjustment
- Illuminated
- The latest MSR2 reticle
- Classic Double Turn Elevation system with yellow window (DT26):
- Magnification Ring:
- Diopter Adjustment:
The Schmidt & Bender PM II 5-25x56 has set the benchmark for the industry in terms of optical quality and mechanical reliability and this latest version is set to be no different. A new ocular design makes Schmidt & Benders already best seller even more operable: a redesigned magnification ring is made out of solid aluminum and can accommodate our Throw Lever. The versatile magnification range, superb optics and rugged realiability makes it a true all rounder. It is perfect for the hunter who is looking to hit the range occasionally to the out and out competition shooter who is looking to win the league year on year this scope will have you covered.
In addition, the diopter adjustment can now mount Schmidt's military grade Polarization Filter via a thread as well as Tenebraex caps without needing any bulky adapters.
The addition of the new first focal plane MSR2 reticle means this rifle scope has the latest technology in terms of reticle hold off points. It provides a clean but informative reticle that keeps the FOV uncluttered and allows an easy transfer for shooters who are used to the MSR1 reticle to transition easily onto the MSR2. The MSR2 provides fine reticle increments around the center of the reticle allowing for quick holds off when precision rifle shooting or engaging on moving targets in tactical uses.
The turrets of the PM II 5-25x56 have also been supplied with the classic and trusted Double turn system providing a yellow window indicatating your second rotation of elevation. Which is one of the easiest and clearest systems still available on the market.
Due to its great magnification range and well-engineered performance, the Schmidt & Bender PM II 5-25x56 has always been very popular among military/police units as well as competition shooters which are demanding the best of the best & this new incarnation is set to be no different.
Offering a vast variety of options, the customer can choose exactly the optic they are after.
Weight (g) | 1065 - 1125 |
Length (mm) | 420 |
Tube diameter (mm) | 34 |
Magnification | 5-25x |
Objective lens diameter (mm) | 56 |
Field of view (m) | 5.3 - 1.5 |
Exit pupil (mm) | 11.0 - 2.3 |
Eye relief distance (mm) | 90 |
Twilight factor | 15.8 - 31.6 |
Transmission | 90 |
Focal plane | 1. |
Diopter | -3 to+2 |
Parallax adjustment | yes, 10 to ∞ |
Illumination | yes, 11 settings |
Adjustment | DT ST |
Adjustment Value/Click | 0.1 mrad | ¼ MOA |
Elevation (Turret) | 26 mrad | 65 MOA |
Windage (Turret) | ±6 mrad | ±16 MOA |
Adjustment | DT MTC LT / ST ZC CT |
Adjustment Value/Click | 0.1 mrad |
Elevation (Turret) | 272 cm/100m |
Windage (Turret) | ±60 cm/100 |
Adjustment | DT II+ MTC LT / ST II ZC LT |
Adjustment Value/Click | 0.1 mrad |
Elevation (Turret) | 26.5 mrad |
Windage (Turret) | ±6 mrad |
Adjustment | MT II MTC LT / DT II+ ZC LT |
Adjustment Value/Click | 0.5 cm/100 m |
Elevation (Turret) | 295 cm/100 m |
Windage (Turret) | ±65 cm/100 m |
Waterproof (m) | 3 m (25 On request) |
Temperature Range | |
Storage | -55 to 71°C |
Function | -46 to 60°C |
Turret Types | cw/ccw |
Colours | Black, RAL 8000 |
Reticles | GR²ID (FFP), H59 (FFP), LRR-MIL (FFP), MSR2 (FFP), P4FL (FFP), P4FL-MOA (FFP), P5FL (FFP), Tremor3 (FFP), Gen II XR (FFP) – (On request), P4FL (SFP) – (On request) |
- Versatile magnificiation range : 5-25x
- 56mm objective
- Top quality German Optics
- 34mm Main tube
- 26 MRAD of internal adjustment
- Illuminated
- The latest MSR2 reticle
- Classic Double Turn Elevation system with yellow window (DT26):
- Magnification Ring:
The new magnification ring is now fully rugged and is made out of solid aluminum. It has been further optimized and now features a magnification ring with deep grooves for a better grip which also allows to accommodate our Throw Lever (see page 49).
- Diopter Adjustment:
In addition, the diopter has been redesigned in order to attach our military grade Polarization Filter Ocular via a thread. The ribbed structure of the diopter adjustment makes it suitable for the tactical Tenebraex Ocular Lens Cover.

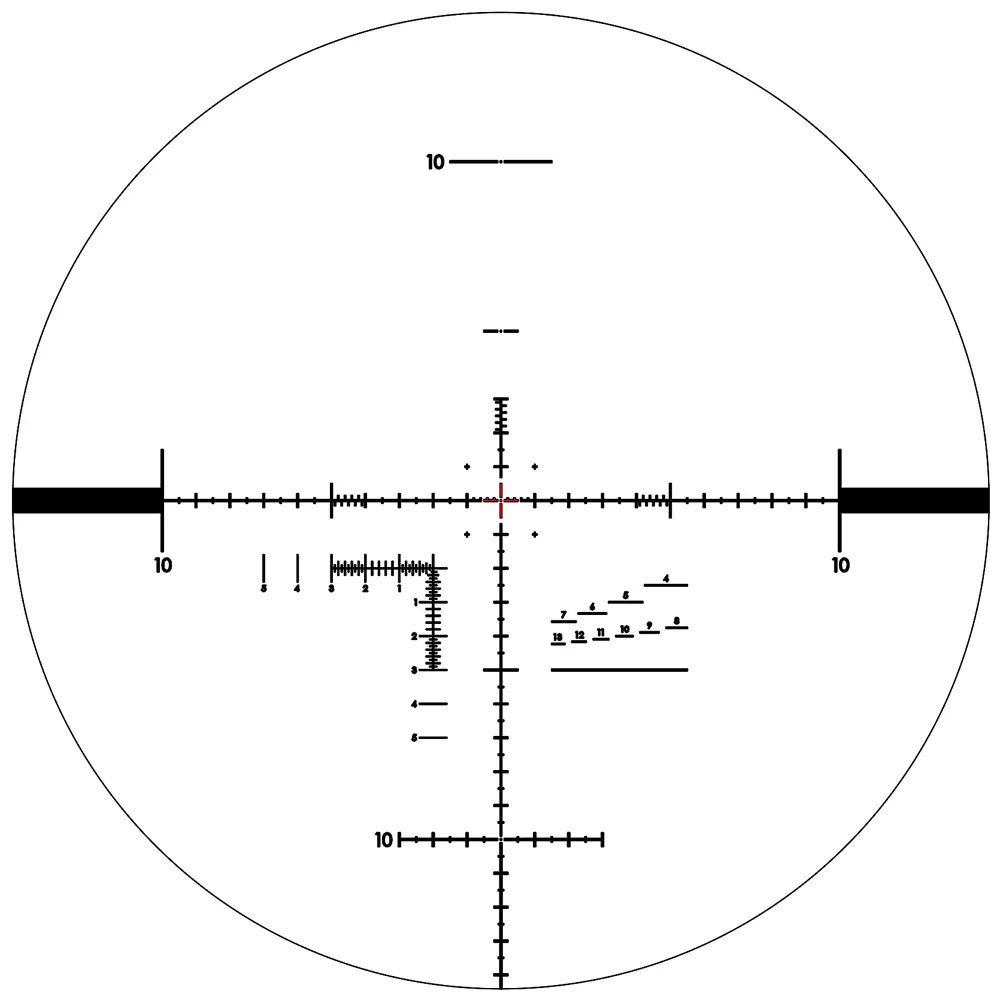

The original MSR concept was released in 2009. The idea for the reticle was born from the needs of longrange field shooters. These principles are also valid and carry over to many sport shooters and hunters -
those who appreciate and need practical usable precision, in any situation and all conditions.
The original designers consisted various types of experienced professionals; active and retired military, Law
Enforcement Officers and competitive long-range shooters. Many members of the design team were also
passionate hunters at the same time, so the MSR design functionality was considered from various perspectives.
After many successful years from that original release, MSR2 features are updated and optimized to match
or exceed even the most demanding modern needs. Since its original inception there have been many advances, and changes within the precision rifle shooting world. Scope magnification ratios have increased
just to mention one - as well as the general knowledge level among advanced scoped rifle users.
The original designing key points were a clean overall look with dedicated areas for precise but simple multitasking. Each MSR2 reticle area can also be used in various ways too, as explained in this manual.
MSR2 has new features, yet with further development of original design features, all carefully benchmarked and fine-tuned for the most optimized usability. Dozens of test combinations were used in the development phase, some incorporated into final prototype scopes for further evaluation and final analysis.
Countless individual aspects had to be considered in design, especially line or object weight balancing
which is always difficult with any reticle. This was a particularly sensitive issue with MSR2 where optimization had to be balanced uniquely for various types of use, and design had to truly perform through wide
magnification range, features that we believe MSR2 does better than any other reticle.
All in all – MSR philosophy opens up the possibility of getting the full potential from your premium riflescope whether it is: shooting, viewing, observing or spotting. Near, far or extremely long ranges. Daytime or
dusk, with or without image intensifiers. MSR2 offers clear system for less experienced shooters- but still
offers much more as skills accumulate.
MSR2 functionality starts from the very lowest 3x magnifications, scaling up to the very highest magnifications on the market - 45x included. It covers the widest spectrum of practical precision shooting: MIL/LEO
users, professionals, precision shooting enthusiasts and hunters too globally. We are proudly convinced it
does it better than any other reticle on market. MSR has been used up to 4000m /4400yd shots successfully
– and can be used beyond this distance too.
The MSR reticle is milliradian/ 6283 mil circle based, and is always located in the first focal plane. All dimensions are valid with all magnifications and distances. Turret clicks always match the reticle – 10 clicks of
0.1mrad shift the impact amount the matching distance between the 1mrad deviation base-hashmarks - at
any distance and with any magnification. Simple, precise and efficient.
Note: MSR and MSR2 dimensions are always fine-tuned according to scope specifications and magnification
range. There can also be some design difference variations between scope manufacturers. Check your scope
manufacturer for detailed specification sheet.
- Schmidt & Bender 5-25x56 PM II LP MSR2 1cm ccw DT / ST Rifle Scope
- Tenebraex covers
- 10 year warranty
