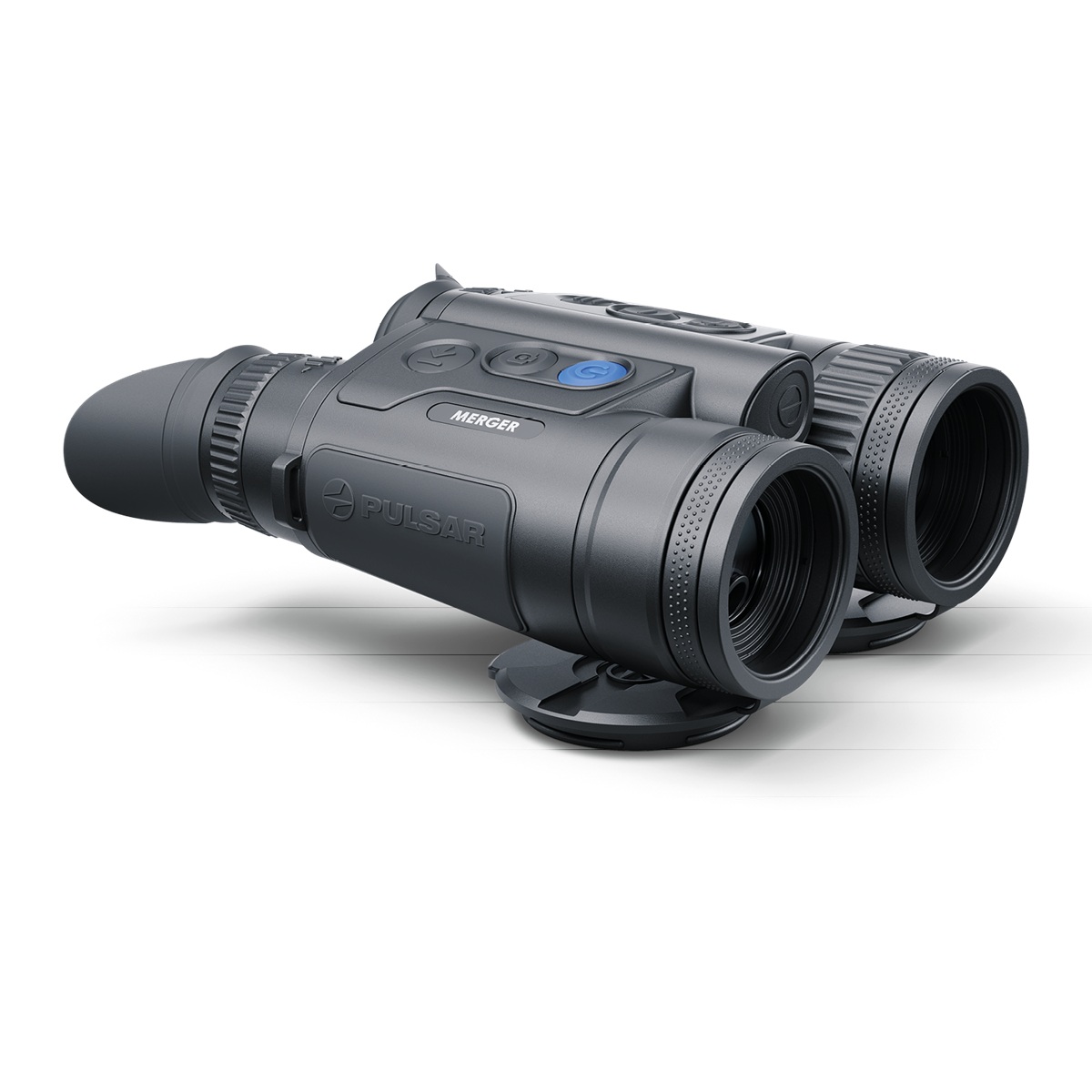

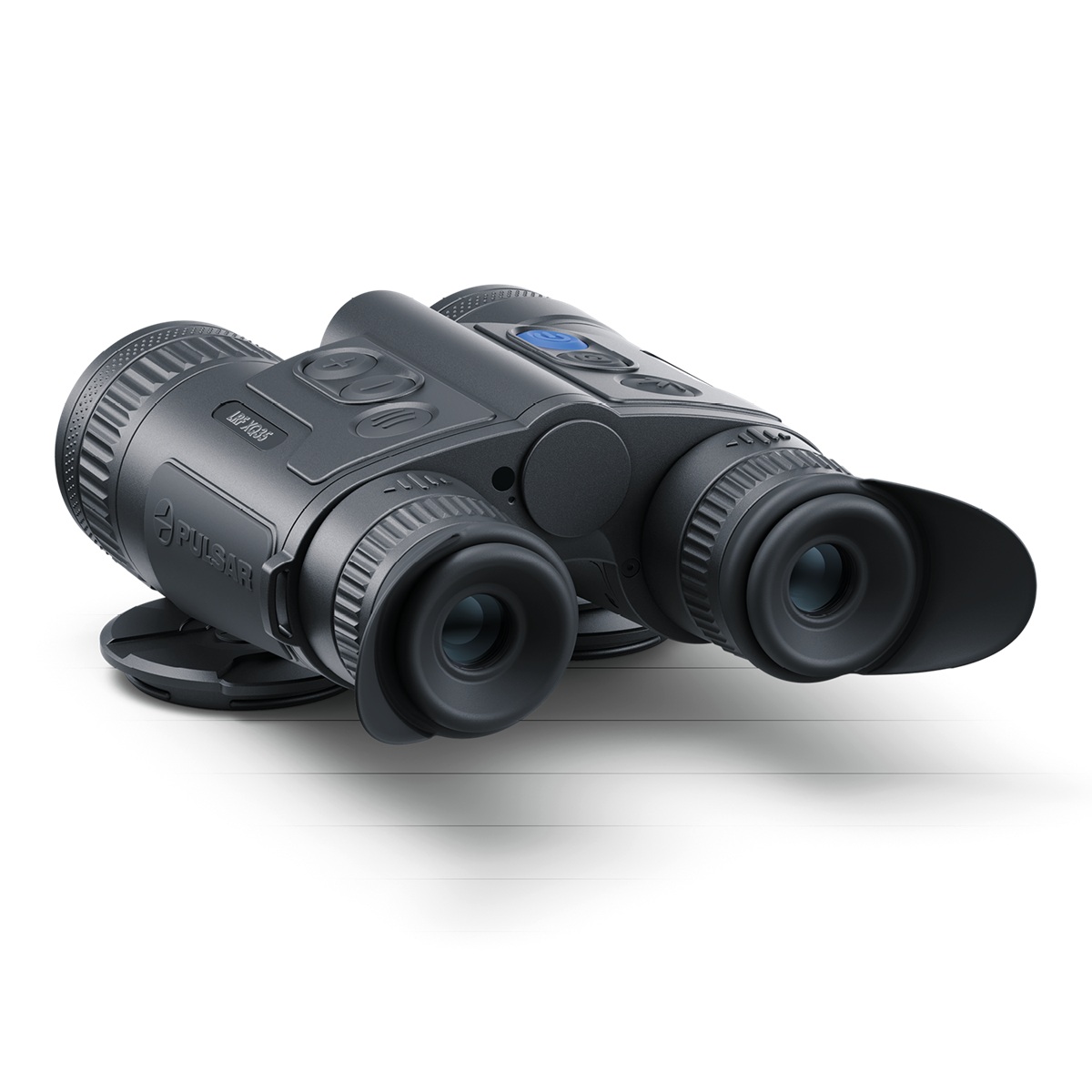

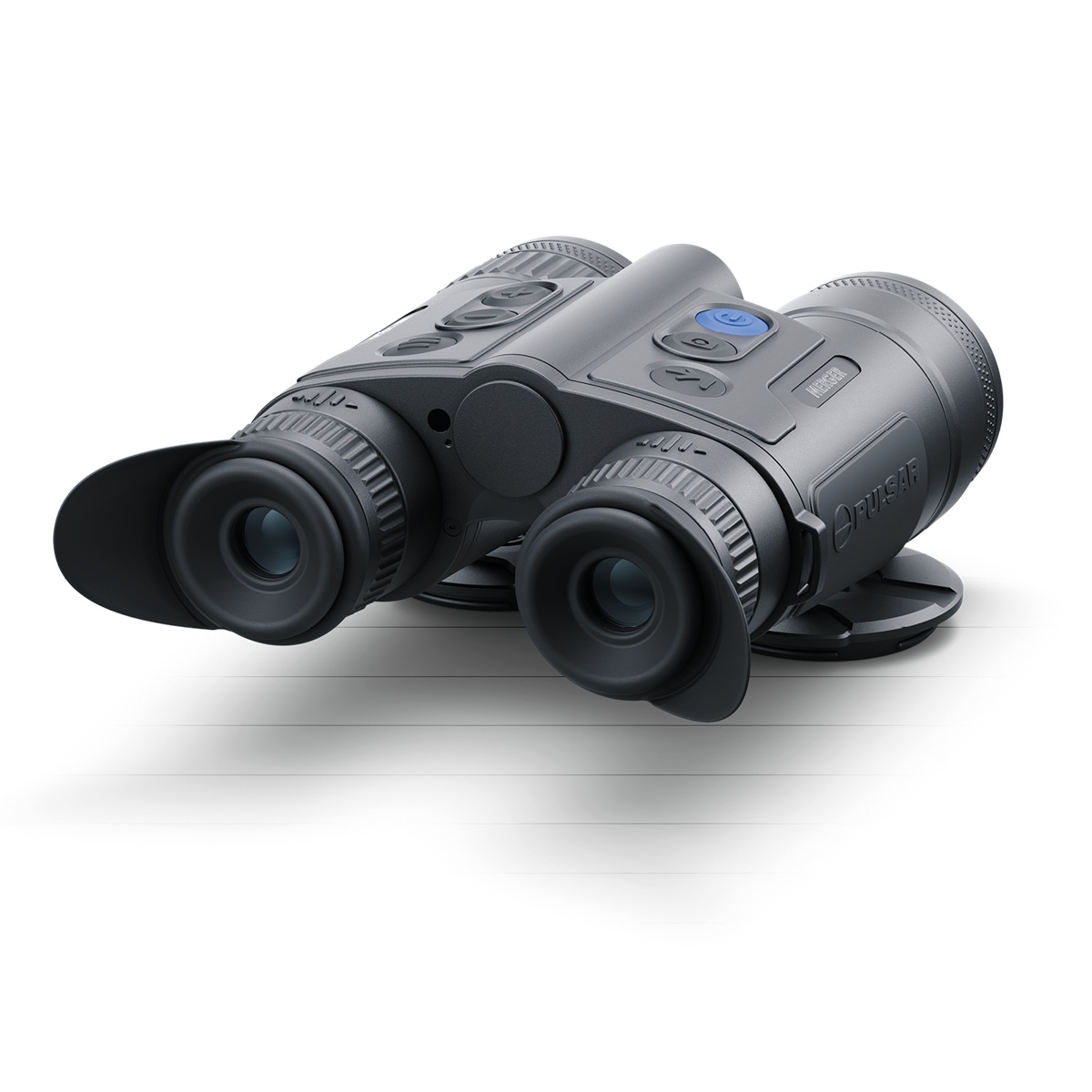

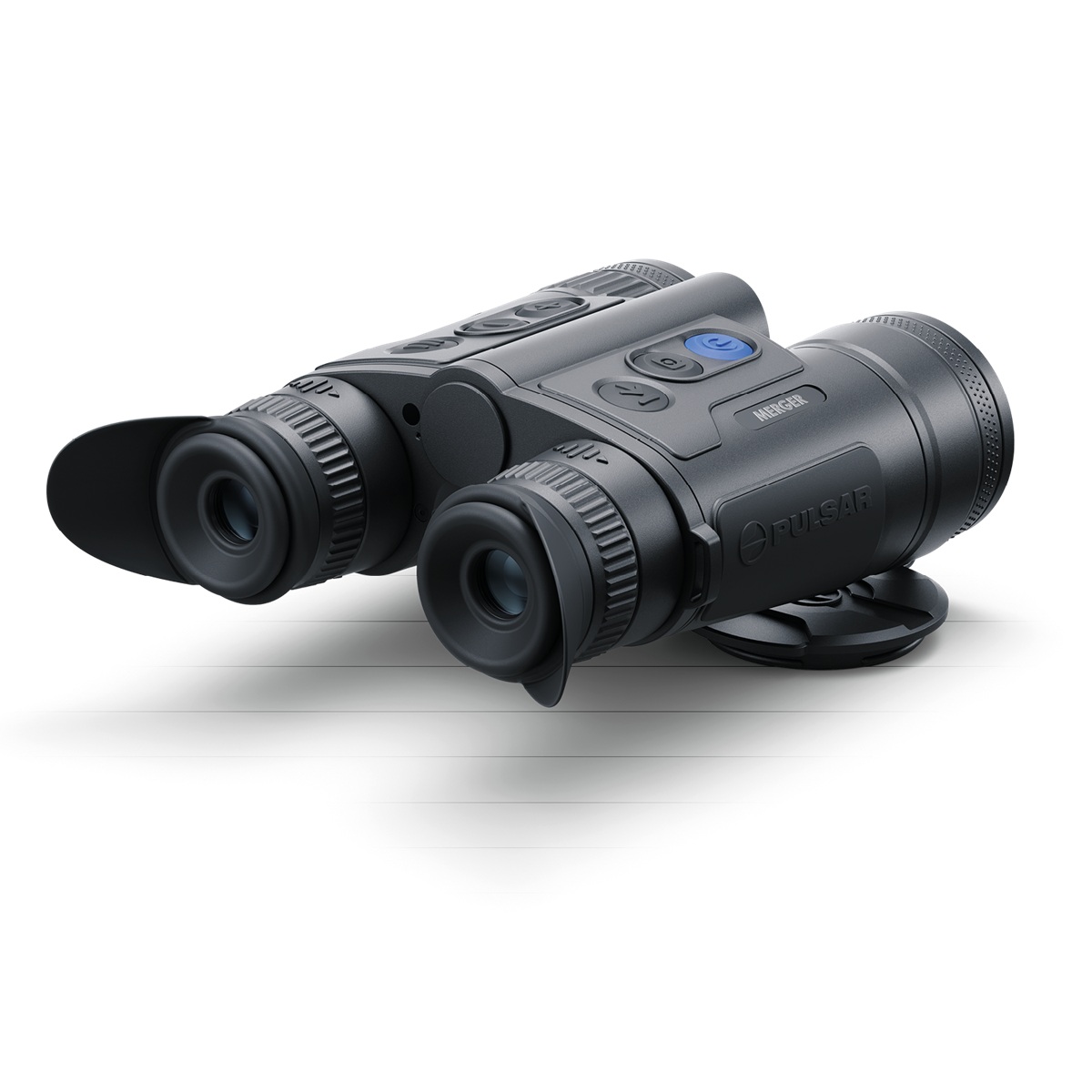

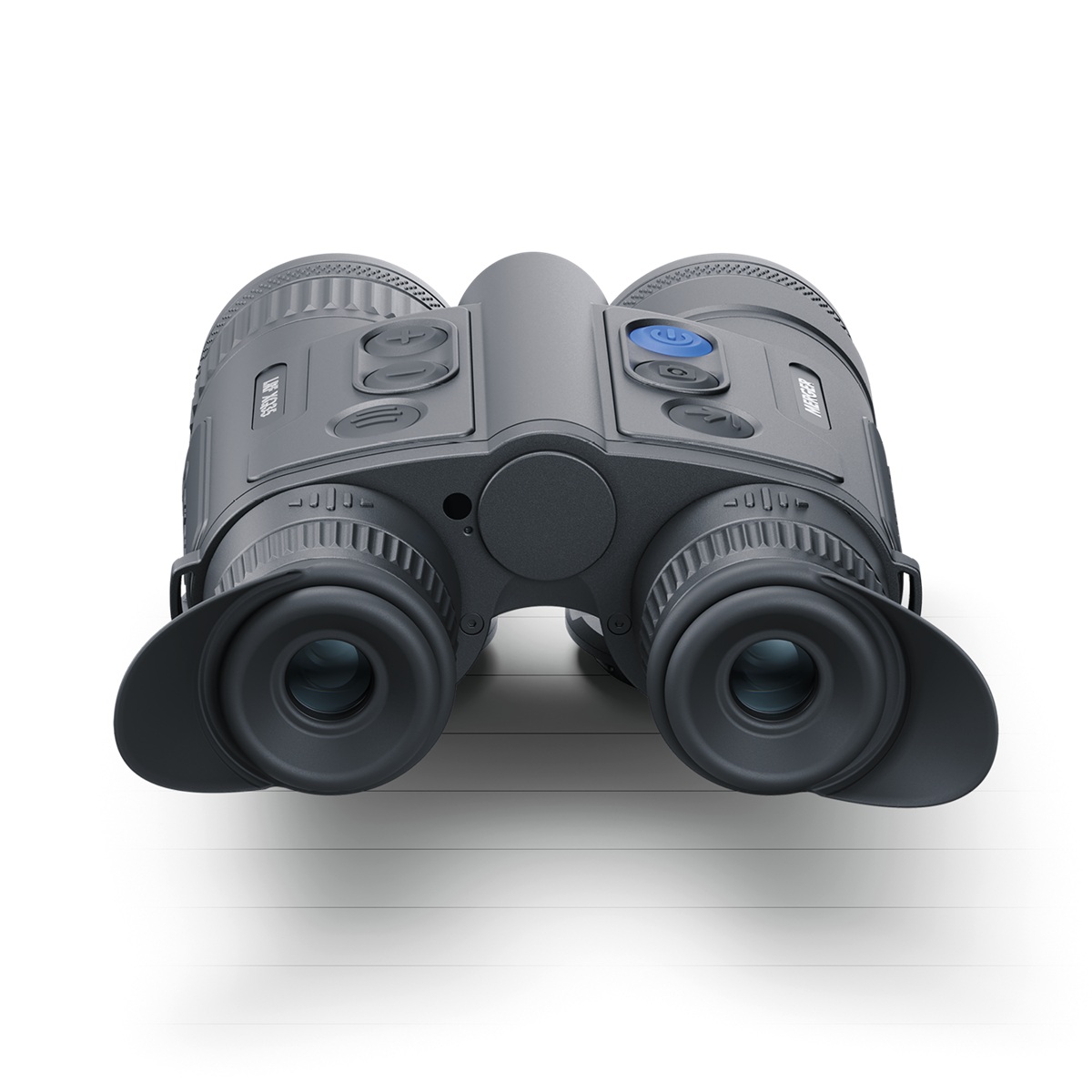

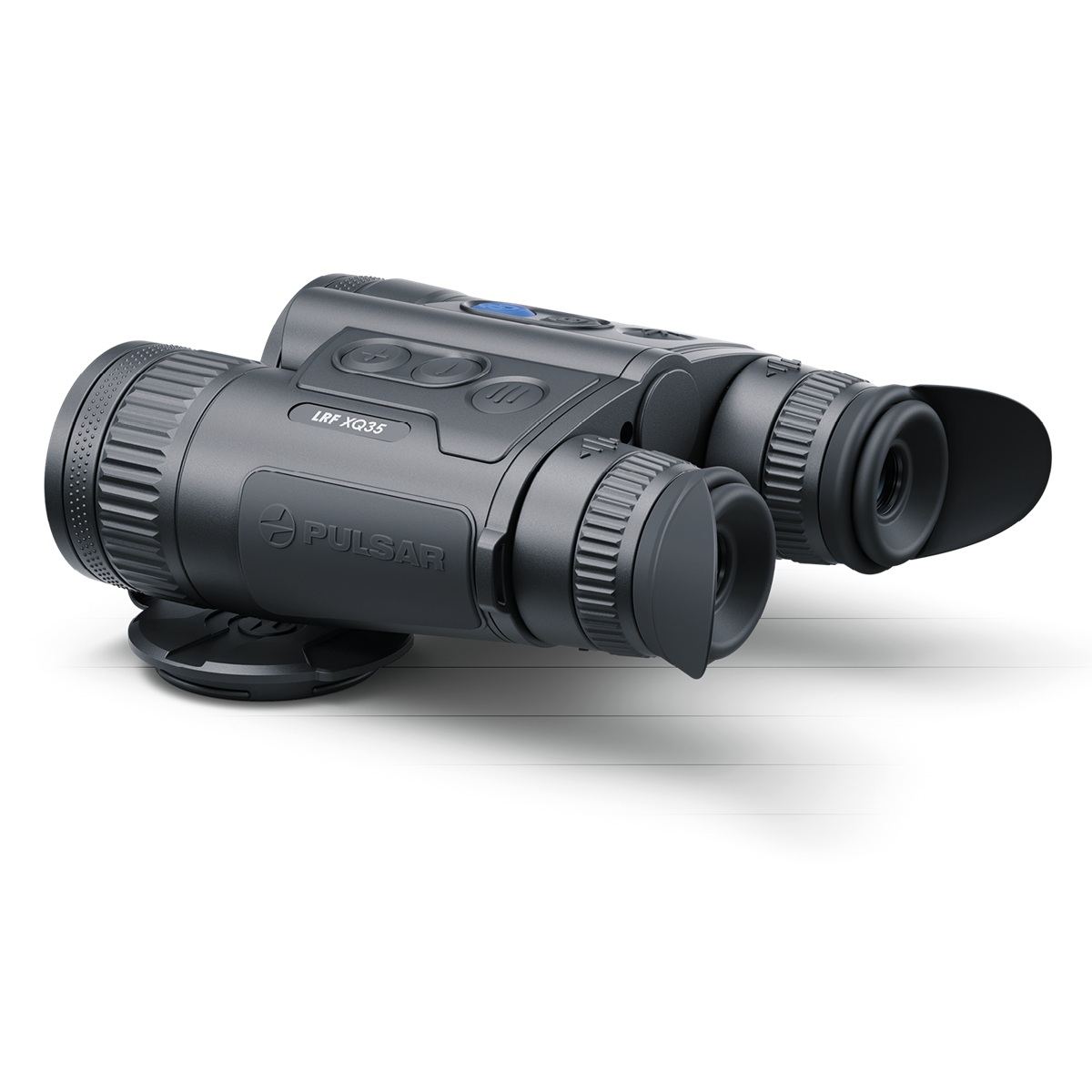

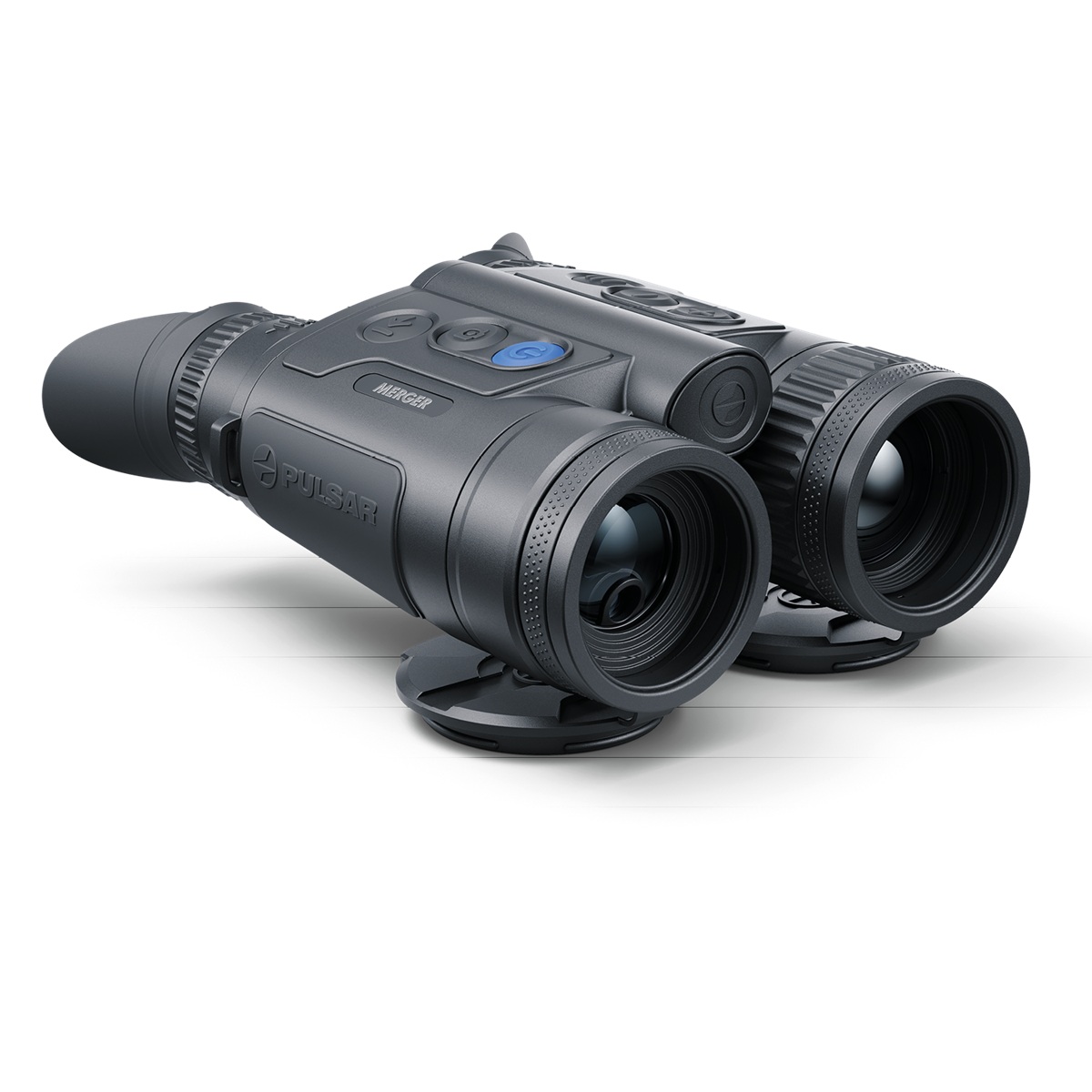

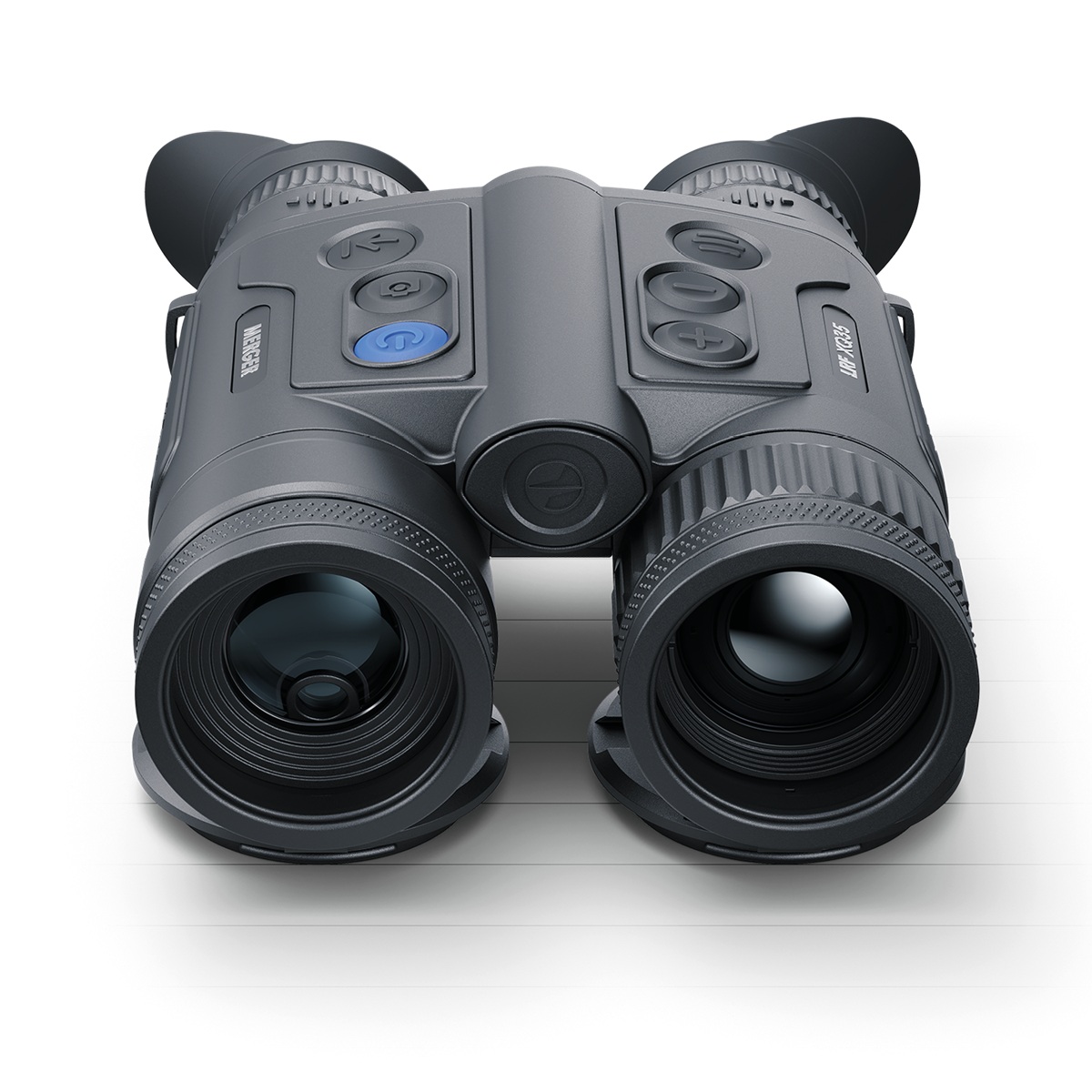

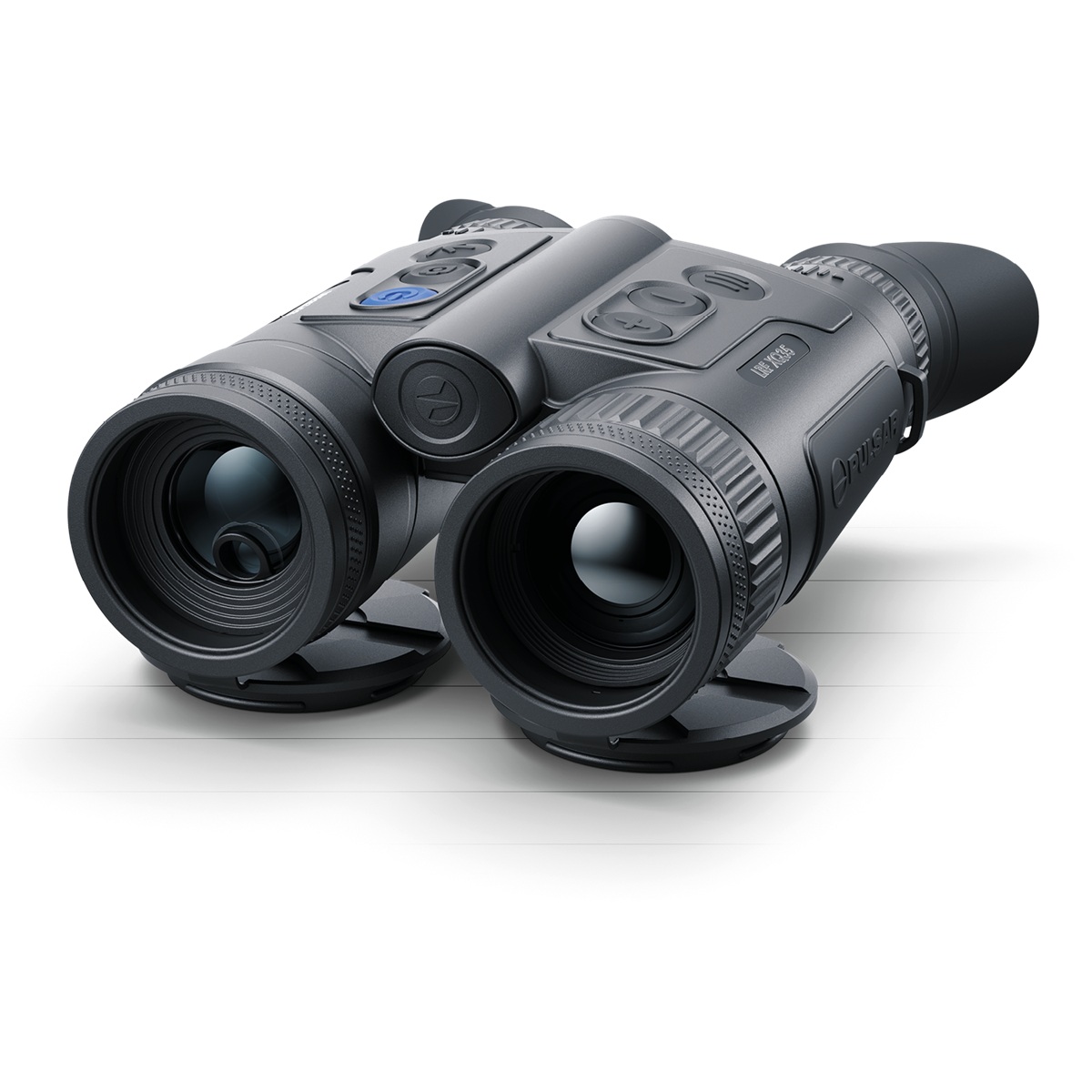

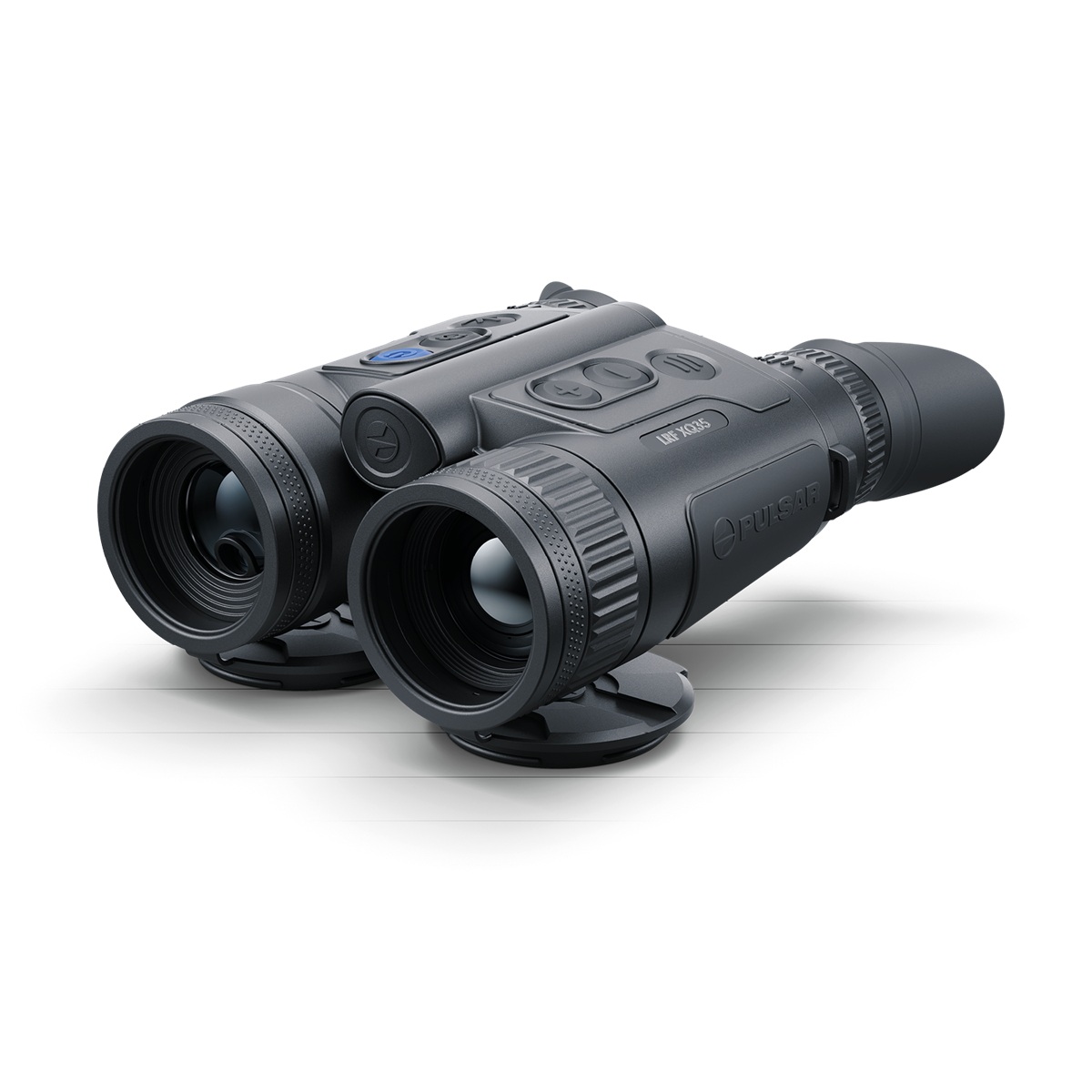

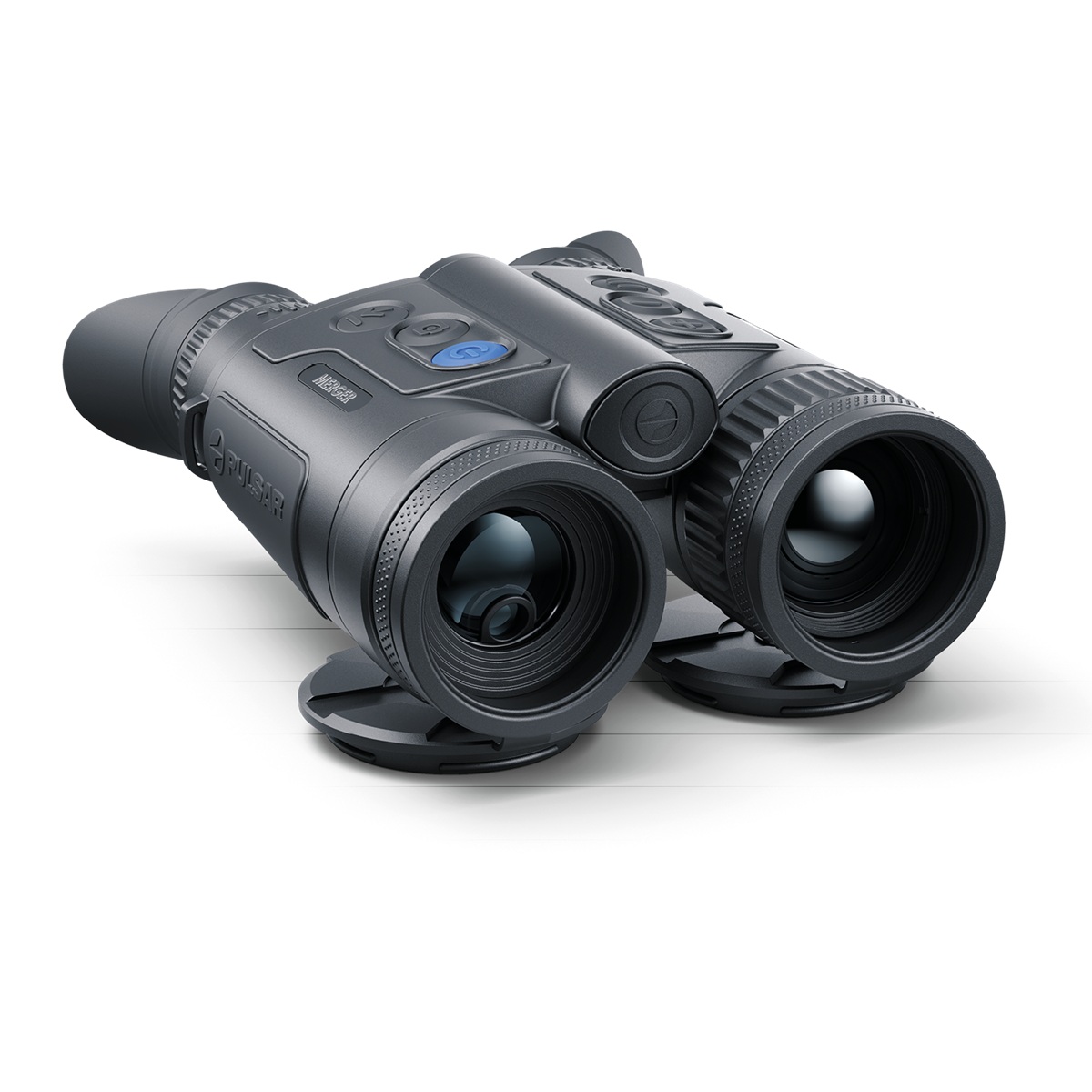

Pulsar Merger LRF XQ35 Laser Rangefinding Thermal Binoculars - 384x288 17µm <25mK

SKU#PUL-77483 Pulsar

Pulsar Merger LRF XQ35 Laser Rangefinding Thermal Binoculars - 384x288 17µm <25mK

Name: Pulsar Merger LRF XQ35 Laser Rangefinding Thermal Binoculars - 384x288 17µm <25mK
Brand: Pulsar
Price: 1999 GBP
Availability: OutOfStock

Available soon Notify me when back in stock

The Pulsar Merger LRF XQ35 is proper premium handheld thermal gear—comfortable binocular-style viewing with a 384×288 sensor, ultra-sensitive <25mK NETD, and a smooth 50Hz refresh that keeps everything clean and easy to track in real time. It’s got a 35mm lens that gives you solid detection out to around 1350m, plus a built-in laser rangefinder so you know exactly how far everything is without guessing. Ergonomic, lightweight for binoculars, and built for long sessions, it’s basically a fatigue-free way to scan huge areas in the dark.

-Nathan (Technical Advisor)

VIEW PRODUCT INFO / SPECS

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The Pulsar Merger LRF XQ35 Thermal Binoculars combine a compact, lightweight design with professional-grade thermal performance. Featuring a 384×288, 17µm, <25mK Lynred thermal sensor and a 35mm f1.0 fast-aperture lens, these binoculars provide clear, detailed images up to 1350m. Integrated HD AMOLED displays, a precision laser rangefinder (accurate to ±1m at 1000m), and an ergonomic, classic binocular design ensure comfortable, fatigue-free observation. With dual batteries delivering up to 11 hours of use, eight colour palettes, Wi-Fi connectivity, and Stream Vision 2 support, the Merger LRF XQ35 is ideal for extended field observation and professional thermal detection.

SPECS

Sensor 384×288, 17µm
Objective Lens F35 / 1.0
Magnification 3 – 12x (x4 digital zoom)
Field of View (HxV) 10.7° x 8° / 18.7 x 14 m @ 100m
Interpupillary Distance Adjustment 62 – 74 mm
Eye Relief 15 mm
Display AMOLED HD, 1024×768 pixels
Laser Rangefinder Max Range 1000 m
Measurement Accuracy ±1 m
Laser Safety Class IEC 60825-1
Wavelength 905 nm
Video/Photo Resolution 1024×768
Video/Photo Format .mp4 / .jpg
Built-In Memory 16 GB
Wireless Protocol Wi-Fi, IEEE 802.11 b/g/n/ac (WPA), 2.4 / 5 GHz
Degree of Protection IPX7 (waterproof)
Operating Temperature Range -25 – +50 °C
Mount Type 1/4″ socket
Supported Application Stream Vision 2
Output Voltage 3.7 V
Battery Type Dual Li-Ion (APS3 3.2Ah removable + 4.0Ah built-in)
Operating Time Up to 11 hours
External Power Supply 5V (USB Type-C)
Body Material Magnesium alloy
Dimensions 181 × 133 × 68 mm
Weight 0.83 kg (with batteries)

FEATURES

Unparalleled Thermal Clarity – compact design delivers high-resolution thermal imagery up to 1350m.
Powerful Thermal Detection – 384×288, 17µm, <25mK NETD sensor with fast 35mm f1.0 lens ensures clear imaging in all conditions.
Lightweight & Compact – fits comfortably in the hand with balanced weight distribution for fatigue-free observation.
Familiar Ergonomic Design – classic binocular aesthetics with six easily accessible function buttons for quick operation.
Precision Laser Rangefinder – provides accurate distance measurements in single-step or continuous scanning modes.
Proximity Sensor – automatically switches displays off when lowered, preserving stealth and saving power.
Dual Battery System – combined built-in and removable batteries provide up to 11 hours of operation, with tactile embossments for easy replacement in darkness.
Sensitivity Amplification – three adjustable levels with filtration algorithms improve long-range observation and detail recognition.
Eight Colour Palettes – optimise thermal observation for detection, recognition, and night-time comfort.
Calibration Modes – Manual, Semi-Automatic, and Automatic calibration ensure consistent image quality.
Durable & Waterproof – magnesium alloy housing with IPX7 protection withstands harsh environments.
Built-In Video & Image Recording – capture and store images/videos on 16GB internal memory or Stream Vision 2 cloud.
Wi-Fi Connectivity & Stream Vision 2 – remote control, real-time viewing, sharing, and firmware updates via smartphone or tablet.

WHAT'S IN THE BOX

Pulsar Merger LRF XQ35 Laser Rangefinding Thermal Binoculars

FREQUENTLY ASKED QUESTION(S)

1. What resolution does it use?
It uses a 384×288 thermal sensor with a 17µm pixel pitch for balanced clarity and detection performance.

2. How sensitive is it in poor conditions?
It has a NETD of under 25mK, meaning it can pick up very small temperature differences for clearer imaging in fog, rain, and low-contrast scenes.

3. What is the detection range?
It can detect human-sized or deer-sized heat signatures up to around 1350 metres depending on conditions.

4. Does it have a laser rangefinder?
Yes, it includes a built-in LRF capable of measuring distances up to 1000m with about ±1m accuracy.

5. What magnification does it offer?
It provides 3–12x magnification with digital zoom for closer inspection of targets.

6. Is it comfortable for long use?
Yes, the dual-eyepiece binocular design reduces eye strain compared to monoculars, making long scanning sessions much easier.

7. What display does it use?
It uses dual 1024×768 AMOLED HD displays for crisp, high-contrast viewing.

8. How long does the battery last?
It can run up to around 11 hours using its combined internal and removable battery system.

9. Is it weatherproof?
Yes, it’s IPX7 rated, so it can handle heavy rain and harsh field conditions.

10. What’s the main advantage of the XQ35 version?
It’s the most compact Merger model, prioritising portability and field comfort while still keeping strong thermal sensitivity and rangefinding capability.

WARRANTY

Pulsar 3 year warranty
