Pixfra MILE 2 M413 Handheld Thermal Monocular - 384x288/12µm/13mm 25mk

SKU#PIX-PFI-M413 Pixfra

Pixfra MILE 2 M413 Handheld Thermal Monocular - 384x288/12µm/13mm 25mk

Name: Pixfra MILE 2 M413 Handheld Thermal Monocular - 384x288/12µm/13mm 25mk
Brand: Pixfra
Price: 649.99 GBP
Availability: InStock

1 in stock

The Pixfra Mile 2 M413 Handheld Thermal Monocular delivers high-resolution thermal imaging with a 384×288, 12μm sensor, detecting heat signatures up to 700 meters away. Its slim, lightweight design includes a 13mm f/1.0 lens and vivid 800×600 OLED display for clear visuals in all environments. Built for the outdoors, it’s IP67-rated for dust and water protection and operates in temperatures from -30°C to 55°C. With eight-hour battery life and Wi-Fi connectivity for group viewing, it’s an ideal choice for demanding observations.

VIEW PRODUCT INFO / SPECS

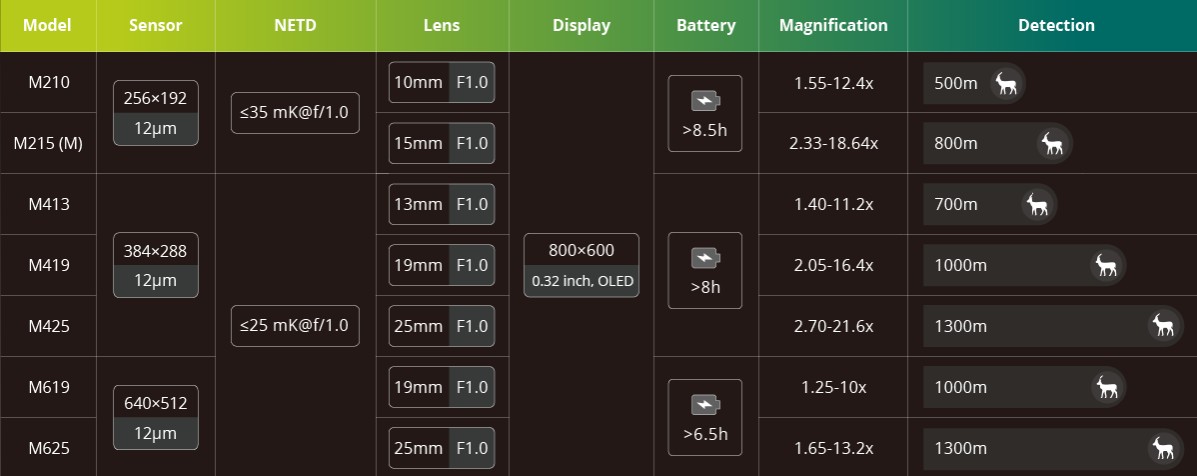

Model: M413 - 384x288/12µm/13mm 25mk

M210 - 256x192/12µm/10mm 35mk

M215 - 256x192/12µm/15mm 35mk

M215M - 256x192/12µm/15mm 35mk

M413 - 384x288/12µm/13mm 25mk

M425 - 384x288/12µm/25mm 25mk

M619 - 640x512/12µm/19mm 25mk

M625 - 640x512/12µm/25mm 25mk

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

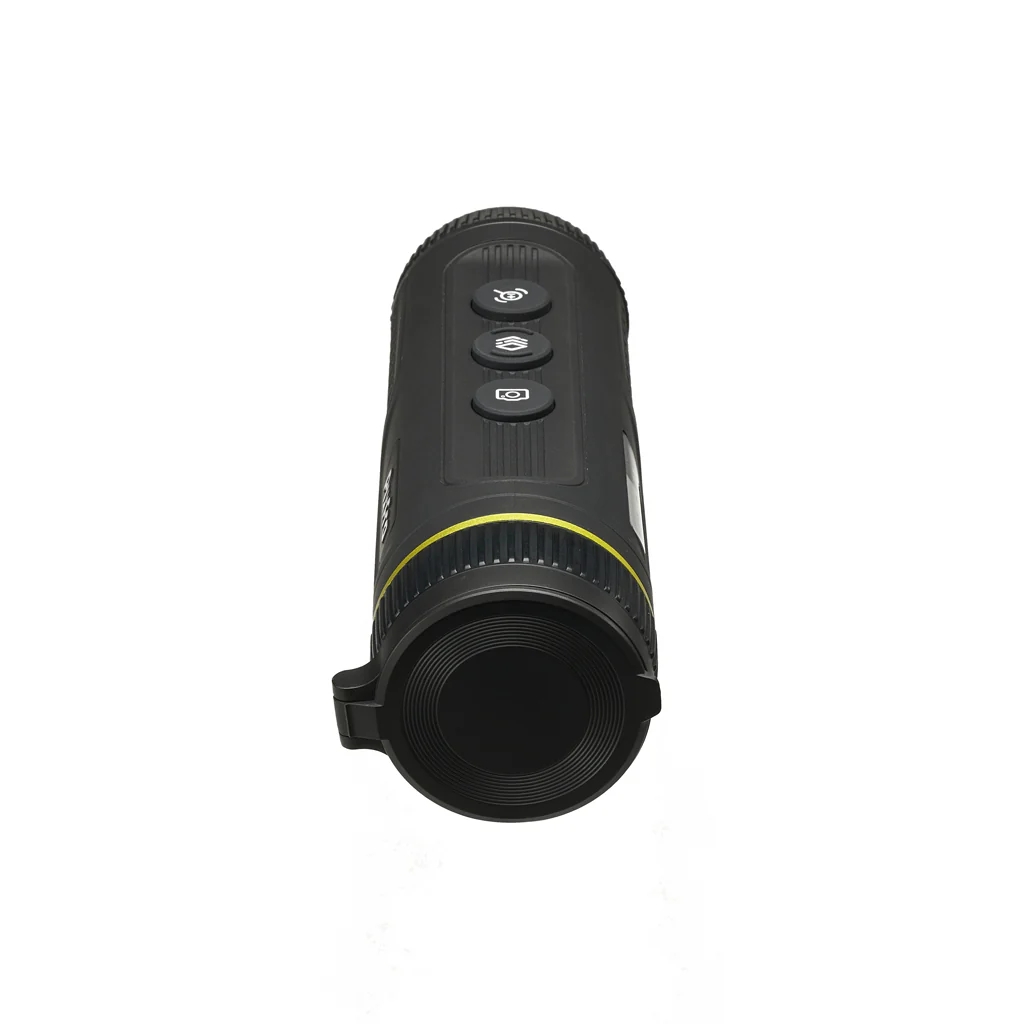

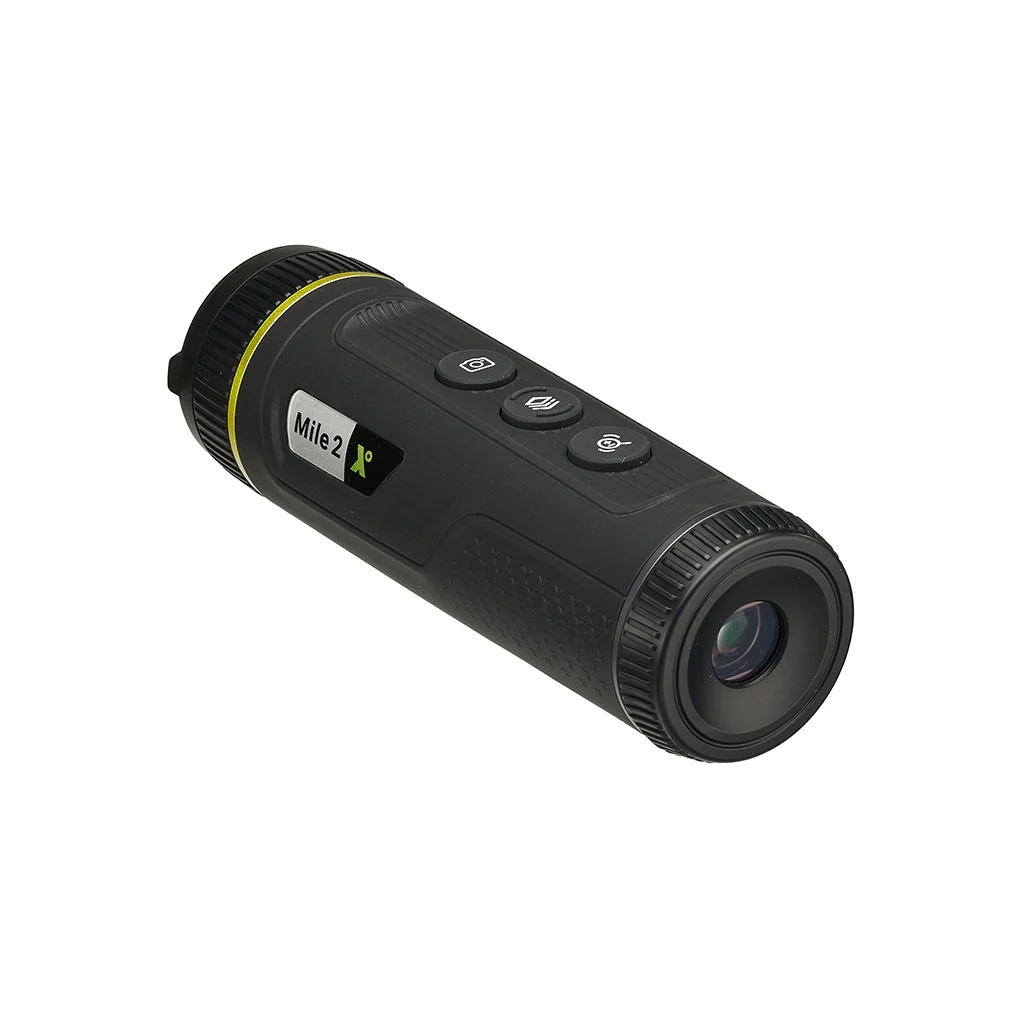

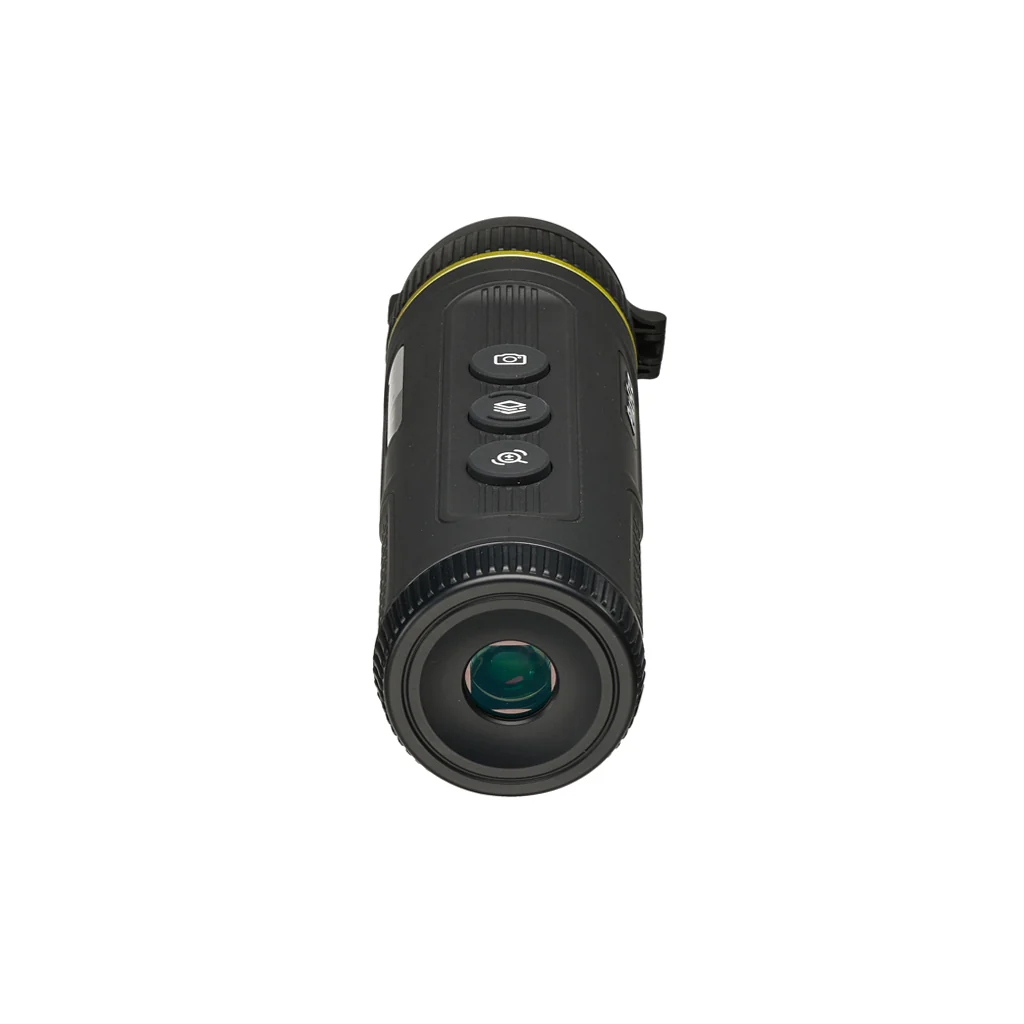

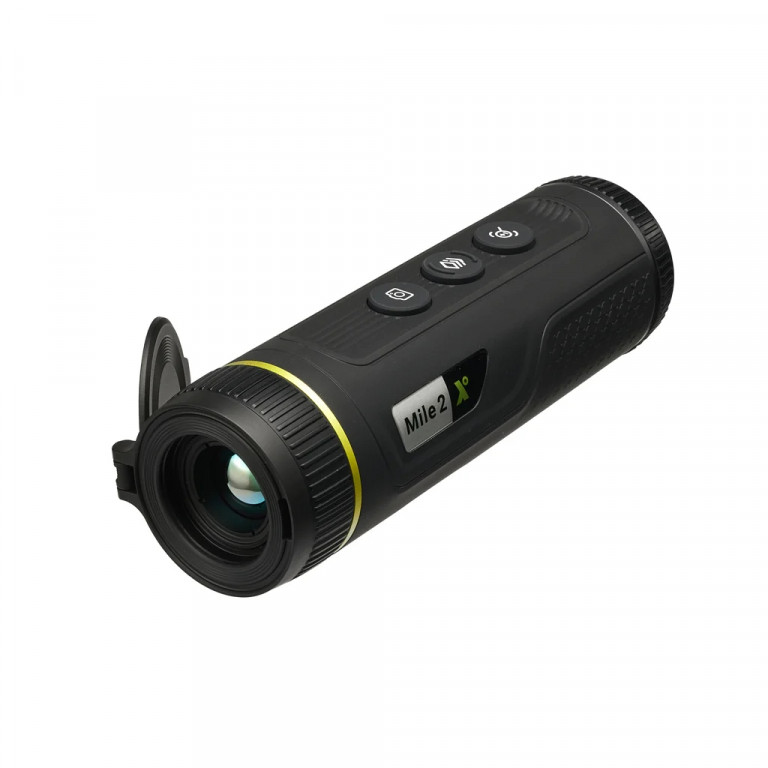

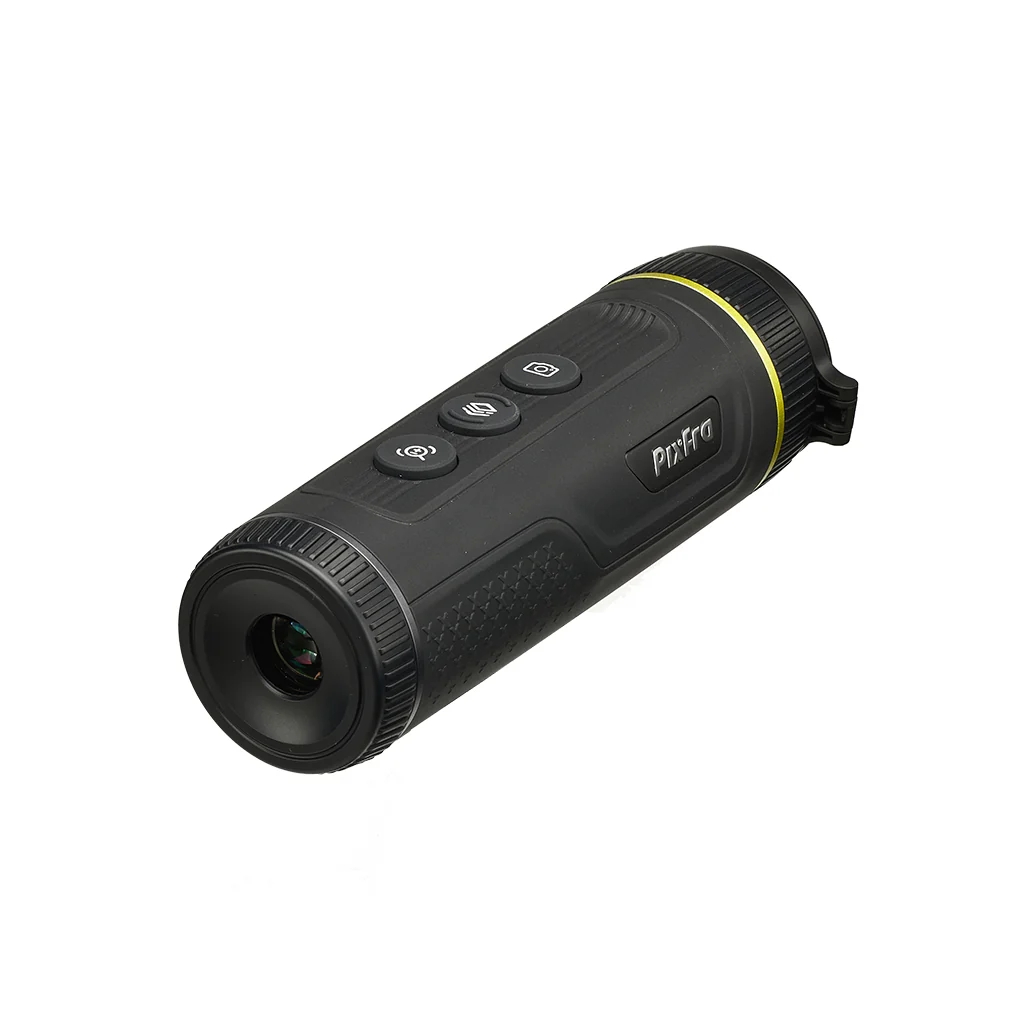

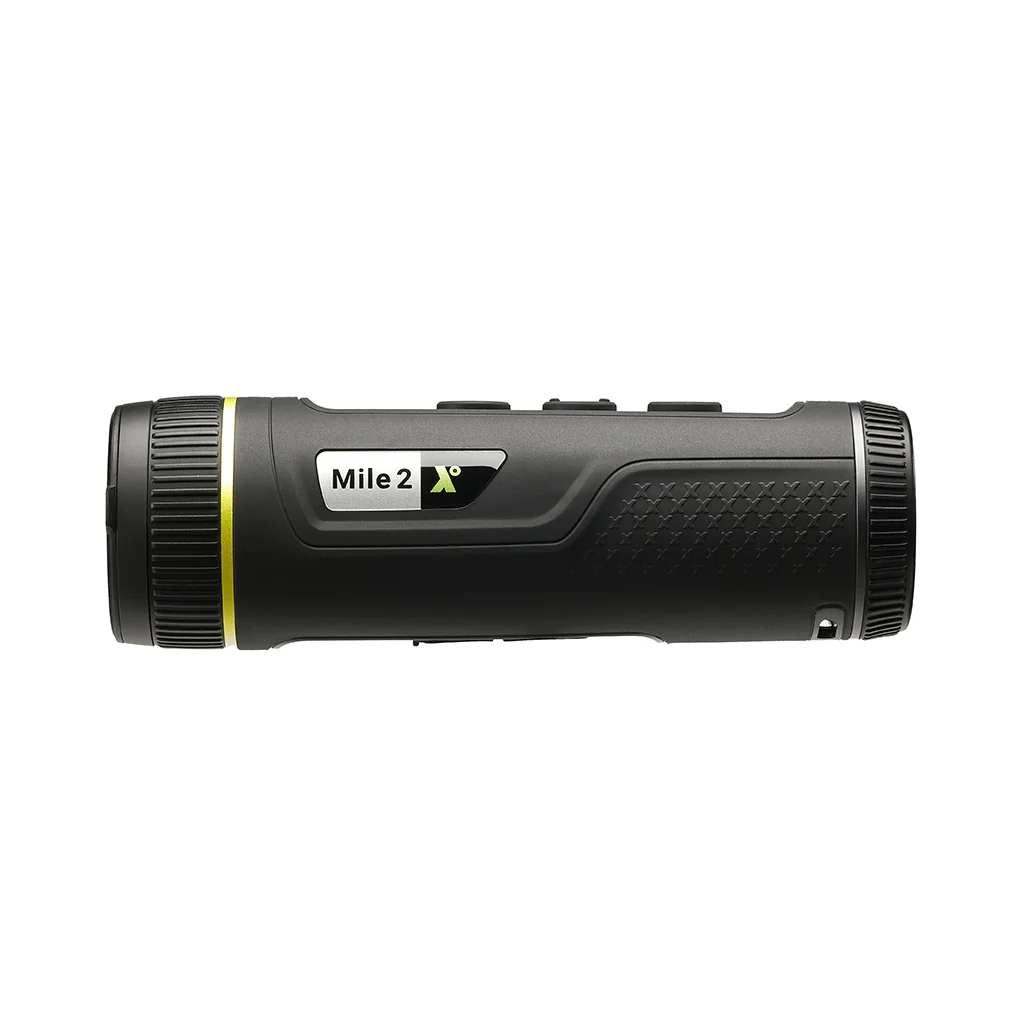

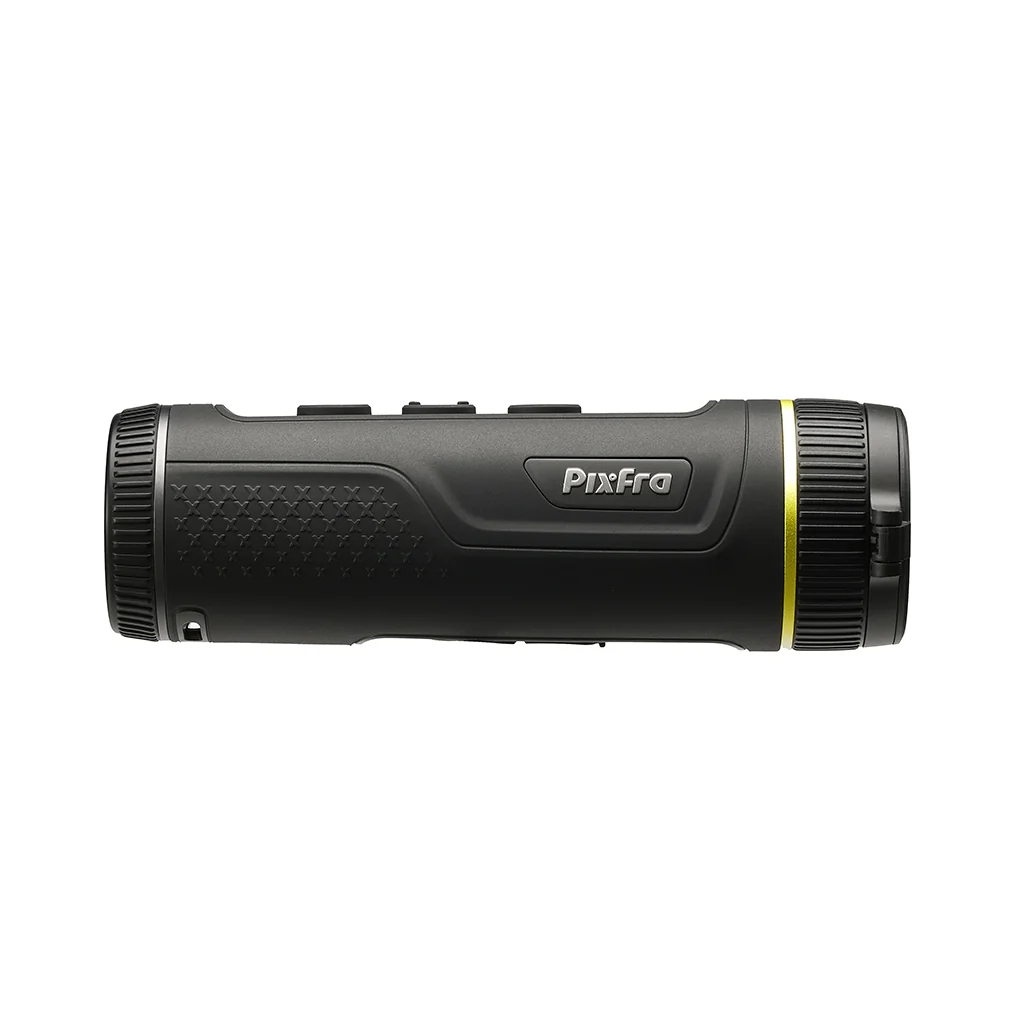

The Pixfra Mile 2 M413 Handheld Thermal Monocular is a compact yet powerful thermal imaging device designed for high-resolution detection and observation in challenging outdoor environments. Equipped with a 384×288 thermal sensor featuring a 12μm pixel pitch and <25mK NETD sensitivity, this monocular captures precise thermal details, highlighting even the smallest heat sources. The device’s 13mm f/1.0 objective lens supports a detection range of up to 700 meters, allowing users to identify wildlife and objects with remarkable clarity. The Mile 2 M413’s 800×600, 0.32-inch OLED display brings these visuals to life, showcasing anatomical details and movement with accuracy and depth, making it ideal for both recreational and professional use.

Designed with a sleek, slimline form, the Mile 2 M413 embodies both style and practicality. Its streamlined design features an innovative power button built into the Pixfra logo, reducing button clutter and simplifying device control. Despite its advanced capabilities, the monocular remains lightweight and compact, making it comfortable to carry for extended periods and easy to store in a pocket or backpack. Accessories like a soft carrying pouch, neck strap, and wrist strap are included to further enhance ease of use and portability.

Built to withstand demanding environments, the Mile 2 M413 carries an IP67 protection rating, safeguarding it against dust and water and ensuring peak performance in conditions from -30°C to +55°C. This rugged design makes the monocular ideal for use in diverse weather conditions, from heavy rain to high humidity, without sacrificing functionality or image quality.

The Mile 2 M413 also excels in connectivity, featuring a robust Wi-Fi hotspot that links the monocular to up to four smart devices at a distance of up to 40 meters. Through the Pixfra app, available on both Android and iOS, users can share live views and recorded content effortlessly, enabling group observations and collaborative insights. The device includes built-in video recording and 16GB of internal storage, allowing users to capture and store both still images and videos, ideal for documentation and review.

Powered by a rechargeable lithium battery with up to eight hours of operation per charge, the Mile 2 M413 supports prolonged observation sessions, ensuring users can remain in the field without interruption. With a USB Type-C port and overvoltage protection, the device is easy to recharge and reliable for extended use. The Pixfra Mile 2 M413 handheld thermal monocular combines top-tier imaging capabilities, rugged durability, and seamless connectivity, making it an exceptional choice for anyone seeking a reliable, high-quality thermal imaging device.

SPECS

Thermal Sensor 384×288, 12μm, <25mK NETD
Objective Lens 13mm f1.0
Spectral Range 8 μm–14 μm
Field of View H
Focus Control Manual
Close Focus Distance 0.5 m (1.64 ft)
Detection Range Up to 700 m
Magnification 1.40x
Frame Rate 50 Hz
Display 800×600, 0.32-inch OLED
Color Palettes 6 (White Hot, Black Hot, Iron Red, Alarm, Emerald, Amber)
Video Compression H.264
Diopter Adjustment -5 D to +3 D
Eye Relief 15 mm (0.59 inch)
Exit Pupil 6 mm (0.24 inch)
Digital Zoom 1×, 2×, 4×, 8×
Video Recording Yes
Still Image Capture Yes
Wi-Fi Hotspot Yes
Hot Spot Tracking Yes
Video Distance Measurement Yes
FFC Calibration Auto, Manual, External Correction
Standby Mode Yes
Defective Pixel Correction (DPC) Yes
Storage Built-in 16GB
Battery Type Rechargeable Lithium Battery
Battery Life Up to 8.0 hours (@ 25°C)
Power Supply 5 VDC/2 A
Port USB Type-C
Overvoltage Protection Yes
Operating Temperature -30 to +55 °C (-22 to +131 °F)
Operating Humidity ≤95%
Protection Grade IP67
Packaging Dimensions 180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″)
Product Dimensions 156.5 mm × 56.6 mm × 50.3 mm (6.16″ × 2.23″ × 1.98″)
Gross Weight 760 g (1.68 lb)
Net Weight 320 g (0.71 lb)

FEATURES

High-Resolution Thermal Sensor
Equipped with an advanced 384×288, 12μm thermal sensor, the Pixfra Mile 2 M413 captures fine thermal details, making it easy to detect subtle heat signatures, even at extended distances. This high sensitivity allows users to identify objects and animals in a wide variety of outdoor conditions.
Impressive Detection Range
With a detection range of up to 700 meters, the M413 provides remarkable clarity for spotting heat sources at long distances. This extended range is ideal for activities like wildlife observation, search and rescue operations, and nighttime navigation.
Enhanced Display Quality
The 800×600 OLED display provides a clear, vivid viewing experience, showing intricate details and anatomical features with precision. This screen technology ensures that thermal images appear sharp, reducing eye strain and allowing for prolonged observation sessions.
Compact, Slimline Design
The monocular is designed with both functionality and aesthetics in mind. Its slim, lightweight body reduces fatigue during extended use and is easy to carry, fitting comfortably in a backpack or even a pocket. The innovative design integrates the power button into the Pixfra logo, simplifying controls for a cleaner user interface.
Built to Withstand Tough Conditions
With an IP67 rating, the M413 is fully protected against dust and can endure immersion in water, making it reliable in heavy rain, fog, and humid environments. It also functions seamlessly in extreme temperatures, ranging from -30°C to +55°C, making it dependable in diverse outdoor settings.
Long Battery Life
A rechargeable lithium battery offers up to 8 hours of continuous operation, allowing users to rely on the device throughout extended excursions. This long battery life ensures users have uninterrupted performance for day or night observations.
Wi-Fi Connectivity for Group Viewing
Featuring a built-in Wi-Fi hotspot, the M413 allows for seamless connectivity with up to four smart devices simultaneously at a range of up to 40 meters. This enables live view sharing with others via the Pixfra app on both Android and iOS, ideal for collaborative field observations.
Onboard Recording and Storage
The device includes built-in video and image recording capabilities, allowing users to document their observations without needing additional equipment. With 16GB of internal storage, the M413 can save a significant amount of footage and images for later review or sharing.
Convenient Accessories
The M413 comes with practical accessories like a soft pouch, wristband, neck strap, and lens cloth, enhancing portability and ease of use. These additions make it convenient to carry and keep the device ready for action.

WHAT'S IN THE BOX

Pixfra MILE 2 M413 Handheld Thermal Monocular - 384x288/12µm/13mm 25mk
USB Type-C Charging Cable
Wristband
Lanyard
Lens Cloth
Camera Pouch
Eyeshade
Quick Start Guide

WARRANTY

Pixfra 3 year warranty
