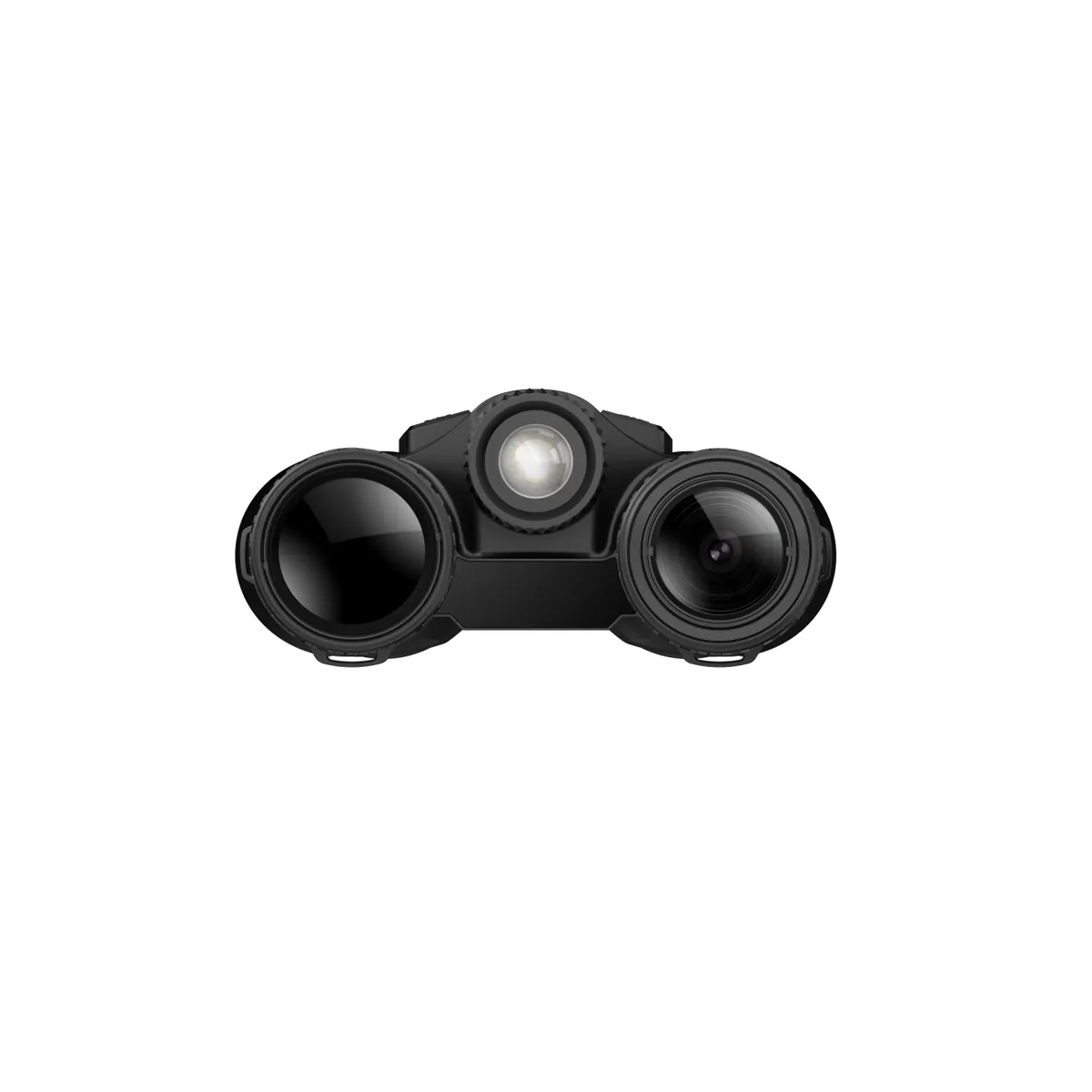

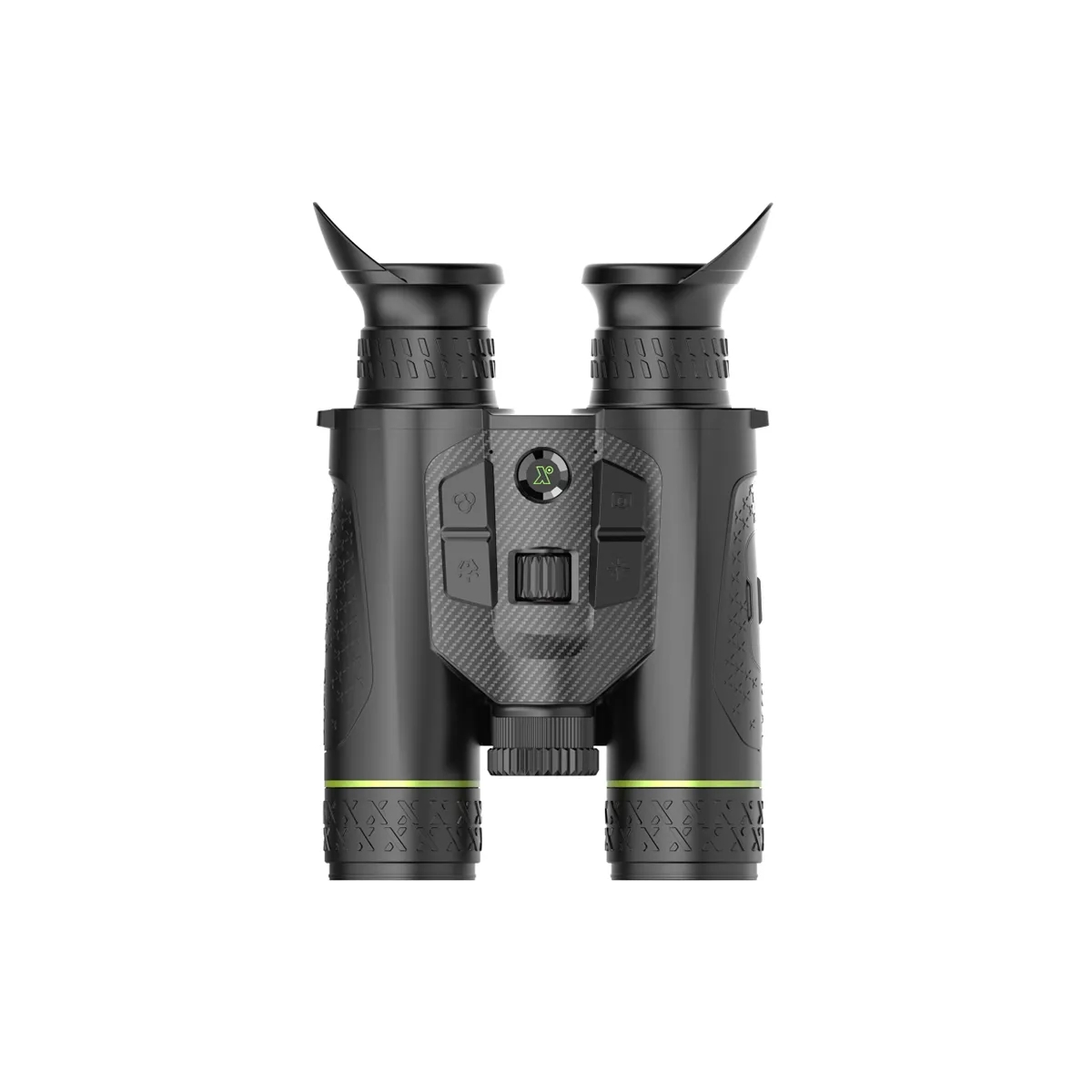

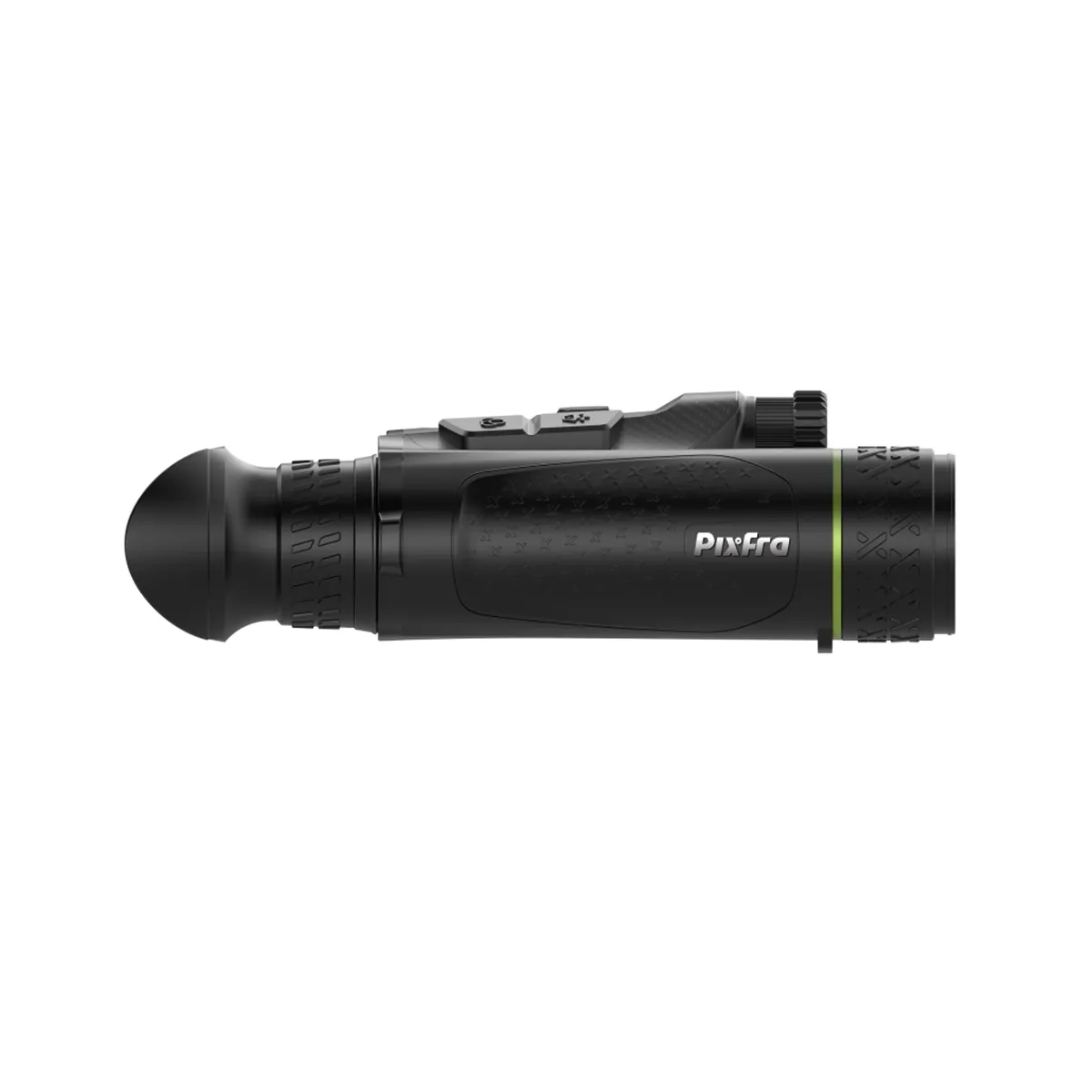

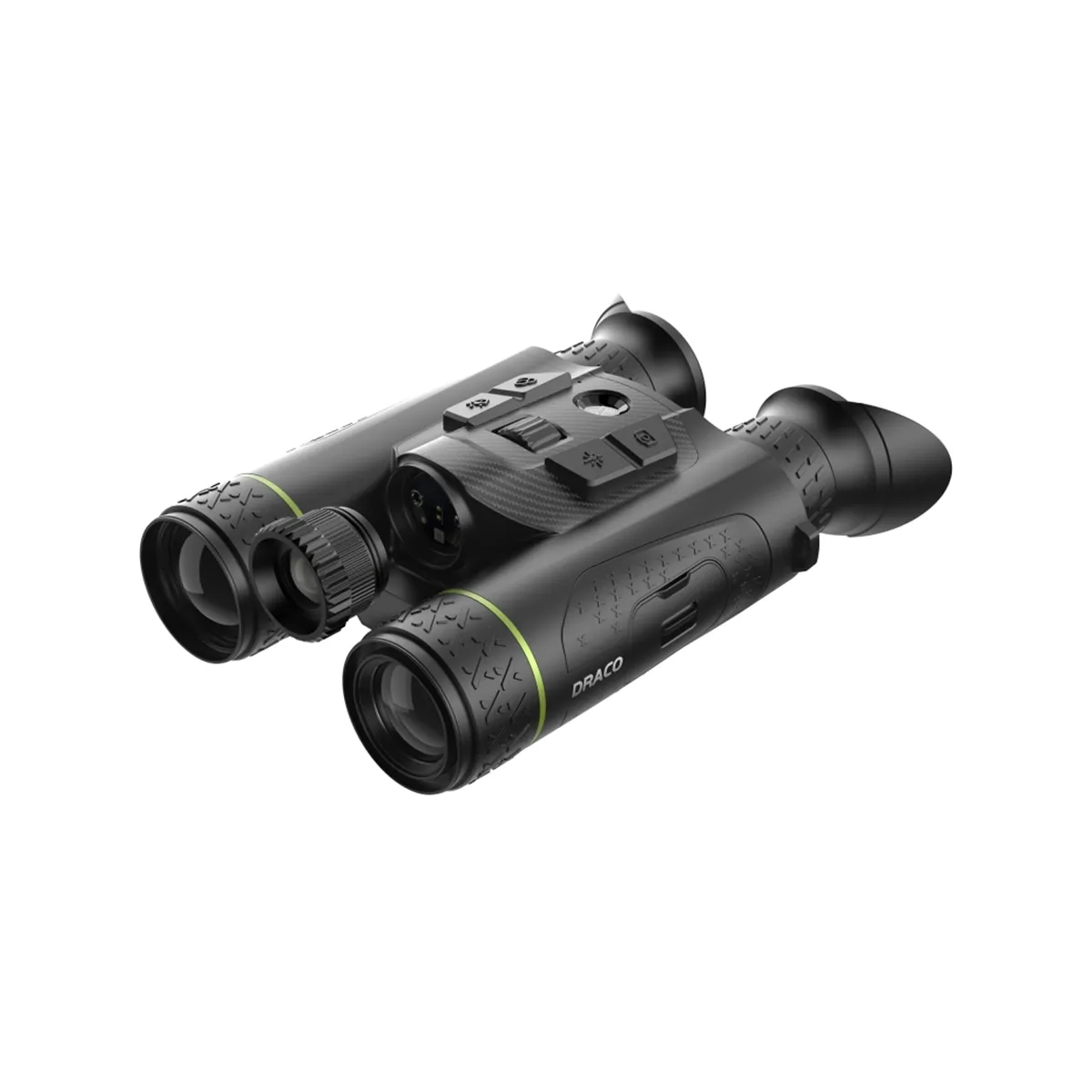

Pixfra DRACO D335-4K Multispectral Binoculars
850nm IR, 384x288, 12um, 35mm
The Pixfra DRACO D335-4K is a powerful multispectral binocular that combines high-sensitivity thermal imaging, 4K digital day/night vision, a 1,000 m laser rangefinder and infrared illumination in one compact device. Its 384 × 288, ≤15 mK thermal sensor with a 35 mm lens delivers clear heat detection up to 1,800 m, while the Full HD OLED display, AI-powered PIPS 3.0 image processing and ergonomic, lightweight design ensure confident, comfortable observation in all conditions.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd

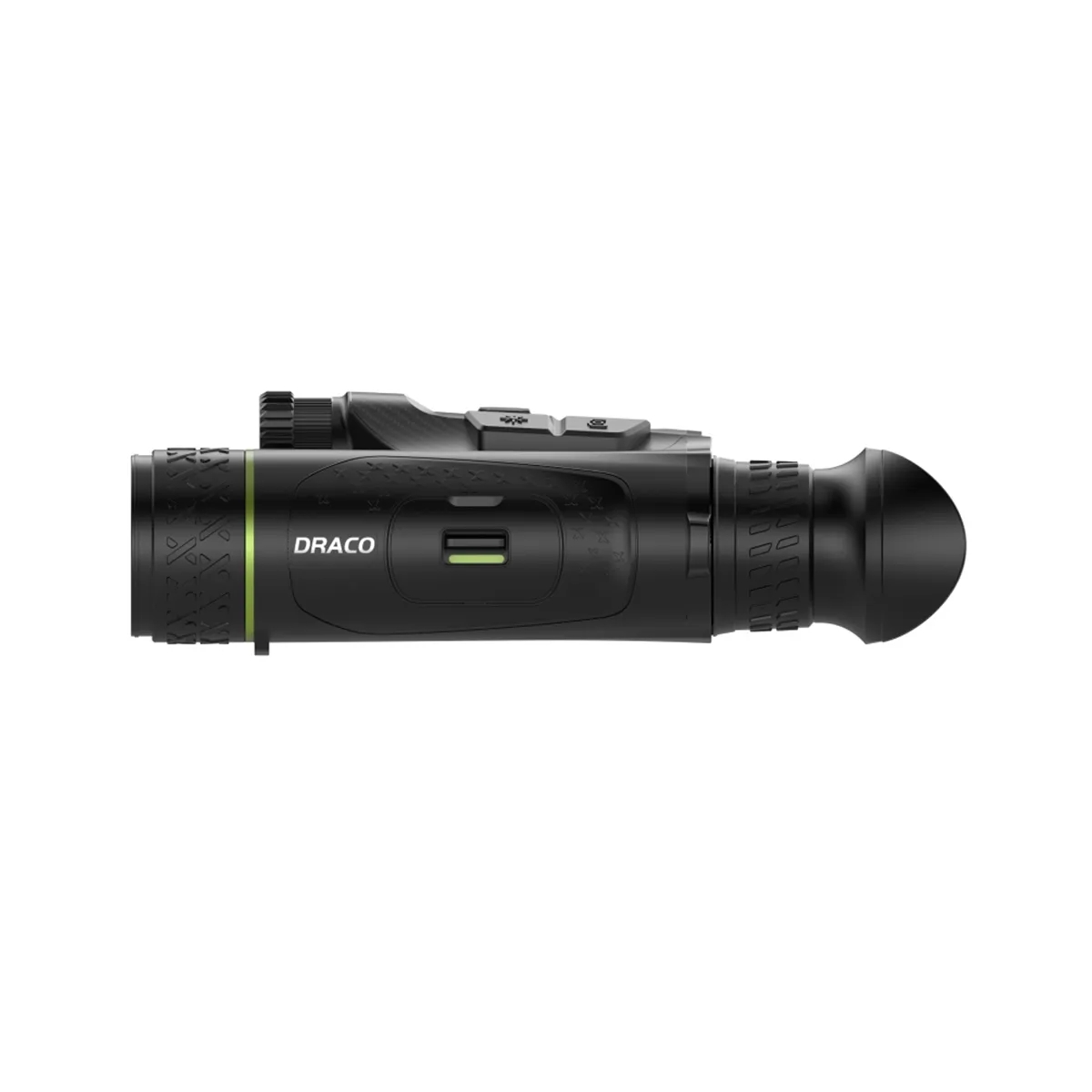

The Pixfra DRACO D335-4K Multispectral Binoculars are a compact, all-in-one observation solution designed for demanding use across day, dusk and night. Combining thermal imaging, 4K digital day/night vision, a laser rangefinder and infrared illumination in a single handheld unit, the D335-4K delivers exceptional situational awareness for hunting, wildlife observation, security and outdoor exploration.

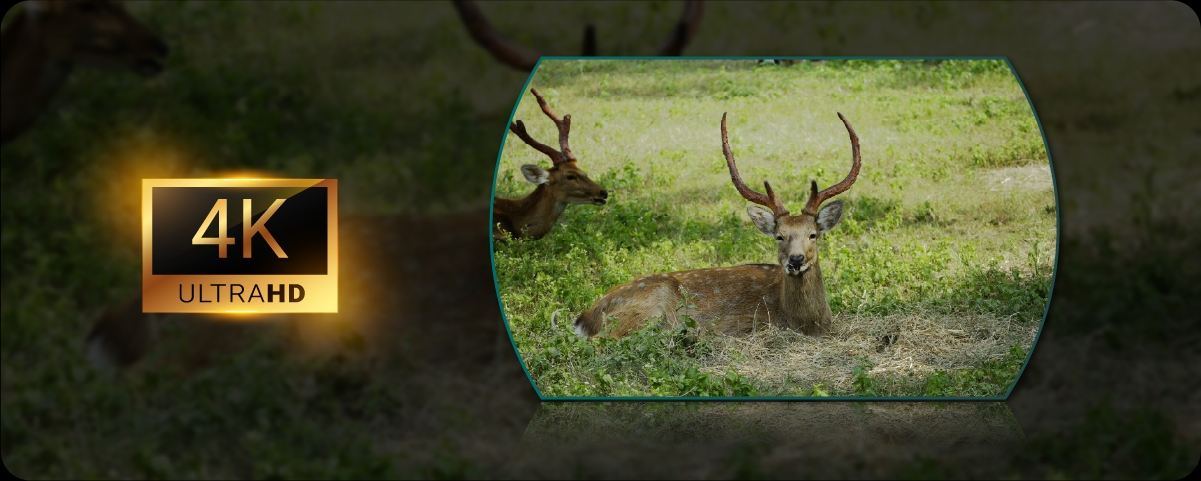

Built around a 384 × 288 thermal sensor with 12 µm pixel pitch and ≤15 mK NETD, paired with a 35 mm f/0.95 thermal lens, the DRACO reveals subtle heat differences with impressive clarity and a detection range of up to 1,800 m. This is complemented by a 4K UHD digital day/night channel using a high-resolution 1/1.8″ CMOS sensor, providing sharp detail for identification in both daylight and low-light conditions. Pixfra’s PIPS 3.0 AI image processing enhances contrast, suppresses noise and maintains image quality in challenging environments such as fog, rain or haze.
Observation is delivered through a 0.49″ Full HD OLED display with 18× ocular magnification, creating an immersive, binocular-style viewing experience with a wide field of view. Electronic Image Stabilisation and defog mode ensure a steady, clear image even during prolonged handheld use or poor weather. A built-in laser rangefinder accurate to 1,000 m adds precise distance measurement, while the supplied 850 nm IR illuminator extends night-vision performance in complete darkness, with a 940 nm module available separately.

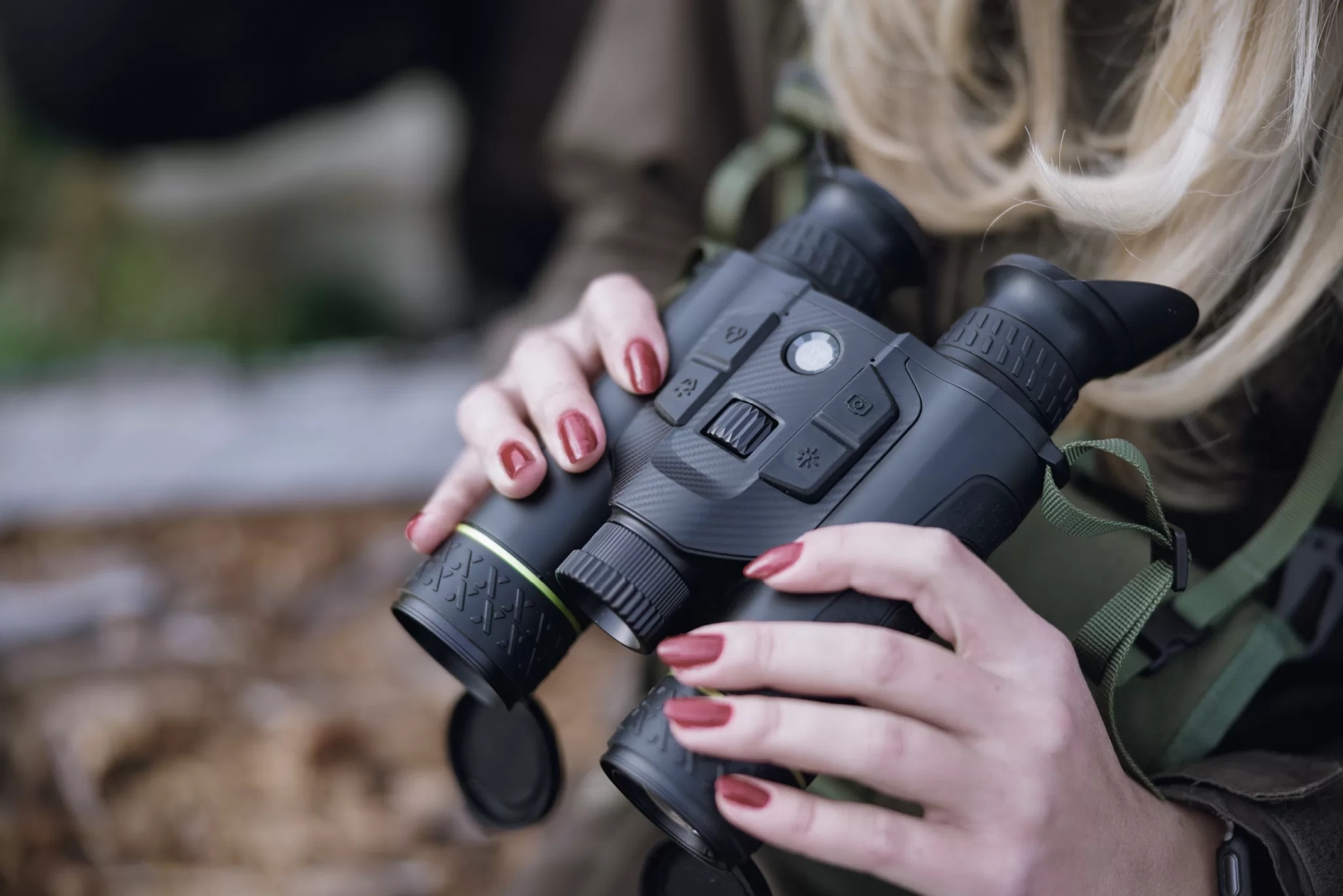

Designed for real-world usability, the DRACO D335-4K features an ergonomic grip, intuitive multi-function wheel and four-button layout that mirrors traditional binocular controls, allowing confident operation even with gloves or in darkness. The lightweight 600 g-class magnesium alloy body balances durability with portability, while dual-band 2.4 GHz / 5 GHz Wi-Fi enables smooth live streaming and recording via the app. Power is provided by removable 18650 batteries, delivering up to 9 hours of runtime, with flexible charging options including AC power and power banks.
The Pixfra DRACO D335-4K stands out as a versatile, field-ready multispectral binocular, offering high-sensitivity thermal detection, crystal-clear 4K imaging and integrated ranging in a single, robust platform for users who demand reliable performance in all conditions.

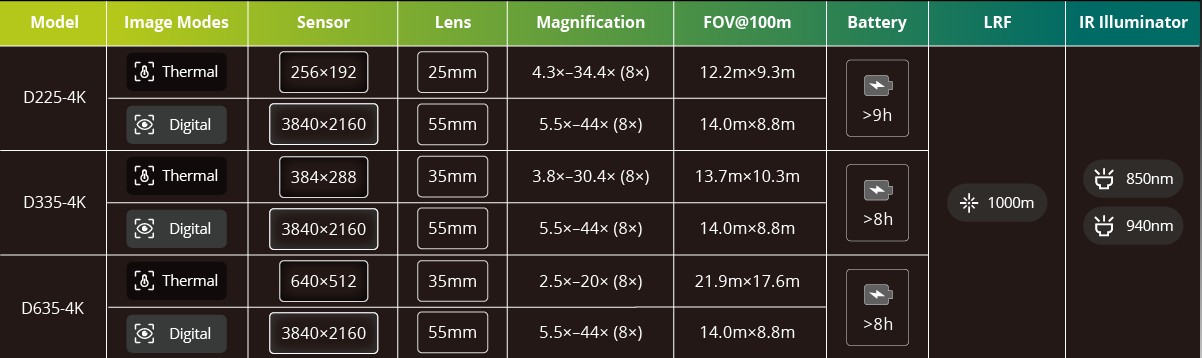

- Model Pixfra DRACO D335-4K Multispectral Binoculars
- Imaging Modes Thermal imaging and digital day/night vision
- Thermal Sensor Resolution 384 × 288
- Thermal Pixel Pitch 12 µm
- Thermal Sensitivity (NETD) ≤15 mK
- Thermal Lens 35 mm
- Thermal Detection Range Up to 1,800 m
- Digital Sensor 1/1.8″ CMOS
- Digital Resolution 3840 × 2160 (4K UHD)
- Display Type OLED
- Display Size 0.49 inch
- Display Resolution 1920 × 1080
- Ocular Magnification 18×
- Laser Rangefinder Integrated, up to 1,000 m
- Infrared Illuminator Detachable 850 nm (940 nm optional)
- Image Processing PIPS 3.0 AI image enhancement
- Stabilisation Electronic Image Stabilisation (EIS)
- Additional Viewing Modes Defog mode
- Menu Function Menu memory with quick resume
- Wireless Connectivity Dual-band Wi-Fi (2.4 GHz / 5 GHz)
- Internal Storage 64 GB
- Battery Type Removable 18650 lithium-ion
- Operating Time Up to 9 hours
- Charging Options AC power, power bank, separate battery charging

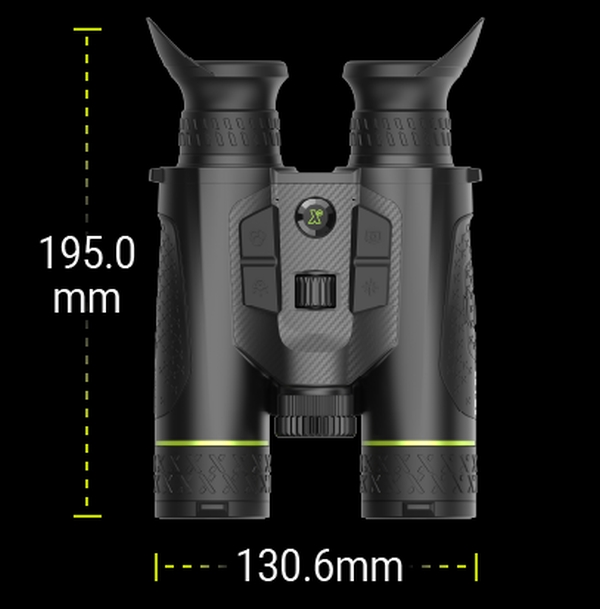

- Dimensions 195 × 130.6 × 61.7 mm
- Weight Approx. 600–620 g
- Construction Magnesium alloy housing
- Ingress Protection IP67
- Operating Temperature Range −30 °C to +55 °C
-

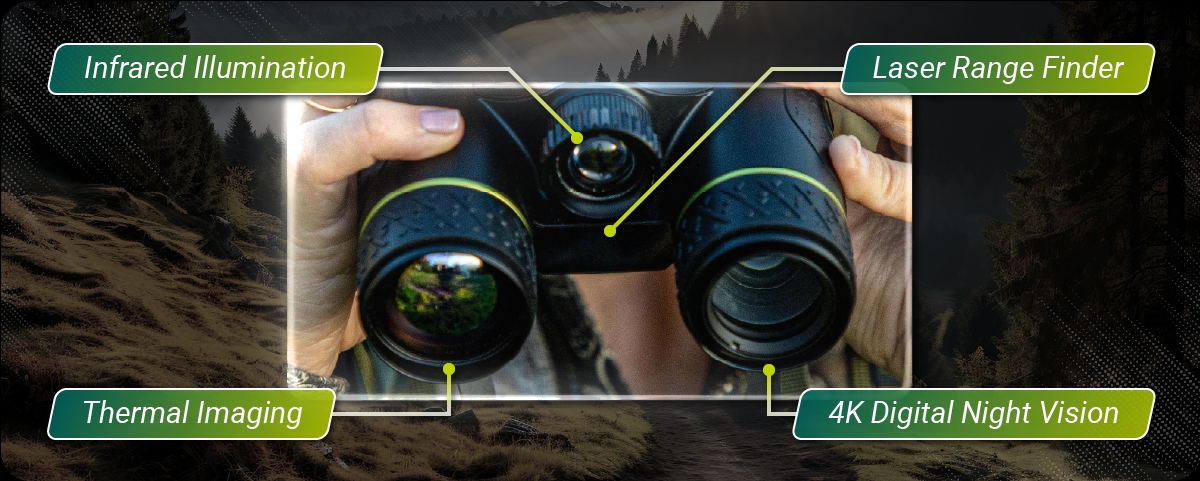

Multispectral binocular design combining thermal imaging, digital day/night vision, laser ranging and infrared illumination in a single handheld device
-
Ergonomic, lightweight construction designed for comfortable one-handed use over extended periods
-

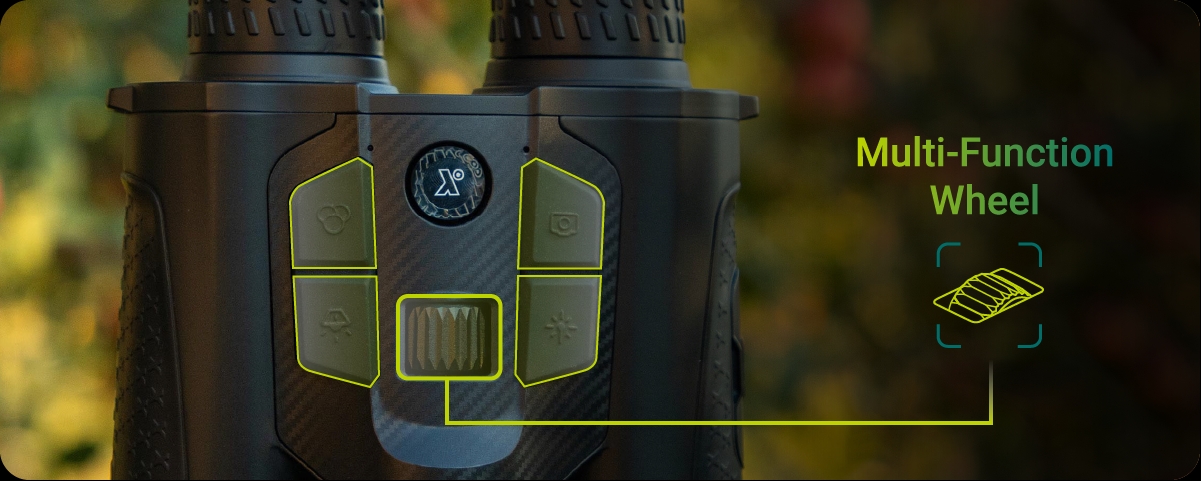

Intuitive control layout with multi-function wheel and tactile buttons for reliable operation without looking at the device
-
Seamless switching between thermal, night vision and daylight viewing modes for all-condition observation
-
AI-driven image processing that enhances clarity, contrast and detail in challenging environments
-
Immersive binocular-style viewing experience with a bright, high-contrast OLED display
-
Electronic image stabilisation for steady viewing during handheld use
-
Defog function to maintain clear vision in damp, cold or misty conditions
-
Integrated laser rangefinder for accurate distance awareness in the field
-
Detachable infrared illuminator supplied for enhanced night-time visibility, with alternative wavelength option available
-

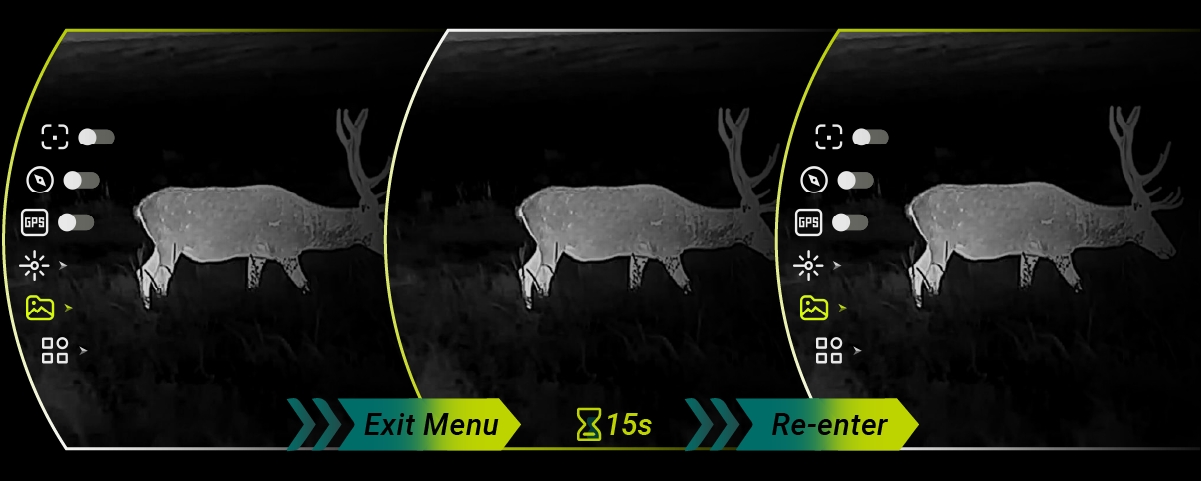

Menu memory function for faster, more efficient operation
-
Dual-band Wi-Fi connectivity for stable live streaming and app control
-
Onboard storage for recording images and video during observations
-
Flexible power options with removable batteries and support for power bank charging
-
Robust, weather-resistant construction suitable for demanding outdoor use
- Pixfra DRACO D335-4K Multispectral Binoculars
What is the Pixfra DRACO D335-4K designed for?
It’s designed for all-condition observation, making it ideal for hunting, wildlife watching, security patrols and outdoor exploration where reliable performance is needed day or night.
What makes it multispectral?
It combines thermal imaging, 4K digital day/night vision, a laser rangefinder and infrared illumination in one handheld device, removing the need to carry multiple optics.
How good is the thermal performance?
The high-sensitivity thermal system can detect heat signatures at long distances and clearly separate targets from background clutter, even in darkness, fog or poor weather.
Does it work in full daylight as well as at night?
Yes. The 4K digital channel provides clear colour images by day and detailed black-and-white night vision in low-light conditions, with seamless switching between modes.
Is a laser rangefinder included?
Yes. The built-in laser rangefinder measures distances accurately up to 1,000 metres, improving situational awareness and decision-making in the field.
Does it come with an infrared illuminator?
An 850 nm IR illuminator is supplied as standard, and a 940 nm module is available separately for users who want reduced visible IR glow.
Is it comfortable to use for long periods?
The ergonomic grip, balanced weight and binocular-style viewing make it comfortable for extended handheld use, while electronic image stabilisation helps reduce fatigue.
How easy is it to operate?
Controls are laid out to mimic traditional binoculars, with a multi-function wheel and tactile buttons that can be used confidently without taking your eyes off the view.
Can I record photos or video?
Yes. The device has built-in storage for recording images and video, and supports Wi-Fi streaming to a mobile app for viewing and sharing.
How long does the battery last?
Battery life is up to around nine hours, depending on usage, and the unit can run on a single battery if required.
What charging options are available?
It supports direct charging via mains power, charging from a power bank, and separate battery charging, offering flexibility for extended trips.
Is it suitable for harsh outdoor conditions?
Yes. The robust magnesium alloy housing, weather sealing and features such as defog mode make it well suited to demanding environments.
