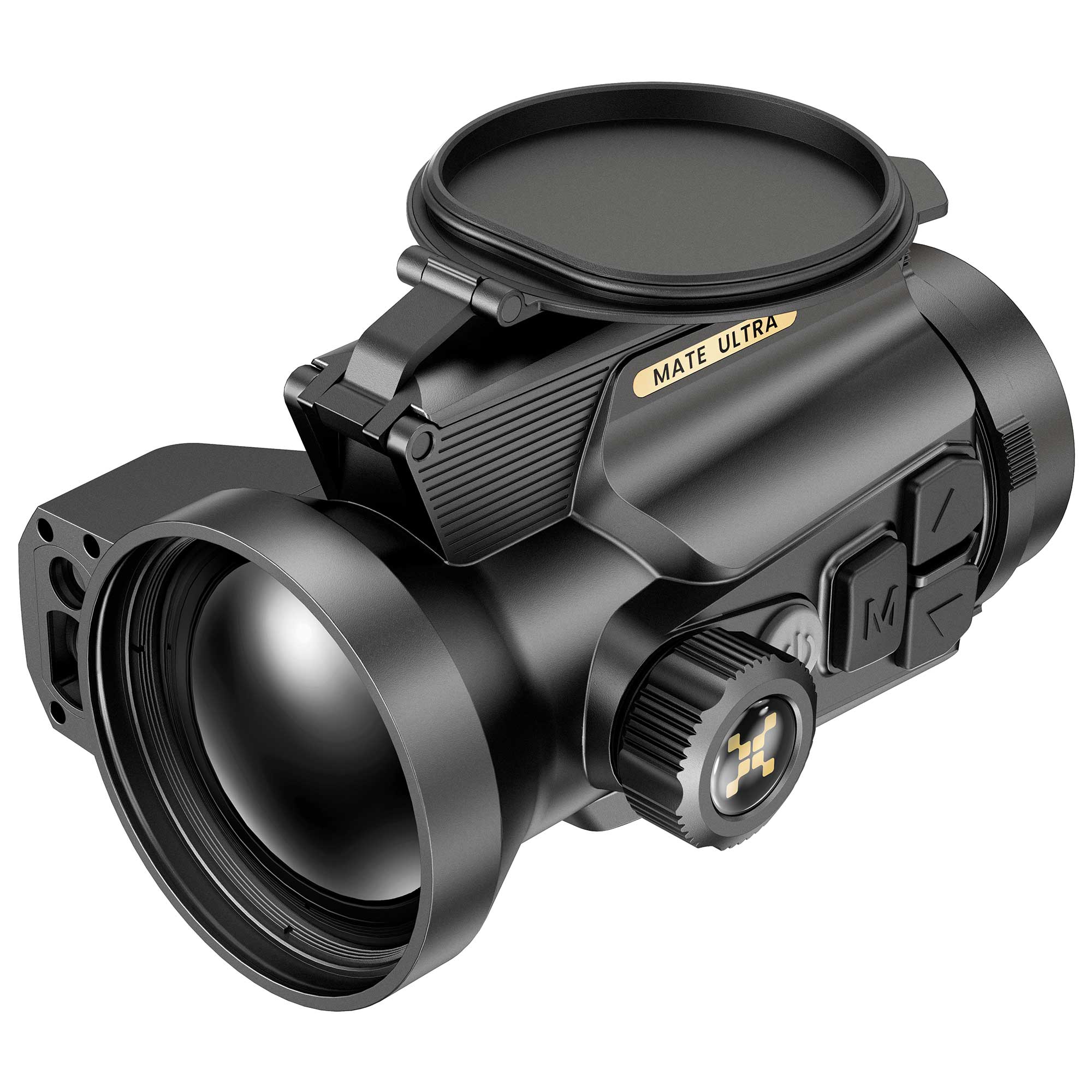

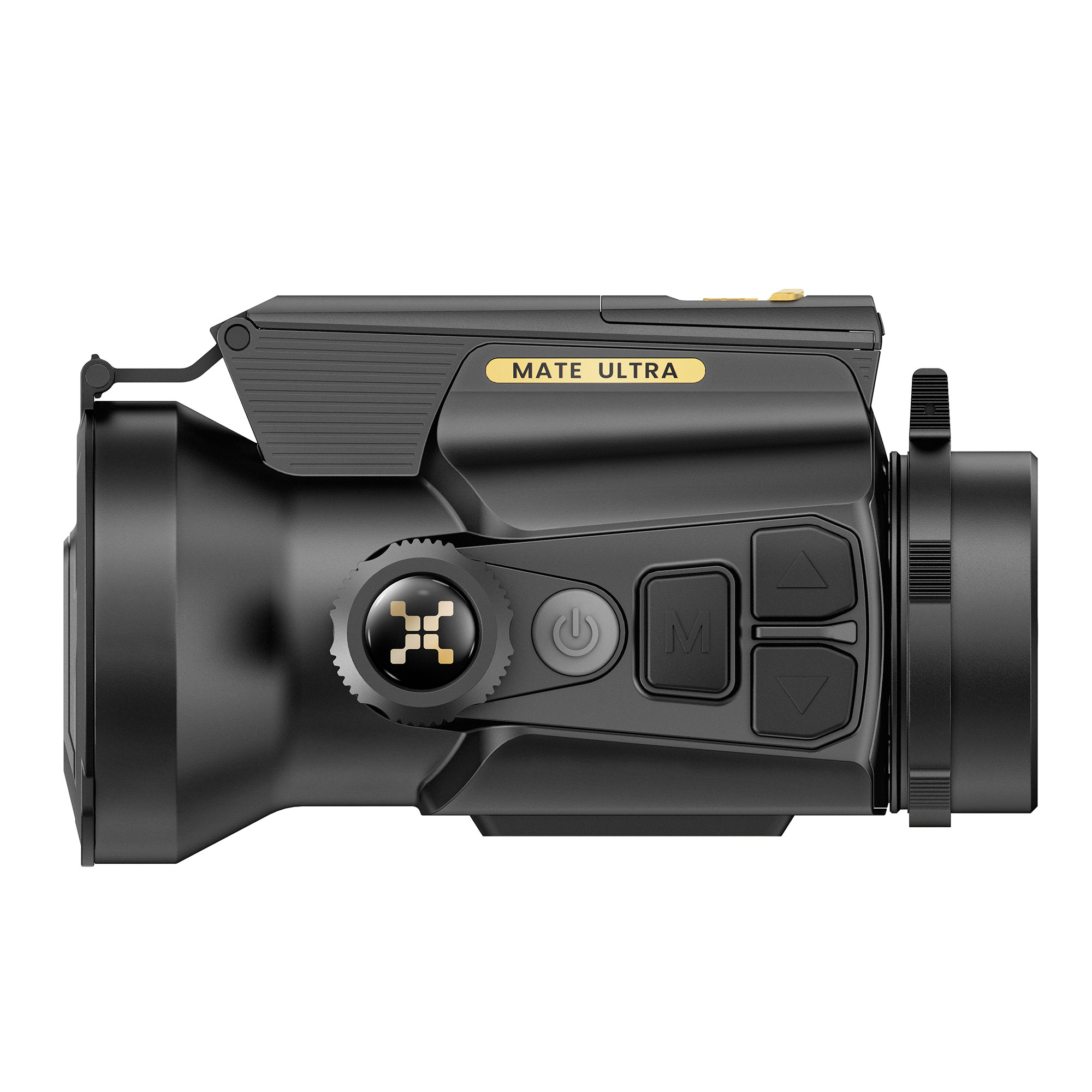

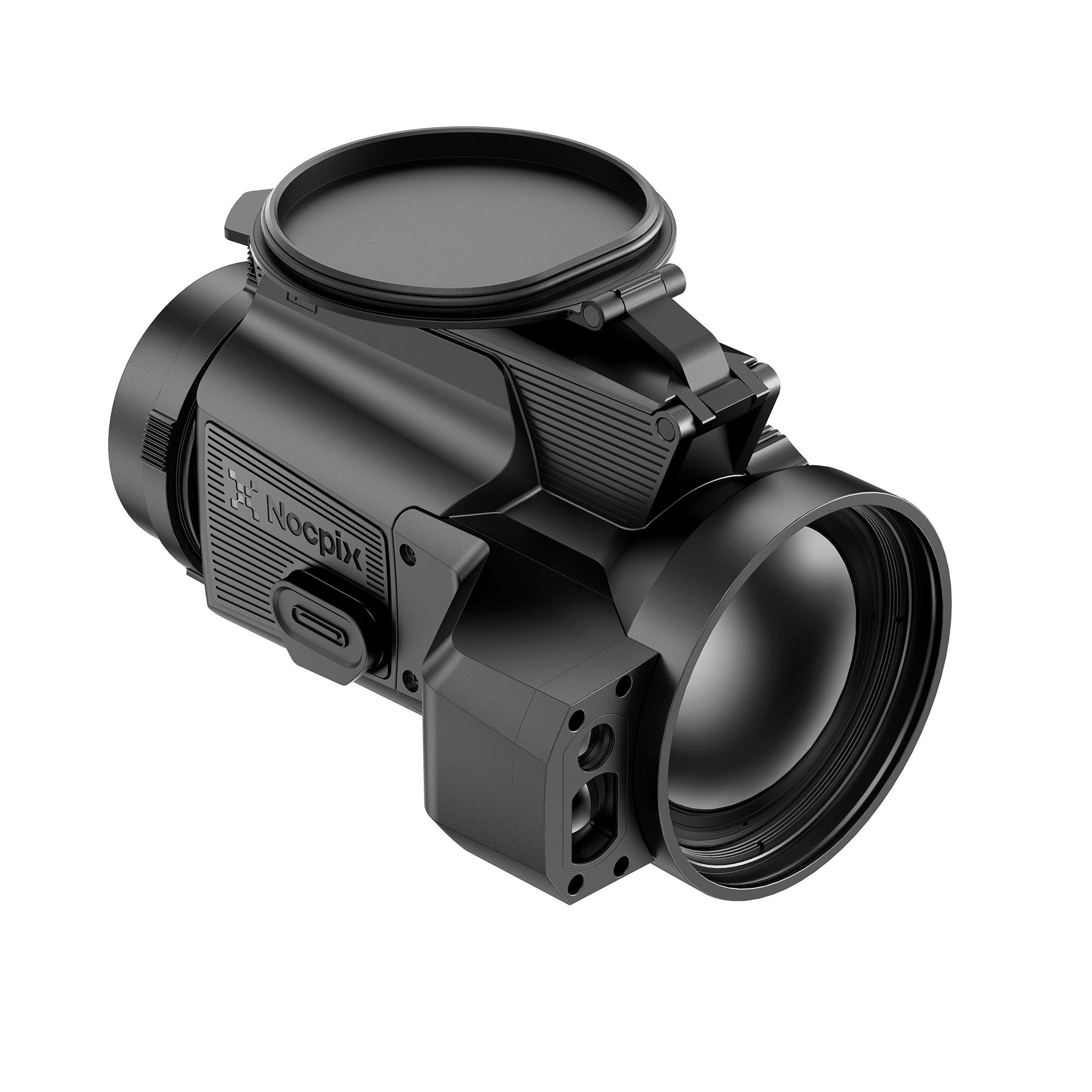

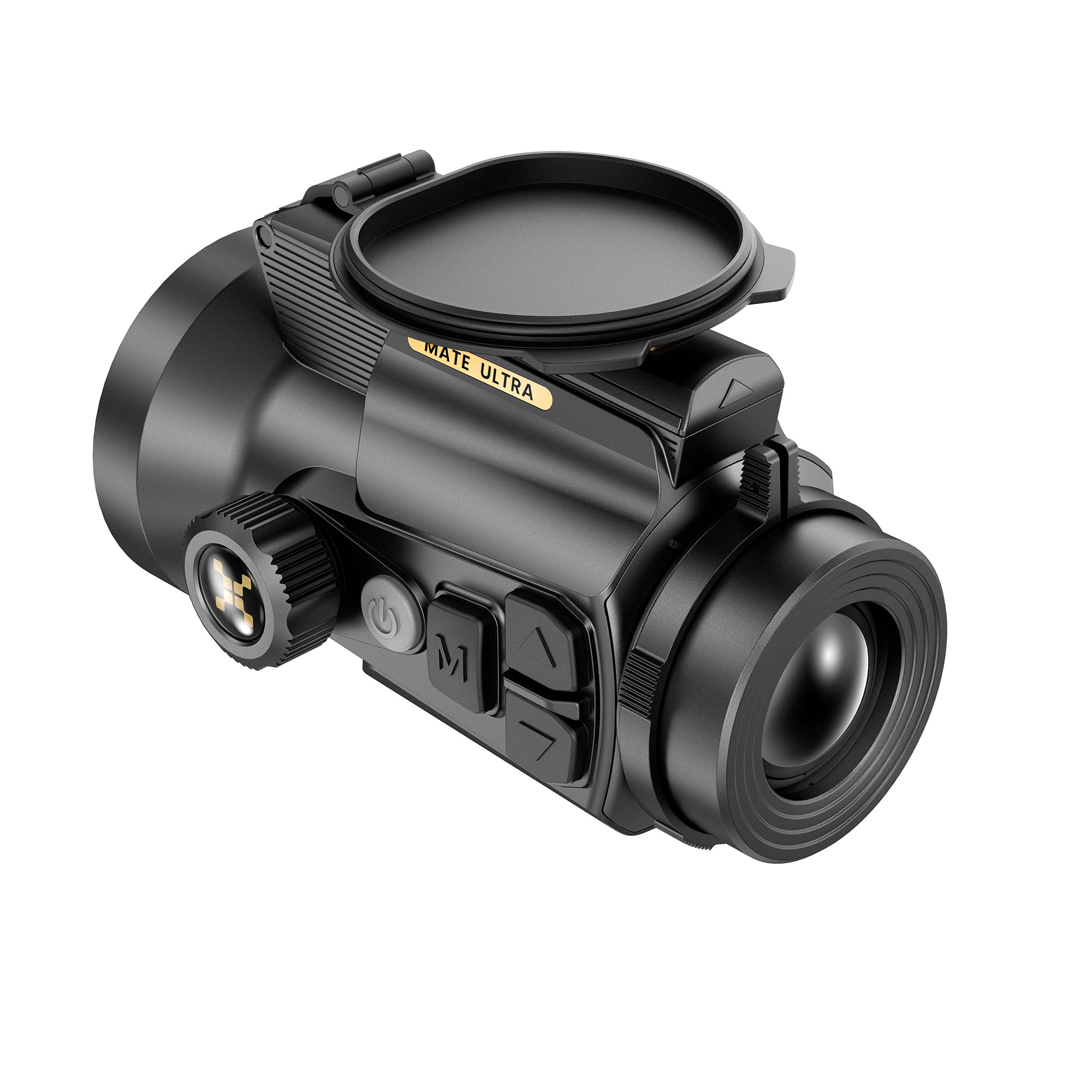

NocPix MATE Ultra S60R Thermal Clip-On Attachment - 1280x1024, <15mK, 12um
The NocPix MATE Ultra S60R Thermal Clip-On delivers exceptional performance with its 1280 × 1024 resolution sensor, ≤15 mK NETD, and 60 mm f/1.0 lens, offering a remarkable 3100 m detection range. Its 60 Hz shutterless imaging ensures smooth tracking, while Magic Zoom with R+ AI maintains clarity across magnifications. Featuring a 1200 m laser rangefinder, 1 MOA accuracy, and rugged magnesium alloy chassis, it provides unmatched precision and reliability. With replaceable batteries, 64 GB storage, and IP67 waterproofing, it is built for demanding hunts.
The NocPix MATE Ultra S60R Thermal Clip-On represents the pinnacle of thermal hunting technology, offering uncompromising performance in even the harshest environments. Designed as a clip-on attachment, it transforms your day optic into a powerful thermal system, requiring no external light sources and remaining unaffected by rain, snow, fog, or glare. With its ability to detect heat signatures through foliage, branches, and haze, it ensures you never miss what’s hidden in the wild.
At the heart of the MATE Ultra S60R is an in-house high-performance thermal detector with a resolution of 1280 × 1024, 12 μm pixel pitch, and ≤15 mK NETD, capturing even the most subtle heat signatures. Paired with a 60 mm f/1.0 large-aperture lens, it delivers an extraordinary detection range of 3100 m, providing hunters with total clarity across vast distances. The system’s 60 Hz shutterless imaging and 4 TOPS processor guarantee smooth, uninterrupted visuals, keeping fast-moving targets sharp and clear.
With Magic Zoom enhanced by R+ AI, the MATE Ultra automatically synchronises with your scope’s magnification, scaling the image in real time without losing clarity. A wide field of view (25.6 × 20.5) ensures maximum situational awareness, whether scanning open terrain or watching movement through dense brush. Precision is equally assured, with 1 MOA accuracy, under 1% optical distortion, and repeatable zero retention across multiple rifles. Even at 16× zoom, image fidelity remains stable, keeping your point of impact true.
The built-in 1200 m laser rangefinder further enhances targeting, working seamlessly with the ballistic calculator to provide on-screen reticle adjustment. Strong yet lightweight, the two-piece magnesium alloy chassis keeps the unit compact at just 560 g, recoil-tested to 7,000 J for rugged reliability. With an AMOLED 1920 × 1200 display, 64 GB storage, and IP67 waterproofing, the S60R is engineered for both durability and cutting-edge performance.
Powered by replaceable 18650 batteries, it offers up to 4 hours of continuous operation, with four batteries supplied for uninterrupted hunting sessions. Every detail, from its heated zeroing targets to its intelligent interface, has been crafted for the serious outdoorsman.
The NocPix MATE Ultra S60R isn’t just a thermal clip-on; it’s a precision instrument built for hunters who demand clarity, reliability, and uncompromising performance in the field.
- Type Clip-On
- Range MATE
- Sensor Resolution 1280 × 1024
- Pixel Size 12 μm
- NETD ≤15 mK
- Frame Rate 60 Hz
- Objective Lens 60 mm f/1.0
- Field of View 14.7° × 11.7°
- Detection Range 3100 m
- Display AMOLED 1920 × 1200 (Rectangle)
- Exit Relief 20 mm
- Exit Pupil Diameter 35 mm
- Laser Rangefinder Distance 1200 m (Class 1)
- Operating Time 4 hours
- Battery Type Replaceable 18650
- Batteries Supplied 4
- Built-in Battery No
- Storage 64 GB
- Reality+ AI Yes
- Vision+ System No
- Microphone Supported
- IP Rating IP67
- Operating Temperature -20°C to +50°C
- Weight (with battery) 560 g
- Dimensions 140 × 96 × 78 mm
-

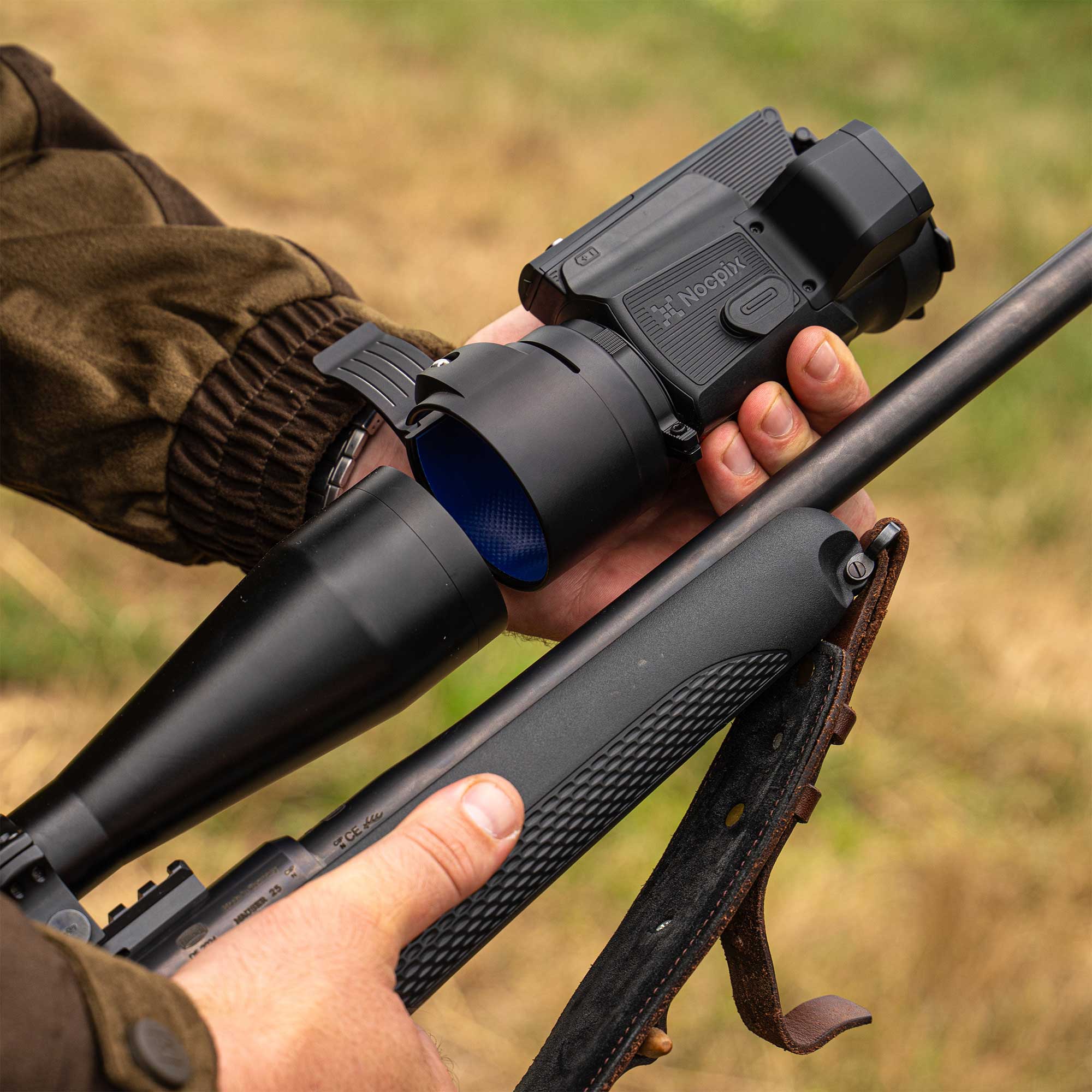

Clip-On Design – Instantly transforms a day optic into a high-performance thermal system.
-
Day & Night Use – Operates without external light sources and remains effective in all weather conditions.
-
Obstacle Penetration – Detects heat signatures even through branches, grass, and light cover.
-
Magic Zoom with R+ AI – Automatically adjusts the thermal image in real time to match scope magnification.
-
Shutterless Imaging – Provides smooth, uninterrupted visuals without blackout or delays.
-
1 MOA Accuracy & Zero Retention – Maintains precision even after repeated mounting and use across different rifles.
-
Laser Rangefinder with Ballistic Calculator – Offers live distance readings up to 1200 m with smart reticle adjustment for faster aiming.
-
Wide Field of View – Captures more of the surroundings for enhanced situational awareness.
-
Durable Magnesium Alloy Chassis – Lightweight yet rugged construction, recoil-tested to withstand heavy use.
-
Replaceable Battery System – Allows extended operation in the field with quick battery swaps.
-
Onboard Storage – Built-in memory for saving footage or stills directly on the device.
-
Portable and Practical Accessories – Includes heated zeroing targets, remote control, carry bag, and charger for a complete hunting package.
- NocPix MATE Ultra S60R Thermal Clip-On Attachment
- Remote Control Accessories
- MAGIC ZOOM
- 4 x 18650 battery
- Battery charger
- Type-C cable
- Heated target for zeroing x10
- Lens cloth
- Quick start guide
- Portable bag
Can I use the MATE Ultra S60R both during the day and at night?
Yes. The S60R requires no external light source and works in total darkness, bright daylight, and poor weather conditions like rain, fog, and snow.
Does it need to be re-zeroed every time I attach it to my rifle?
No. Thanks to its 1 MOA accuracy, low distortion, and factory calibration, it holds zero reliably when swapped between rifles.
How far can it detect heat signatures?
With its 60 mm f/1.0 lens and high-performance sensor, the S60R has a detection range of up to 3100 metres.
What is the advantage of Magic Zoom with R+ AI?
Magic Zoom automatically adjusts the thermal image in line with your scope’s magnification, keeping the picture sharp and clear at all zoom levels.
Does it include a laser rangefinder?
Yes. The built-in Class 1 laser rangefinder measures up to 1200 metres and works with the ballistic calculator for accurate, on-screen aiming adjustments.
How long does the battery last?
Each replaceable 18650 battery provides up to 4 hours of operation. Four batteries are supplied, giving extended use in the field.
Is it waterproof?
Yes. The unit is IP67 rated, meaning it is fully protected against dust and can withstand immersion in water up to 1 metre for 30 minutes.
Can I record footage with it?
Yes. The S60R comes with 64 GB of built-in storage for recording video and capturing images directly.
How heavy is the unit?
It weighs just 560 grams with the battery installed, making it light and easy to mount without upsetting rifle balance.
What comes in the box?
The package includes the thermal attachment, remote control, four 18650 batteries, charger, Type-C cable, 10 heated zeroing targets, lens cloth, quick start guide, and a portable carry bag.
- NocPix 3 year warranty for main body
