The MOARTM F1 reticle features 1 MOA elevation and windage markings for accurate range finding and hold-offs. A floating center crosshair, and bold 3, 6 and 9 o’clock posts make this reticle fast and easy to use in the field. This MOARTM F1 reticle features a 20 MOA scale below center.

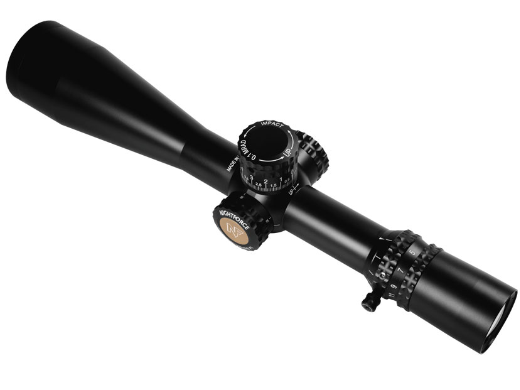

** SUPPLIER DISPATCH** Nightforce ATACR 5-25x56 F1 FFP MOAR Illuminated Riflescope
Details
** SUPPLIER DISPATCH**
Without a doubt, the new Nightforce ATACR 5-25x56 F1 riflescope could be called one of the perfect all-around long range riflescope.
The Nightforce ATACR 5-25x56 F1 is packed full of features that might make some grown men cry. The Nightforce ATACR 5-25x56 F1 is equipped with ED glass and the optics are beautiful & the mechanics sound. The adjustments are standard with the patented Nightforce Hi-Speed ZeroStop, and available in .1 Mrad (12 Mils per revolution) MIL-R reticle or .25 MOA ; MOAR reticle(30 MOA per revolution) increments.
A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment. All of these features are paired with intelligent, Nightforce F1 reticles to set a new standard in long range shooting. If there's something this riflescope can't do, we have yet to find it.
Brand | Nightforce |
---|---|
Product Name A-Z | ** SUPPLIER DISPATCH** Nightforce ATACR 5-25x56 F1 FFP MOAR Illuminated Riflescope |
SKU | C545 |
Highest Magnification | 21x-30x |
Illuminated Reticle | Yes |
Minimum Parallax | 45yd-∞ |
Objective Lens Diameter | 56mm |
Reticle Plane | First |
Tube Diameter | 34 mm |
Turret Click Value | 1/4 MOA (0.25) |
Reticle | MOAR |
Specs
Nightforce ATACR 5-25x56 F1 FFP Riflescope - Specification
SPECIFICATIONS | ATACR 5-25 X 56 F1 |
---|---|
Focal Plane | First |
Objective outer diameter | 65 mm |
Exit pupil diameter | 5x:8.3mm 25x: 2.3mm |
Field of view @100 yards/100 meters | 5x: 18.7ft 25x: 4.92ft 5x: 5.7m 25x: 1.5 m |
Eye relief | 85-90mm/3.35-3.54 in |
Internal adjustment range (MOA/Mil) | e: 120 MOA w: 80 MOA e: 35 Mil w: 23 Mil |
Click value | .250 MOA .1 Mil-rad |
Parallax adjustment | 45 yd - ∞ |
Tube diameter | 34mm/1.34 in |
Eyepiece outer diameter | 46 mm |
Overall length (inches/mm) | 15.37 in/390 mm |
Weight (ounces/grams) | 38 oz/1077g |
Mounting length (inches/mm) | 5.9 in/150 mm |
PTL (Power Throw Lever) | Standard |
Reticles available | MOAR™ MIL-R™ H59™ * TReMoR3™ * |
Elevation Feature | ![]() |
Illumination | ![]() (* Non-Illuminated) |
Features
Nightforce ATACR 5-25x56 F1 FFP Riflescope - Features
Tenebraex Flip Covers are now included with Nightforce ATACR 5-25x56 F1 riflescopes*.
When you order a Nightforce ATACR 5-25x56 F1 please see below the set up you will receive
- MOAR - 0.25 MOA Turret Clicks
- MLR - 1 mRad Turret Clicks
(*Excluding models C445, C446, C526)
Reticle
MOAR™ F1 – 20 MOA
