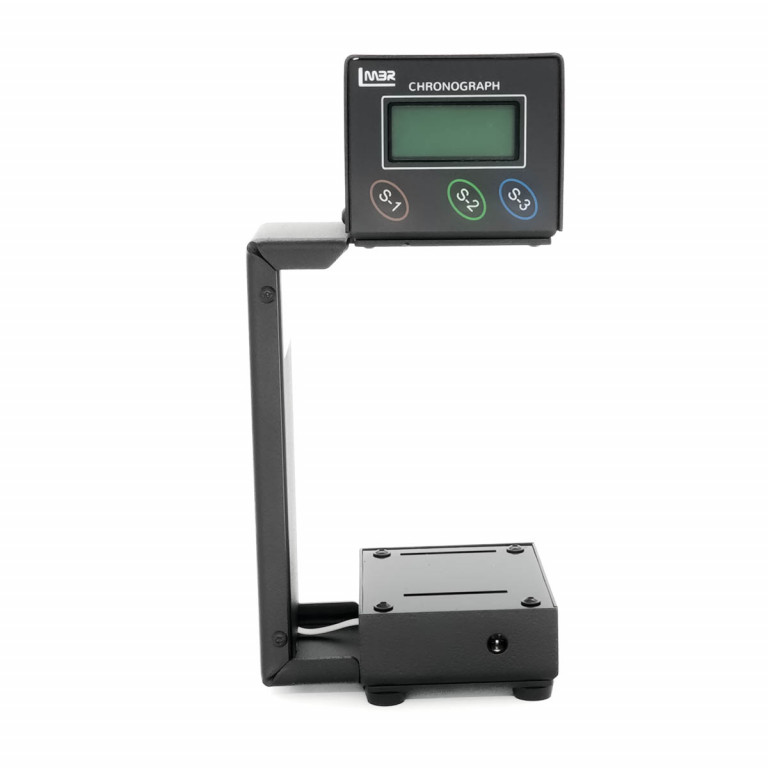

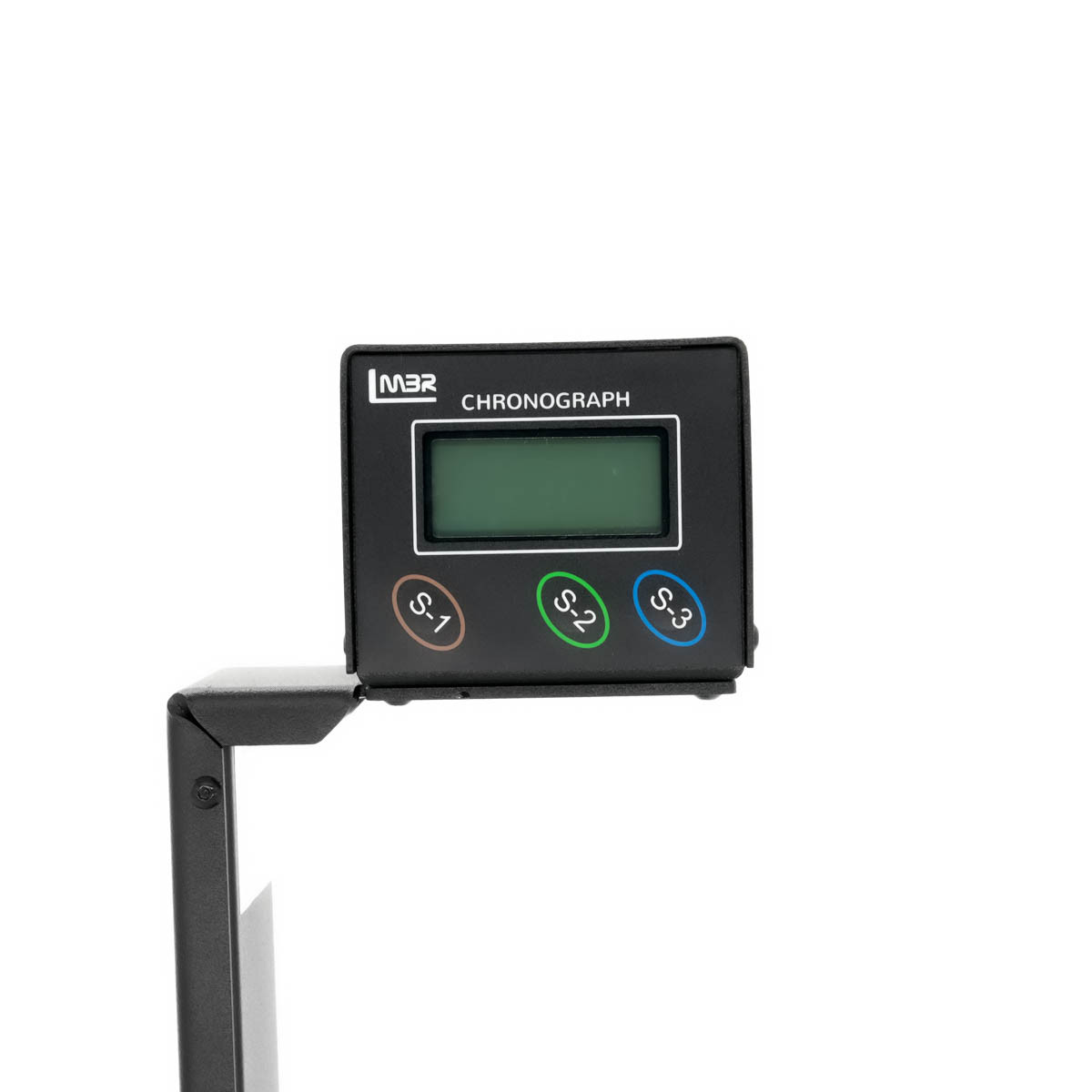

LMBR R2A Ballistic Shooting Chronograph for Airguns (with D-SUB9 Connection)
The LMBR R2A has been my go to chronograph for nearly three years. It performs reliably in low light, indoors, outdoors essentially in just about any conditions. I’ve tested three units side by side, shooting through them one at a time, and the differences in their readings were minimal.
In my opinion, this design offers several advantages over radar-based chronographs currently on the market. With three different models available, there’s an option suited to almost every shooter or archer.
#1265
#1266
#1306
#1308
#1304
The updated LMBR R2A Shooting Chronograph delivers exceptional accuracy and ease of use for air rifles, air pistols, firearms (excluding shotguns) and even archery. Built from high-quality materials and designed to eliminate the need for specialised lighting or external sensor shields, the R2A provides a dependable, straightforward measurement platform suitable for both hobbyists and professional shooters.
Featuring support for both metric and imperial units and the latest software, the R2A offers a comprehensive suite of performance measurements including velocity, kinetic energy, power factor, rate of fire and advanced statistical data. With an integrated D-SUB9 connection for direct computer data transfer, it is the ideal chronograph for tuning, testing and recording ballistic performance with precision and consistency.
- Velocity Range 1–1220 m/s (40–6500 f/s)
- Measurement Error ≤ 1% at 1000 m/s
- Current Consumption 100 mA
- Power Supply 2 × AA batteries (alkaline or rechargeable)
- Dimensions 210 × 100 × 100 mm (H × W × D)
- Weight 980 g
- Units Metric & imperial
- Functions Velocity, kinetic energy, power factor, shot counter, averages, min/max, deviation, rate of fire, bullet weight input
- Calibration Adjustable sensor distance
- Memory Capacity 250 velocity measurements
- Data Transfer D-SUB9 output to computer
- Multi-Sport Capability – Designed for airguns, firearms (excluding shotguns) and archery, making it ideal for a wide range of shooting disciplines.
- User-Friendly Design – Provides quick setup with no need for additional lighting rigs, allowing for easy use indoors or outdoors.
- Comprehensive Ballistic Readouts – Delivers velocity, kinetic energy, power factor, shot statistics and rate-of-fire information to support accurate testing and fine-tuning.
- Advanced Statistical Tools – Includes average, minimum, maximum and standard deviation readings to help shooters analyse consistency and performance trends.
- Convenient Data Management – Features built-in memory for 250 recorded velocities and the ability to transfer data directly to a computer via D-SUB9.
- Durable Construction – Manufactured from robust, high-quality materials to ensure long-term reliability on the range or in workshop settings.
- Flexible Power Options – Runs on two AA batteries (supplied), making it entirely portable and suitable for field use.
- Clear and Accessible Interface – Simple controls and a clear display allow quick interpretation of results without technical complexity.
LMBR R2A Ballistic Shooting Chronograph for Airguns (with D-SUB9 Connection)
Are the LMBR range of Chronographs good?
Yes the LMBR Chronographs are extremely good and consistent with the readings. I personally have used a R2A for roughly 3 years and never had any issues other than the batteries going flat which are AA so easily available.
Can you Bluetooth or USB to transfer data across to a phone, Tablet or Computer?
Yes you absolutely can but the parts needed are sold separately,, Please see below for links to though items.
USB Cable - https://www.opticswarehouse.co.uk/usb-com-cable-converter-for-chronograph-r2-r2a?___store=default
Bluetooth Adapter - https://www.opticswarehouse.co.uk/lmbr-android-bluetooth-adaptor?___store=default
Are these easy to use?
Yes. Depending how much information you are actually wanting you can find the majority of information with just a touch of a couple of buttons. Instructions can also be found on each listing. There are also a few good videos on YouTube.
Where are these Assembled?
Poland
Are cases available for these?
Yes LMBR offer cases. Please see below links.
R2 – https://www.opticswarehouse.co.uk/lmbr-case-for-r2-chronograph?___store=default
R2A - https://www.opticswarehouse.co.uk/lmbr-case-for-r2a-chronograph?___store=default
Why does the display read range?
The display will only read range when something to slow to get a reading has gone through the sensors.
How do I change between Metric and Imperial?
Turn the device off, Press and hold down buttons S-2 & S-3 and turn the device back on. If you have been on Imperial it will now flash up Metric and Vise versa if you originally had Metric set.
How do I turn the backlight on and off?
Ensure the device is turned off, Press and hold down S-1, Turn the device on and now the backlight will be on. If you are wanting the light off make sure the device is turned off press down S-1 turn the device on now the backlight will be off.
How to change From High (Air Rifles) & Low (Firearms) settings?
To change settings between High & Low ensure the unit is turned off press and hold down S-1 & S-2 Turn on the device and it will change from the previous setting.
Are these real as my mate has a LMBR with different buttons and a USB port?
Yes these are 100% genuine and we get these directly from LMBR. LMBR offer these models in a few different variations, We just choose to buy them in this configuration.
