Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod with LH-40LR Ball Head

PRICE MATCHSeen it Cheaper? We Could Match It!

EXCHANGE GUARANTEE60 day Scope Out Guarantee

KLARNA AVAILABLEOn All Our Products

TRADE IN & PART EXWe'll take your old Optics

We aim to dispatch in-stock items same working day if ordered before 2.30pm, but during busy periods we may dispatch in-stock items within 1-2 working days.

SKU#LEO-LS-324CPRO+LH-40R Leofoto

Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod with LH-40LR Ball Head

Name: Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod with LH-40LR Ball Head
Brand: Leofoto
Price: 377.99 GBP
Availability: OutOfStock

Available soon Notify me when back in stock

The Leofoto LS-324C PRO Ranger Series Tripod with LH-40LR Ball Head features high-density carbon fibre legs for superior strength, water-resistant twist locks, and ergonomic angle stops offering four leg positions for maximum versatility. Its redesigned apex platform provides 10% more mounting surface, while the CNC-machined aluminium components ensure durability. Despite weighing just 1.49kg, it supports up to 15kg, and the included LH-40LR ball head delivers smooth, precise control with a 20kg load capacity.

VIEW PRODUCT INFO / SPECS

TRY YOUR CHANCE AT WINNING

DRAW
#727

Premium Draws WIN A: NocPix LUMI P13 Handheld Thermal Monocular - 13mm 12um 256x192 <20mK NETD

RRP: £539.00

456

£2.42/ticket

MORE INFO

DRAW
#731

Auto Draws WIN A: Wheeler Fat Torque Wrench 10 Bit Set in Case - 10-65 Inch Pounds

RRP: £96.99

383

£0.49/ticket

MORE INFO

WIN A: DNT Optics ZULUS HD ZHD312R 3-12X Digital Night Vision Scope With LRF And Ballistic Calculator (Includes PM20L Picatinny Rail)

DRAW
#728

Premium Draws WIN A: DNT Optics ZULUS HD ZHD312R 3-12X Digital Night Vision Scope With LRF And Ballistic Calculator (Includes PM20L Picatinny Rail)

RRP: £799.99

1376

£0.89/ticket

MORE INFO

DRAW
#729

Auto Draws WIN A: Vector Optics 5-15x32 Digital Day & Night Vision Monocular integral IR 200m Visibilty

RRP: £149.95

458

£0.35/ticket

MORE INFO

DRAW
#730

Auto Draws WIN A: Vector 12G Gun Cleaning Kit

RRP: £22.25

492

£0.25/ticket

MORE INFO

PRICE MATCHSeen it Cheaper? We Could Match It!

EXCHANGE GUARANTEE60 day Scope Out Guarantee

KLARNA AVAILABLEOn All Our Products

TRADE IN & PART EXWe'll take your old Optics

We aim to dispatch in-stock items same working day if ordered before 2.30pm, but during busy periods we may dispatch in-stock items within 1-2 working days.

Product Information FIND OUT MORE

DESCRIPTION

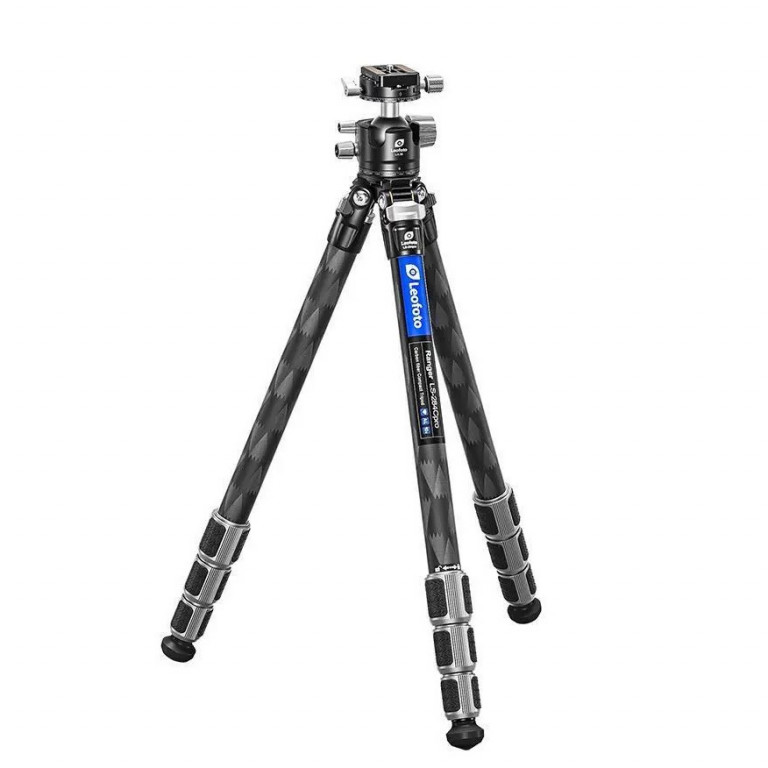

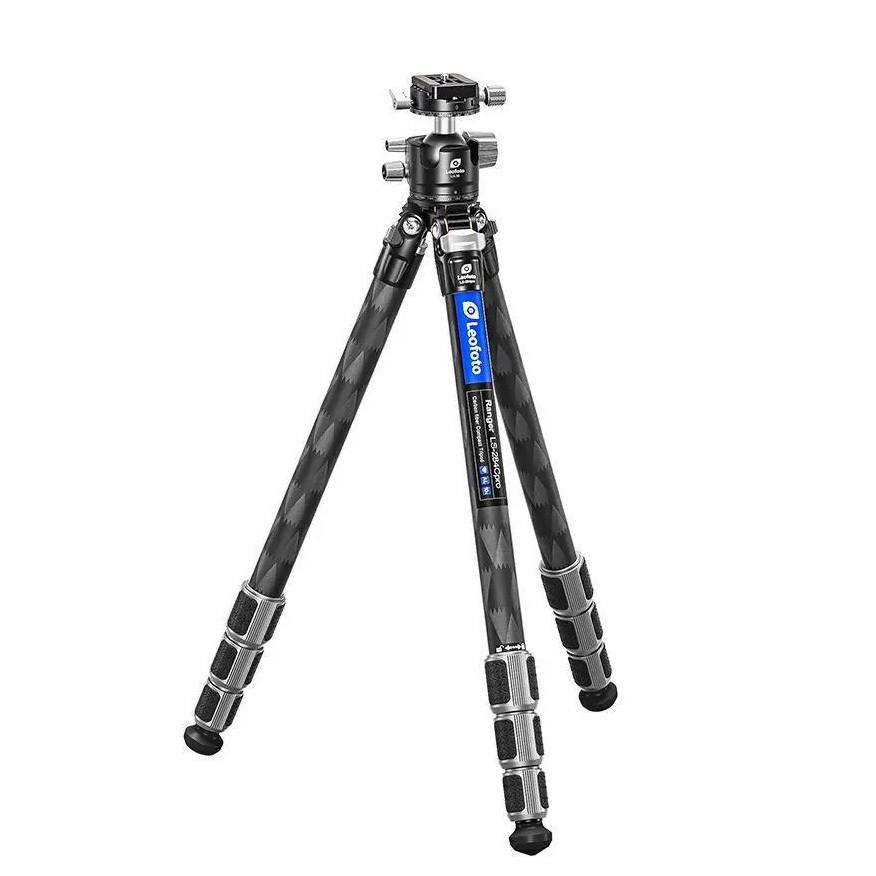

The Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod with LH-40LR Ball Head is a refined evolution of the popular Ranger Series, offering professional-grade stability, durability and functionality for serious photographers and videographers. Designed with the latest advancements in materials and engineering, the LS-324C PRO features high-density carbon fibre leg tubes that deliver exceptional rigidity while keeping weight to a minimum.

Enhanced water-resistant twist leg locks ensure smoother operation and improved resistance to the elements, while the newly redesigned ergonomic angle stops provide four distinct leg angle settings, 23°, 42°, 62°, and 82°, allowing for maximum versatility in challenging terrain. The compact apex platform has been enlarged by 10%, offering a more stable and secure mounting surface for heads and accessories, and includes a 1/4"-20 accessory socket for added functionality.

Despite its lightweight build at just 1.49kg, the LS-324C PRO can support loads up to 15kg, with a maximum height of 1400mm and a minimum working height of just 105mm, making it ideal for low-angle and macro photography. The four-section legs, made from robust 32/28/25/22mm tubes, fold down to a compact 515mm, ensuring portability without compromise.

Paired with the LH-40LR ball head, this kit offers precision and control thanks to its 40mm ball diameter, 530g weight, and impressive 20kg load capacity. The CNC-machined T6-6061 aluminium construction, combined with a hard anodised finish, gives both the tripod and head superior resistance to wear and corrosion, even in tough environments.

SPECS

Leofoto LS-324C PRO Tripod

Max Height: 1400mm / 55.11"
Min Height: 105mm / 4.13"
Folded Length: 515mm / 20.27"
Leg Sections: 4
Max Load Capacity: 15kg / 33lb
Weight: 1.49kg / 3.28lb
Leg Tube Diameters: 32mm / 28mm / 25mm / 22mm

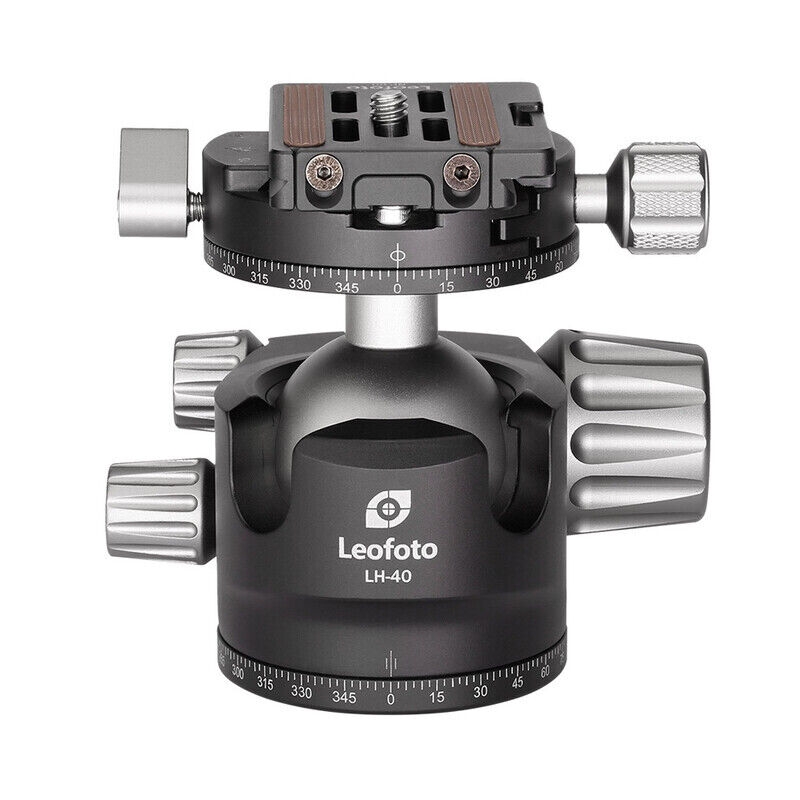

Leofoto LH-40LR Ball Head

Ball Diameter: 40mm / 1.57"
Panning Base Diameter: 57mm / 2.24"
Height: 91mm / 3.58"
Mounting Thread: UNC 3/8"-16
Max Load Capacity: 20kg / 44.09lb
Weight: 530g / 1.16lb

FEATURES

High-density carbon fibre construction for increased strength and rigidity without added weight

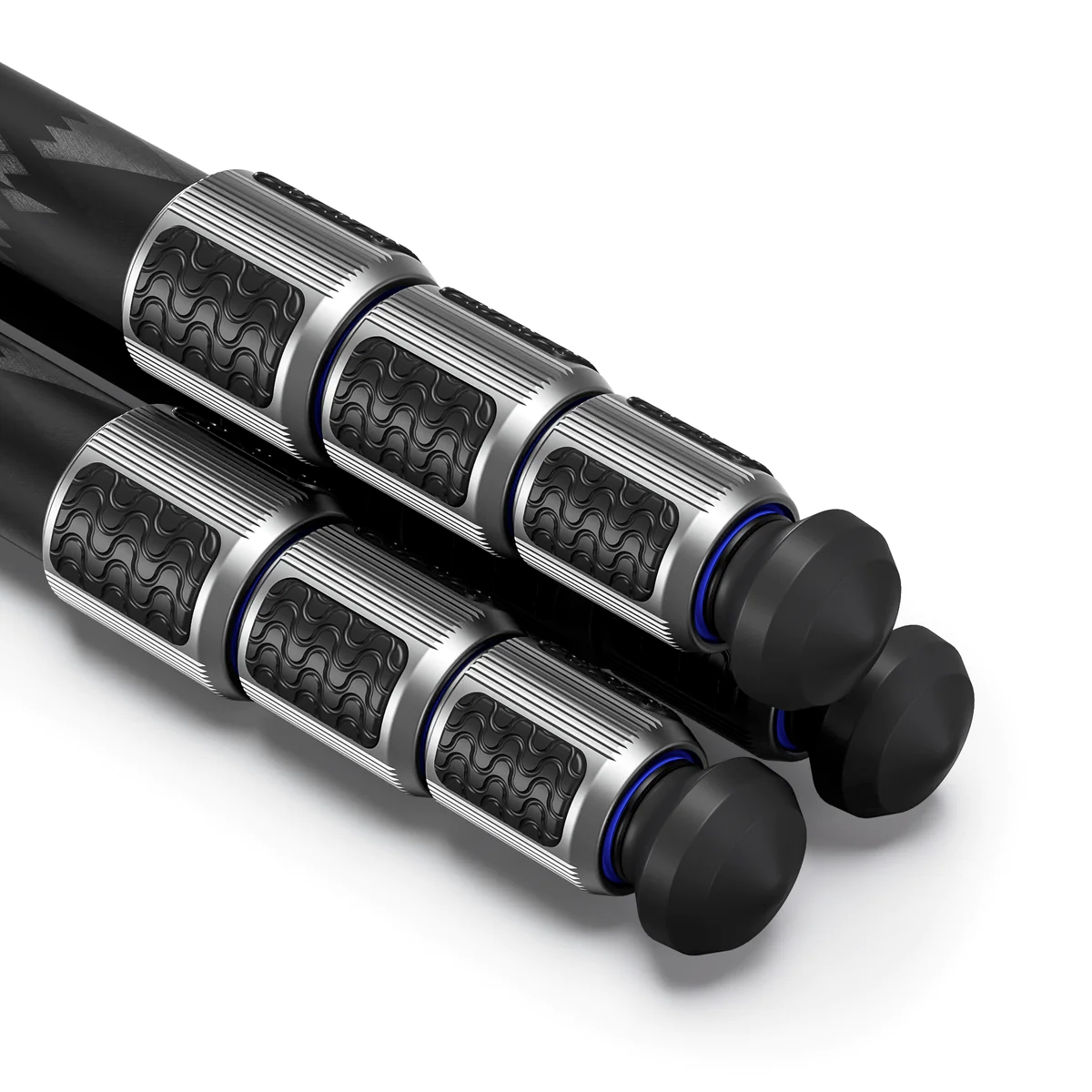

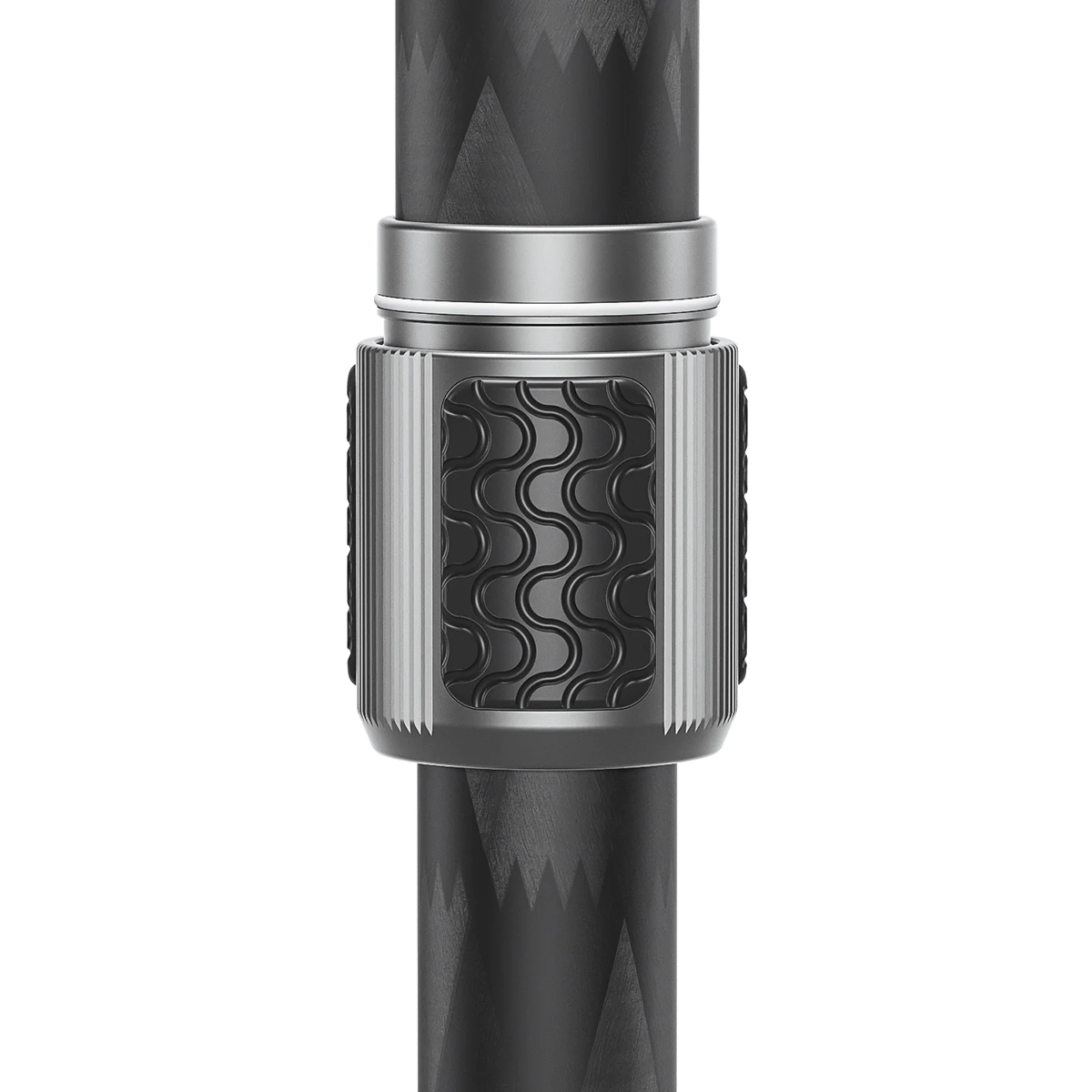

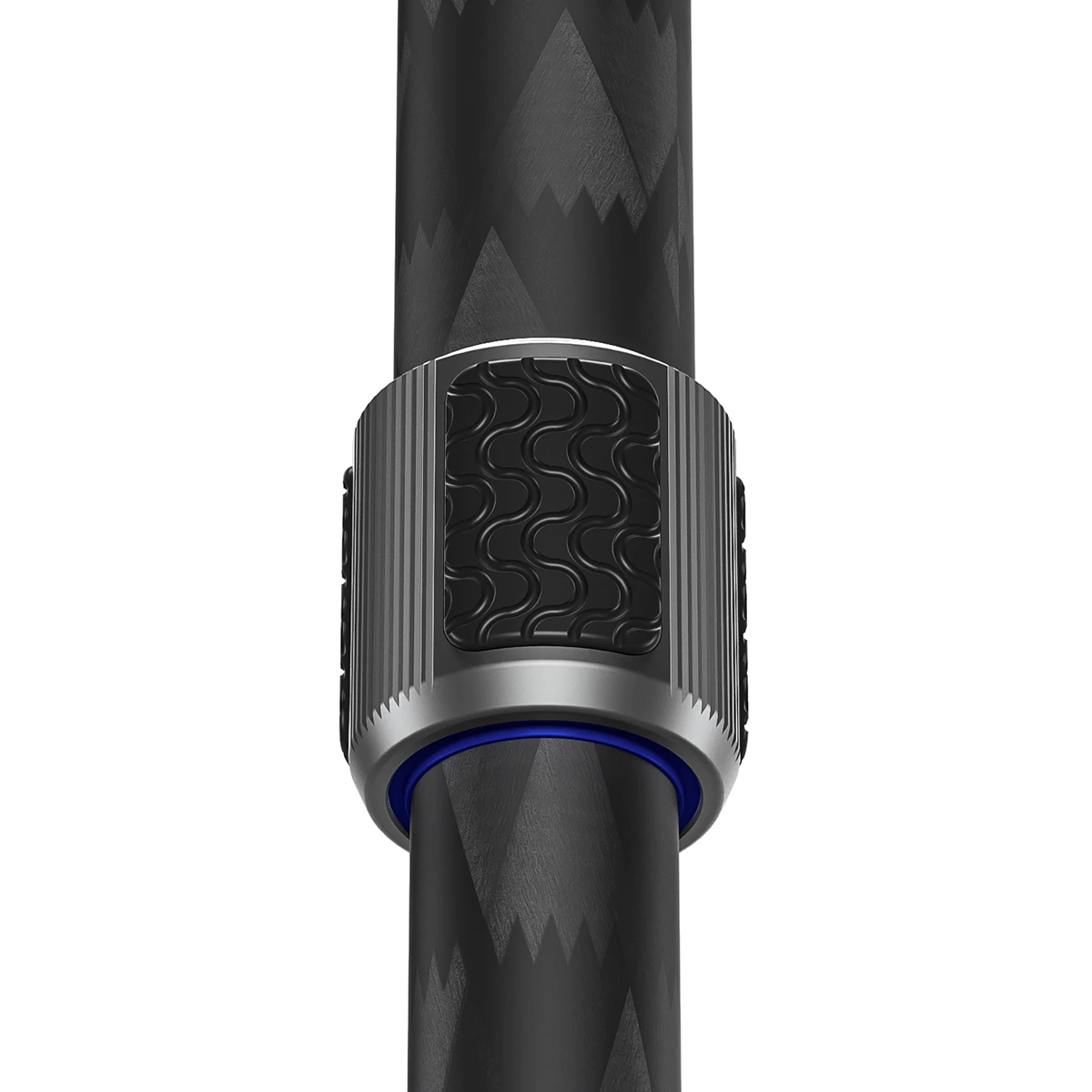

Water-resistant twist leg locks to prevent debris and moisture ingress, ensuring smooth operation in all conditions

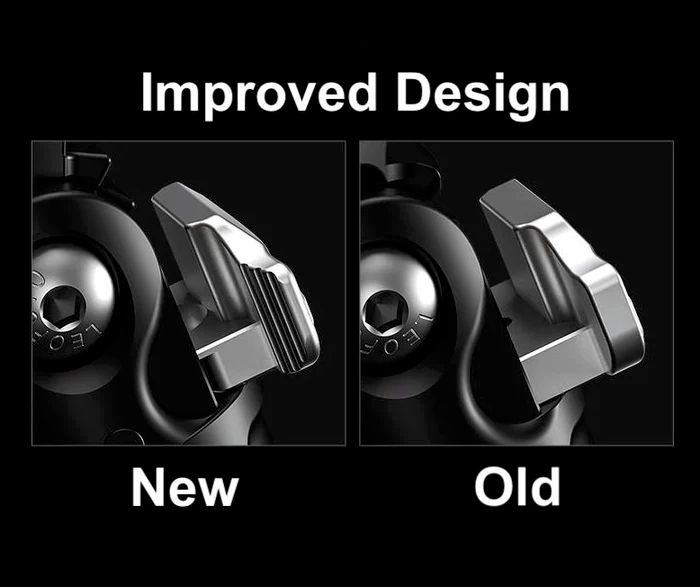

Improved ergonomic angle stops with four leg positions (23°, 42°, 62°, and 82°) for versatile shooting angles
Redesigned compact apex platform with 10% more surface area for enhanced head stability
Independent leg spread for flexible positioning on uneven terrain
1/4"-20 accessory socket on the apex for mounting arms, monitors, or other gear
Interchangeable feet system, including rubber feet and optional spikes for stability on various surfaces
CNC-machined T6-6061 aluminium hardware for exceptional durability and a precision fit
Hard anodised finish for increased resistance to scratches and corrosion
Quick-deploy twist locks requiring only a quarter-turn for rapid setup and breakdown
Low-angle shooting capability by fully spreading the legs for ground-level shots

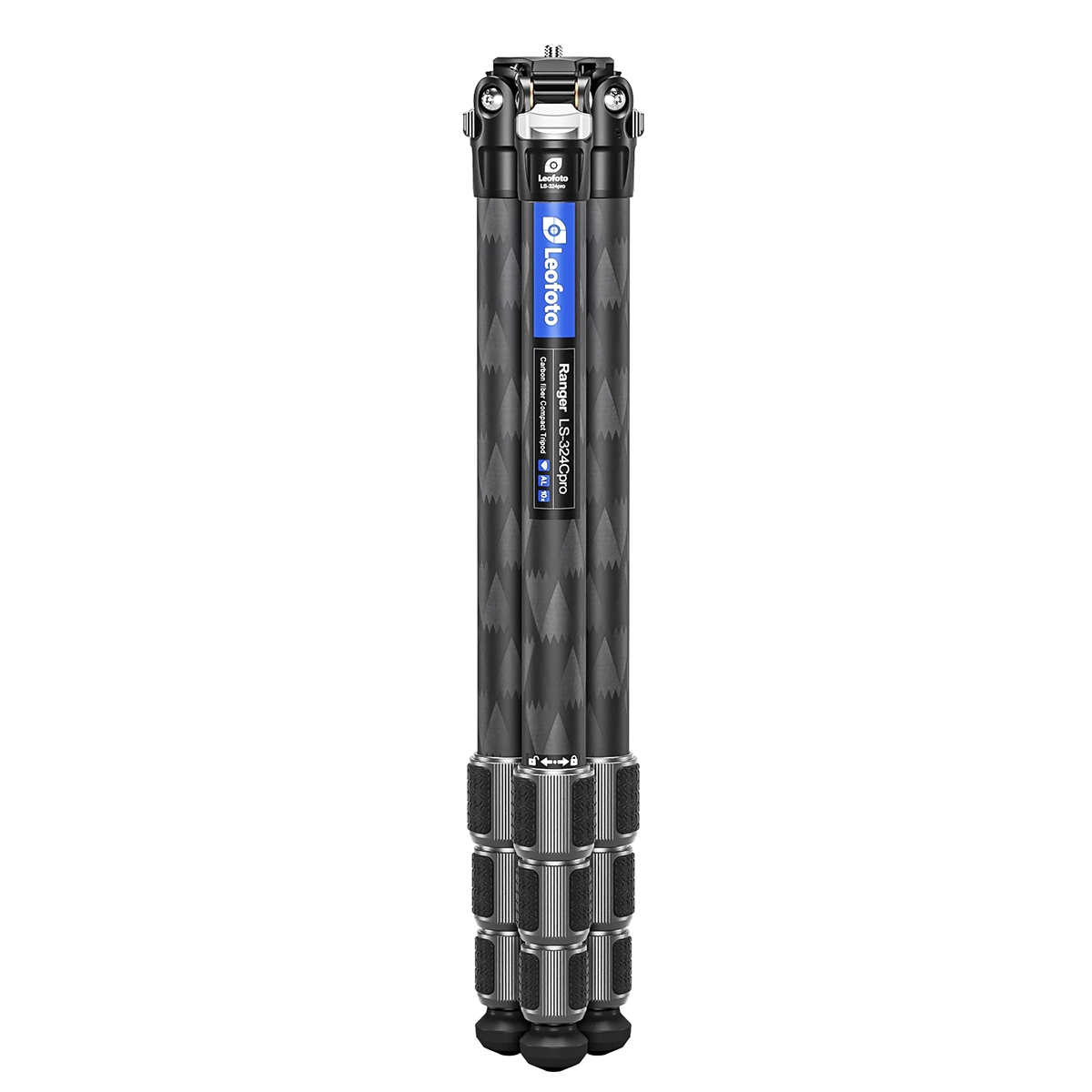

Compact folding design for easy transportation and storage
Includes LH-40LR ball head with smooth panning, strong locking, and Arca-Swiss compatibility for fast mounting and secure camera positioning

WHAT'S IN THE BOX

Leofoto LS-324C PRO Ranger Series Carbon Fiber Tripod
LH-40LR Ball Head

WARRANTY

Leofoto 10 year warranty
