Holosun LS117R Colimated Red Laser Aiming Device with QD Mount

SKU#LS117R Holosun

Holosun LS117R Colimated Red Laser Aiming Device with QD Mount

Name: Holosun LS117R Colimated Red Laser Aiming Device with QD Mount
Brand: Holosun
Price: 299.99 GBP
Availability: OutOfStock

Available soon Notify me when back in stock

The Holosun LS117R is a compact, rugged visible red laser aiming device built for rifle setups where quick target indexing matters. It’s got a clean collimated beam, a solid 7075 aluminum body, and a quick-detach Picatinny mount so you can throw it on or take it off without messing up your zero. With simple controls, a remote pressure switch included, and reliable windage/elevation adjustments, it’s a straightforward “point and shoot” aiming tool that works well as a backup or primary aiming aid depending on your setup.

-Nathan (Technical Advisor)

VIEW PRODUCT INFO / SPECS

Manufacturer Model: LS117R Colimated Red Laser

LS117R Colimated Red Laser

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The LS117R is a high-performance class IIIa red laser aiming device tailored for long gun applications. Encased in a durable 7075-aluminum matte black anodized housing, this device offers robust protection and longevity. It features a quick-release Picatinny rail mount for effortless and secure attachment.

Powered by a single AA battery, the LS117R boasts an impressive battery life of up to 5000 hours, ensuring reliable operation during extended use. The rear-facing selector switch allows users to choose between constant ON, OFF, or activation via the included remote pressure switch, providing versatile control options.

For precise targeting, the LS117R is equipped with tactile windage and elevation adjustments, allowing for accurate zeroing. This combination of advanced functionality, rugged construction, and user-friendly design makes the LS117R an ideal choice for discerning long gun users.

SPECS

PHYSICAL SPECS

Window Size N/A

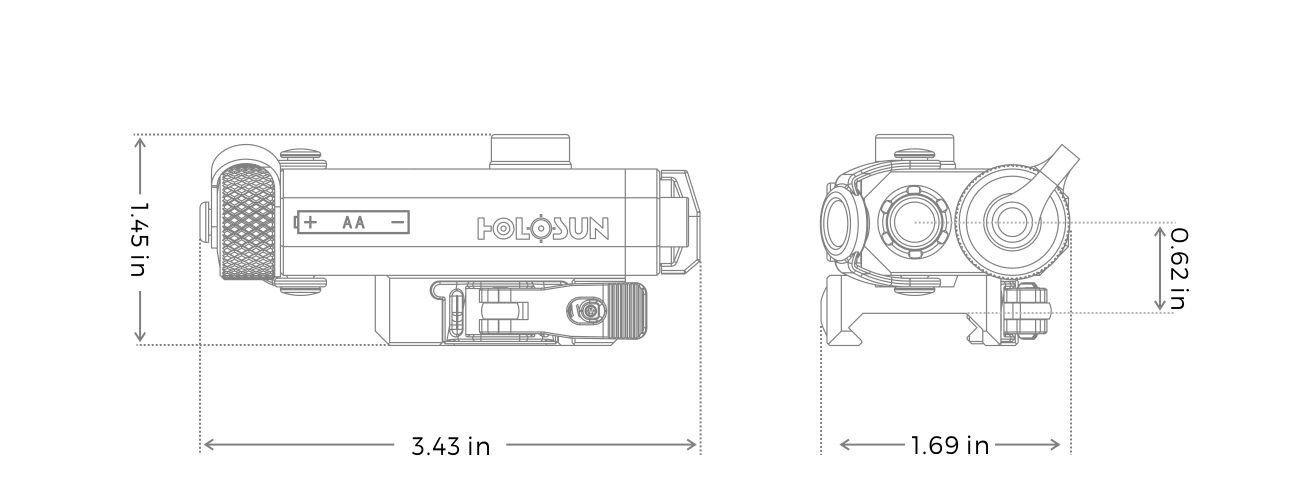

Dimension (in) 3×1.5×1.3
Weight (oz) 4.9

MECHANICAL SPECS

Housing Material 7075 T6 Aluminum
Surface Finish MAO
Adjustment per Click 0.5 MOA
W&E Travel Range ±50 MOA

ENVIRONMENT SPECS

Storage Temperature -40℃~65℃
Working Temperature -40℃~51℃
Submersion IP67
Vibration 1000G

ILLUMINATOR SPECS

White LED Candela N/A
Laser & Illuminator Type Single Laser
White LED Output N/A
IR Illuminator Class N/A
IR Illuminator Output N/A
IR Pointer Class N/A
IR Pointer Output N/A
Visible Laser Class IIIA
Visible Laser Output 1mw(low)/5mw(high)

FEATURES

The LS117R is a class IIIa red laser aiming device designed for long gun applications. The LS117R features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS117R is powered by a single AA battery which can provide up to 5000 hours of battery life.

The rear facing selector switch lets the user select between constant ON, OFF, or activation using the included remote pressure switch. The LS117R also include tactile windage and elevation adjustments for a precision zero.

WHAT'S IN THE BOX

Holosun LS117R Colimated Red Laser Aiming Device with QD mount
QD Release Mount
Remote Cable Switch
T10 L Key
User Manual
AA Battery

FREQUENTLY ASKED QUESTION(S)

1. What is the LS117R used for?
It’s a visible red laser designed for rifles to help with fast target acquisition and close-to-mid range aiming.

2. What does “collimated laser” mean?
It means the laser beam is aligned and focused so the point of aim stays consistent at distance.

3. Does it come with a quick-detach mount?
Yes, it includes a QD Picatinny mount for fast install and removal.

4. Is it durable enough for hard use?
Yes, it uses a 7075 aluminum housing and is built to handle recoil and field conditions.

5. How is it powered?
It runs on a single AA battery with up to roughly 5,000 hours of runtime depending on use.

6. Does it have a pressure switch?
Yes, it comes with a remote pressure switch for momentary activation.

7. Can you adjust the laser?
Yes, it has windage and elevation adjustments for zeroing.

8. Is it only for daytime use?
Yes, this model is a visible laser (not IR), so it’s for standard daylight or low-light use—not night vision.

9. Is it better than a red dot?
It’s not a replacement for a red dot; it’s more of a supplemental aiming tool, especially for quick indexing or backup use.

10. What’s the main advantage of the LS117R?
It’s simple, tough, and fast to use—basically a reliable “instant aiming reference” that doesn’t need optics alignment or glass.
