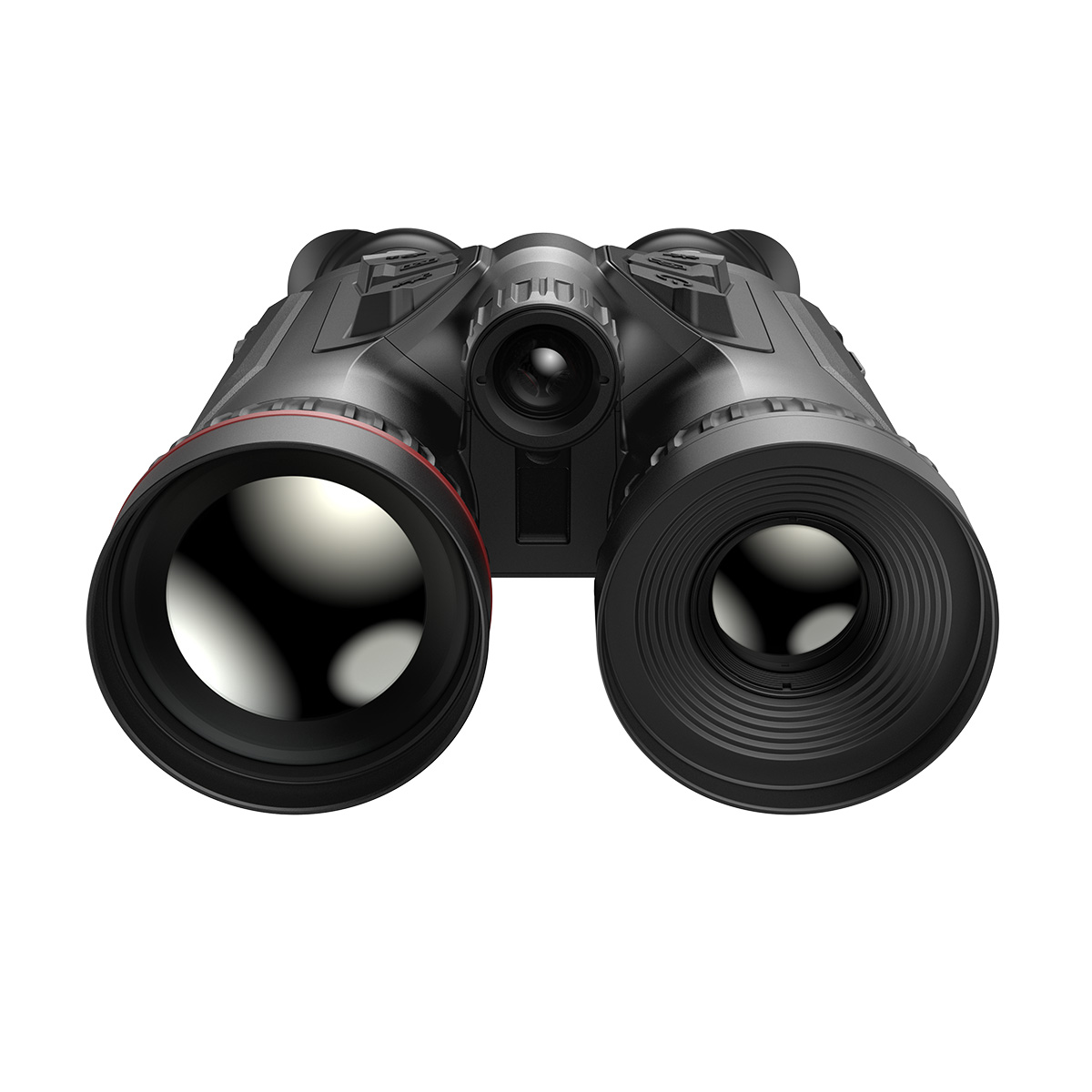

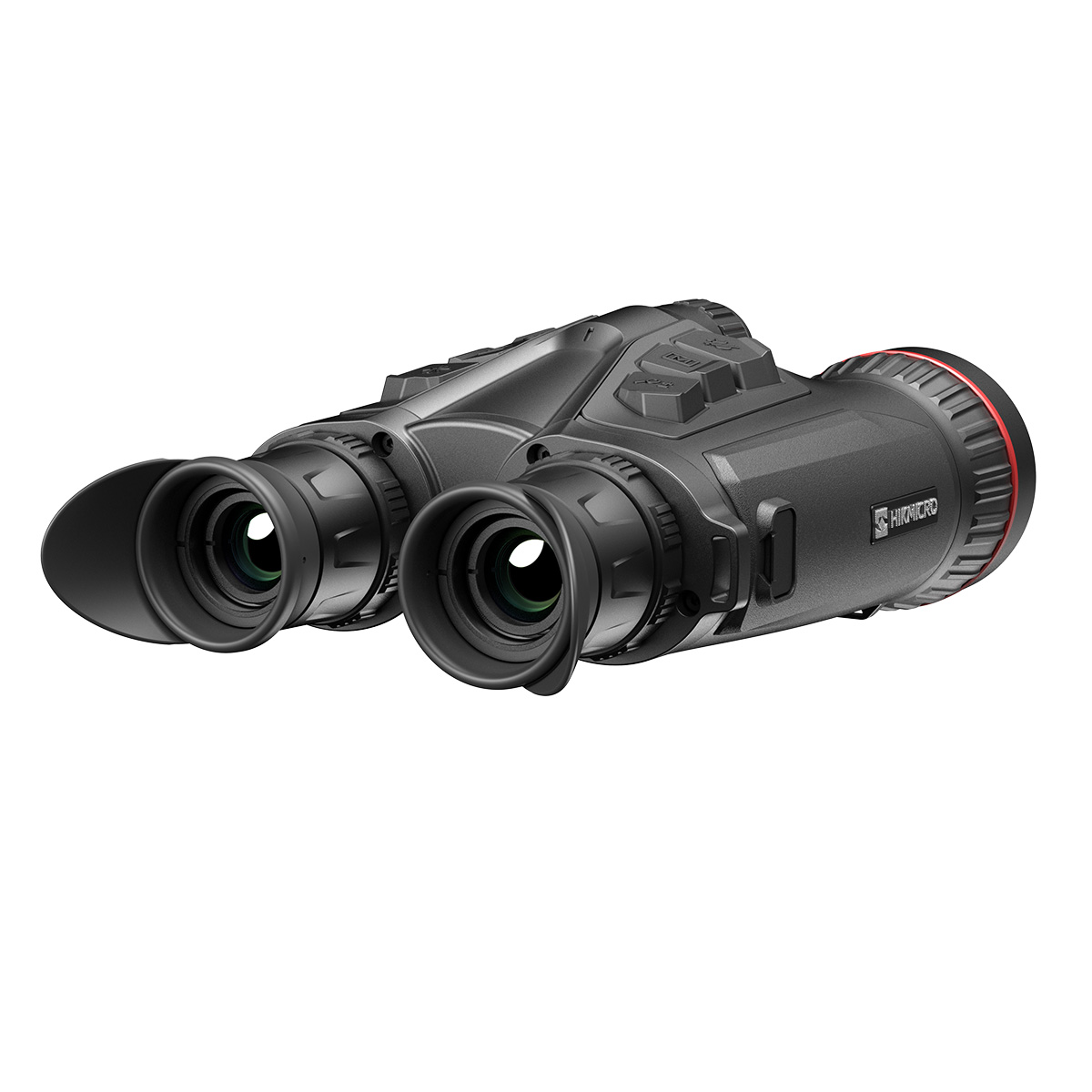

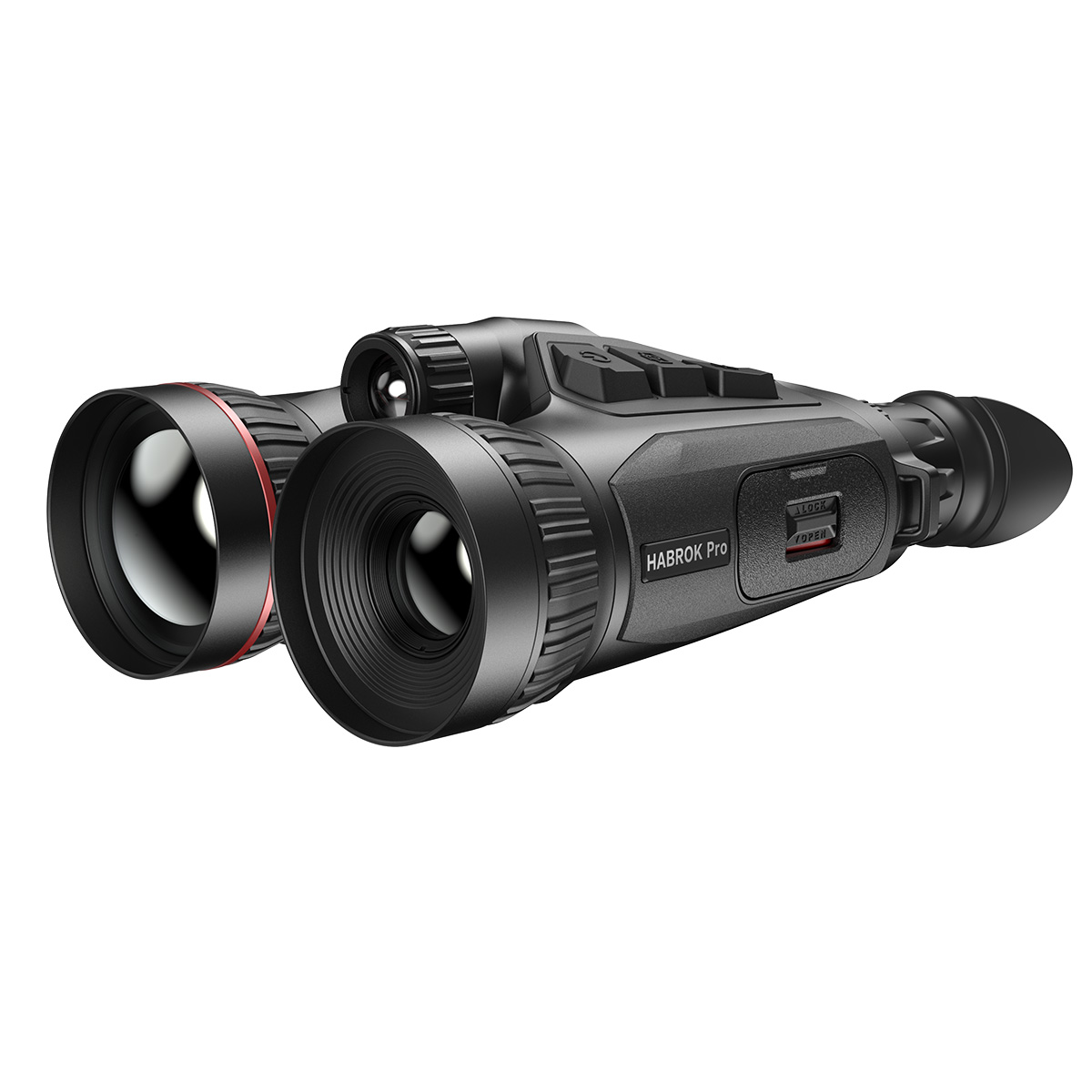

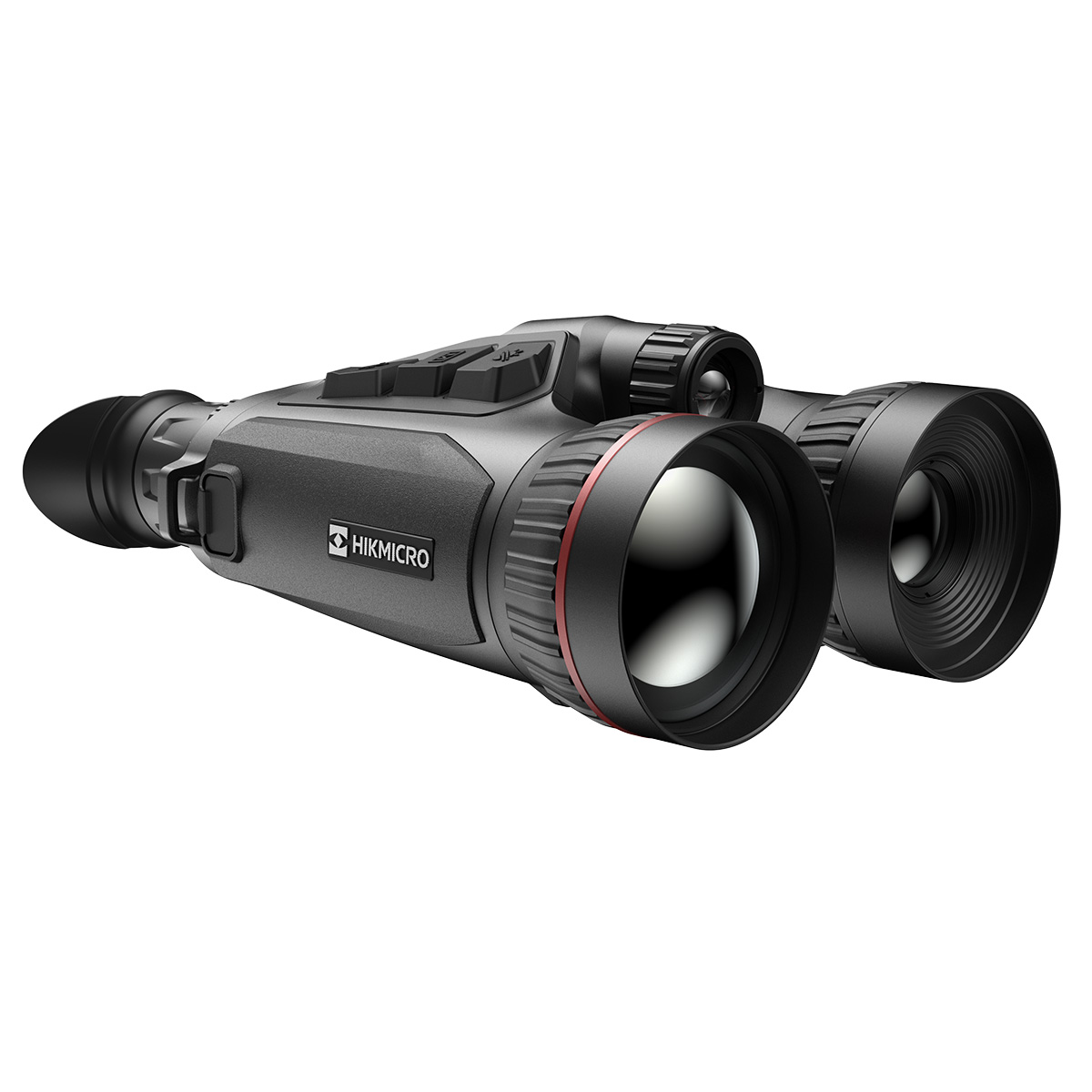

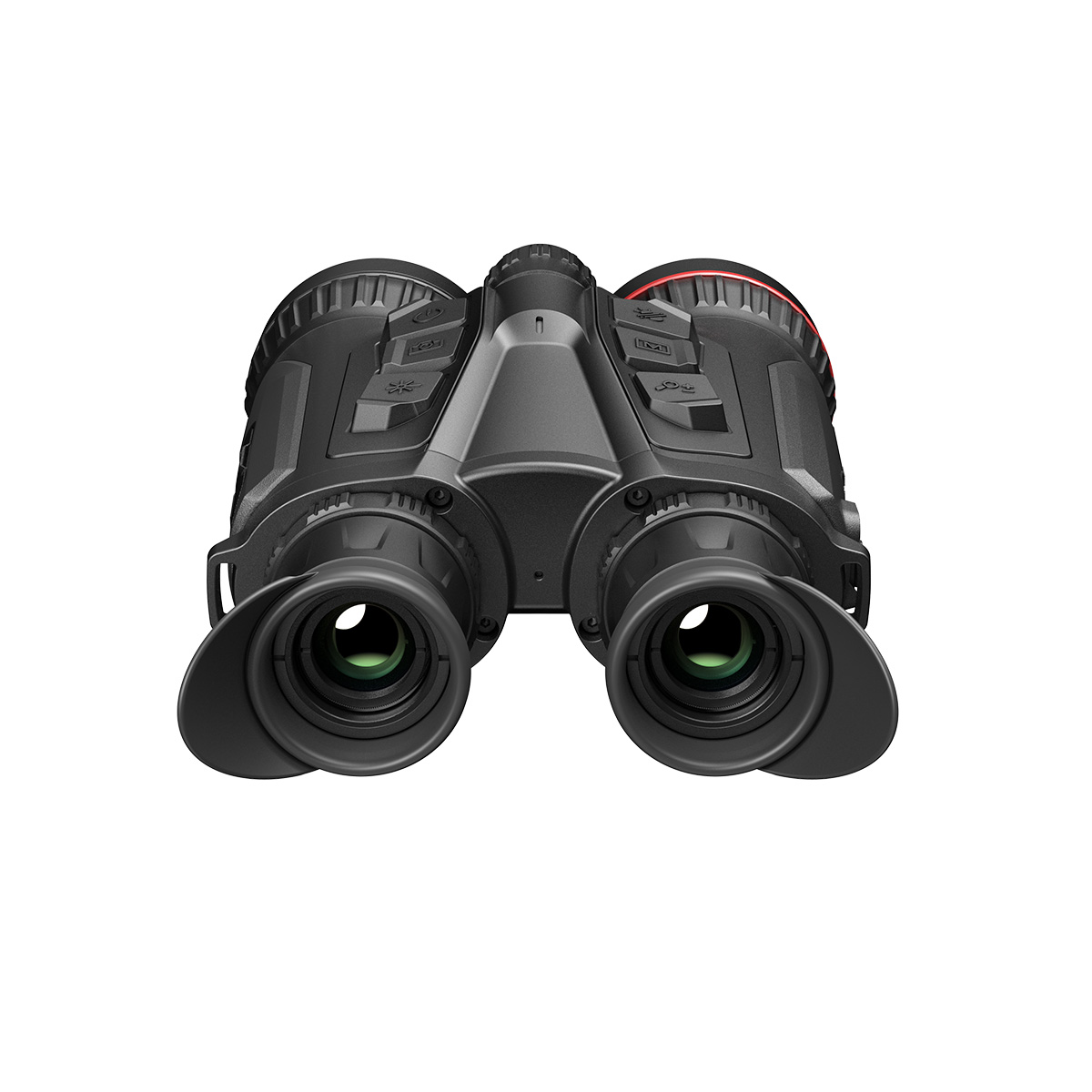

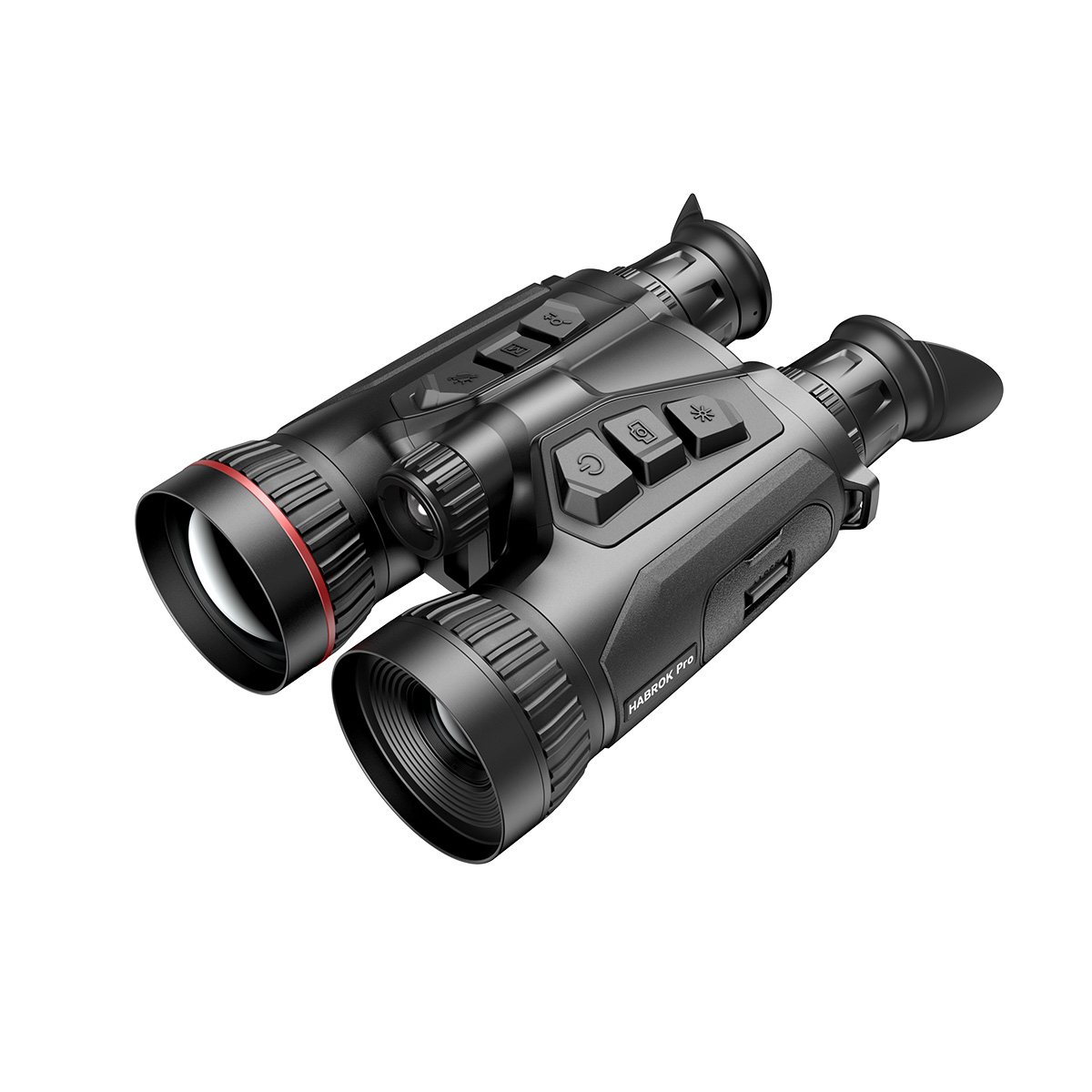

HIKMICRO Habrok Pro HX60LS 50Hz Multi-Spectrum Thermal Binocular

• Image Sensor VOx Uncooled Focal Plane Arrays
• Max. Resolution 1280 × 1024
• Frame Rate 50Hz
• Pixel Interval 12μm
• Response Waveband 8μm to 14μm
• NETD <15 mK (@25°C), F#=1.0
• Lens (Focal Length) 60mm, F1.0
• Focus Mode Focus Ring
• Detection Range 3100m
• Min. Focusing Distance 3m
• Magnification 2.6x–20.0x (7.7x)
• Field of View (H × V), Degrees / m @100m 14.6° × 8.8° / 25.6m × 15.4m
• Digital Image Sensor 1/1.8'' Progressive Scan CMOS
• Max. Resolution (Digital) 3840 × 2160
• Focal Length (Digital) 60mm, F2.2
• Min. Working Distance (Digital) 3m
• Focus Mode (Digital) Focus Ring
• Magnification (Digital) 5.5x–22.0x (4x)
• Field of View (H × V, Digital), Degrees / m @100m 7.3° × 4.1° / 12.6m × 7.2m
• Smart IR Yes
• IR Illuminator Wavelength 850nm
• Viewing Range at Night 400m
• Replaceable IR Illuminator Yes
• Display 0.49 inch OLED, 1920 ×1080
• Palettes Thermal
• Exit Pupil 8mm
• Eye Relief 15mm
• Diopter (Range) -5D~+3D
• Brightness Adjustment Yes
• Tone Adjustment Cold, Warm
• Contrast Adjustment Yes
• FFC Mode Auto, Manual, External Correction
• Zoom Pro No
• Image Pro 3.0 Yes
• Sync Pro Yes
• Record Video Yes
• Capture Snapshot Yes
• Audio Recording Yes
• Storage Built-in EMMC (64 GB)
• PIP Yes
• Hotspot Yes
• Hot Track Yes
• Digital Magnetic Compass Yes
• GPS Yes
• Local Album Yes
• Standby Mode Yes
• Battery Type Replaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time 5.5h (25°C, hotspot off, LRF on)
• Dimension 152.8mm × 81.95mm × 231.5mm (6.0" × 3.2" × 9.1")
• Working Temperature -30℃ ~ +55℃
• Weight 1050g with battery pack
• Protection Level IP67
• Interpupillary Adjustment Range 60mm to 74mm
• Mounting Adapter 1/4“-20-UNC
• Safety Class for Laser Class 1
• Wavelength (Laser) 905nm
• Max. Measuring Range 1000m
• Measurement Accuracy ±1m
• Min. Measuring Range 10m

• High-End 1280×1024 Thermal Detector – Delivers ultra-clear images with impressive detail recognition.

• 50Hz High-Speed Thermal Imaging – Provides smooth, real-time visuals in dynamic environments.

• Ultra-Sensitive NETD <15 mK – Ensures exceptional contrast and clarity even in low-visibility conditions.

• 60 mm F1.0 Thermal Lens – Supports long-range detection up to 3100 m for precise targeting.

• Advanced 4K Digital Camera – 3840×2160 resolution captures high-definition images for situational awareness.

• 60 mm F2.2 Digital Lens – Combines wide coverage with sharp image clarity for digital observation.

• 0.49-inch 1920×1080 OLED Display – Offers crisp, vivid visuals for effortless viewing in any light.

• Replaceable 850 nm IR Emitter – Enhances low-light performance and covert observation capabilities.

• 1000 m Laser Rangefinder – Provides accurate distance measurement for tactical decision-making.

• Multi-Spectrum Fusion – Combines thermal and digital imaging for enhanced target identification.

• Extended 5.5+ Hour Runtime – Replaceable battery pack supports prolonged field operations.

• Lightweight 1050 g Design – Maximizes portability without sacrificing performance.

• Compact & Ergonomic Form Factor – Comfortable to hold during extended use.

• Versatile Field Applications – Ideal for hunting, birding, wildlife search, rescue, and marine operations.

• Sync Pro Ready – Enables seamless data sharing and connectivity in the field.

• 1 x Habrok pro HX60LS
• 1 x Neck Strap
• 1 x Type-C CAble
• 1 x Tripod Adapter
• 2 x Battery
• 1 x Replaceable IR Illuminator
• 1 x QSG
• 1 x Lint-Free Cloth
• 1 x Battery Charger
• 1 x Binocular Harness

What is the main advantage of the Habrok Pro HX60LS?
It uses a 1280×1024 ultra-high-resolution thermal sensor, sub-15 mK sensitivity, a 4K digital camera, and multi-spectrum fusion, making it clearer and more capable than most thermal binoculars. It also includes a 1000 m laser rangefinder, long battery life, and a lightweight ergonomic design.

How far can it detect heat signatures?
It can detect thermal targets up to 3100 m.

Can the device be used during the day?
Yes. The built-in 4K optical camera and multiple optical palettes allow full daytime use in addition to thermal imaging.

Is the 4K camera separate from the thermal sensor?
Yes. It has a 1280×1024 thermal sensor for heat imaging and a 4K digital camera for visible-light imaging. It can also blend both together using fusion mode.

What does 50 Hz mean?
It refers to the refresh rate. A 50 Hz refresh rate provides smooth, real-time imaging and is ideal for observing moving targets.

What is NETD <15 mK?
NETD measures thermal sensitivity. A value under 15 mK means the device can detect extremely small temperature differences, giving clearer images in poor weather and low-contrast environments.

Does it have a laser rangefinder?
Yes. It features a Class 1, 905 nm laser rangefinder with a maximum range of 1000 m and accuracy of ±1 m.

How long does the battery last?
Each battery provides over 5.5 hours of runtime. Two batteries are included.

Are the batteries replaceable?
Yes. The device uses replaceable rechargeable battery packs.

Does it include an IR illuminator?
Yes. It includes a replaceable 850 nm IR illuminator for digital low-light use.

Does it record videos and photos?
Yes. It records videos, captures photos, and supports audio recording, all stored on the built-in 64 GB memory.

Can I share or stream the live view?
Yes. It supports wireless connectivity through Sync Pro.

What type of display does it use?
It uses a 0.49-inch 1920×1080 OLED display.

Is it waterproof?
Yes. The unit is rated IP67, meaning it is dust-tight and resistant to water immersion.

Is it suitable for hunting or wildlife observation?
Yes. It is designed for hunting, wildlife monitoring, birding, search and rescue, and marine use.

Can it be mounted on a tripod?
Yes. It includes a 1/4"-20 UNC tripod adapter.

What is the weight of the device?
It weighs 1050 g including the battery.

What image palettes does it offer?
Thermal palettes include Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, and Green Monochrome. Optical palettes include Day, Night, Green, Yellow, and Auto.

How close can it focus?
Both thermal and optical lenses have a minimum focusing distance of 3 m.

What comes in the box?
The box includes the Habrok Pro HX60LS, a neck strap, a Type-C cable, a tripod adapter, two batteries, a replaceable IR illuminator, a quick start guide, a lint-free cloth, a battery charger, and a binocular harness.

What is the warranty?
It comes with a 3-year HIKMICRO warranty.

Can the interpupillary distance be adjusted?
Yes. It adjusts from 60 mm to 74 mm.

Does it have GPS and a compass?
Yes. It includes a digital magnetic compass and GPS.

Can it track moving targets?
Yes. It features Hot Track, which highlights and follows the hottest object in view.

Is it suitable for extreme temperatures?
Yes. It is designed to operate from -30°C to +55°C.
