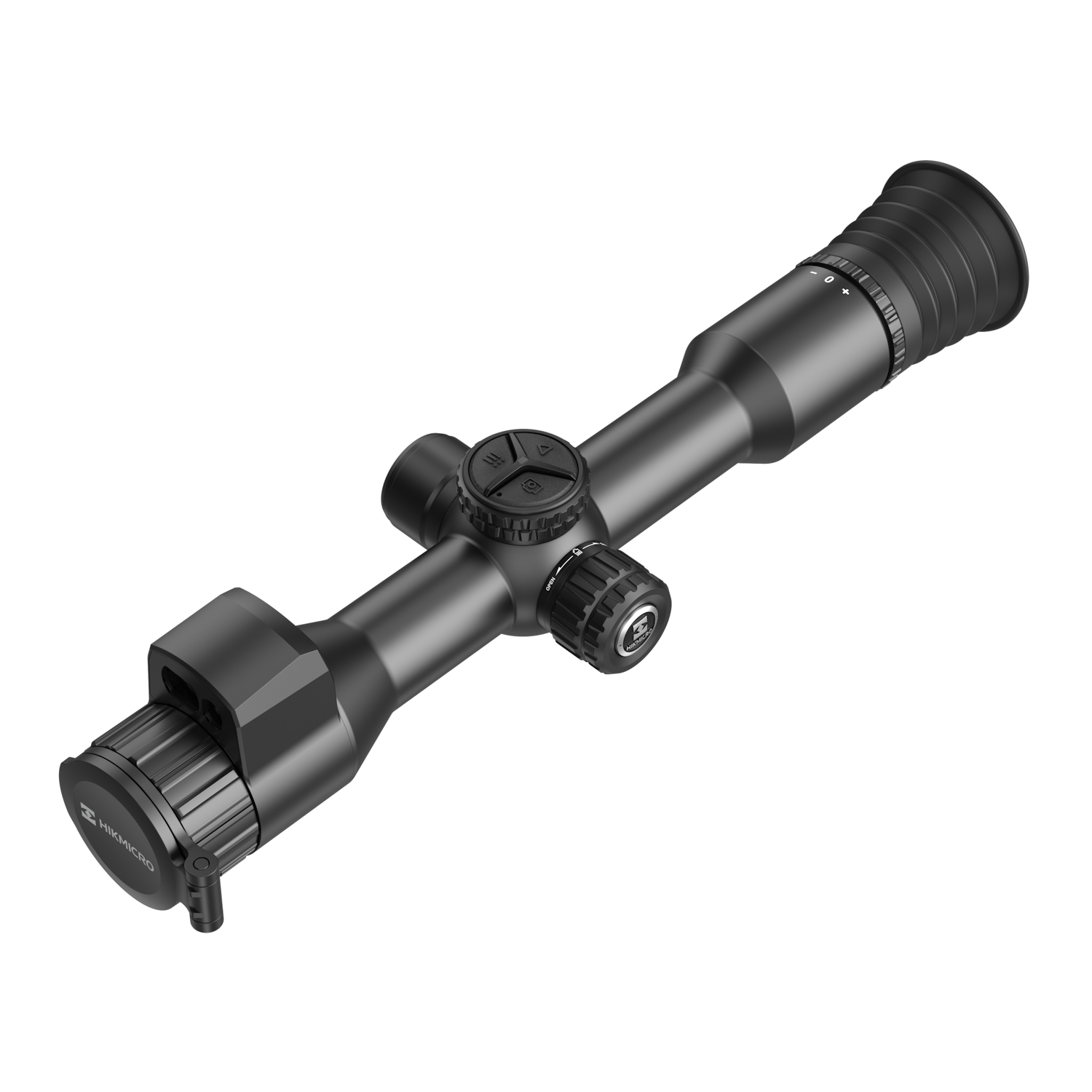

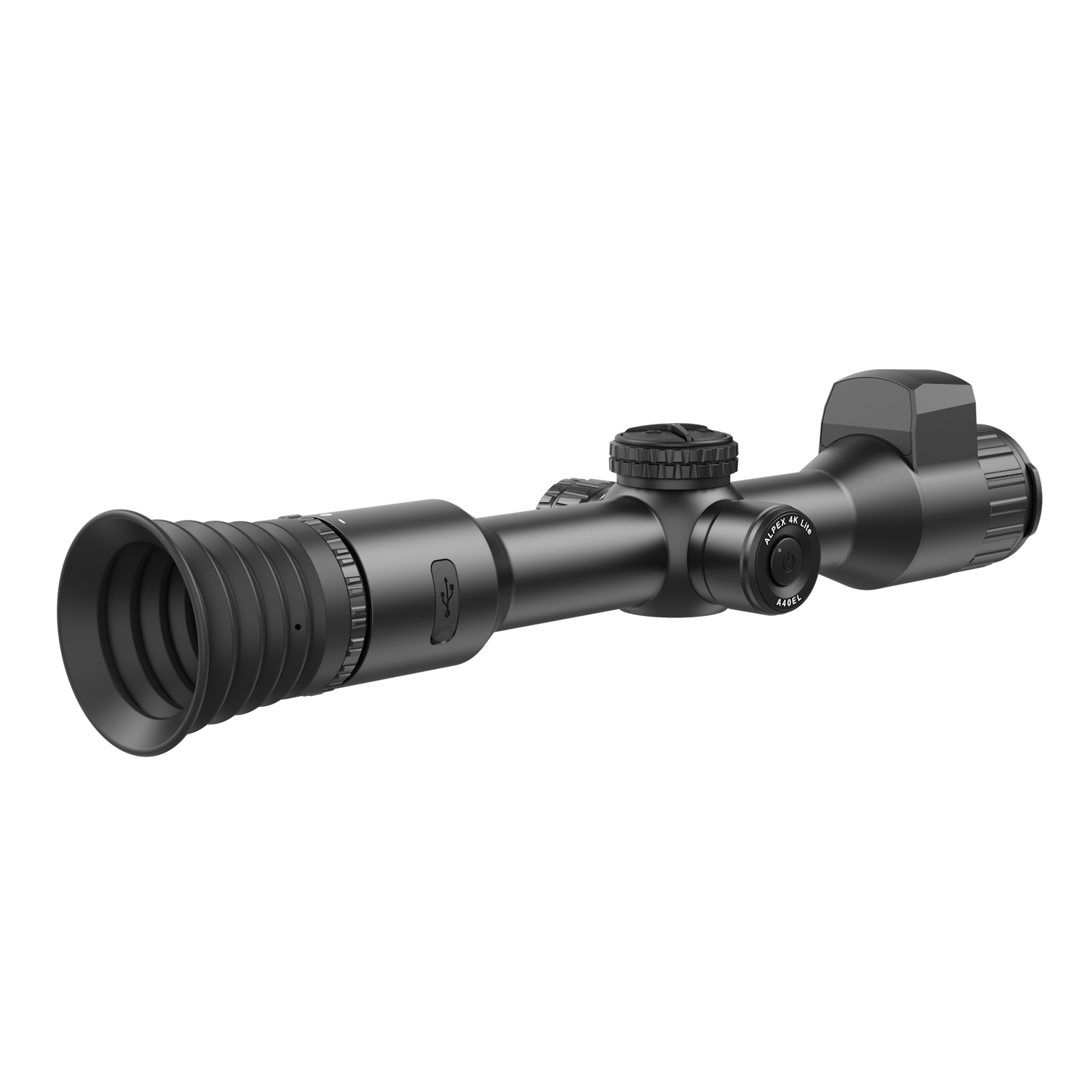

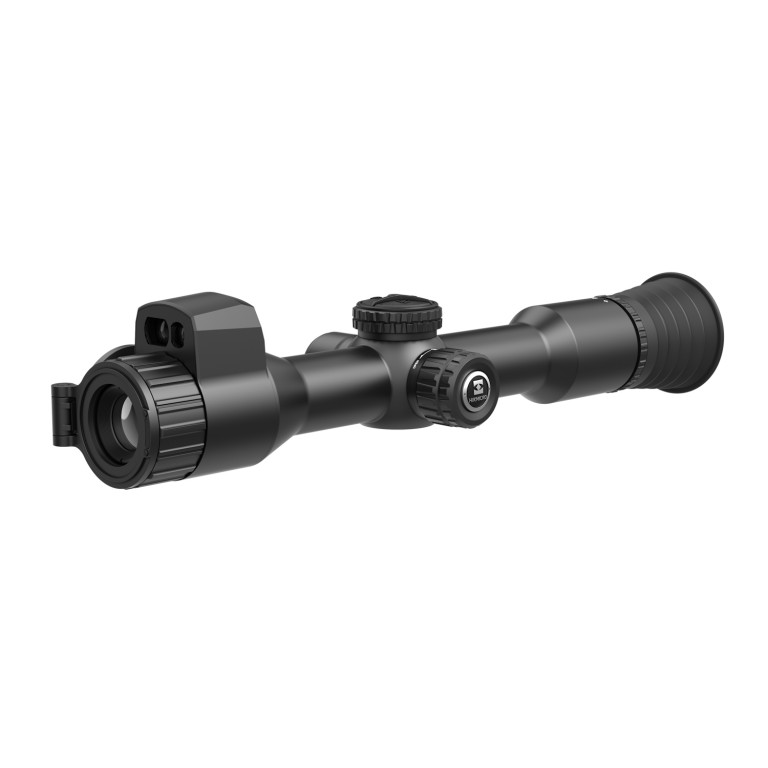

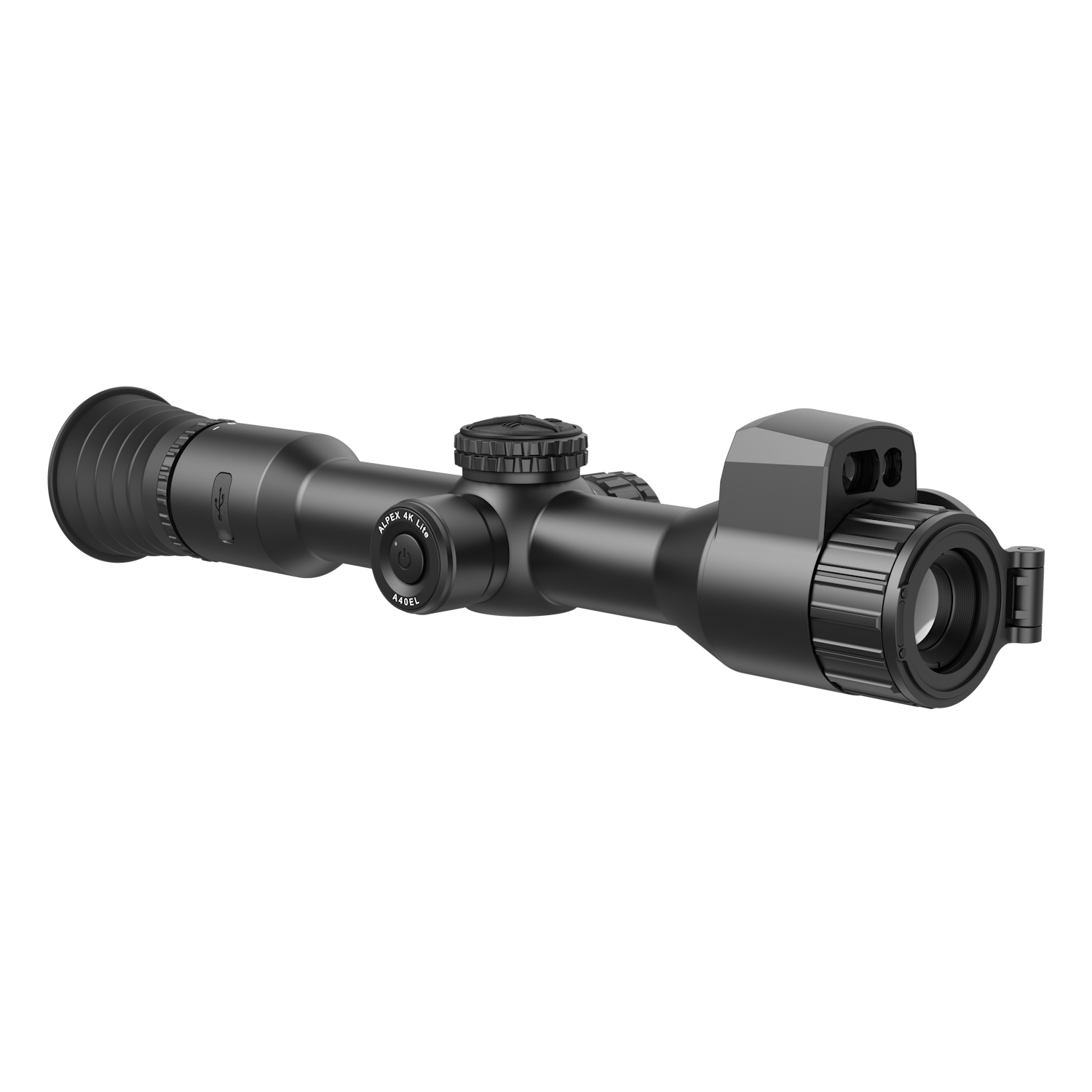

HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope

SKU#HM-A40EL HIKMICRO

HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope

Name: HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope
Brand: HIKMICRO
Price: 499.99 GBP
Availability: InStock
Rating: 4.5 (1 reviews)

40mm 3840x2160px UHD

105 in stock

Ultra-compact 30mm tube design weighing under 500g for easy mounting
4K UHD day and night vision for crisp detail in all conditions
Wide field of view of 10.7° × 6.1° / 18.7m × 10.1m at 100m

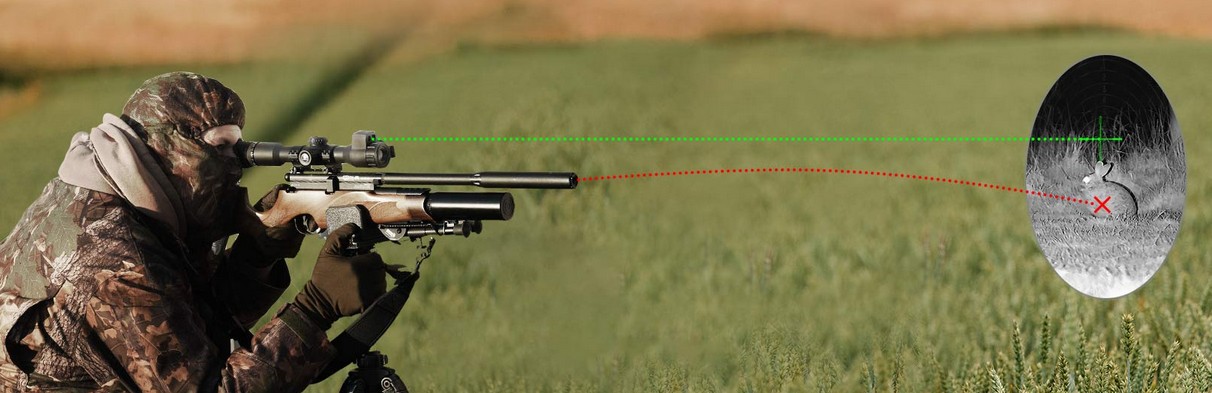

Integrated laser rangefinder with ballistic calculator for precise holdover
One-second startup and 7-hour runtime for reliable field performance
HIKMICRO Sight app integration for sharing, tracking, and hunt management

VIEW PRODUCT INFO / SPECS

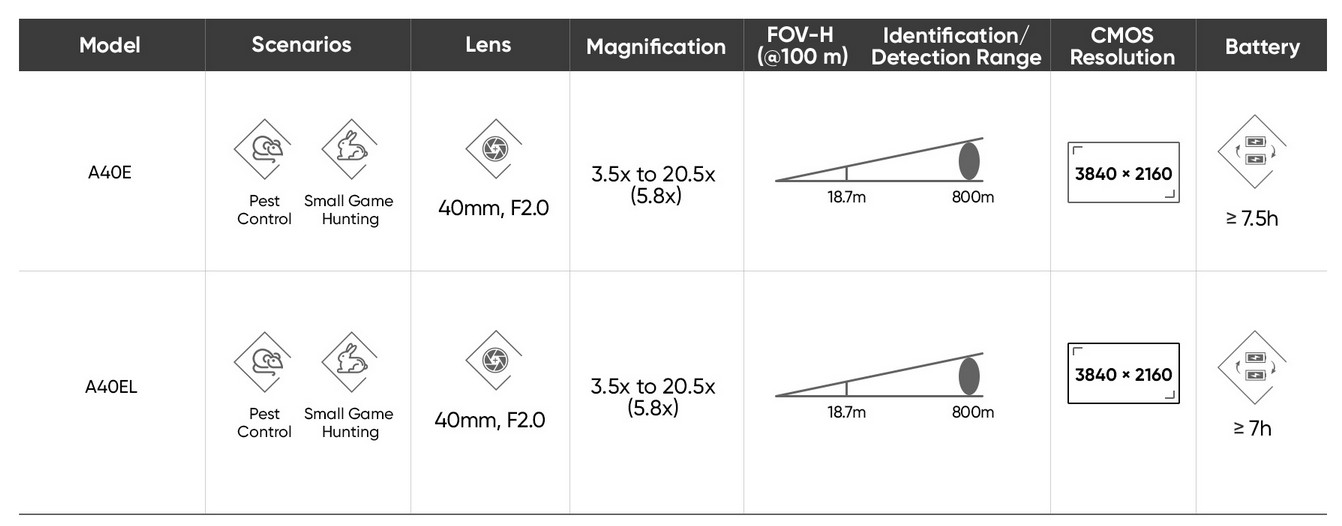

Select Model: LRF

Non LRF

LRF

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Must-Have Additions for Your Order!

HIKMICRO Alpex 4K LITE Digital Day and Night Vision Rifle Scope with LRF

THIS ITEM:

HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope

£499.99 Was £649.99

HIKMICRO Alpex Replacement IR Torch

£82.80

HIKMICRO Alpex IR Torch Bracket

£40.00

WULF FIIR LED 850NM IR 38mm Ultra Wide Illuminator

£44.95

Total (4): £667.74

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

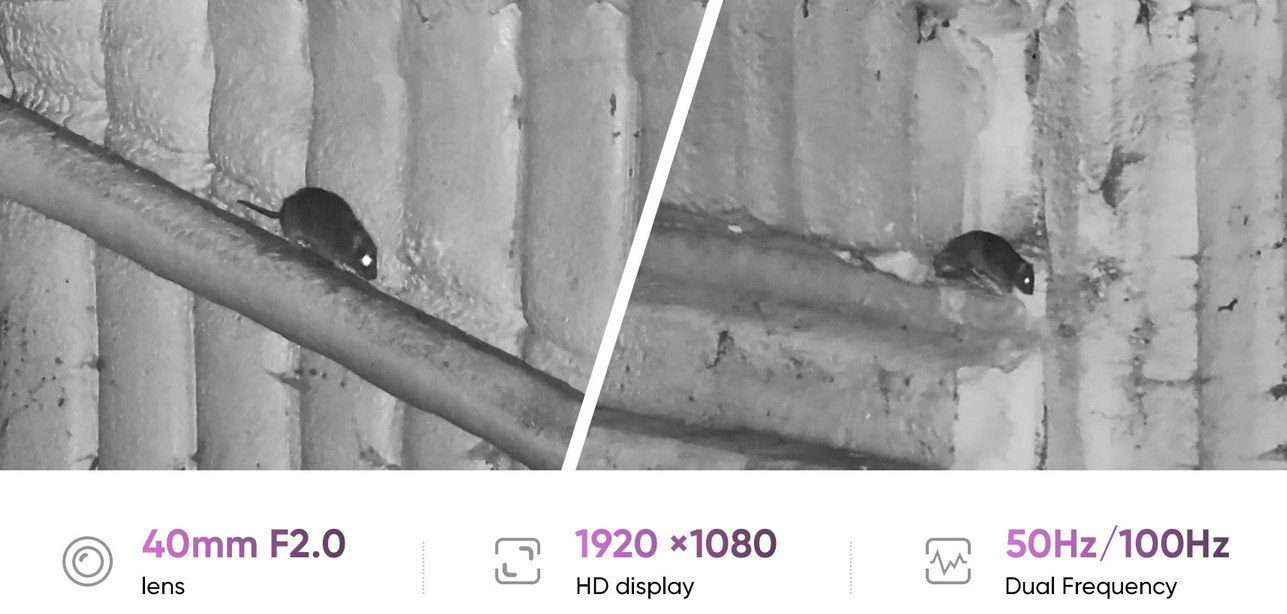

The HIKMICRO ALPEX 4K A40EL is engineered for shooters who demand precision without compromise. Combining a 3840×2160 4K CMOS sensor with a 40mm F2.0 lens, this digital day and night vision scope delivers exceptional image clarity and target recognition in virtually any lighting condition. What sets the A40EL apart is its integrated 1000-meter laser rangefinder with real-time ballistic calculation. This system automatically adjusts reticle holdover based on distance and pellet type—ensuring deadly accuracy whether you're zeroing in on rats at 30 meters or challenging a 90-meter shot with a .25 caliber.

Designed for true around-the-clock use, the A40EL leverages adaptive low-light technology to deliver uncompromised detail at dawn, dusk, and in total darkness. Operate in five vision modes—Day, Night, Auto, Green, and Yellow—tailored for varied terrain and ambient light. With dual imaging frequencies (50Hz in 4K, 100Hz in 1080P), the scope ensures crystal-clear static observation and seamless motion tracking with zero blur. A rapid one-second startup puts the A40EL into action instantly, critical for reactive scenarios in the field.

At just 474g and 25% slimmer than conventional optics, the ALPEX 4K A40EL is purpose-built for airguns and tactical manoeuvrability. The 30mm magnesium-alloy tube form factor ensures universal compatibility and lightweight handling—perfect for stalking pests in tight quarters or carrying across open farmland. Intuitive controls are designed for gloved or wet-hand operation, making it field-ready in every sense.

The A40EL is powered by an internal lithium battery with support for an external rechargeable 18650 cell, providing up to 7 hours of continuous operation. Recoil-activated recording with built-in audio and 32GB of internal EMMC storage allows you to capture every shot with forensic clarity. Whether you're targeting, ranging, recording, or navigating at night, the A40EL is the total field solution for modern airgun hunters.

Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

SPECS

Max. Resolution 3840 × 2160
Frame Rate 50 Hz (4K), 100 Hz (1080P)
Lens 40 mm, F2.0
Detection Range (Day) 800 m
Minimum Focusing Distance 2 m
Magnification Range 3.5× to 20.5×
Base Magnification 5.8×
Zoom Continuous
Step Values 0.5×, 1×, 2×, 3×, 4×
Field of View (Degrees) 10.7° × 6.1°
Field of View (Metres @100 m) 18.7 m × 10.1 m
Display Type OLED
Display Size 0.49 inch
Display Resolution 1920 × 1080
Image Modes Day, Night, Auto, Green, Yellow
Exit Pupil 6 mm
Eye Relief 45 mm
Dioptre Adjustment -5 D to +5 D
Video Recording On-board (1920 × 1080)
Photo Capture Yes
Audio Recording Yes
Recoil-Activated Recording Yes
Standby Mode Yes
Storage 32 GB built-in EMMC
Picture-in-Picture (PIP) Yes
Freeze Zeroing Yes
Zeroing Profiles 5

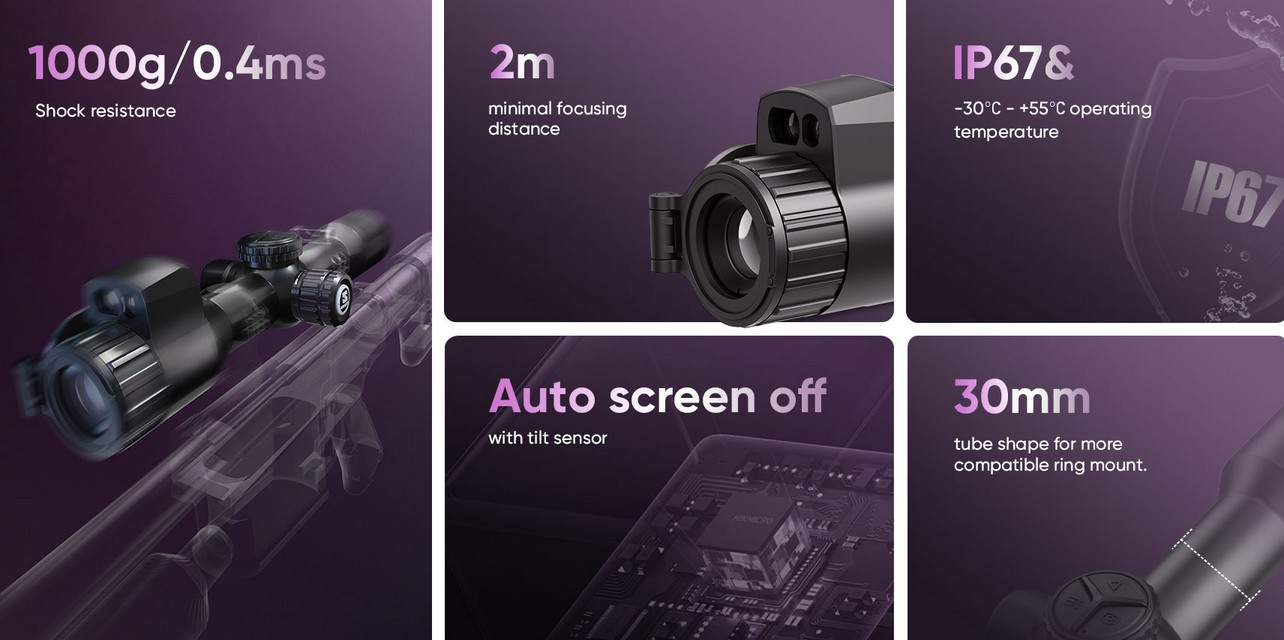

Maximum Recoil Resistance 1000 g / 0.4 ms
Wi-Fi Hotspot Yes
Ballistic Calculation Yes
Click Value 1 click = 1 cm @ 100 m
Battery Type (Internal) Rechargeable lithium battery
Battery Type (External) Replaceable & rechargeable 18650 battery
Operating Time Up to 7 hours (@25°C, Hotspot off)
Charging Interface USB Type-C (5 VDC / 2 A)
Direct Charging Supported only with internal battery
Mounting Standard 30 mm
Protection Level IP67
Operating Temperature -30°C to 55°C (-22°F to 131°F)

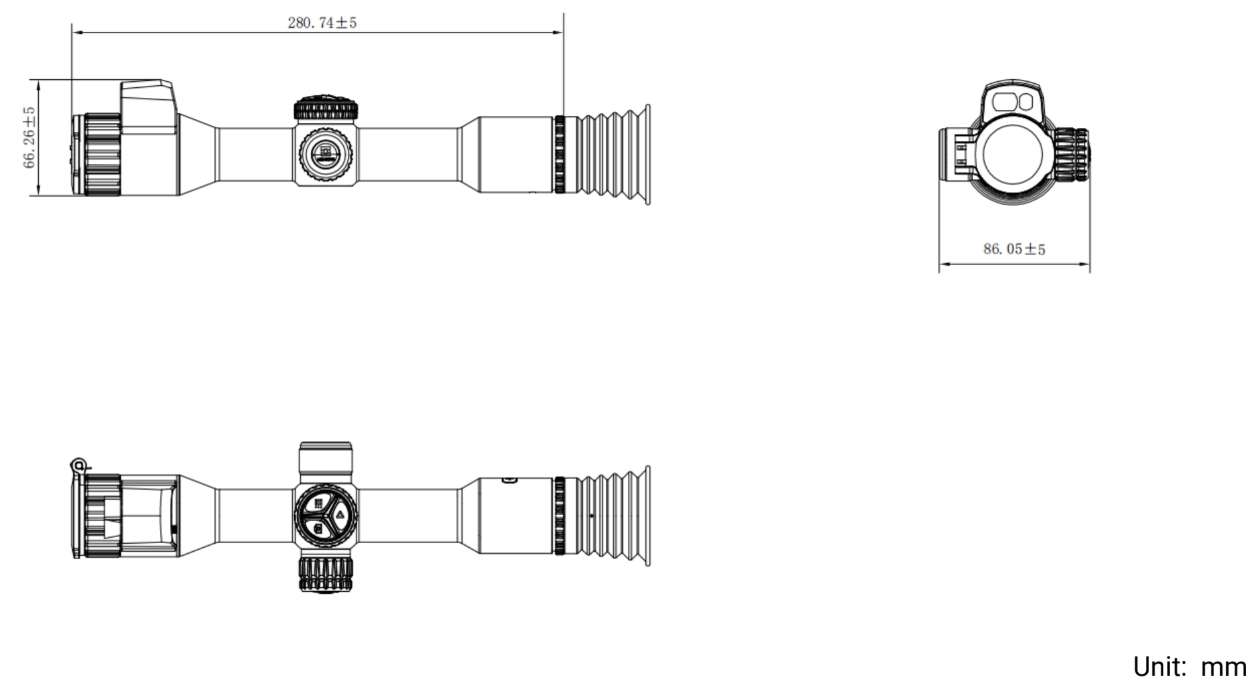

Dimensions 280.7 mm × 86.1 mm × 66.3 mm (without eyepiece)
Weight 474 g (without external battery)
Laser Rangefinder – Safety Class Class 1
Laser Rangefinder – Wavelength 905 nm
Laser Rangefinder – Minimum Measuring Range 3 m
Laser Rangefinder – Maximum Measuring Range 1000 m
Laser Rangefinder – Measurement Accuracy ±1 m

FEATURES

Integrated Laser Rangefinder: Built-in 1000m LRF with ±1m accuracy and real-time ballistic adjustment for pinpoint precision.
4K UHD Sensor: 3840×2160 CMOS resolution delivers unmatched clarity in both day and low-light conditions.
One-Second Startup: Powers on instantly, ensuring you're always ready for rapid target acquisition in the field.
Dual-Frequency Imaging: 50Hz at 4K and 100Hz at 1080P for blur-free motion and stable observation.
Ultra-Compact Build: 25% slimmer, just 474g, with a 30mm magnesium-alloy tube for seamless airgun integration.
1000m LRF with Ballistic Correction: Built-in laser rangefinder for accurate shooting solutions.
Adaptive Display Modes: Day, Night, Auto, Green, and Yellow for any environment.
Pellet Drop Compensation: Supports .177, .22, and .25 calibres for precise shooting.
0.49" OLED Screen: Full HD resolution for crisp, high-contrast visuals.
Recoil-Activated Video: With integrated audio capture.
32GB Internal Storage: EMMC memory for recording sessions.
Extended Runtime: Up to 7 hours continuous use with dual battery support.
Lightweight Magnesium Body: Ensures durability and long-term performance.
Seamless Digital Zoom: Up to 20.5x with step or continuous control.
Instant Operation: One-second boot time for fast deployment.

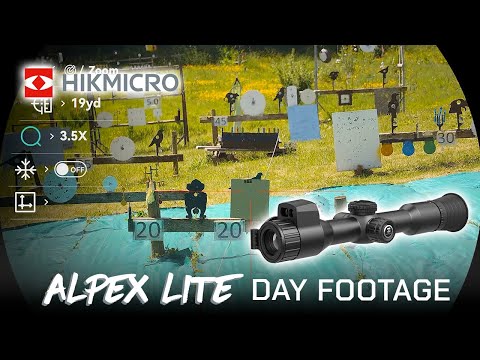

VIDEOS

WHAT'S IN THE BOX

HIKMICRO Alpex 4K LITE Digital Day and Night Vision Rifle Scope with LRF
Quick start guide
Type-C USB cable
Lint free cloth
1x battery
1x battery charger

WARRANTY

Battery: 1 year warranty
Unit: 3 year warranty

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.

DELIVERY & RETURNS

Our aim is to ensure that your order arrives with you as soon as possible and in the safest, most cost-effective means.

Please Note: Shipping charges may be subject to additional surcharges if out of area or over weight restrictions.

Please Note: DPD SHIPMENTS REQUIRE THE CUSTOMER TO SHOW A PIN CODE ON DELIVERY - READ MORE: HERE

COURIERS

We use DPD , RoyalMail, TNT and UPS courier services for all our orders whether dispatching to the UK or International. As soon as your order has been dispatched you will receive an email with your unique tracking number. We are unable to add delivery notes to your order regarding safe spaces or neighbour deliveries. If you require this service it can be arranged directly with the courier once the parcel is in their network.

IN-STORE ITEMS

These are items that we have in-stock and will be sent out for delivery as soon as possible. We aim to dispatch all orders within 1-2 working days, but during busy periods dispatch may be delayed by a day or so. If you would like to purchase the item in person then please call ahead to arrange an appointment: 01803 611 895.

PRE-ORDER ITEMS

These are usually items that are going to be out-of-stock for a number of weeks or are in short supply. By purchasing a Pre-Order Item you are in effect paying a deposit for your goods. As soon as the item is back in stock yours will be dispatched within 24 hours where possible. Please see individual product pages for current back-in-stock dates. In rare occasions, these dates can be changed by the manufacturers so we recommend staying in contact with Optics Warehouse depending on the product lead time.

INTERNATIONAL DELIVERY & TAXES

In addition to the above information If your delivery address is outside of the UK you may be subject to import duties and taxes, which are levied once a shipment reaches your country. Any such additional charges for customs clearance must be borne by you. You should note that customs policies vary widely from country to country. Optics Warehouse advises each customer to contact their local customs office for further information if they are in any way unsure of local duties or liabilities. Cross border shipments are subject to opening and inspection by customs authorities which means some packages may be opened and re-sealed.

NEED HELP?

If you require any further assistance, please call us on 01803 611 895 or email sales@opticswarehouse.co.uk

-

A NOTE ABOUT DPD SHIPMENTS:

Please be advised that we have now introduced DPD Pins to all DPD orders from Optics Warehouse.
If your shipment is being sent from Optics Warehouse via DPD you will be sent a Pin Code that must be shown to the courier upon delivery.
The pincode is sent VIA email & TEXT message. A valid email address and mobile number must be provided at checkout. Emails will be sent from "Riviera House 3PL" - if you do not receive this email please check your junk or spam folders.
Please note that if you do not display your pin code to the courier driver upon delivery, you will not be able to have your item and you may need to schedule another delivery date to show a valid pin.
Please view the attached slides HERE for further information!

ASK A QUESTION

Q: Does this come with scope mounts included

A:The rings are not included, so you will need to source a suitable pair of 30mm rings for your setup.

Q: What mounting brackets would I require to mount the Hikmicro Alpex 4k lite A40EL to an original BSA R10?

A:To mount the Hikmicro Alpex 4K Lite A40EL to an original BSA R10, you’ll need a set of 13mm dovetail rings — not the more common 11mm size, as the BSA R10 uses the wider 13mm rail. Additionally, you'll want to choose high or extra-high rings to ensure sufficient clearance for the scope's objective lens and to provide a comfortable eye position. Let me know if you’d like help finding a suitable set.

Q: What calibre is this scope rated to?

A:It’s rated to handle up to 1000g of recoil. Calibres in that range include rounds like .378 Weatherby and .400 H\&H. Anything lighter, such as .223, .308, or 6.5 Creedmoor, will be well within its limits and perfectly fine to use.

Q: WHich IR Illuminator and bracket is best for this scope? For use with sub 12ftlb airrifle

A:Use HM-IRB-A for the bracket and HM-L128IR for the torch.

Q: Can the Alpex 4K Lite be used on a .243 and .270?

A:Yes, the Alpex Lite can be used on a .243 or .270. However, for effective visibility at longer ranges, you'll need a quality IR torch—just as you would with the standard Alpex.

Q: I’m interested in the HIKMICRO ALPEX 4K Lite LRF A40EL. I was wondering if this would be able to cope with the recoil from most spring air rifles? A lot of people that I shoot with at the range have ended up sending scopes back for replacement due to spring actions damaging them. I happen to know many Arken Optics owners having to return their scopes which is unfortunate as they are nice to look through for the money.

A:It will be fine on a 338 lapua so your springer air rifle will be fine.

Q: I would like to mount this scope on a BRK Ghost air rifle with picatinny mounts but can’t find them on your website?

A:Hi, there is a huge range of Picatinny mounts, if you need help choosing please feel free to give us a call on 01803 611 895 (option 1)
