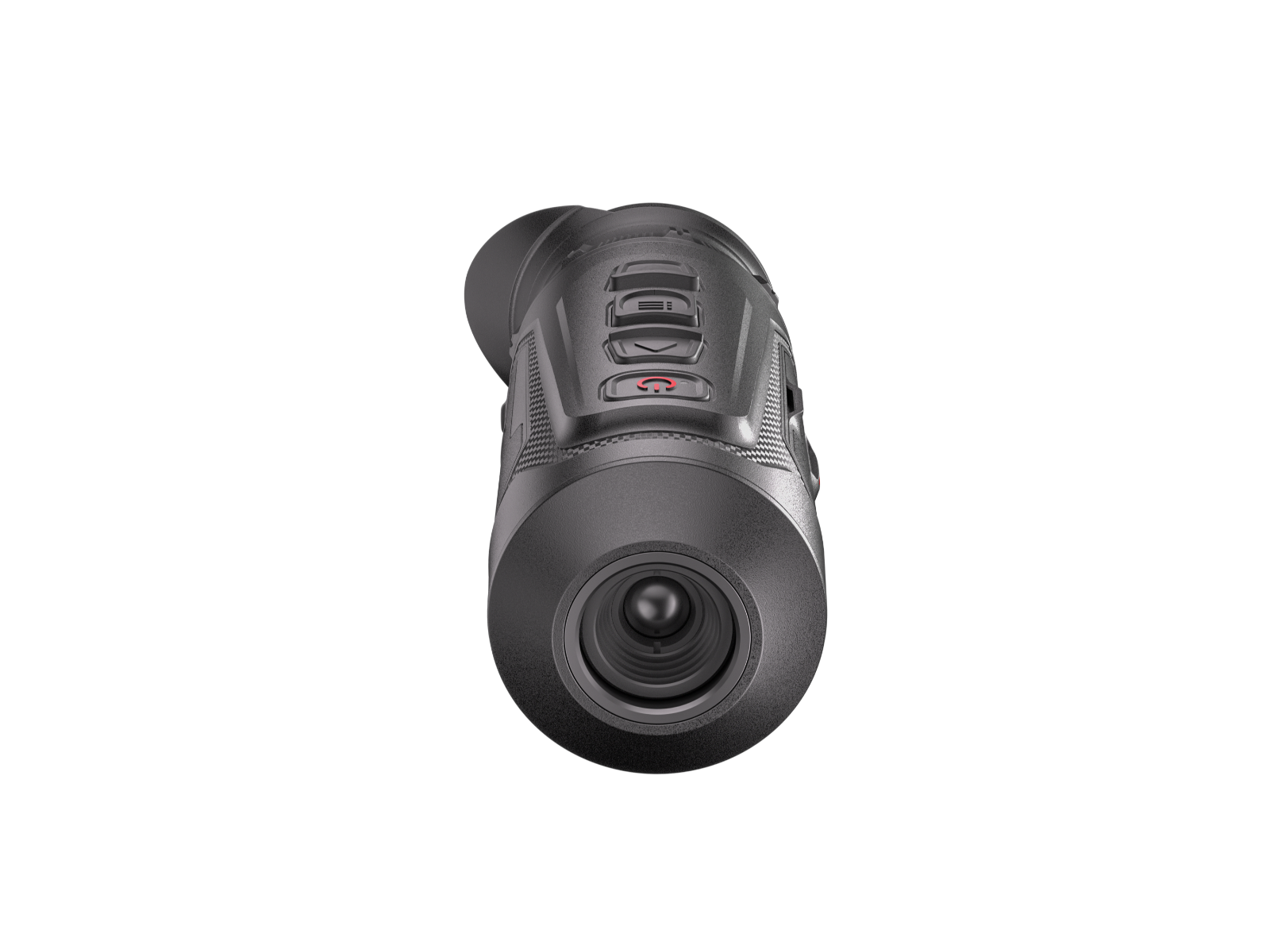

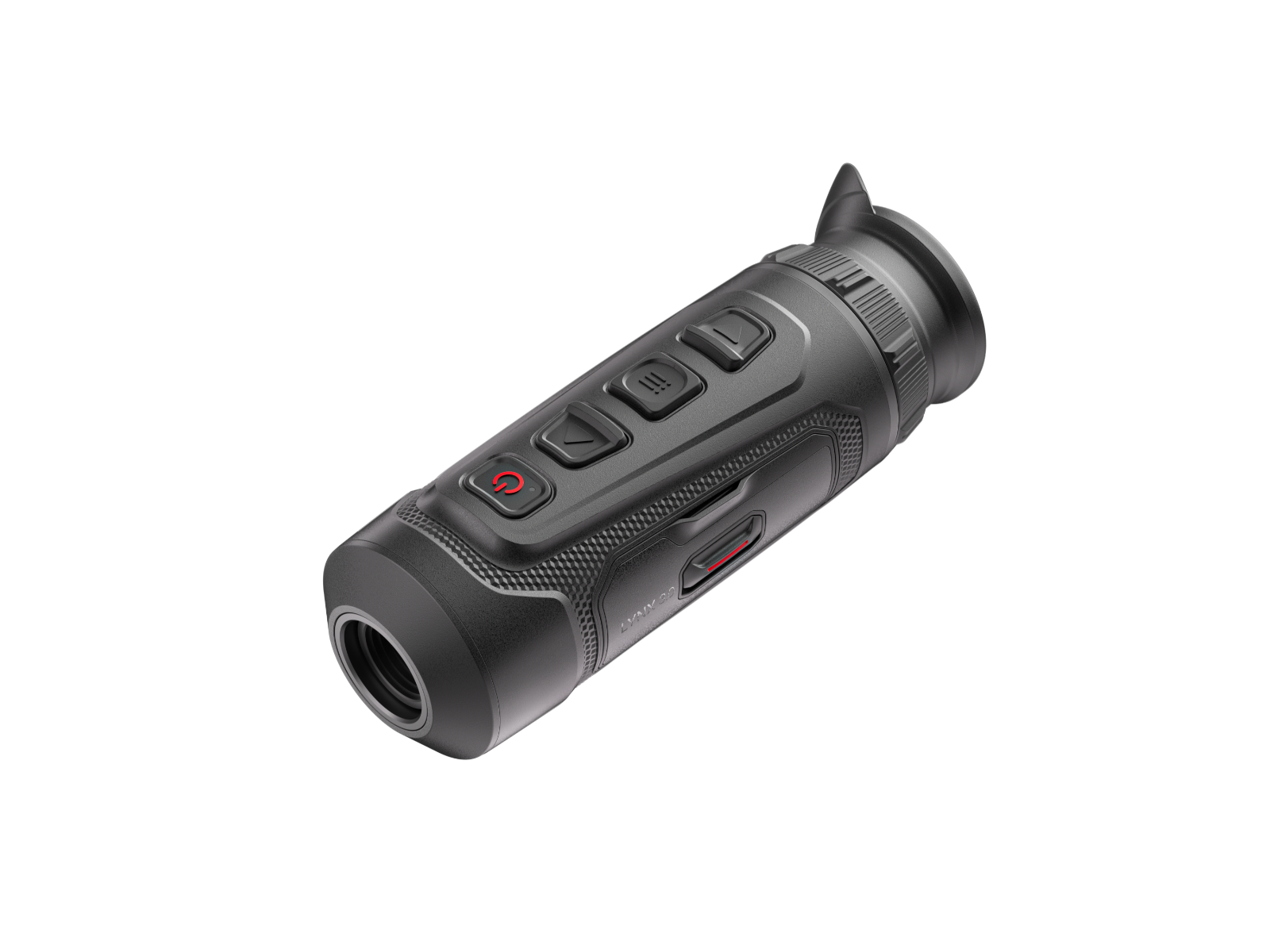

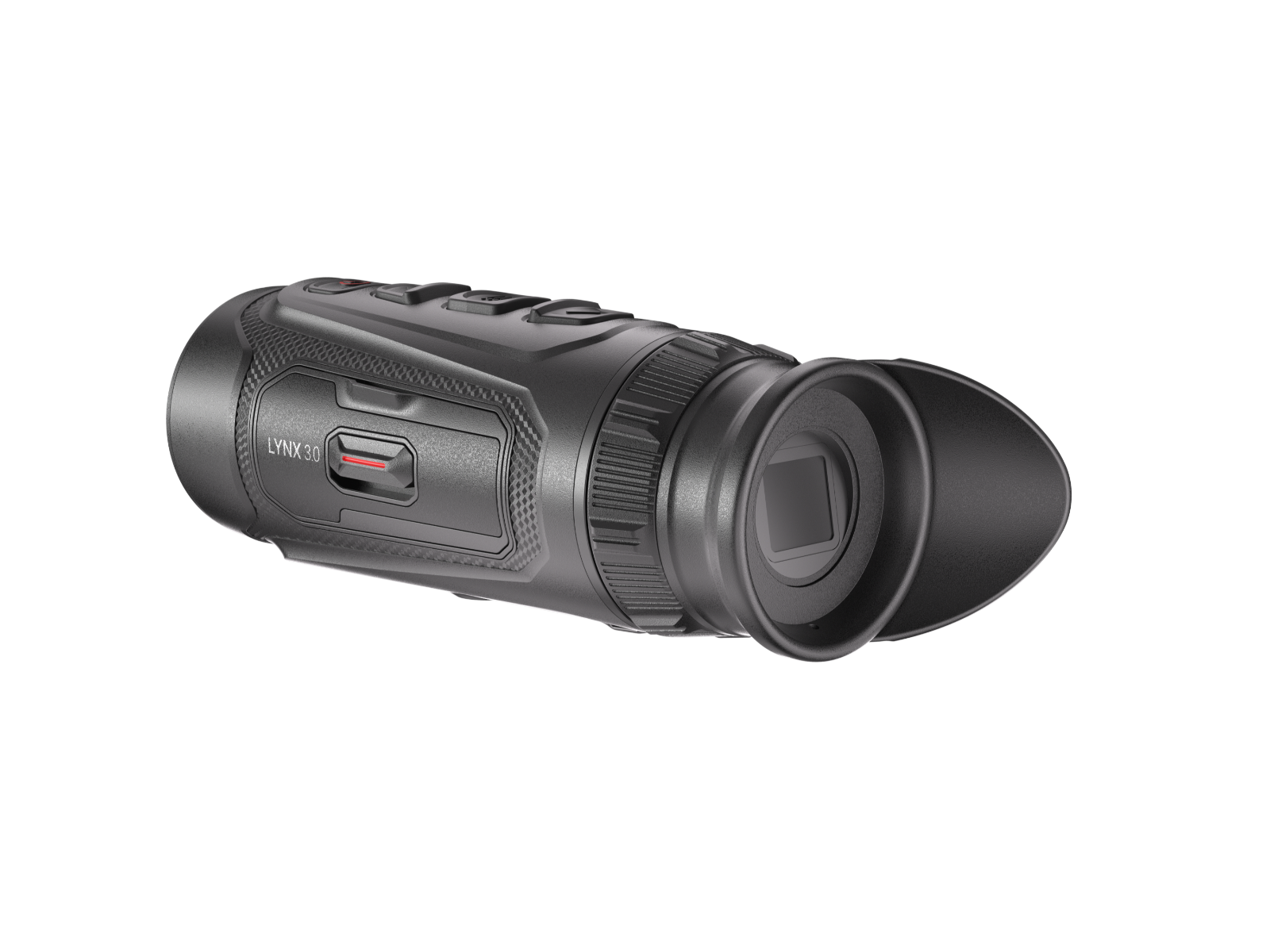

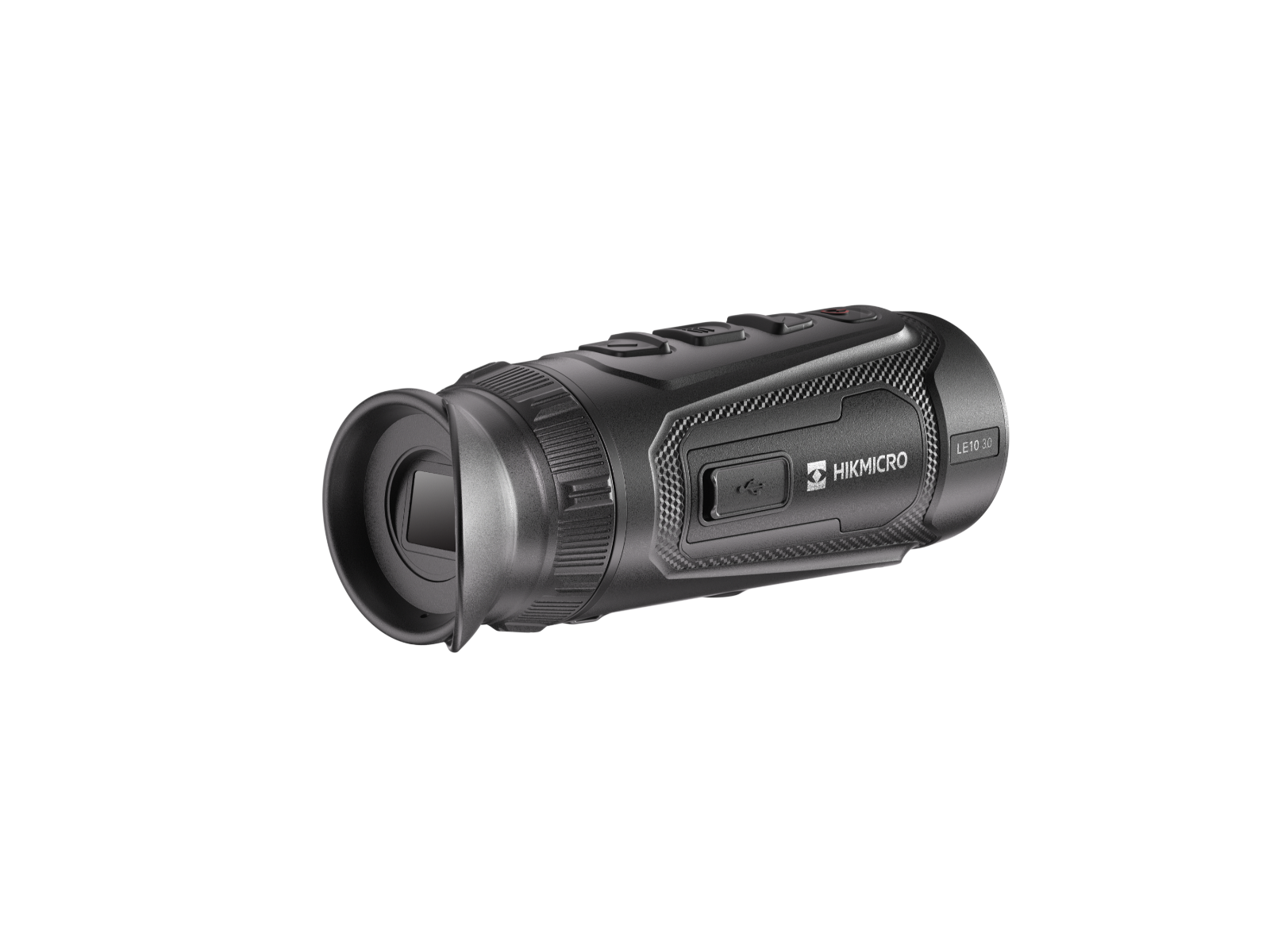

HIKMICRO Lynx 3.0 10mm Thermal Monocular LE10
10mm <20mK 256x192px 12µm 50Hz
The Lynx 3.0 , redefining entry-level thermal imagers , the HIKMICRO Lynx 3.0 LE10 offers precise short-range thermal imaging with AI enhancement, shutterless technology, and exceptional battery life in a lightweight, professional-grade design.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#1000
#1002
#1031
#1026
#1029
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LE10 is designed for professionals seeking compact, high-value thermal imaging for close-range observation. Equipped with a 256x192 thermal detector and a 9.7mm F1.0 lens, it provides a 1.4x base magnification and an 18° field of view, delivering clear, detailed imaging across a detection range of up to 500 metres.
Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LE10 ensures exceptional image sharpness and stability, even in challenging environments. The HIKMICRO Shutterless Image System (HSIS) guarantees silent, seamless image processing, enabling uninterrupted operation during critical tasks such as wildlife observation, surveillance, or search and rescue.
Built for efficiency and endurance, the LE10 features a replaceable 18650 battery delivering up to 5.5 hours of runtime at -20°C. Compact and lightweight at just 291.5 grams, it’s pocket-sized yet robust enough for demanding field use. This is the ideal thermal monocular for users who require reliability, precision, and value in one professional package.
- Max. Resolution 256 × 192
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm to 14 μm
- NETD Less than 20 mK (@25°C), F#=1.0
- Lens (Focal Length) 9.7 mm, F1.0
- Focus Mode Focus Free
- Min. Focusing Distance 3.4 m
- Magnification 1.4 × - 11.2 × (8×)
- Field of View (H × V), Degrees / m @100 m 18.0° × 13.6° / 31.7 m × 23.8 m
- Detection Range 500 m
- Display 1024 × 768, 0.39 inch, AMOLED
- Contrast Adjustment Yes
- Brightness Adjustment Yes
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5 D to +3 D
- Tone Adjustment Cold, Warm
- Zoom Pro Yes
- HSIS (HIKMICRO Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Sync Pro Yes
- Storage Built-in EMMC (64GB)
- Record Video Yes
- Capture Snapshot Yes
- Local Album Yes
- Standby Mode Yes
- PIP Yes
- Hotspot 2.4/5 G WiFi Waveband
- Hot Track Yes
- Distance Measurement Yes
- Audio Recording Yes
- Battery Type Replaceable and rechargeable 18650 battery
- Protection Level IP67
- Weight 291.5 g
- 256×192 thermal detector with NETD < 20 mK
- 9.7mm F1.0 lens with 500m detection range
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- 0.39” 1024×768 AMOLED display
- Up to 5.5 hours’ operation at -20°C
- Lightweight, pocket-sized 291.5g design
- 1 x Lynx 3.0 Thermal Monocular
- 1 x Quick Start Guide
- 2 x 18650 Battery
- 1 x Type-C USB Cable
- 1 x Battery Charger
- 1 x Lint Free Cloth
What battery does this unit use?
- A replaceable & rechargable Pip-Top 18650 battery
What is the detection distance?
- 500 Metres
What is the battery life?
- 5.5 hours at -20°C. It will be longer in warmer conditions.
How does this unit focus?
- This unit has a fixed focus and cannot be manually adjusted.
- Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
